Description

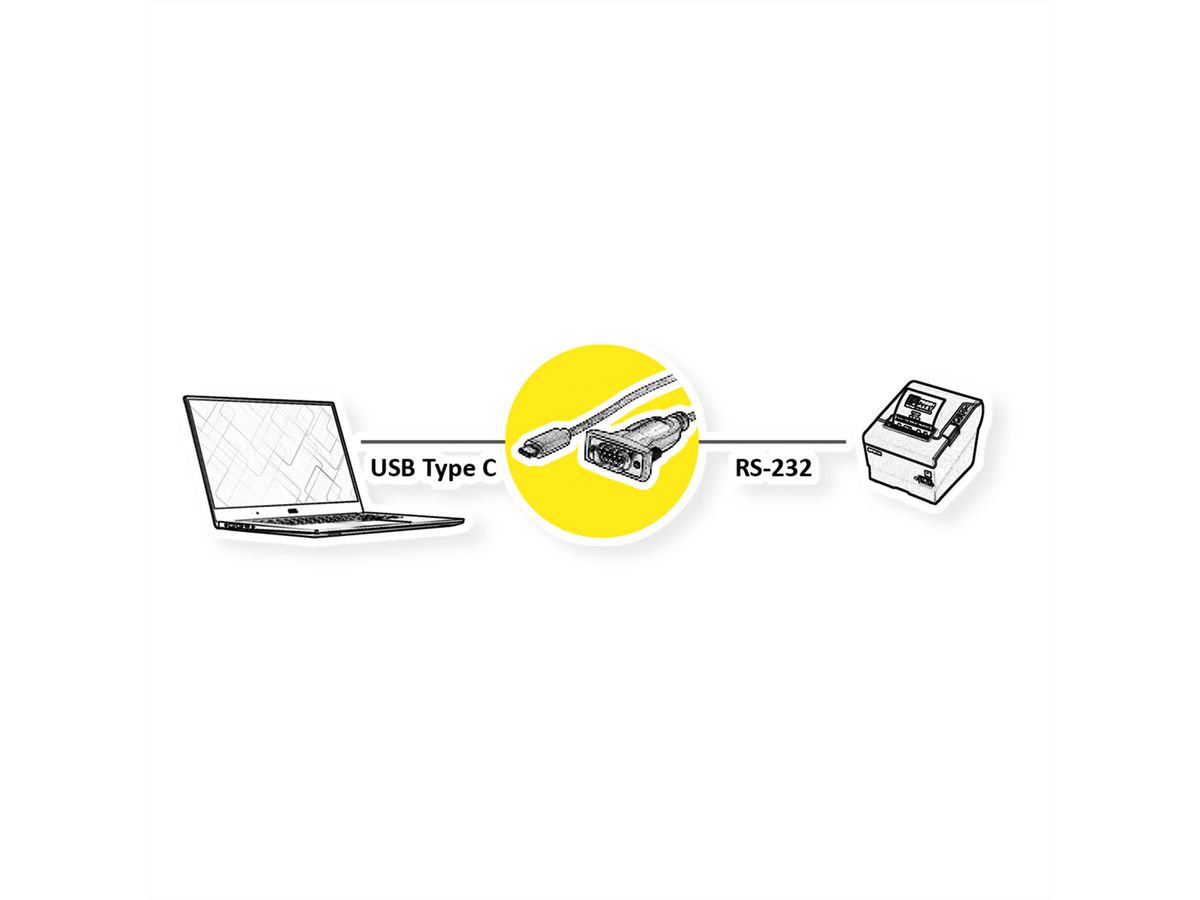

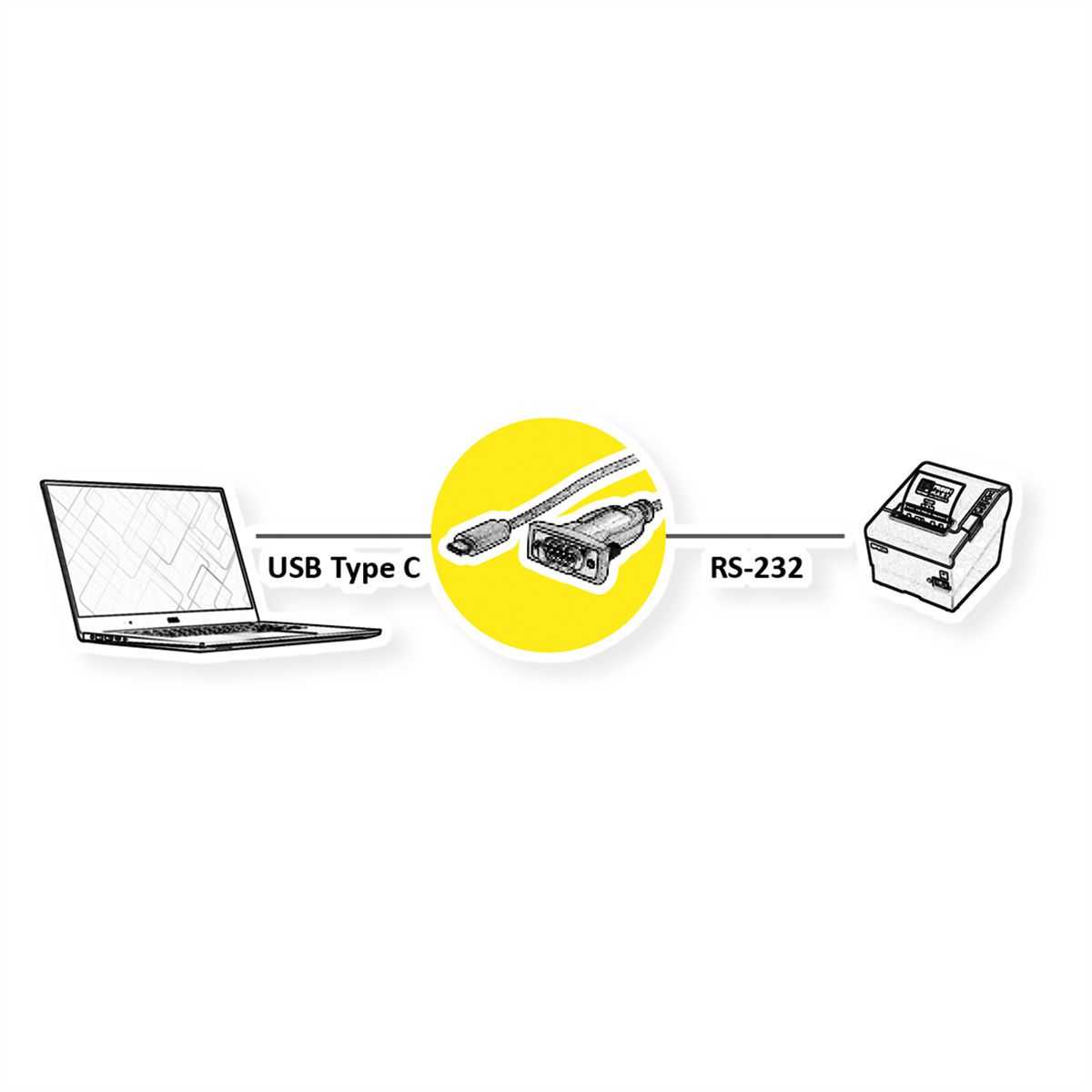

• Quick solution for the use of peripheral devices with serial interfaces (e.g. modems, digital cameras, printers) with notebooks or computers with USB interface using a USB Type C connector
• Full compliance with USB 2.0, USB 1.1
• Data transfer rate of over 1Mbit/s
• Supports RS-232 serial interface
• Supports automatic handshake mode
• Supports remote wakeup and power management
• Power Mode: Bus-powered

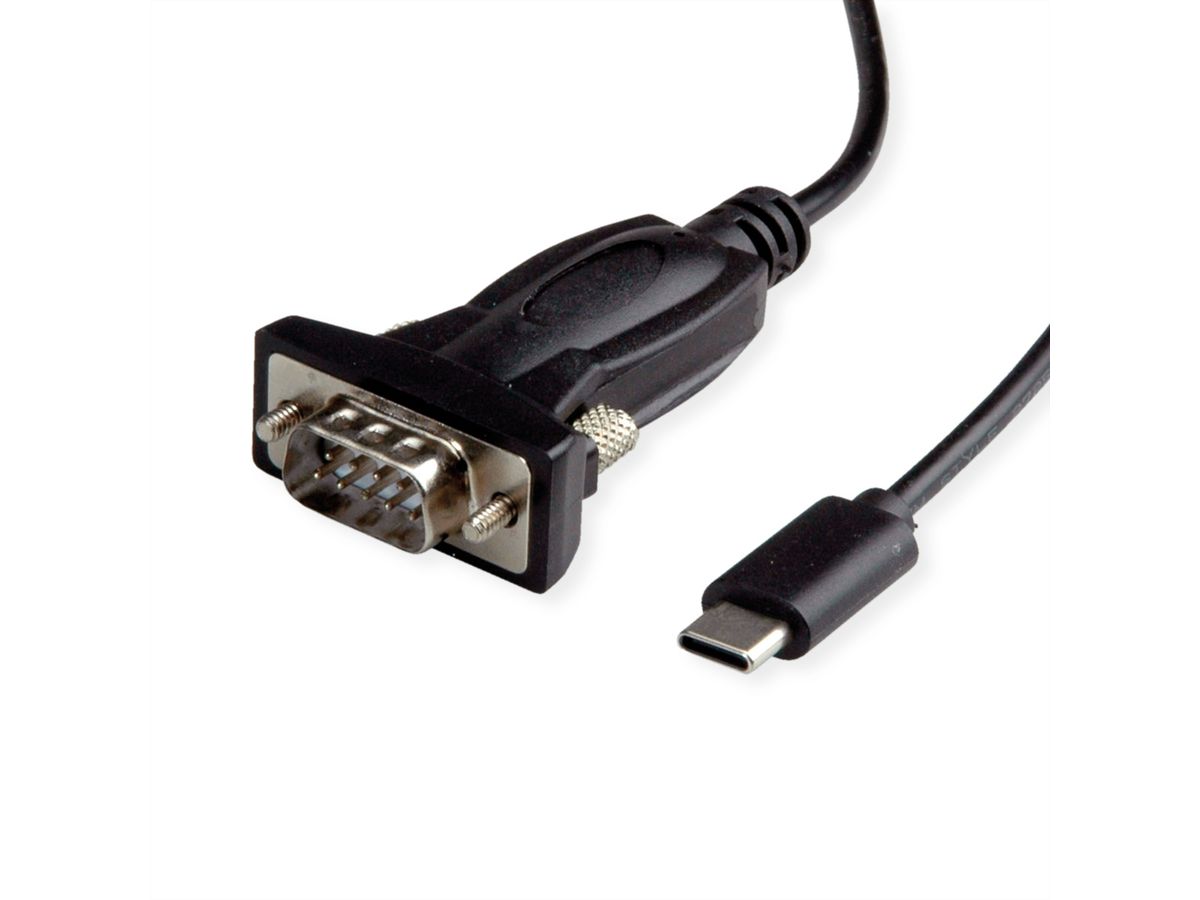

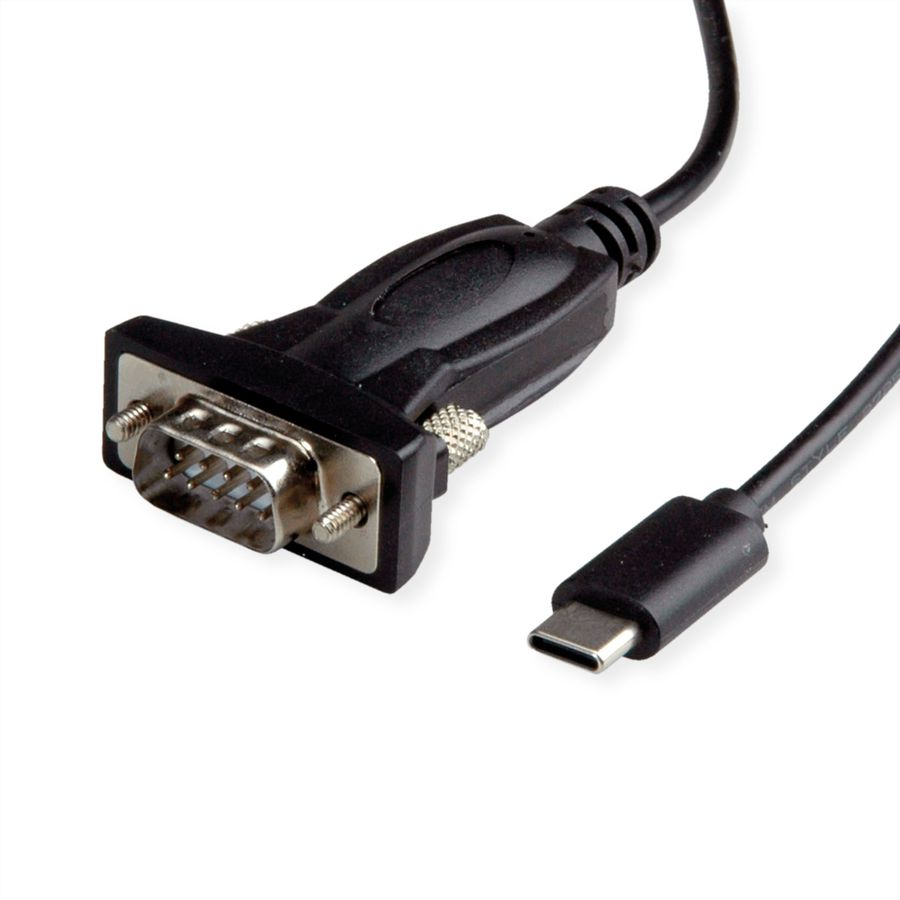

• Connections: 1x USB Type C, 1x DB 9-pin connector, 1x DB 25-pin connector
• Supported Operating Systems: Windows 98, 2000, XP, Vista, Win 7 / 8 / 10, Mac OS X

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	USB - Serial Converter
Colour	black
Length	1.8 m

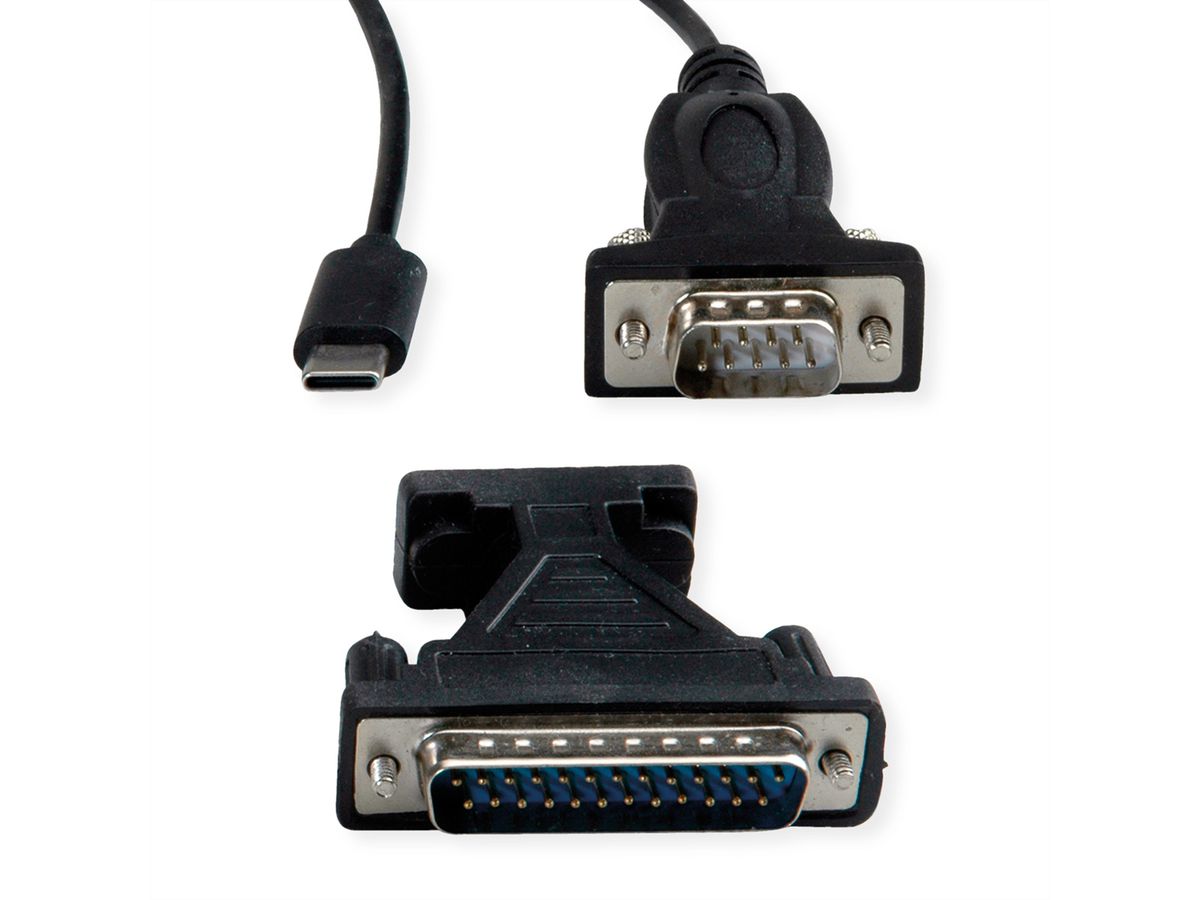

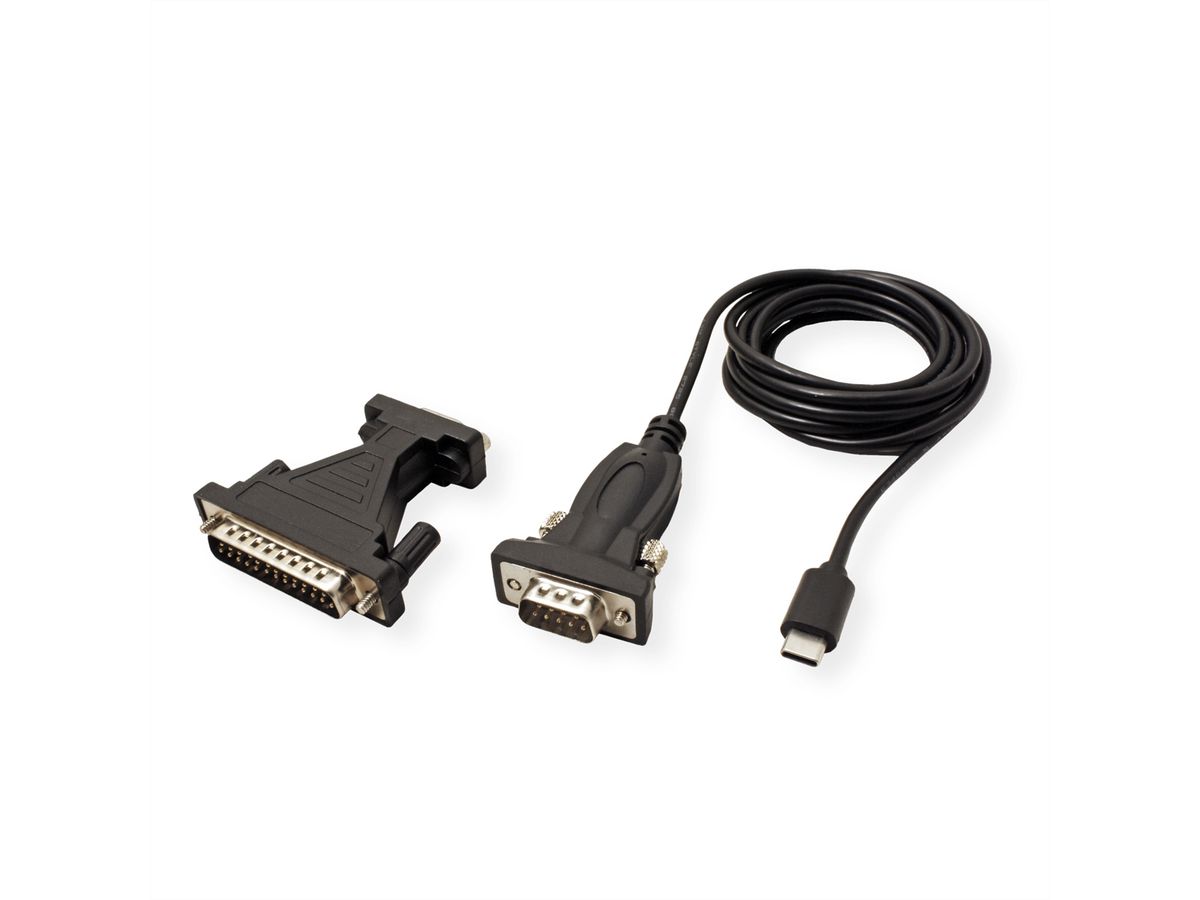

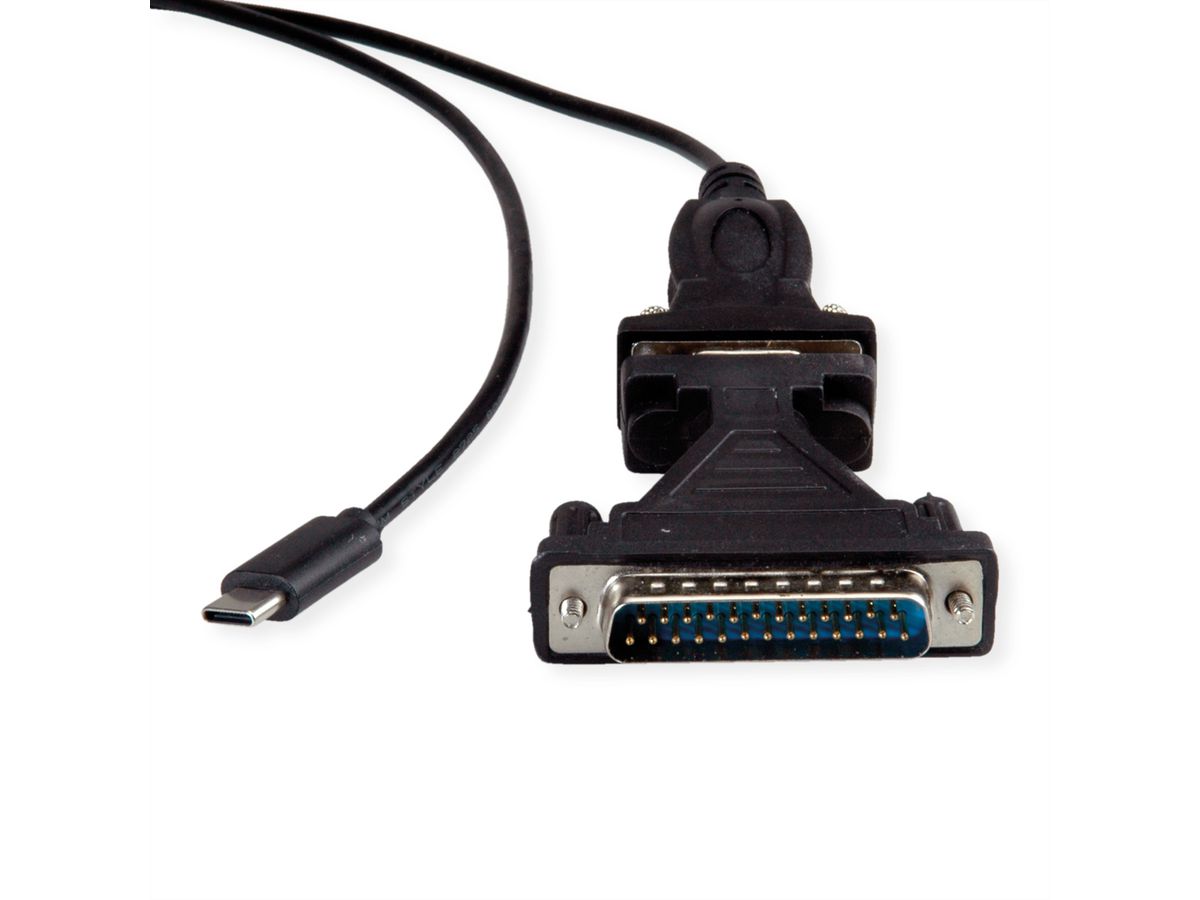

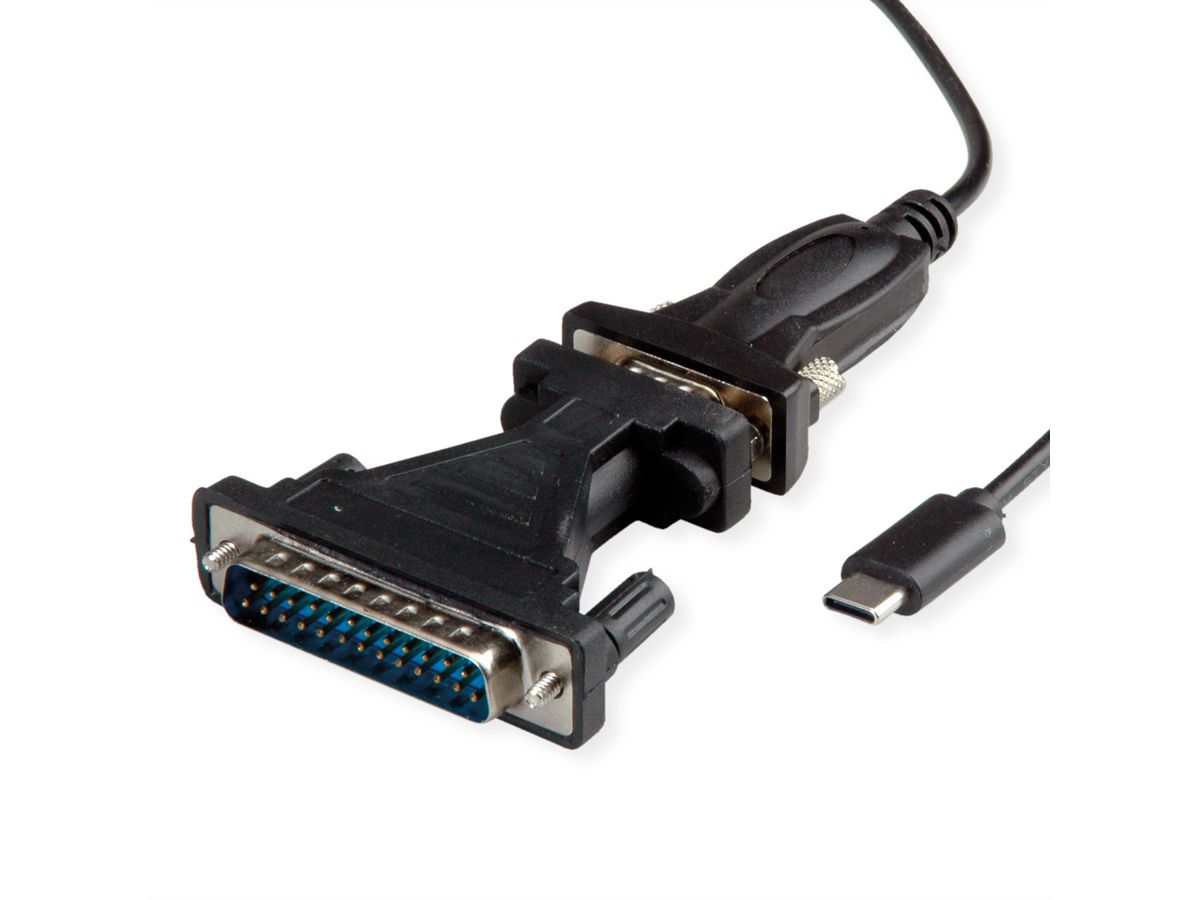

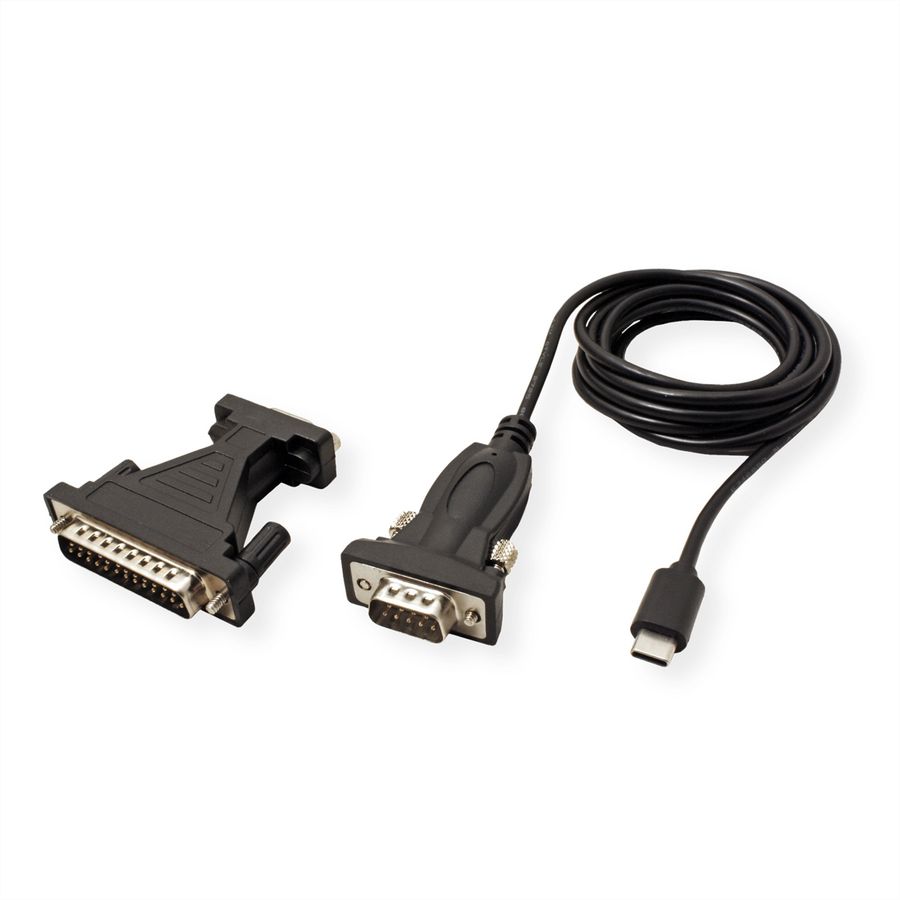

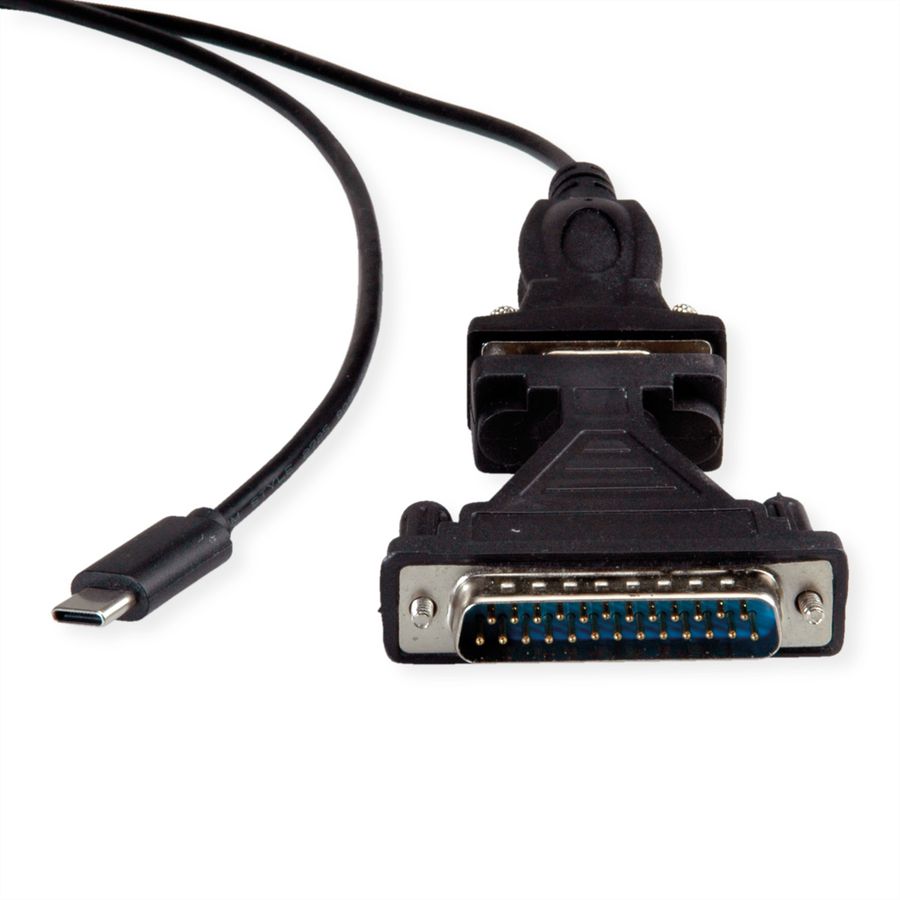

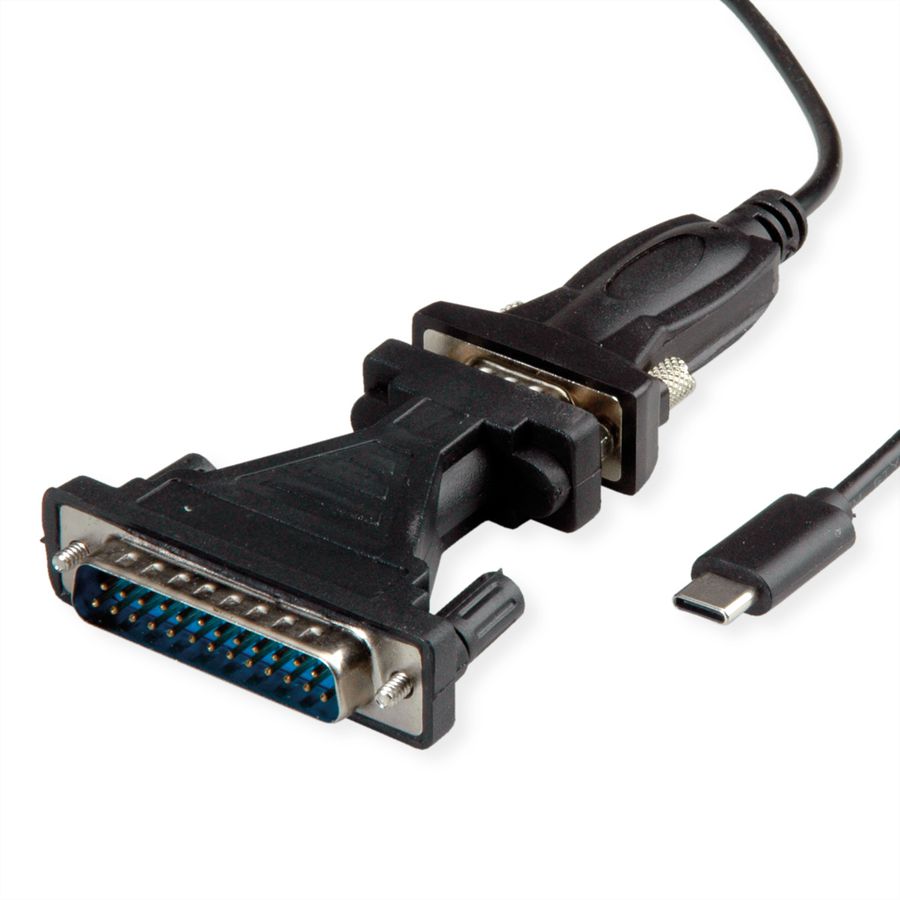

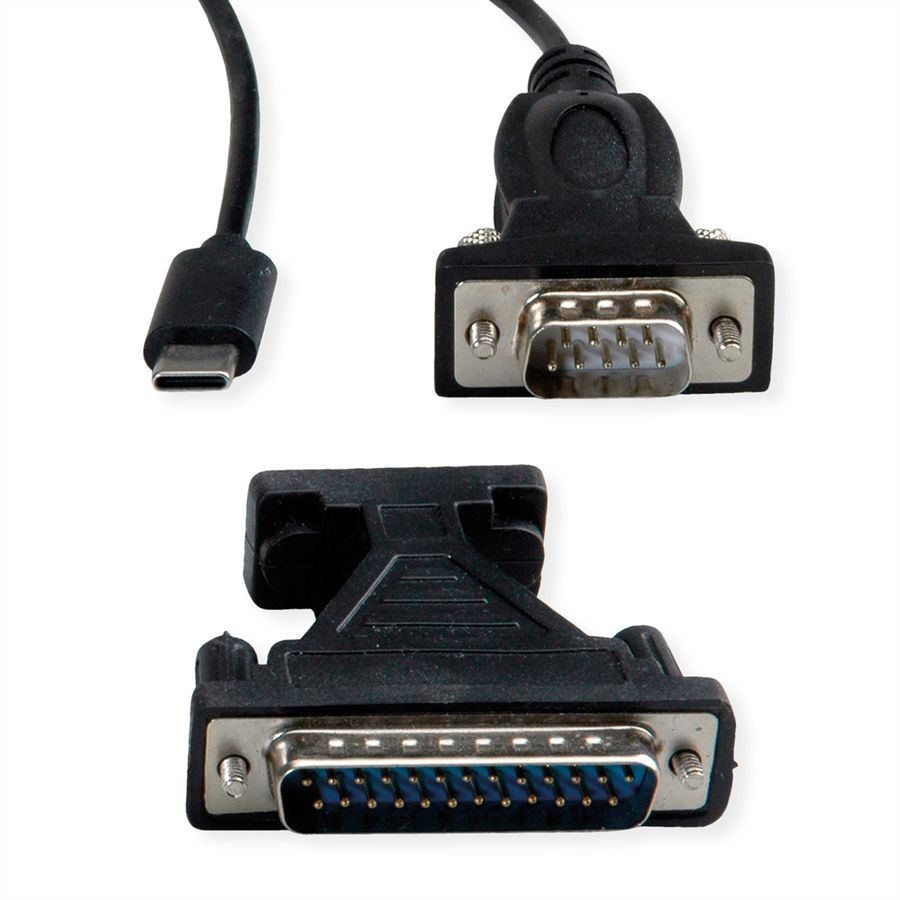

Scope of delivery	Converter cable, adapter DB9 F-DB25 M
Side 1 connection (PC)	USB C Male
Side 2 connection (Peripherals)	DB9 / DB25 Male
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	D-Sub 9-pin (DE-9)
Side 2 Connector Gender	Male
Conversion direction	seriell - USB
Area of application	External
Dimensions (HxWxD)	Cable lengh 1.8 m
Hand locking screws	yes
Weight	114 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.2 kg
