Description

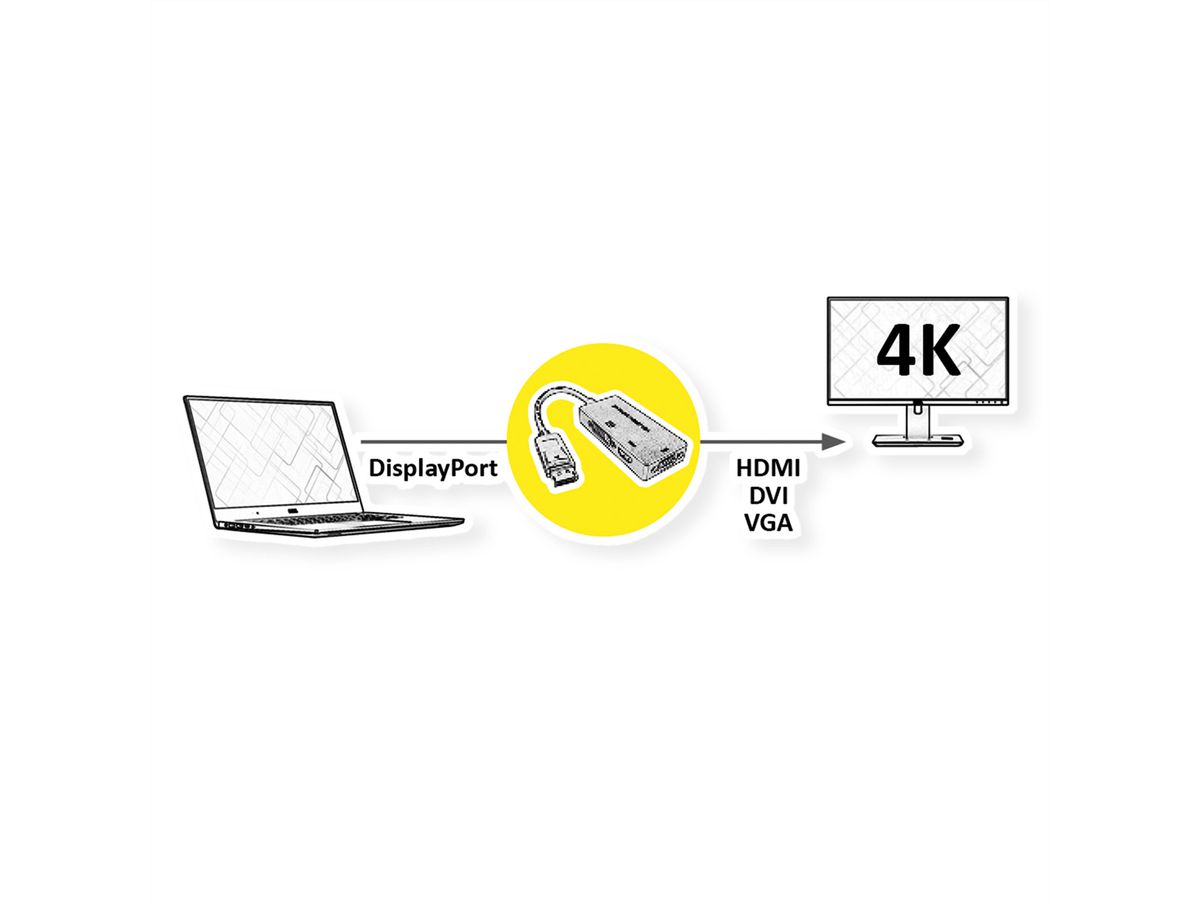

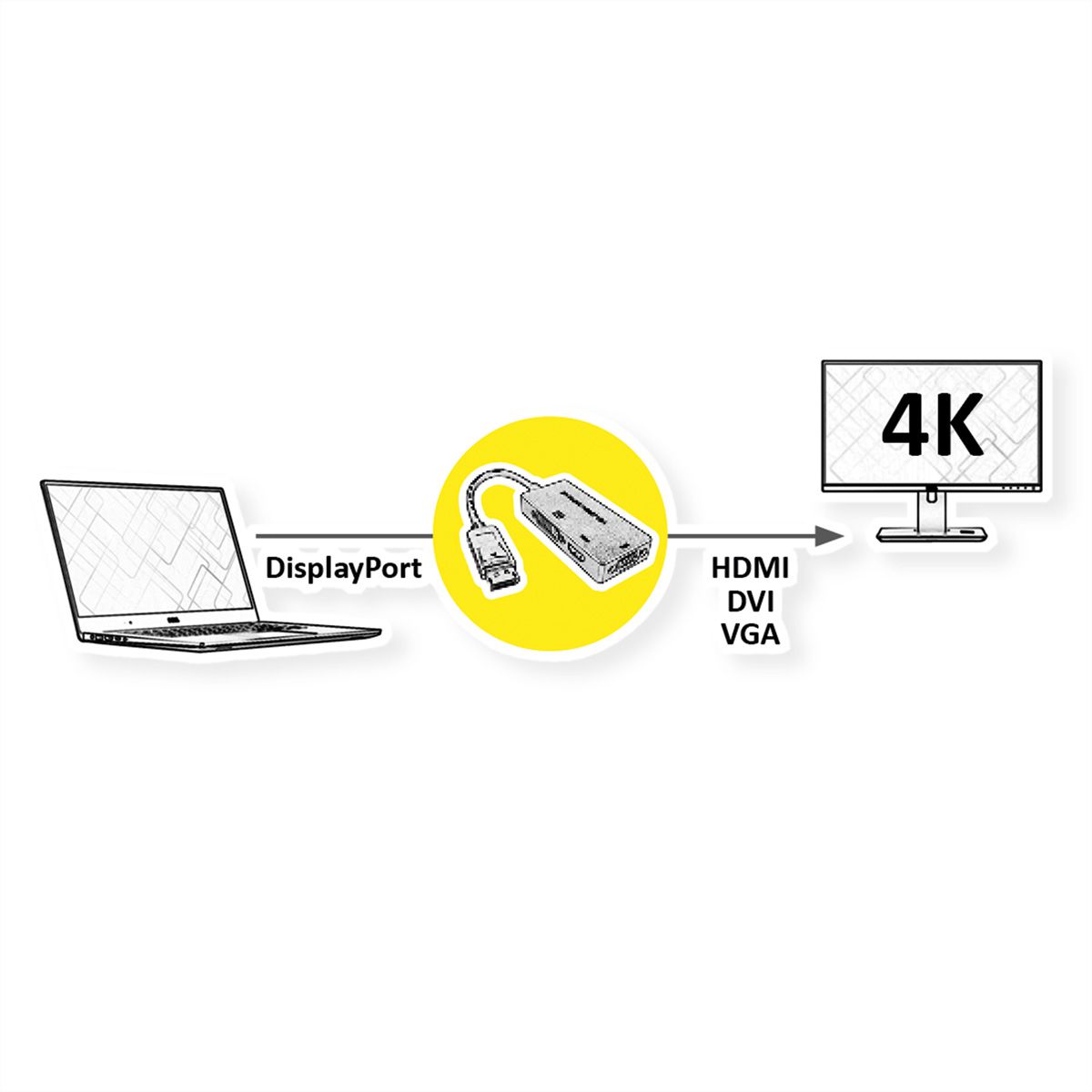

• You want to connect your graphics card with DisplayPort connector to a DVI monitor? Or a display device with VGA input? Or a TV with an HDMI connection? The solution is the VALUE Adapter Cable DisplayPort - VGA / DVI / HDMI
• Cable length: ca. 10 cm
• Maximum resolution: 3840x2160 @60Hz

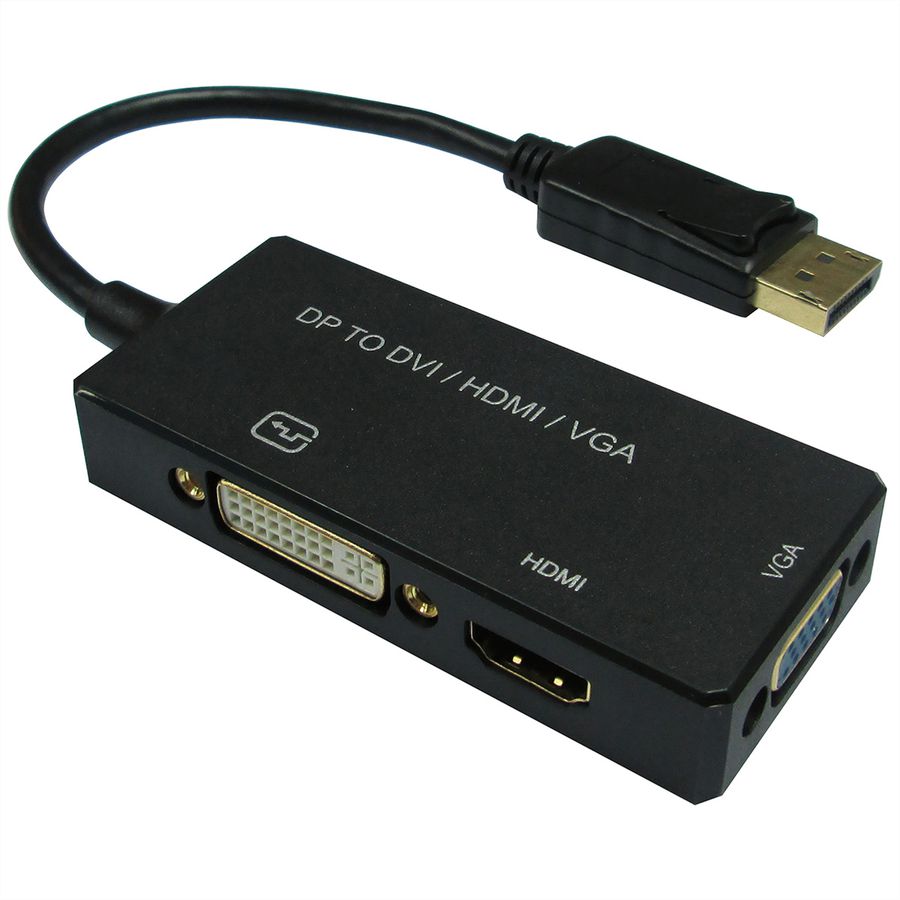

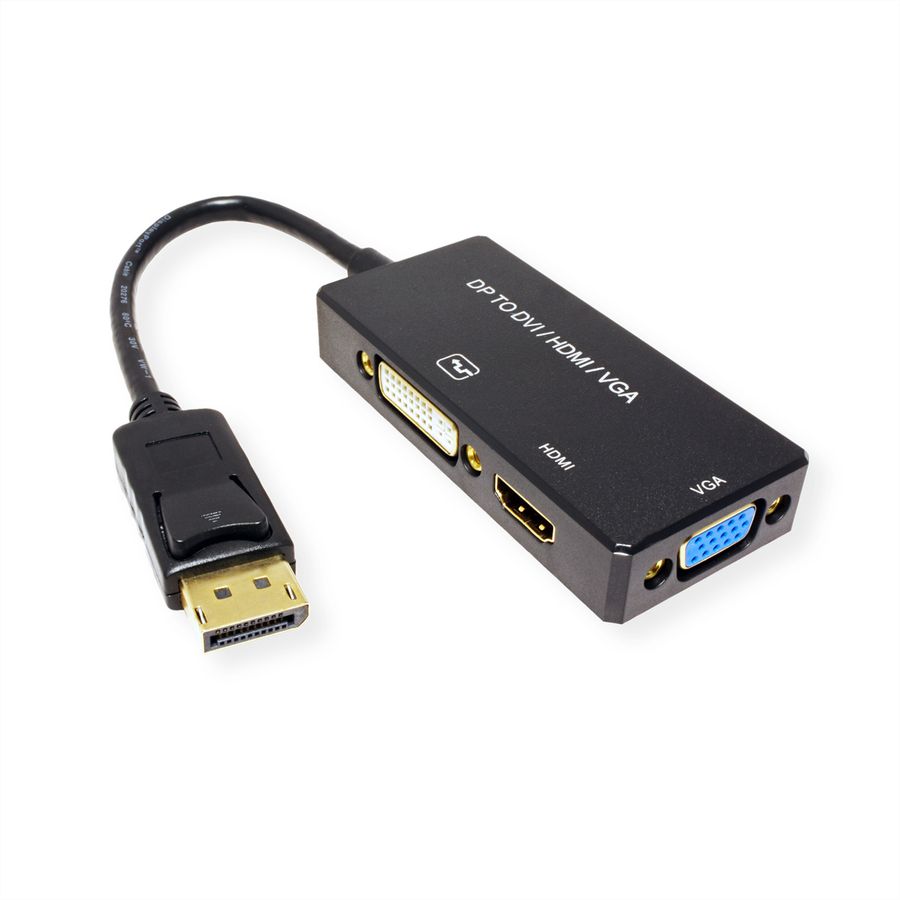

• Adapter with DisplayPort connector and VGA, DVI and HDMI socket.

• Note: The DisplayPort adapter only works in one direction: the DisplayPort connector is only on the data source side can be used (eg graphics card) and only ONE single output is available (VGA or DVI or HDMI)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-VGA/DVI/HDMI Adapter
Colour	black
Length	0.1 m
Max. resolution	3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)	DisplayPort Male
Side 2 connection (Peripherals)	VGA Female, DVI Female, HDMI Female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A DVI-I 24+5 HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Active / Passive	Active
Area of application	External
Height	16 mm
Width	40 mm
Depth	87 mm
Weight	50.5 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	140 mm
Package weight (single piece)	0.06 kg
