VALUE Dockingstation USB-C, HDMI/DP 4K60, Gigabit Ethernet, USB-A, USB-C, PD, SD/microSD, Audio

Item no. 12.99.1142-2 Brand / Manufacturer VALUE Manuf. no. 12.99.1142 EAN 7630049660762 Package weight 0.35 kg
VALUE
New products

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to HDMI or DP displays/monitor or projectors (with a maximum resolution of up to 3840x2160@60Hz). Also, you can connect USB devices to the additional USB Type A Ports, while charging your device simultaneously over the Type C PD port!

  • This docking station allows you to mirror or extend your display to your HDMI or DisplayPort monitor/display or projector
  • 2x HDMI, 1x DisplayPort (max. resolution: 3840x2160 @60Hz)
  • 1x Gigabit Ethernet (GbE - 1000MBit/s)

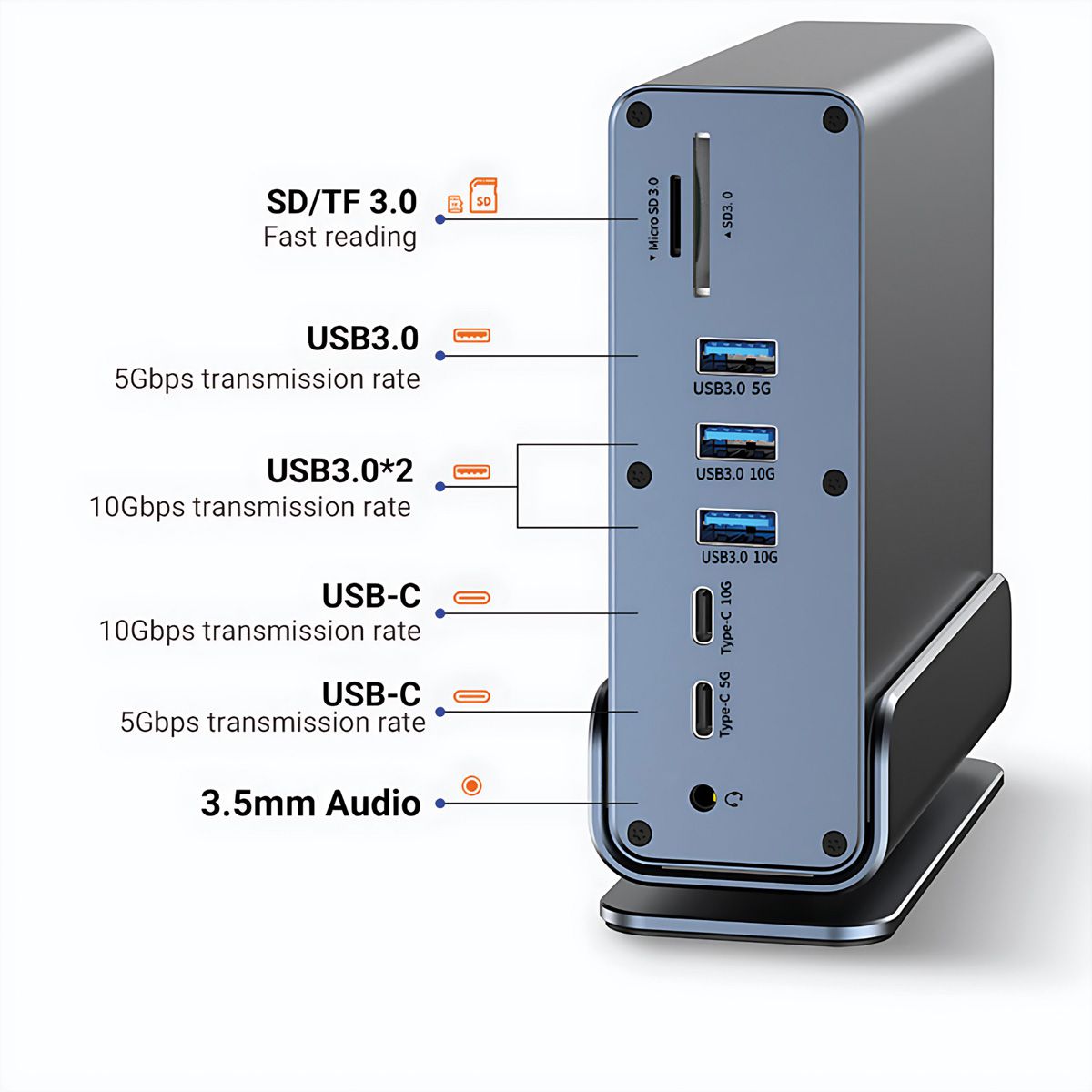

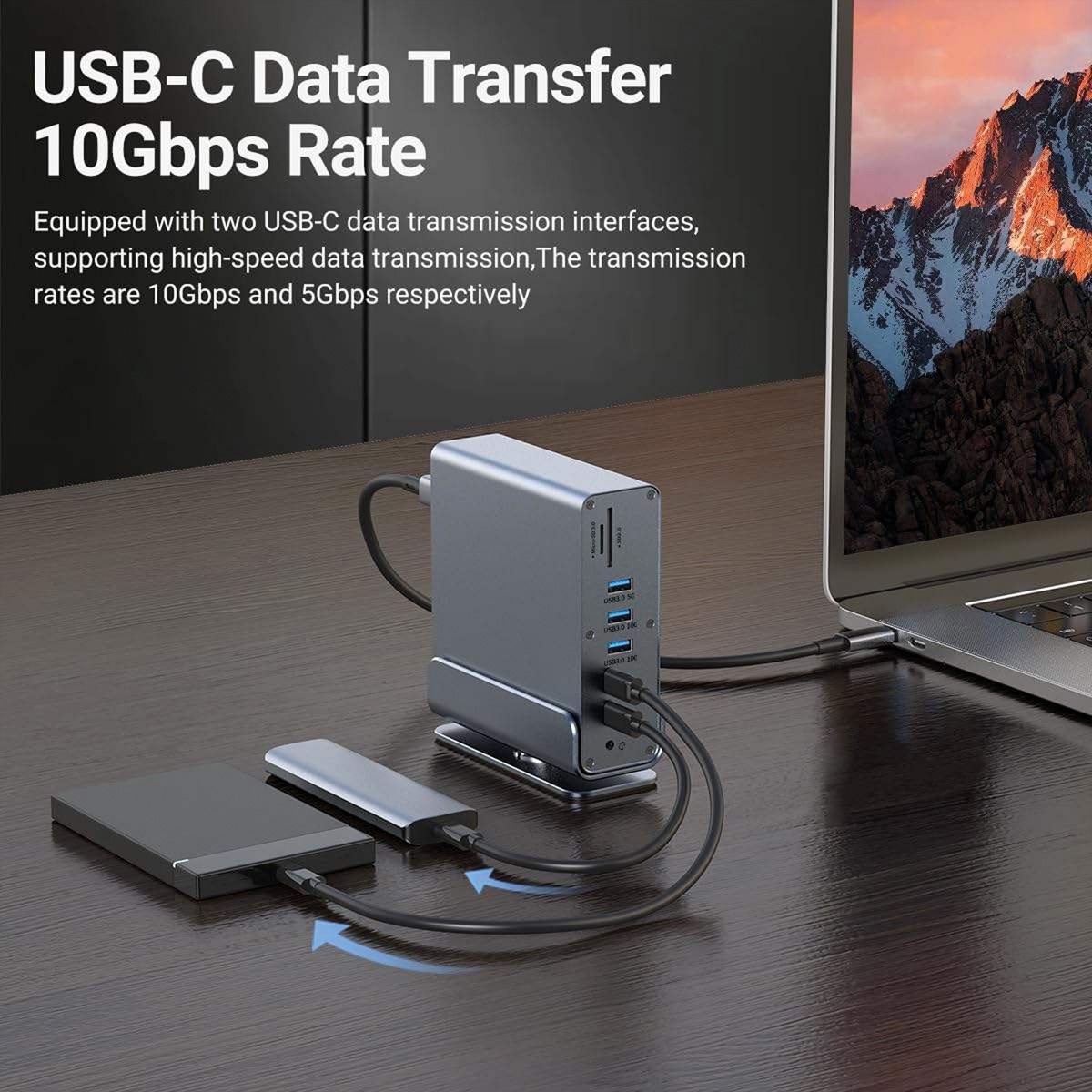

  • 1x C USB 3.2 Gen2 (10G) + 1x C USB 3.2 Gen1 (5G) + 2x A USB 3.2 Gen2 (10G) + 1x A USB 3.2 Gen1 (5G) + 2x A USB 2.0 (480Mbit/s)
  • USB Type C PD (Power Delivery) up to 100 Watts

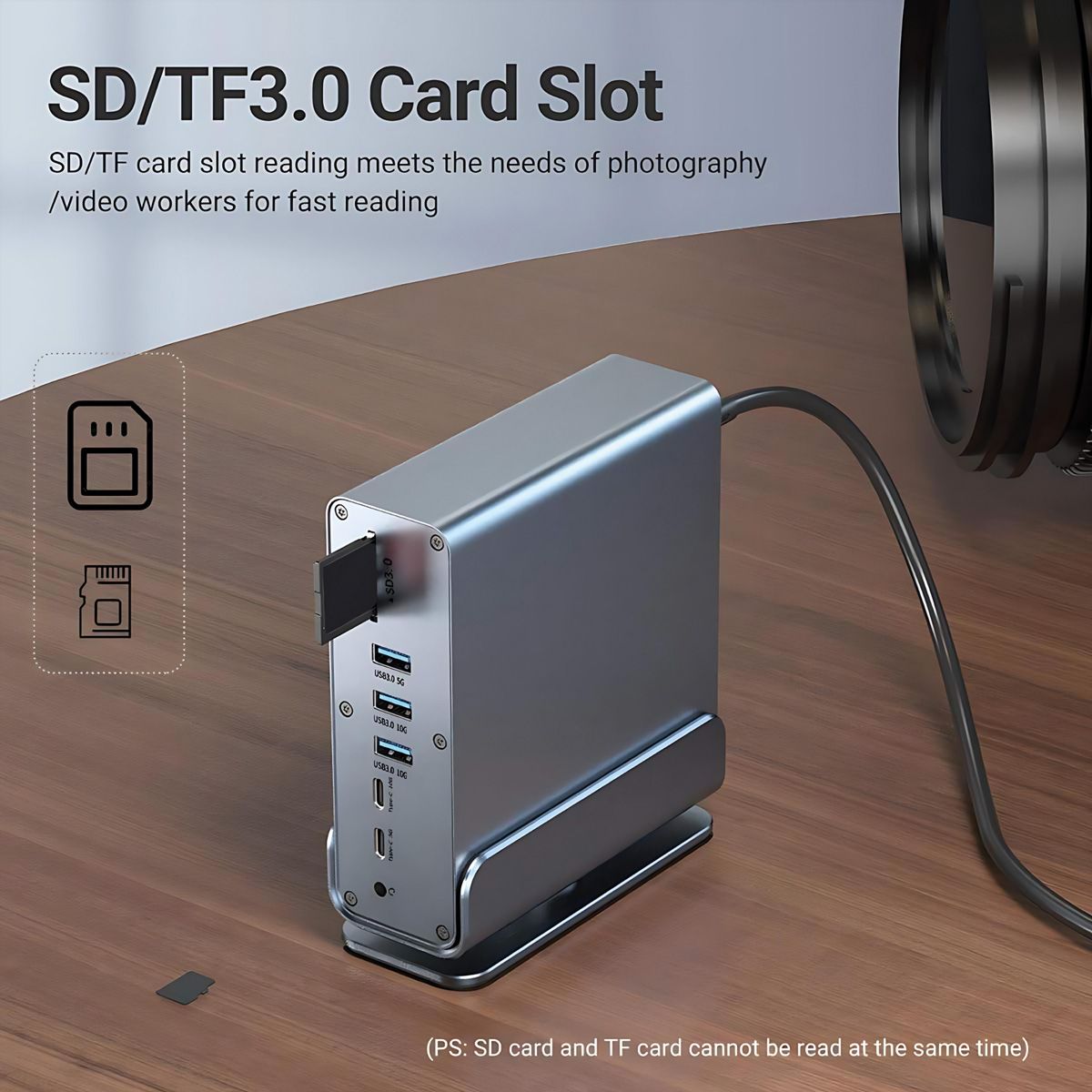

  • 1x SD/TF Card Reader
  • 1x 3.5mm Audio Out
  • Full metal construction, ensuring effective heat dissipation

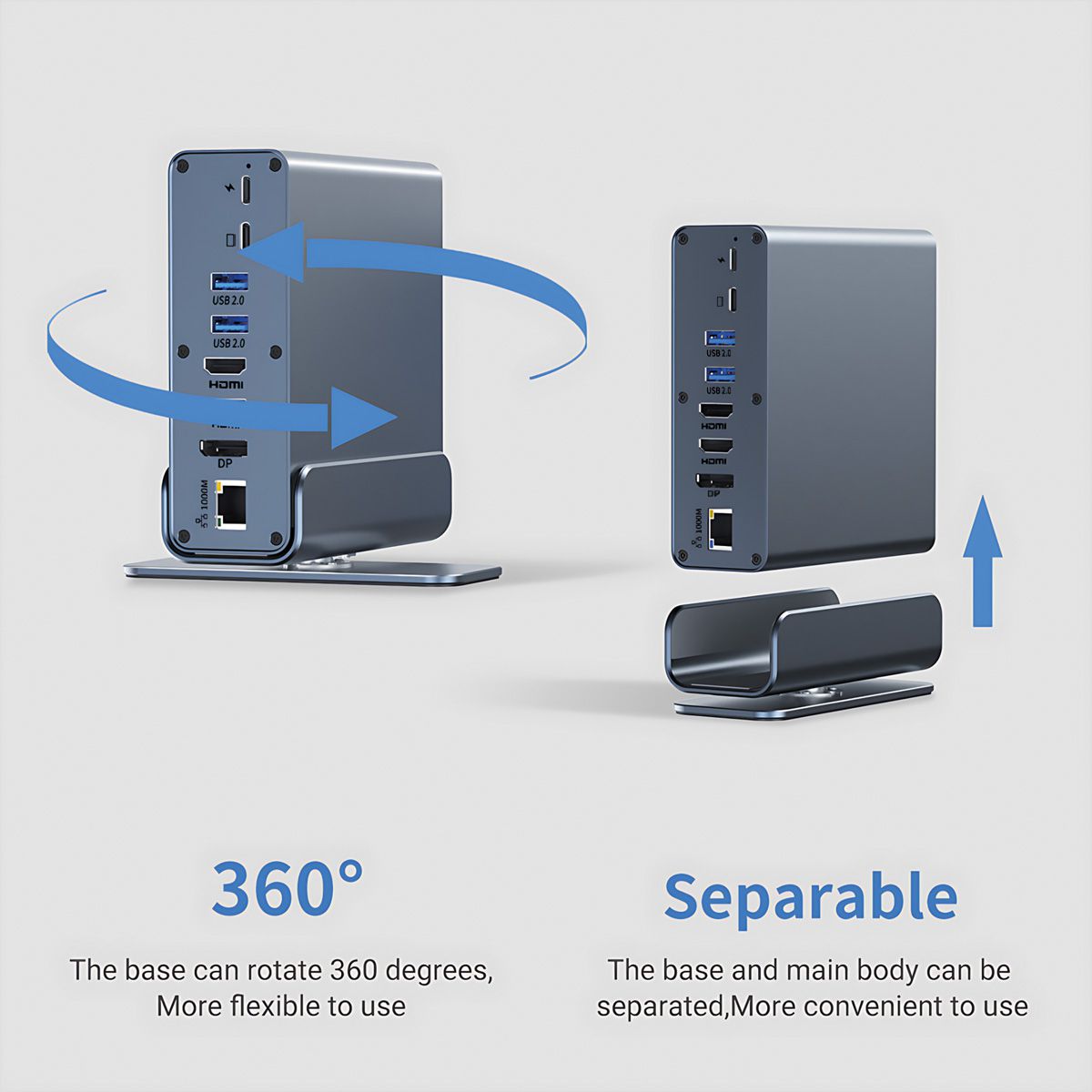

  • Comes with stand and detachable magnetic base, supporting 360° horizontal rotation for enhanced adaptability in various application environments.

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
VALUE
Product group
Adapters, Terminators, Converters
Product type
Notebook-Docking-Station
Colour
grey
Length
0.1 m
Scope of delivery
Docking station, USB-C Host Cable, User Manual
Transfer quality
USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)
USB Type C
Side 2 connection (Peripherals)

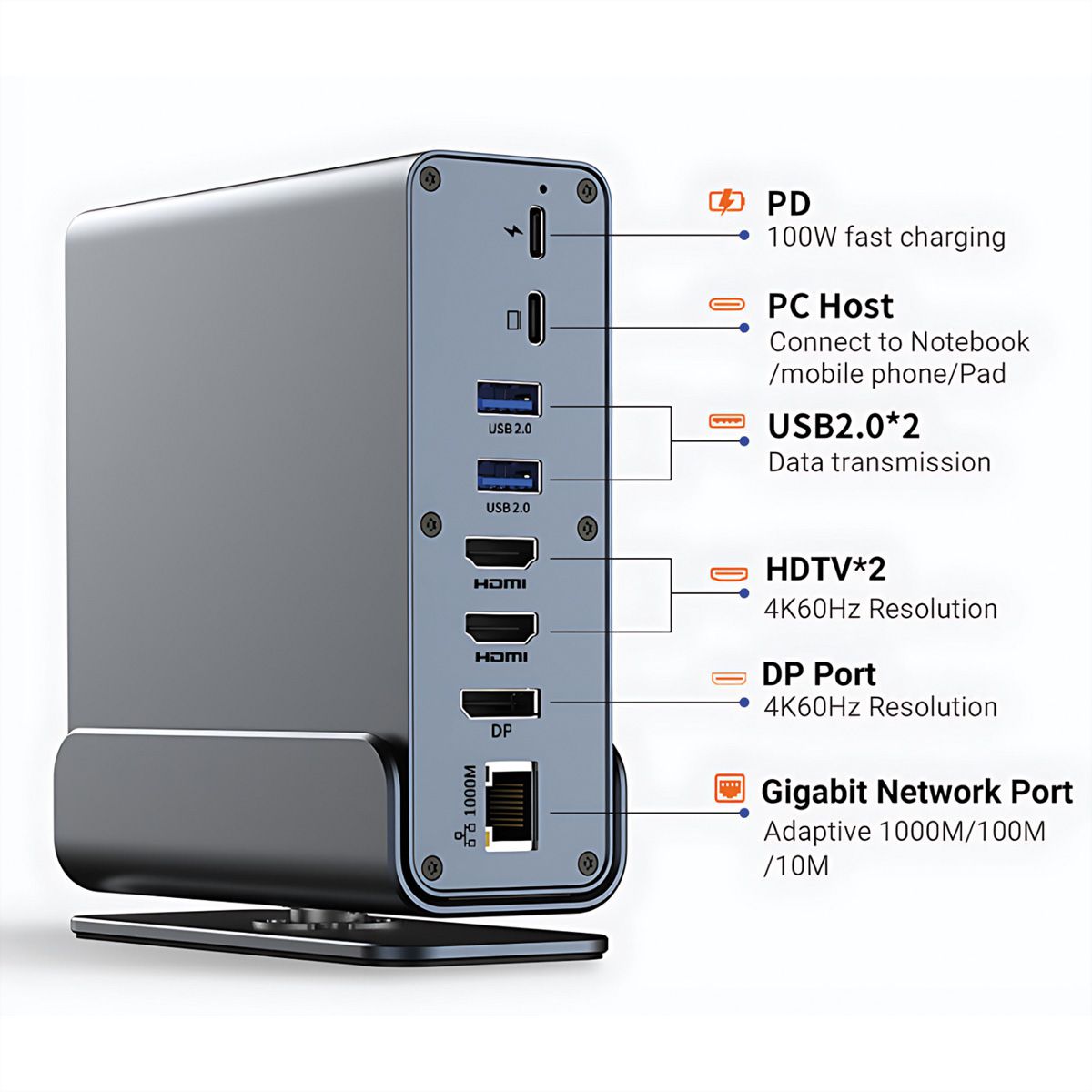

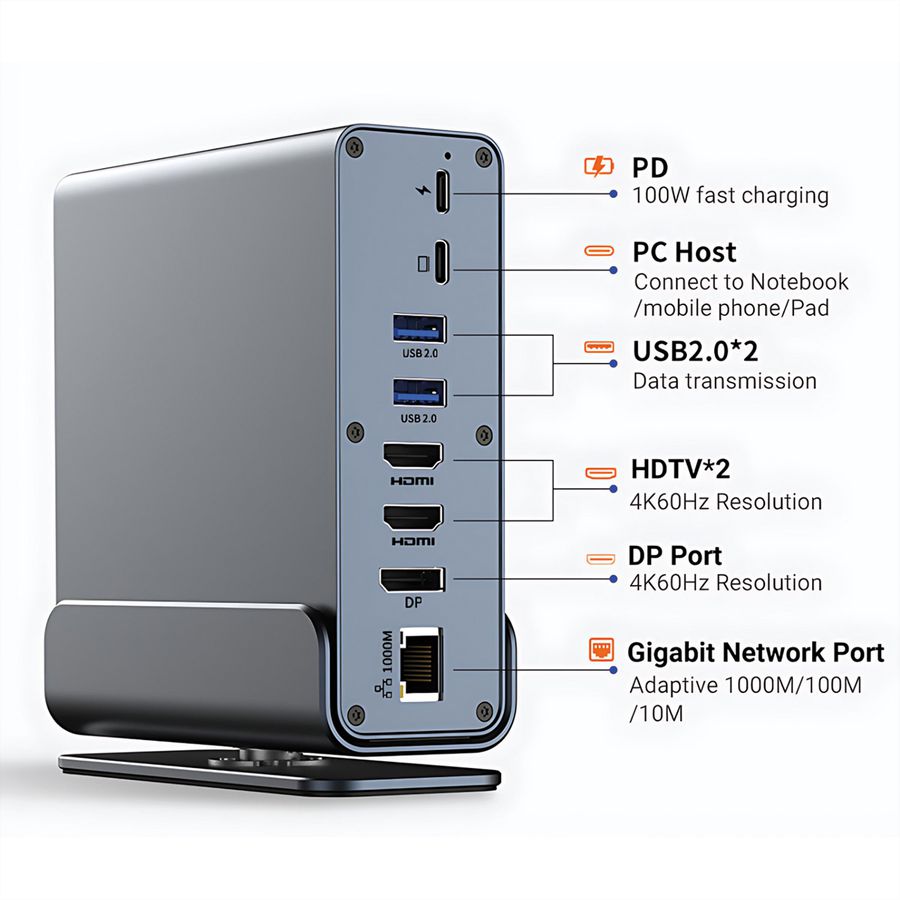

2x HDMI, 1x DisplayPort, USB (5x A and 2x C), 1x USB-C PD (Power Delivery), 1x RJ-45 (GbE), 1x SD/TF Card Reader, 1x 3.5mm Audio Out
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
  • HDMI Type A
  • DisplayPort
  • USB Type C (USB-C)
  • USB 3 Type A
  • USB 2.0 Type A
  • USB Type C PD (Power Delivery)
  • RJ-45
  • SD-Card-Slot
Side 2 Connector Gender
Female
Area of application
External
Dimensions (HxWxD)
126 x 42 x 122 mm
Technical particularity
Power Delivery Function (100W)
Height
126 mm
Width
42 mm
Depth
122 mm
Weight
555 g
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.35 kg

Downloads

Product data sheet - English (62.0 KB)

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.

More about VALUE
