The own brand VALUE stands for attractive prices and tested quality.
With the VALUE products you get the best possible price in terms of quality and product features.

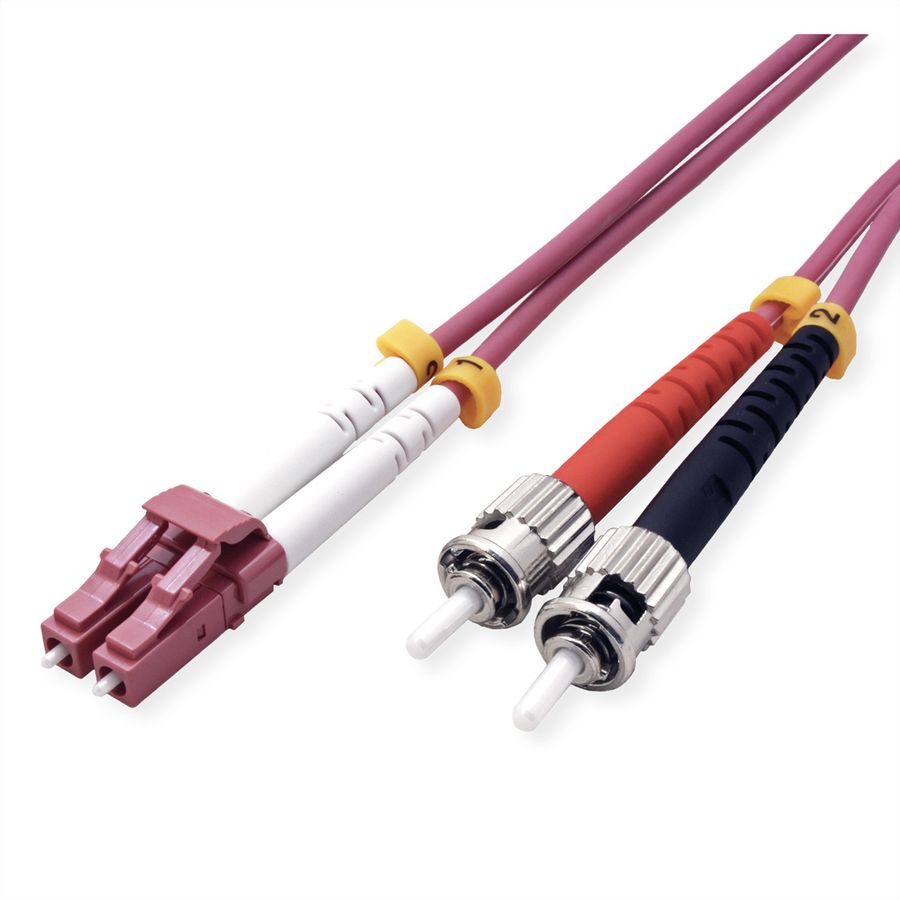

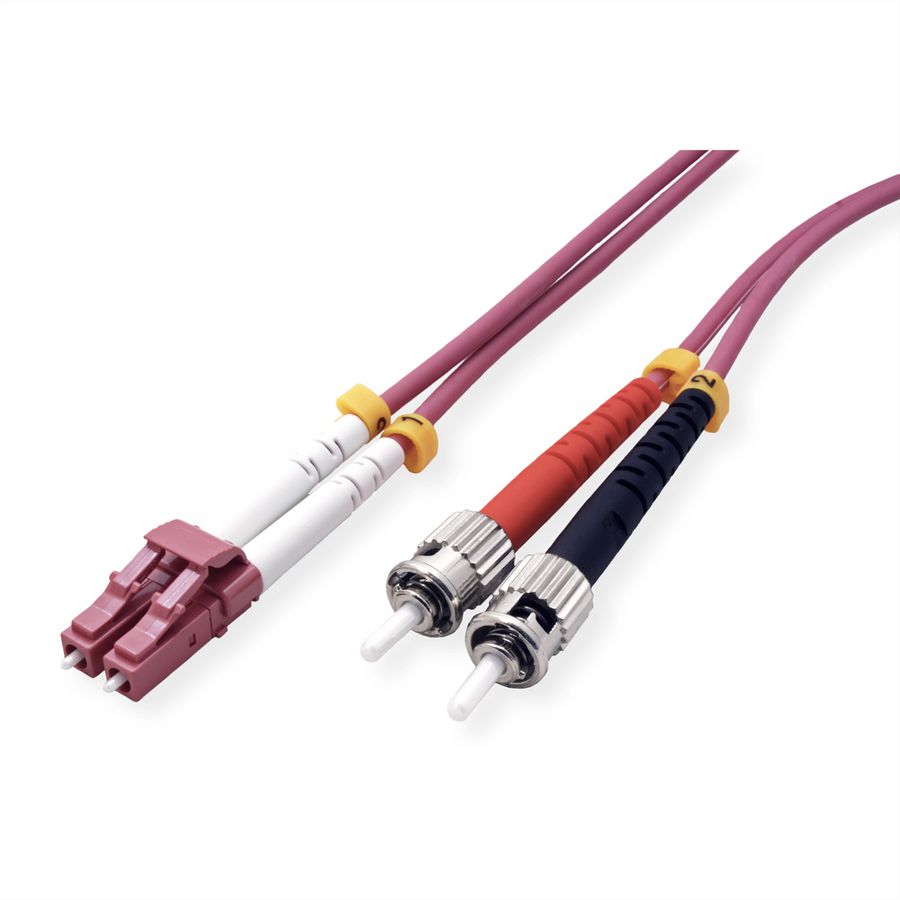

VALUE Fibre Optic Jumper Cable, 50/125µm, LC/ST, OM4, LSOH, violet, 2 m
Item no.
21.99.8772-10
Brand / Manufacturer
VALUE
Manuf. no.
21.99.8772
EAN
7611990998418
Package weight
0.08 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
:strip_icc():strip_exif()/bilder/icons/icon_lsoh.png){kind=icon}
Colour:
Length:
Please log in to be able to use the shopping cart and then complete orders.
Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Description
OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.
- VALUE OM4 Fibre Optic Jumper cable with fiber type 50/125 µm
- Color: violet
- Available lengths: 0.5m 1m 2m 3m, 5m and 10m
Specifications
- Manufacturer
- VALUE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM4
- Colour
- violet
- Length
- 2 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM4
- Connection ports
- LC / ST
- Side 1 Connector Type
- LC
- Side 2 Connector Type
- ST
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Colour (Cable)
- violet
- Aramid strain relief
- yes
- External cable diameter
- 2,8x6 mm
- Mantle of external cable
- LSOH
- Cable LSOH
- yes
- Max. insertion loss
- 0.3 dB
- Min. return loss
- 30 dB
- Weight
- 38.9 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 130 mm
- Package weight (single piece)
- 0.08 kg
