Description

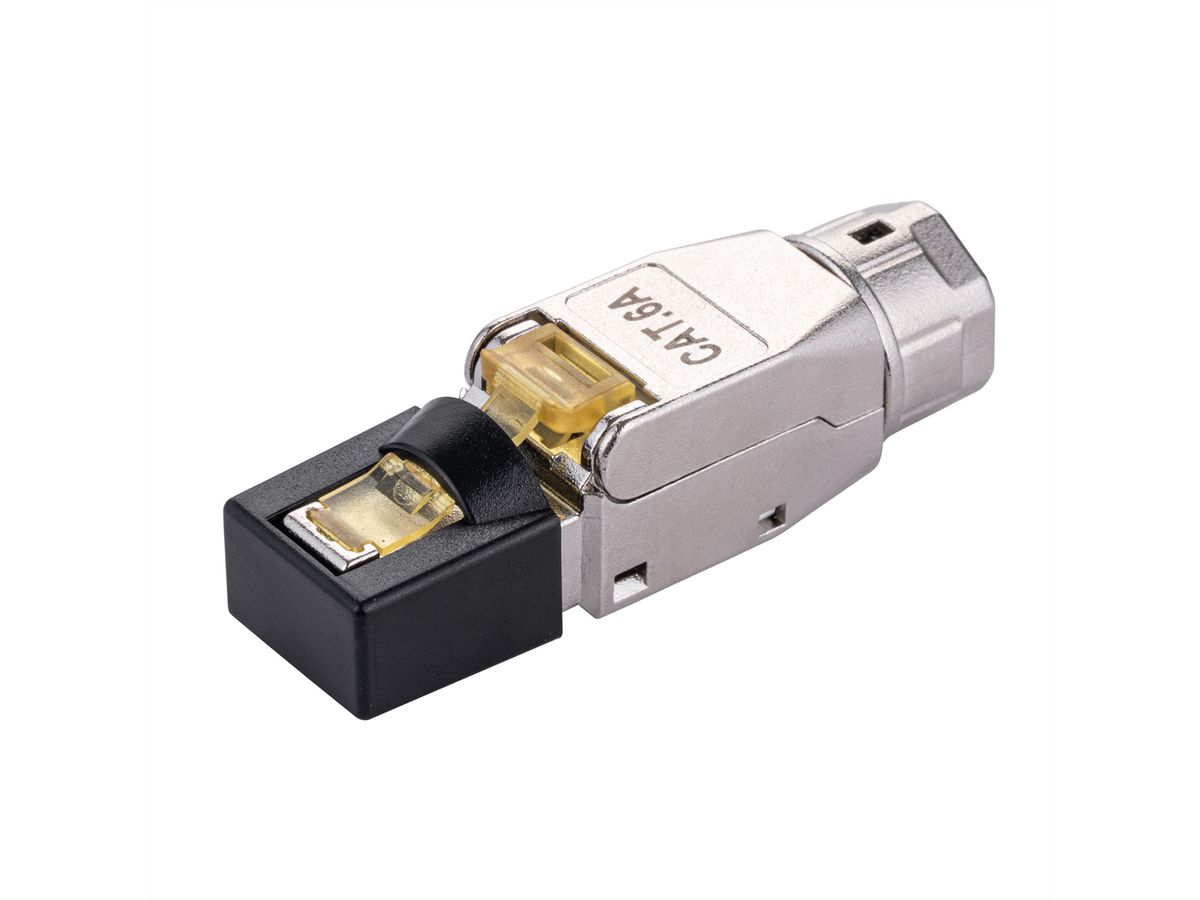

Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation

• Shielded RJ45 field plug with Cat.6A / Class EA performance
• For round solid cables with AWG26/1 to AWG23/1 (wire diameter from 0.9 to 1.6mm)
• Fast and easy installation - no special tool required
• Pair management according to TIA 568B and TIA 568A color codes
• Fully shielded with zinc alloy housing

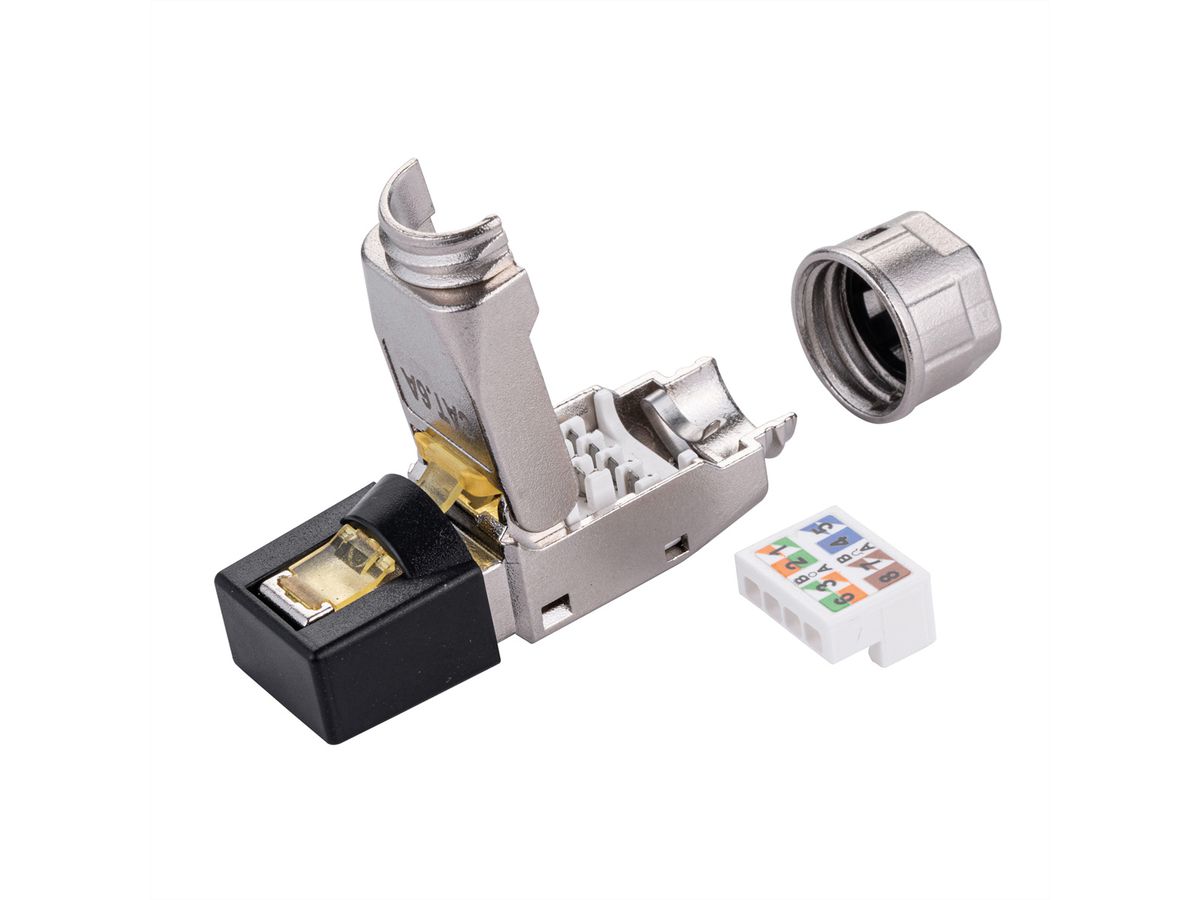

• Strain relief through cable gland
• The ring ensures 360° forwarding of the cable shielding to the plug shielding.
• Color: silver

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Scope of delivery	Field Plug
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Material (casing)	Zinc alloy
Shield contacts	ja
separate strain relief	yes

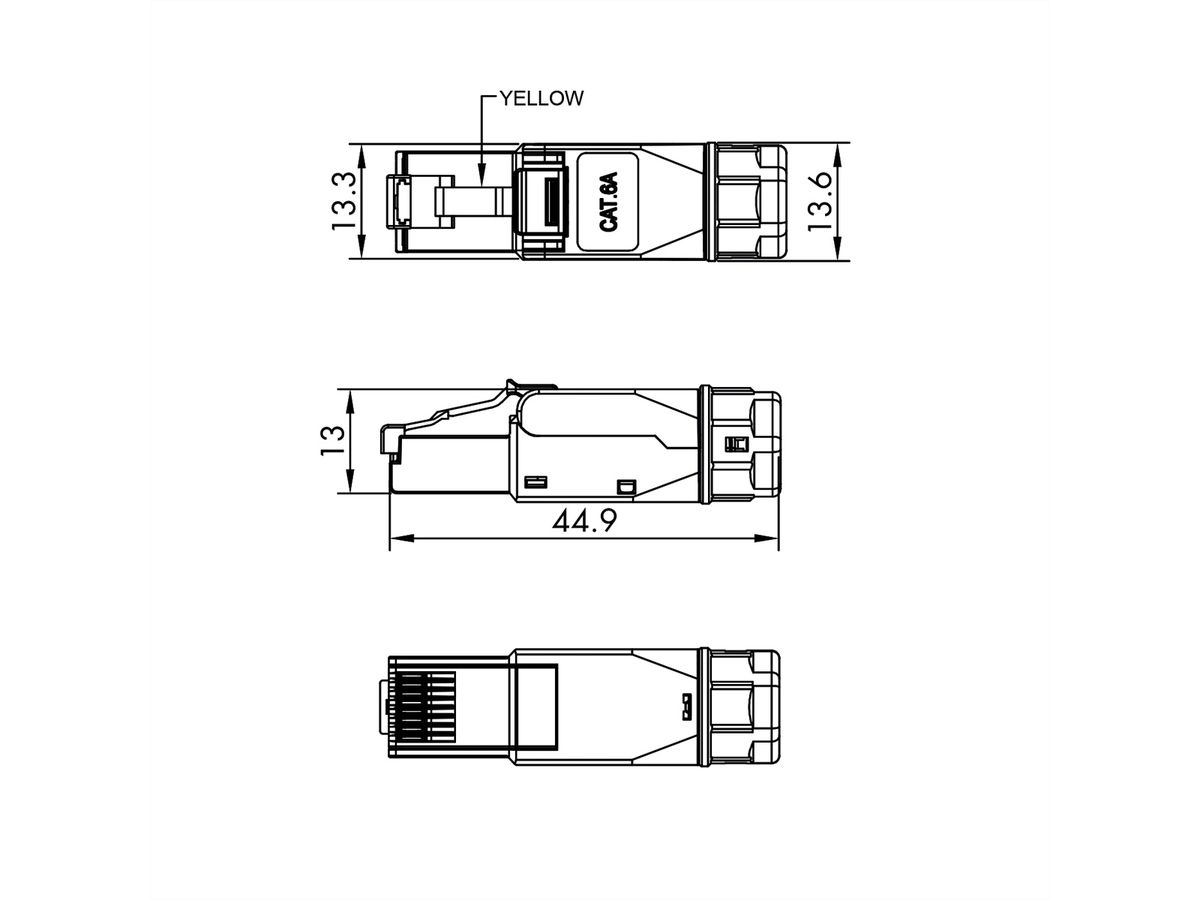

Dimensions (HxWxD)	13 x 13.3 x 44.9 mm
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Storage temperature min.	-40 °C
Storage temperature max.	70 °C
Height	13 mm
Width	13.6 mm
Depth	44.9 mm
Weight	15 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.015 kg
