VALUE Field Plug Cat.6A/Class EA, shielded, short screw

Item no. 26.99.0374-50 Brand / Manufacturer VALUE Manuf. no. 26.99.0374 EAN 7630049679085 Package weight 0.015 kg
VALUE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

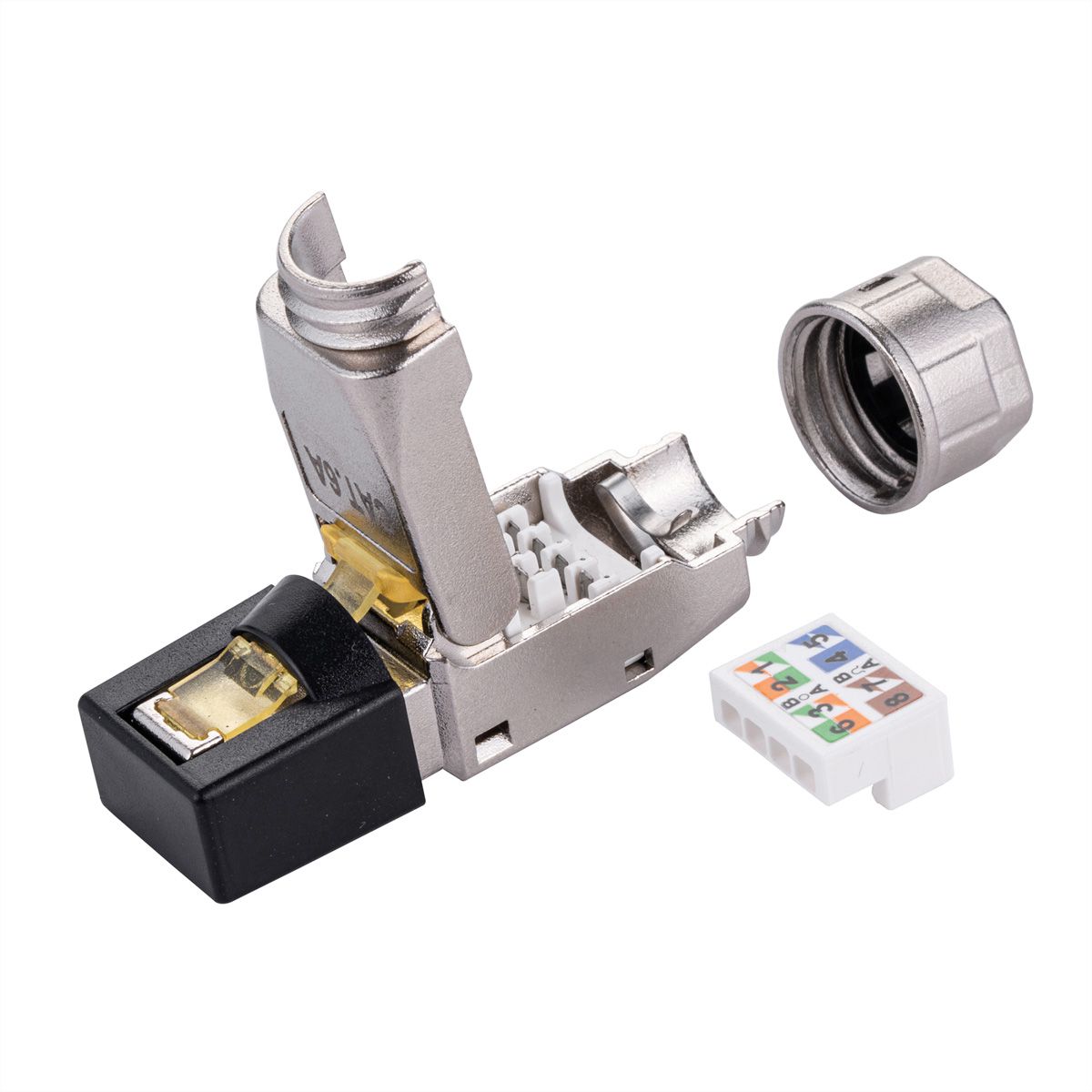

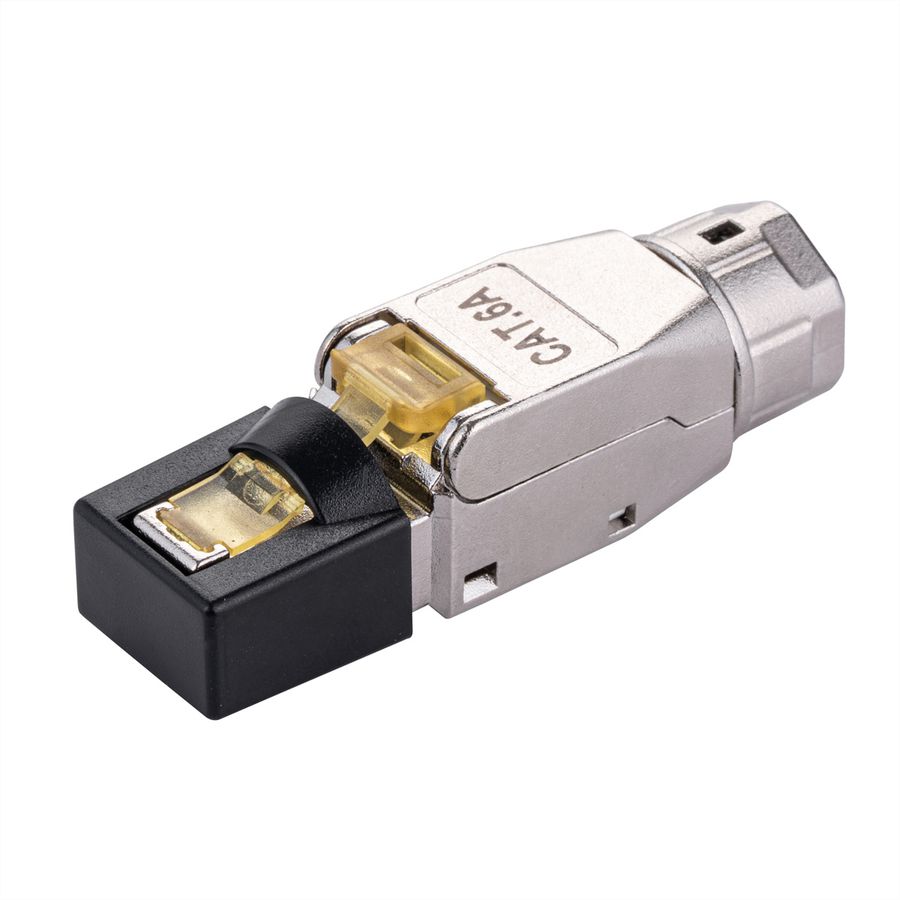

Field Plug Cat.6A/Class EA, shielded, with short screw - for fast and easy tool-free installation

  • Shielded RJ45 field plug with Cat.6A / Class EA performance
  • For round solid cables with AWG26/1 to AWG23/1 (wire diameter from 0.9 to 1.6mm)
  • Fast and easy installation - no special tool required
  • Pair management according to TIA 568B and TIA 568A color codes
  • Fully shielded with zinc alloy housing
  • Strain relief through cable gland
  • The ring ensures 360° forwarding of the cable shielding to the plug shielding.
  • Color: silver

Specifications

Manufacturer
VALUE
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
silver
Scope of delivery
Field Plug
Shield type
Screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Material (casing)
Zinc alloy
Shield contacts
ja
separate strain relief
yes

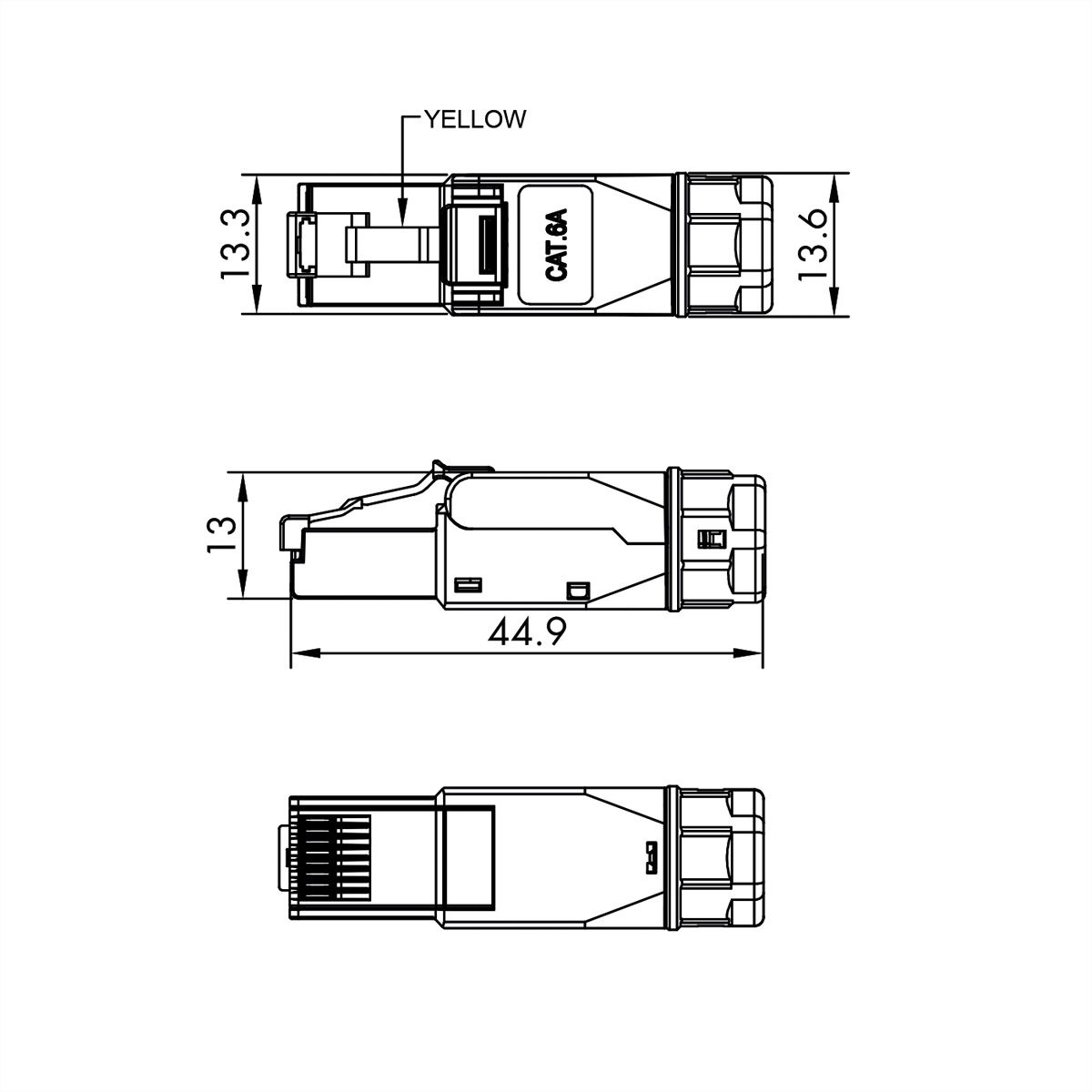

Dimensions (HxWxD)
13 x 13.3 x 44.9 mm
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Storage temperature min.
-40 °C
Storage temperature max.
70 °C
Height
13 mm
Width
13.6 mm
Depth
44.9 mm
Weight
15 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.015 kg

Downloads

Product data sheet - English (51.6 KB) Manufacturer data sheet - English (271.2 KB)
