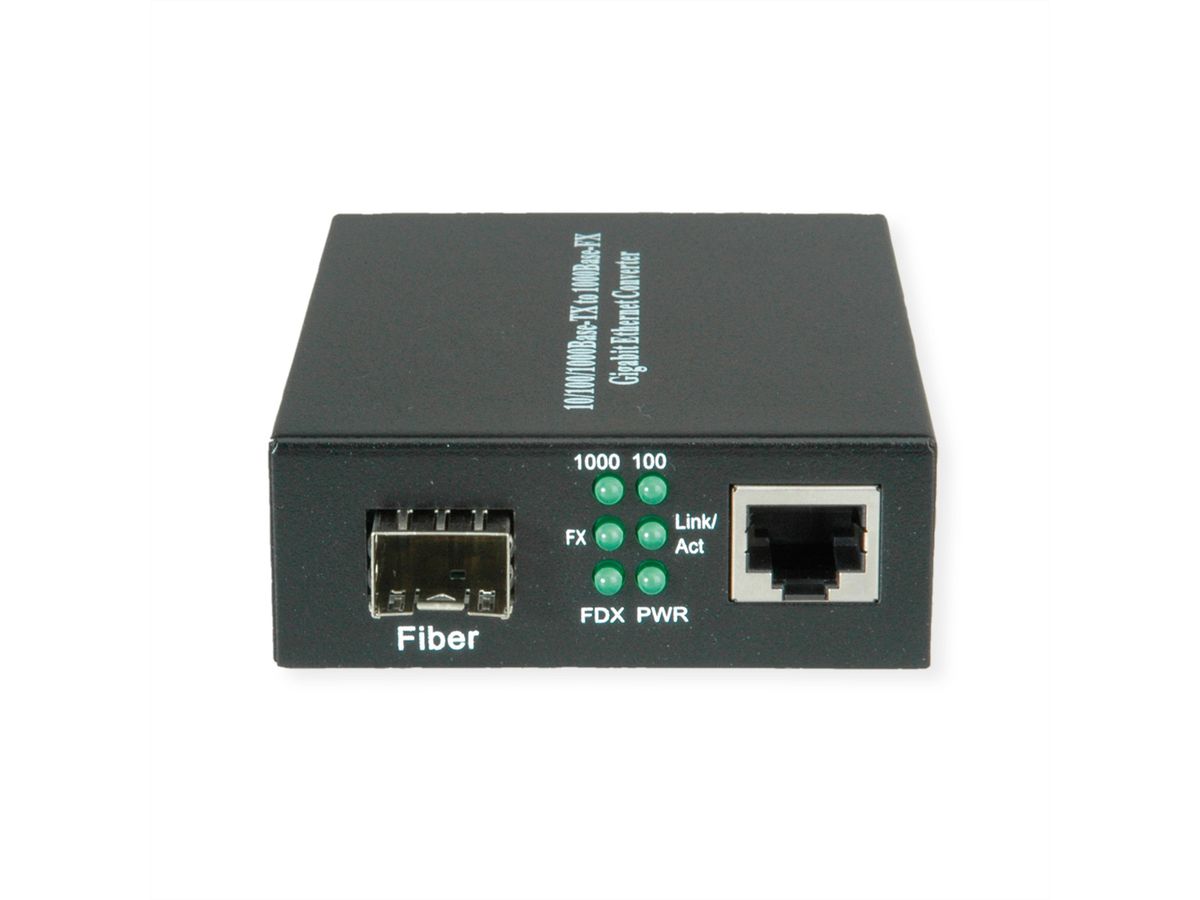

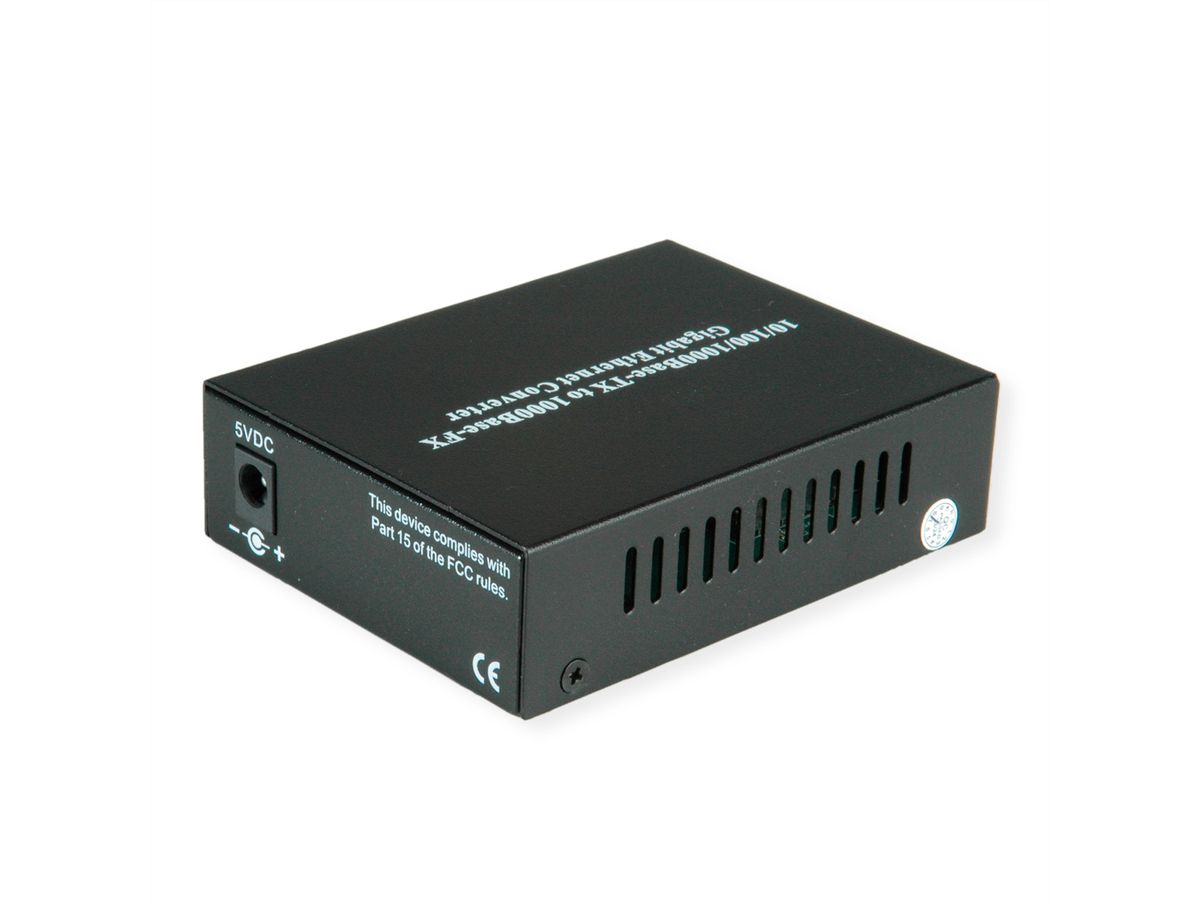

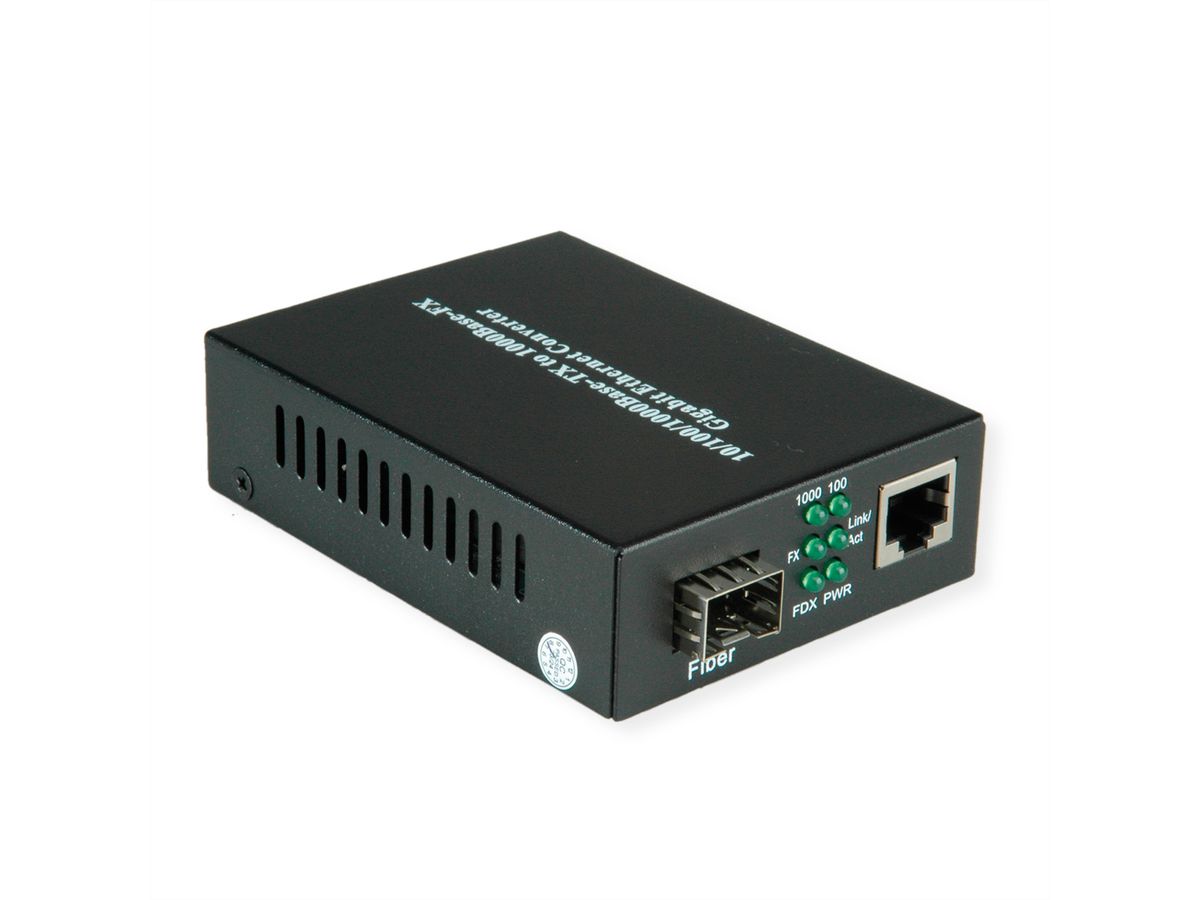

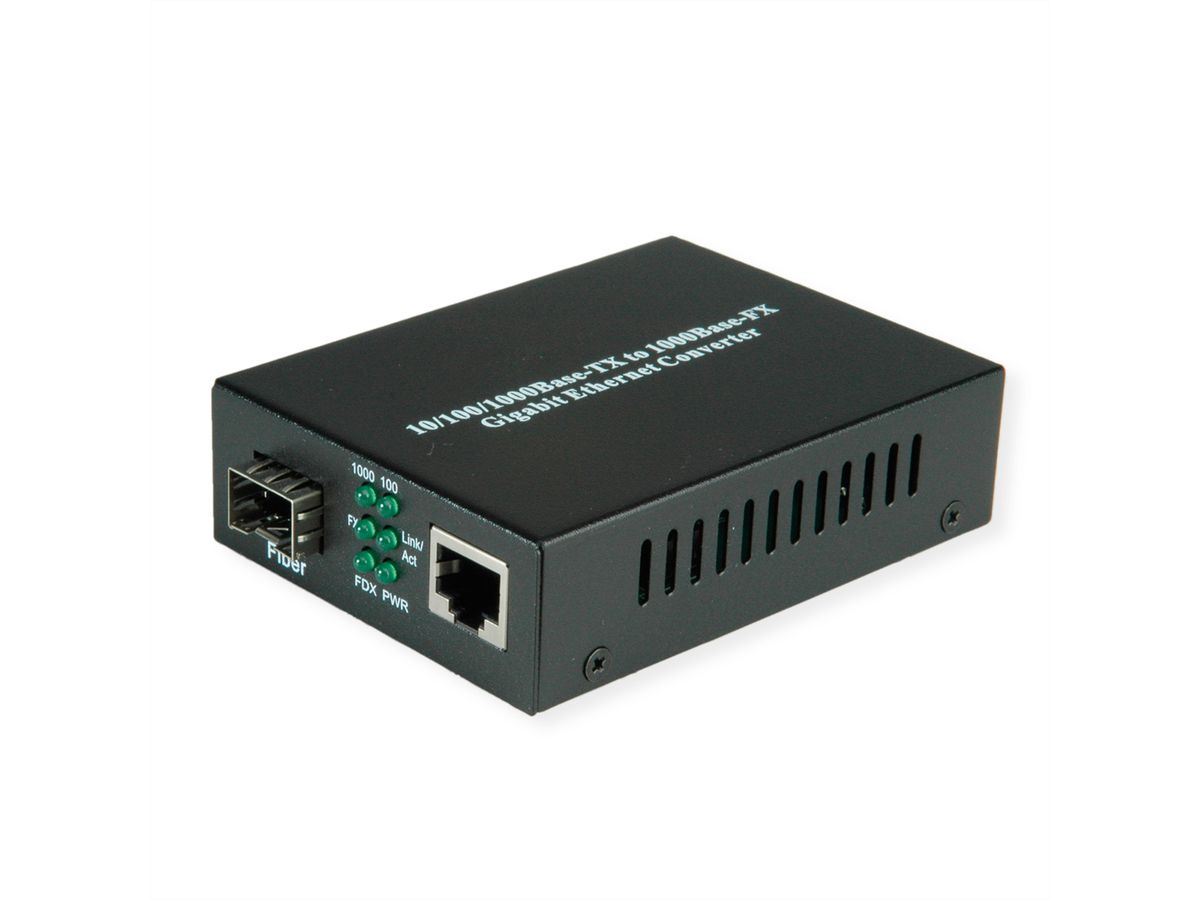

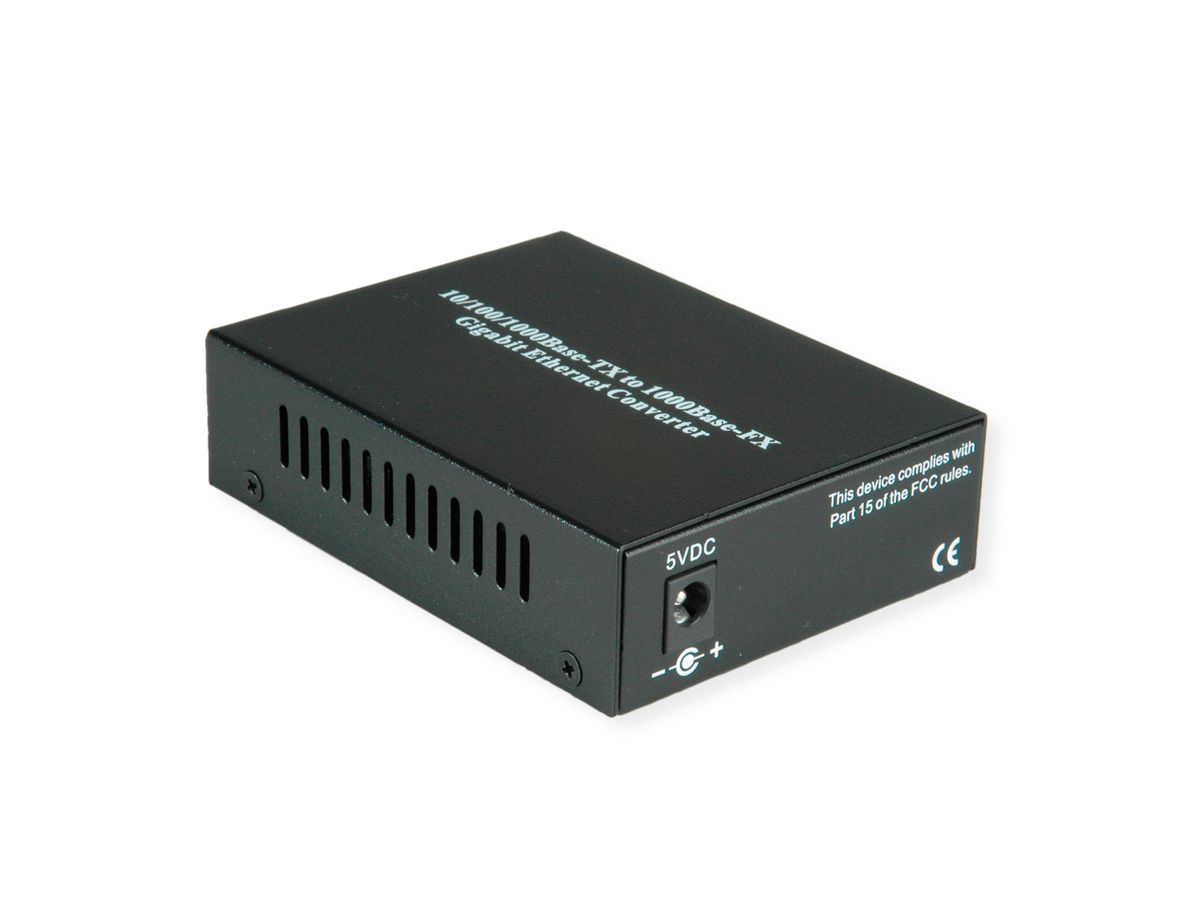

VALUE Gigabit Ethernet Media Converter
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.99.1199-10 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 21.99.1199 |
| EAN | 7630049688629 |
| Package weight | 0.32 kg |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Converts a 10/100/1000 Mbit/s TP port to Gigabit Ethernet fiber - single mode or multimode, depending on the SFP used
- Supports full wire speed conversion for 10/100/1000 Mbit/s speed and media types
- Protocols: IEEE802.3 Ethernet / IEEE802.3i 10Base-Tx / IEEE802.3u 100Base-Tx/Fx / IEEE802.3z 1000Base-X / IEEE802.3ab 1000Base-Tx / IEEE802.3x Flow control
- TP port:
- Shielded RJ-45 jacks with auto MDI/MDI-X detection
- Auto-negotiation for speed and duplex auto detection
- Speed for 10/100/1000 Mbit/s, Full/half-duplex support
- FX port:
- Forced 100Mbit/s, Full-duplex
- For multimode fibre cable: 62.5/125µm and 50/125µm
- Low power consumption: 3W
- Power over included power supply (5VDC, 1A)
- Remark: The converters do not offer a repeater function!
- Contents: Converter, power supply, manual
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | Network converters |
| Product type | Network Media Converters |
| Colour | black |
| Scope of delivery | Converter, power supply (5V DC, 1000mA), manual |
| RJ-45 Port (Mbps/s) | 10/100/1000 |
| Fibre Ports (Mbps) | 1000 |
| Quantity of RJ45 ports | 1 |
| Quantity of fibre LC ports | 1 |
| Converts to | RJ-45/LC |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 65 °C |
| Height | 26 mm |
| Width | 71 mm |
| Depth | 94 mm |
| Weight | 160 g |
| Height of packaging (single piece) | 90 mm |
| Width of packaging (single piece) | 80 mm |
| Depth of packaging (single piece) | 120 mm |
| Package weight (single piece) | 0.32 kg |
