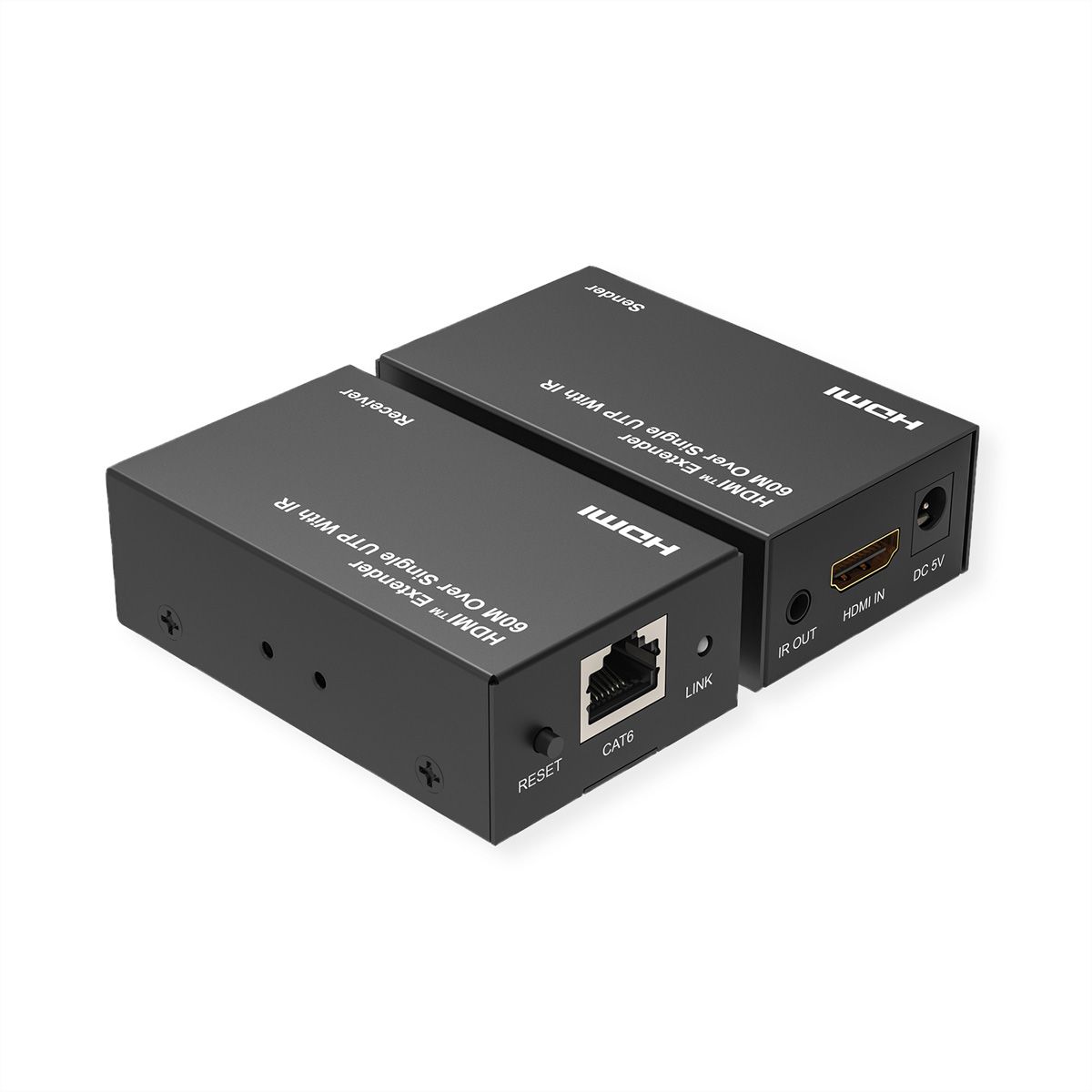

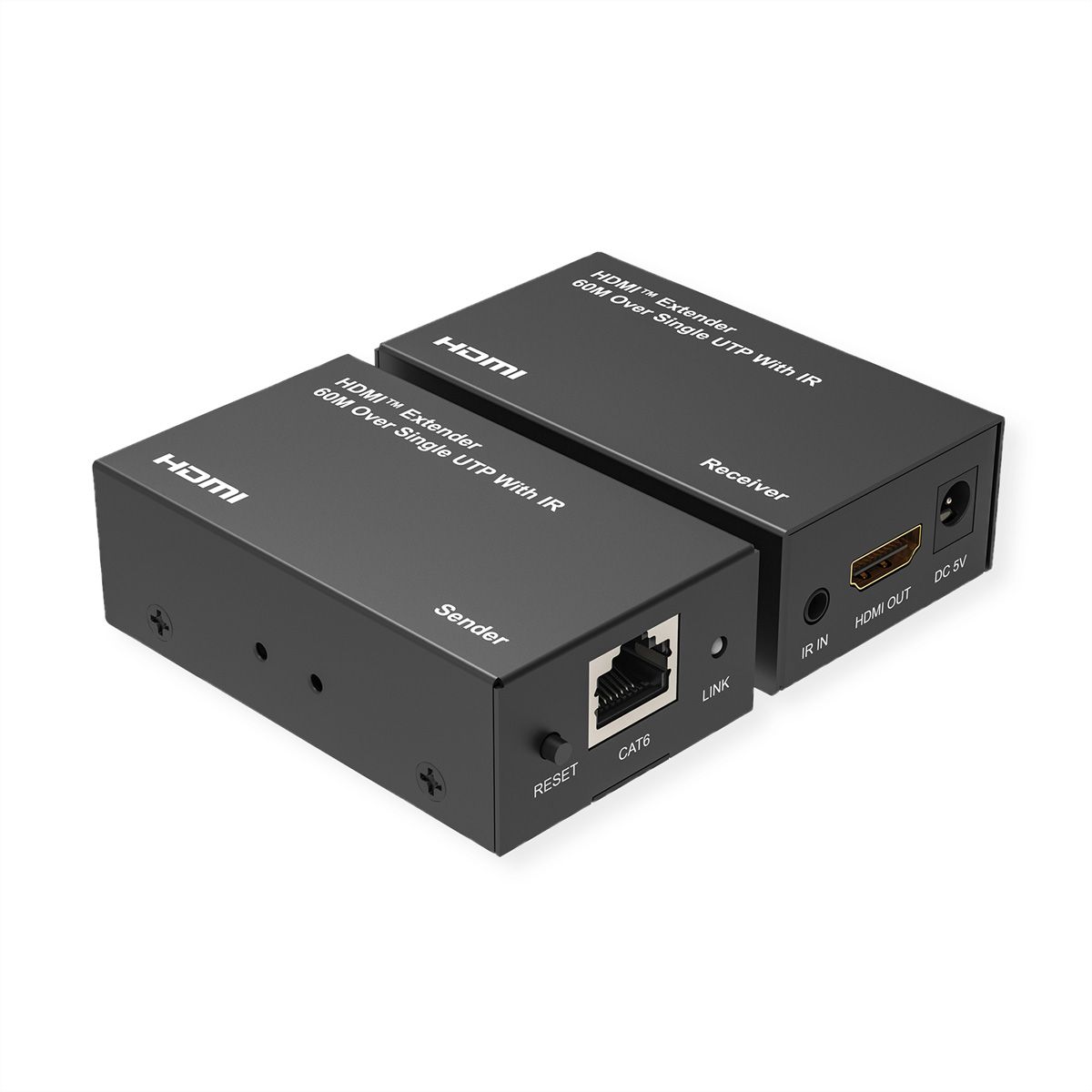

VALUE HDMI Extender over Twisted Pair, 60m

VALUE HDMI Extender over Twisted Pair, 60m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 01/30/2025
Item no. 14.99.3569-2
Brand / Manufacturer VALUE
Manuf. no. 14.99.3569
EAN 7630049673403

Description

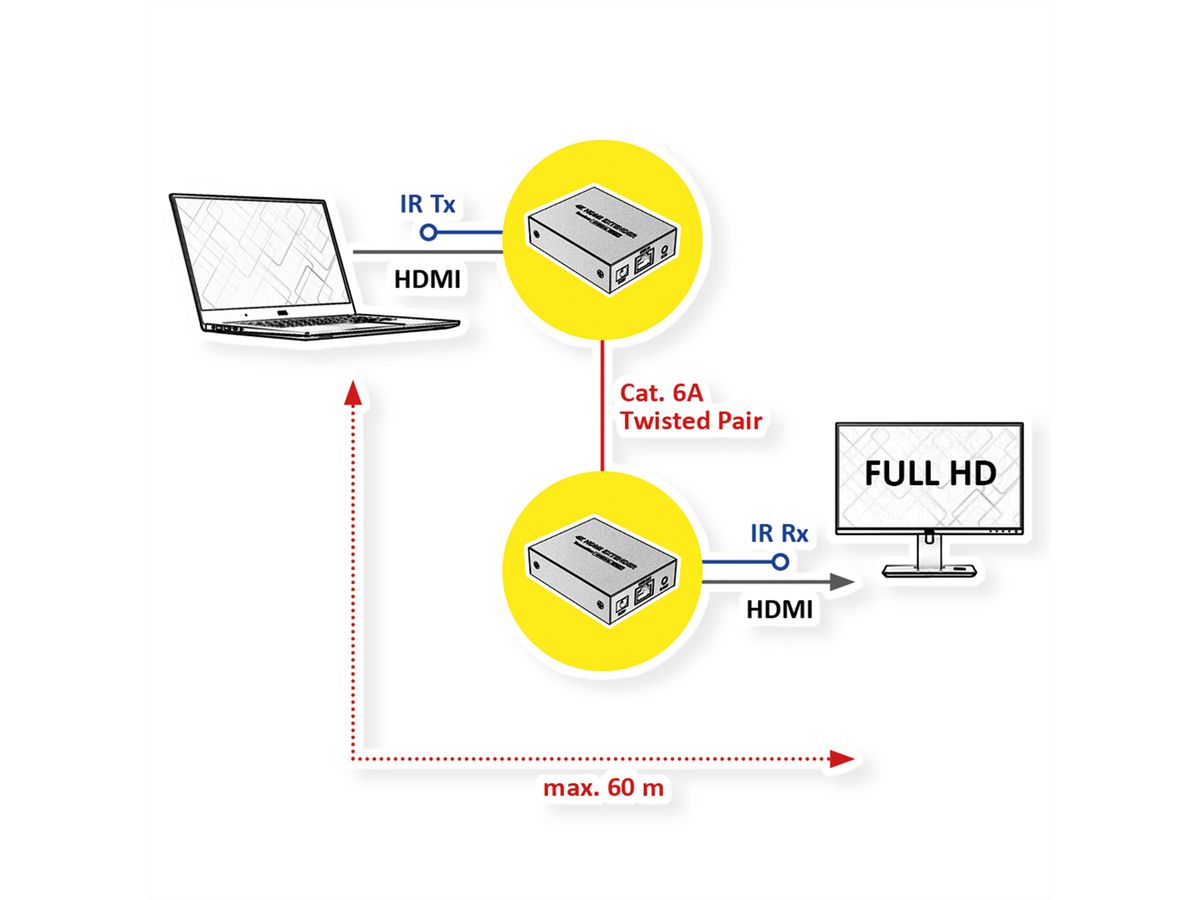

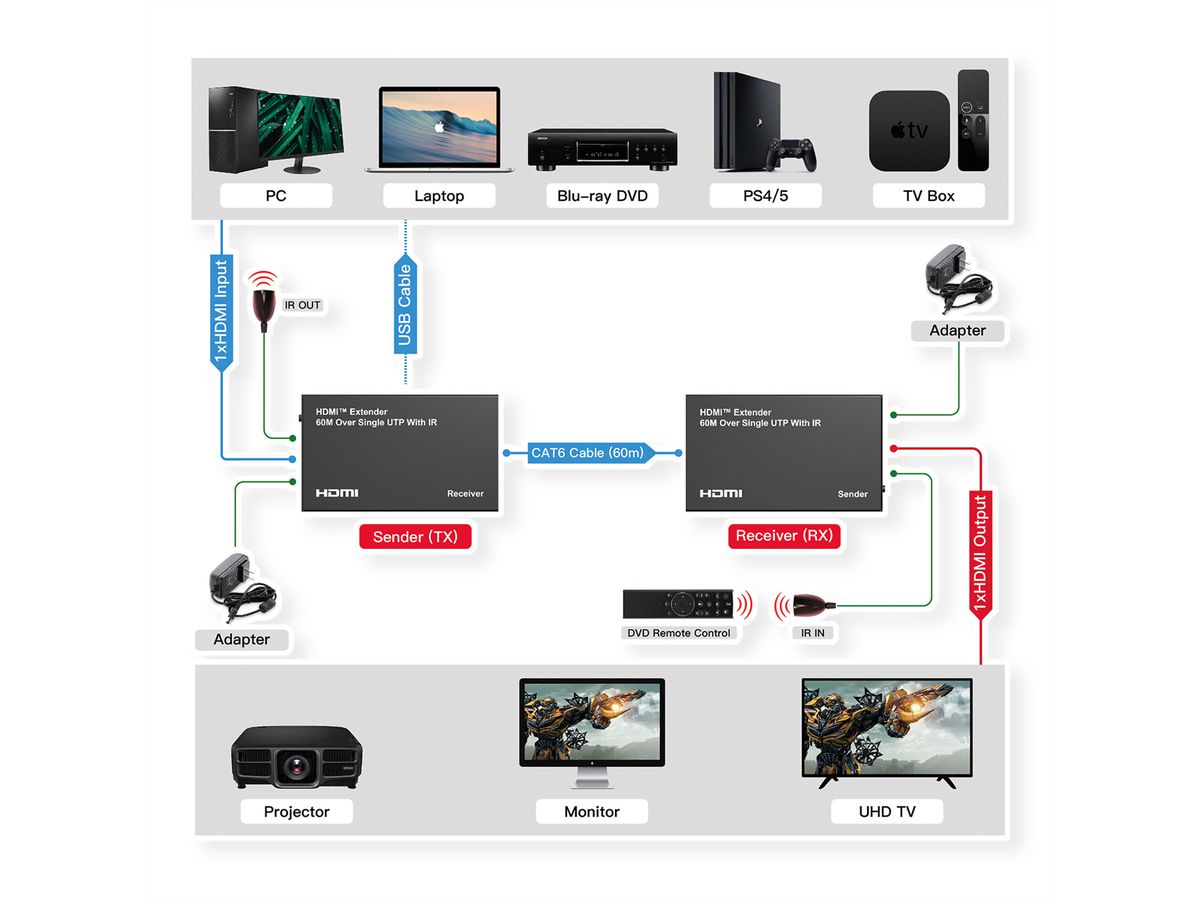

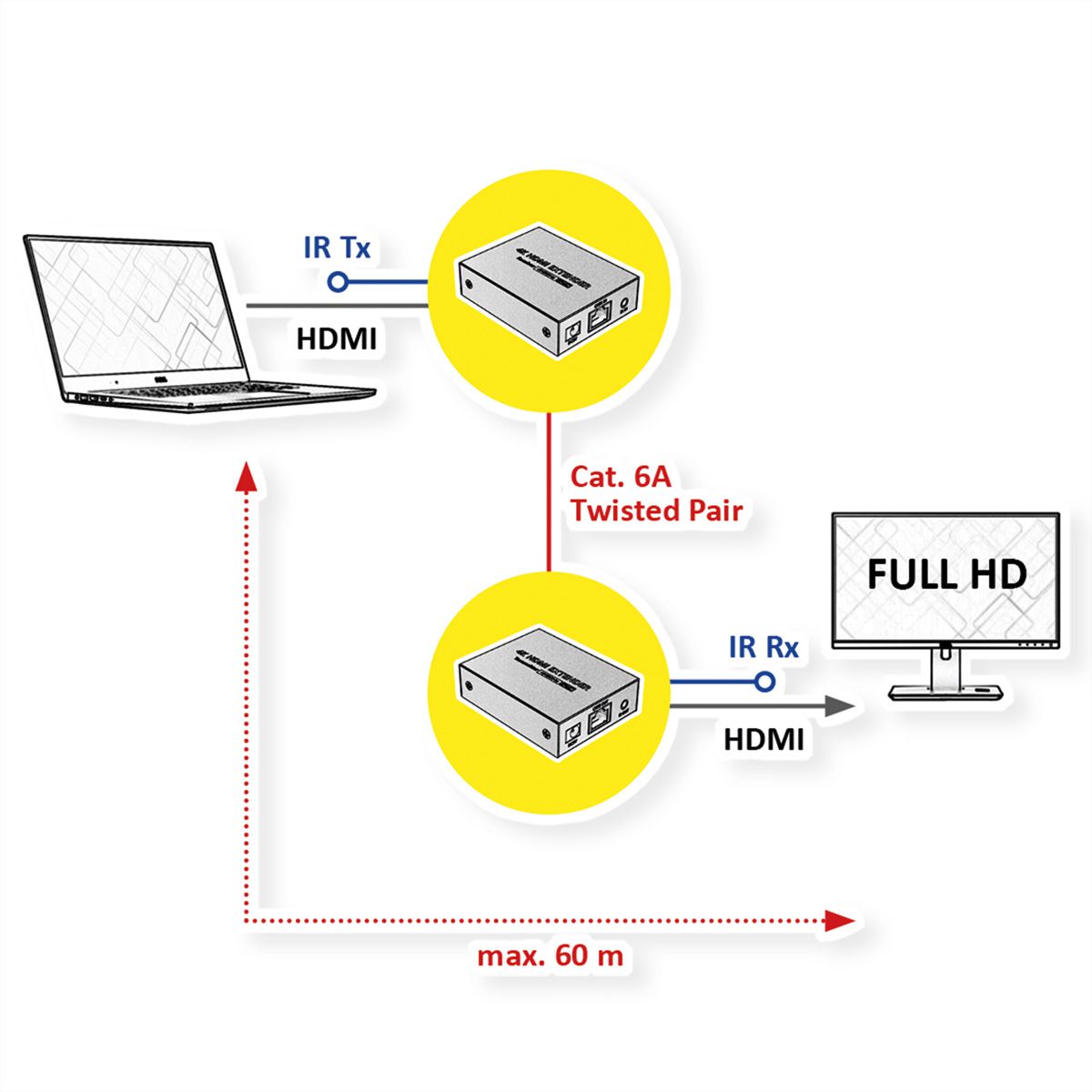

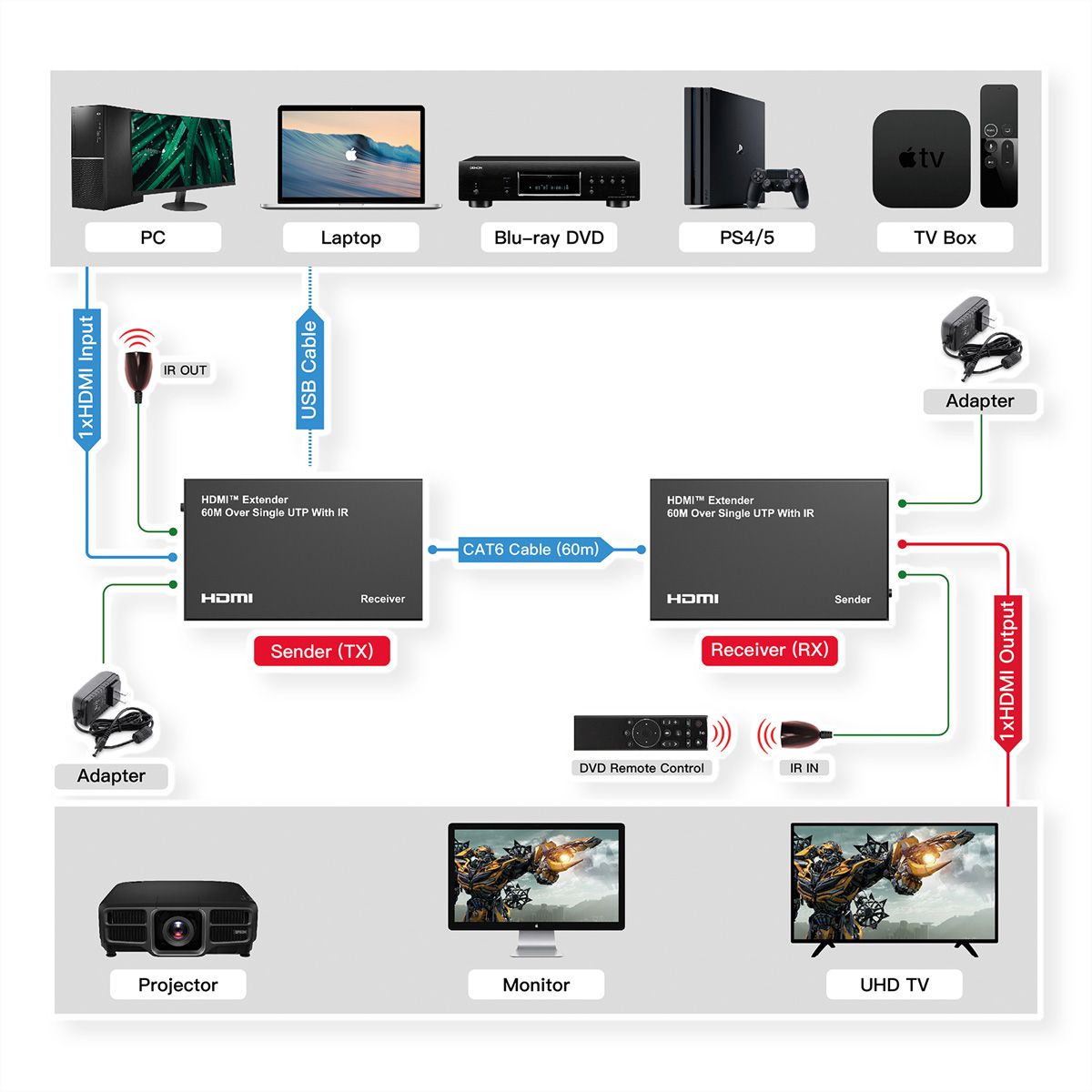

With this VALUE HDMI Extender Kit, you can extend HDMI Audio/Video signals up to 60 meters over a single CAT6 cable with a Full HD 1920 x 1080 @60Hz resolution. The Extender Kit includes both the local transmitter and the remote receiver and is perfect for point-to-point digital signage applications that require high HDMI video quality. The extender can also transmit signals from remote controls - ideal for controlling your video source from your video destination.

  • Transmission distance up to 60 meters by using a Cat 6 cable or higher
  • Max. resolution Full HD 1920 x 1080 @60Hz
  • Supports transmitting lossless uncompressed A/V signal
  • IR signal transmission for convenient remote control of the source device
  • Supports 3D video format
  • Stable metal casing
  • Power supply included in delivery
  • Receiver is powered via the transmitter
  • Weight: Transmitter / Receiver (each) 117 g

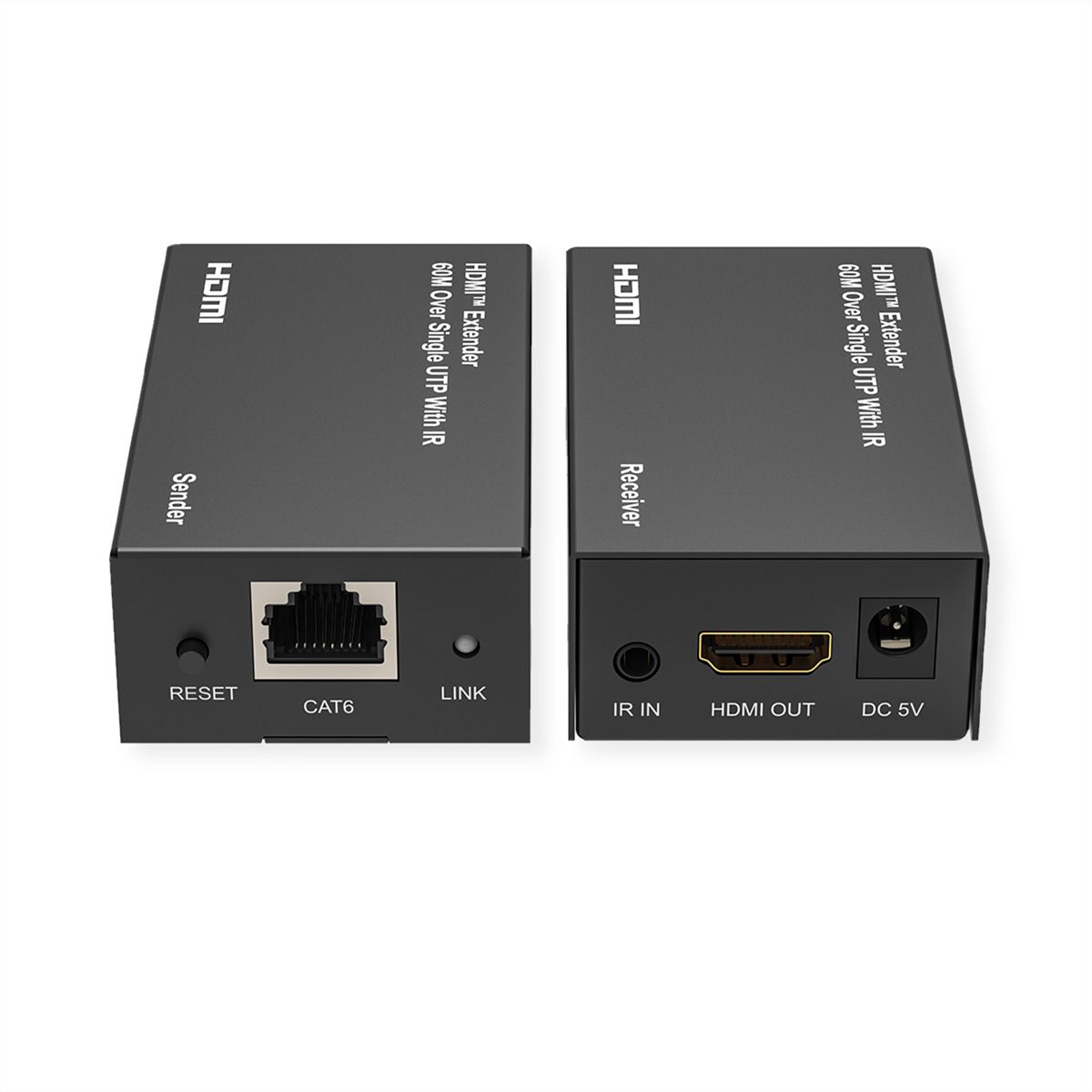

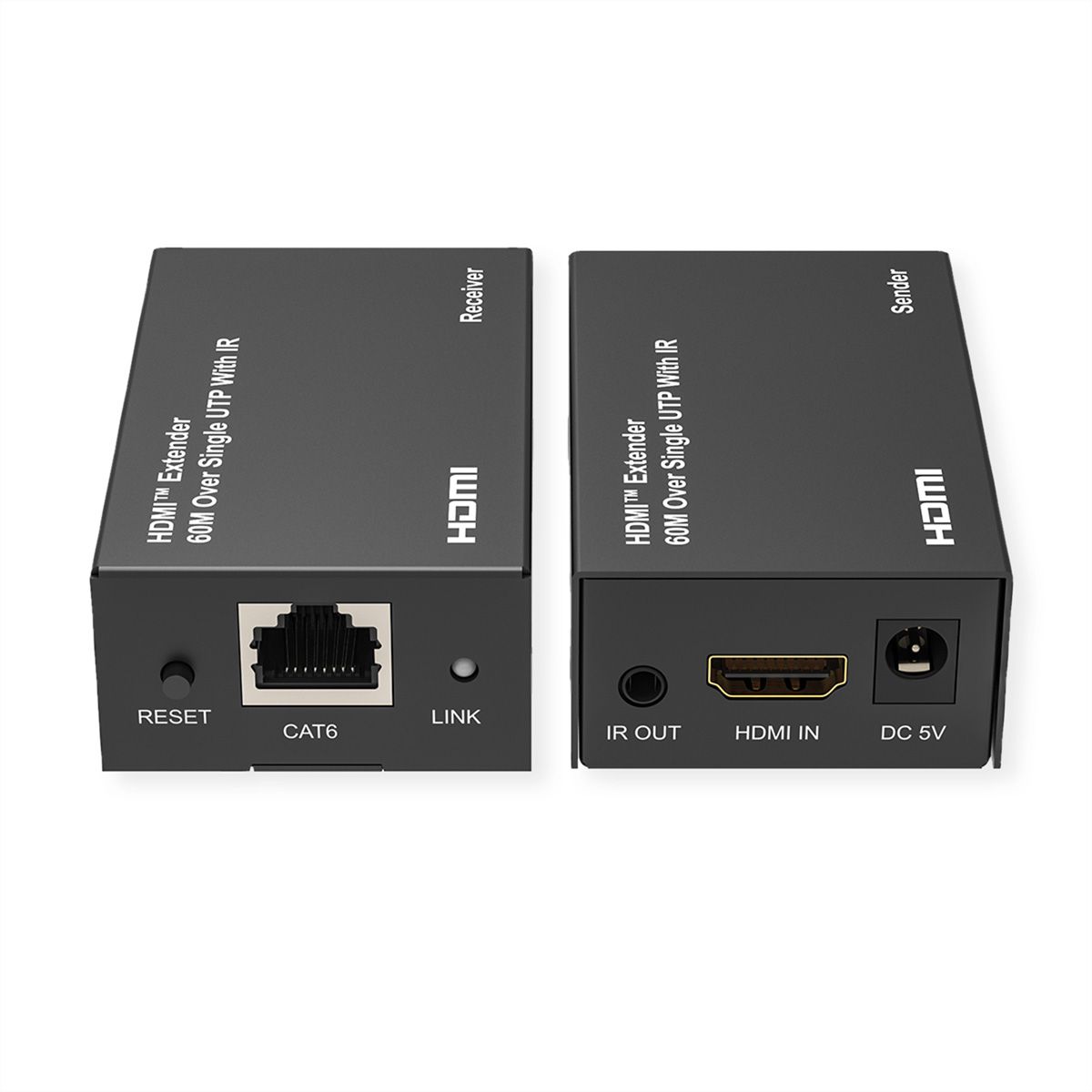

  • Contents: 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual

Specifications

Manufacturer VALUE
Product group Splitters and selectors
Product type HDMI Extender
Colour black
Scope of delivery 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual
Interface HDMI
Inputs 1
Outputs 1
Max. distance 60 m
Video input HDMI
Video output HDMI
Max. resolution (nom.) Supports 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Max. resolution 1920 x 1080 @60Hz (2K, Full HD)
Dimensions (HxWxD) 26 x 48 x 84 mm
Power supply unit 1x
Power supply output DC 5V 1A
Technical particularity Extends the signal up to 60m
Operating temperature min. 0 °C
Operating temperature max. 70 °C
Storage temperature min. -10 °C
Storage temperature max. 80 °C
Height 26 mm
Width 48 mm
Depth 84 mm
Weight 234 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg

Downloads

Product data sheet - English (69.1 KB)

Download

User manual - Deutsch (443.1 KB)

Download

User manual - English (438.0 KB)

Download

User manual - Français (438.5 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
