VALUE HDMI Matrix, 4x2, 4K30Hz, QUAD Multi-Viewer, seamless switching

VALUE HDMI Matrix, 4x2, 4K30Hz, QUAD Multi-Viewer, seamless switching

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 01/30/2025
Item no. 14.99.3592-2
Brand / Manufacturer VALUE
Manuf. no. 14.99.3592
EAN 7630049673359

Description

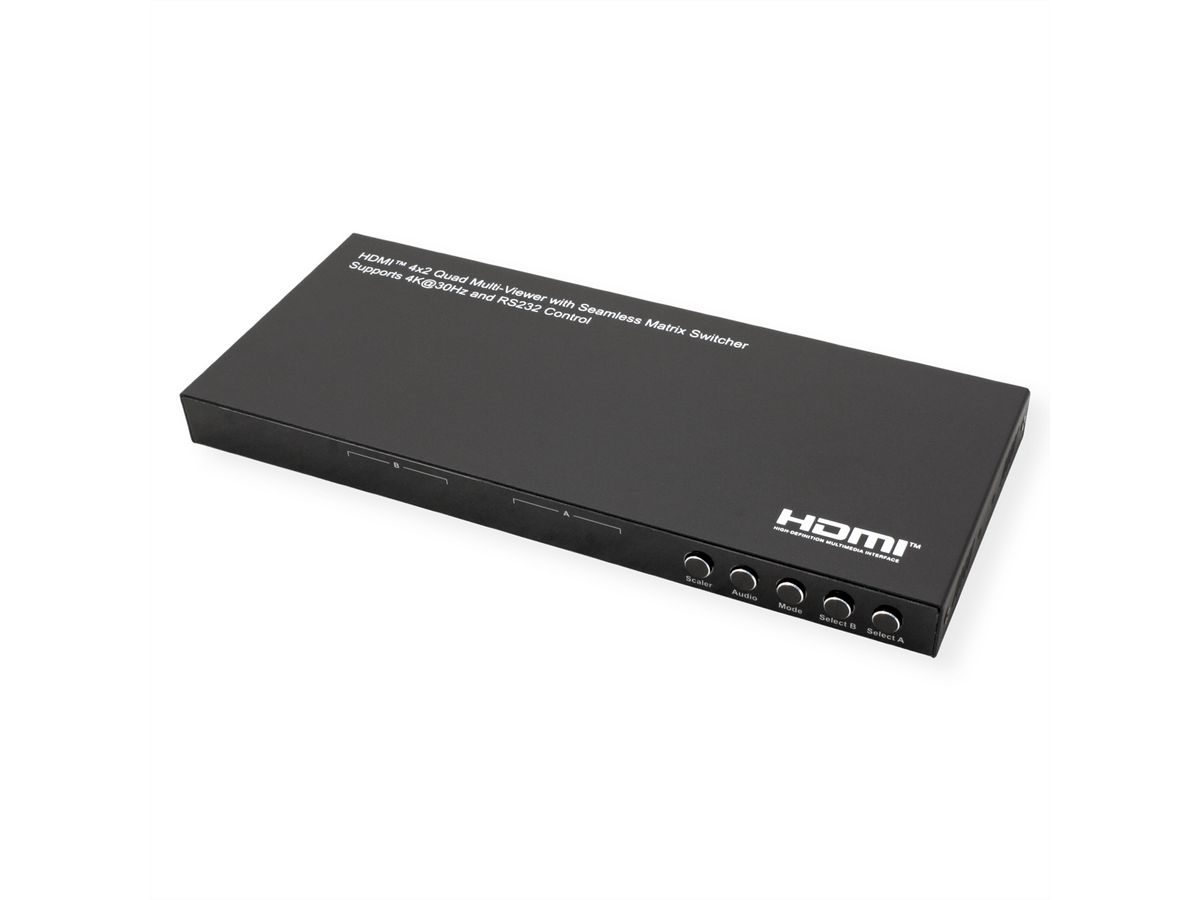

This VALUE HDMI 4x2 Matrix, 4K30Hz Quad Multi Viewer supports four HDMI input sources that can be displayed on one screen with five multi-view modes. The four HDMI inputs can be switched seamlessly. You can control it via the front button, IR control and RS-232 control.

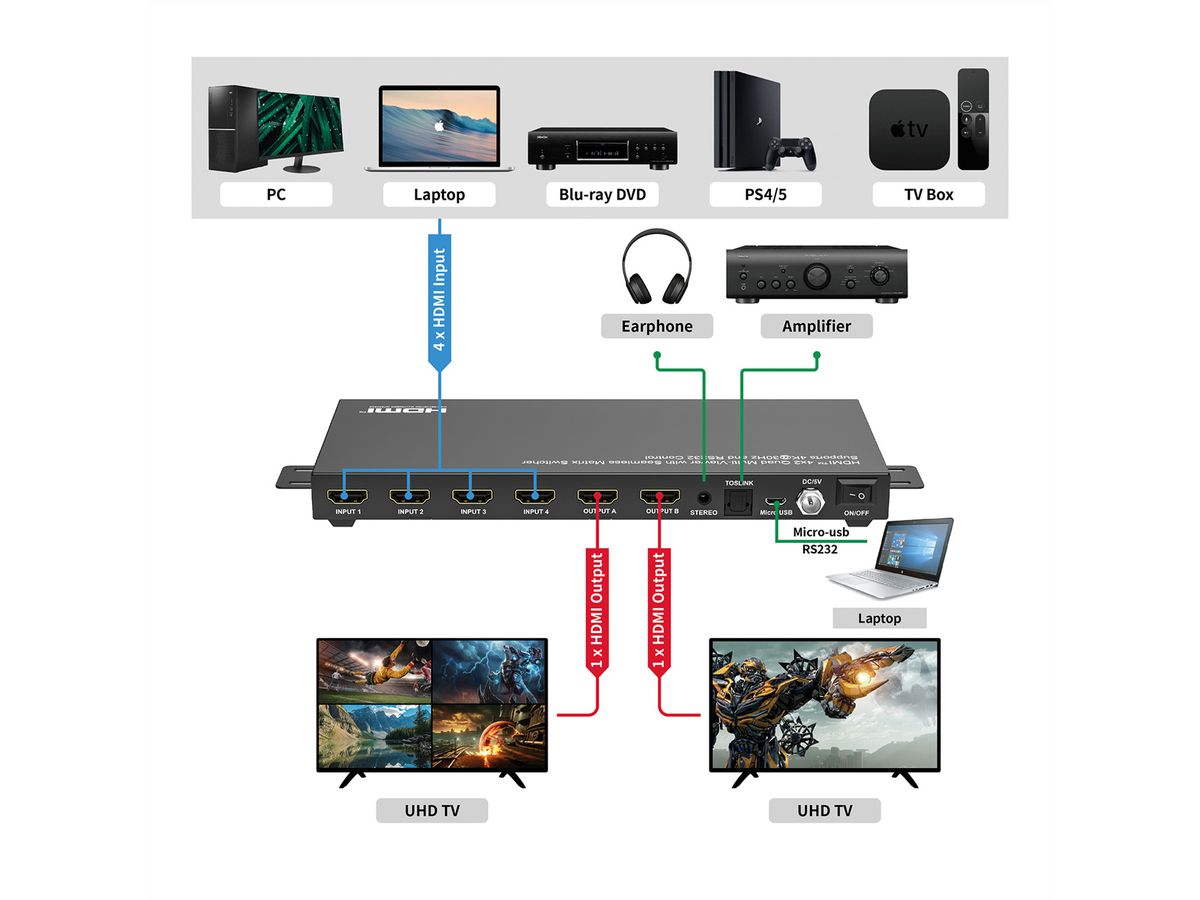

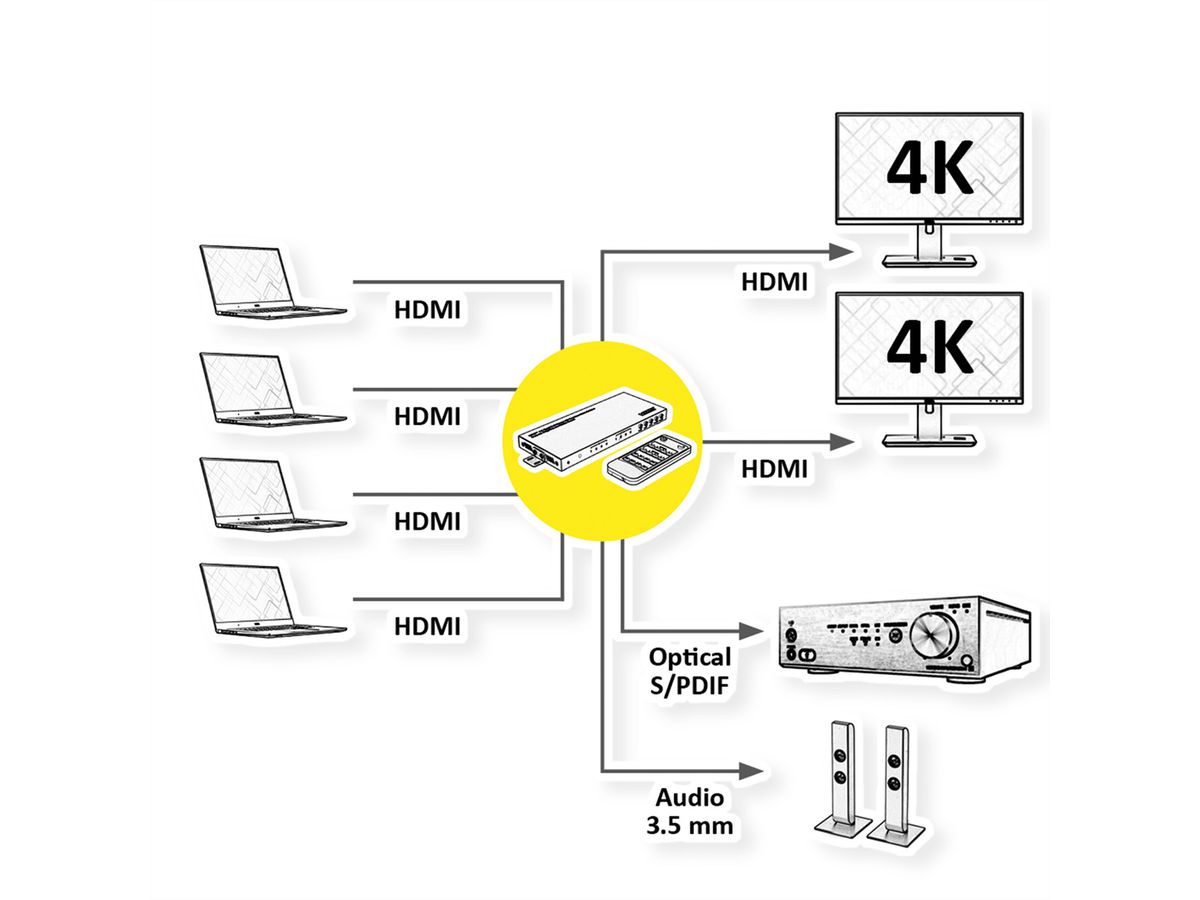

  • Application example: A display device (monitor, TV, projector, etc.) is supplied by up to four HDMI sources (PC, notebook, etc.). By pushing the button on the switch, or by using the remote control, the desired source can be selected. 5 different different display modesare possible. If only one source is active, the switch automatically switches to this source.

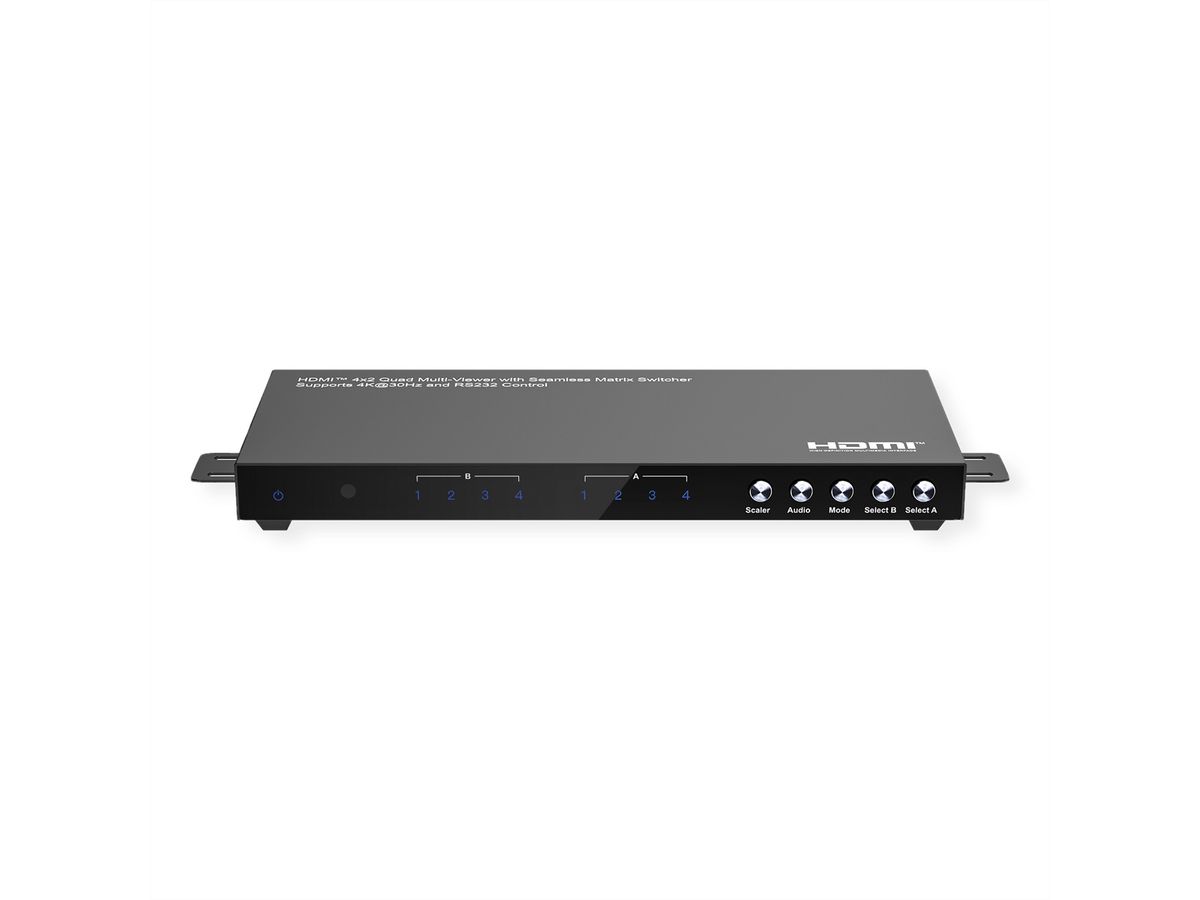

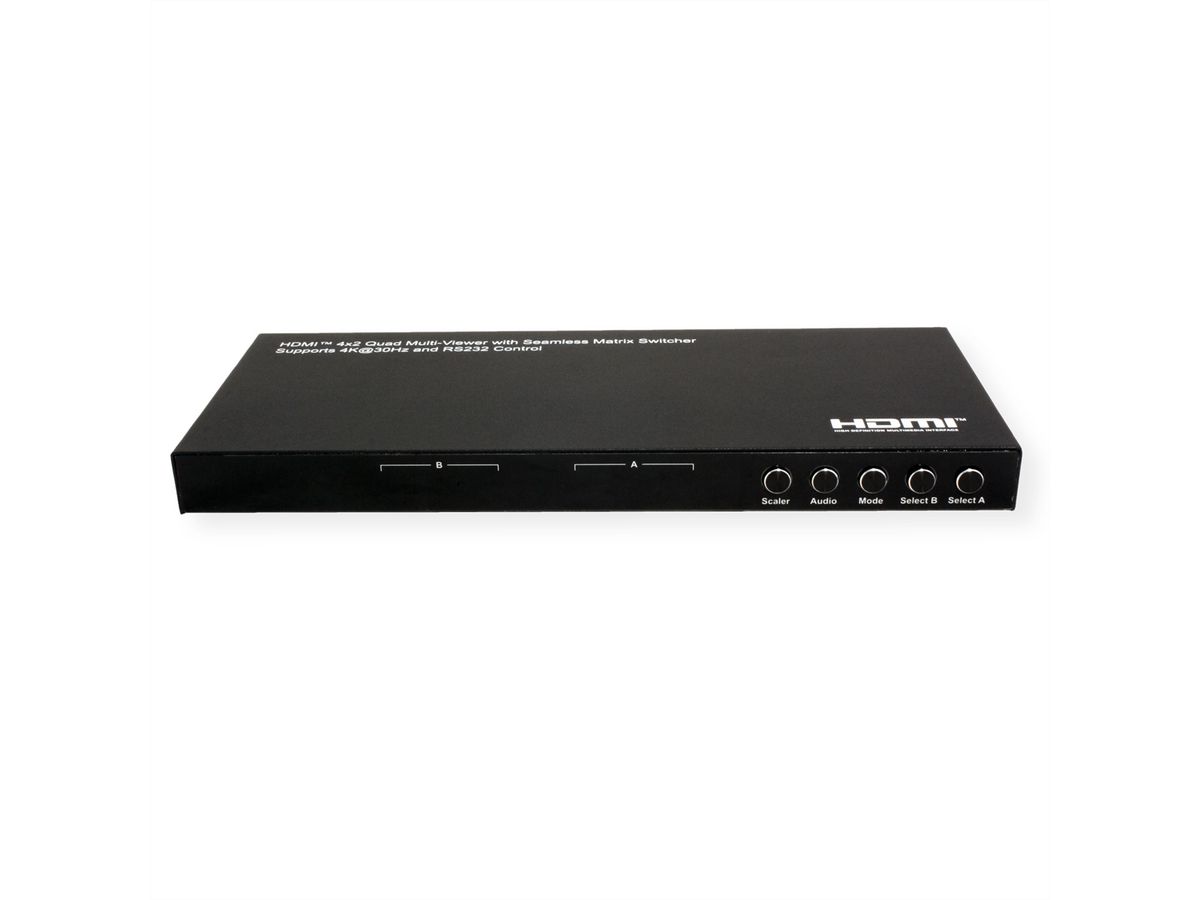

  • Switching between PCs is done via buttons on the switch, via remote control or via RS232
  • Max. resolution is 4K@30Hz (3840x2160)
  • Installation is possible without software - only the HDMI cables have to be connected to the Quad Multi Viewer.
  • Compliant with HDCP 1.4

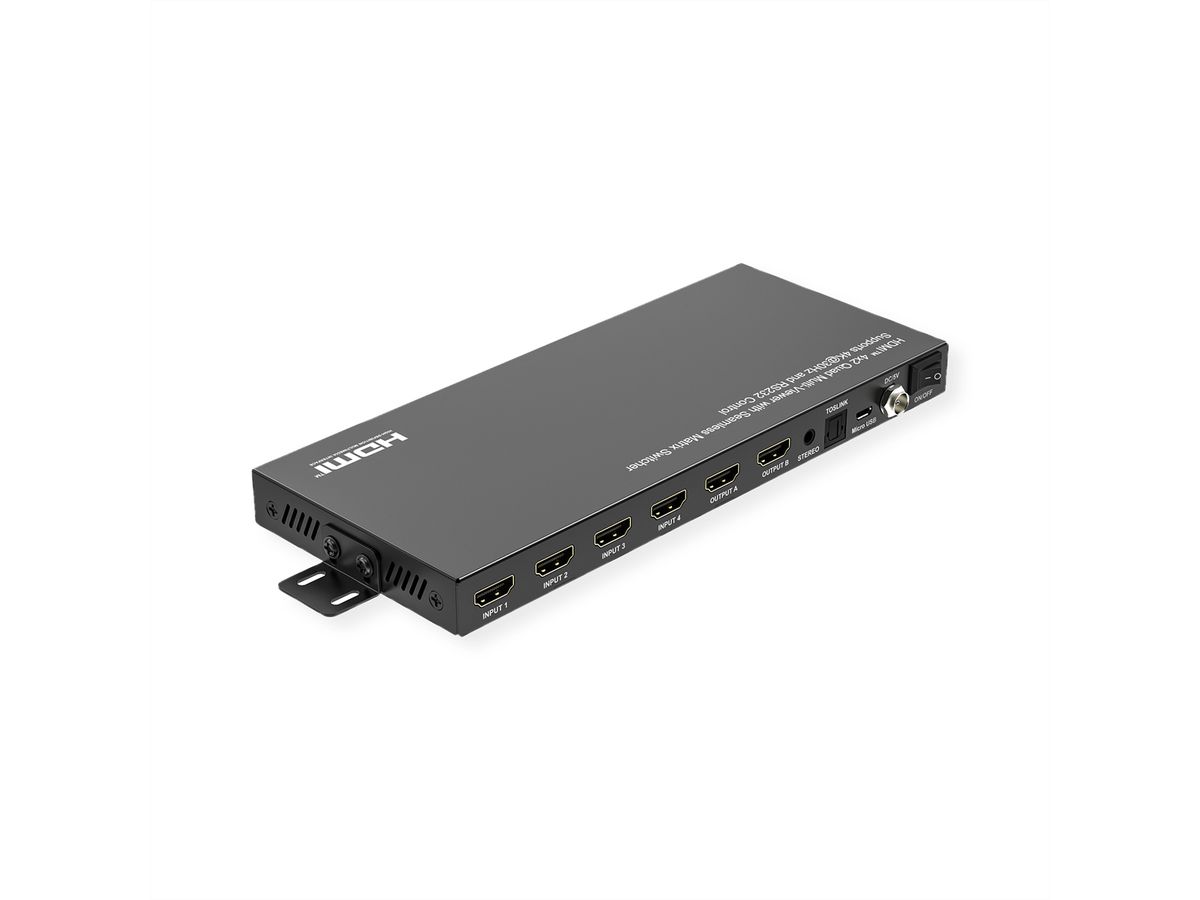

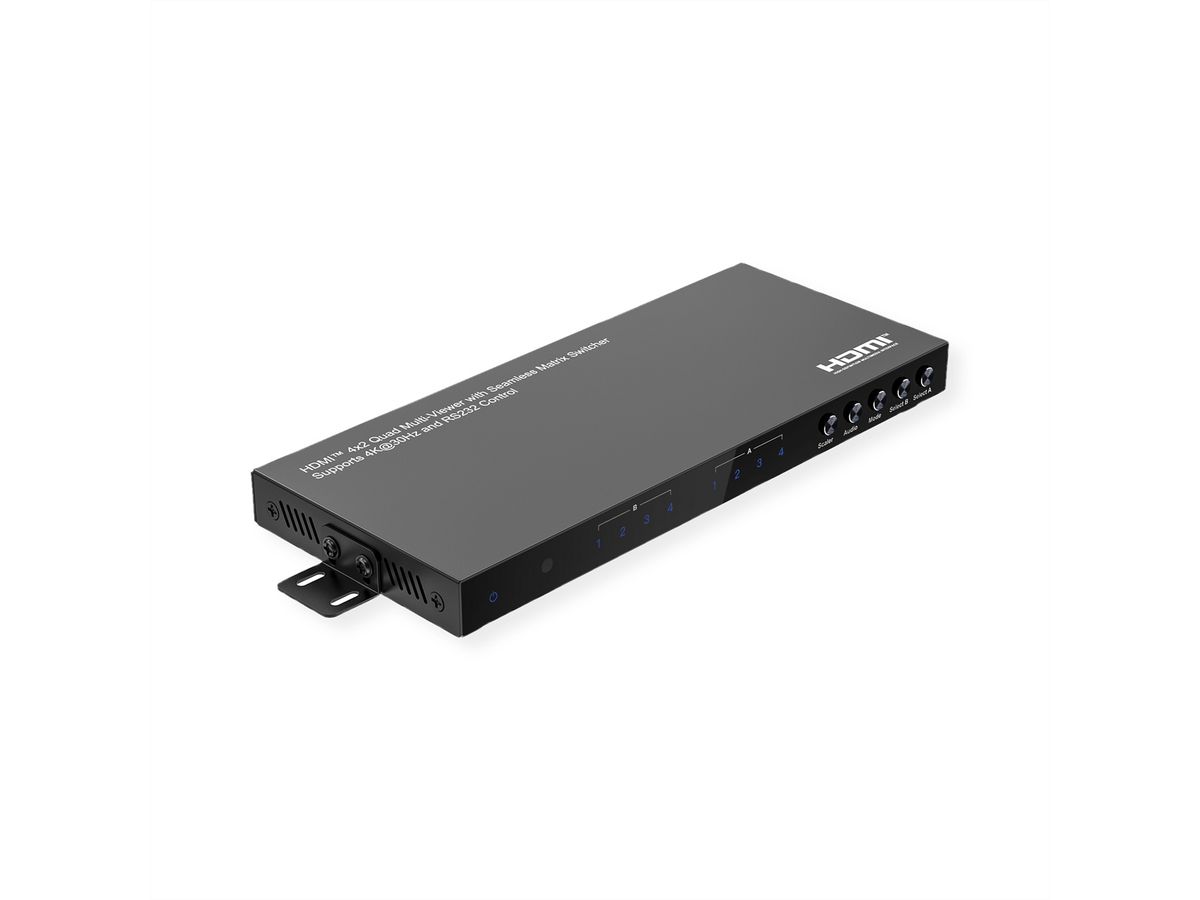

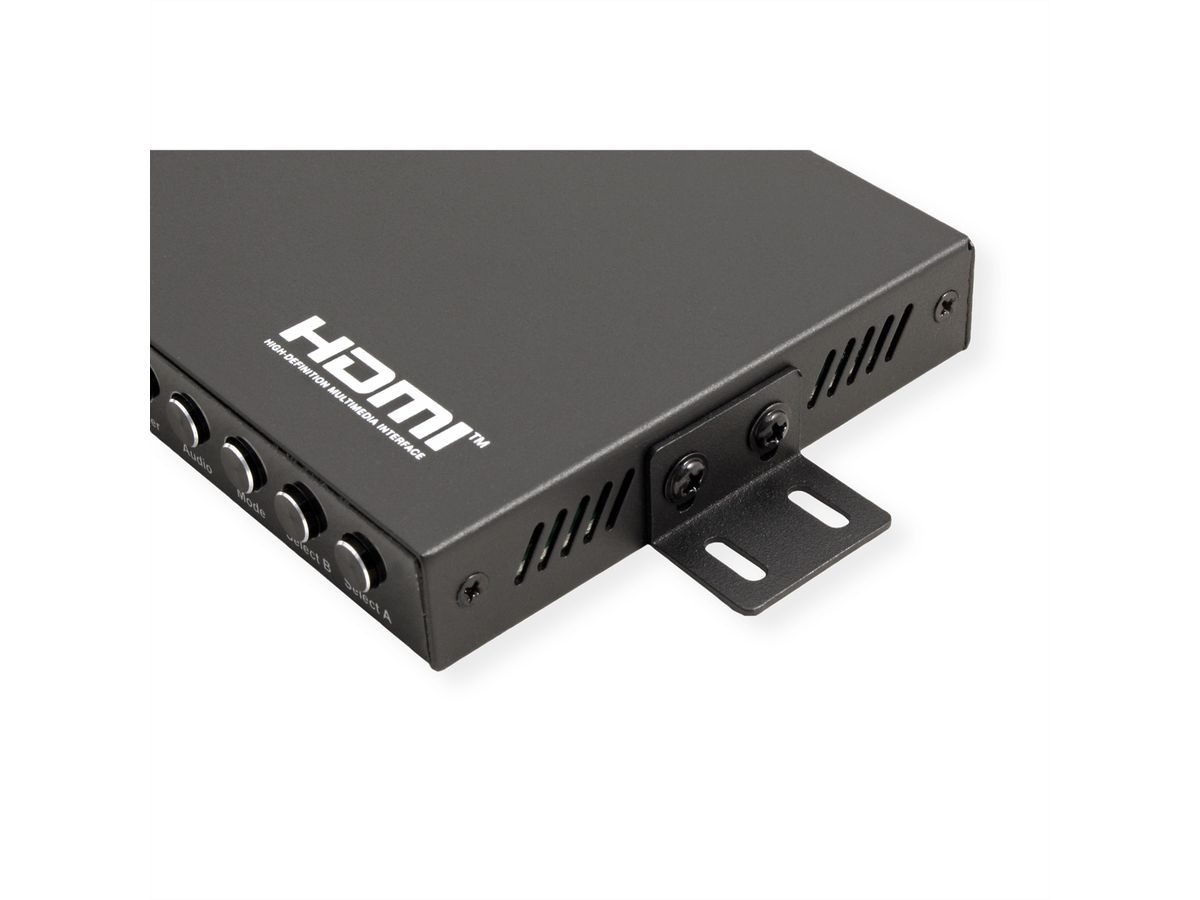

  • Flat, black metal housing
  • 5 different display modes possible: 2x2 same picture mode, Left/right picture mode, Top/bottom picture mode, One large picture top and three small pictures bottom mode, PIP (Picture in Picture) mode

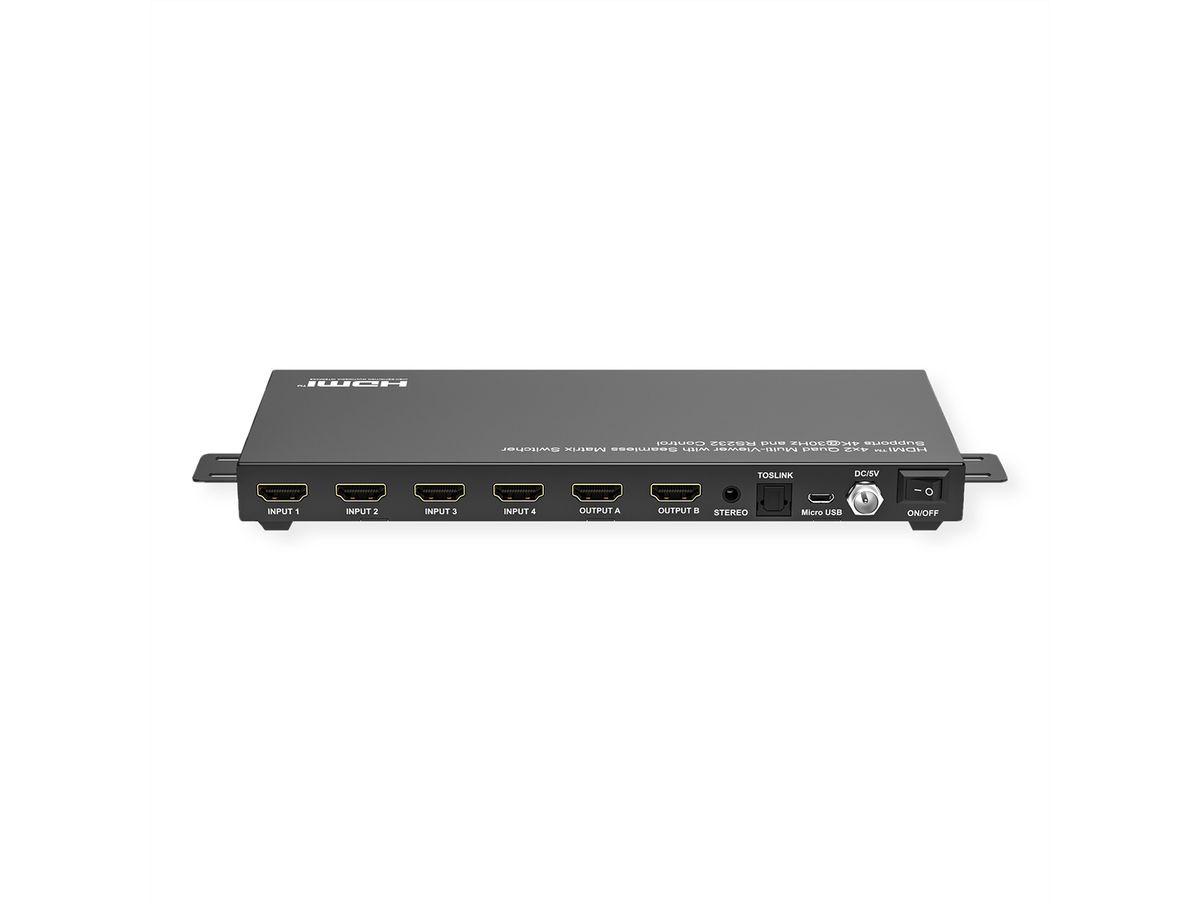

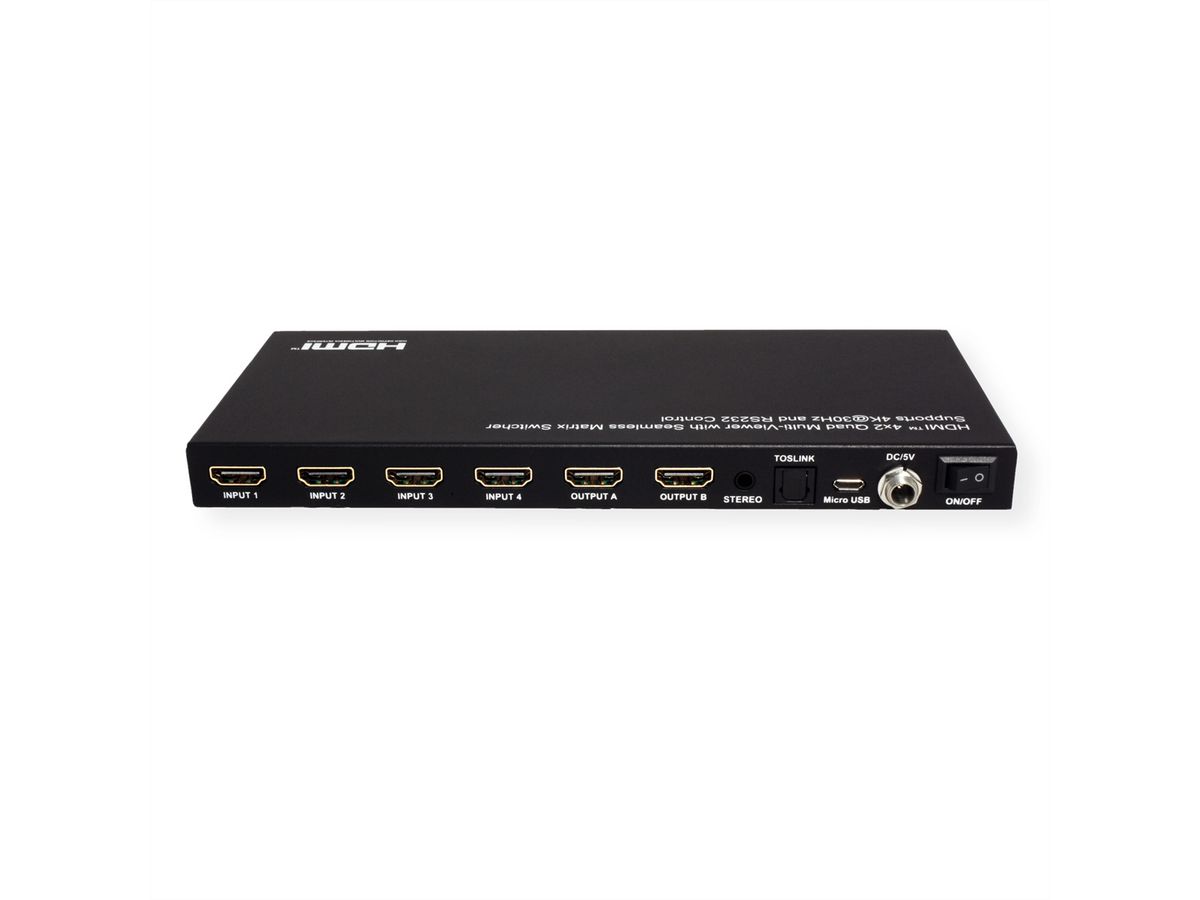

  • Input: 4x HDMI A Female
  • Output: 2x HDMI A Female
  • 1x Stereo Audio Output and 1x Toslink Digital Audio Output

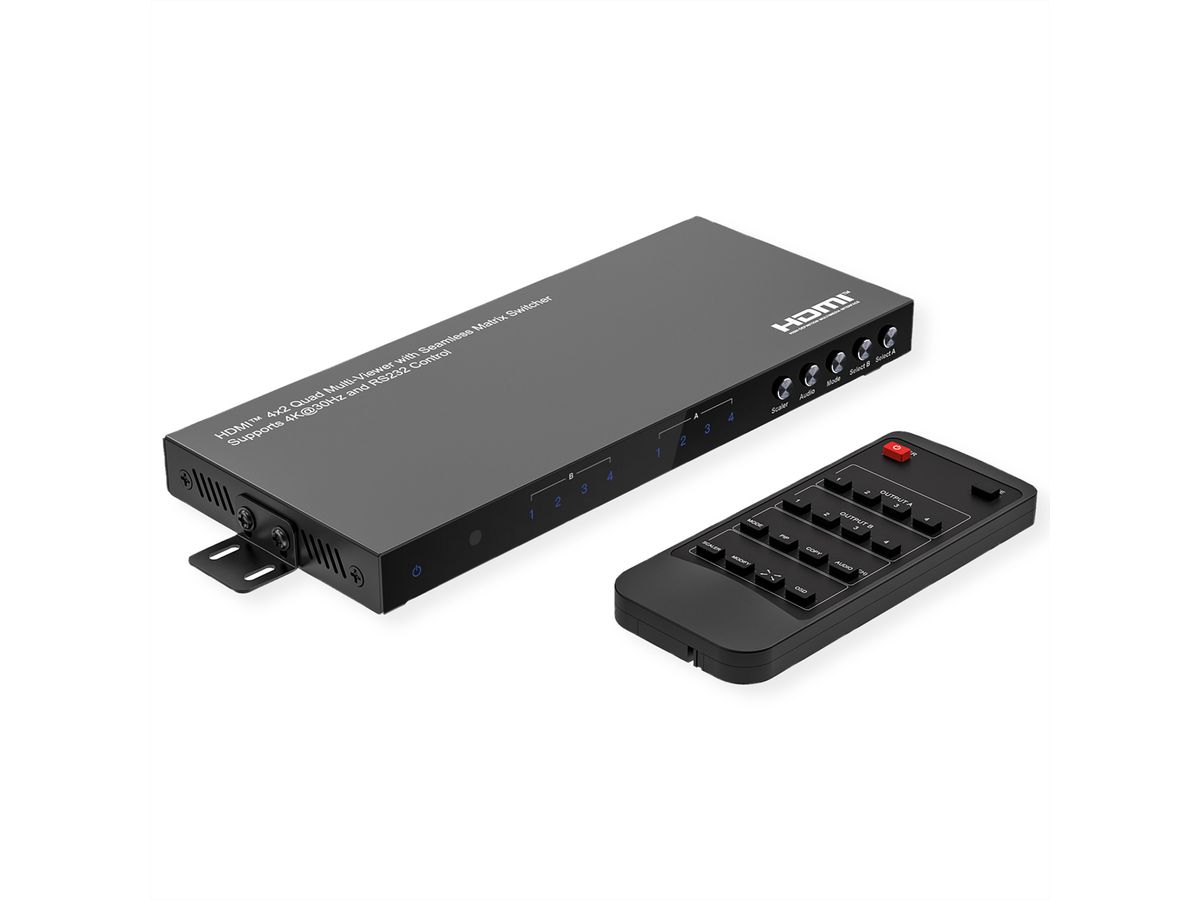

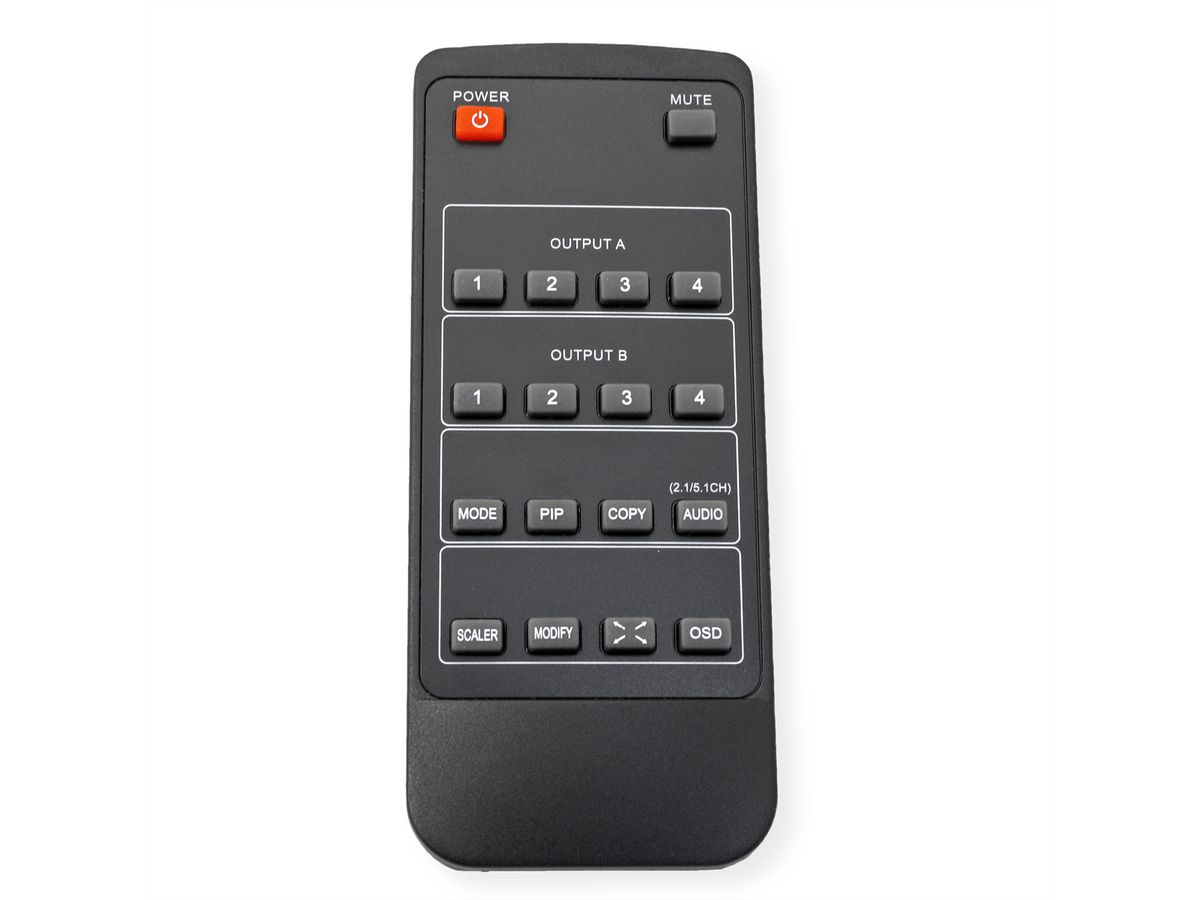

  • Contents: Main Unit, Power Supply, Remote Control, User Manual

Specifications

Manufacturer VALUE
Product group Splitters and selectors
Product type HDMI-Video-Switch
Colour black
Scope of delivery Main Unit, Power Adapter, Remote Control, User Manual
Interface HDMI
Inputs 4
Outputs 2
Video input 4x HDMI Female
Video output 2x HDMI Female
Audio output 1x Stereo Audio Output and 1x Toslink Digital Audio Output
Max. resolution (nom.) 3840 x 2160@30Hz
Dimensions (HxWxD) 18 x 215 x 90 mm
Power supply output 5 V DC, 1A
Technical particularity Switching by push botton, remote control or by RS-232
Operating temperature min. 0 °C
Operating temperature max. 70 °C
Height 18 mm
Width 215 mm
Depth 90 mm
Weight 450 g
Height of packaging (single piece) 0 mm
Width of packaging (single piece) 0 mm
Depth of packaging (single piece) 0 mm
Package weight (single piece) 0 kg

Downloads

Product data sheet - English (68.0 KB)

Download

User manual - Deutsch (1.3 MB)

Download

User manual - English (1.3 MB)

Download

User manual - Français (1.3 MB)

Download
