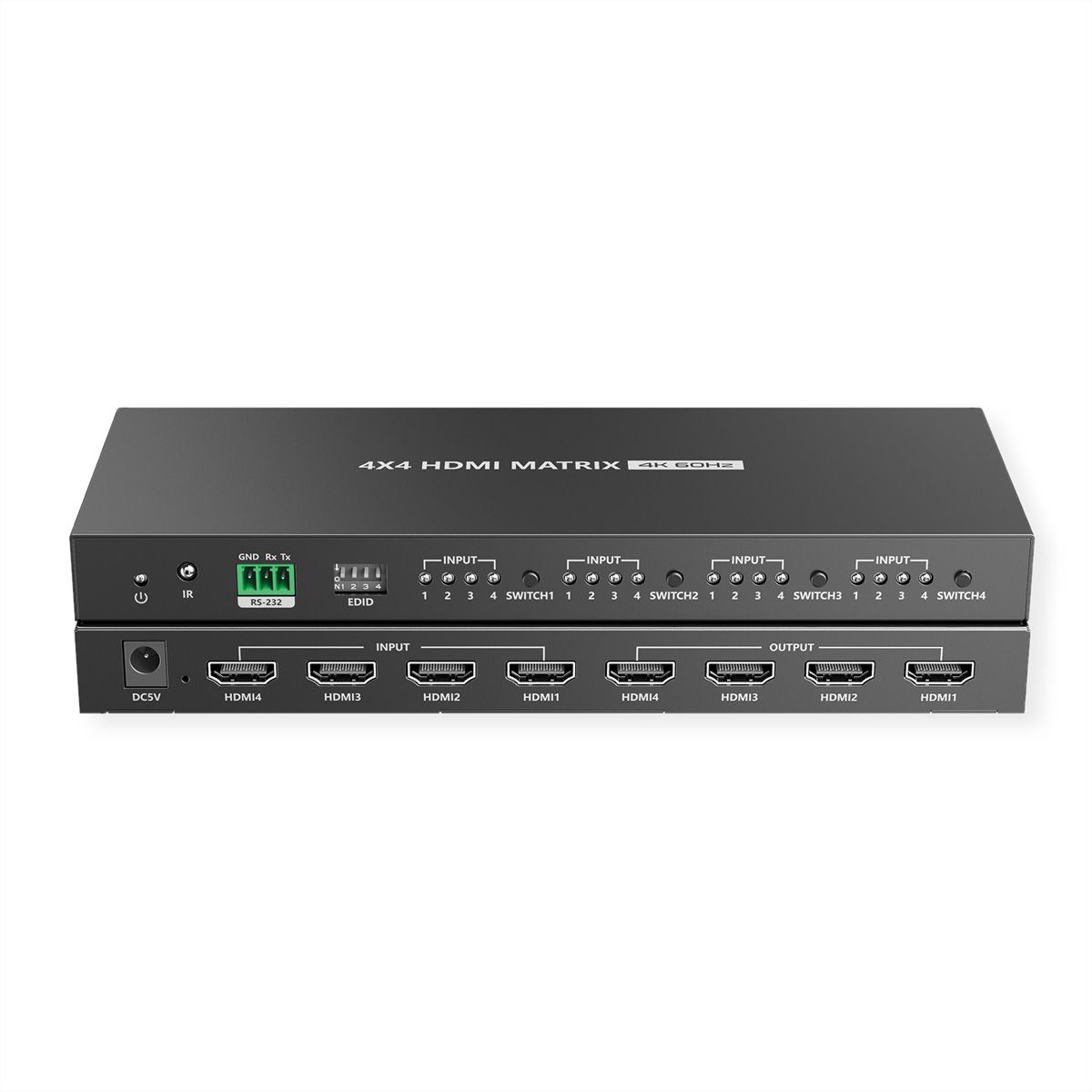

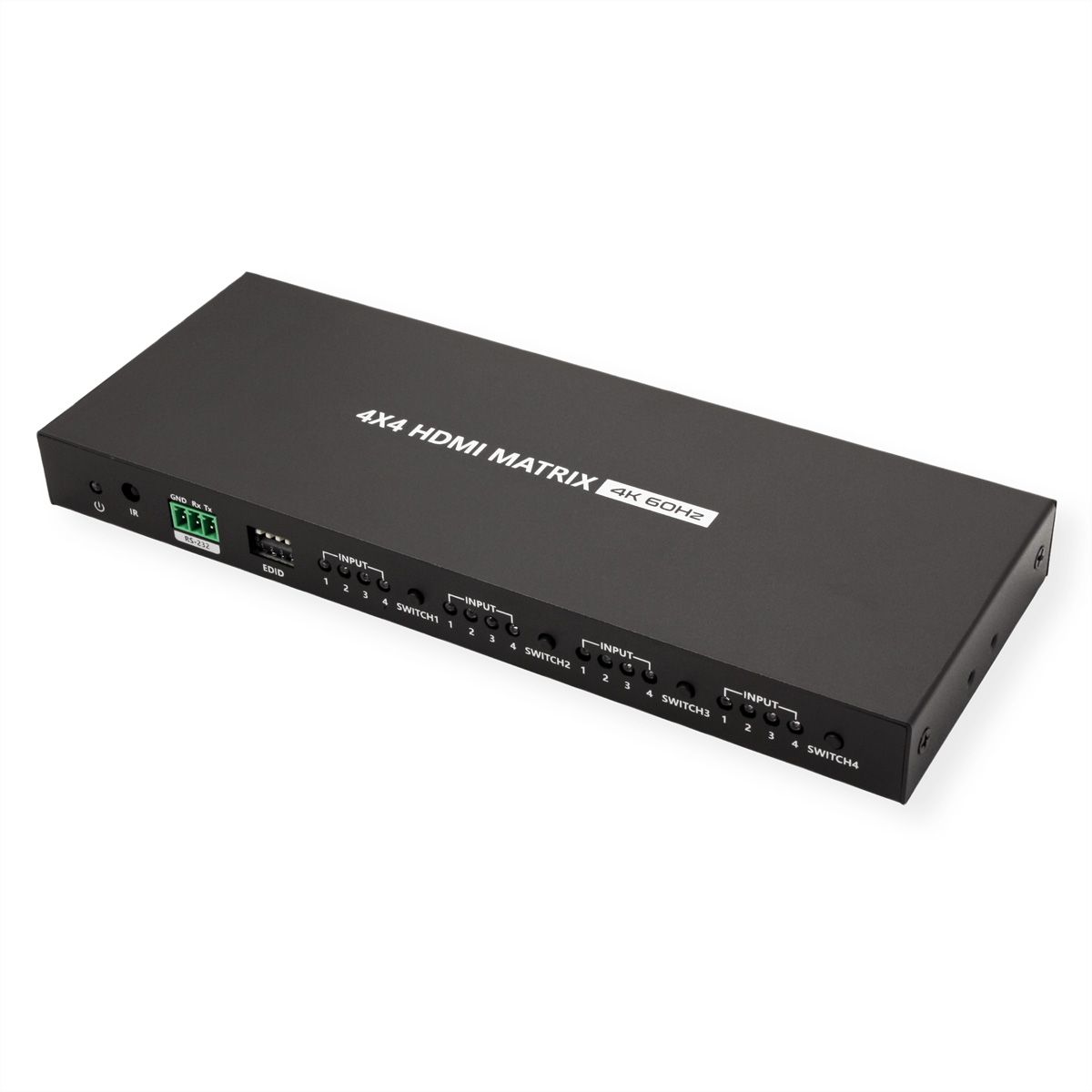

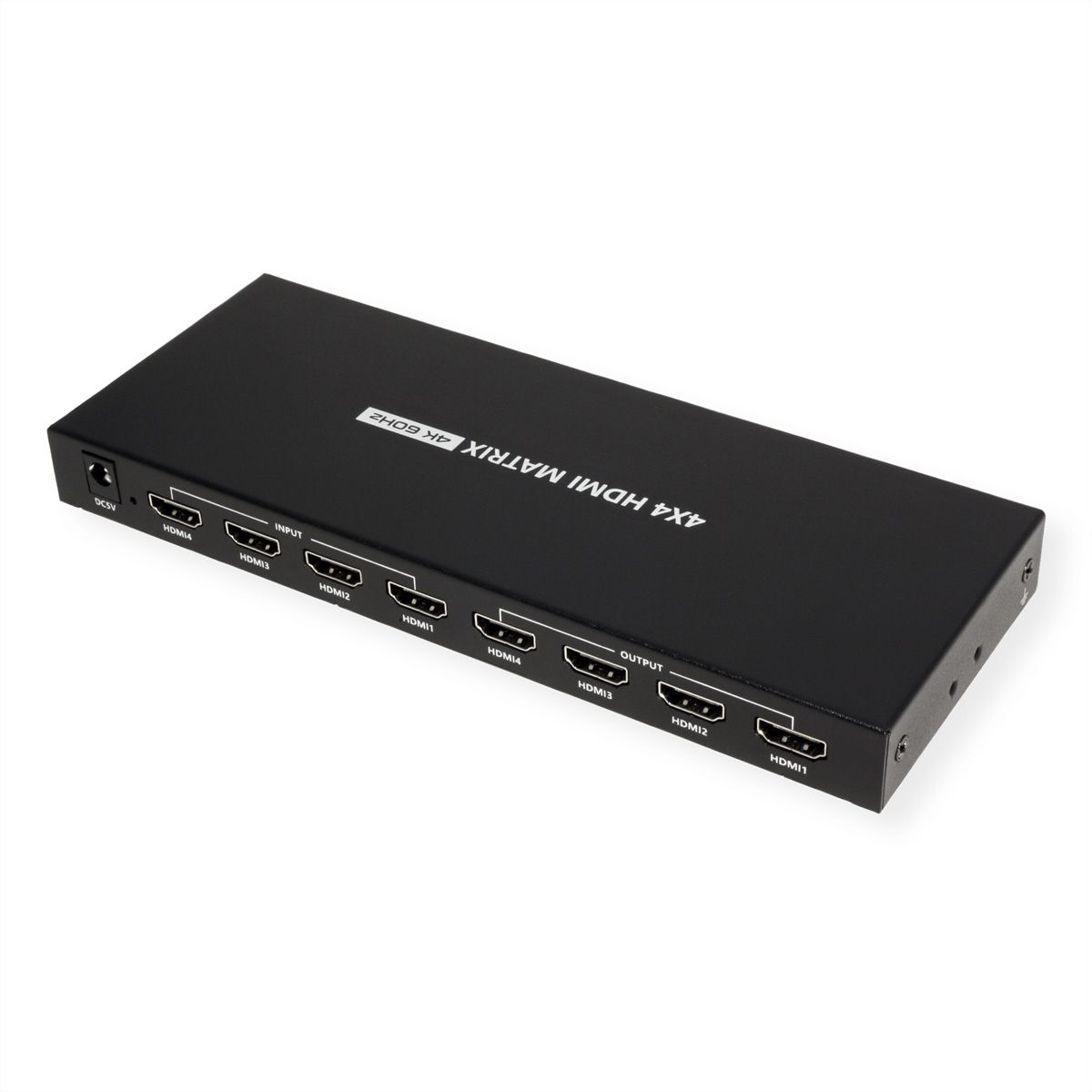

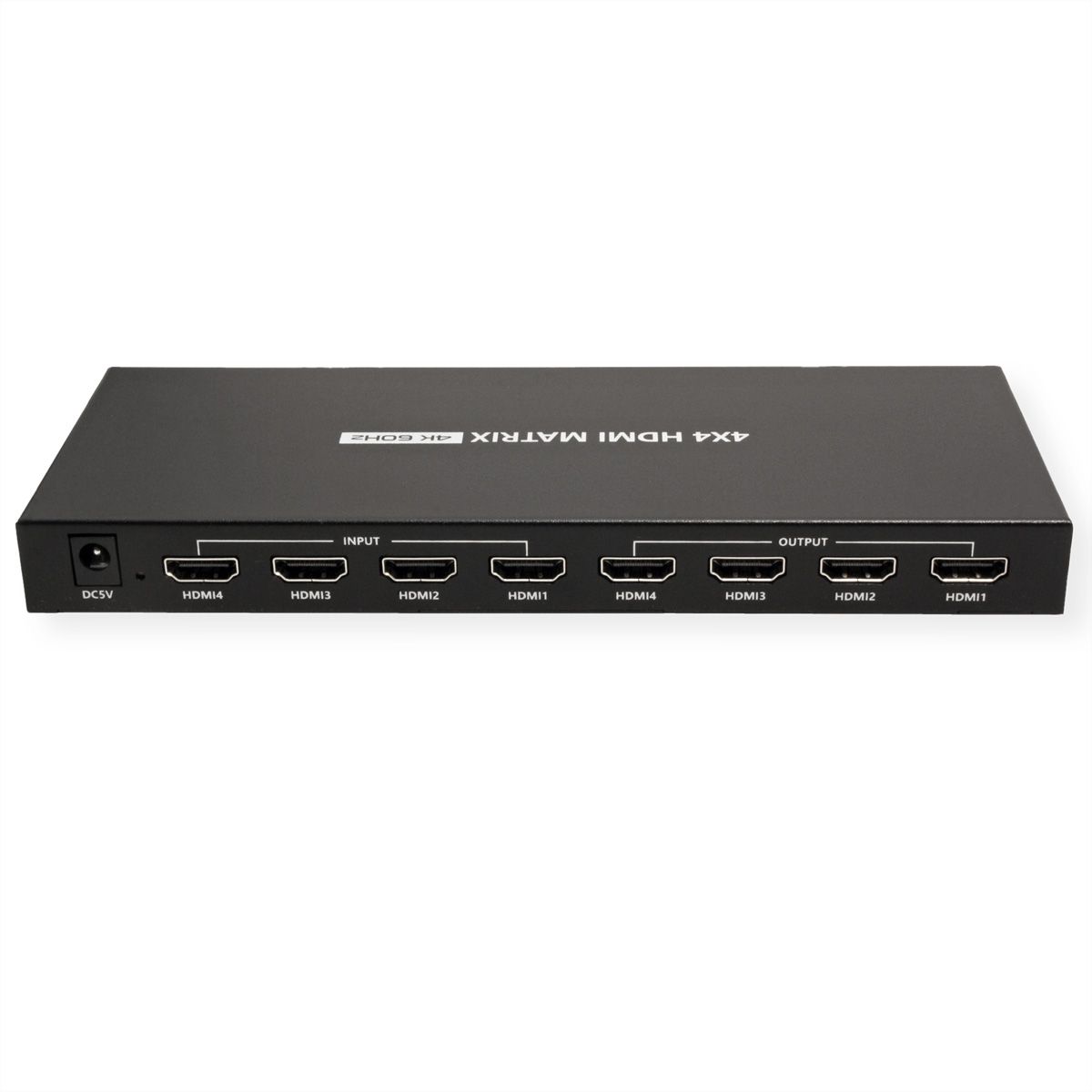

VALUE HDMI Matrix Switch, 4x4, 4K60Hz, with remote control
Item no.
14.99.3593-2
Brand / Manufacturer
VALUE
Manuf. no.
14.99.3593
EAN
7630049673366
Package weight
0.7 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_uhd1.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
Please log in to be able to use the shopping cart and then complete orders.
Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Description

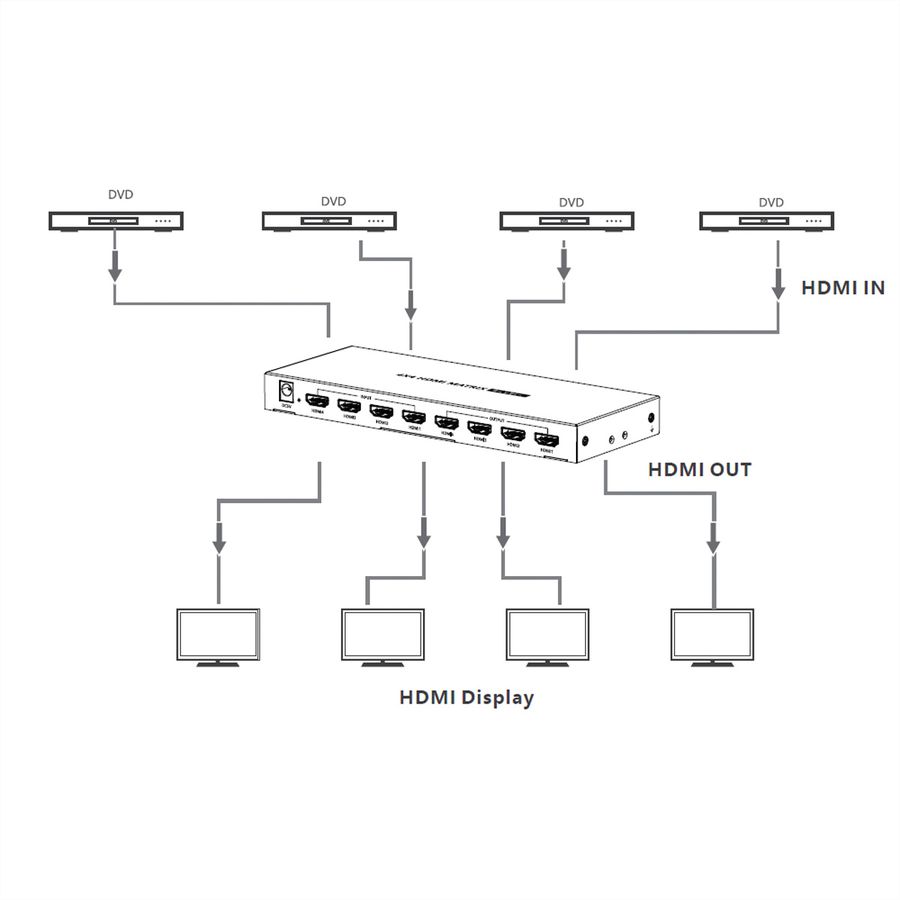

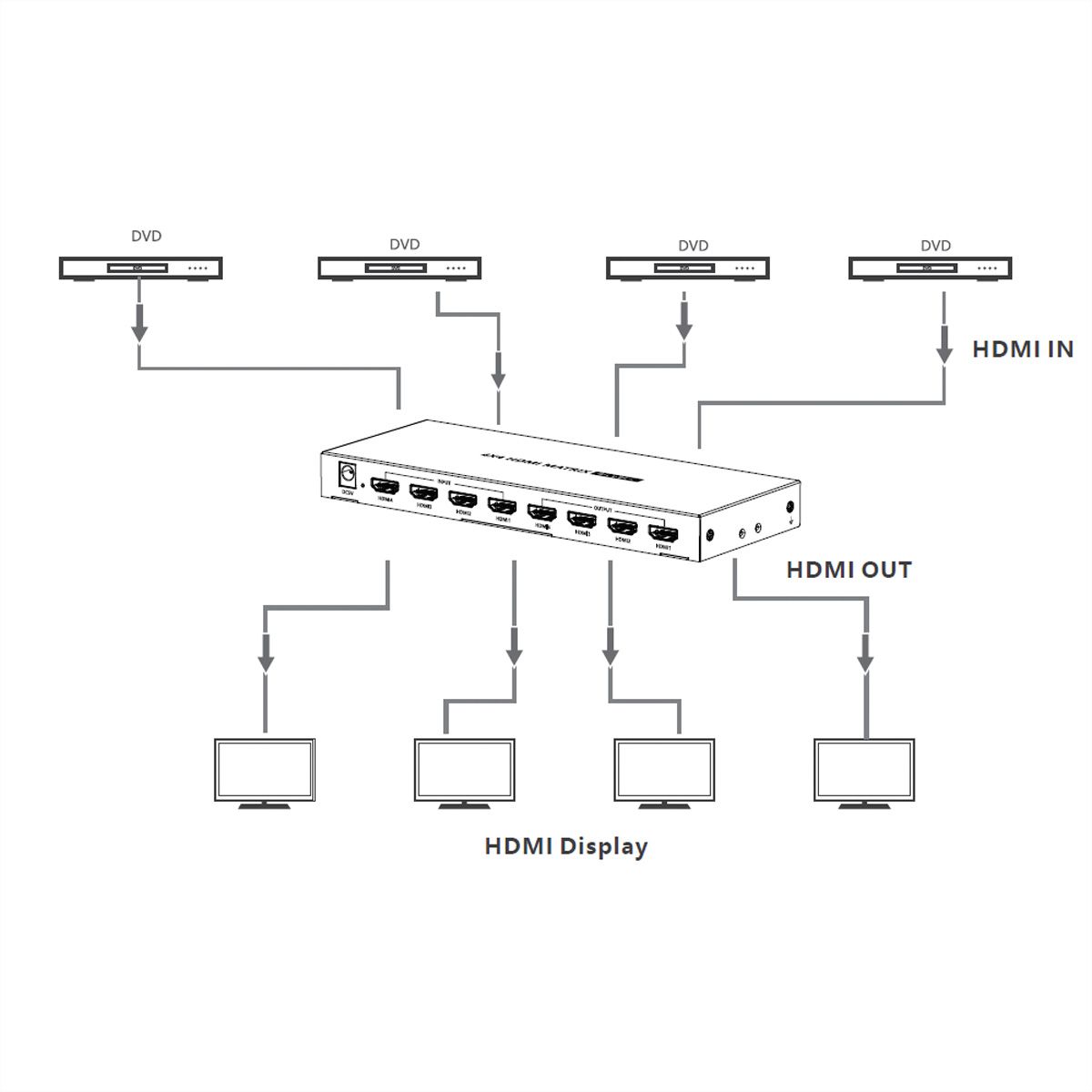

This 4 in 4 out HDMI Matrix can switch 4 HDMI input signals (PC, notebook, etc.) to 4 HDMI displays (monitor, projector, etc.) with resolutions up to 4096x2160@60Hz. It supports multiple switching methods (buttons on the matrix, IR remote control and RS232). Any two of the four HDMI outputs support automatic down-scaling. This matrix can be used in security surveillance, education, training, exhibitions, trade shows, broadcasting, command centers and many other applications.

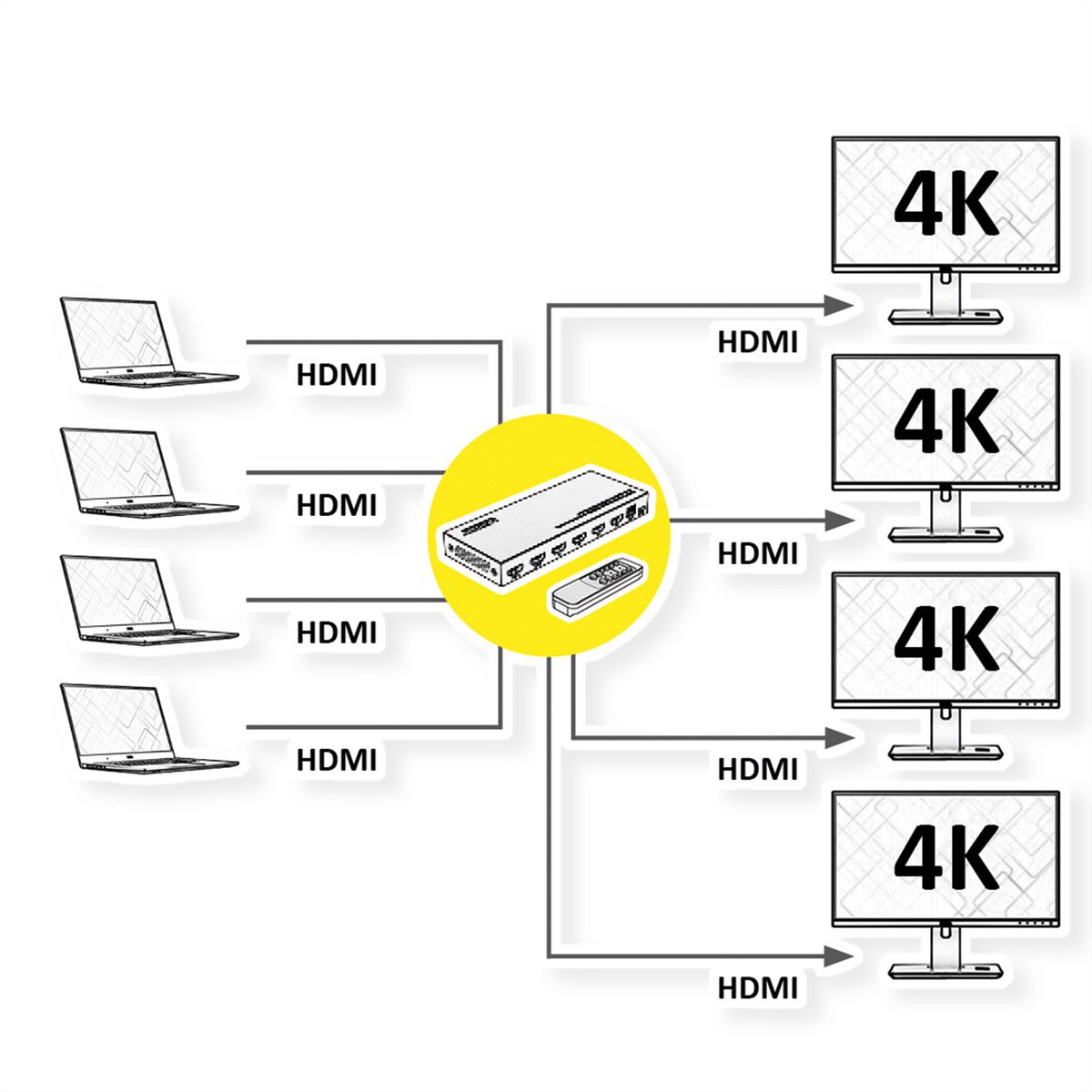

- Four HDMI input signals can be switched to four HDMI output devices
- Up to 4K (4096 x 2160 @60Hz) resolution and backwards compatible
- Compatible with HDCP 2.2 and HDCP 1.4
- Any two of the four HDMI outputs support auto down-scaling.
- Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Atmos

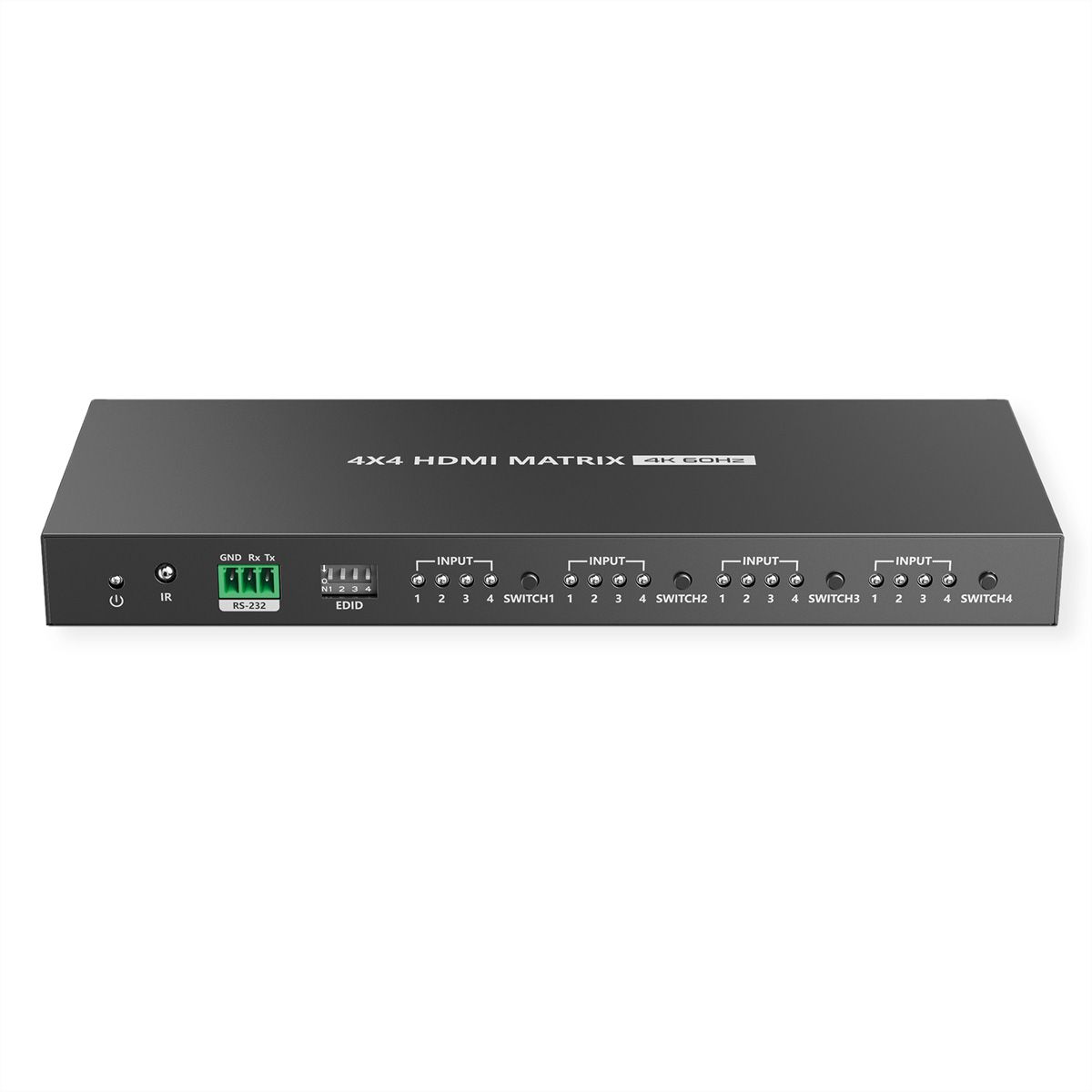

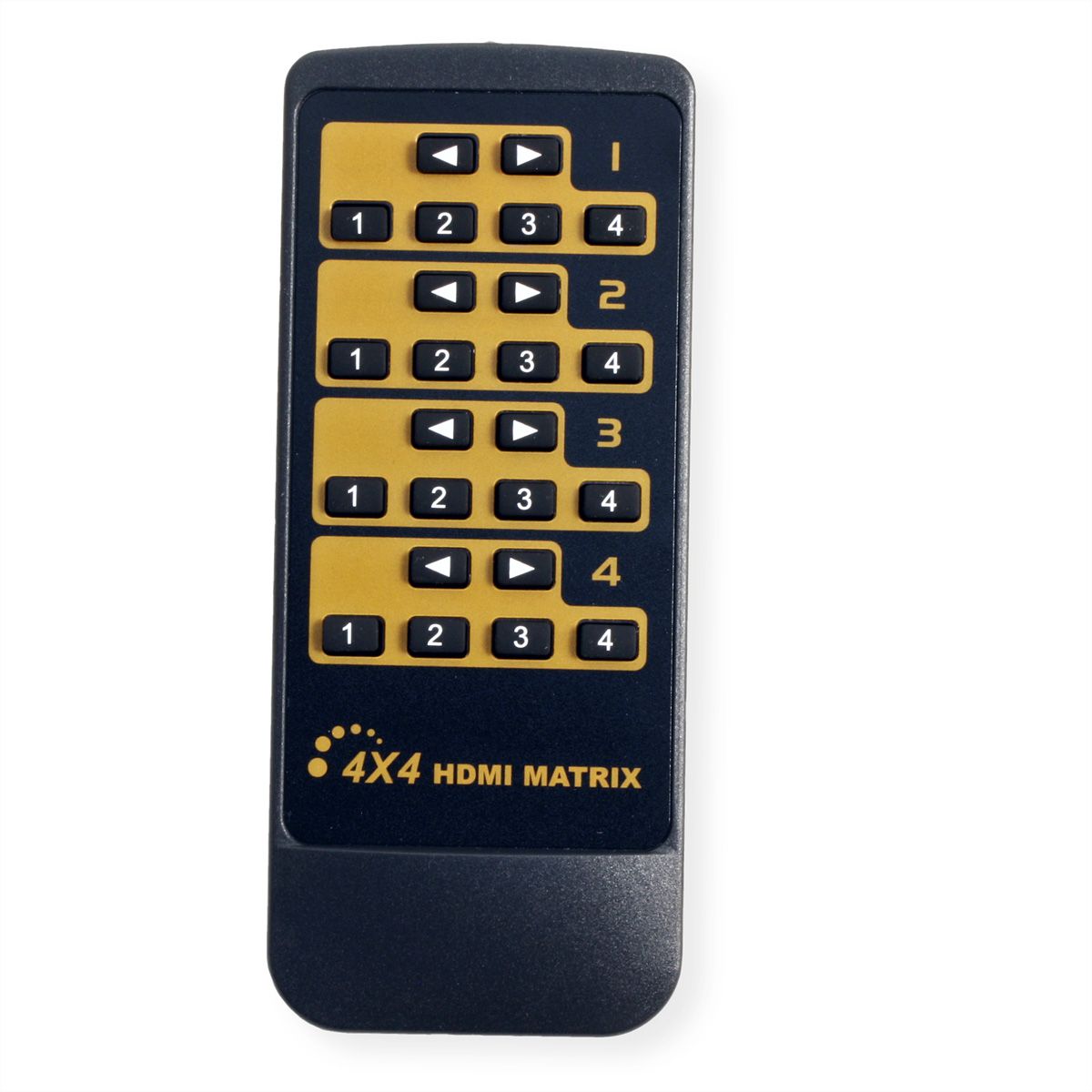

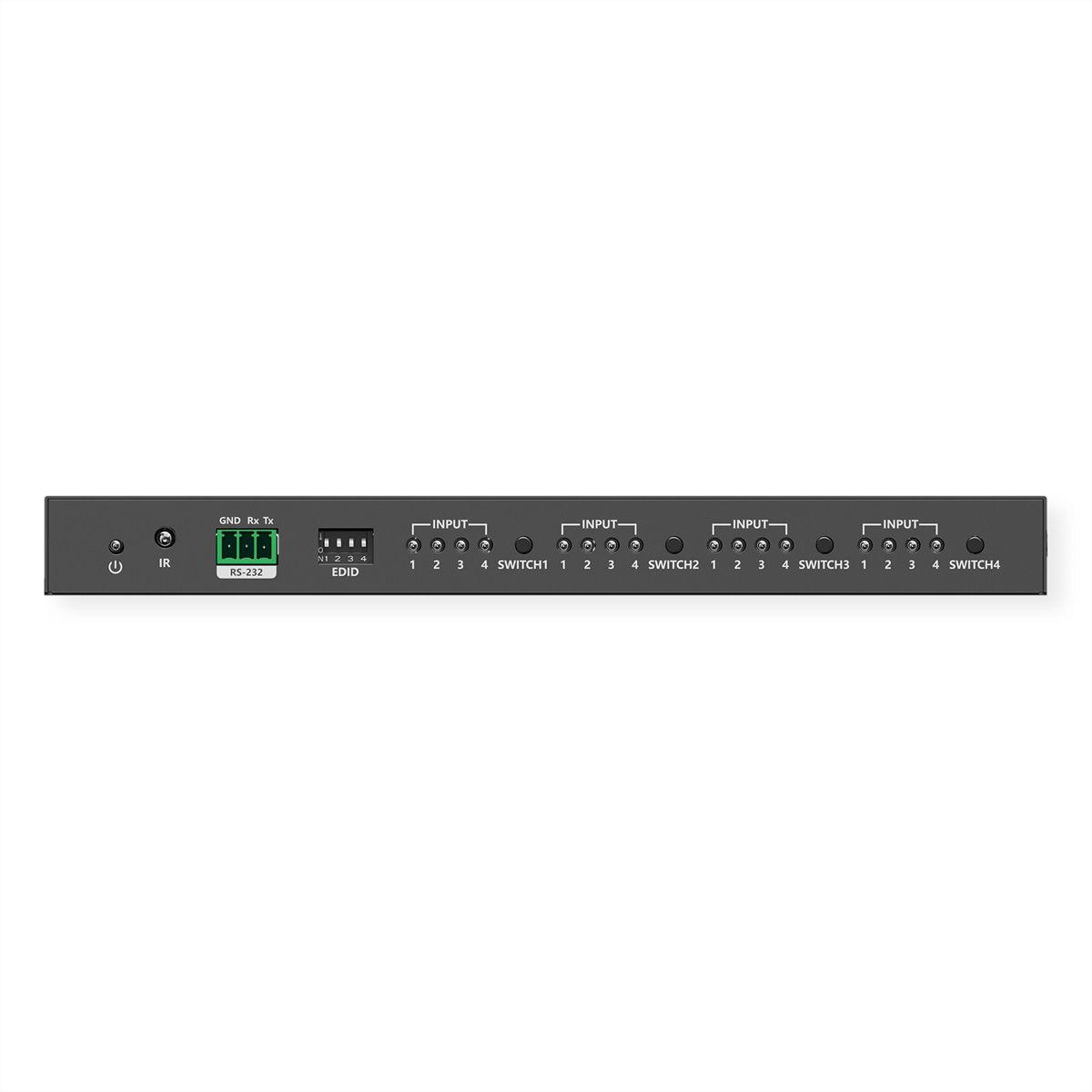

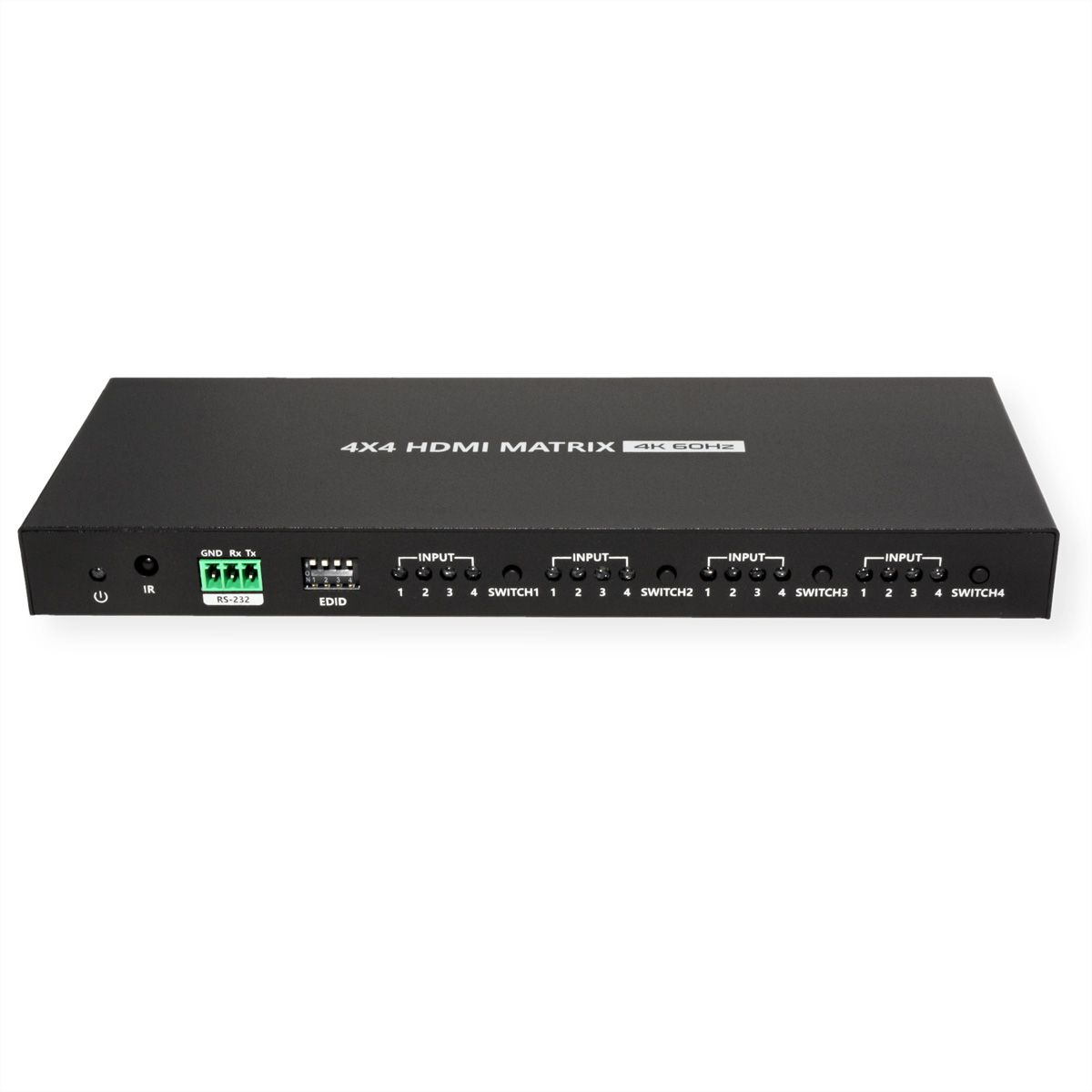

- Input devices can be switched by push buttons on the switch, IR remote control or by RS-232
- 16 different EDID states / resolutions can be set with the DIP switch
- Contents: HDMI Matrix Switch, Power Supply, Remote Control, Mounting Ears (2x), Terminal Block, User Manual
Specifications
- Manufacturer
- VALUE
- Product group
- Splitters and selectors
- Product type
- HDMI-Matrix-Switch 4K
- Colour
- black
- Scope of delivery
- HDMI Matrix Switch, Power Supply, Remote Control, Mounting Ears (2x), Terminal Block, User Manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 4

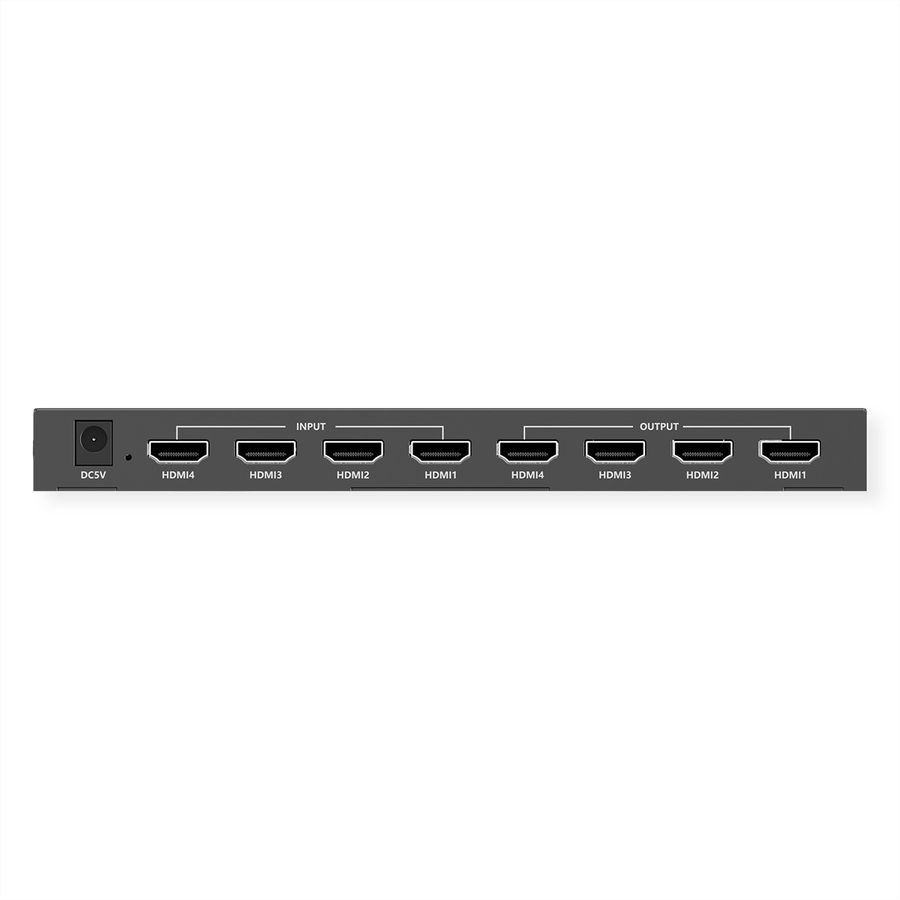

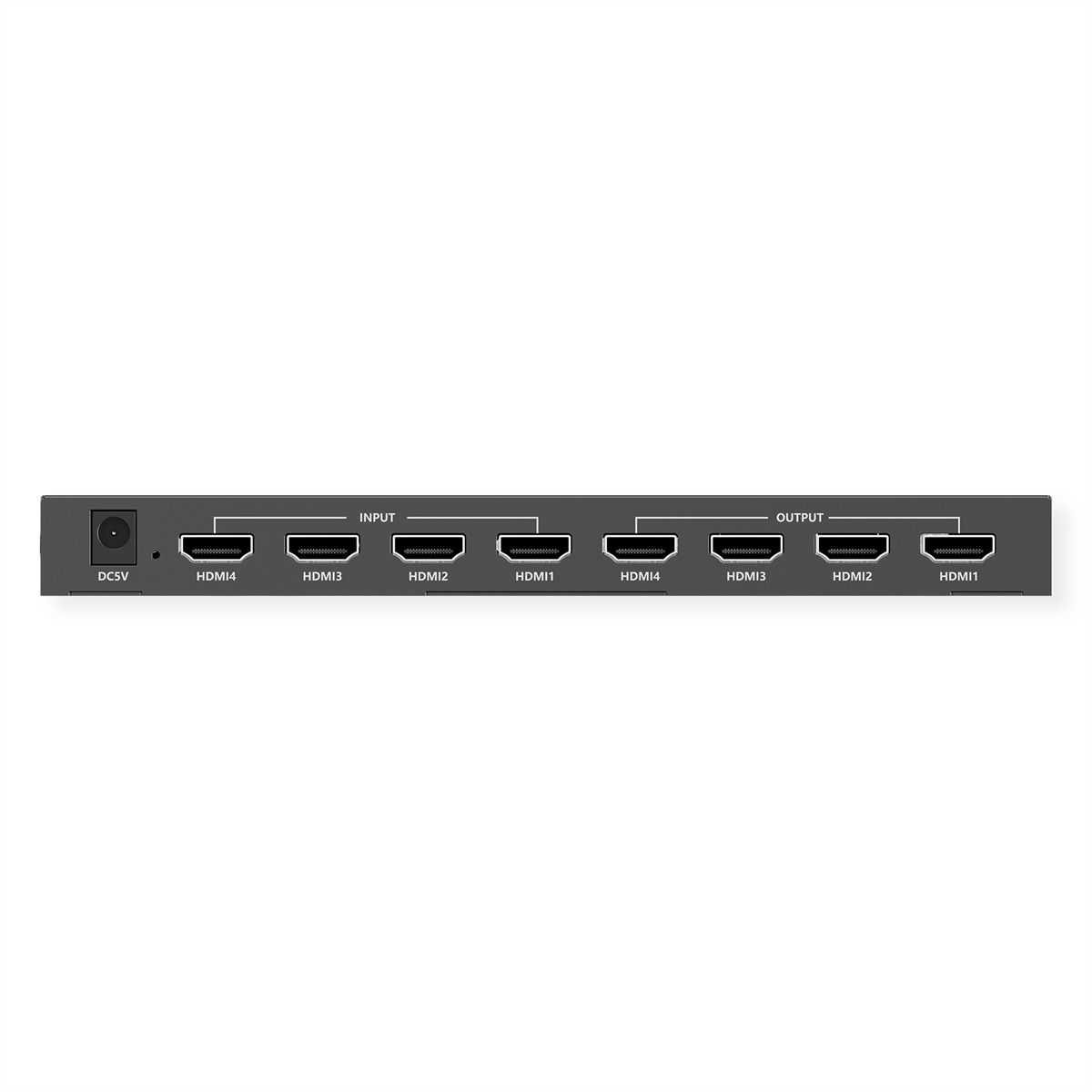

- Video input
- 4x HDMI Female
- Video output
- 4x HDMI Female
- Video band width
- 18 Gbps
- Max. resolution (nom.)
- 4096 x 2160 @60Hz (4K)
- Max. resolution
- 4096 x 2160 @60Hz (4K)
- Dimensions (HxWxD)
- 21 x 210 x 80 mm
- Power supply output
- 5V DC, 1A
- Technical particularity
- Switching via push buttons, via IR remote control or via RS-232
- Mains connection
- Appliance Europlug, Type-C
- Battery category
- Portable battery
- Number of batteries
- 1 pieces
- Battery type
- Button cell CR2025
- Battery
- included
- Battery technology
- Li-Ion
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 70 °C
- Height
- 21 mm
- Width
- 210 mm
- Depth
- 80 mm
- Weight
- 375 g
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 180 mm
- Depth of packaging (single piece)
- 250 mm
- Package weight (single piece)
- 0.7 kg
