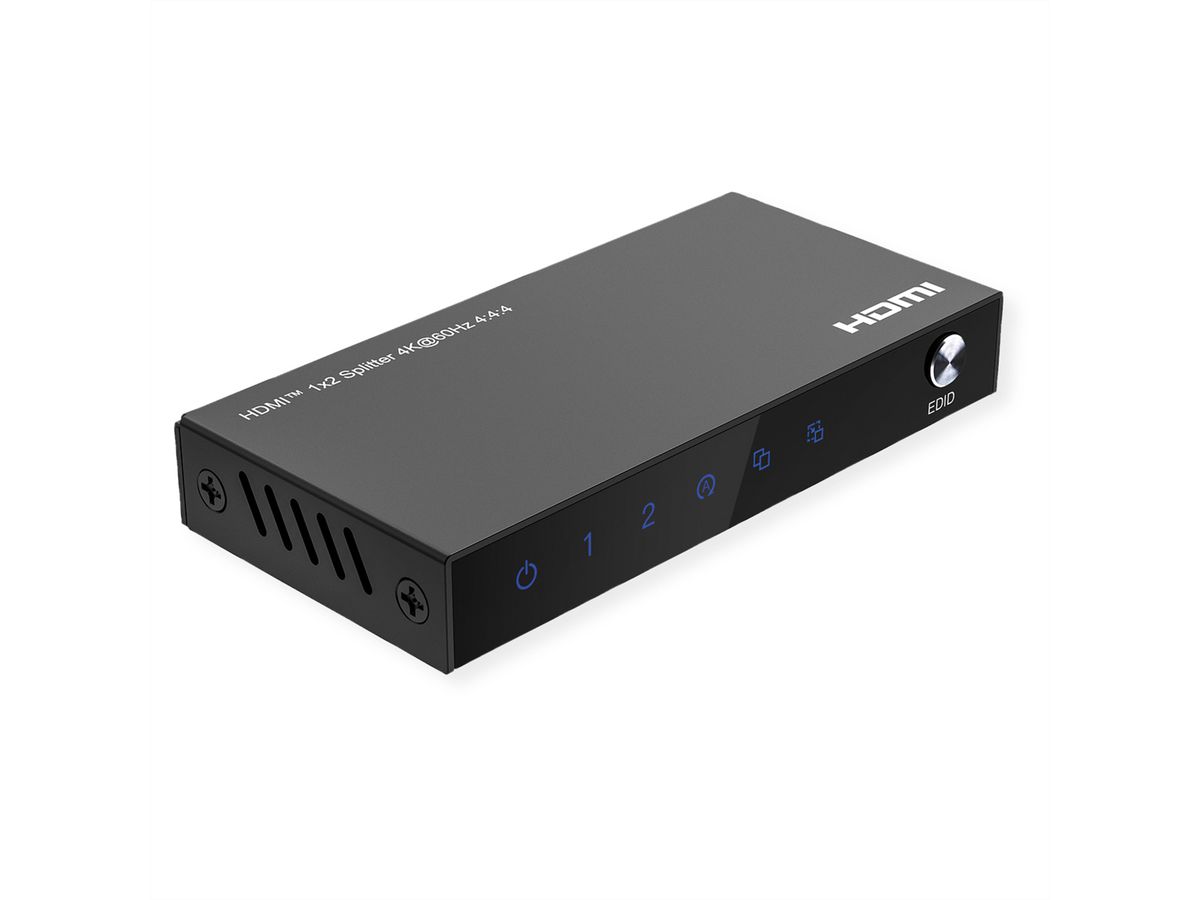

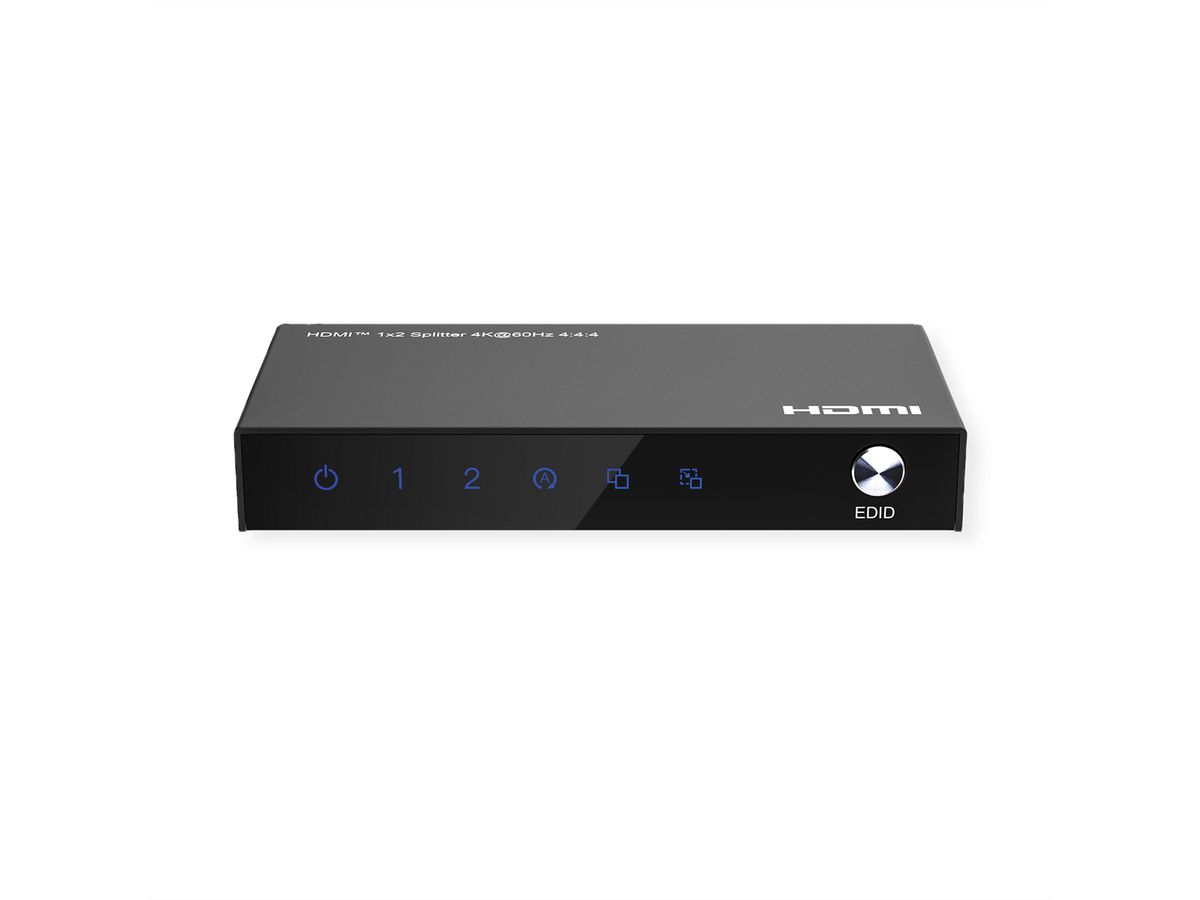

VALUE HDMI Splitter, 1x2, 4K60Hz
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

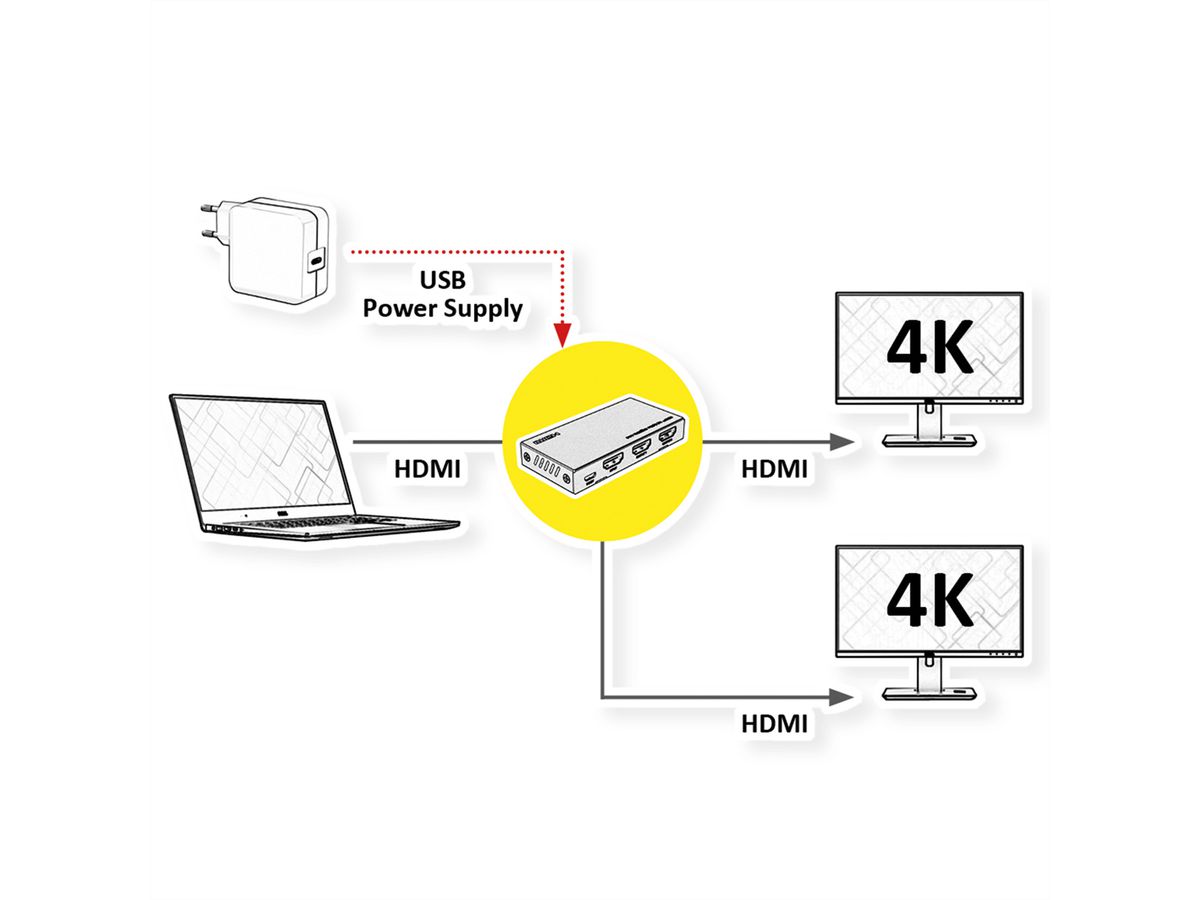

This 4K@60Hz HDMI Splitter1x2 allows you to share two HDMI displays or projectors with an HDMI-enabled audio/video source device. It is backwards compatible with previous HDMI revisions and therefore also supports HDMI devices with 1080p / 720p video resolution. It has three different EDID modes: Auto/Copy/Downscaler.
- Duplicates a HDMI video signal to two HDMI video signals with a resolution of up to 4K@60Hz

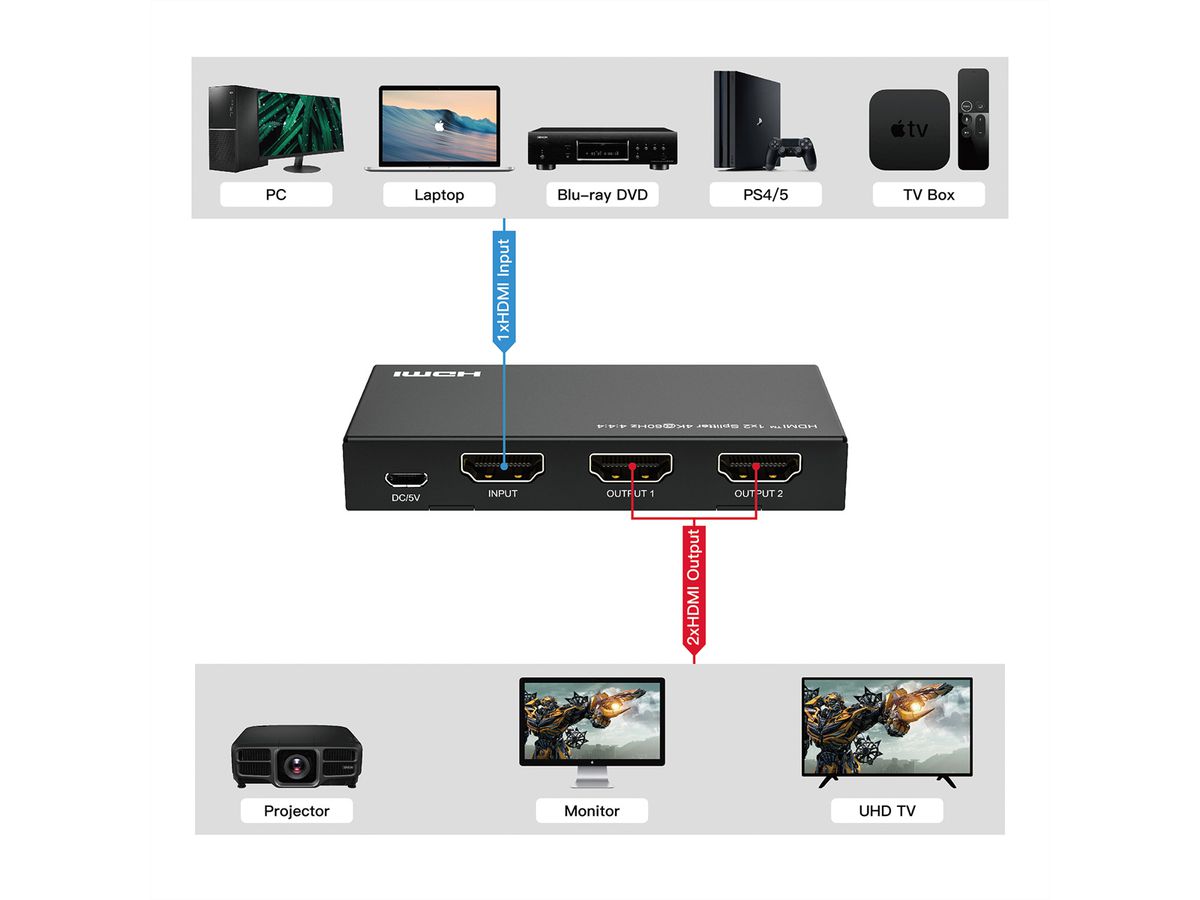

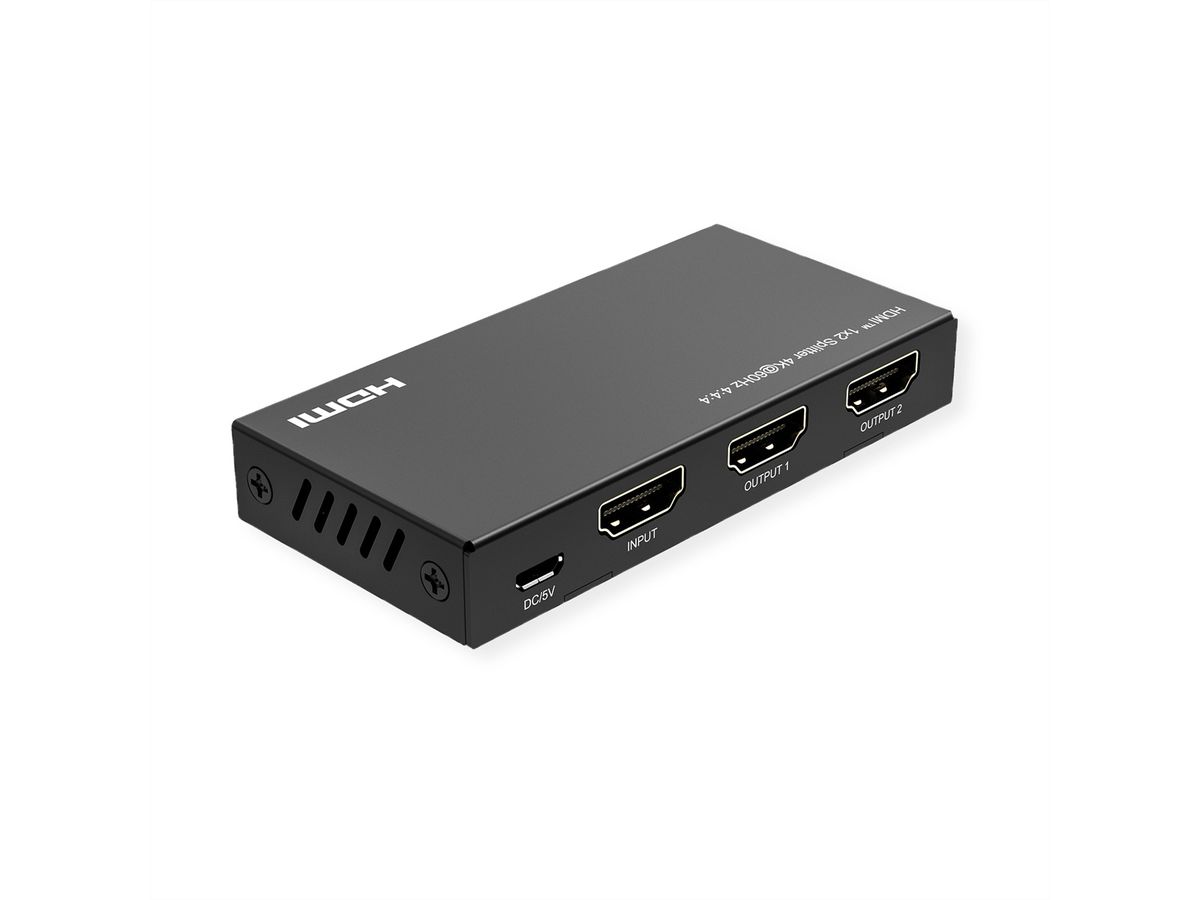

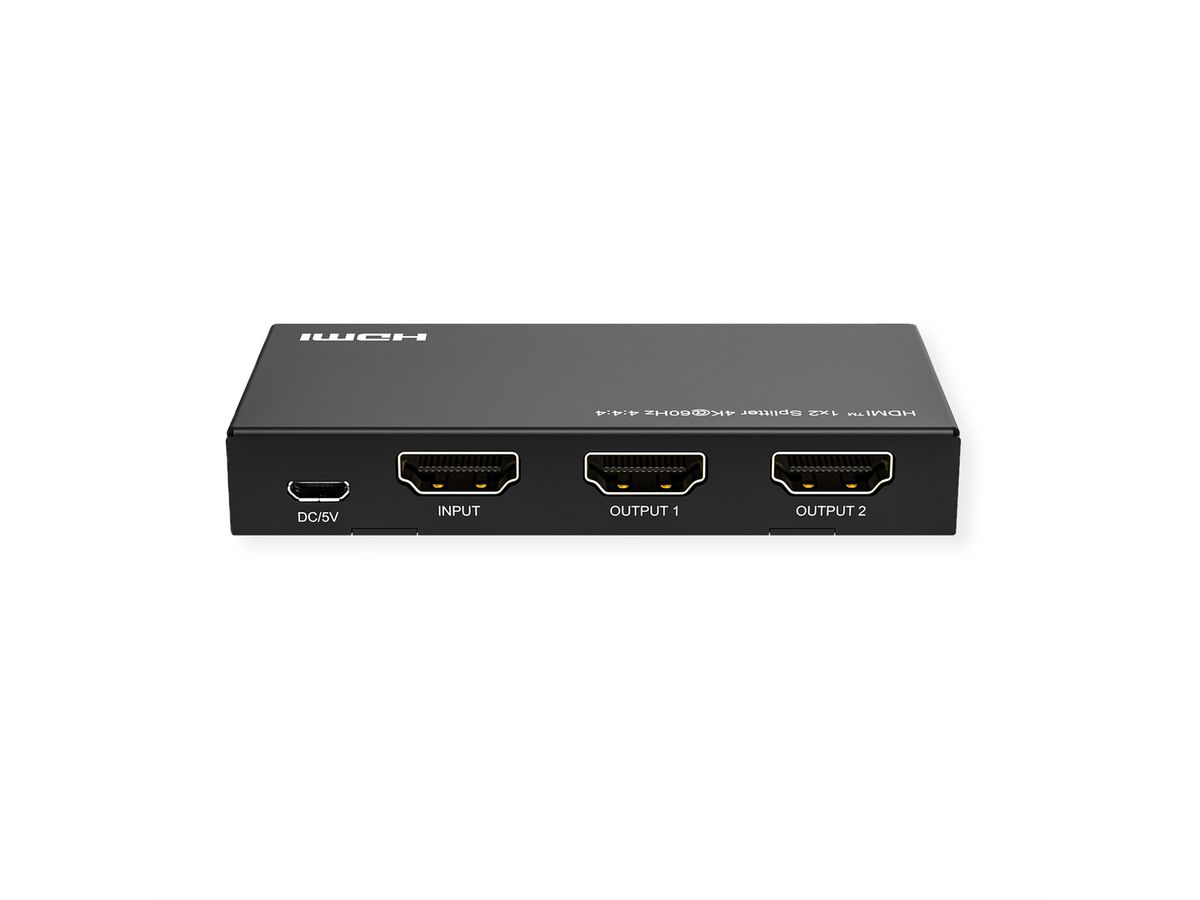

- Connectors: 1 HDMI Input (e.g. DVD-player) and 2 HDMI outputs
- Supports max. 3840 x 2160 @60Hz
- Plug & play, easy to install and simple to operate
- No software installation required
High resolution up to 4K@60Hz YUV 4:4:4 and full 3D video format
HDCP 2.2 and HDCP 1.4 / High Dynamic Range (HDR) video.
600MHz/6Gbps per channel (18Gbps all channels) bandwidth / 12bit per channel (36bit all channels) deep color.
Uncompressed audio such as LPCM.
Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby Tru
3 different EDID modes - Auto/Copy/Downscaler.
1. Normal Auto EDID Mode:
Retrieves the lower resolution and audio format of both outputs for the input device to output that signal to both outputs.
2. Copy EDID Mode:
Copies the resolution and audio format of output 1 for the input device to output that signal to both outputs.
3. Downscaler EDID Mode:
Mixed resolutions are supported. For two screens with same refresh rates, but different resolutions, one of the two output signals can be
downscaled from 4K to 1080p.
Specifications
Manufacturer | VALUE |
---|---|
Product group | Splitters and selectors |
Product type | HDMI-Video-Splitter |
Colour | black |
Scope of delivery | Splitter, Manual, USB power supply cable |
Interface | HDMI |
Inputs | 1 |
Outputs | 2 |
Video input | 1x HDMI Female |
Video output | 2x HDMI Female |
Max. resolution (nom.) | 3840 x 2160 @60Hz |
Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) |
Dimensions (HxWxD) | 14 x 90 x 44 mm |
Operating temperature min. | 0 °C |
Operating temperature max. | 70 °C |
Height | 14 mm |
Width | 90 mm |
Depth | 44 mm |
Weight | 87 g |
Height of packaging (single piece) | 20 mm |
Width of packaging (single piece) | 90 mm |
Depth of packaging (single piece) | 120 mm |
Package weight (single piece) | 0.16 kg |
