Description

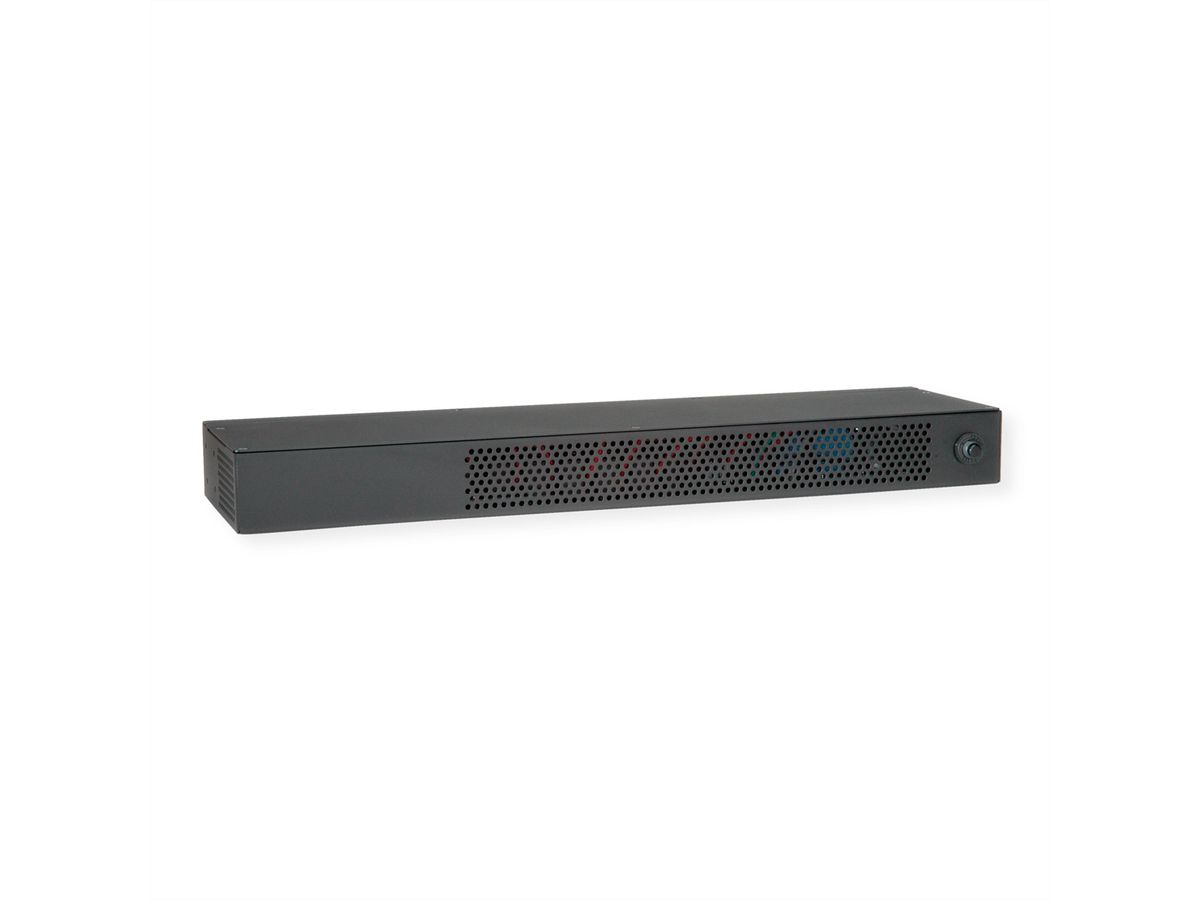

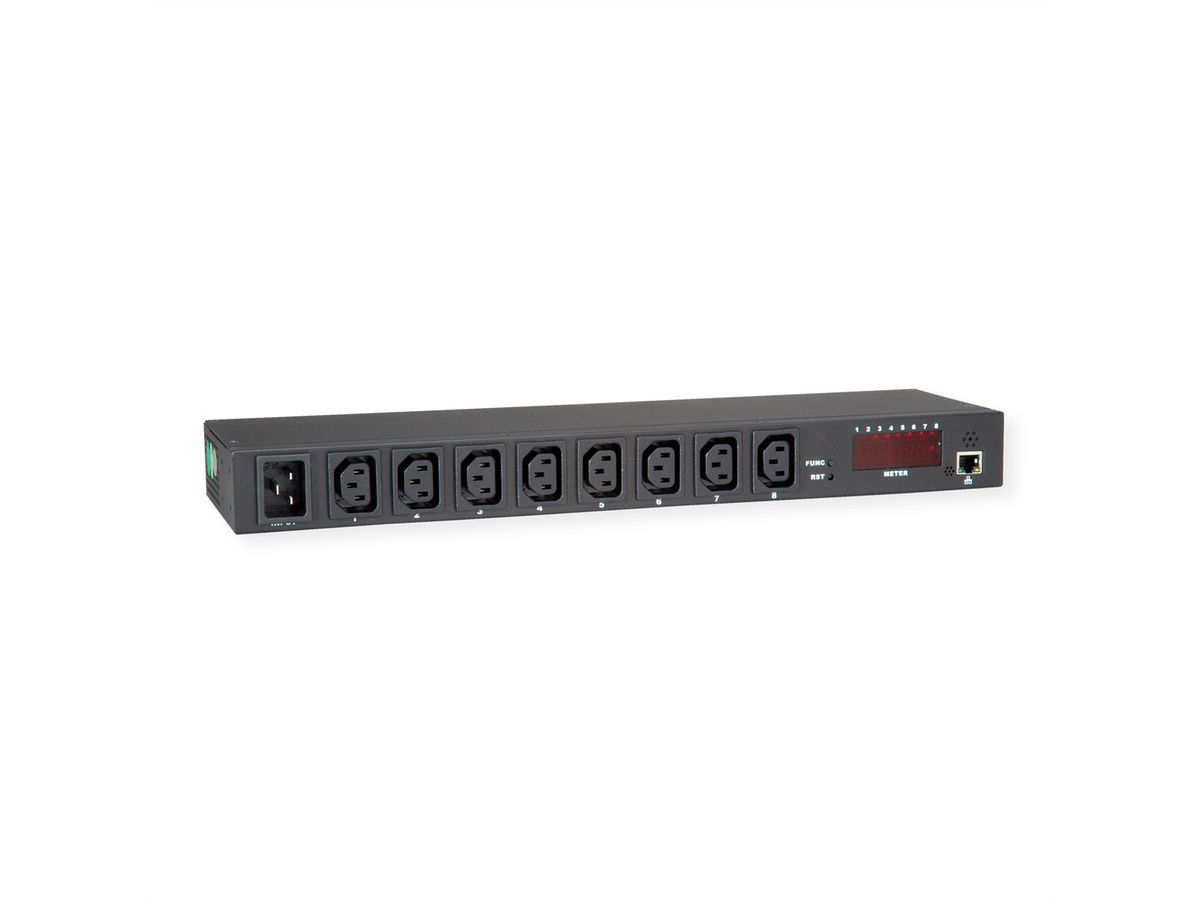

The VALUE IP power strip provides the on/off-switching of electrical devices over a TCP/IP network. Easily connect the VALUE IP power strip to a power supply system and the network. After allocating a free IP address, every single port can be independantly switched with every common webbrowser.

• For installation in a 19" cabinet, hight: 1U
• Easy and quick plug & play installation
• Easy and flexible configuration over a webbrowser
• IP adress fix or over DHCP
• Built-in temperature and humidity sensor to monitor your used infrastructure
• Setting of the circuit delay time for On/Off function of each C13 port to prevent the impact of power surge to the system
• LED indication for power status of every port
• Digital display for total power
• Automatic circuit breaker protection

• Technical data:

Connections: RJ-45, Ethernet 10/100Mbit, front side
Output: 8x IEC320 C13 (10A)
Input: 1x IEC320 C20 (16A)
Rocker switch: Back side, lighted, 2-pole
Indication: 8 LEDs
Protocol: http
Addressing: DHCP or constant IP address
Dimensions (WxDxH): 430 x 90 x 44

Specifications

Manufacturer	VALUE
Product group	Power Bars
Product type	IP Power Switch
Colour	black
Length	1.8 m
Scope of delivery	IP power bar
Function	remote switching over IP
Mounting form	19" Rackmount
Max. capacitance	3600W
Max. voltage	230V
ON/OFF Switch	yes
Switch type	IP
Number of socket pots	8
Quantity of outputs/angles	8 / straight
Output alignment	straight, backside
Socket type	IEC320 C13, 10A
Material (casing)	metal
Colour (Design profile)	black
Connection cable	IEC320 C20
Colour (Cable)	black
Plug type	IEC320 C20, 16A
Height	44 mm
Width	430 mm
Depth	90 mm
Weight	1638.8 g
Height of packaging (single piece)	90 mm
Width of packaging (single piece)	500 mm
Depth of packaging (single piece)	220 mm
Package weight (single piece)	2.38 kg

Downloads

Product data sheet - English (43.0 KB)

Download

More PDF data - Installation and safety instructions - German - English - French - Italian (482.4 KB)

Download
