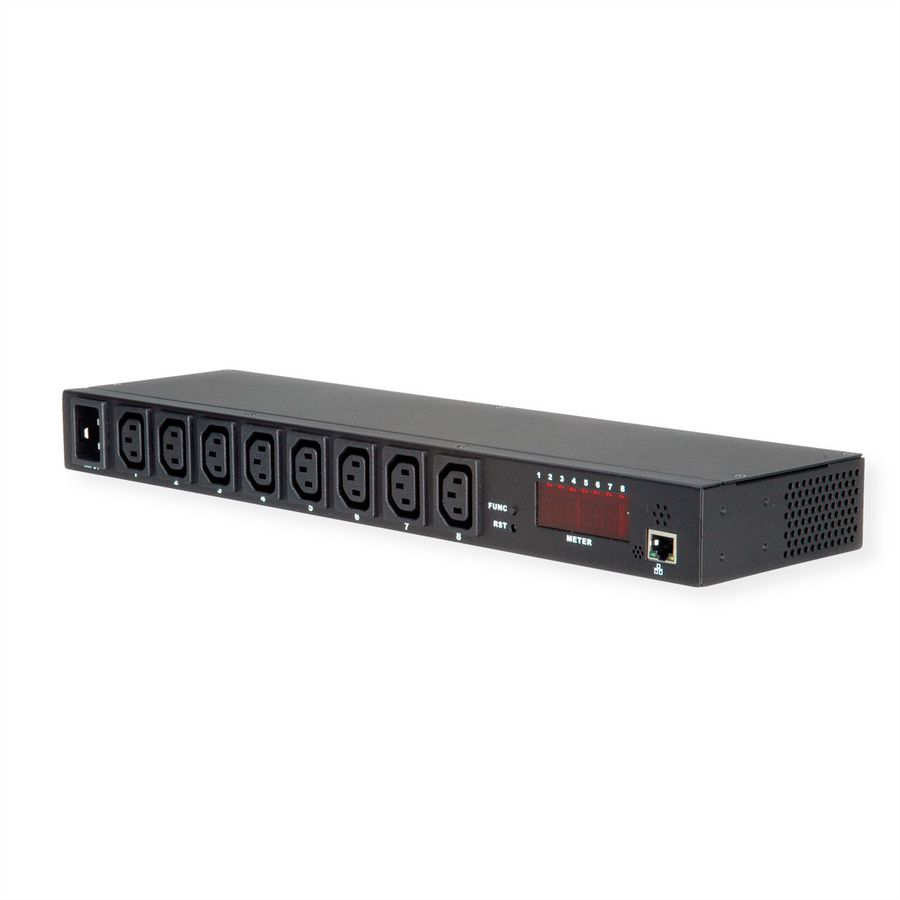

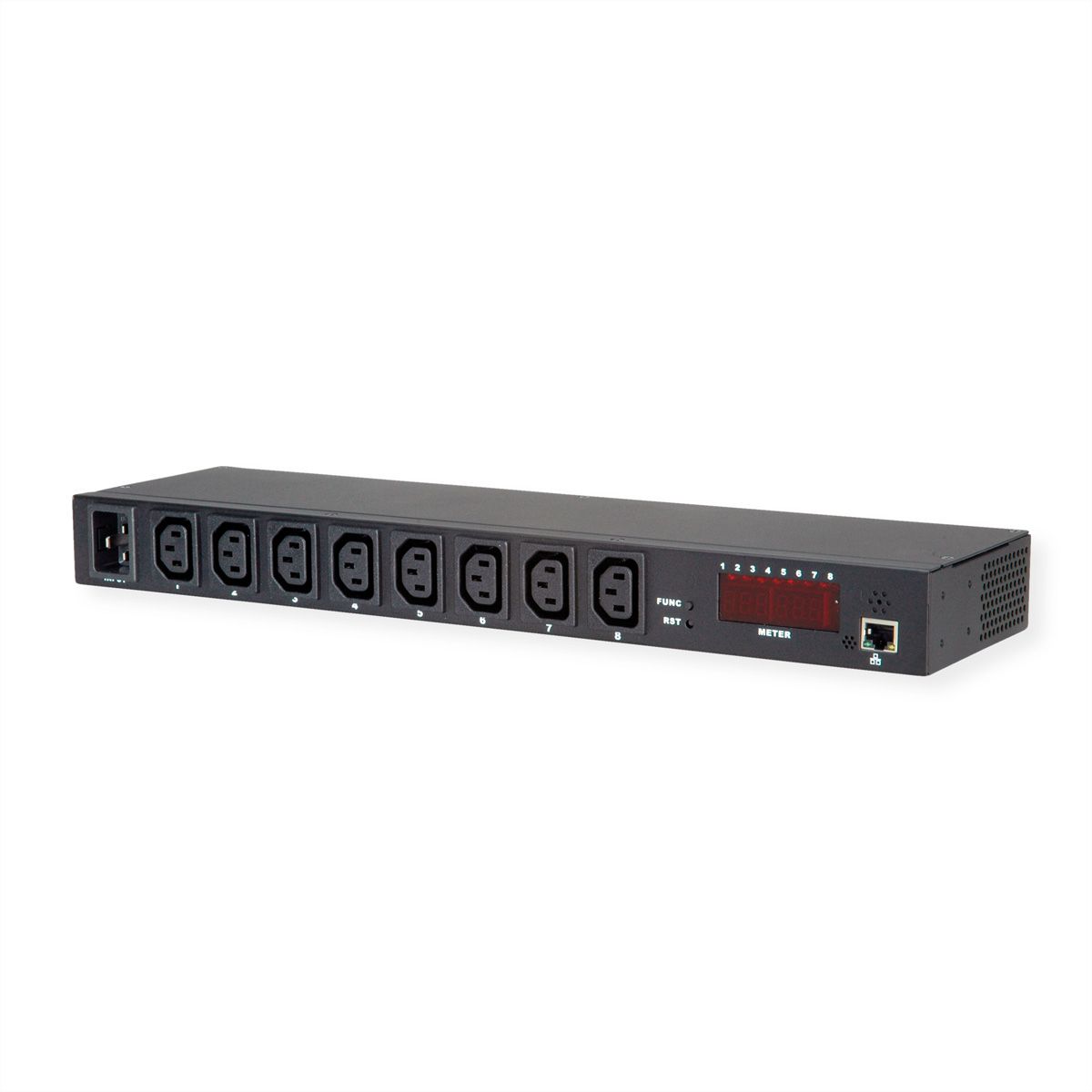

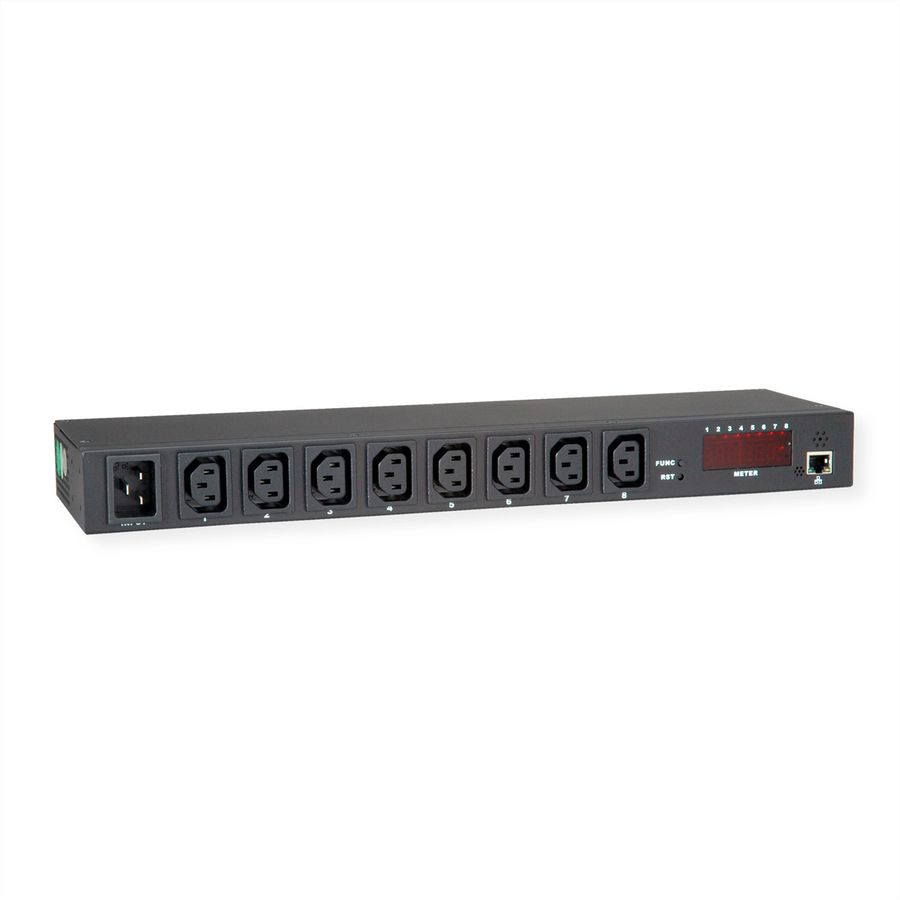

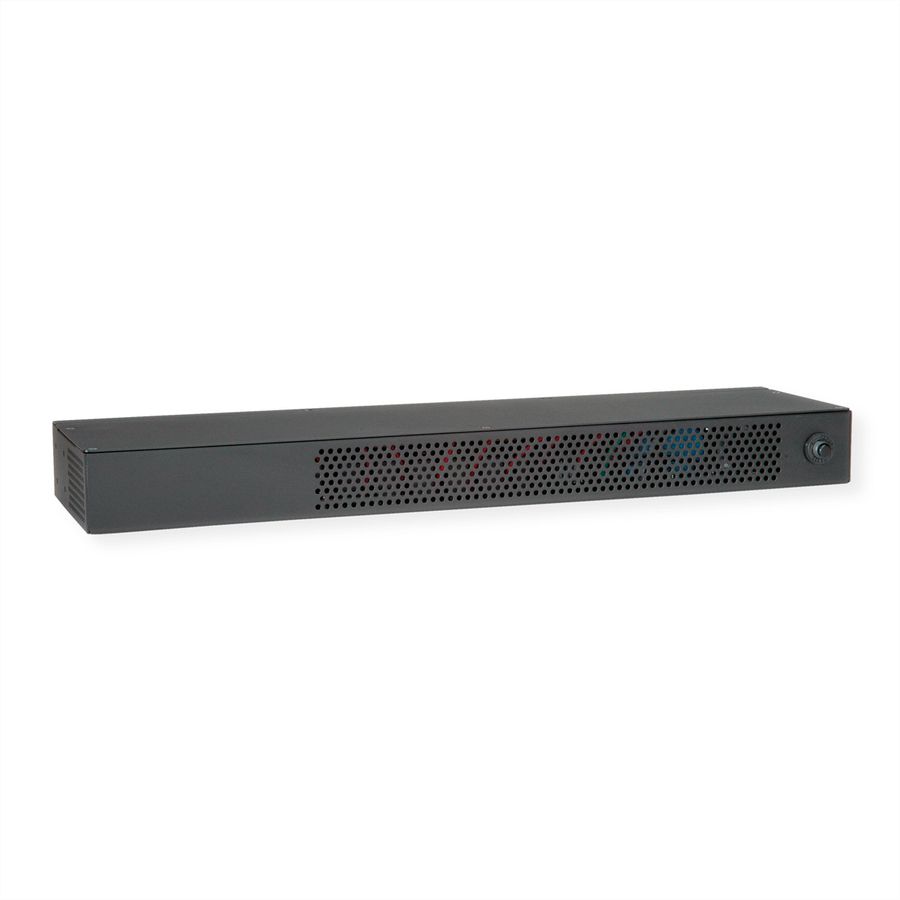

VALUE IP Power Strip, 8-way

Item no. 19.99.3420-2 Brand / Manufacturer VALUE Manuf. no. 19.99.3420 EAN 7630049690349 Package weight 2.25 kg
VALUE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

The VALUE IP power strip provides the on/off-switching of electrical devices over a TCP/IP network. Easily connect the VALUE IP power strip to a power supply system and the network. After allocating a free IP address, every single port can be independantly switched with every common webbrowser.

  • For installation in a 19" cabinet, hight: 1U
  • Easy and quick plug & play installation
  • Easy and flexible configuration over a webbrowser
  • IP adress fix or over DHCP
  • Built-in temperature and humidity sensor to monitor your used infrastructure
  • Setting of the circuit delay time for On/Off function of each C13 port to prevent the impact of power surge to the system
  • LED indication for power status of every port
  • Digital display for total power
  • Automatic circuit breaker protection


  • Technical data:
Connections: RJ-45, Ethernet 10/100Mbit, front side
Output: 8x IEC320 C13 (10A)
Input: 1x IEC320 C20 (16A)
Rocker switch: Back side, lighted, 2-pole
Indication: 8 LEDs
Protocol: http
Addressing: DHCP or constant IP address
Dimensions (WxDxH): 430 x 90 x 44

Specifications

Manufacturer
VALUE
Product group
Power Bars
Product type
IP Power Switch
Colour
black
Length
1.8 m
Scope of delivery
IP power bar
Function
remote switching over IP
Mounting form
19" Rackmount
Max. capacitance
3600W
Max. voltage
230V
ON/OFF Switch
yes
Switch type
IP
Number of socket pots
8
Quantity of outputs/angles
8 / straight
Output alignment
straight, backside
Socket type
IEC320 C13, 10A
Material (casing)
metal
Colour (Design profile)
black
Connection cable
IEC320 C20
Colour (Cable)
black
Plug type
IEC320 C20, 16A
Over current protection
yes
Height
44 mm
Width
430 mm
Depth
90 mm
Weight
1638.8 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
210 mm
Depth of packaging (single piece)
500 mm
Package weight (single piece)
2.25 kg

Downloads

Product data sheet - English (43.0 KB) Manufacturer data sheet - English (83.6 KB) User manual - Deutsch (2.5 MB) User manual - English (2.5 MB) User manual - Français (2.5 MB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
