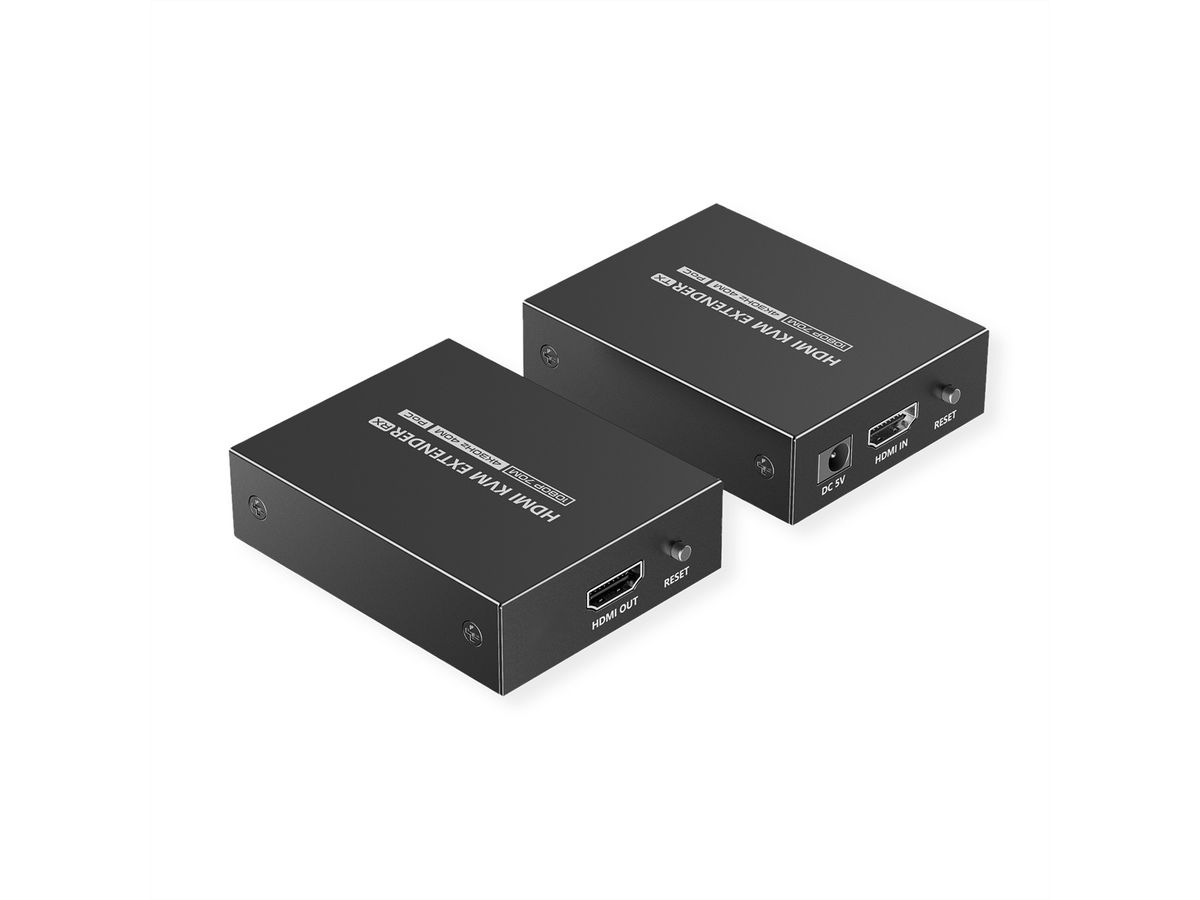

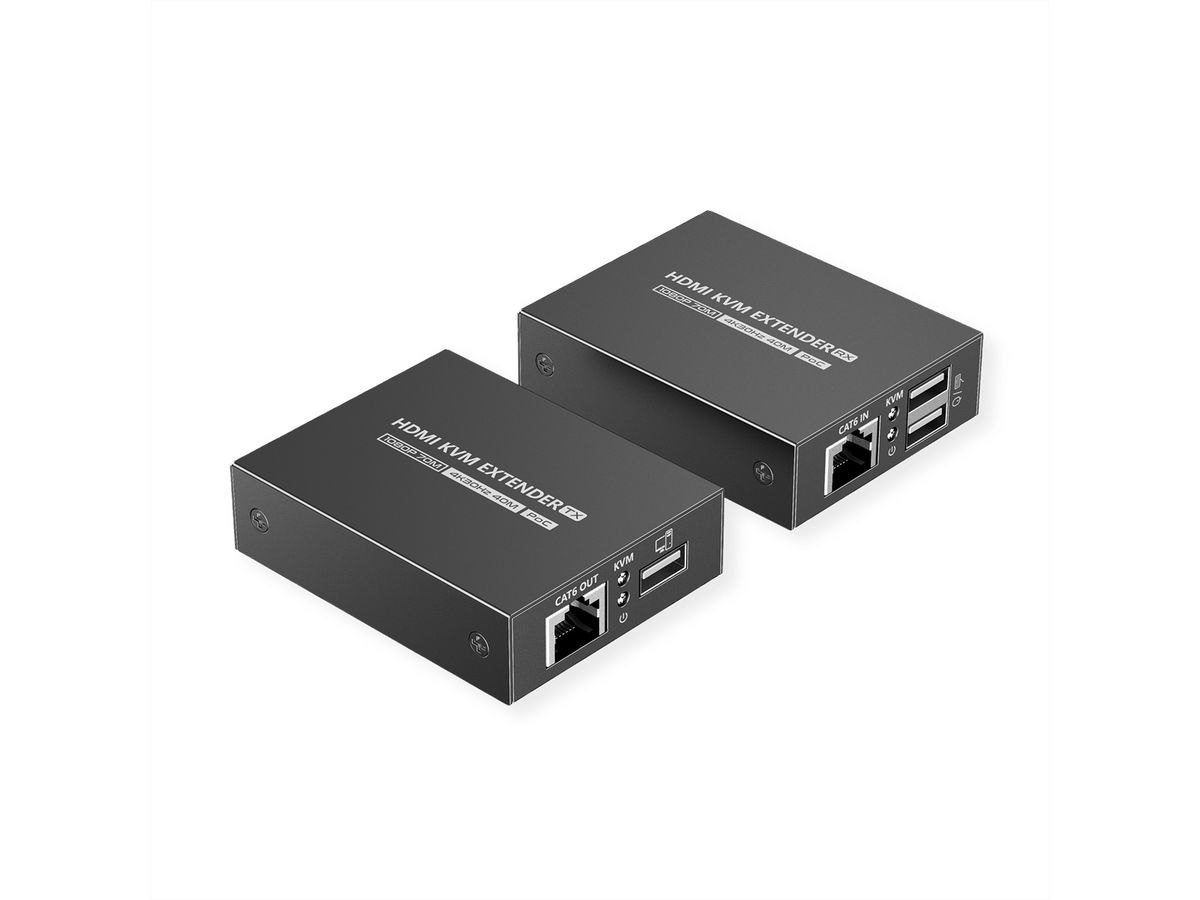

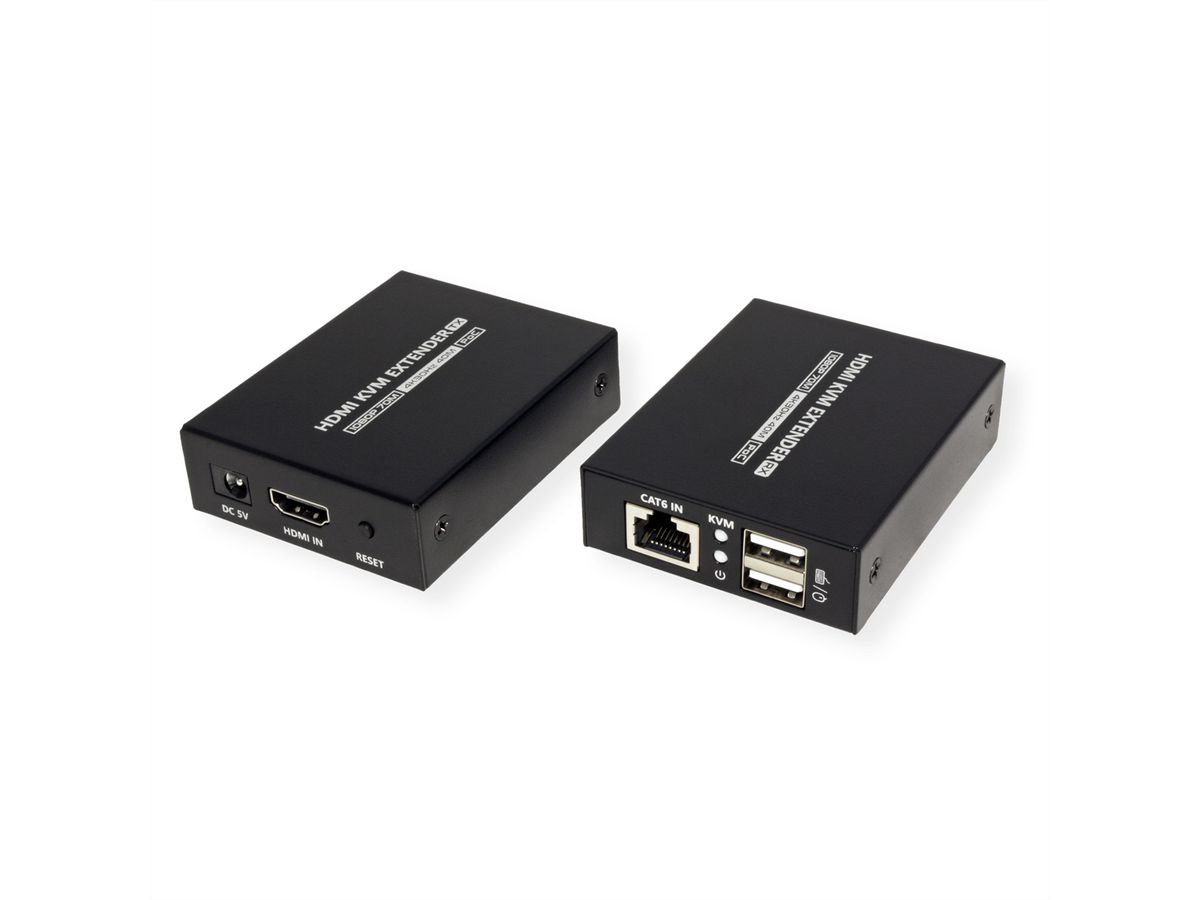

VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@30Hz, max. 40m

VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@30Hz, max. 40m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 11/18/2024
Item no. 14.99.3043-4
Brand / Manufacturer VALUE
Manuf. no. 14.99.3043
EAN 7630049673434
Package weight 0.5 kg

Description

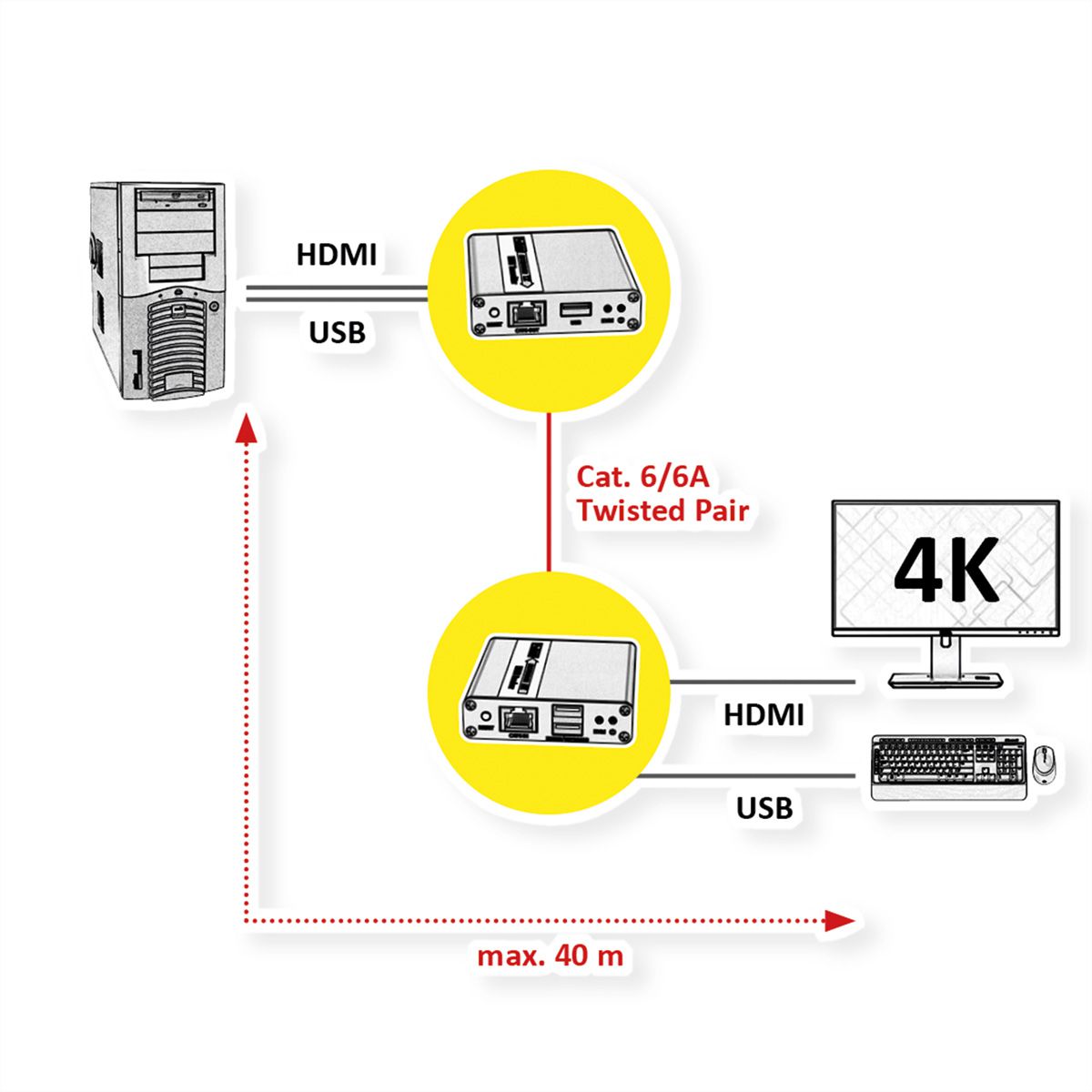

KVM Extension over a Cat. 6/6A/7 network cable of up to 70 meters at a resolution of 1080p@60Hz and up to 40 meters at a resolution of 4K@30Hz - perfect for advertising, monitoring systems, home entertainment, conferences, etc.

  • Supports KVM functionality
  • Resolution up to 4K@30Hz
  • Transmission distance: 1080p@60Hz up to 70m, 4K@30Hz up to 40m, by using Cat. 6 or higher network cables
  • Supports HDR10
  • Automatically adjusts parameters to match different network cables and achieve the best display performance
  • No latency
  • Plug & Play
  • Supports PoC (Power over Cable) - receiver is supplied via the transmitter

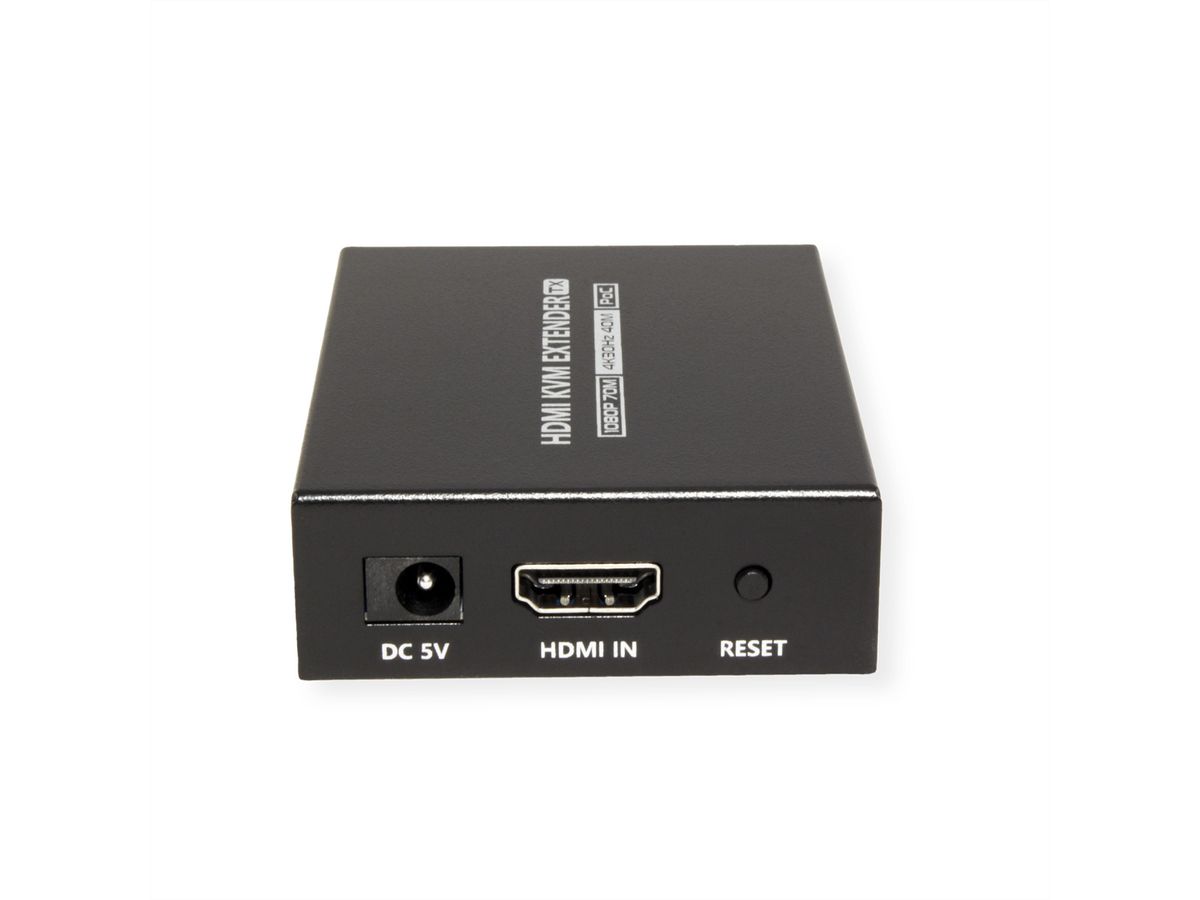

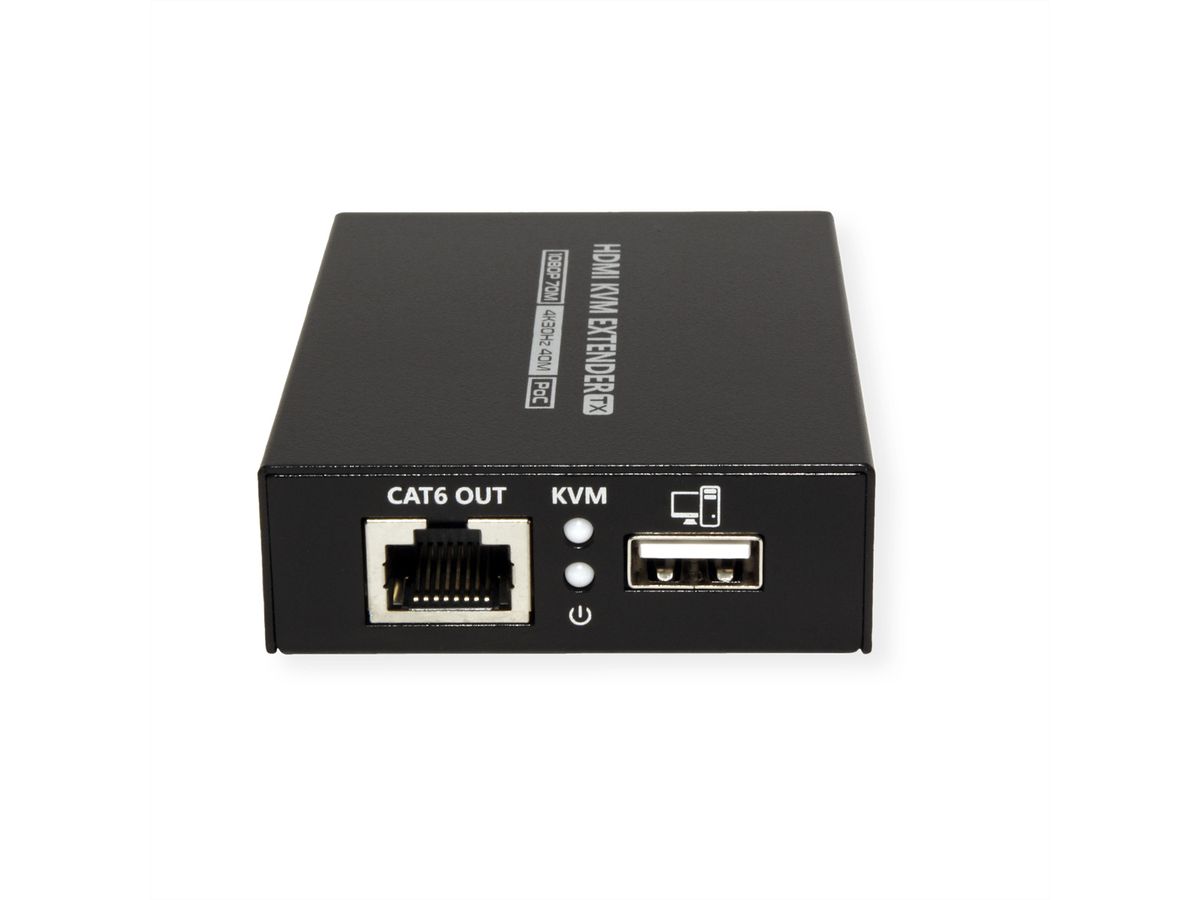

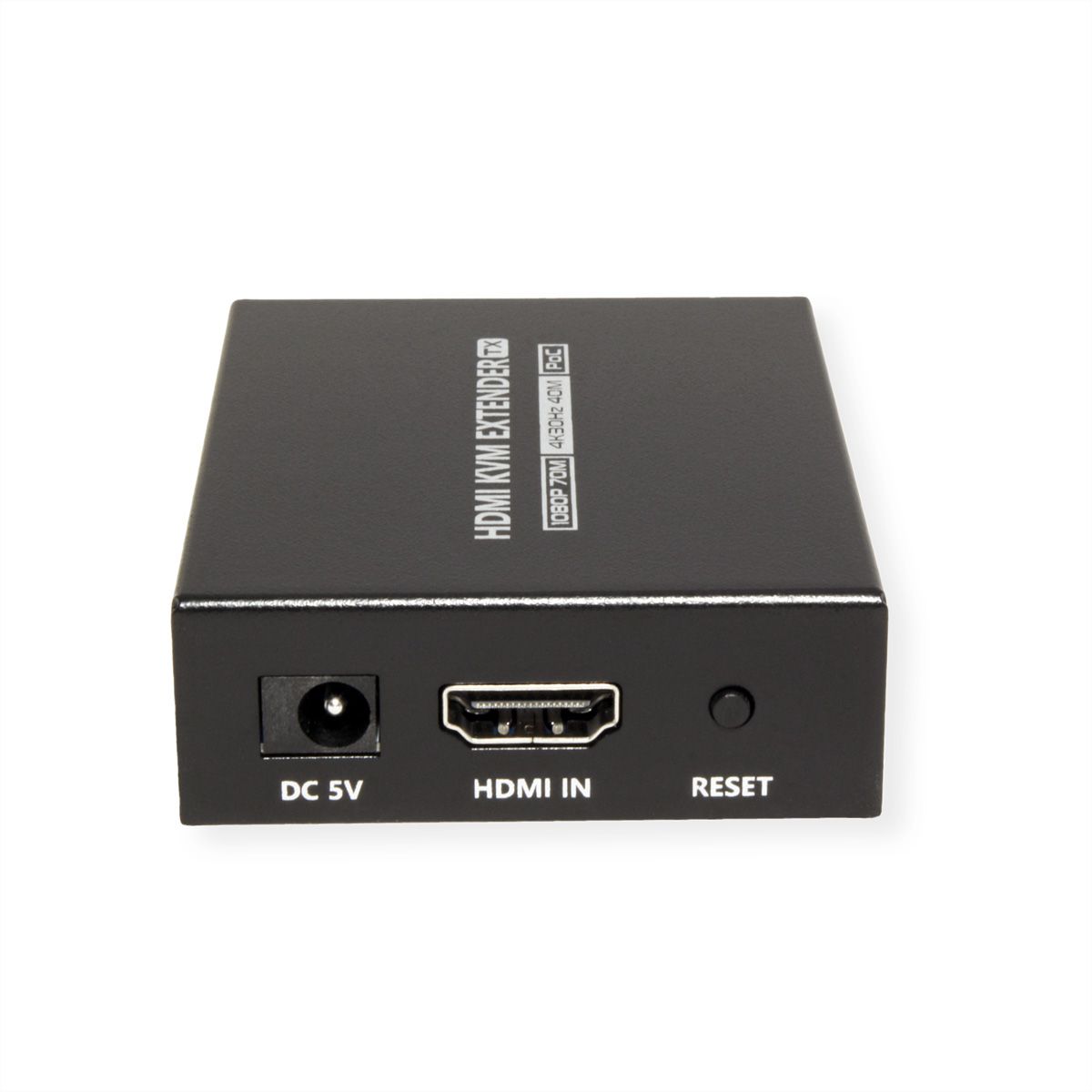

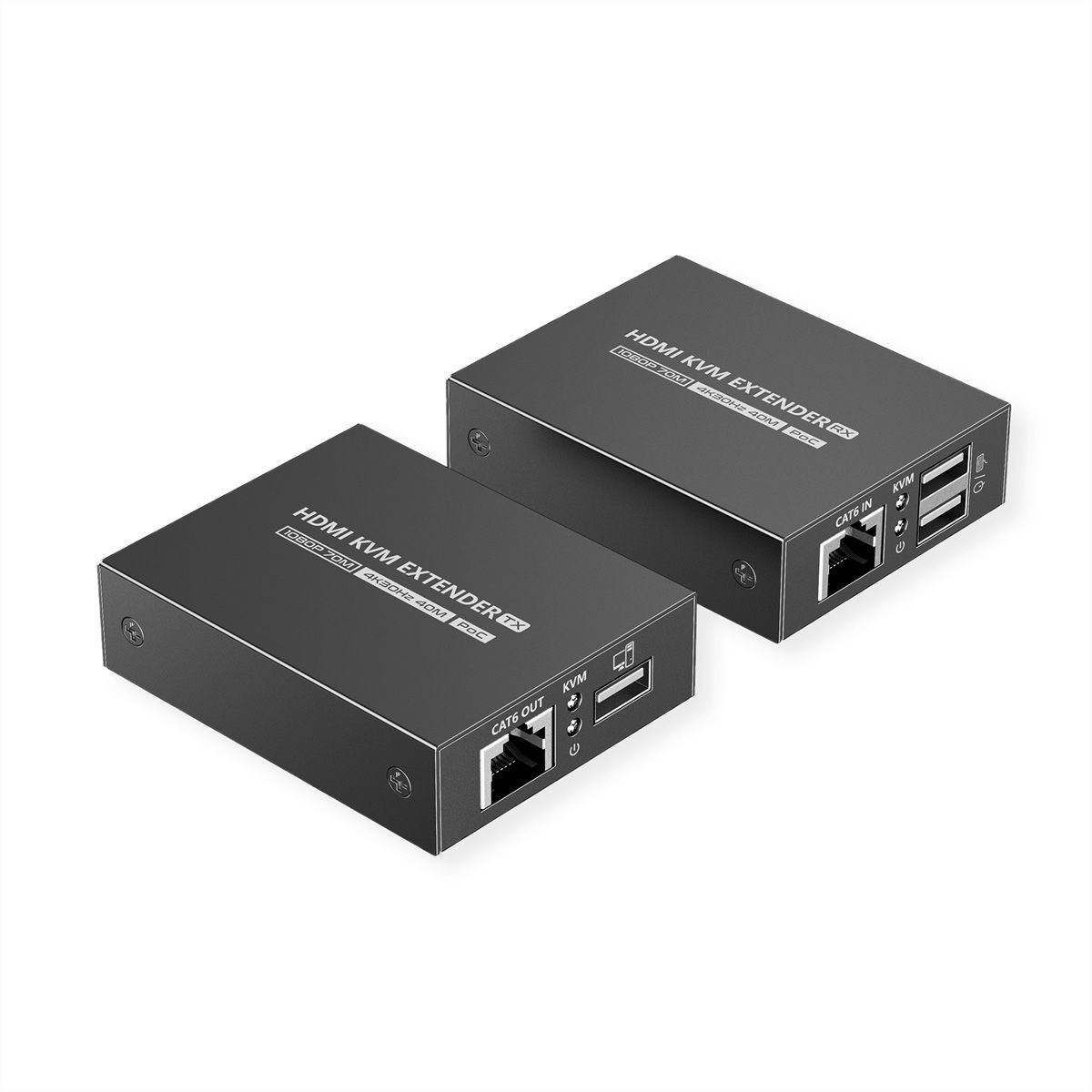

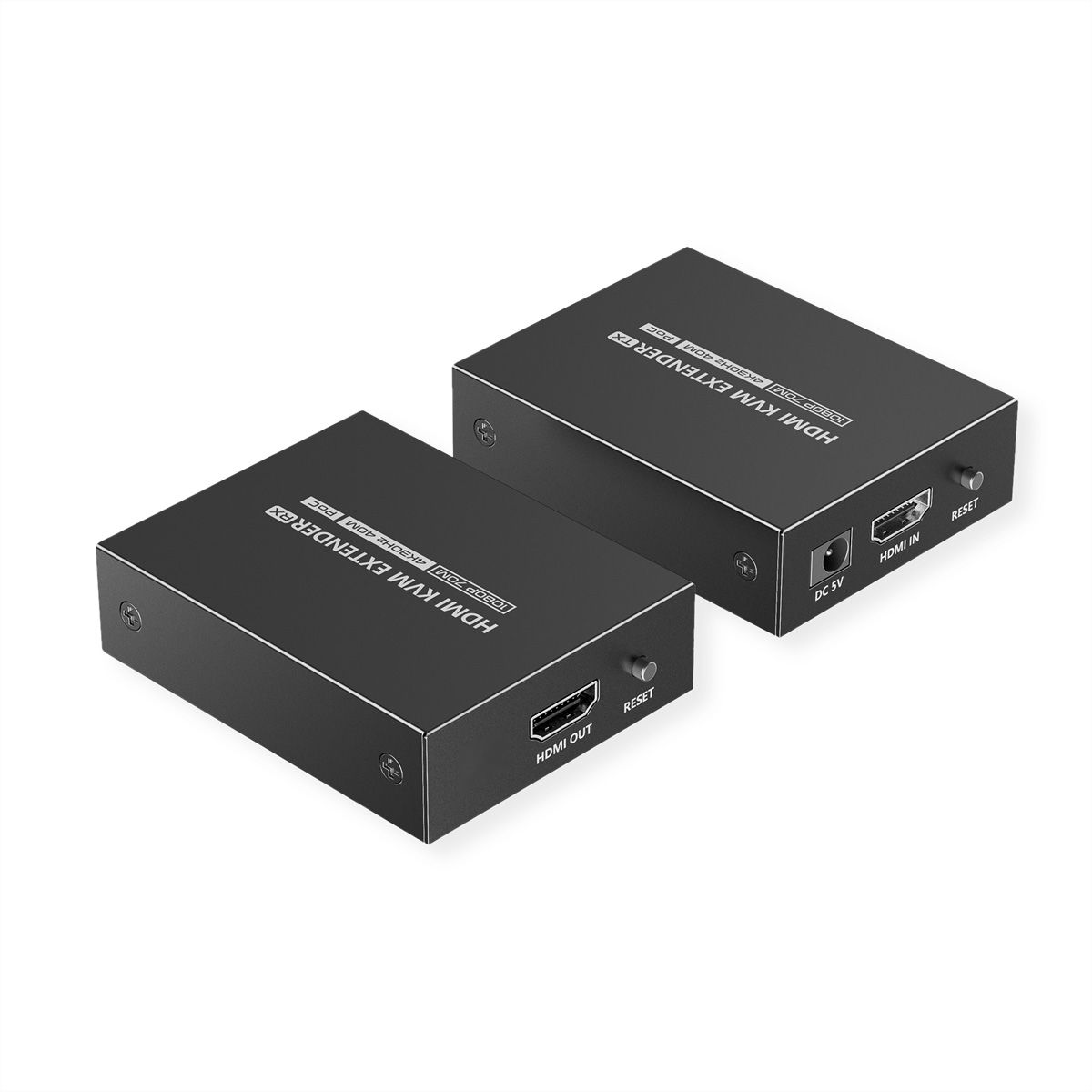

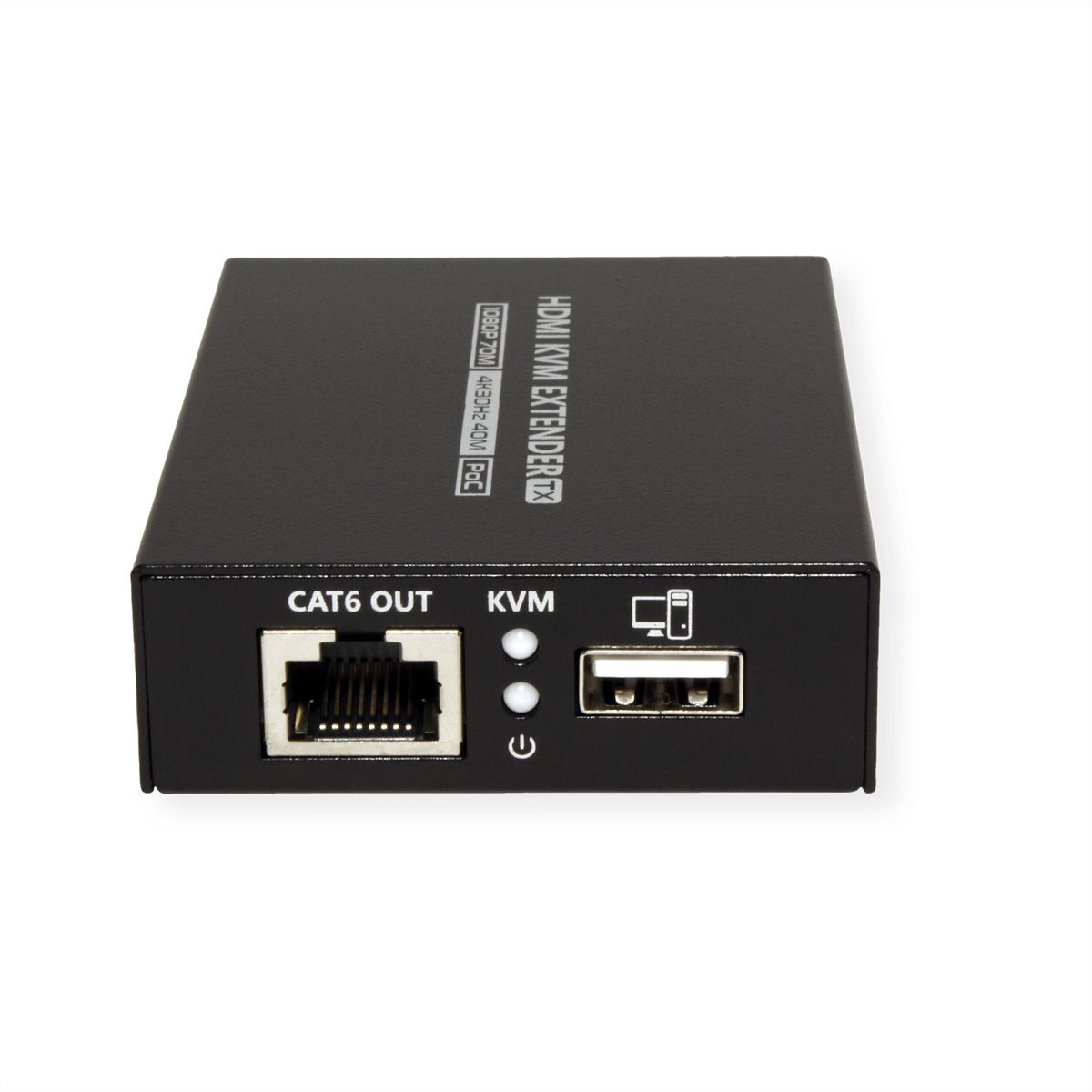

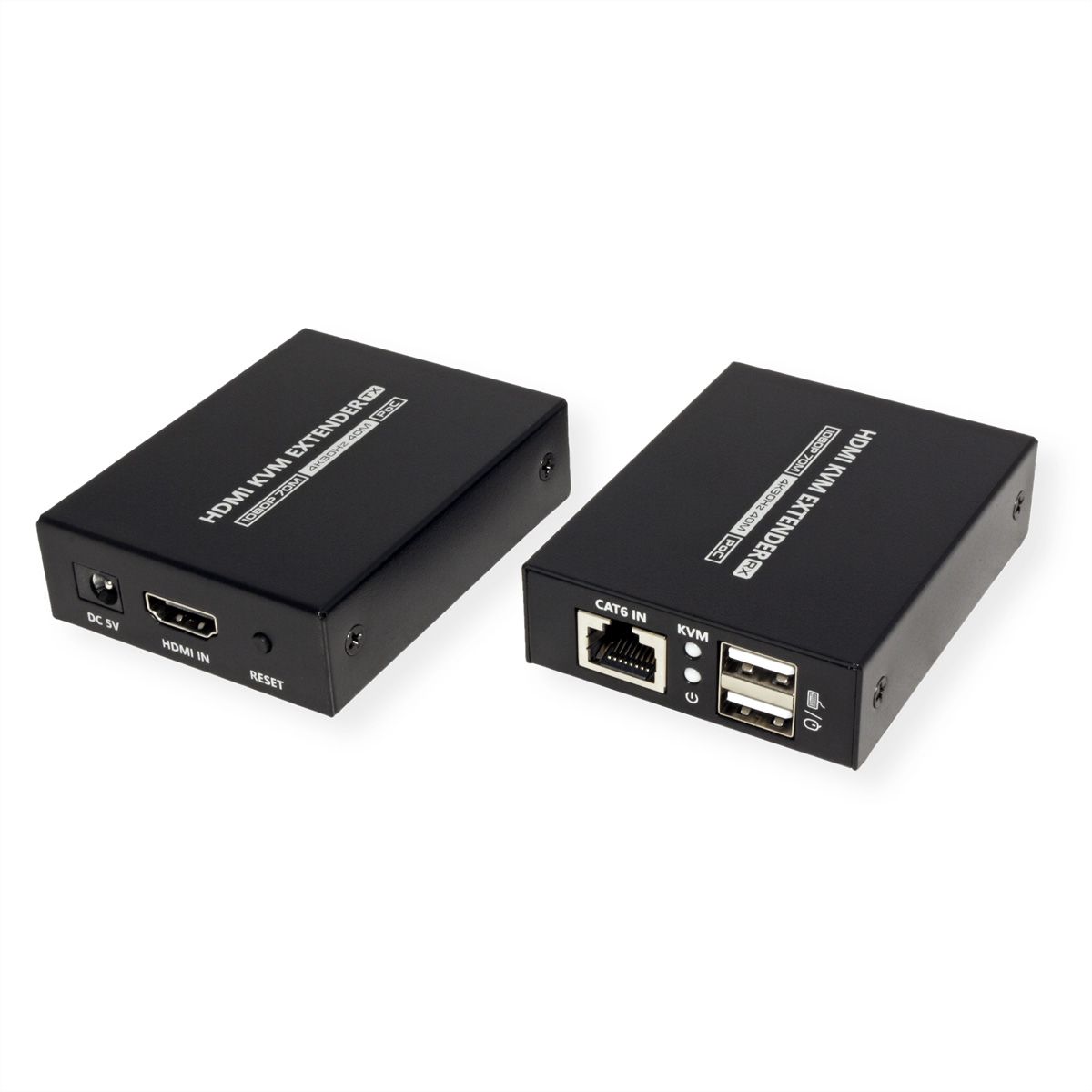

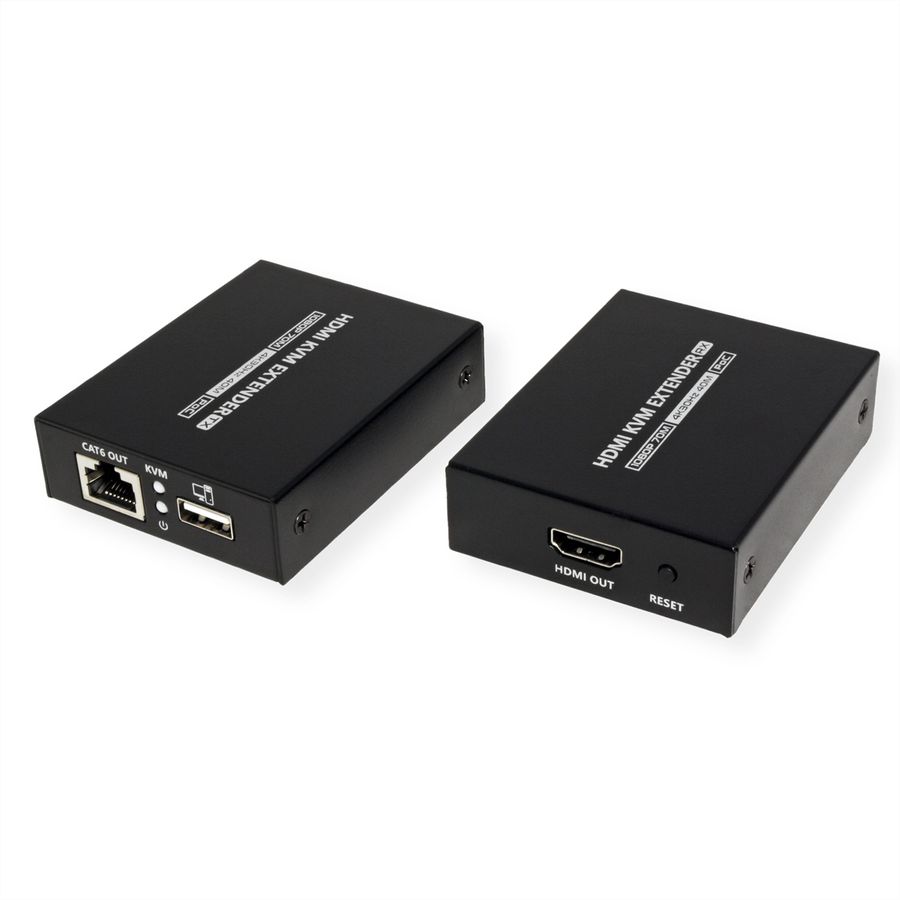

  • Transmitter (TX) ports: 1x HDMI, 1x RJ-45, 1x USB A

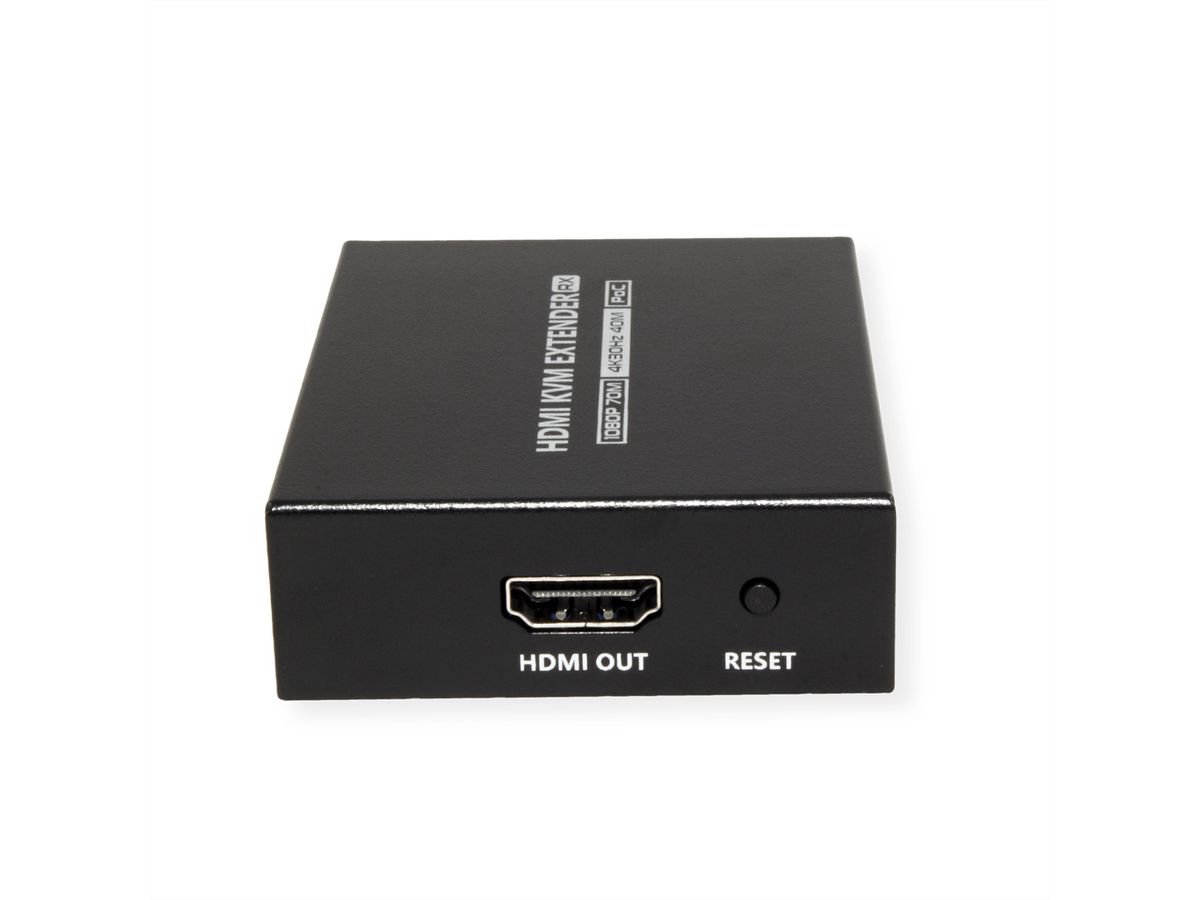

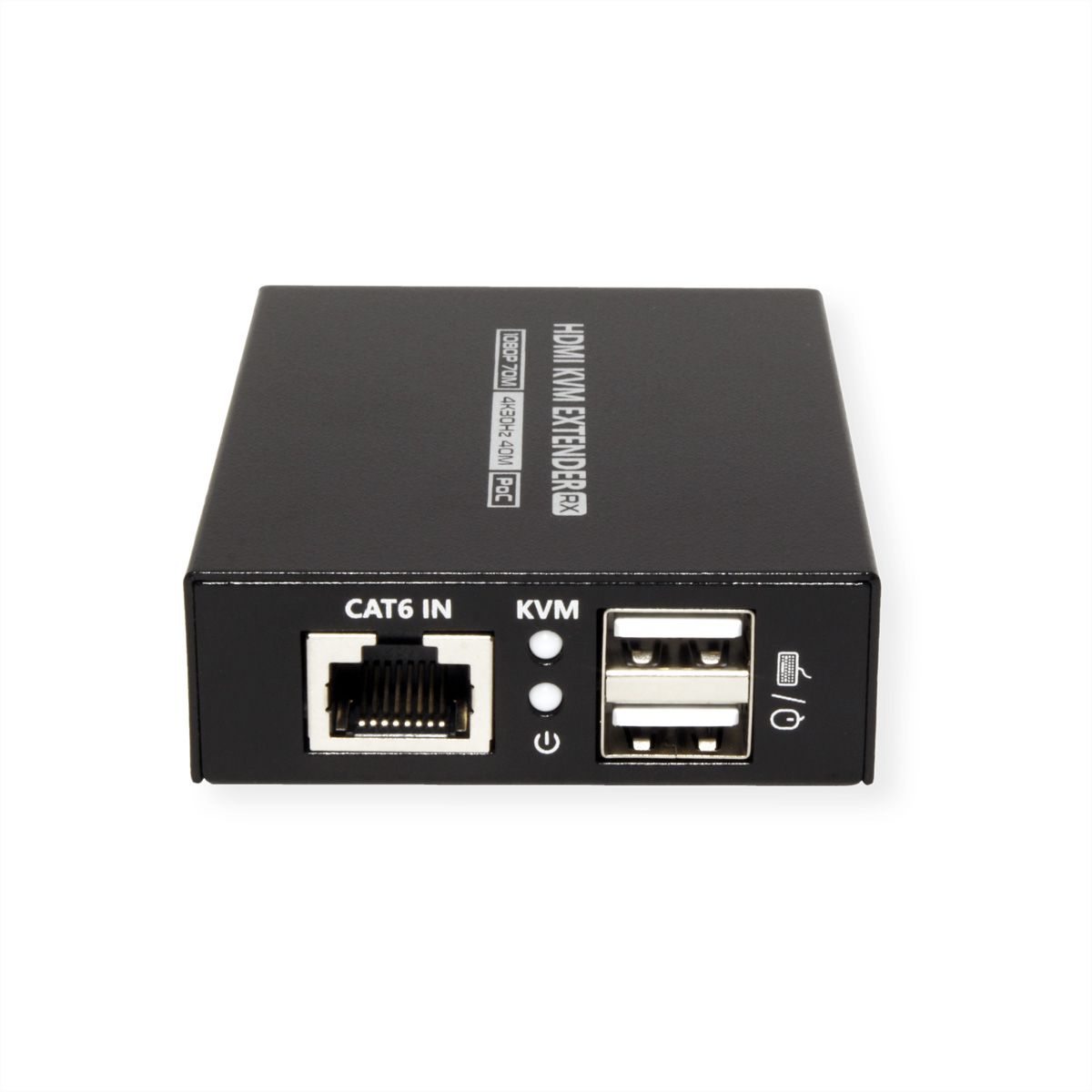

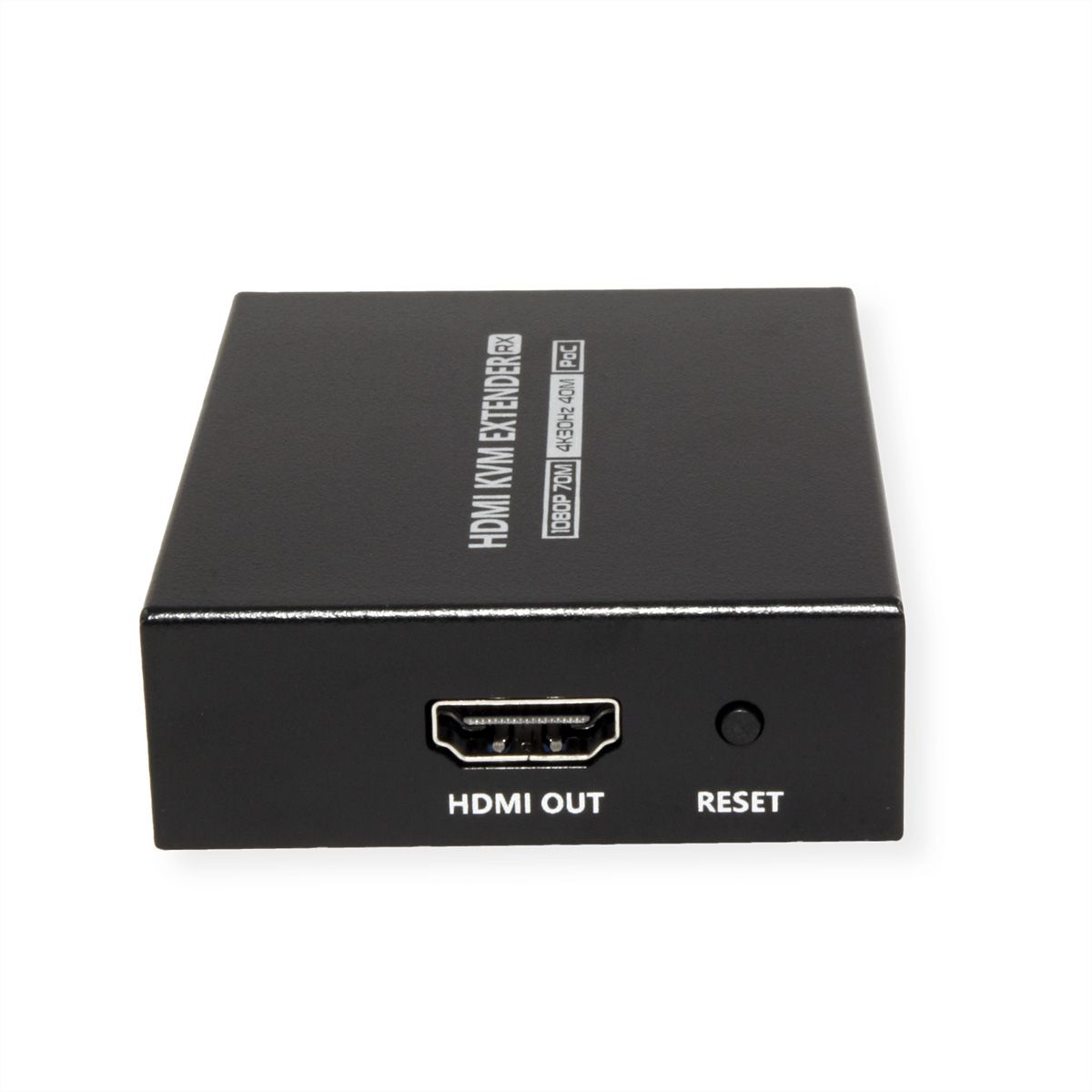

  • Receiver (RX) ports: 1x HDMI, 1x RJ-45, 2x USB A
  • Dimensions Transmitter/Receiver (each): 20 x 60 x 75 mm
  • Weight Transmitter/Receiver (each): 123 g
  • Contents: Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable A-A, User Manual

Specifications

Manufacturer VALUE
Product group KVM (IP) extensions
Product type KVM-Extender, HDMI
Colour black
Scope of delivery Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable, User Manual
Inputs 2
Outputs 3
Max. distance 40 m
PC/Switch: monitor connection HDMI
PC/Switch: mouse/keyboard connection USB
Remote Console: Monitor connection HDMI
Remote Console: Mouse/Keyboard connection USB
Max. distance local-remote unit 40
Max. resolution (nominal) 3840 x 2160 @30Hz (max.)
Colour (Design profile) black
Material (casing) metal
Dimensions (HxWxD) 20 x 60 x 75 mm
Power supply unit required yes
Power supply output DC 5V 2A
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Storage temperature min. -30 °C
Storage temperature max. 70 °C
Height 20 mm
Width 60 mm
Depth 75 mm
Weight 246 g
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 280 mm
Depth of packaging (single piece) 320 mm
Package weight (single piece) 0.5 kg

Downloads

Product data sheet - English (55.0 KB)

Download

User manual - Deutsch (372.8 KB)

Download

User manual - English (367.3 KB)

Download

User manual - Français (355.1 KB)

Download
