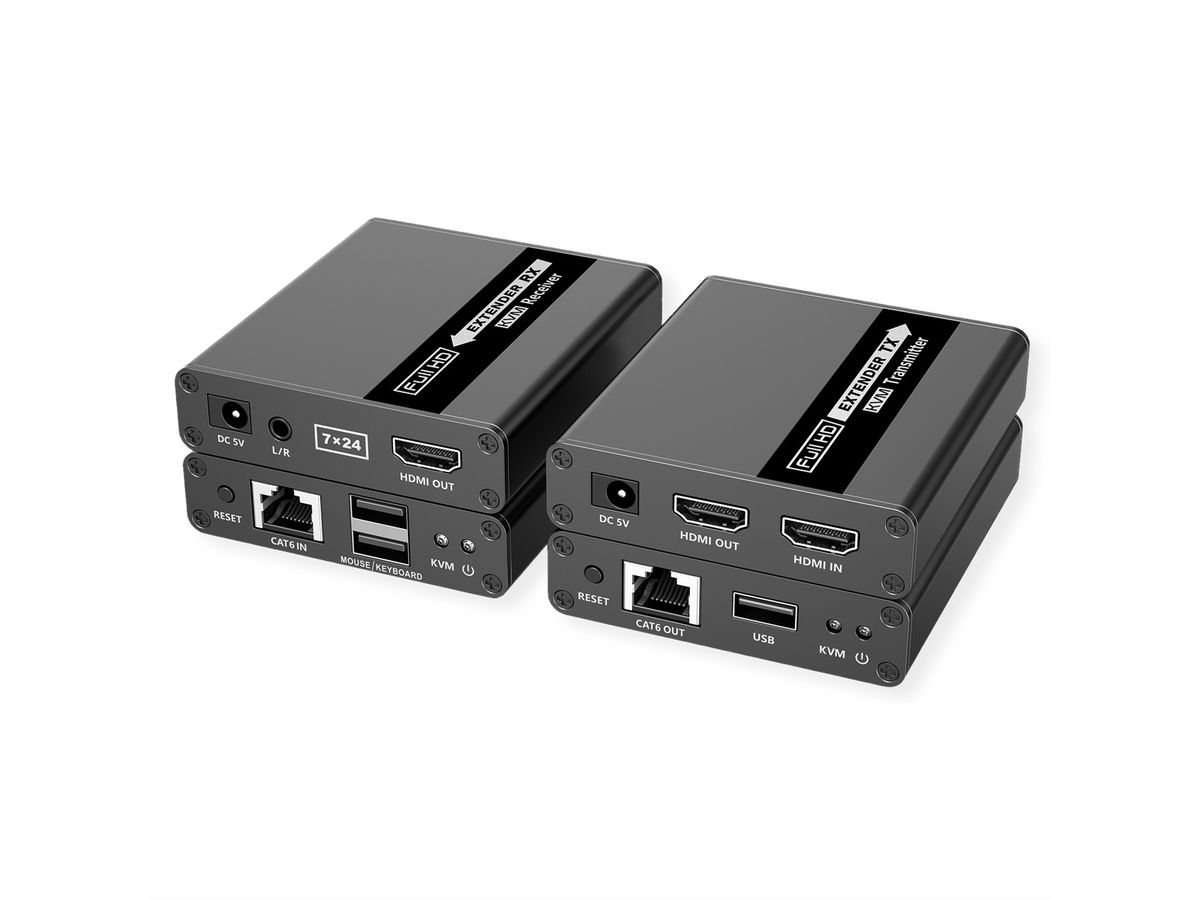

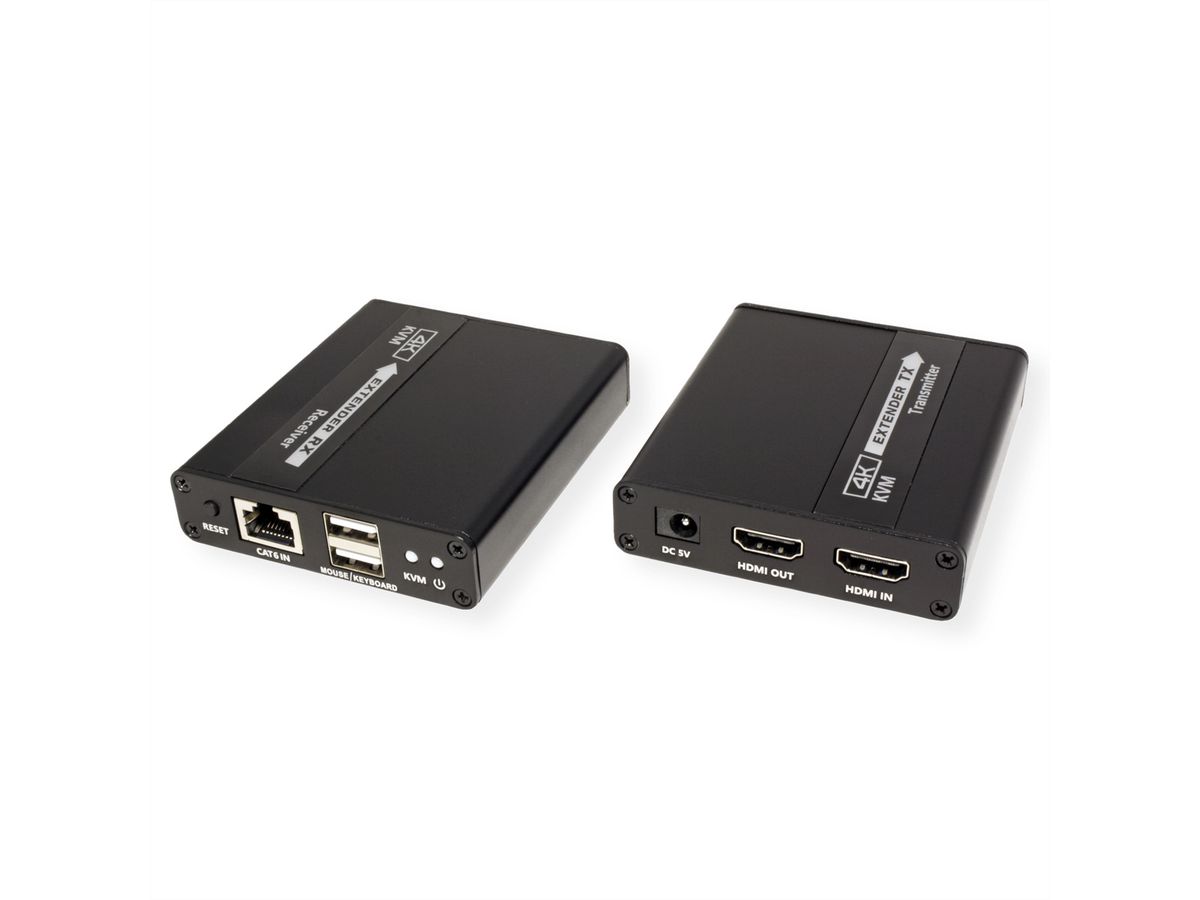

VALUE KVM Extender over Cat.6/6A, HDMI, max. 70m
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

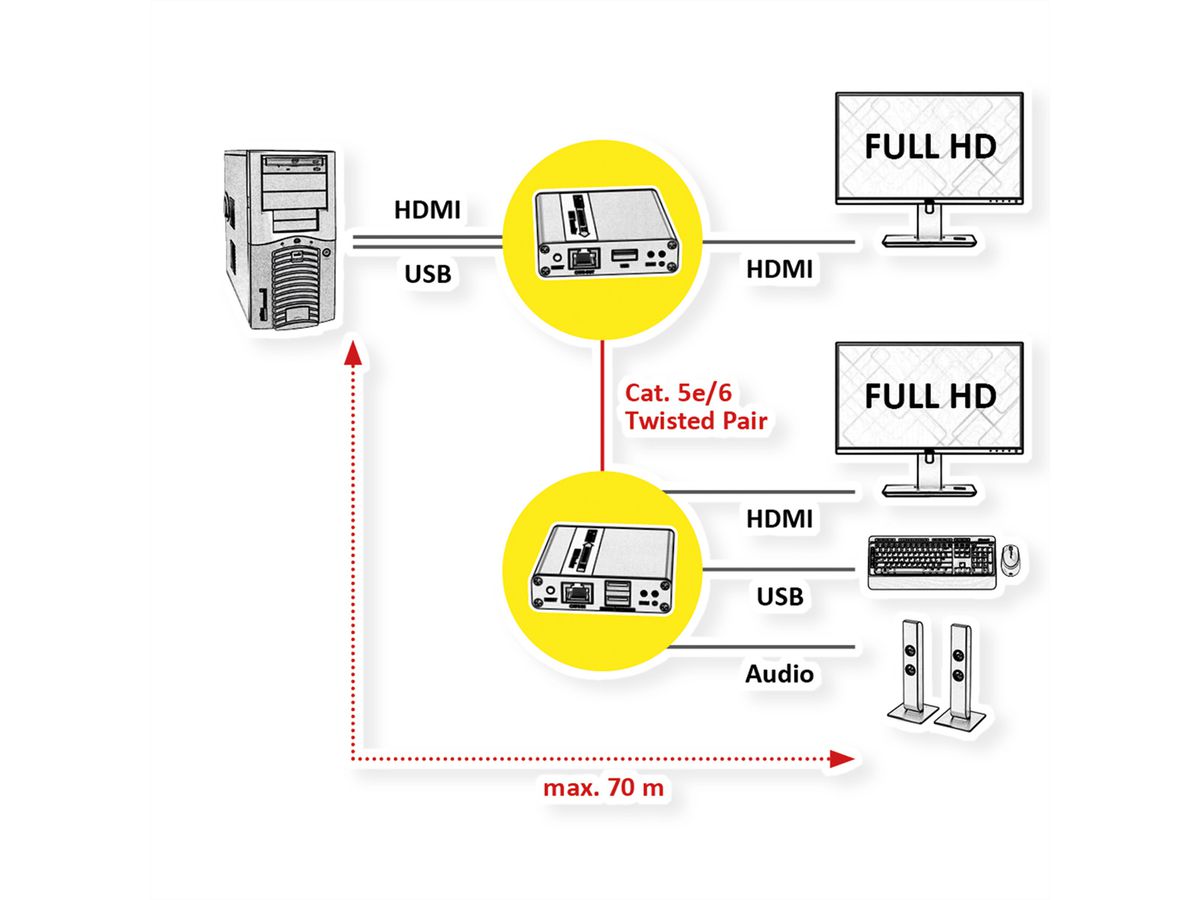

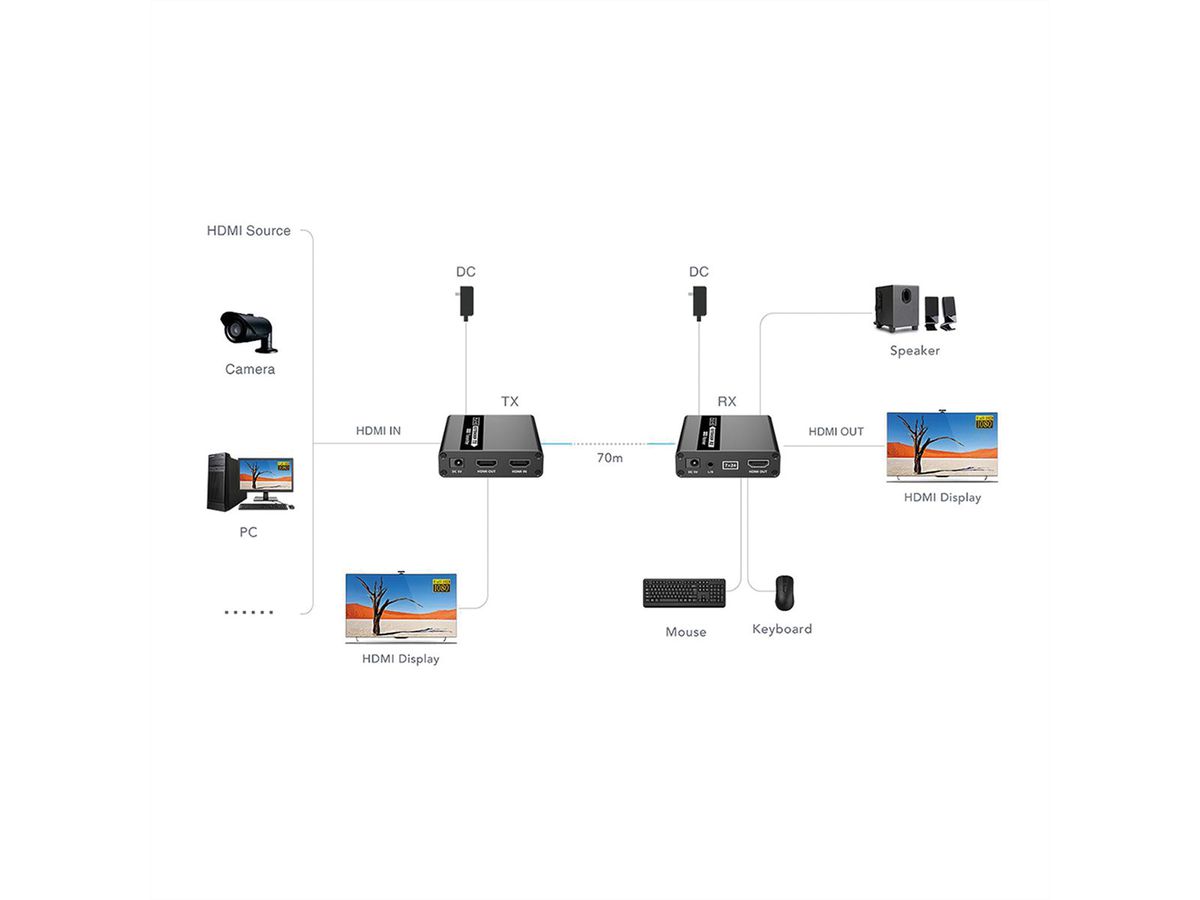

KVM extension over up to 70 m through the Cat.6/6A connection
- Supports HDMI with high resolution video up to 1920 x 1080 @ 60Hz (Full HD)
- Supports USB PC or KVM switch
- Ideal for professional video applications
- HDCP-compliant
- Supports EDID-Passthrough
- No drivers needed or software required
- Stable, metal housing
- Power supplied

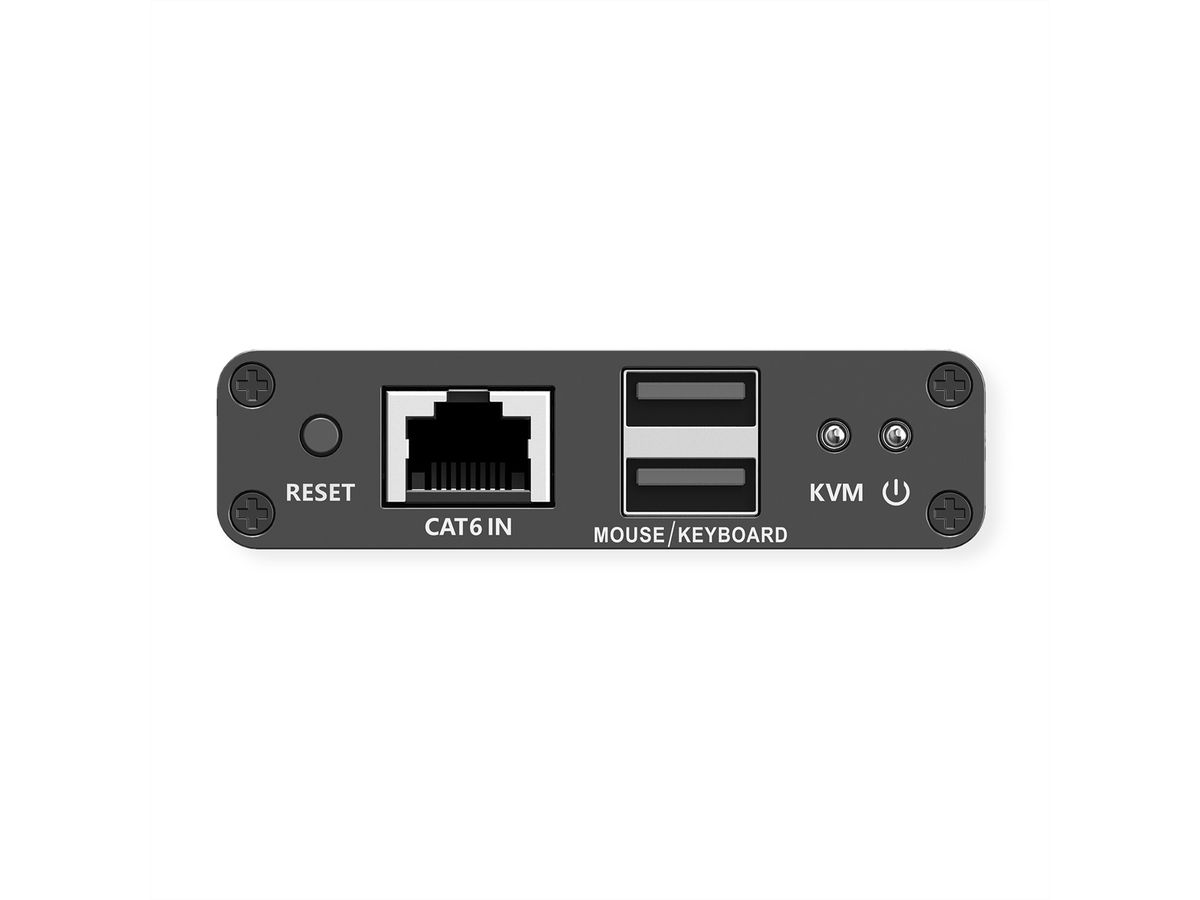

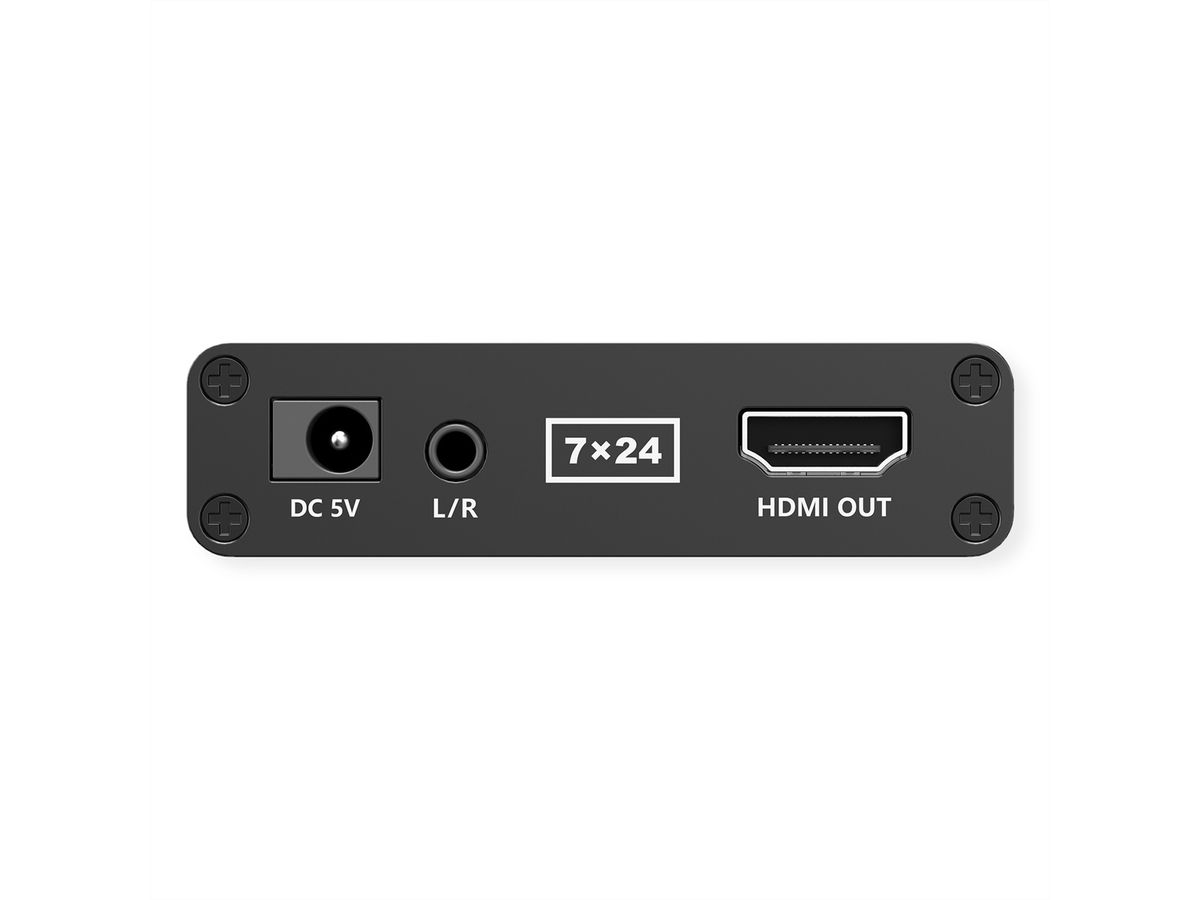

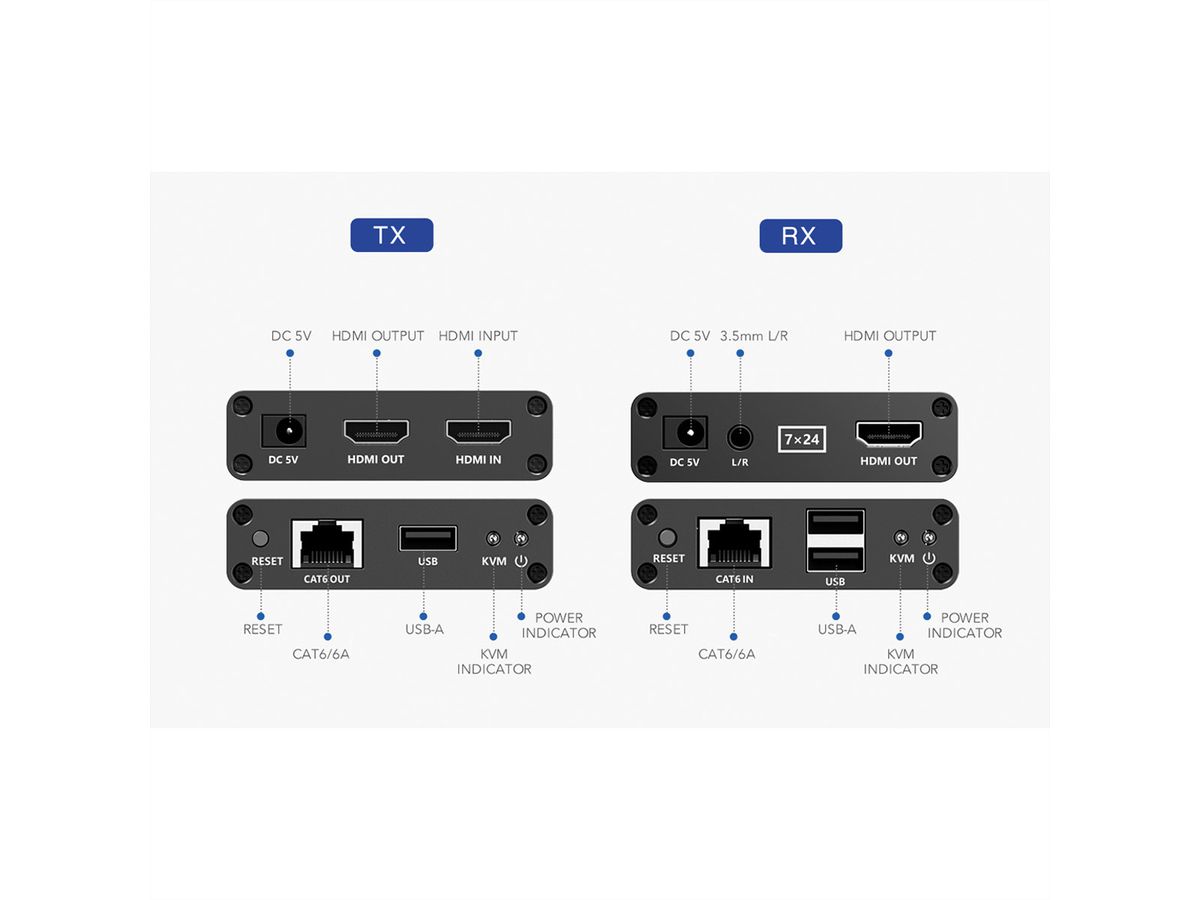

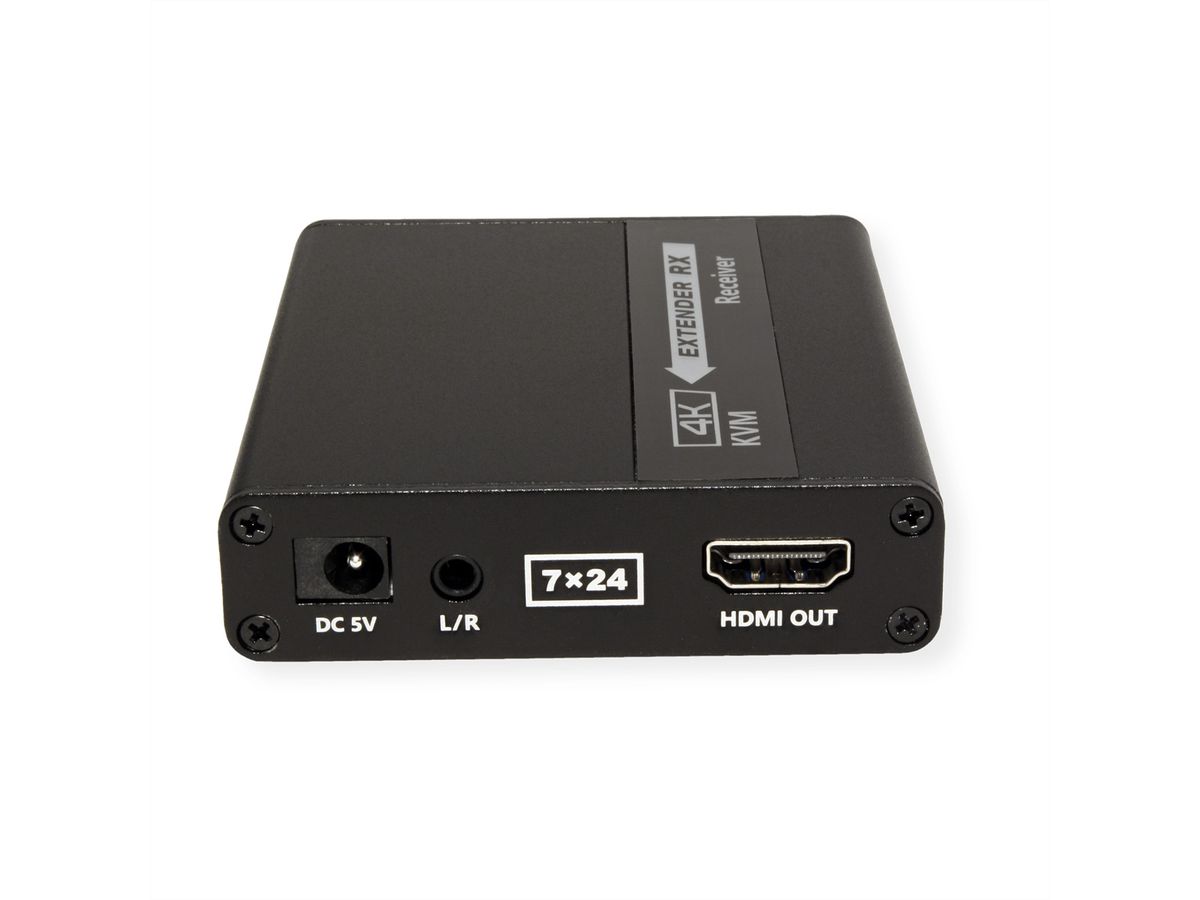

- Receiver (RX) unit connectors: Monitor: 1x HDMI; 1x RJ-45 jack, 2x USB type A jack, 1x 3.5mm audio jack

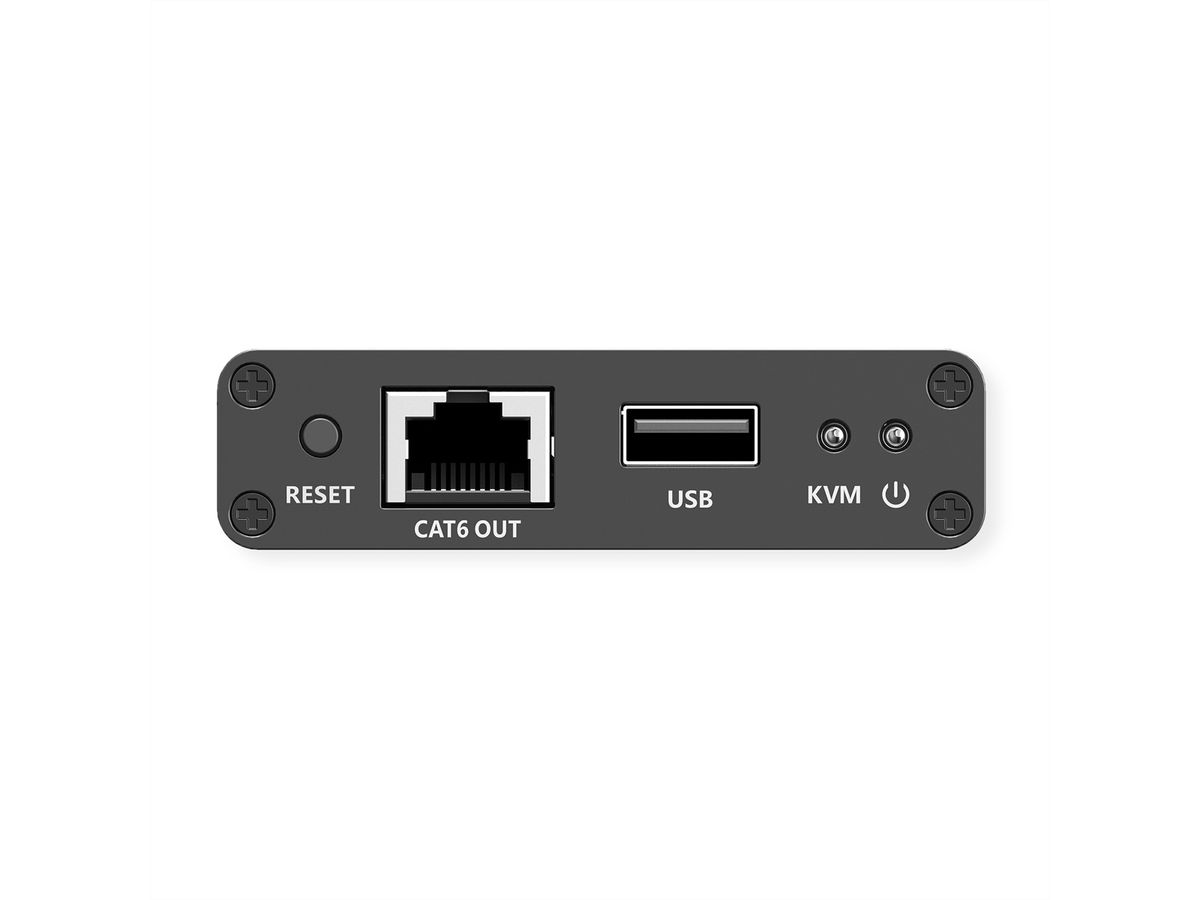

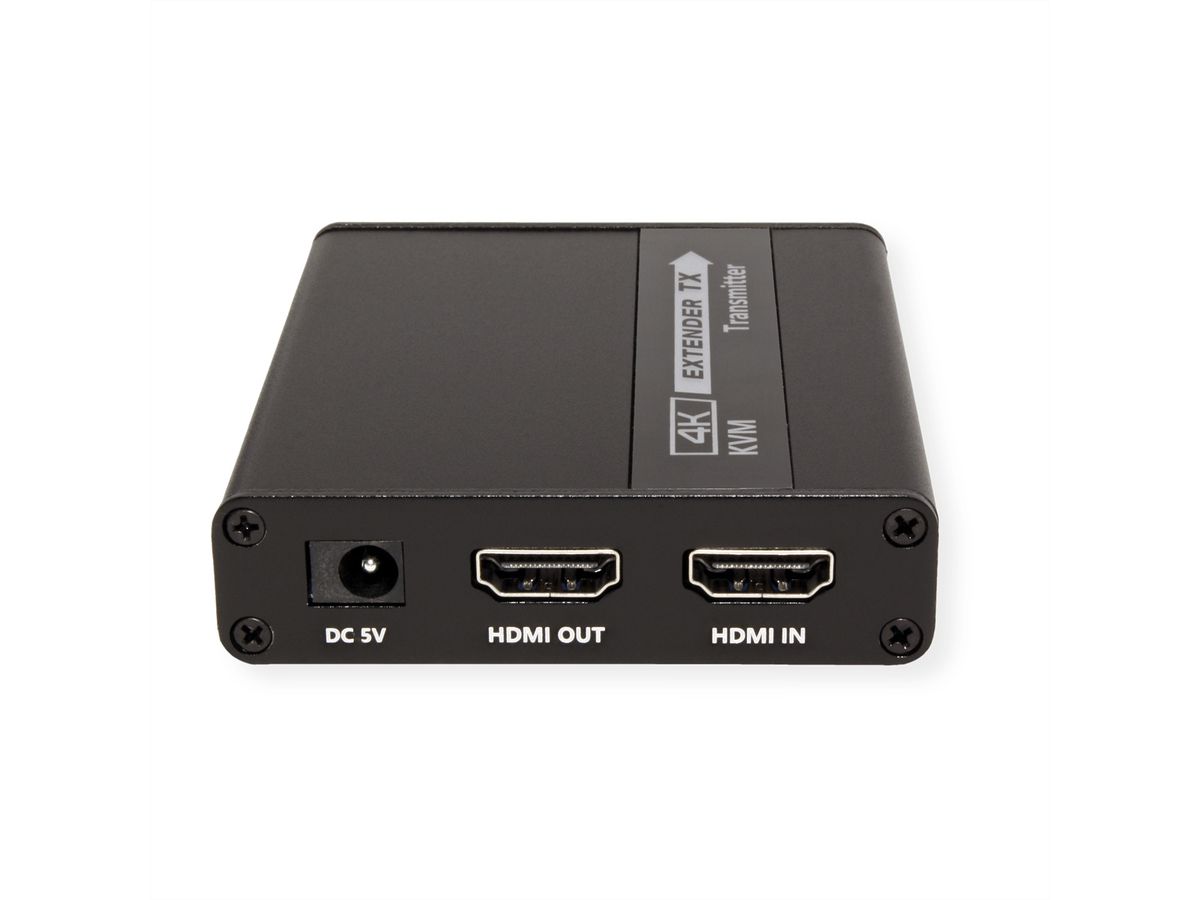

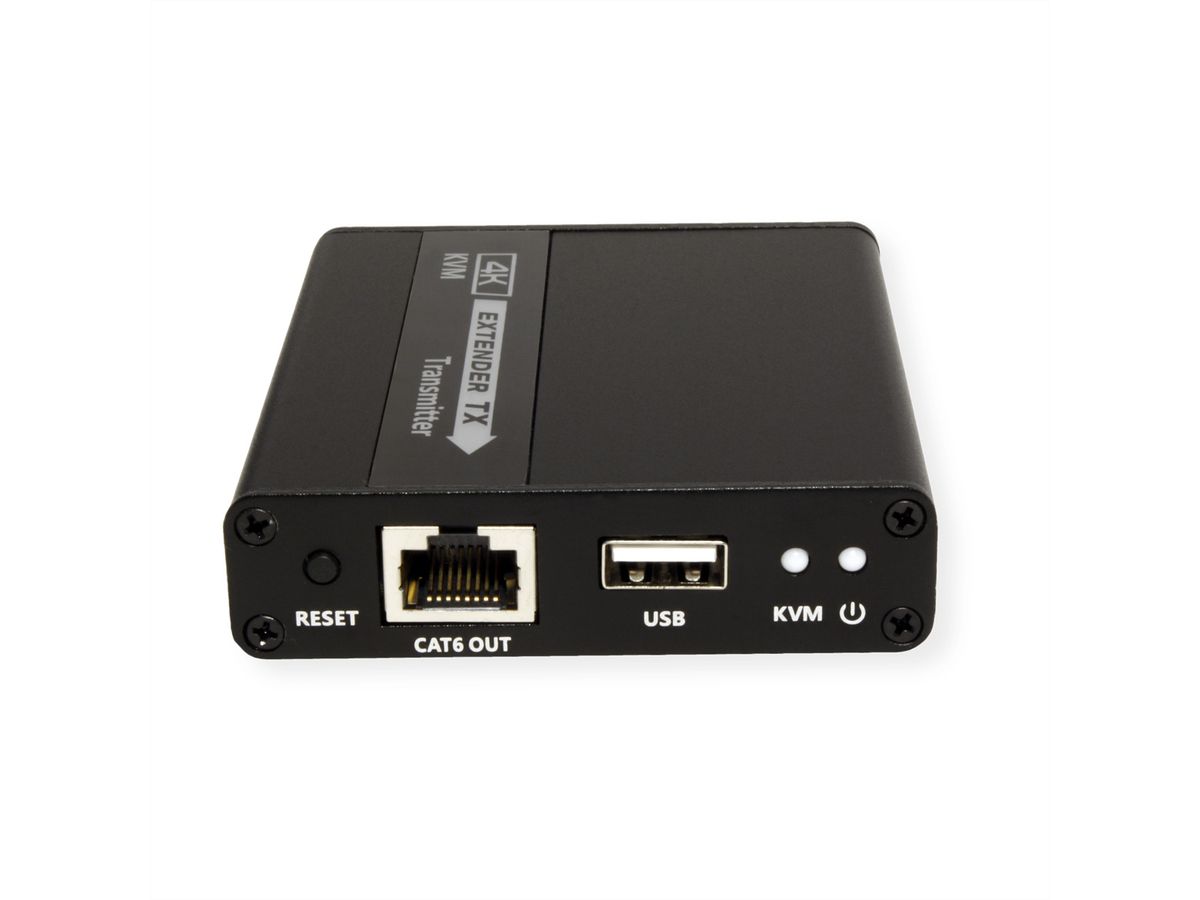

- Transmitter (TX) unit connectors: Monitor: 2x HDMI; 1x RJ-45 jack, 1x USB type A jack
Specifications
Manufacturer | VALUE |
---|---|
Product group | KVM (IP) extensions |
Product type | KVM-Extender, HDMI |
Colour | black |
Scope of delivery | Transmitter unit, receiver unit, 2x power supply, manual |
Max. distance | 70 m |
PC/Switch: monitor connection | HDMI |
PC/Switch: mouse/keyboard connection | USB |
Remote Console: Monitor connection | HDMI |
Remote Console: Mouse/Keyboard connection | USB |
Max. distance local-remote unit | 70 m |
Max. resolution (nominal) | 1920 x 1080 (max.) |
Material (casing) | metal |
Dimensions (HxWxD) | 19 x 85 x 75 mm |
Power supply output | DC 5V, 2A |
Operating temperature min. | 0 °C |
Operating temperature max. | 40 °C |
Height | 19 mm |
Width | 85 mm |
Depth | 75 mm |
Weight | 247.3 g |
Height of packaging (single piece) | 80 mm |
Width of packaging (single piece) | 150 mm |
Depth of packaging (single piece) | 200 mm |
Package weight (single piece) | 0.6 kg |
