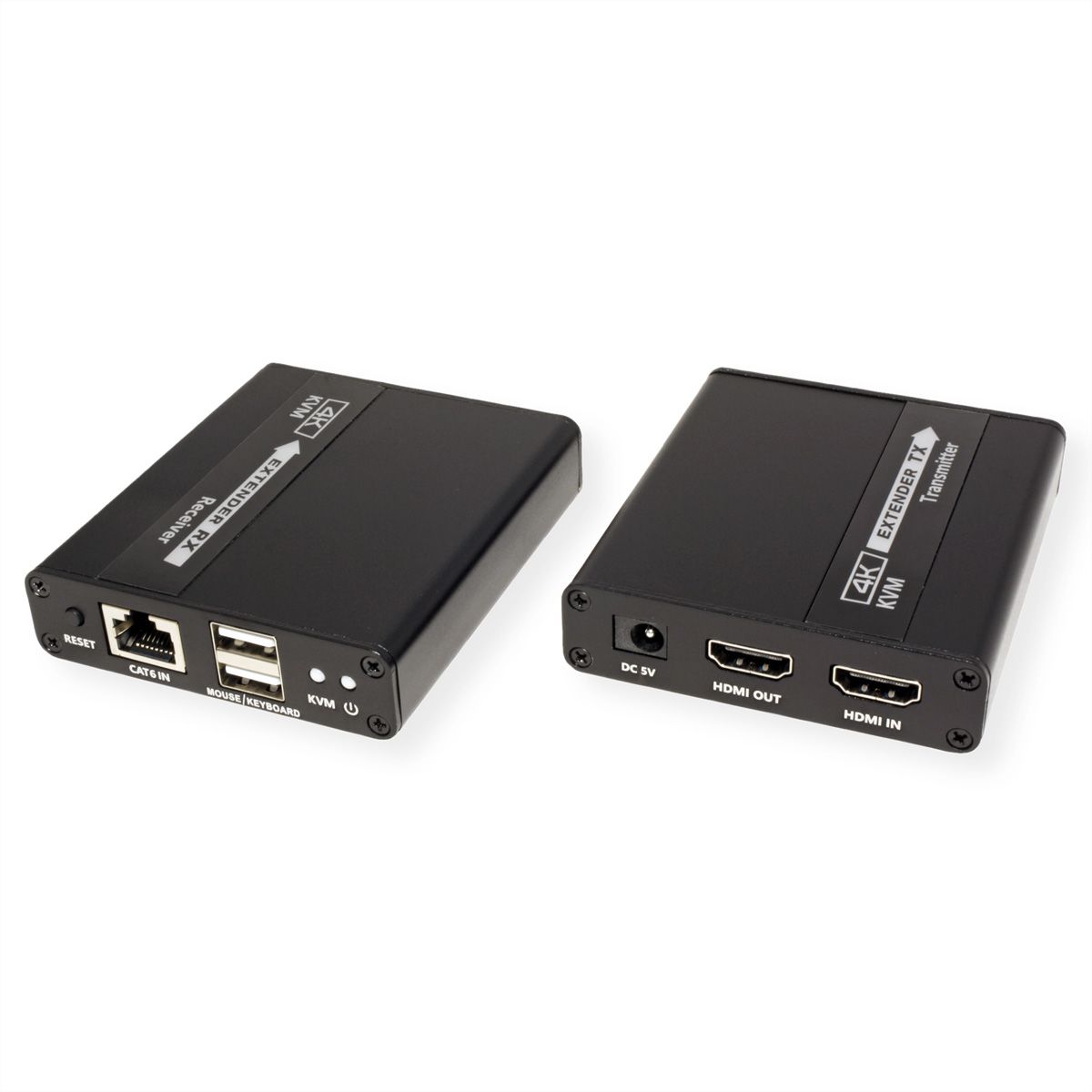

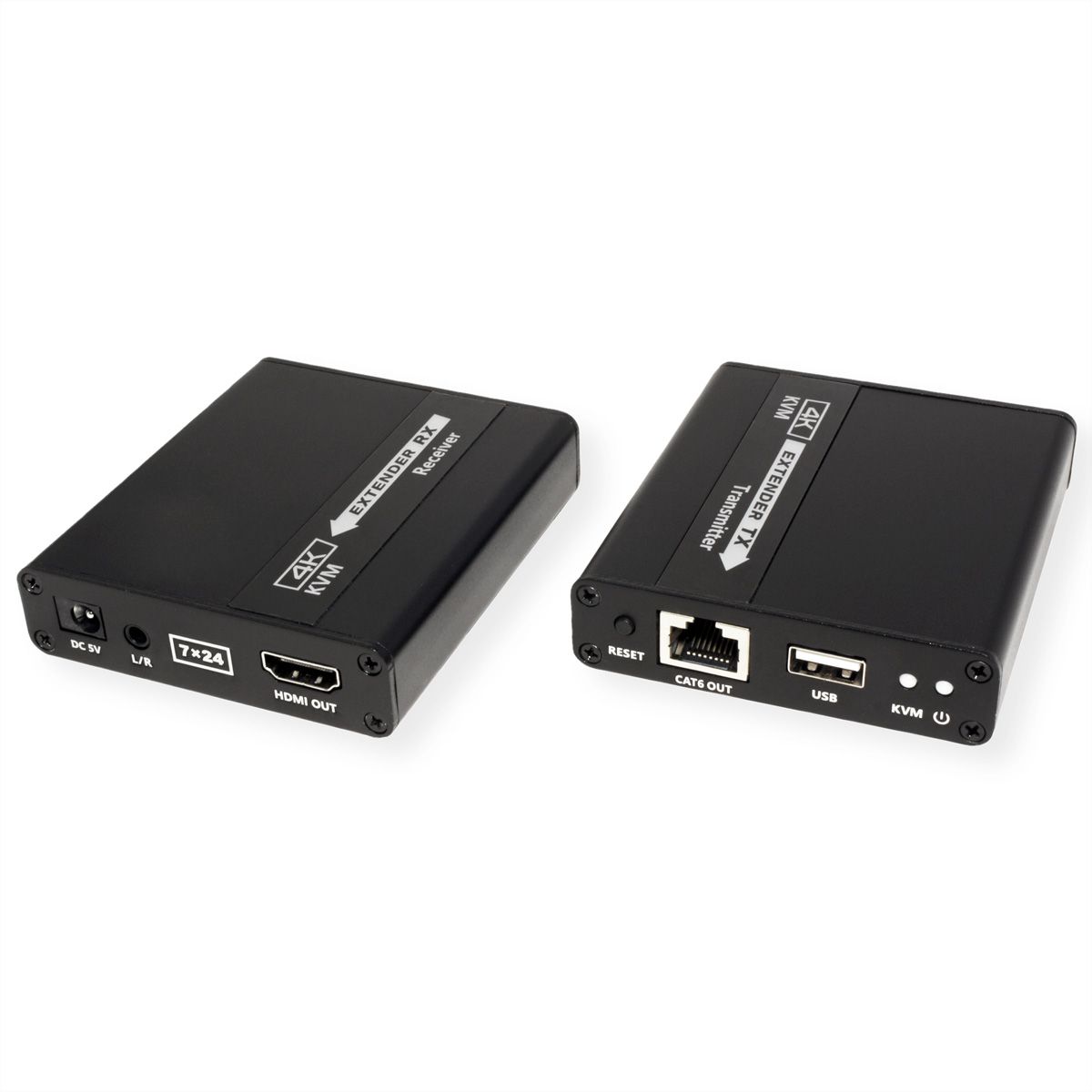

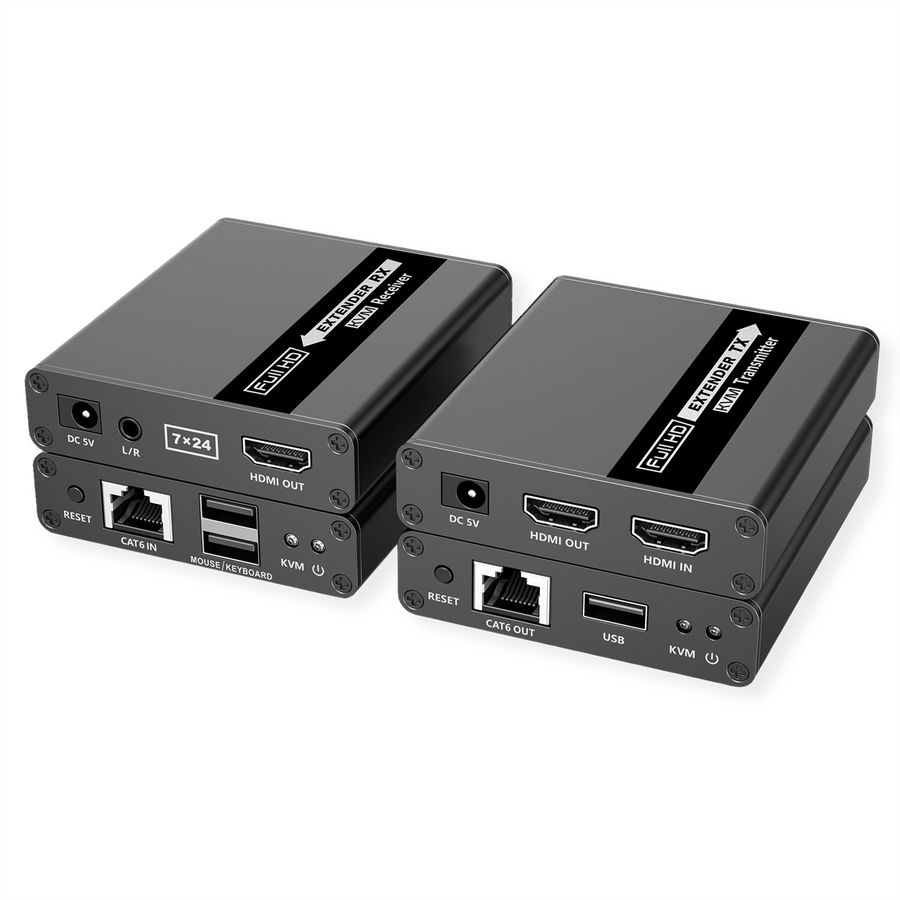

VALUE KVM Extender over Cat.6/6A, HDMI, max. 70m

Item no. 14.99.3042-2 Brand / Manufacturer VALUE Manuf. no. 14.99.3042 EAN 7630049681262 Package weight 0.6 kg
VALUE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

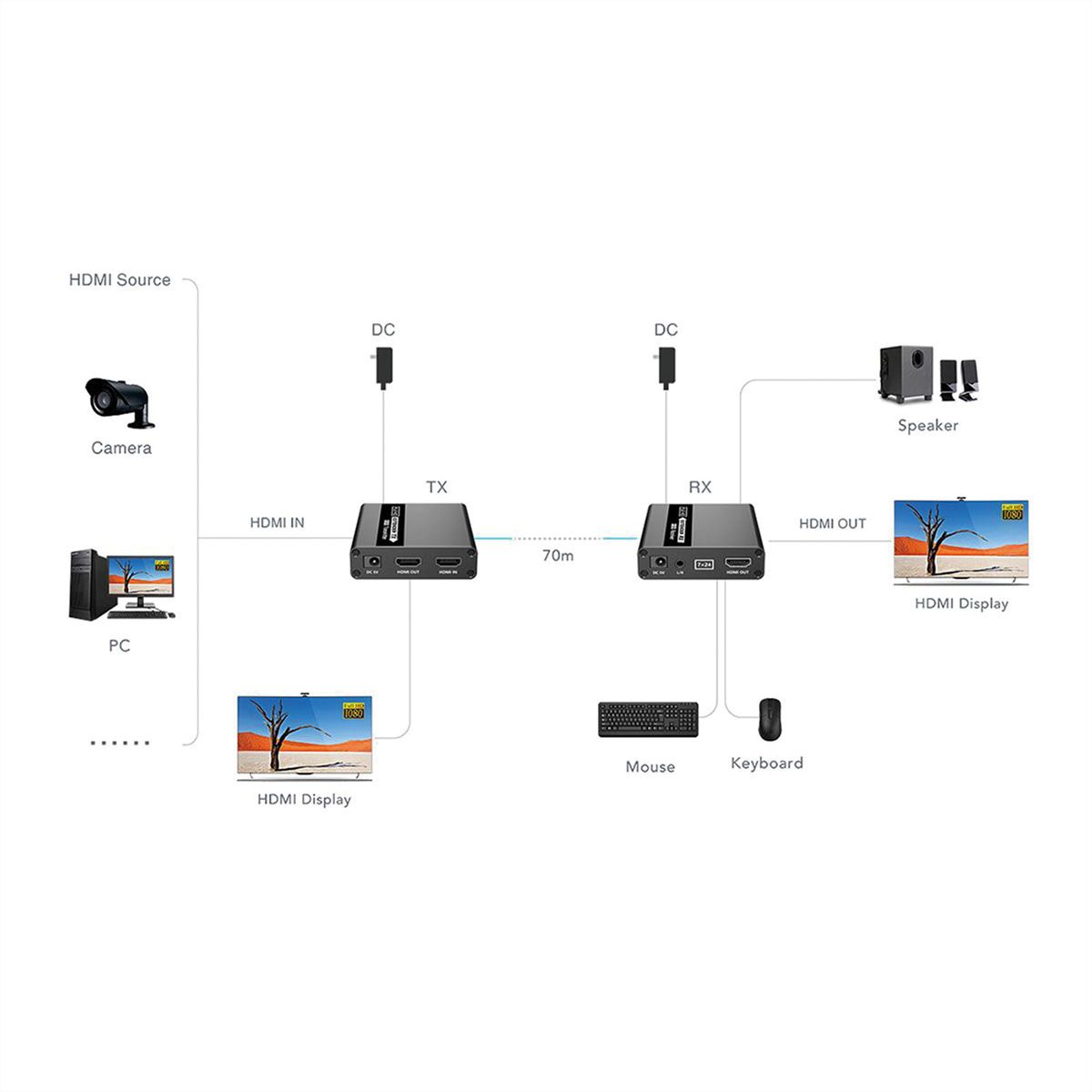

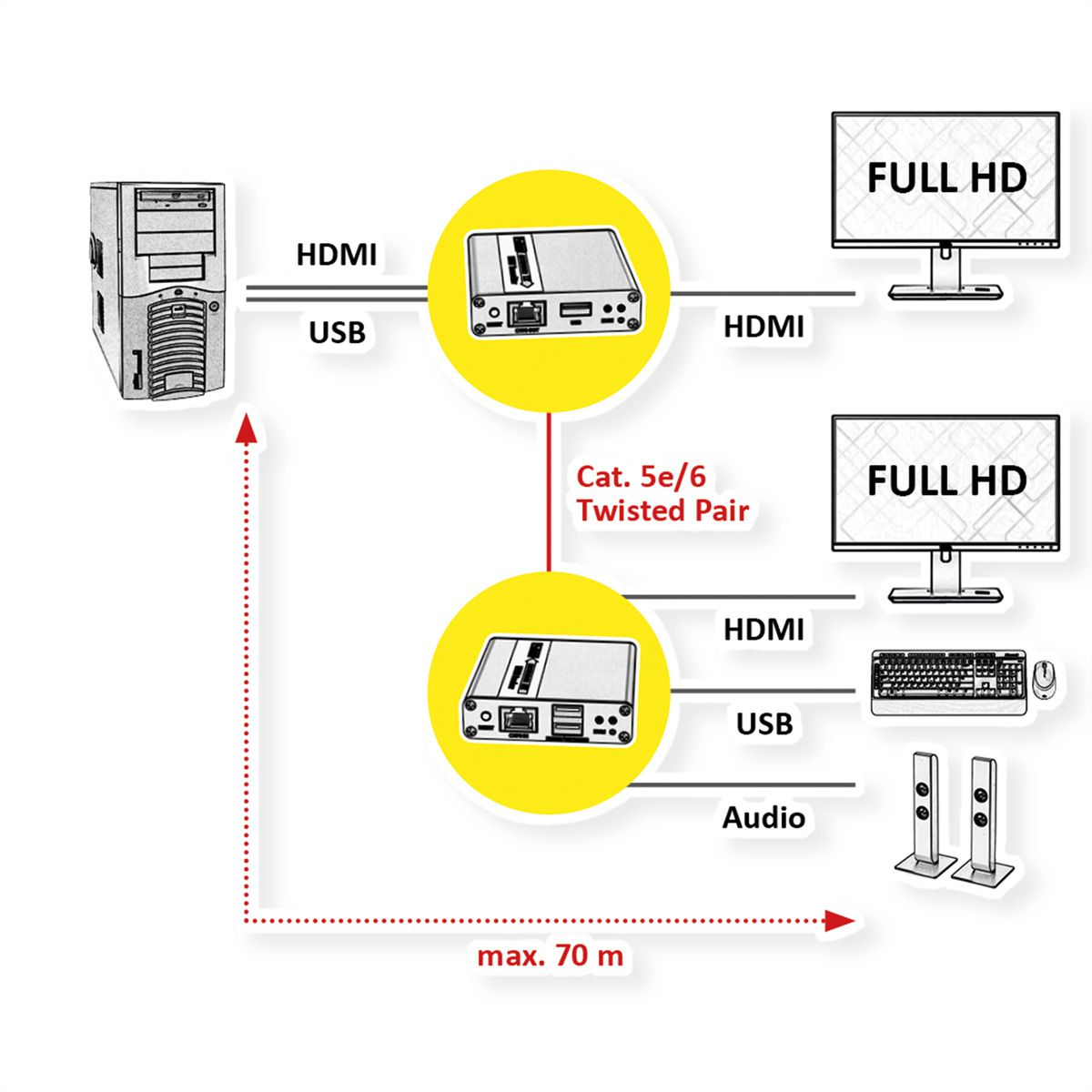

KVM extension over up to 70 m through the Cat.6/6A connection

  • Supports HDMI with high resolution video up to 1920 x 1080 @ 60Hz (Full HD)
  • Supports USB PC or KVM switch
  • Ideal for professional video applications
  • HDCP-compliant
  • Supports EDID-Passthrough
  • No drivers needed or software required
  • Stable, metal housing
  • Power supplied

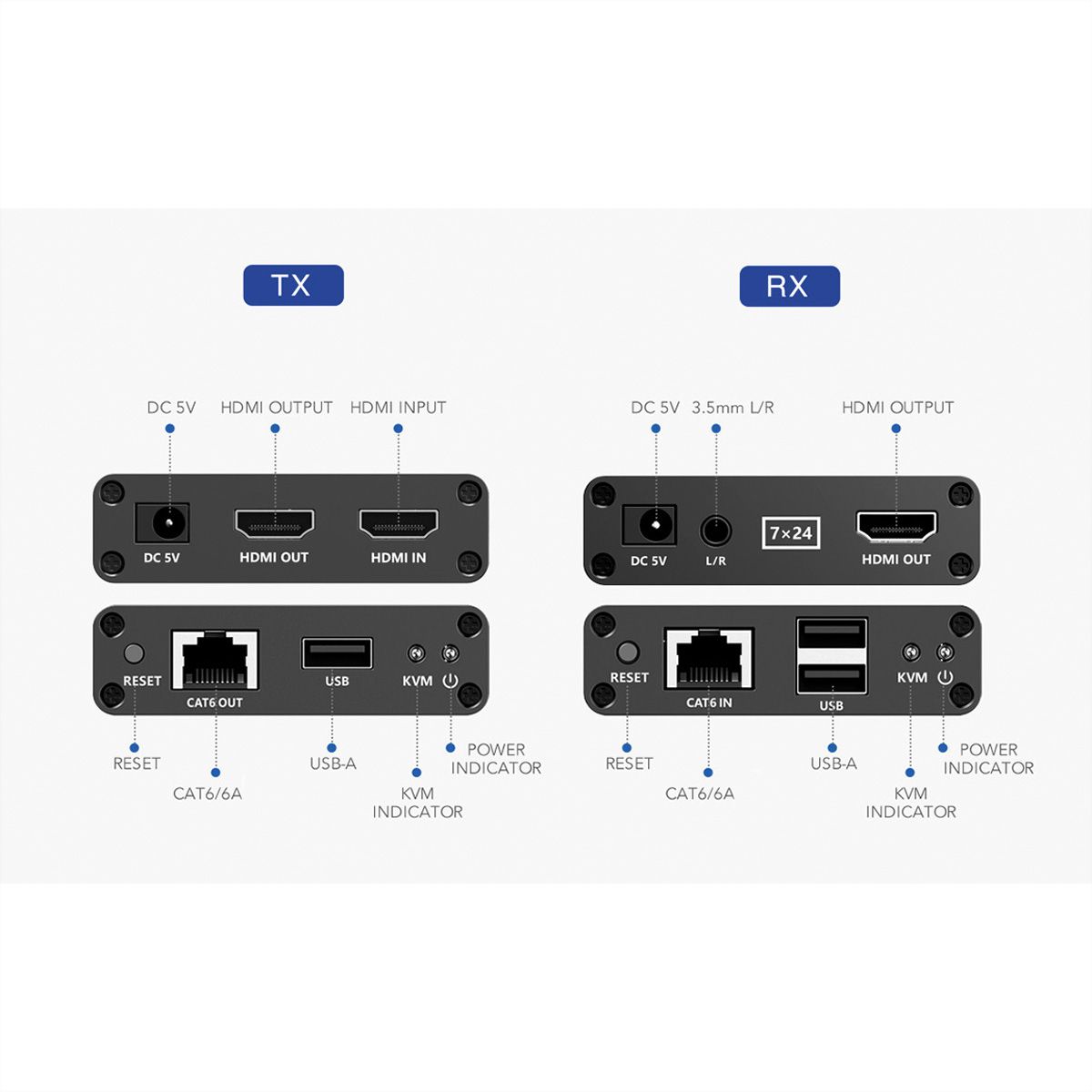

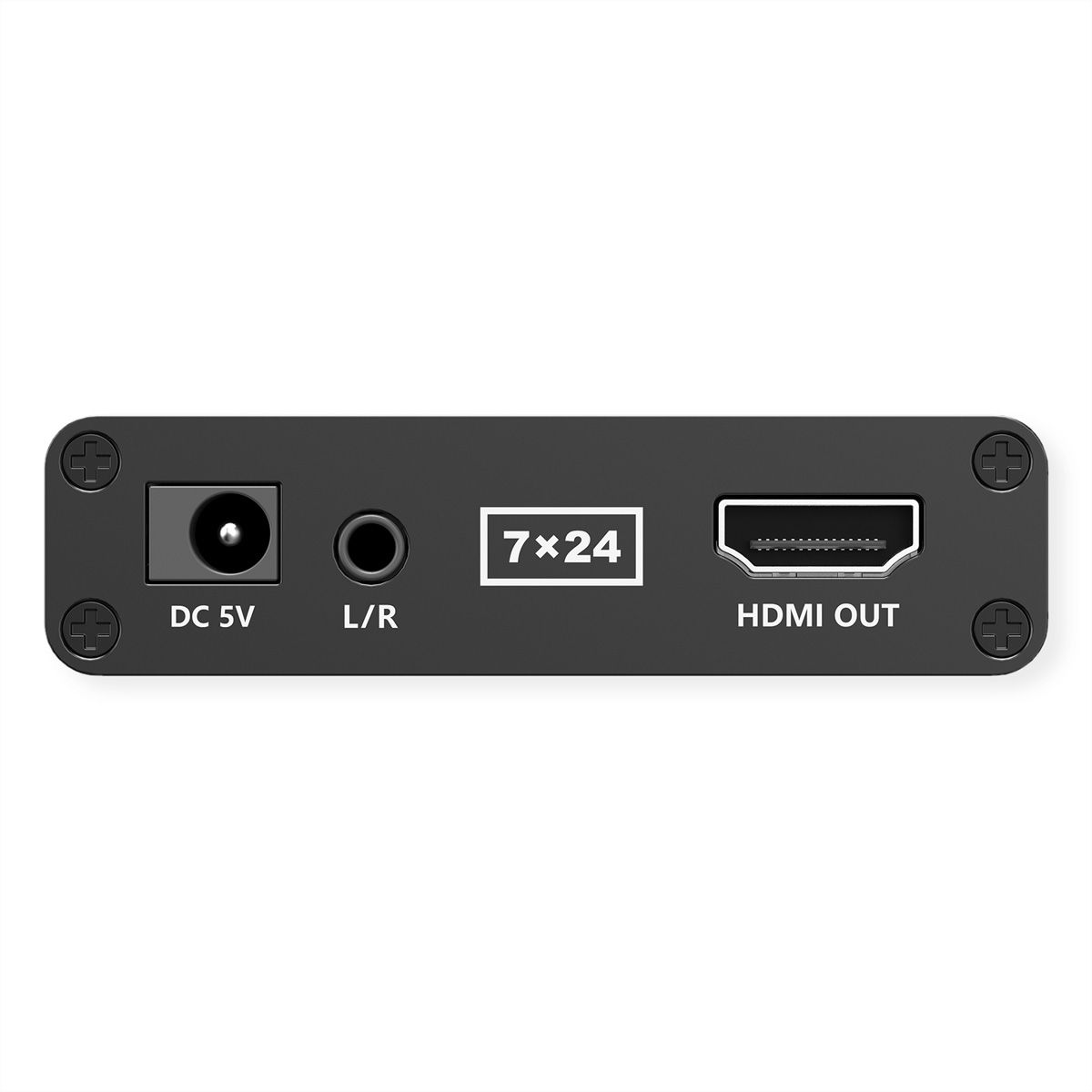

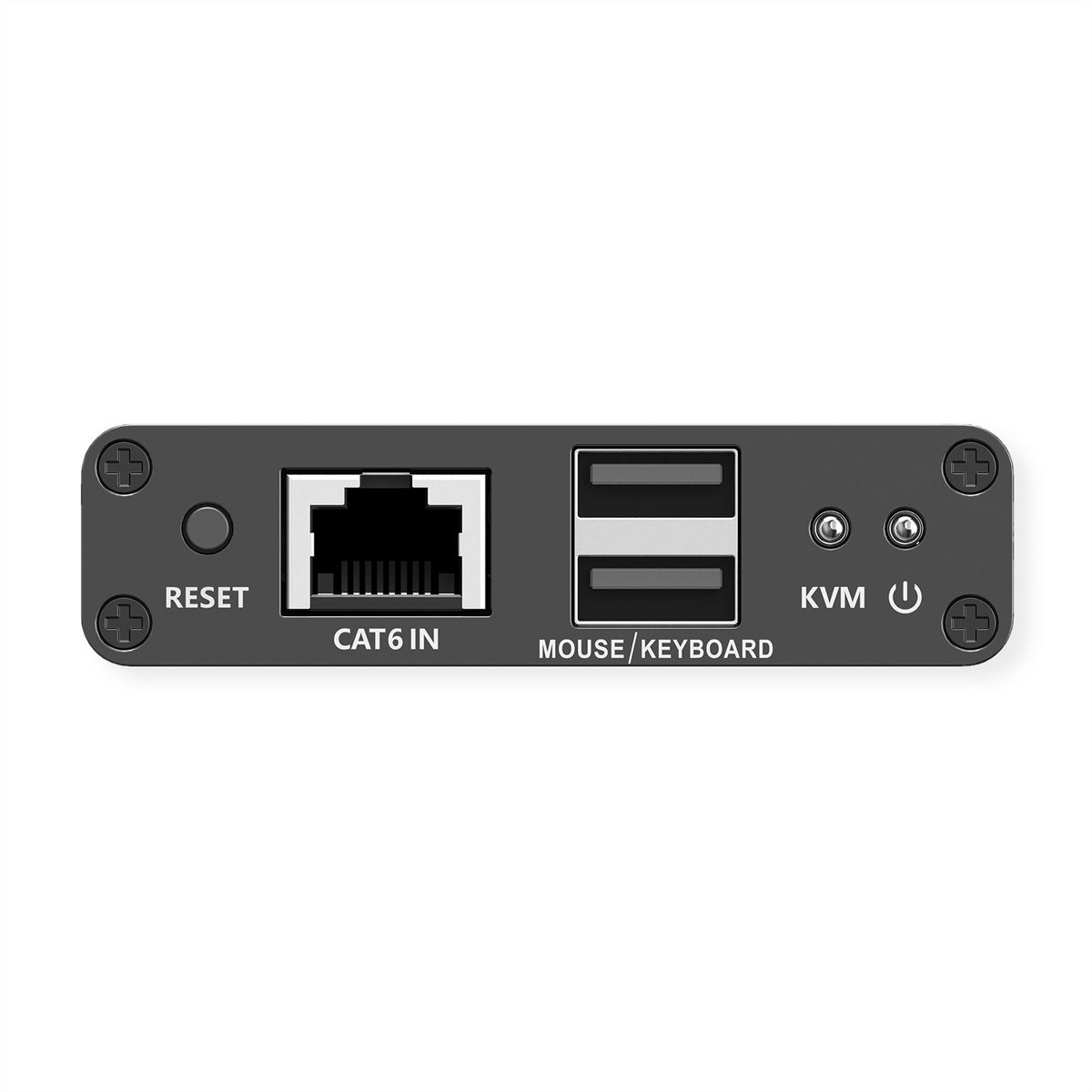

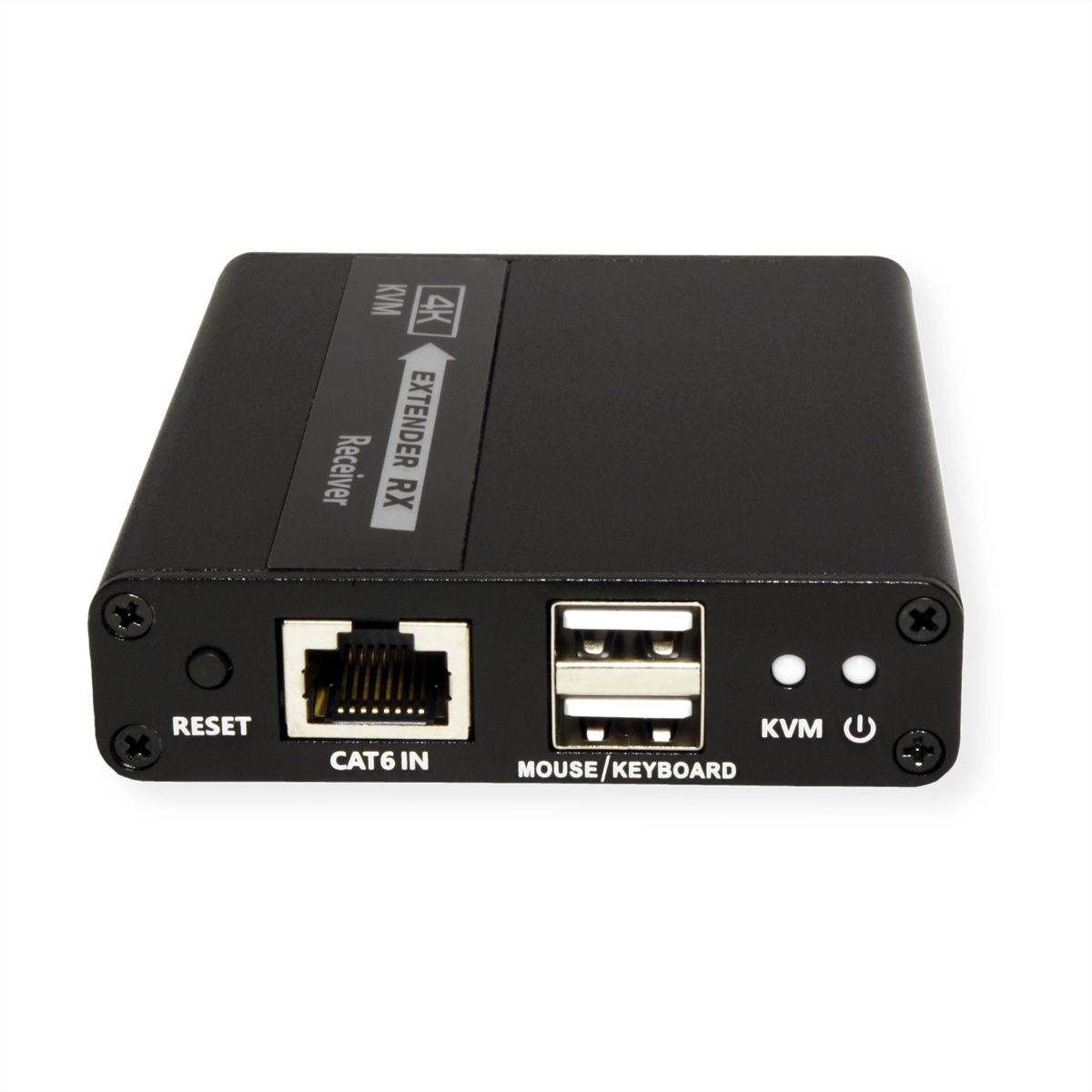

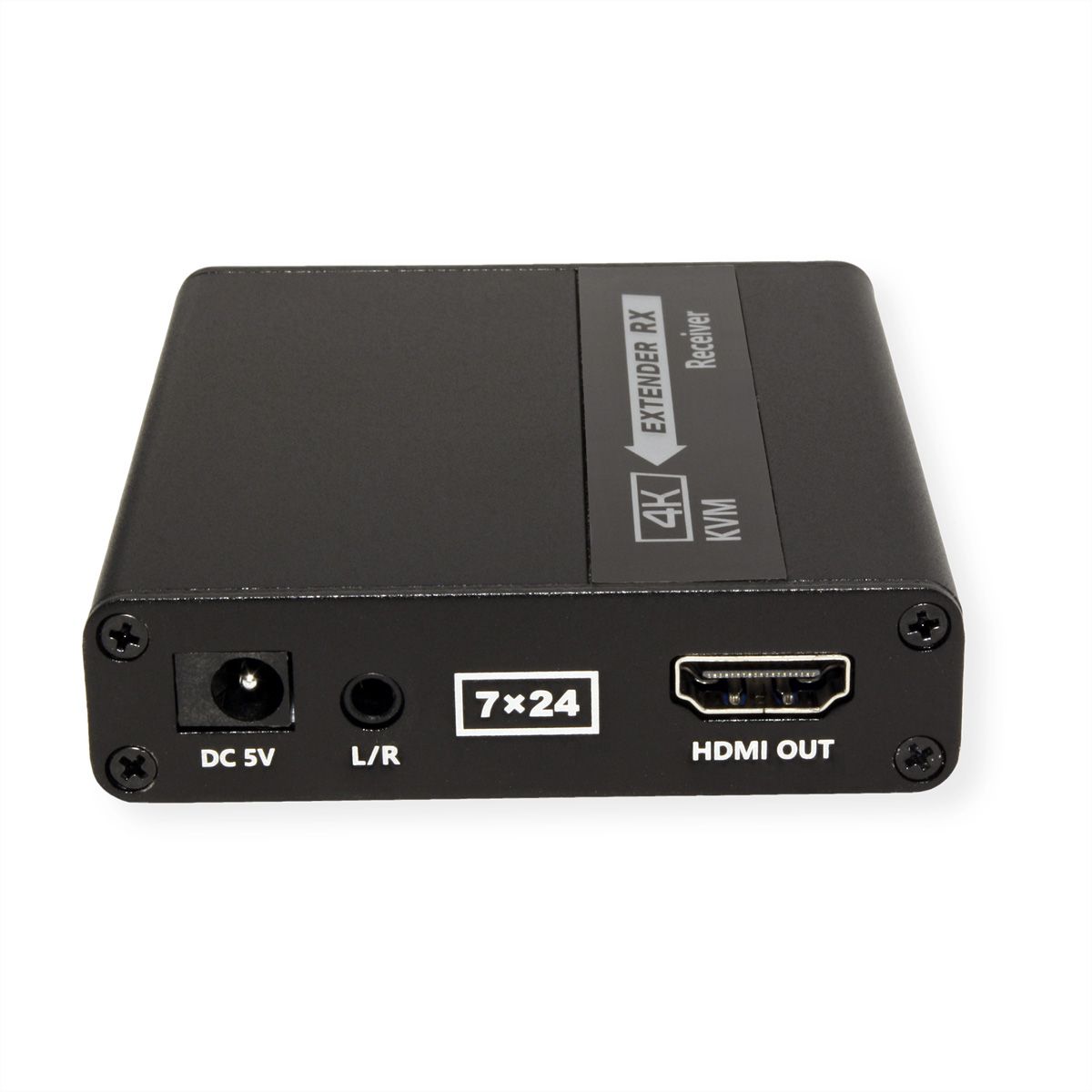

  • Receiver (RX) unit connectors: Monitor: 1x HDMI; 1x RJ-45 jack, 2x USB type A jack, 1x 3.5mm audio jack

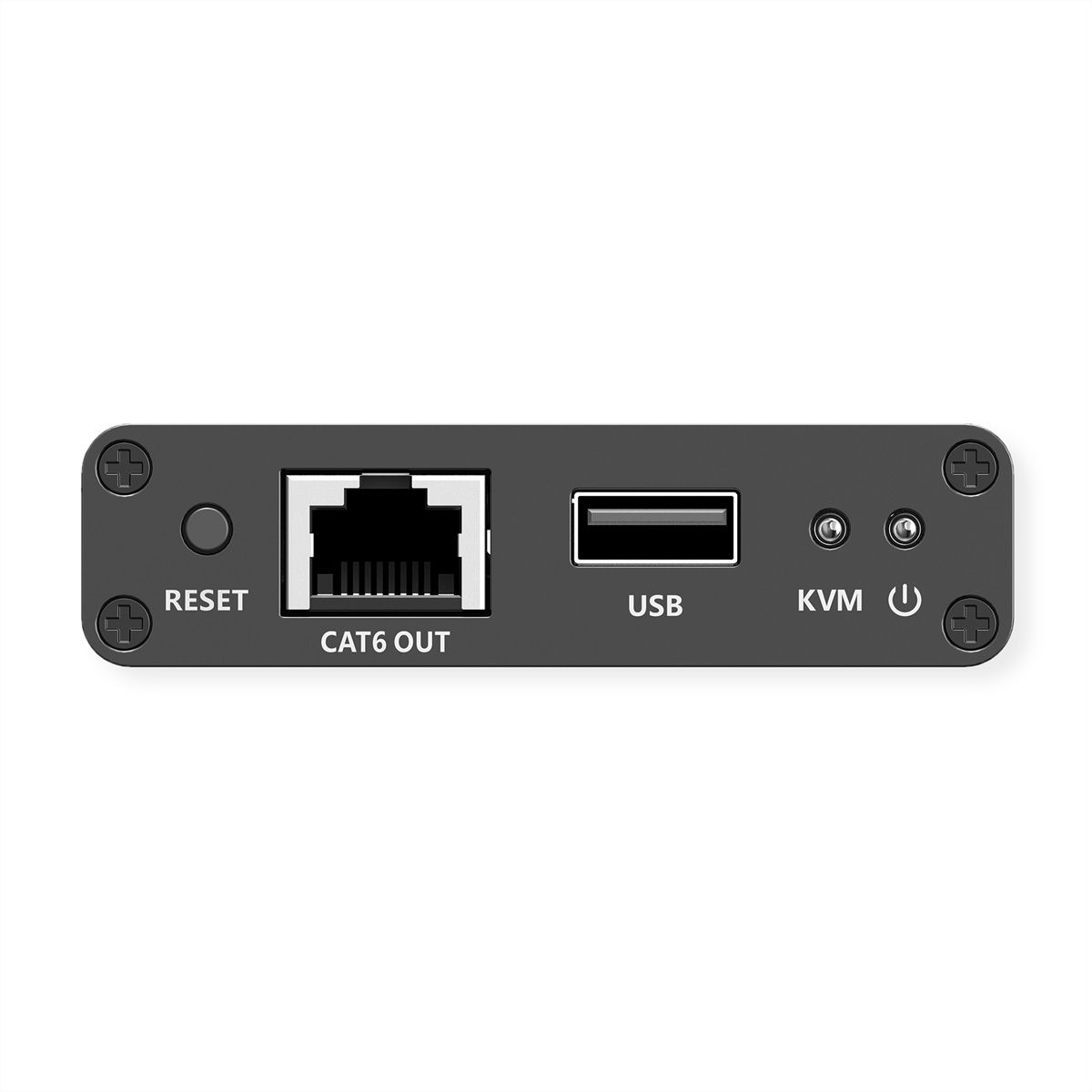

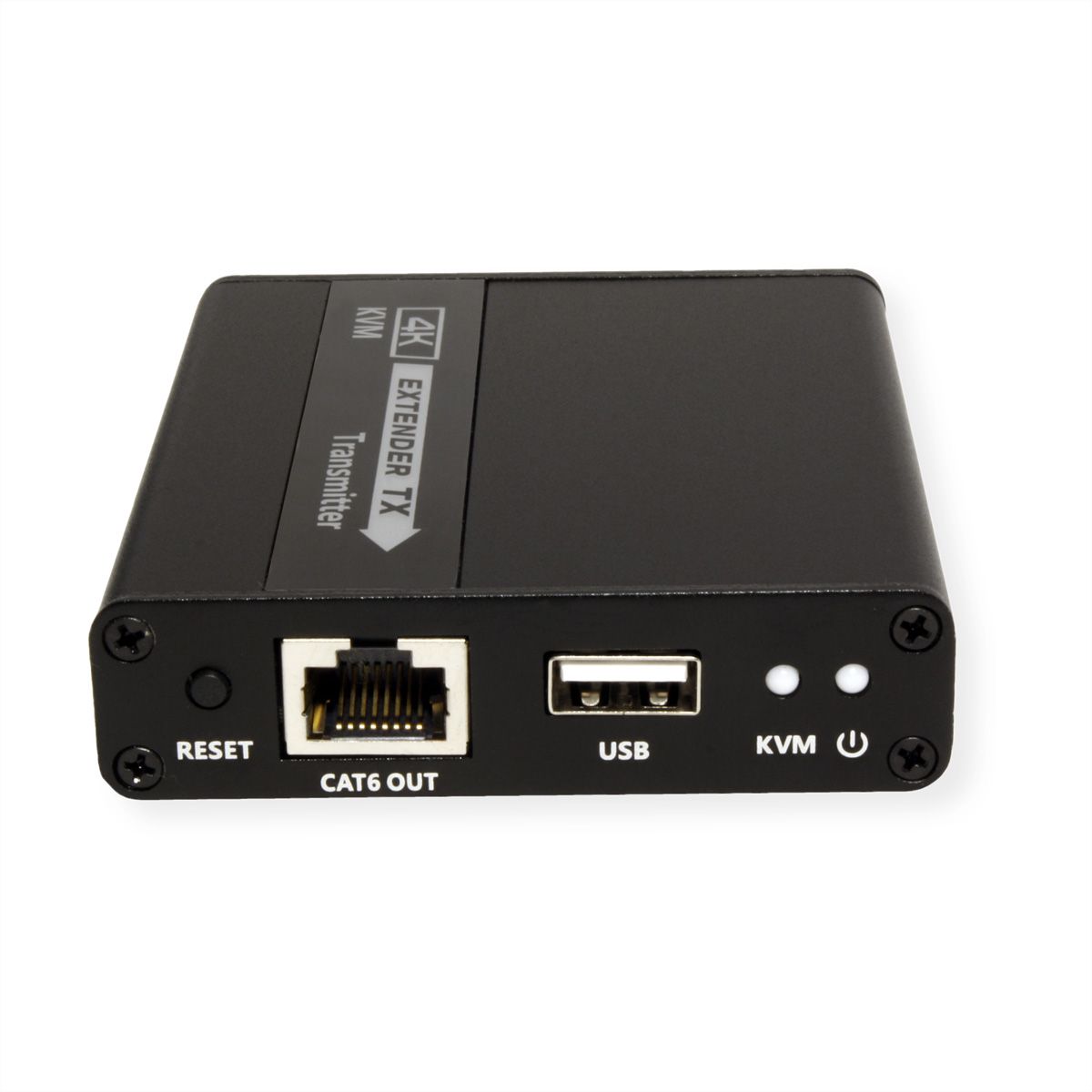

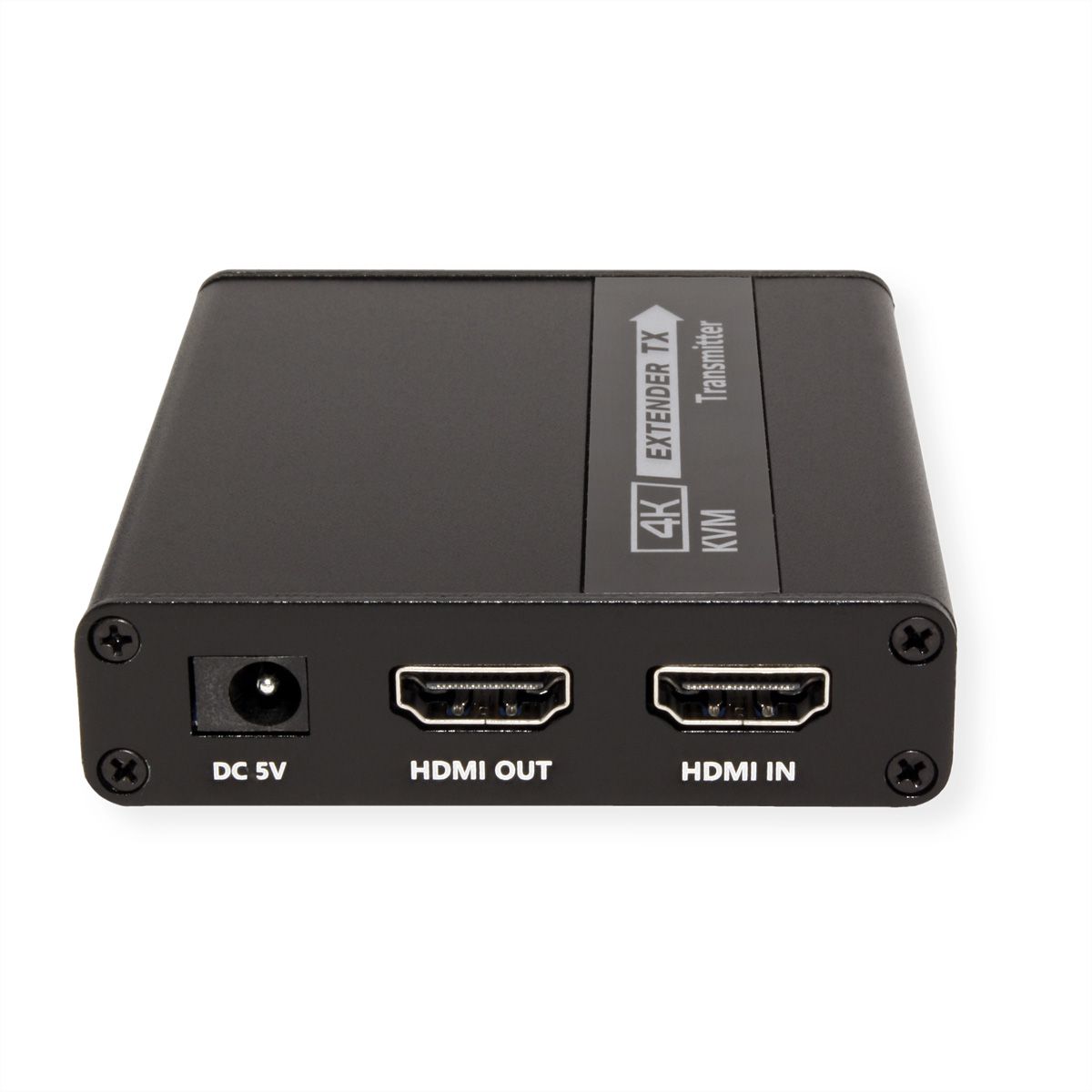

  • Transmitter (TX) unit connectors: Monitor: 2x HDMI; 1x RJ-45 jack, 1x USB type A jack

Specifications

Manufacturer
VALUE
Product group
KVM (IP) extensions
Product type
KVM-Extender, HDMI
Colour
black
Scope of delivery
Transmitter unit, receiver unit, 2x power supply, manual
Interface
HDMI
Max. distance
70 m
PC/Switch: monitor connection
HDMI
PC/Switch: mouse/keyboard connection
USB
Remote Console: Monitor connection
HDMI
Remote Console: Mouse/Keyboard connection
USB
Max. distance local-remote unit
70 m
Max. resolution (nominal)
1920 x 1080 (max.)
Material (casing)
metal
Dimensions (HxWxD)
19 x 85 x 75 mm
Power supply output
DC 5V, 2A
Mains connection
Appliance Europlug, Type-C
Operating temperature min.
0 °C
Operating temperature max.
40 °C
Height
19 mm
Width
85 mm
Depth
75 mm
Weight
247.3 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.6 kg

Downloads

Product data sheet - English (54.3 KB) Manufacturer data sheet - English (102.2 KB) User manual - Deutsch (1.1 MB) User manual - English (1.0 MB) User manual - Français (866.8 KB)
