VALUE KVM Switch "Star", 1U - 2 PCs, HDMI, USB
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

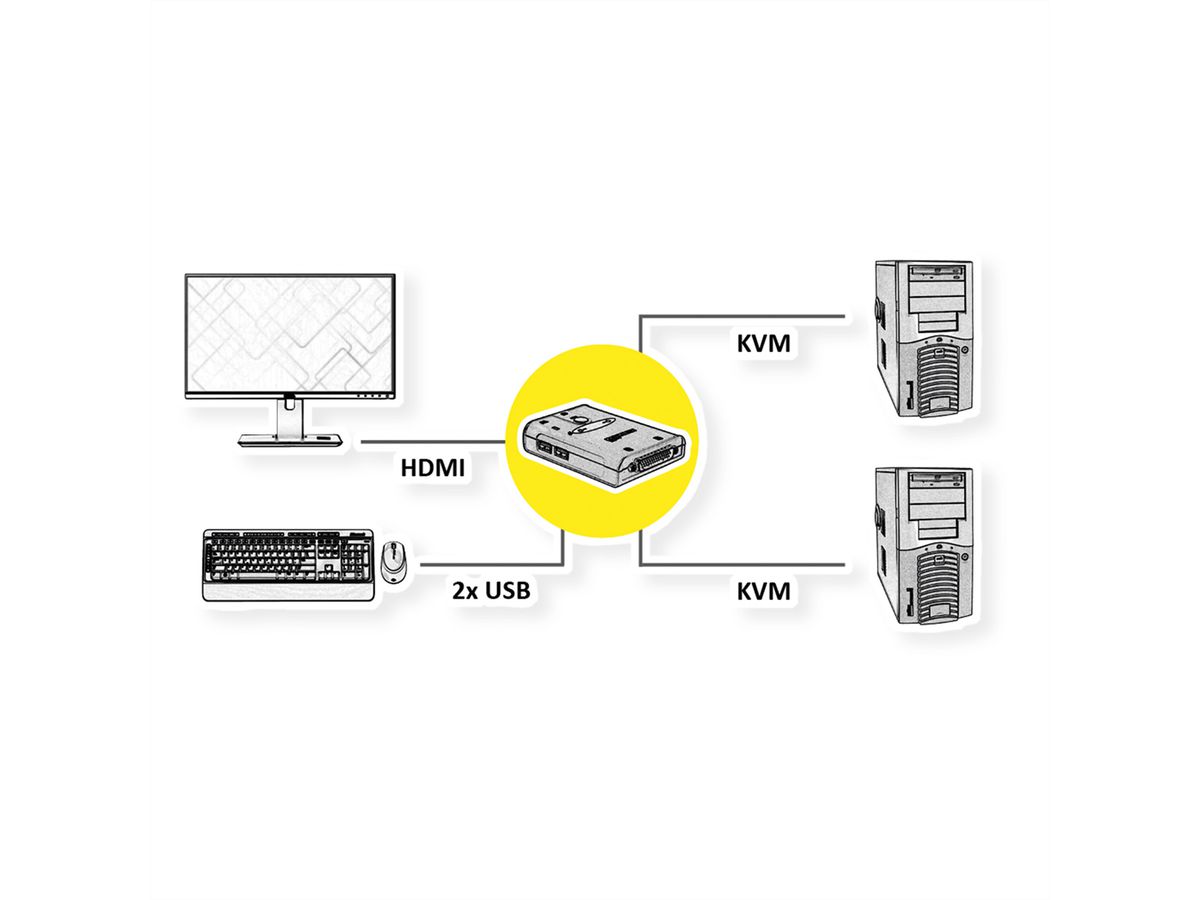

This 2-port USB KVM Star switch employs HDMI display technology for use with high definition digital monitors and HDTVs.- Controls 2 computers from a single USB console (keyboard/mouse)
- Easy switching by push buttons or hot keys from USB keyboard
- Supports Auto-Scan function
- Max. resolution (nominal): 1920 x 1200
- Connectors console side: 1x HDMI, 2x USB (keyboard, mouse)
- Connectors computer side: 2x HDMI, 1x USB (keyboard/mouse)
- LEDs for PC and audio status monitoring
- Hot-swapping and plug & play
- Self powered through USB connection
Specifications
Manufacturer | VALUE |
---|---|
Product group | KVM switches / PC shares |
Product type | KVM-Switch, HDMI |
Colour | black |
Scope of delivery | Switch with KVM cables (each 1.2 m), manual |
Interface | HDMI |
Inputs | 2 |
Outputs | 1 |
Max. distance | 1.2 m |
Quantity of PCs | 2 |
Supported PC-Systems | USB |
PC: monitor connection | HDMI |
PC: mouse/keyboard connection | 2x USB |
PC: connection on moulded cables | yes |
Analogue Console: Mouse/Keyboard connection | USB |
Integrated console | no |
Switching over Scan Run | yes |
Print button on device | yes |
Switching over Hot Keys | Keyboard |
Switching over OSD | no |
Integrated Hub | no |
Keyboard/mouse emulation | yes |
19" compatible | no |
Cascadable | no |
Hot plug compatible | no |
Max. resolution (nominal) | 1920 x 1200@60Hz |
Colour (Design profile) | black |
Material (casing) | plastic |
Dimensions (HxWxD) | 100 x 75 x 23 mm |
Power supply unit required | no |
Operating temperature min. | 0 °C |
Operating temperature max. | 40 °C |
Height | 100 mm |
Width | 75 mm |
Depth | 23 mm |
Weight | 90.1 g |
Height of packaging (single piece) | 70 mm |
Width of packaging (single piece) | 170 mm |
Depth of packaging (single piece) | 220 mm |
Package weight (single piece) | 0.44 kg |
