VALUE Mini DisplayPort - DVI/DP/HDMI Adapter, Mini DP M - VGA/DVI/HDMI F, v1.2, Active

VALUE Mini DisplayPort - DVI/DP/HDMI Adapter, Mini DP M - VGA/DVI/HDMI F, v1.2, Active

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.99.3154-20
Brand / Manufacturer VALUE
Manuf. no. 12.99.3154
EAN 7611990946037
Package weight 0.06 kg

Description

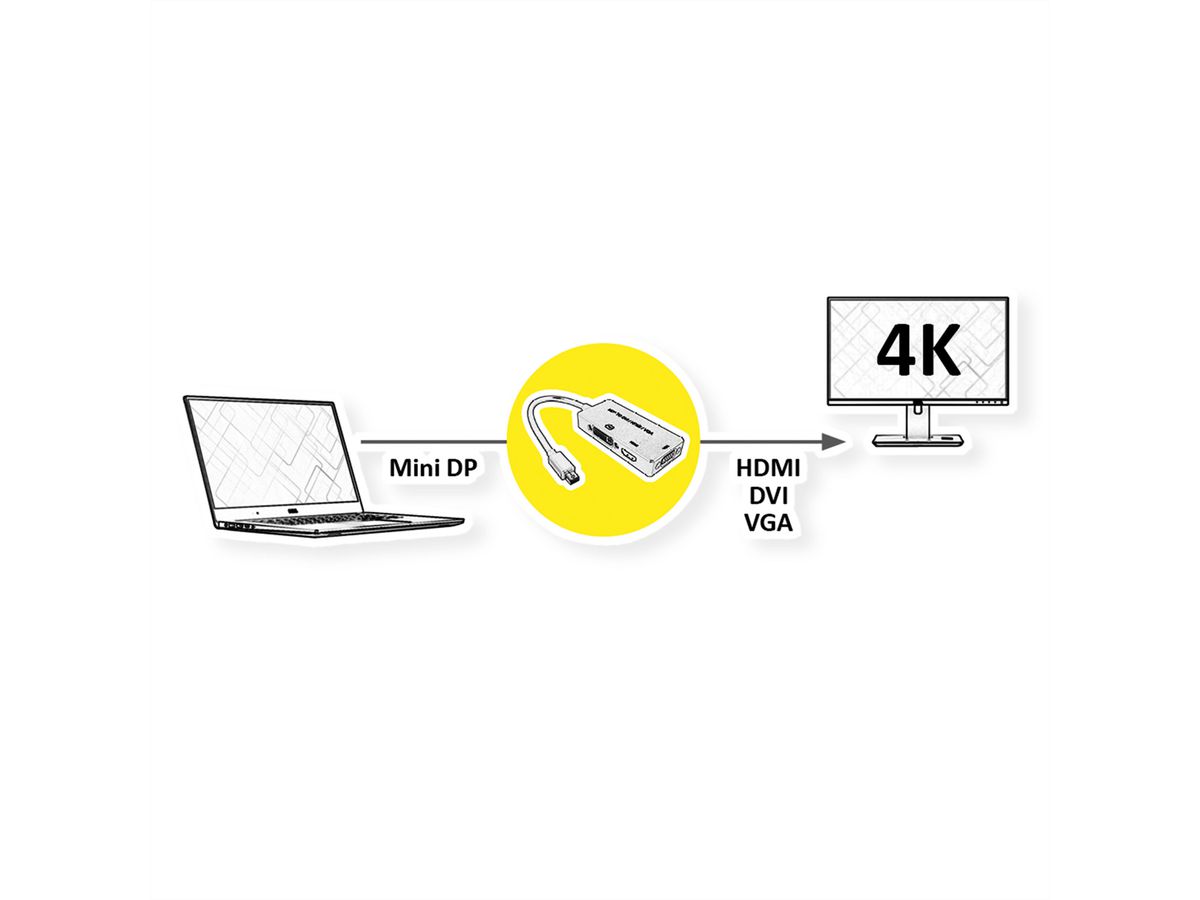

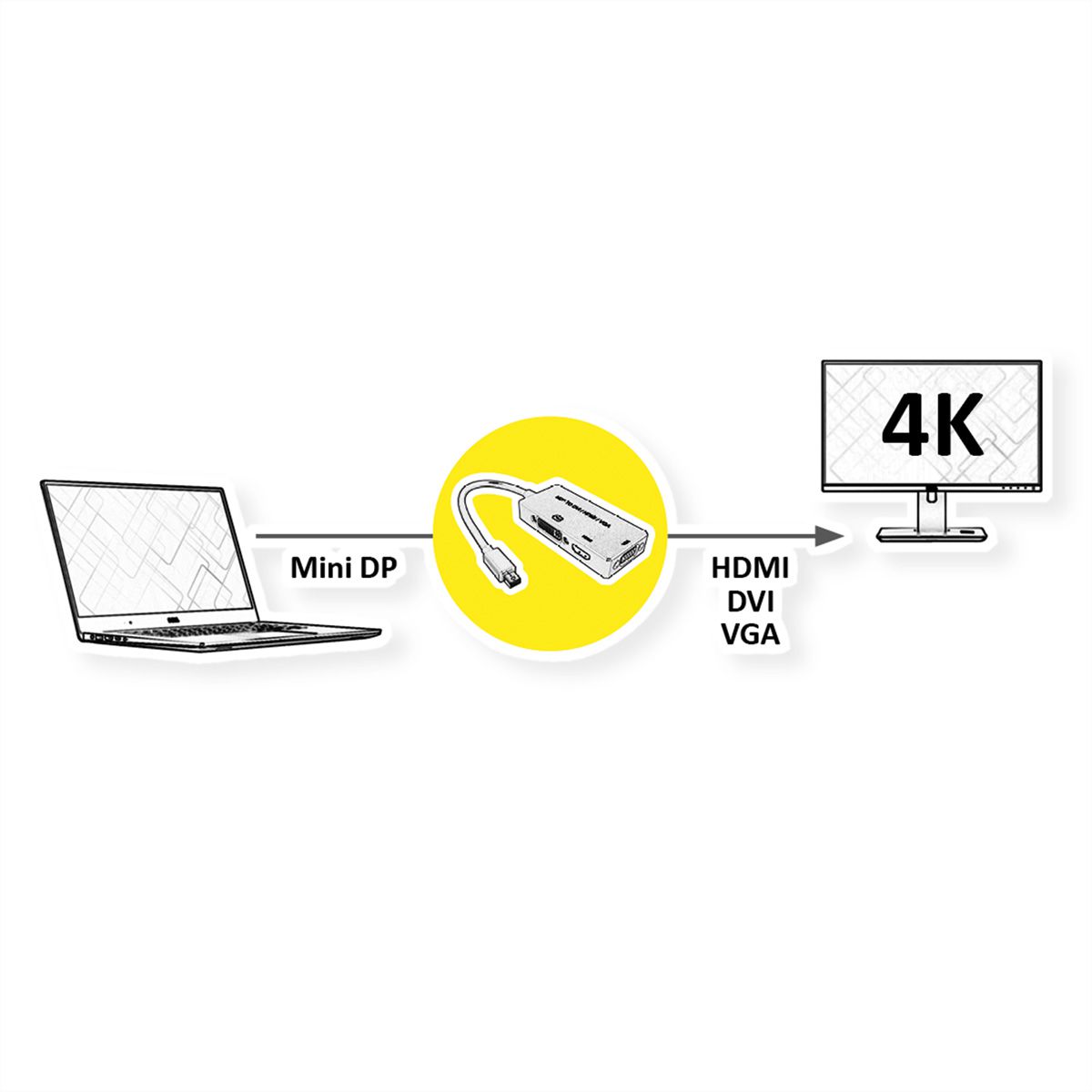

  • You want to connect your graphics card with Mini DisplayPort connector to a DVI monitor? Or a display device with VGA input? Or a TV with an HDMI connection? The solution is the VALUE Adapter Cable with Mini DisplayPort to DVI, DP and HDMI.
  • Cable length: ca. 10 cm
  • Maximum resolution: 3840x2160 @60Hz

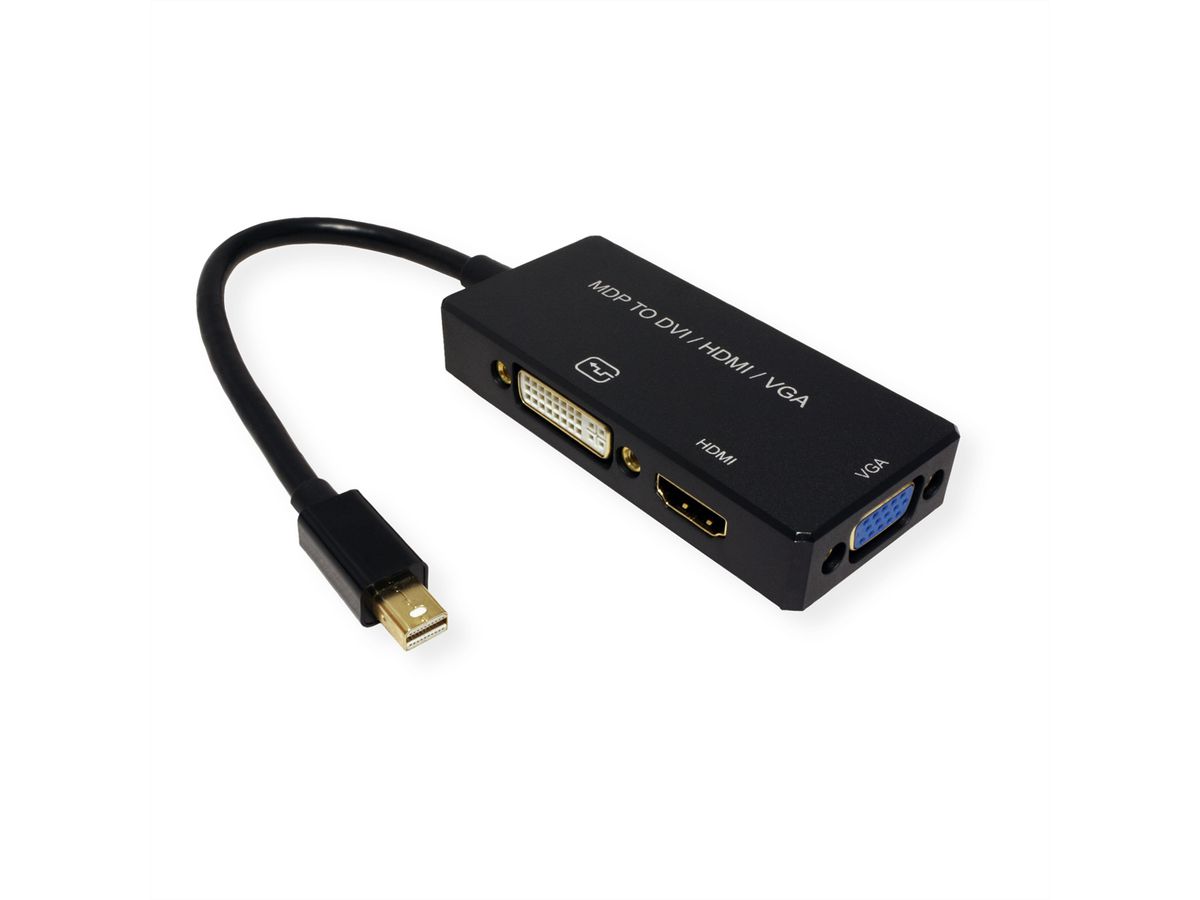

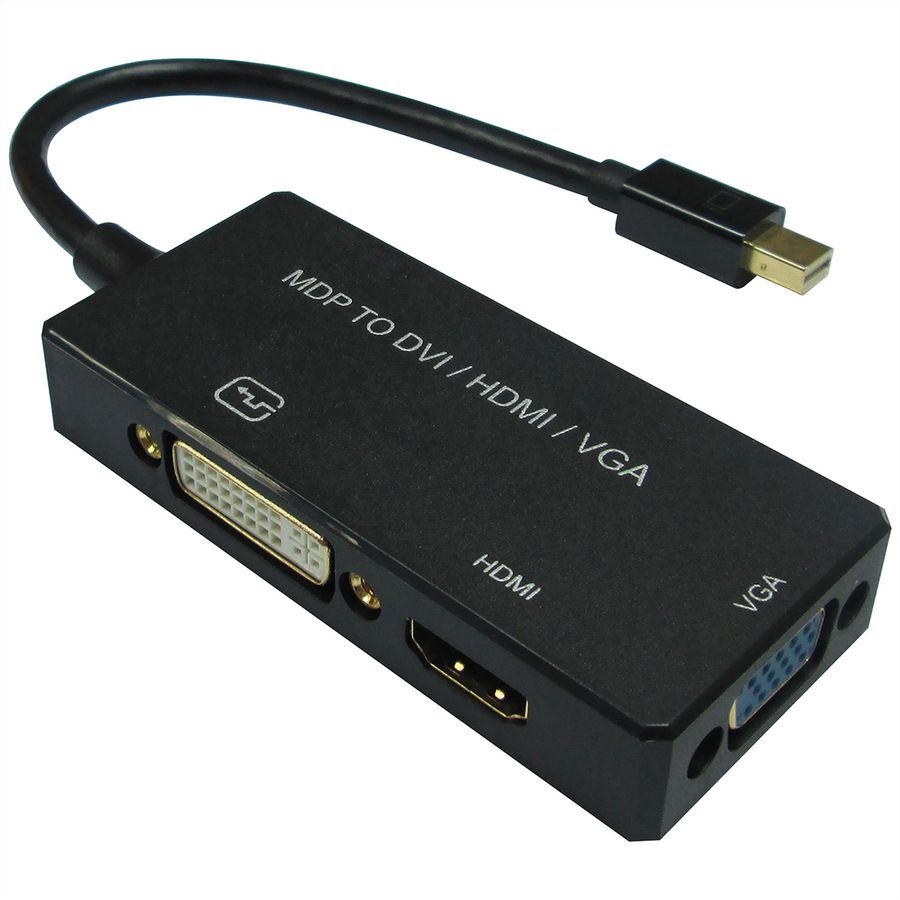

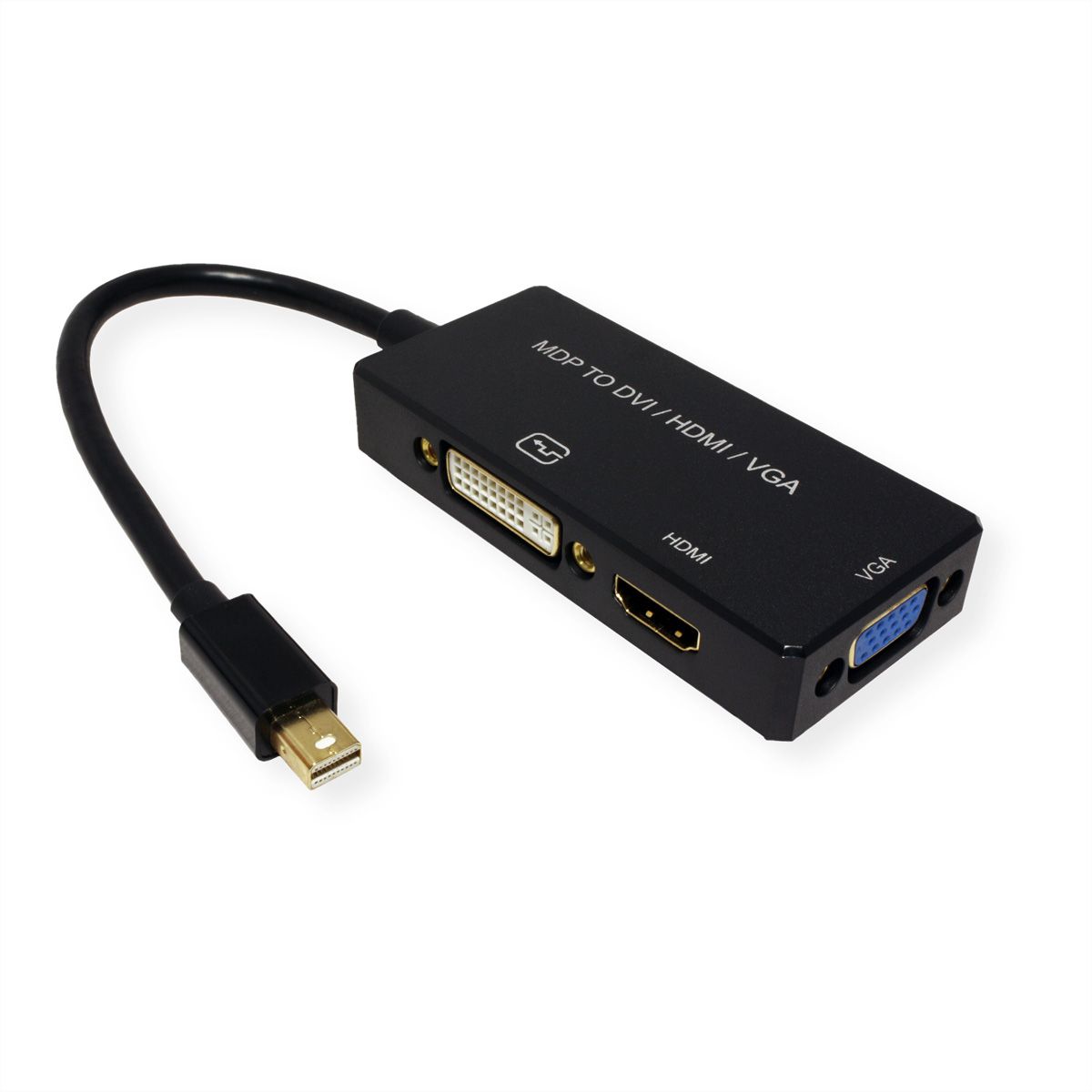

  • Adapter with Mini DisplayPort connector and VGA, DVI and HDMI socket
  • Compliant DP v1.2

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Note: The Mini DisplayPort adapter only works in one direction: the Mini DisplayPort connector is only on the data source side can be used (eg graphics card) and only ONE single output is available (DVI or HDMI or DP)

Specifications

Manufacturer VALUE
Product group Adapters, Terminators, Converters
Product type Mini DisplayPort-HDMI/VGA Adapter
Colour black
Length 0.1 m
Transfer quality DisplayPort v1.2
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC) Mini DisplayPort Male
Side 2 connection (Peripherals) VGA Female, DVI Female, HDMI Female
Side 1 Connector Type Mini DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type
  • HDMI Type A
  • DVI-I 24+5
  • HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender Female
Active / Passive Active
Area of application External
Weight 45.1 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 150 mm
Package weight (single piece) 0.06 kg

Downloads

Product data sheet - English (57.1 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
