VALUE PCIe 5G Multi Speed - Gigabit Network Adapter

VALUE PCIe 5G Multi Speed - Gigabit Network Adapter

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 15.99.2187-5
Brand / Manufacturer VALUE
Manuf. no. 15.99.2187
EAN 7630049672437
Package weight 0.12 kg

Description

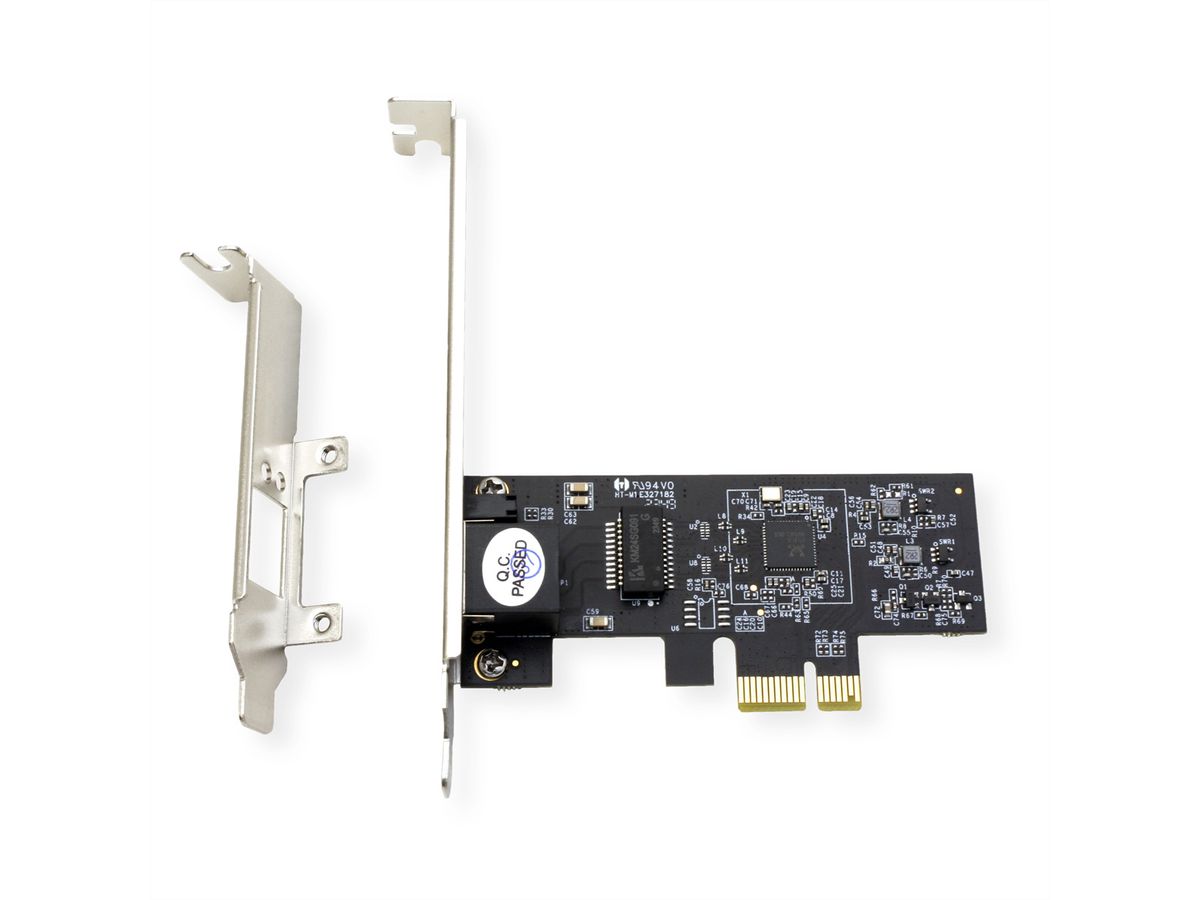

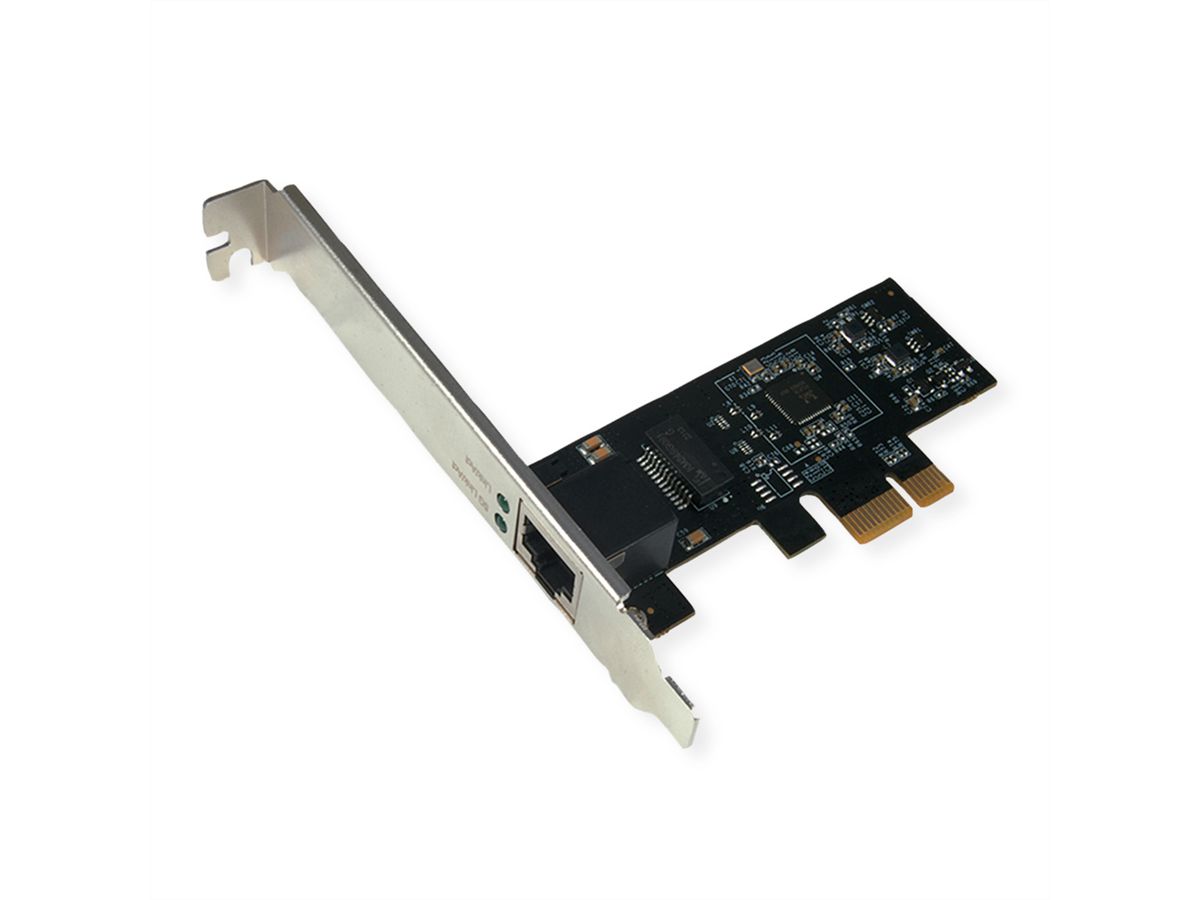

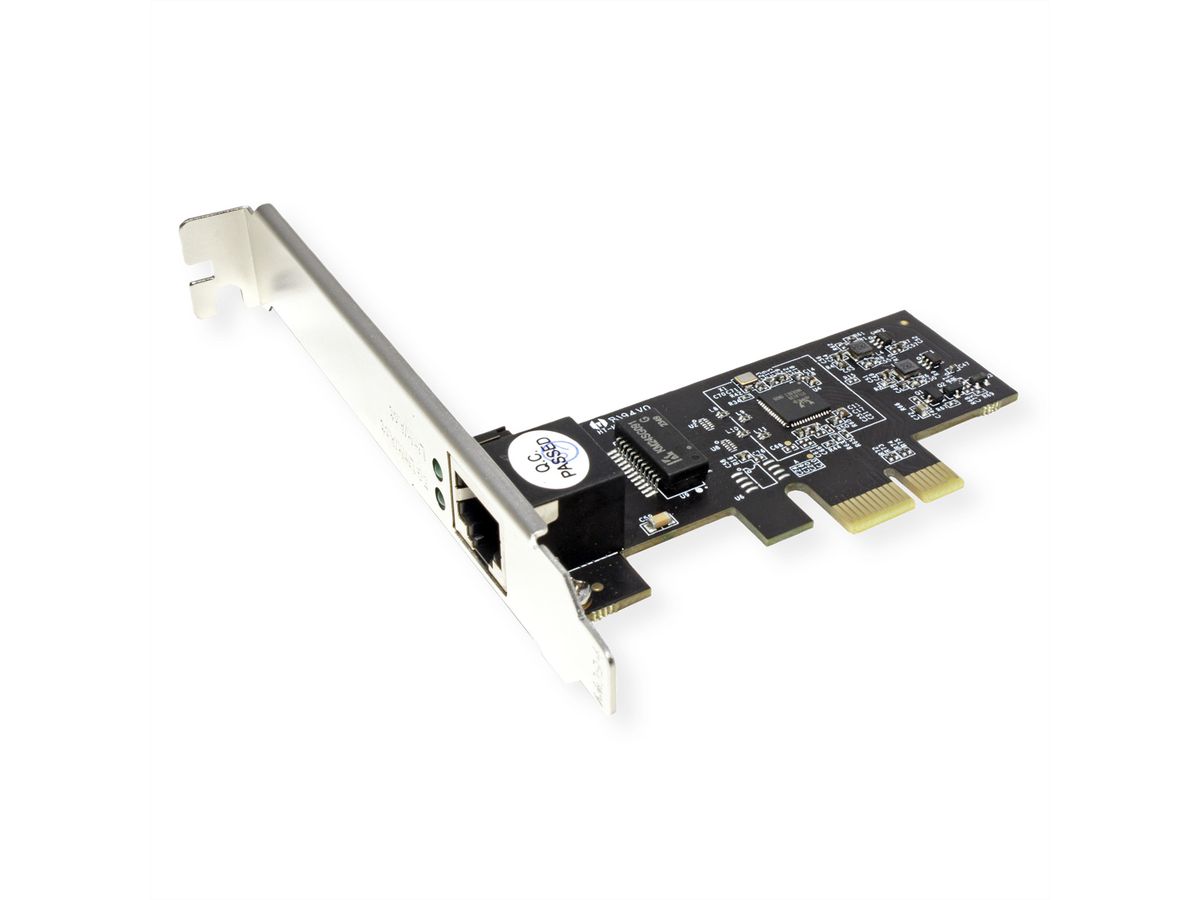

High performance PCIe Ethernet Adapter which provides a single RJ-45 port for network connection of data rates up to 5Gbit/s

  • High performance PCIe Ethernet adapter which provides a single RJ-45 port for network connection of data rate up to 5Gbit/s
  • The PCIe Gen 3x1 interface enables running at maximum full duplex throughput
  • Backward compatible with Gen1/2 PCIe slots
  • PCIe Gen3 x1 form factor
  • Supports standard and low profile systems
  • Supports 5-speeds: 5G/2.5G/1G/100M/10Mbps auto negotiation
  • Runs 5Gbps on a Cat. 6 cable up to 100m
  • Supports Wake-On-LAN (WoL)
  • Up to 16KB jumbo frames
  • Checksum and TSO offloadPage 4
  • Network ARP and NS offload
  • Supports PXE boot
  • Systems Requirements: Windows 11/10 (32/64 Bit)
  • 32 and 64 bit operating systems are supported
  • Contents: PCI Adapter, manual

Specifications

Manufacturer VALUE
Product group I/O Card
Product type PCI-Express Adapter
Scope of delivery Adapter, manual
BUS system PCI Express
Interface 1x RJ45, < 5 GbE Adapter
Chipset RTL8126
Operating System Windows 10/11
Connection ports 1x RJ45
Mounting height Full profile
Full duplex yes
Installation Guide / Manual yes
Operating temperature min. 0 °C
Operating temperature max. 60 °C
Weight 47.9 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 200 mm
Package weight (single piece) 0.12 kg

Downloads

Product data sheet - English (48.4 KB)

Download

User manual - Deutsch (156.8 KB)

Download

User manual - English (154.1 KB)

Download

User manual - Français (151.5 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
