VALUE PCIe Gigabit SFP Network Adapter
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

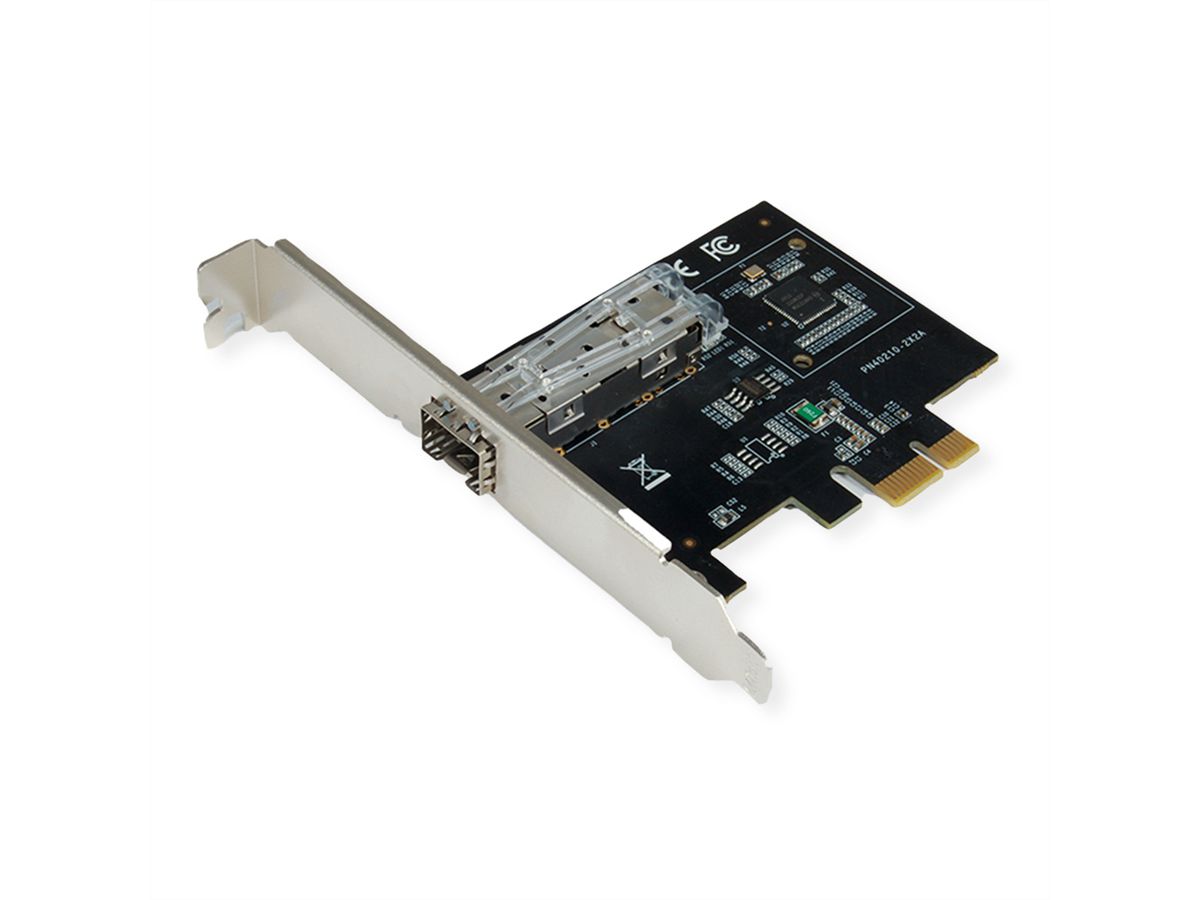

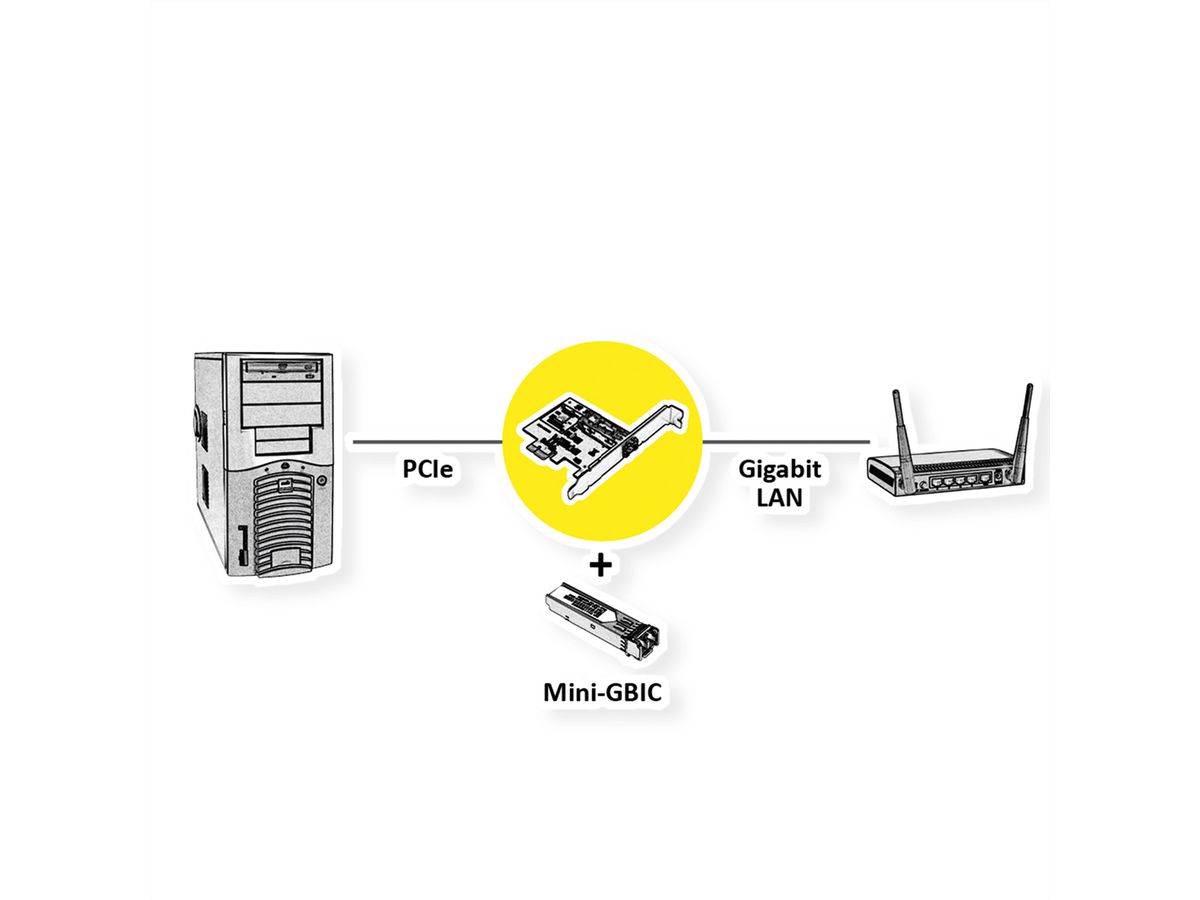

This PCIe 1G SFP network adapter is a cost-effective solution that provides fast and reliable 1 Gbps network access over longer distances than copper-based networks. With a compatible SFP transceiver, you can connect your PCI Express-based server or workstation directly to your 1G fiber network.
- Supports common 1G SFP optical and Direct Attached Copper modules
- Supports EEE (Energy Efficient Ethernet)
- Up to 9.5K Jumbo Frames
- IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities
- Designed to meet PCI Express Specification Revision 2.1
- One lane (x1) PCI Express compatible with x4, x8 and x16 PCI Express slots
- IEEE 802.1Q Tagged VLAN
- Supports Preboot eXecution Environment (PXE)
- SFP module not included
- Requirements
- PCIe slot: 1-Lane PCI-Express slot Gen 2.0 or later
- Processor: Quad Core 3.0GHz or higher
- RAM: 4GB memory or higher
Supported software operating systems (32/64 bits)
- Windows 7/8.x/10/11
- Windows Server 2008 R2/2012 R2/2016/2019/2022
- Contents: PCI Adapter, manual
Specifications
Manufacturer | VALUE |
---|---|
Product group | I/O Card |
Product type | PCI-Express Adapter |
Scope of delivery | Adapter, manual |
BUS system | PCI Express |
Interface | 1G SFP |
Chipset | I210-IS |
Operating System | Windows 10/11 |
Connection ports | 1x RJ45 |
Mounting height | Full profile |
Installation Guide / Manual | yes |
Operating temperature min. | 0 °C |
Operating temperature max. | 60 °C |
Weight | 57.2 g |
Height of packaging (single piece) | 300 mm |
Width of packaging (single piece) | 150 mm |
Depth of packaging (single piece) | 210 mm |
Package weight (single piece) | 0.14 kg |
