Description

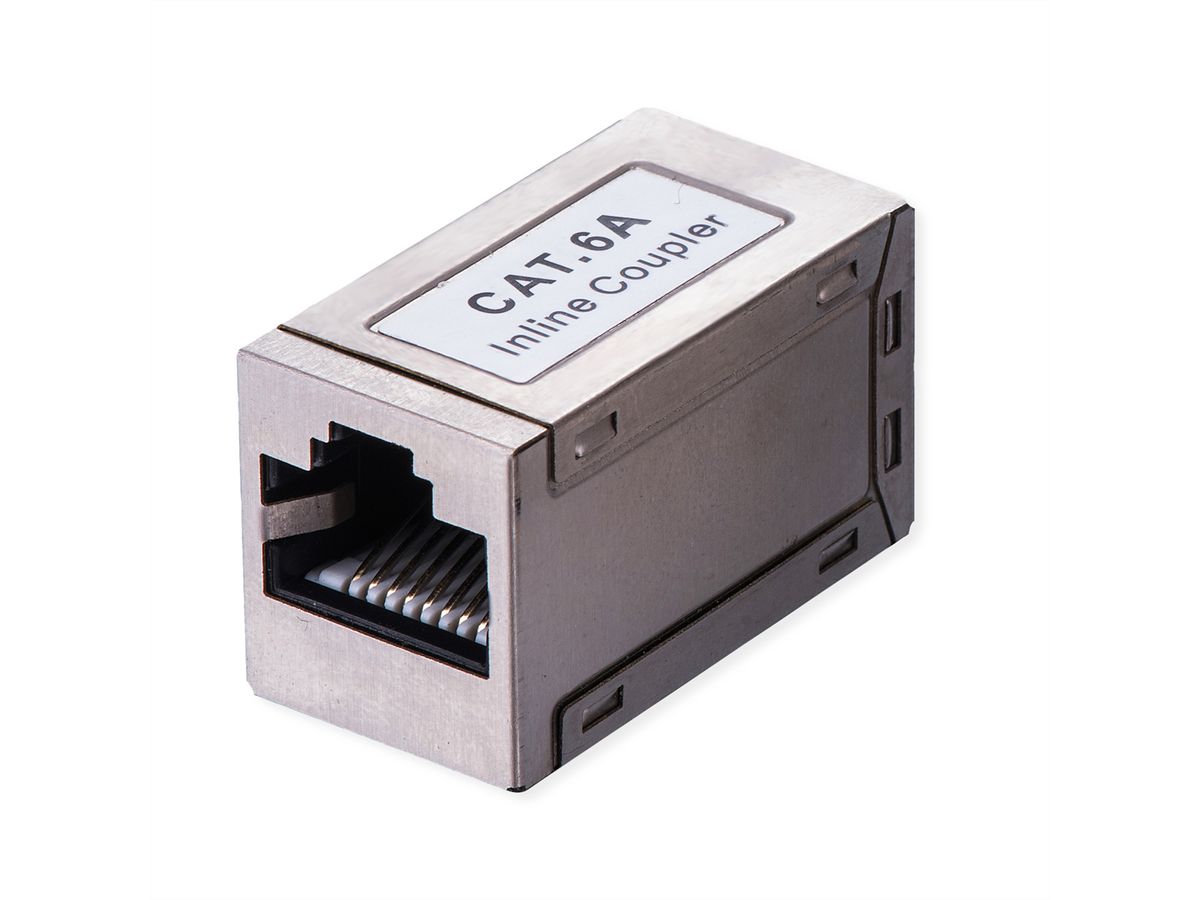

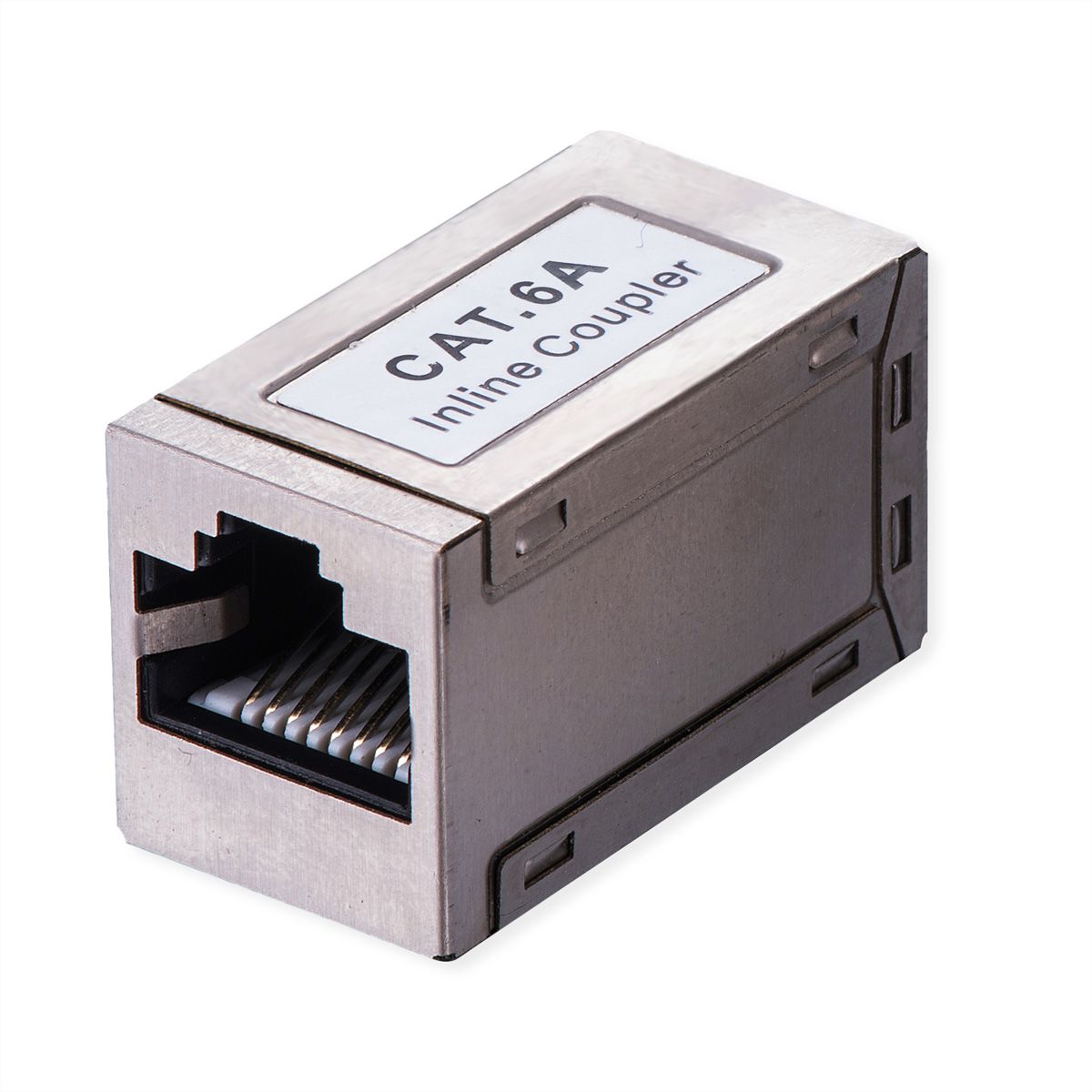

VALUE Cat. 6A (Class EA) Mini Inline Coupler, with shielded metal housing, for the connection or extention of RJ-45 network cables.

• Allows you to extend Cat. 6A (Class EA) patch cords
• Shielded metal housing to safe the signals against electrical and magnetical interferences
• Very small dimensions
• With eight contacts, 1:1 connected
• Colour: silver

Remark: Picture similar

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	silver
Scope of delivery	Coupler
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Female
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Material (casing)	metal
Shield contacts	yes
separate strain relief	no
Connection direction	Straight

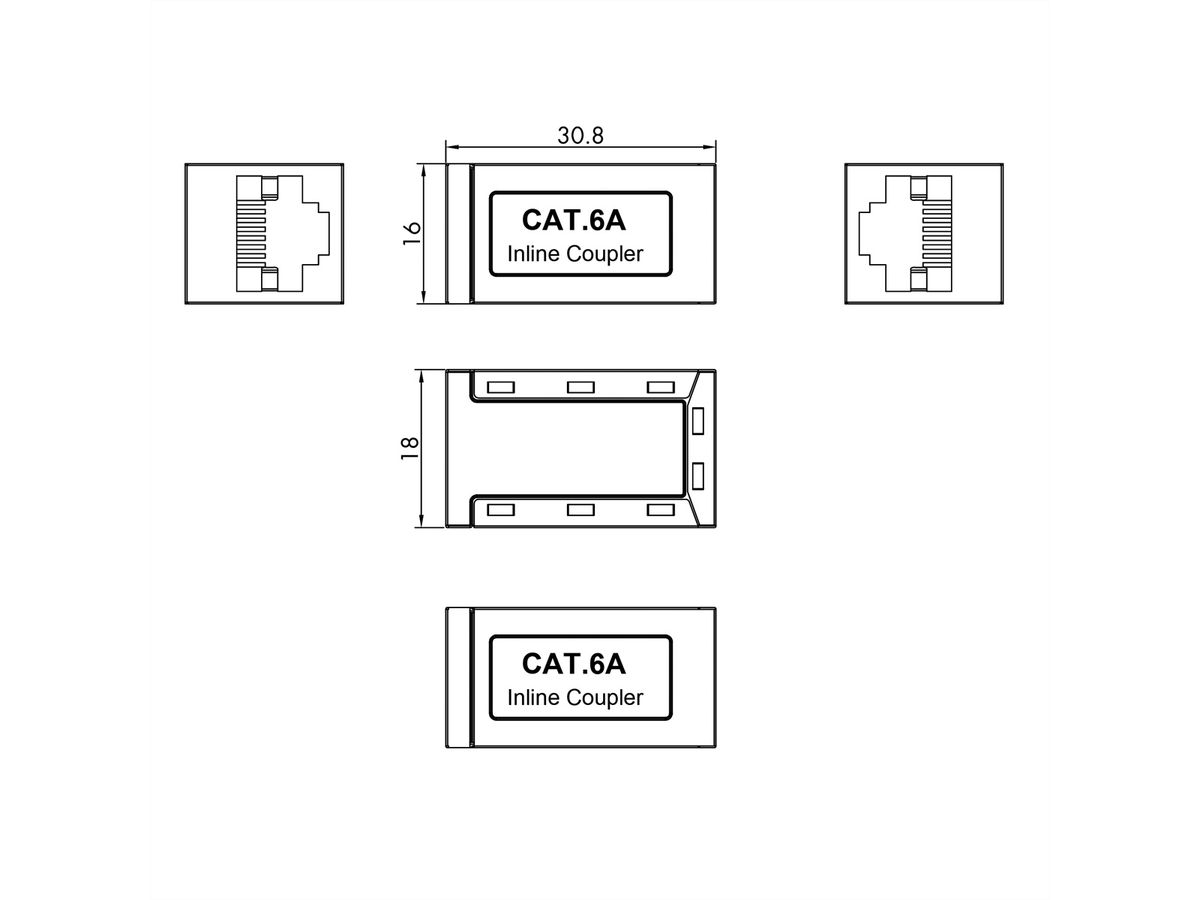

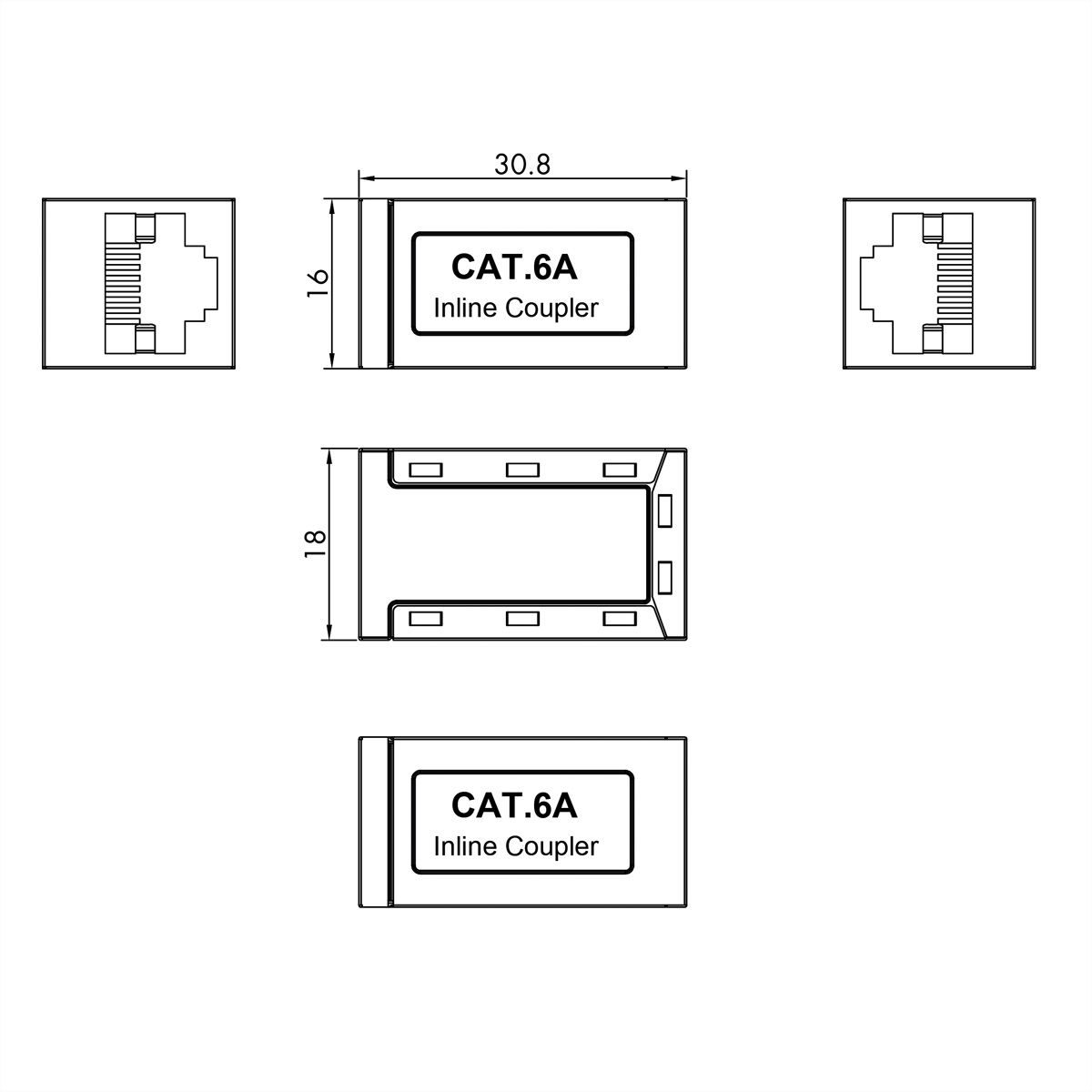

Dimensions (HxWxD)	18 x 16 x 30.8 mm
Technical particularity	1 : 1 connected
Height	18 mm
Width	16 mm
Depth	30.8 mm
Weight	8.9 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.01 kg

Downloads

Product data sheet - English (44.4 KB)

Download

Manufacturer data sheet - English (125.4 KB)

Download
