Description

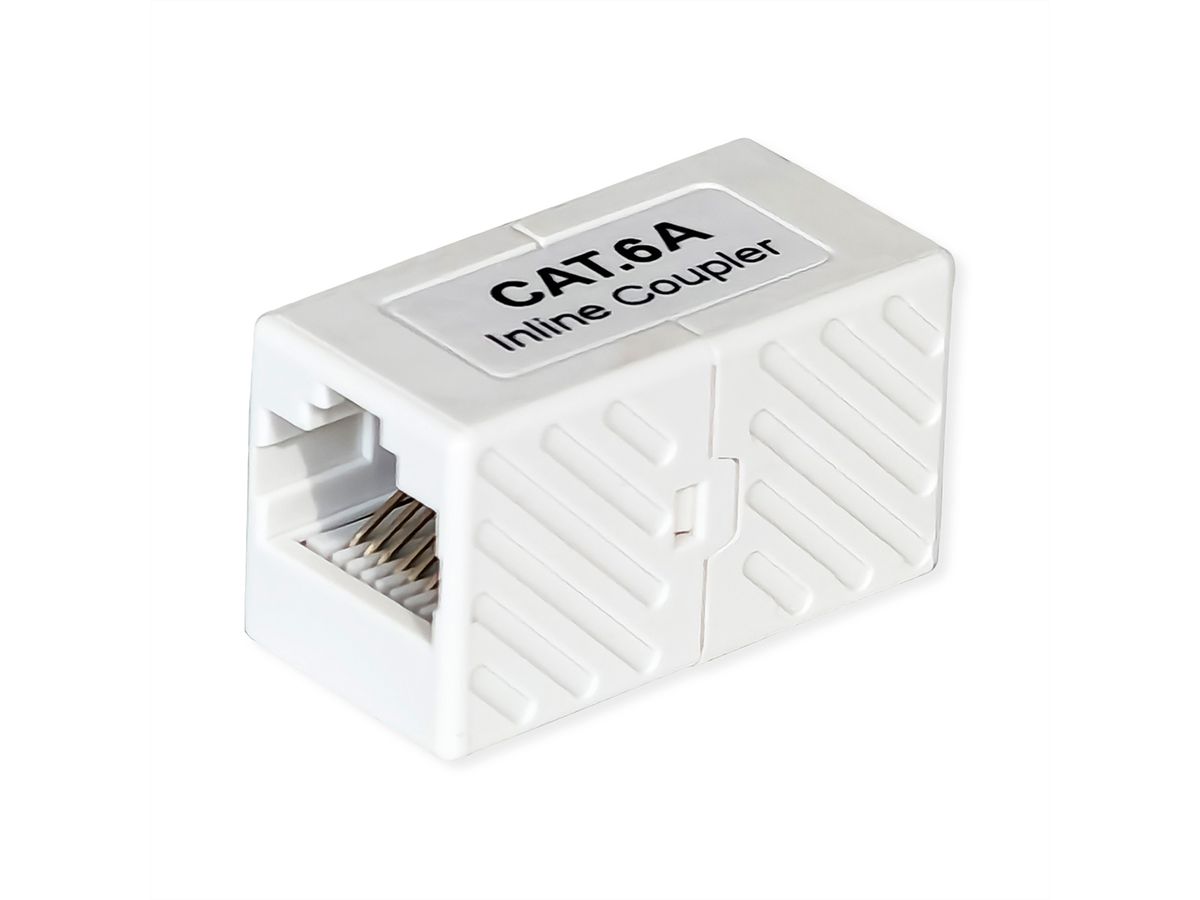

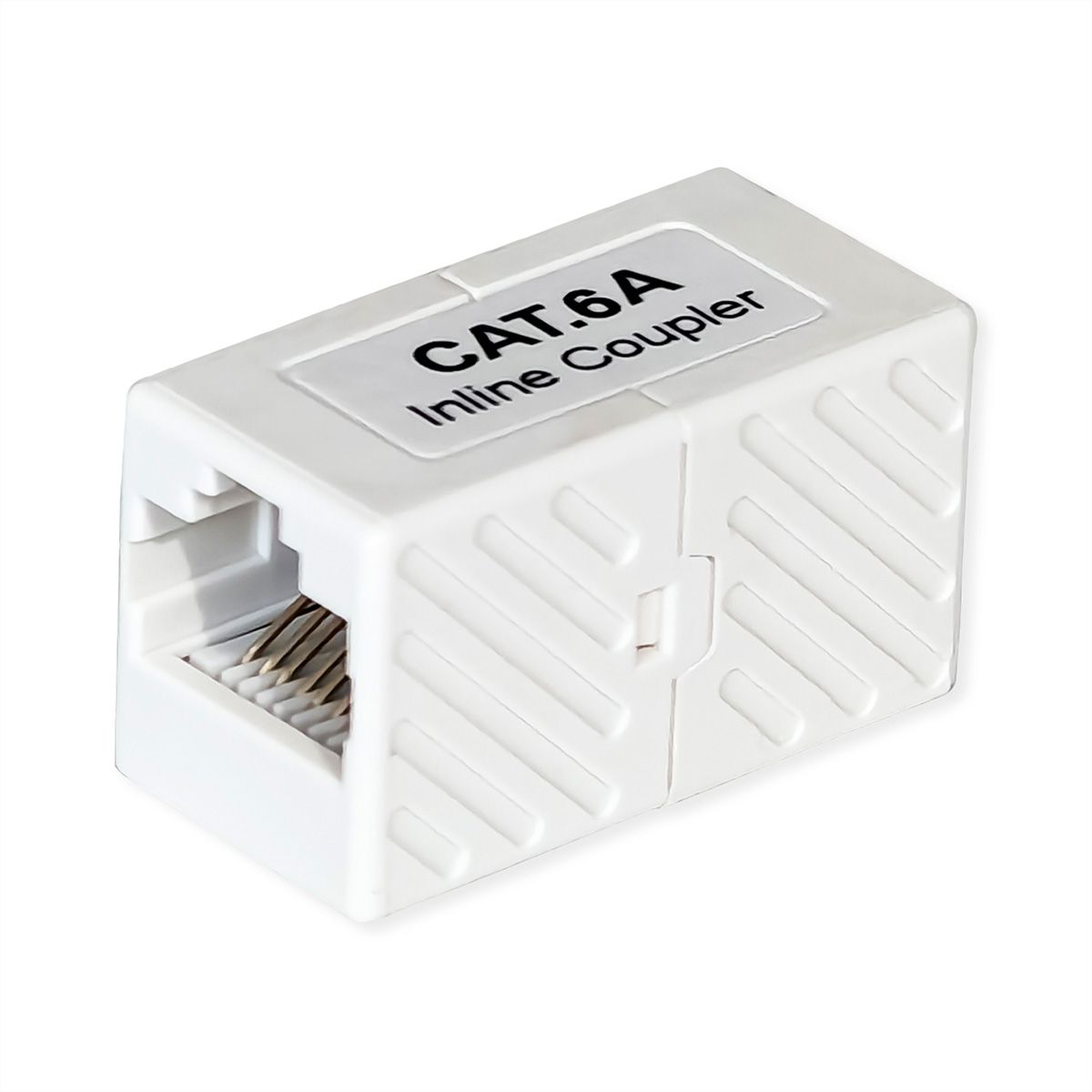

VALUE Cat. 6A (Class EA) Mini Inline Coupler, unshielded, for the connection or extention of RJ-45 network cables.

• Allows you to extend Cat. 6A (Class EA) patch cords
• Unshielded plastic housing
• Very small dimensions
• With eight contacts, 1:1 connected
• Colour: white

Remark: Picture similar

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	white
Scope of delivery	Coupler
Shield type	Not screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Female
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Material (casing)	plastic
separate strain relief	no
Connection direction	Straight

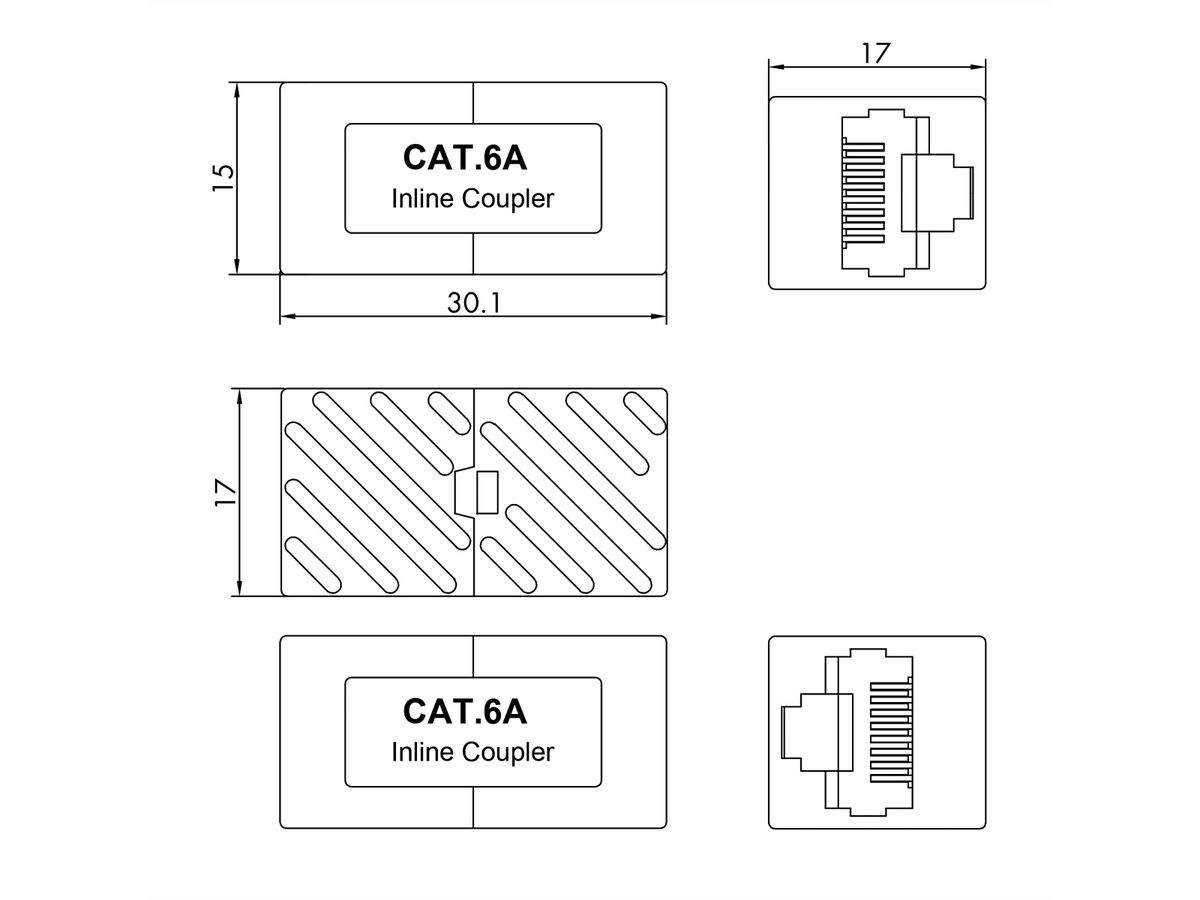

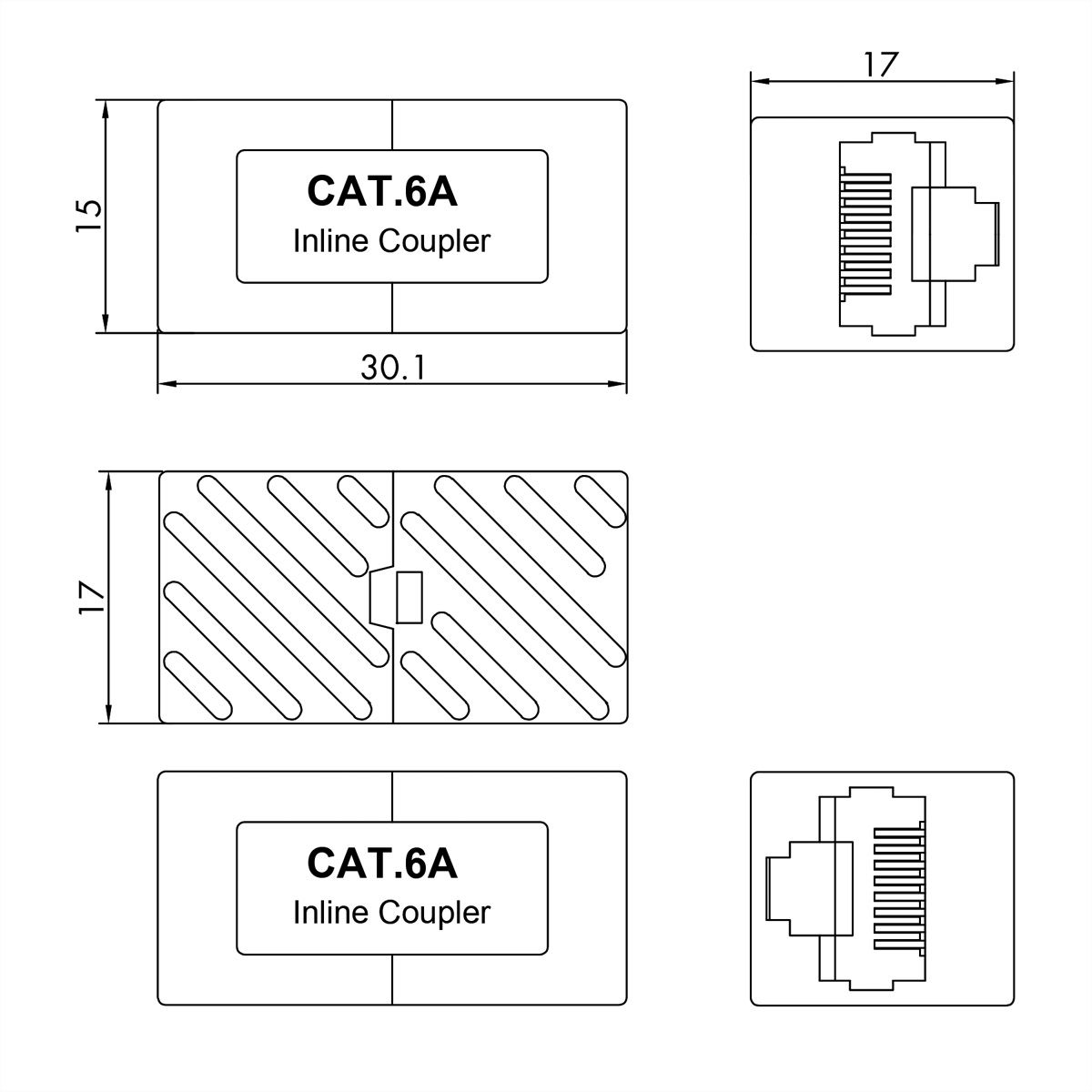

Dimensions (HxWxD)	17 x 15 x 30.1 mm
Technical particularity	1 : 1 connected
Height	17 mm
Width	15 mm
Depth	30.1 mm
Weight	4.2 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.01 kg

Downloads

Product data sheet - English (48.9 KB)

Download

Manufacturer data sheet - English (125.6 KB)

Download
