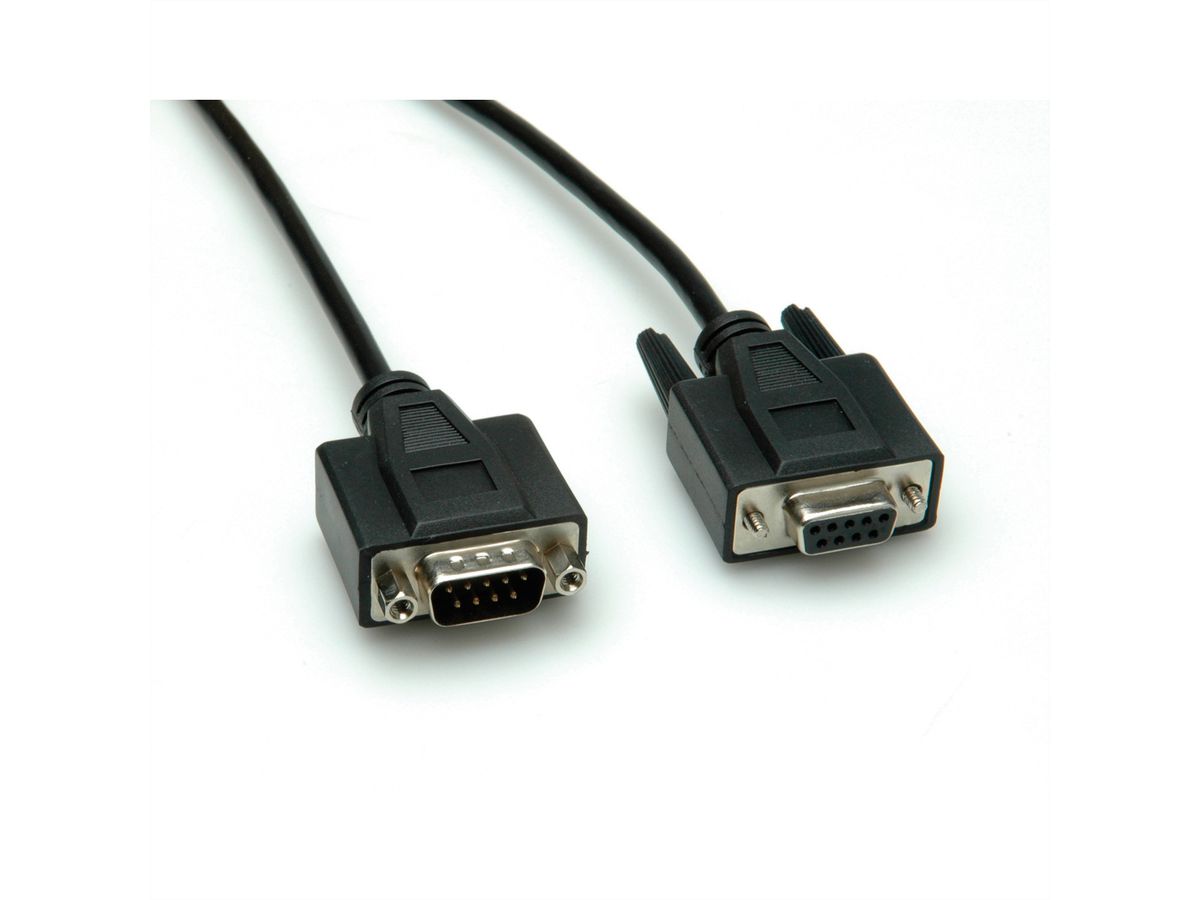

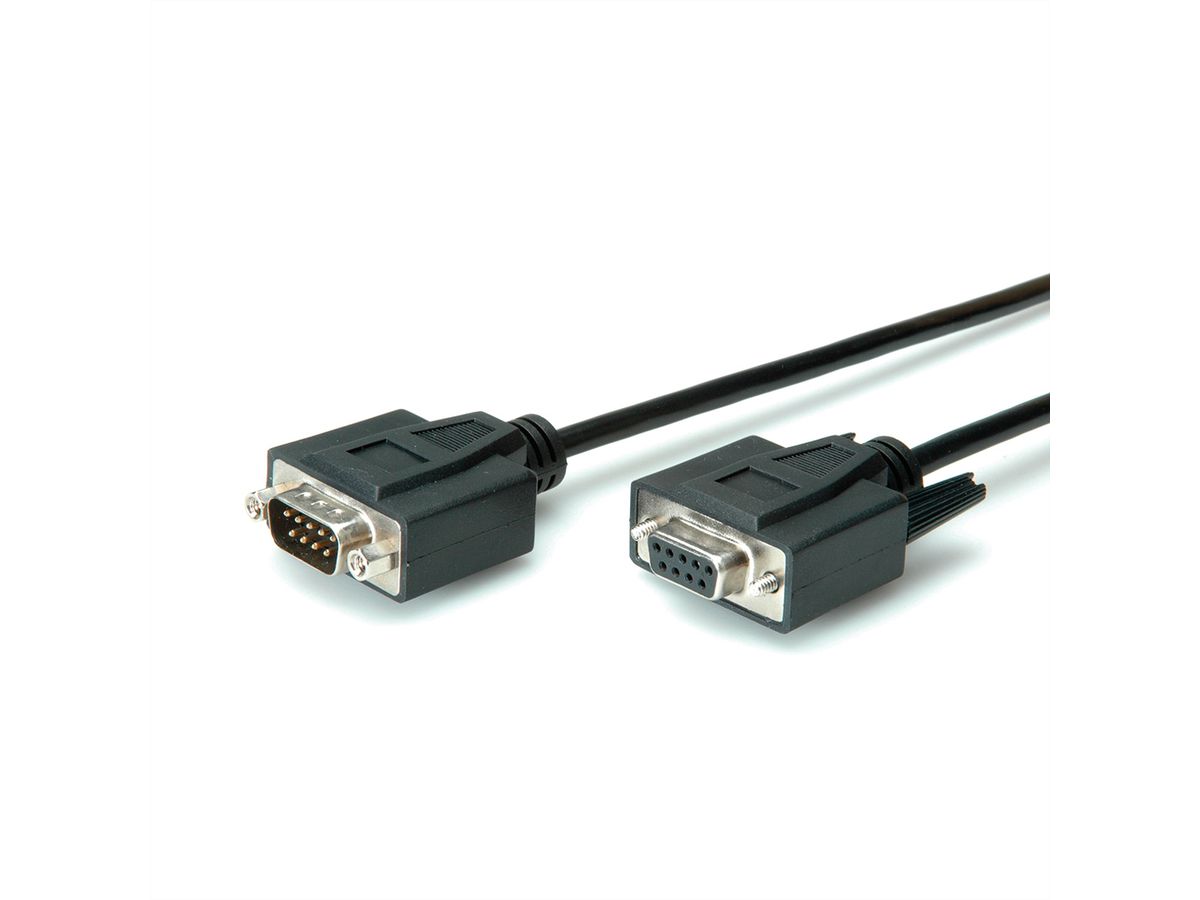

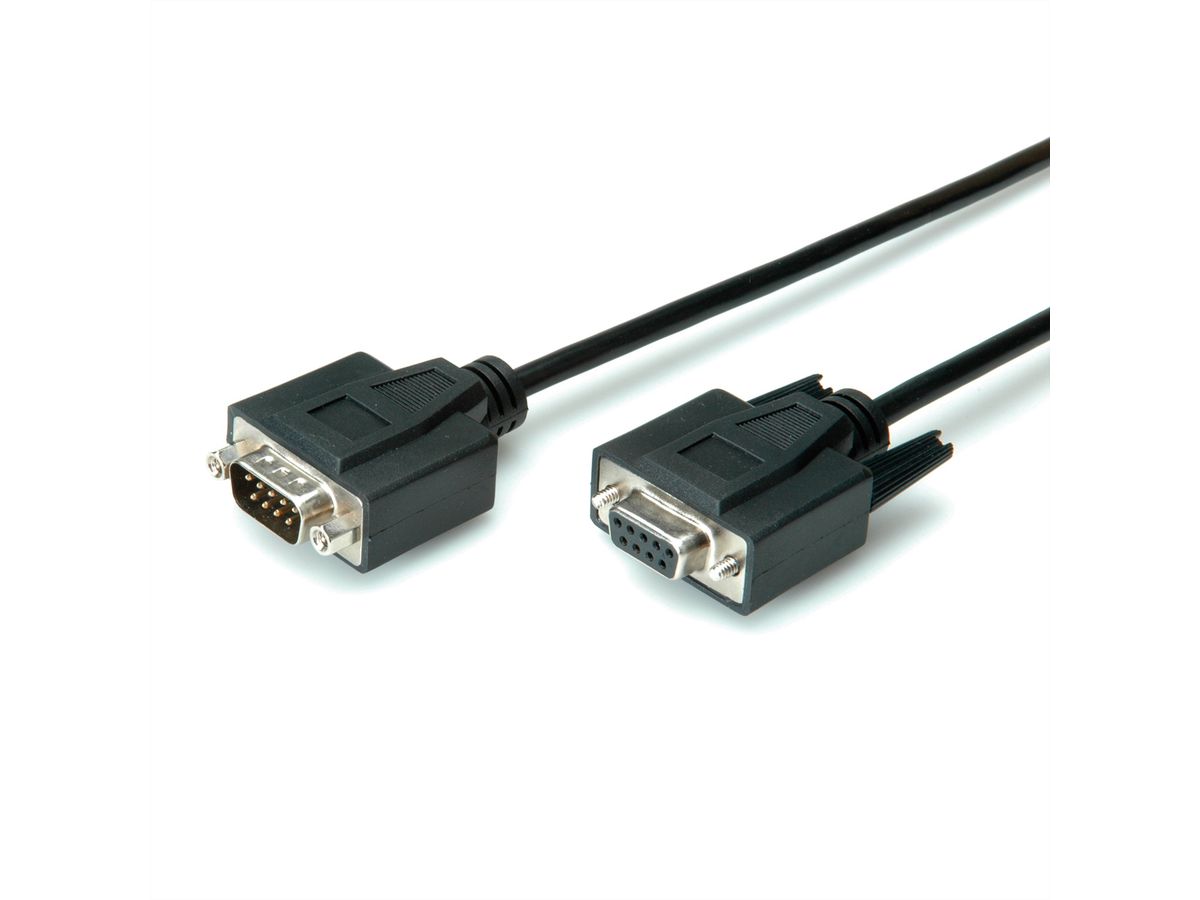

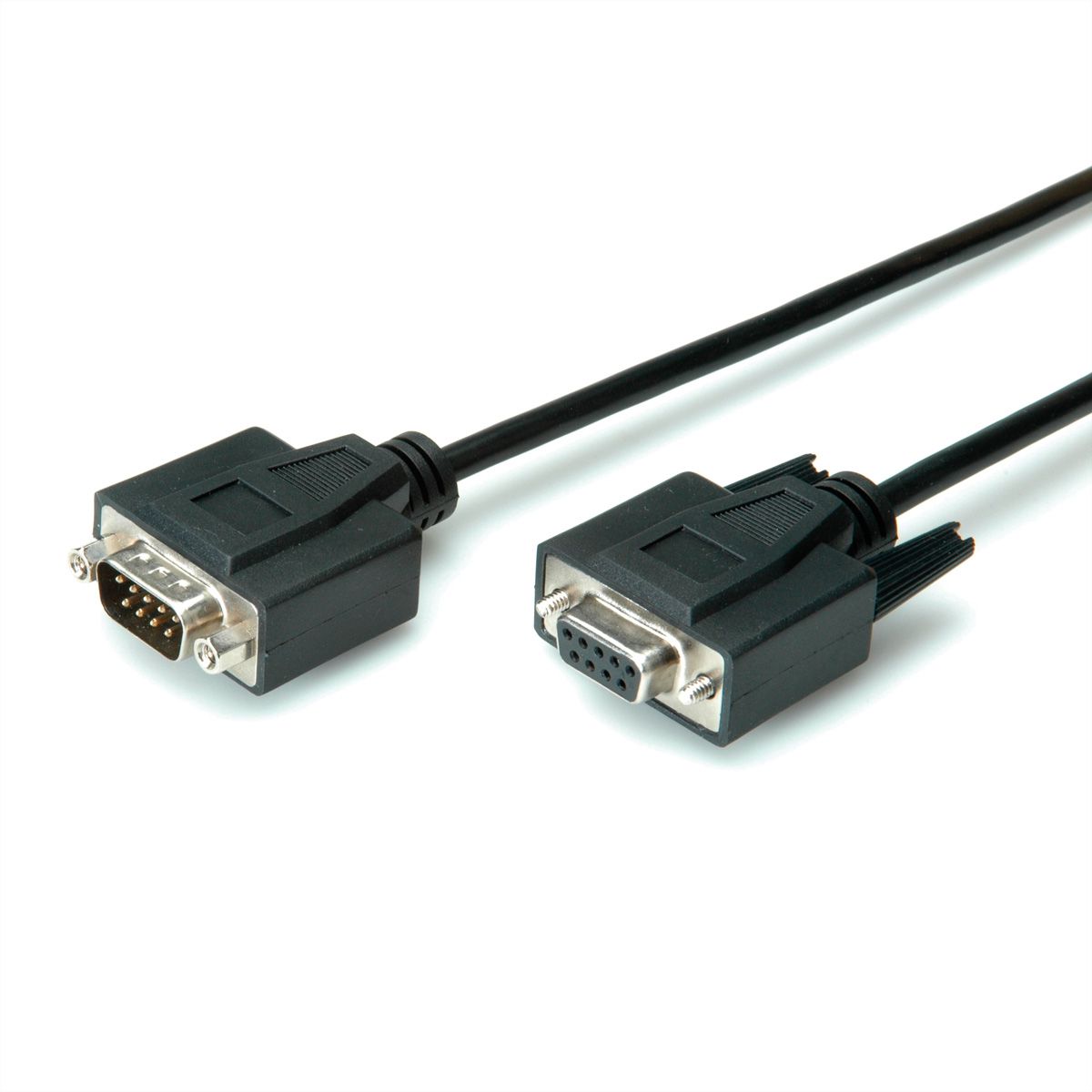

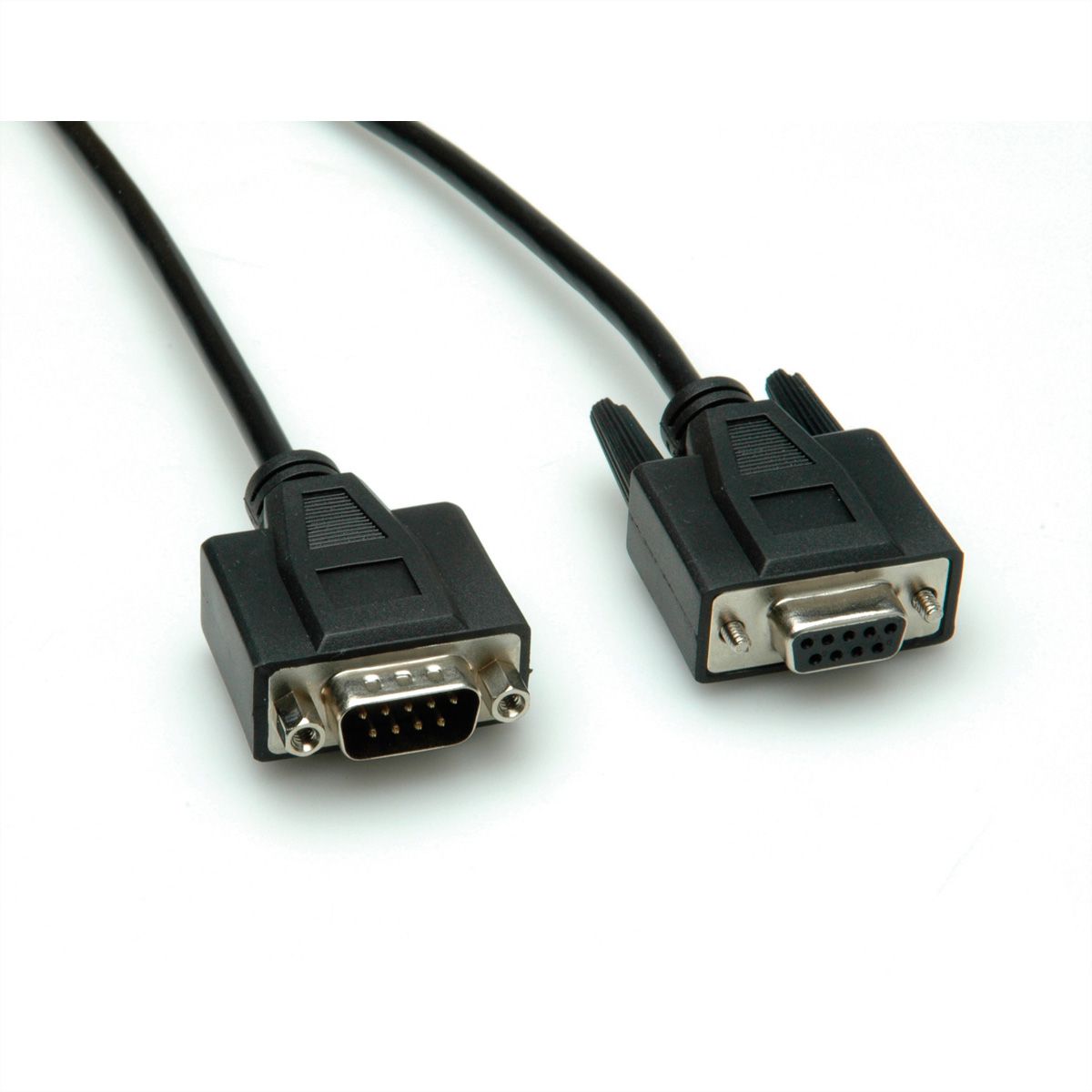

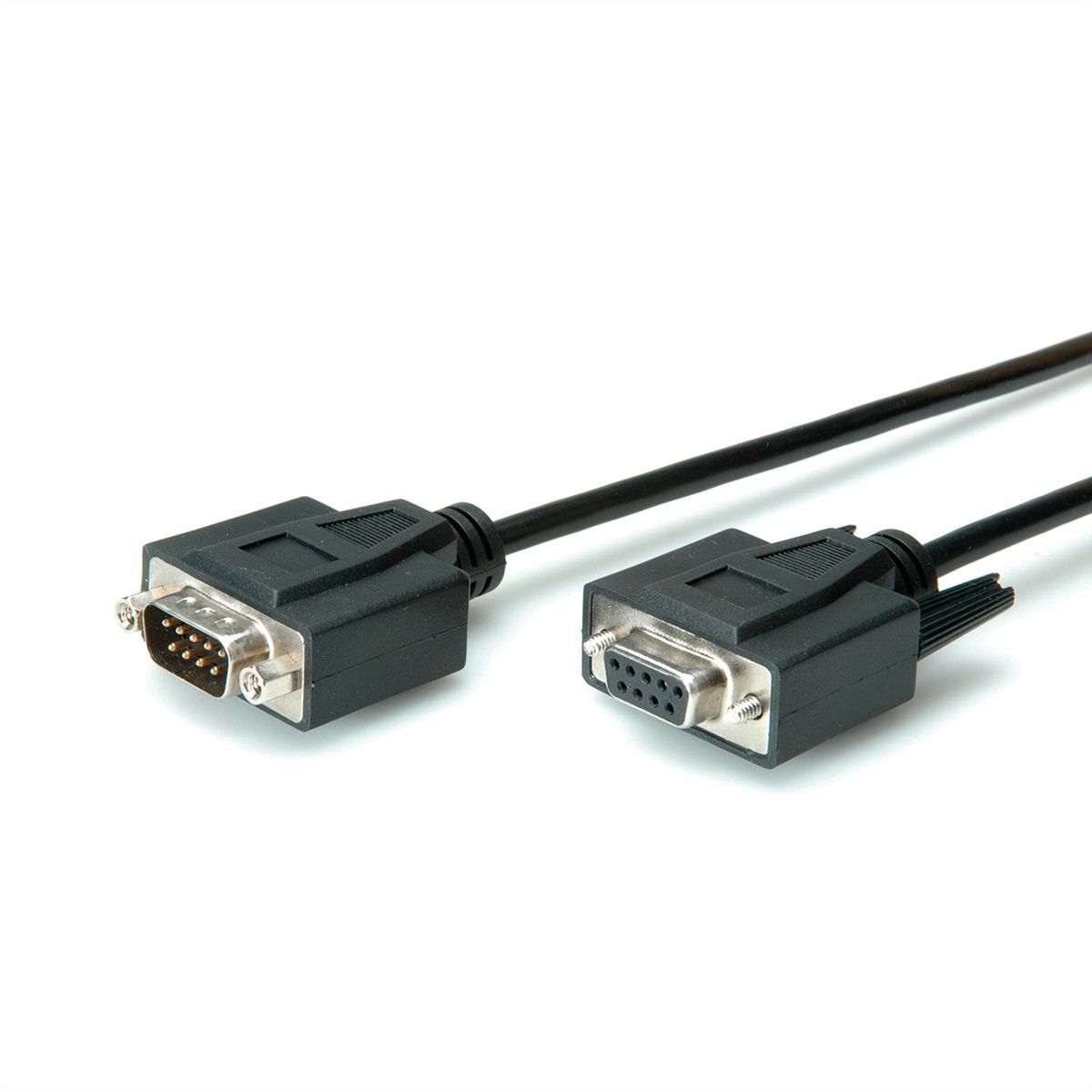

VALUE RS232 Cable, DB9 M - F, 1 m

VALUE RS232 Cable, DB9 M - F, 1 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.99.6210-50
Brand / Manufacturer VALUE
Manuf. no. 11.99.6210
EAN 7611990947713
Package weight 0.088 kg
Length
Connection ports

Description

  • Cable with two 9-pole D-Sub connectors, assembled
  • Connects e.g. the serial IBM AT interface with a switchbox
  • All lines connected 1:1
  • Screen line connected with the foil screen and both connectors
  • Molded housing with nut/screws

Specifications

Manufacturer VALUE
Product group Cable
Product type 9-pin 1: 1 cable
Colour black
Length 1 m
Connection ports Male / Female
side 1 connector 9 pin Male
side 2 connector 9 pin Female
Side 1 Connector Type D-Sub 9-pin (DE-9)
Side 1 Connector Gender Male
Side 2 Connector Type D-Sub 9-pin (DE-9)
Side 2 Connector Gender Female
Hand locking screws no
Weight 83.2 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 180 mm
Package weight (single piece) 0.088 kg

Downloads

Product data sheet - English (45.9 KB)

Download

Manufacturer data sheet - English (126.0 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
