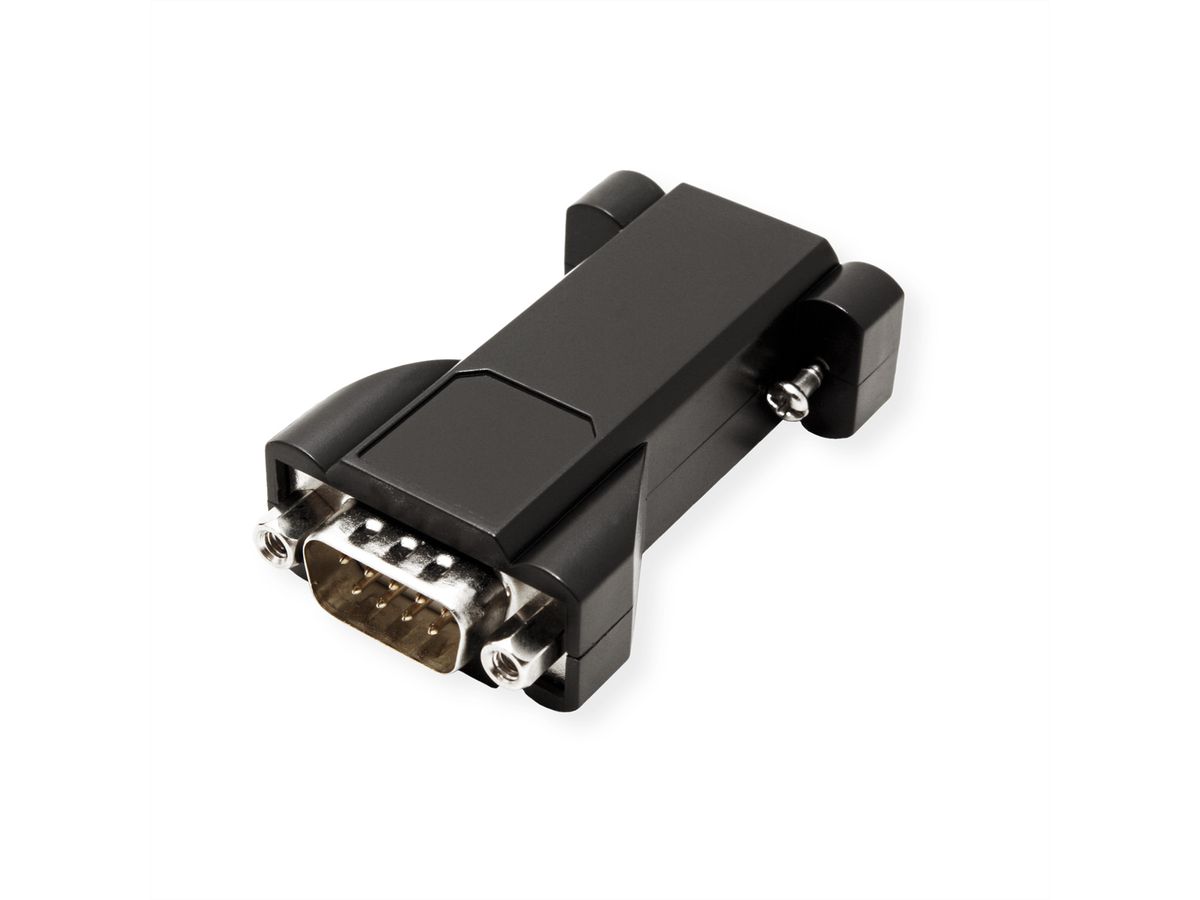

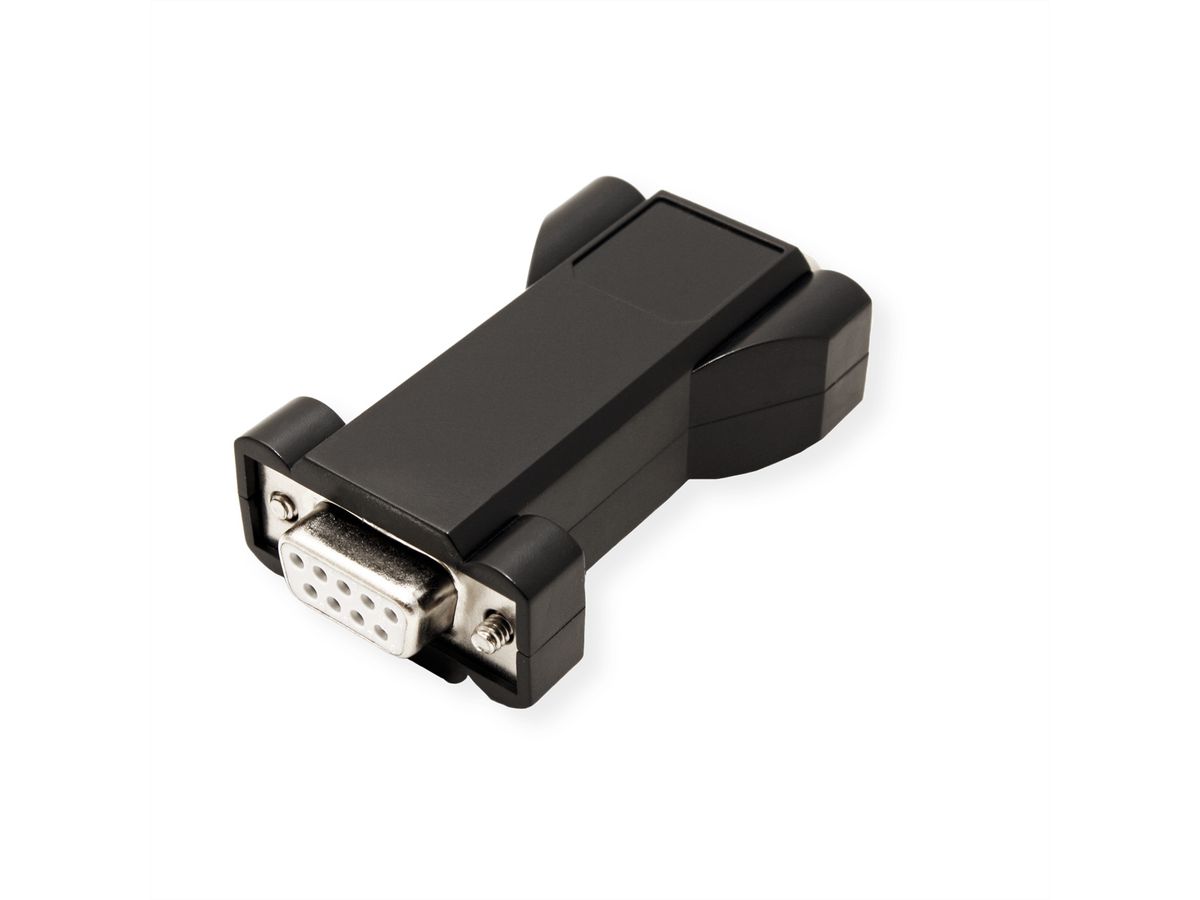

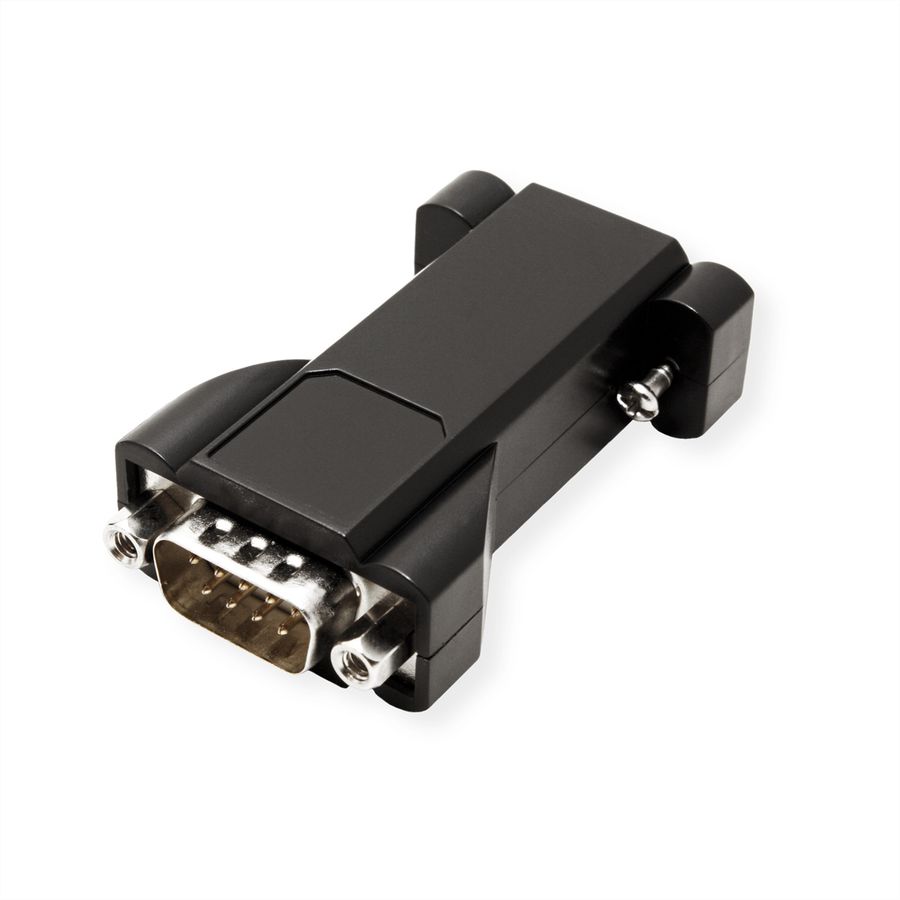

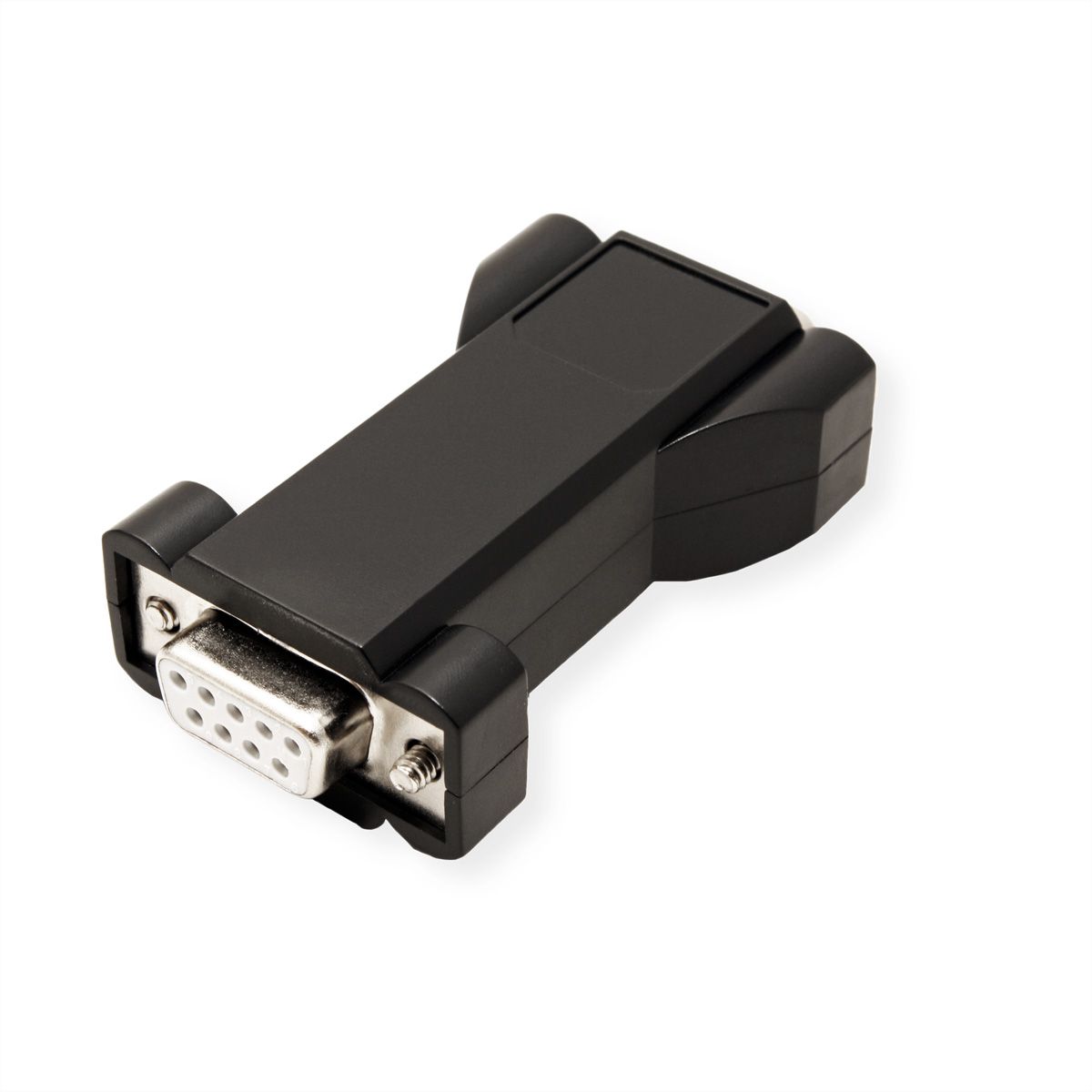

VALUE RS232 Optical Coupler

VALUE RS232 Optical Coupler

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 10/14/2024
Item no. 12.99.1016-30
Brand / Manufacturer VALUE
Manuf. no. 12.99.1016
EAN 7630049698901
Package weight 0.01 kg

Description

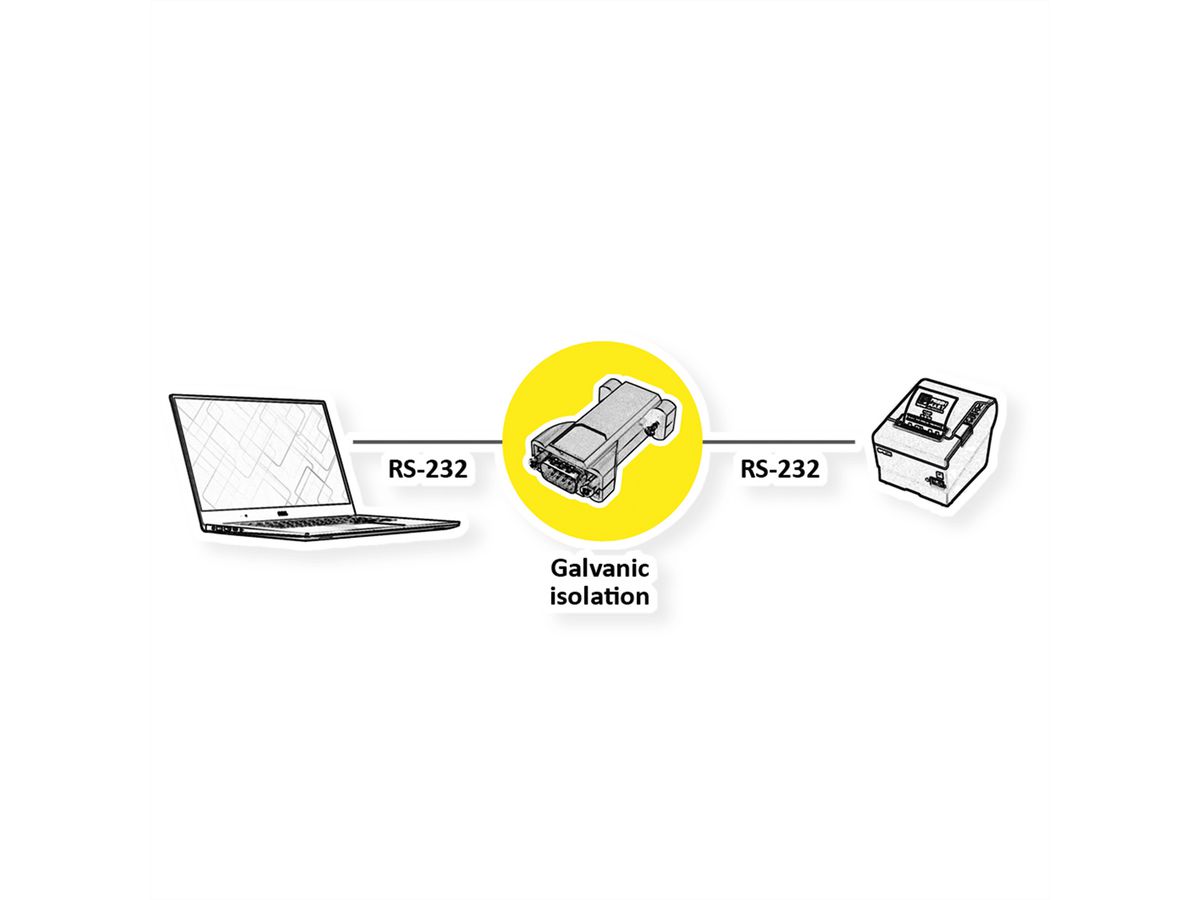

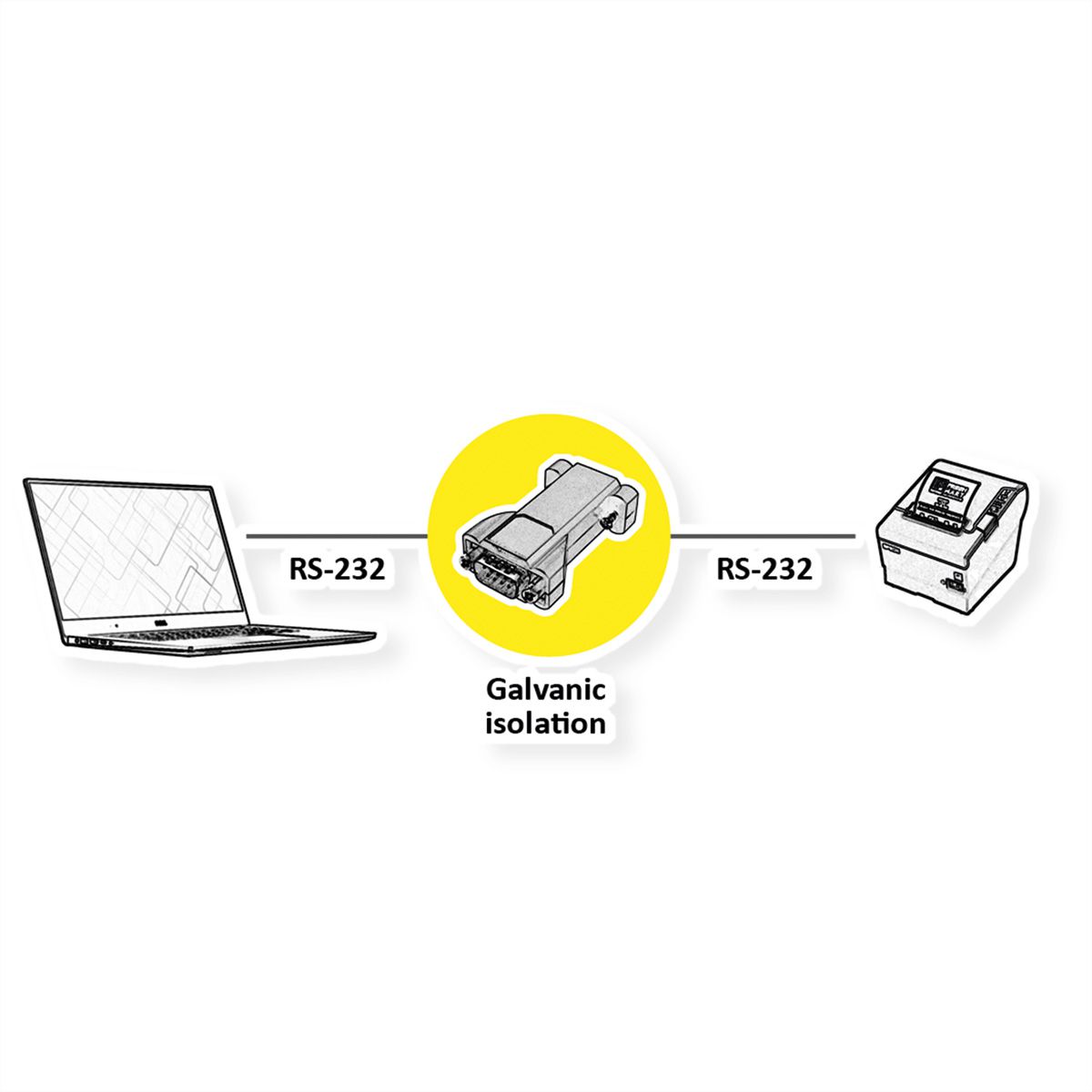

To connect serial devices to a RS232 port on your PC with electrical isolation
  • Data transfer rate of up to 56.25 kbit/s
  • 2.5 kV ESD protection for RS232 ports
  • With galvanic isolation
  • Easy to connect, no configuration, no power supply

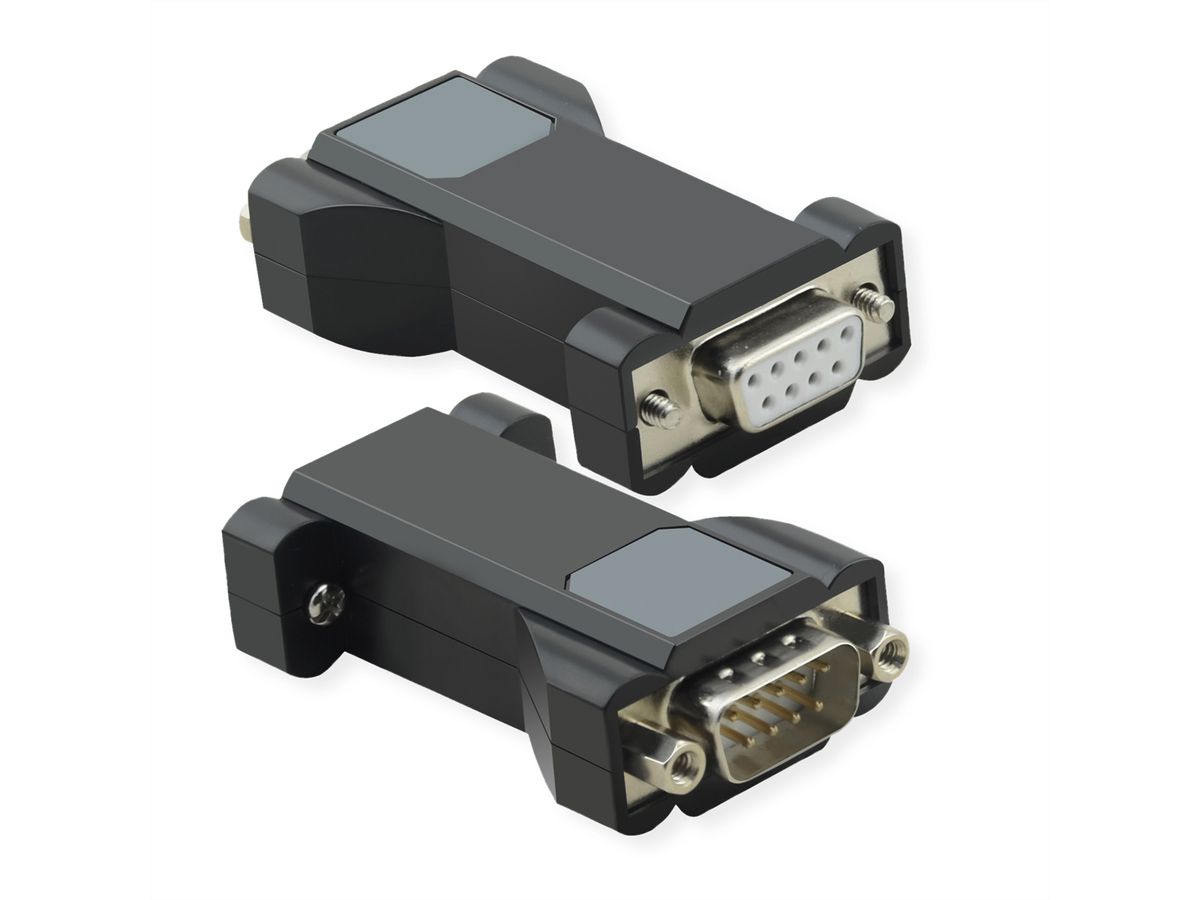

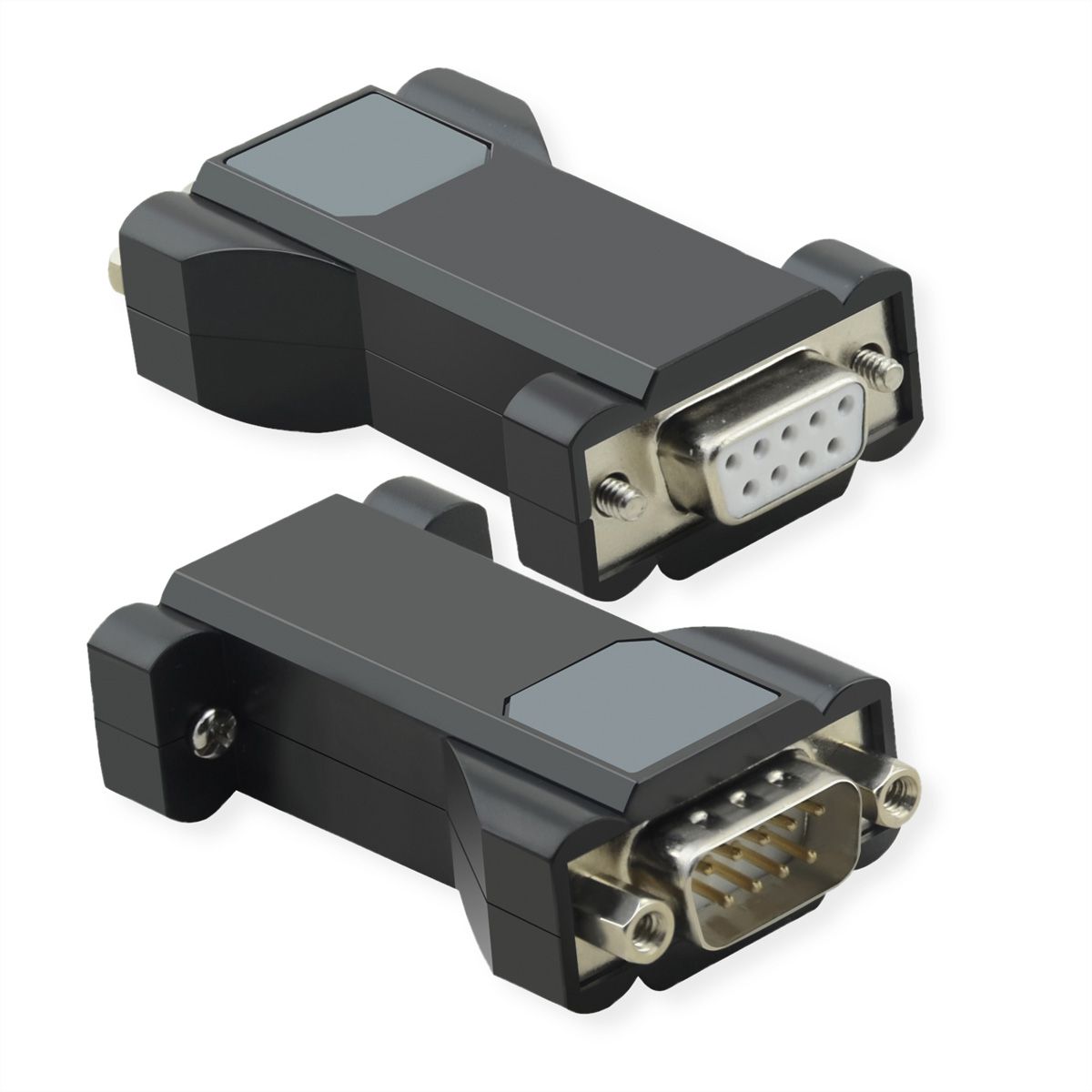

  • Connectors: 1x DB9 Male, 1x DB9 Female

Specifications

Manufacturer VALUE
Product group Adapters, Terminators, Converters
Product type Serial Adapter
Colour black
Scope of delivery 1x Coupler, manual
Side 1 connection (PC) 1x DB9 Female
Side 2 connection (Peripherals) 1 x DB9 Male
Side 1 Connector Type D-Sub 9-pin (DE-9)
Side 1 Connector Gender Female
Side 2 Connector Type D-Sub 9-pin (DE-9)
Side 2 Connector Gender Male
Conversion direction serial - serial
Area of application External
Dimensions (HxWxD) 18 x 34 x 53 mm
Technical particularity with galvanic isolation
Height 18 mm
Width 34 mm
Depth 53 mm
Weight 22.7 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 20 mm
Package weight (single piece) 0.01 kg

Downloads

Product data sheet - English (47.4 KB)

Download

Manufacturer data sheet - English (528.2 KB)

Download

User manual - English (54.8 KB)

Download
