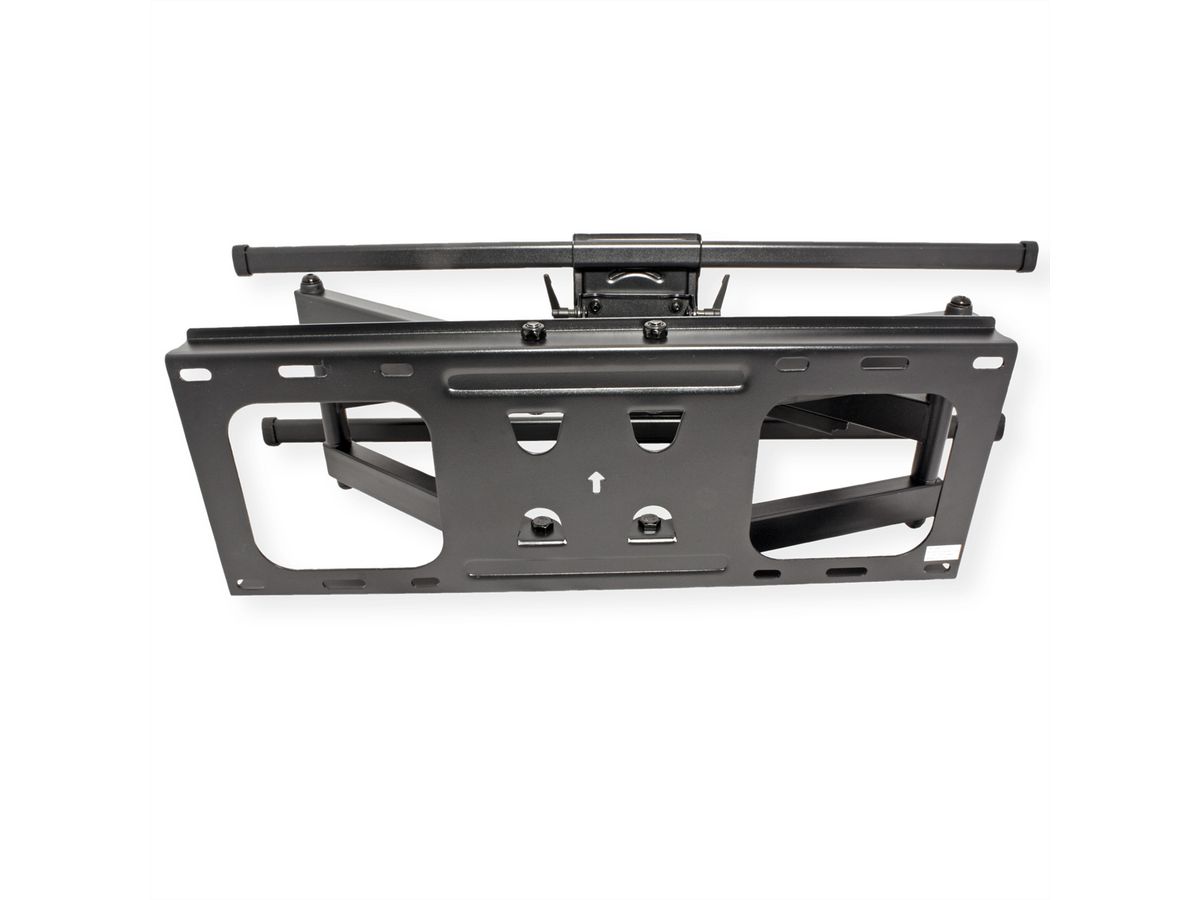

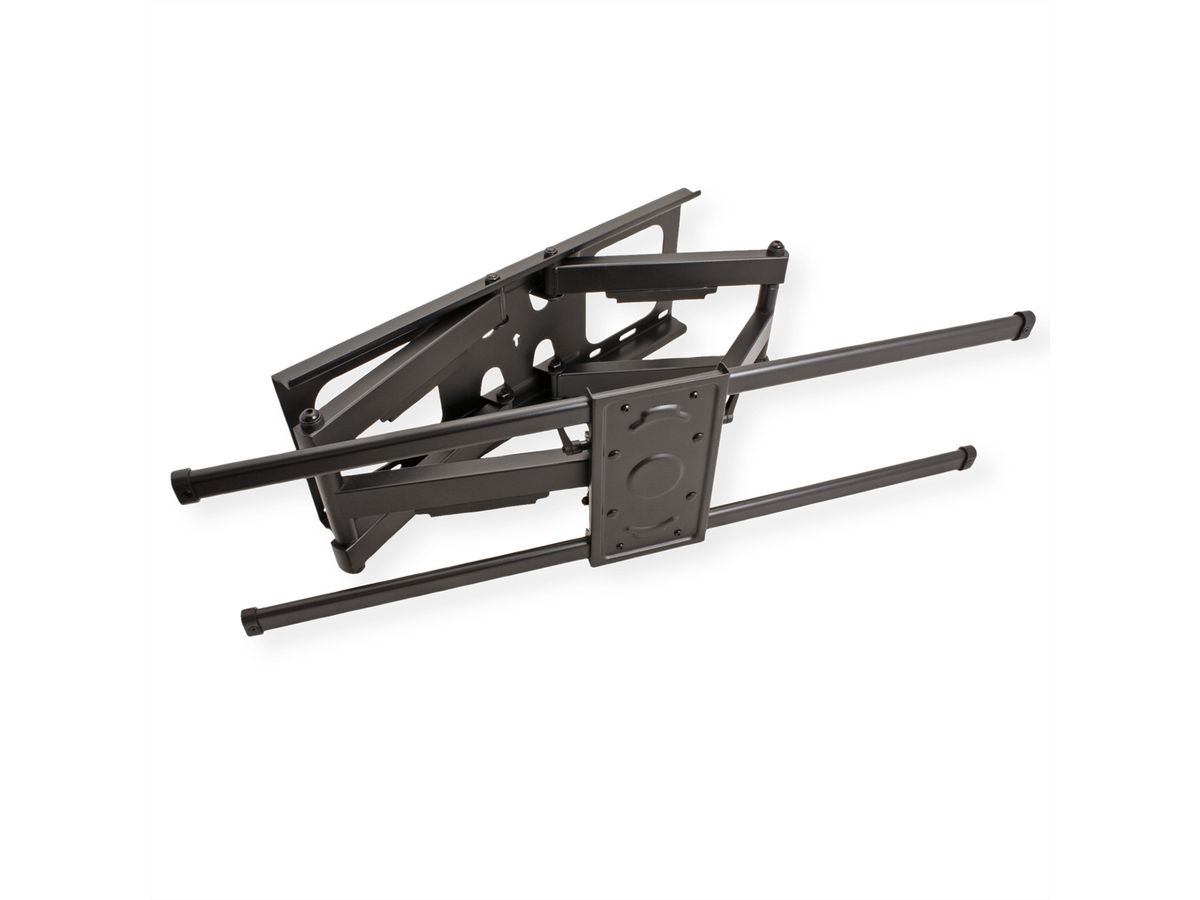

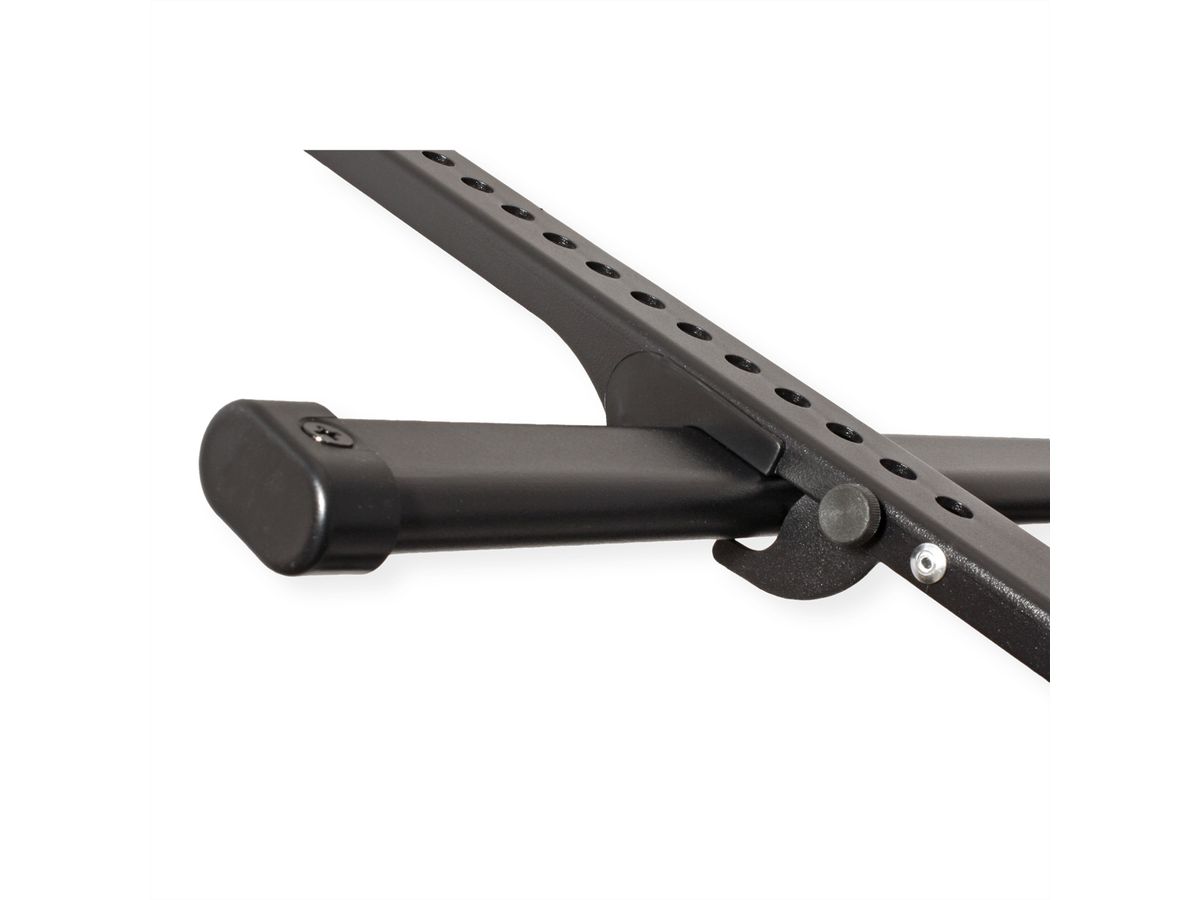

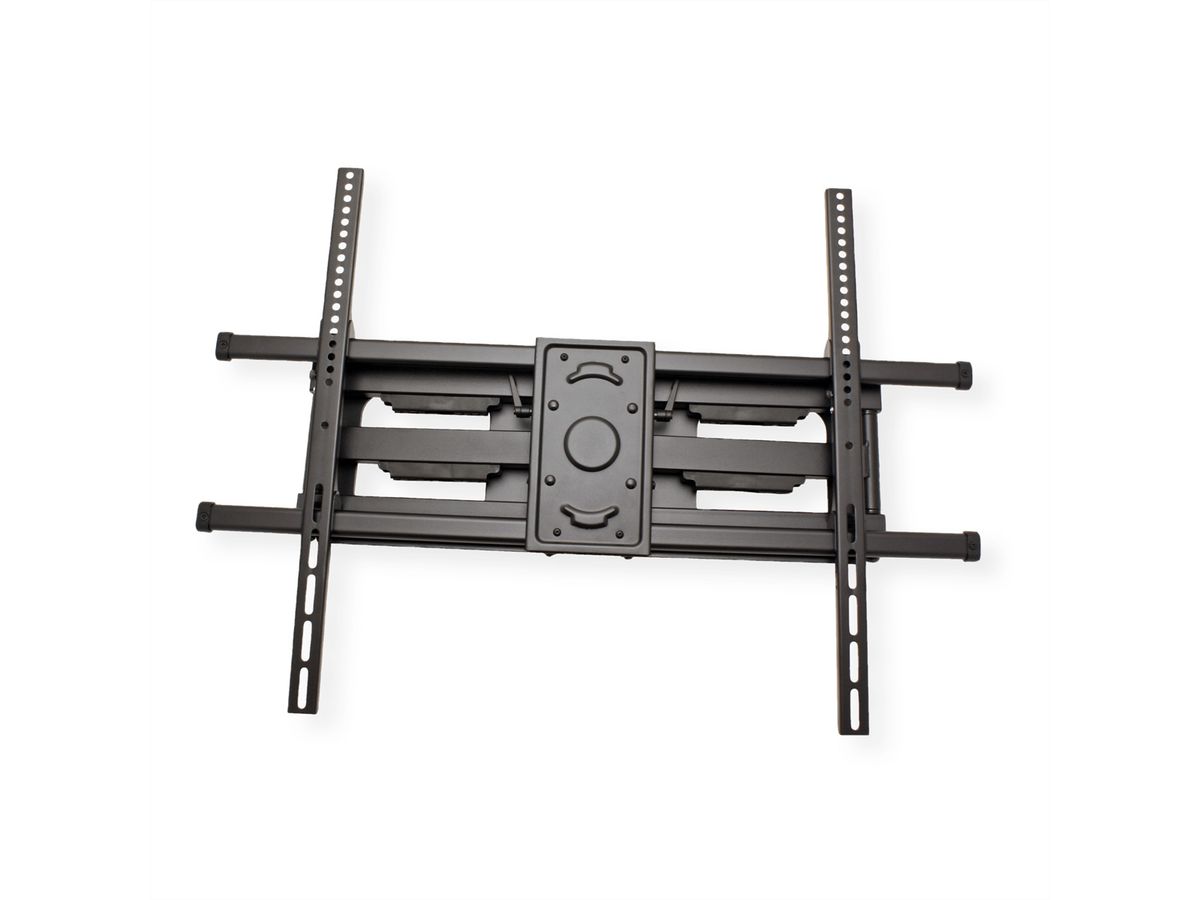

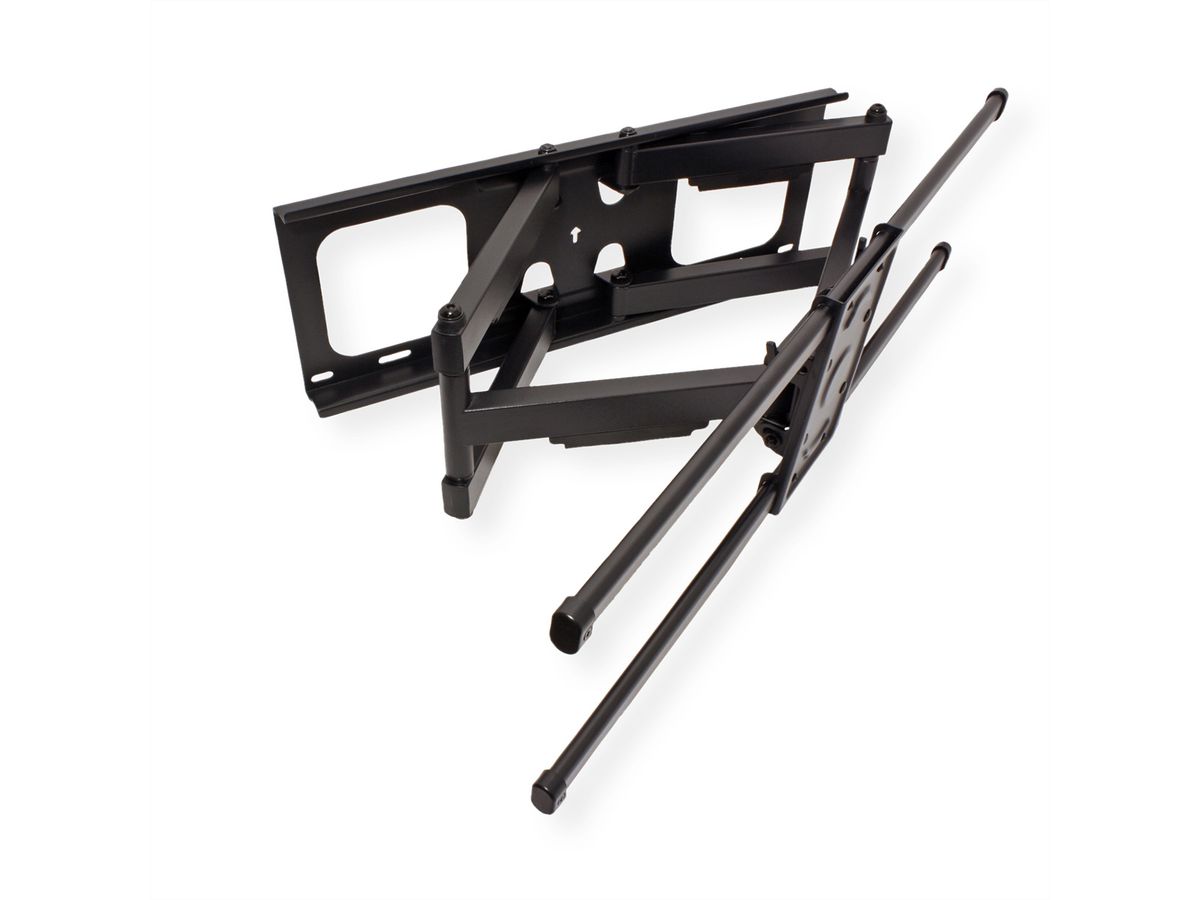

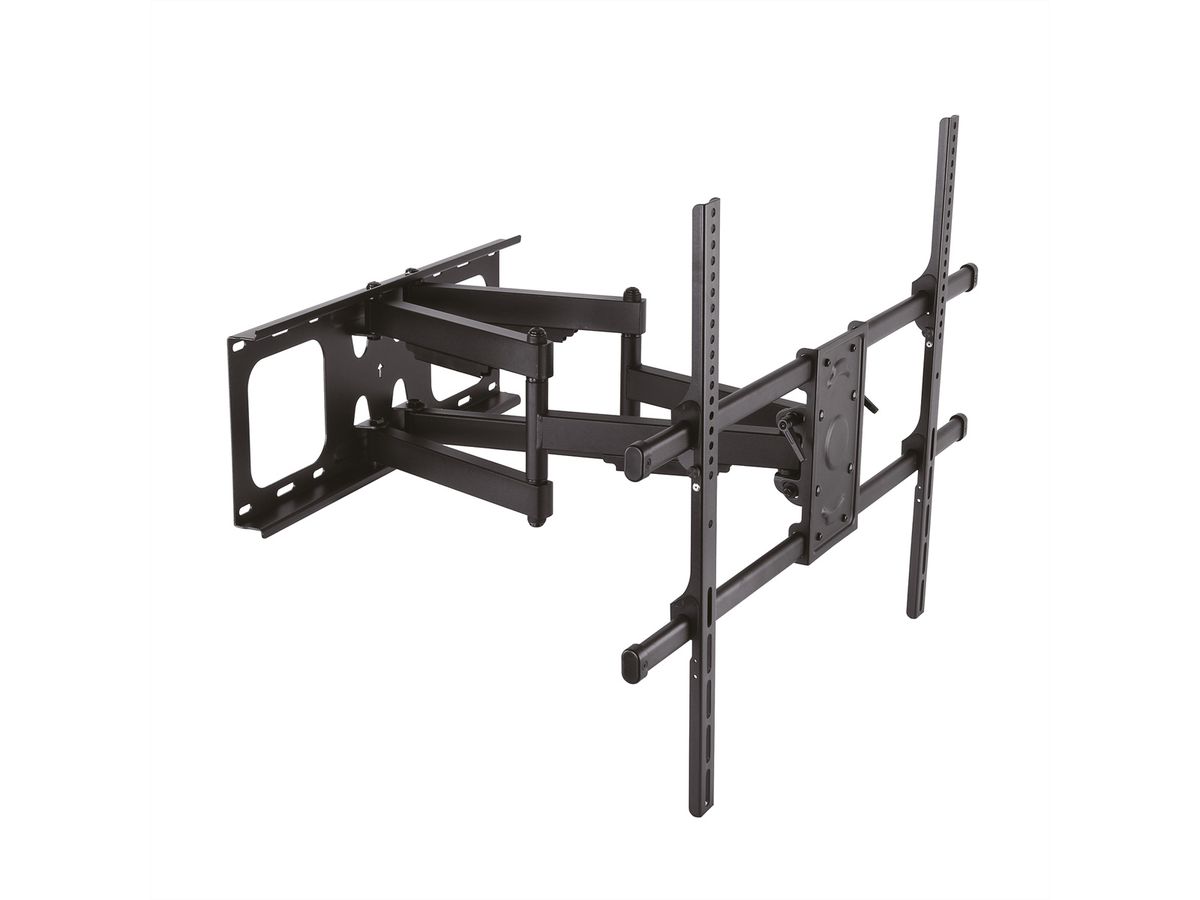

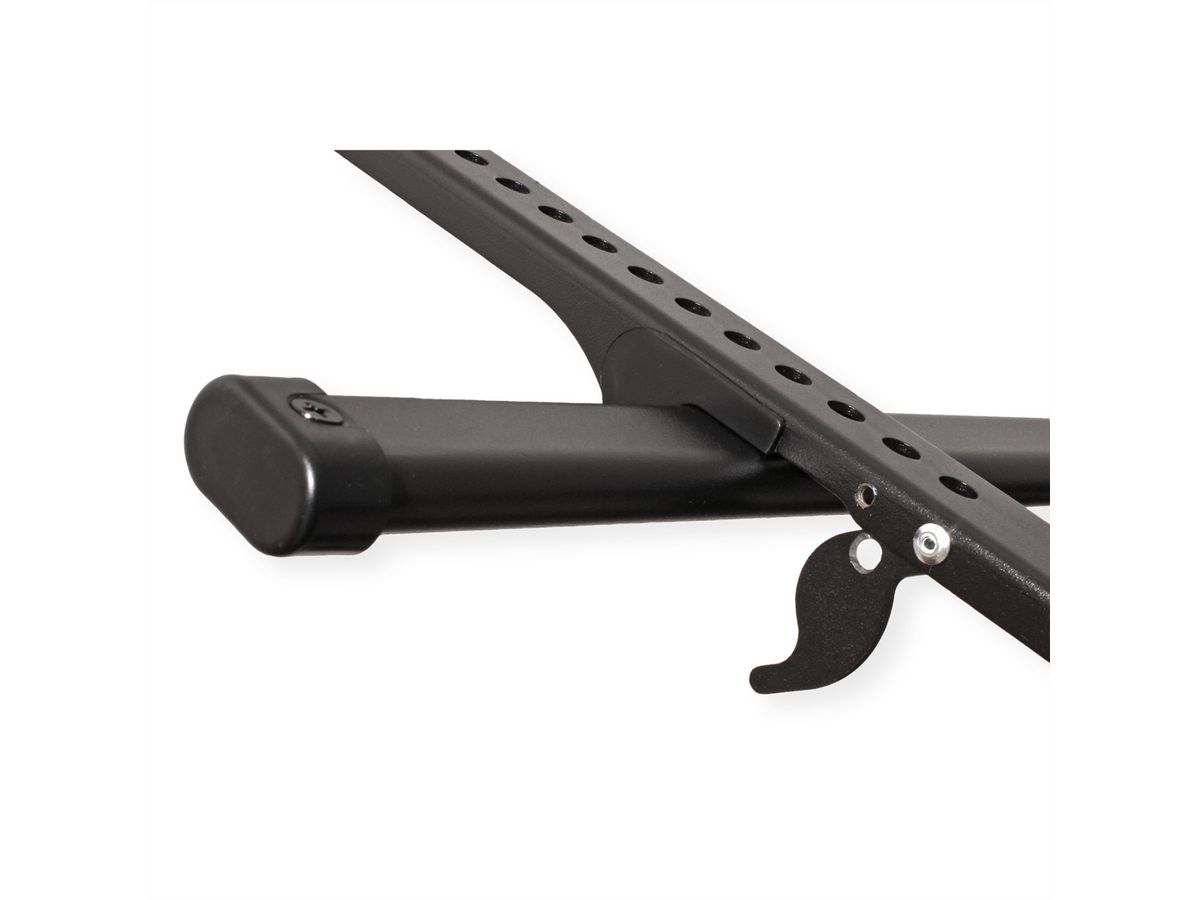

VALUE Solid Articulating Wall Mount TV Holder, up to 228.6cm (50" - 90")

VALUE Solid Articulating Wall Mount TV Holder, up to 228.6cm (50" - 90")

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 17.99.1207-2
Brand / Manufacturer VALUE
Manuf. no. 17.99.1207
EAN 7611990942725
Package weight 12.85 kg

Description

  • Dual-arm full-motion wall mount for TVs (LED, LCD flat panel TVs) up to 228,6 cm (50'' - 90'')
  • Max. weight: 75 kg

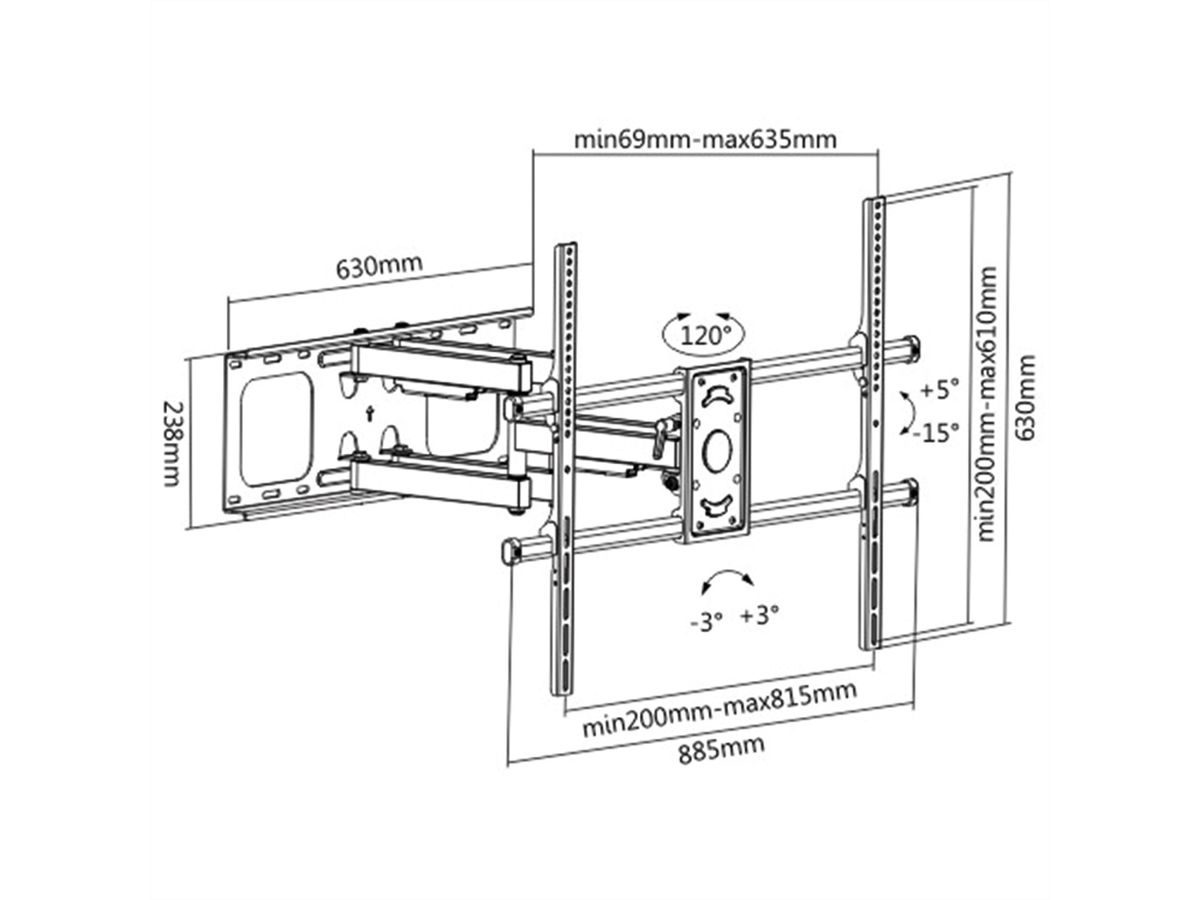

  • This mount extends out 635 mm from wall and allows TVs to turn 60° left or right
  • Full motion allows maximum flexibility - tilts and swivel your TV for easy viewing from any seat in a room

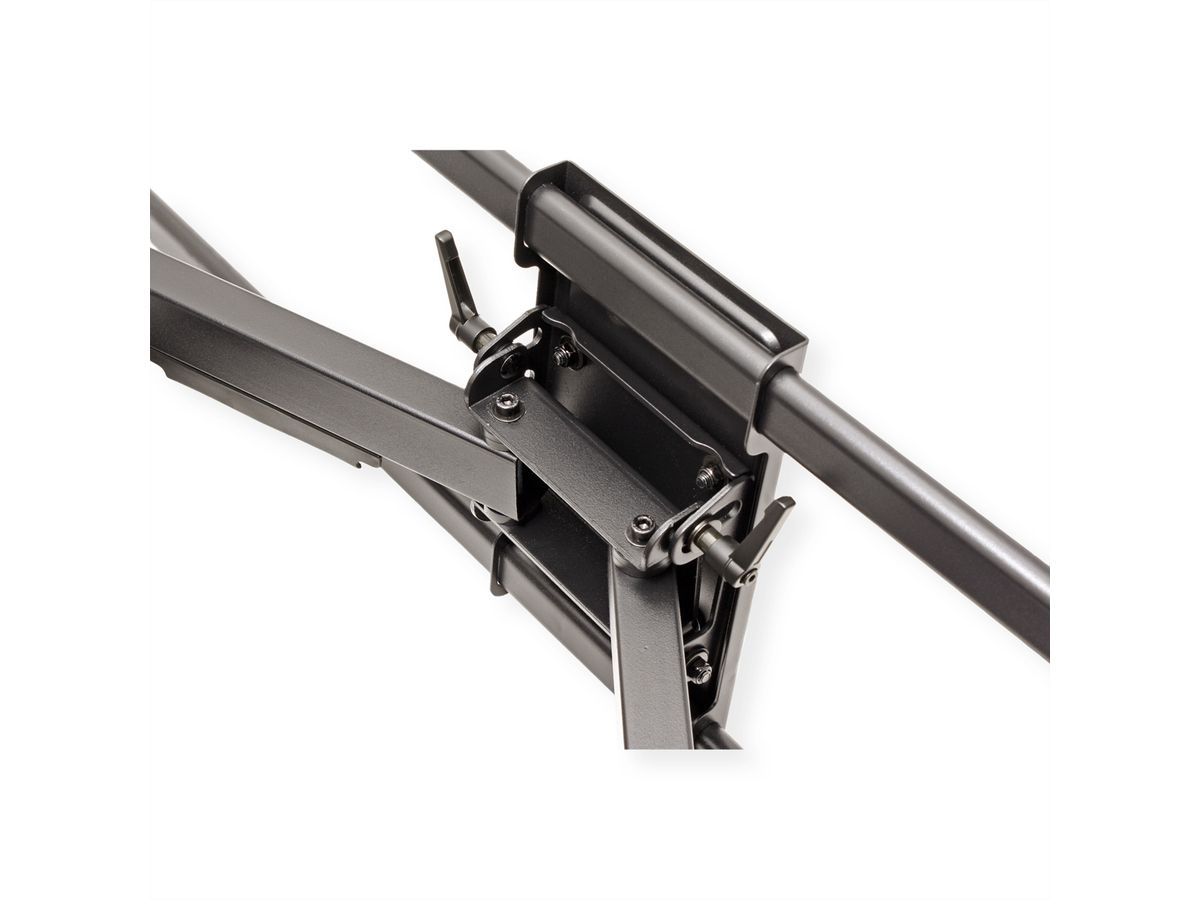

  • Post-installation level adjustment allows the TV to "roll" up to 3° clockwise and counterclockwise to ensure it's perfect level
  • Integrated cable management system keeps cables organized and protected
  • VESA: 200x200mm; 400x200mm ; 300x300mm ; 400x400mm; 600x400mm; 800x400mm; 400x300mm; 300x200mm; 800x600mm

Technical Data:
- Material:Steel
- Product weight:12kg
- Recommended Screen Size:50"- 90" (127 cm - 228,6 cm)
- Installation:Solid wall, Double Stud
- Max. Load Capacity:75 kg
- VESA Standard: 200x200, 400x200, 300x300, 400x400, 600x400, 800x400, 800x600
- Max.VESA:800x600
- Tilt:-15°~+5°
- Swivel:-60°~+60°

Specifications

Manufacturer VALUE
Product group LCD-Monitor arms
Product type TV Wall Mount
Colour black
Maximum weight capacity 75 kg
Fixing Wall mount
Adjustments Adjustable spring gauge
Number of monitors 1
Max. Screen diagonal (cm) 228.6 cm
Max. Screen diagonal (inch) 90 inch
Min. Screen diagonal (cm) 127 cm
Min. Screen diagonal (inch) 50 inch
VESA 200 x 200 mm yes
VESA 300 x 200 mm yes
VESA 300 x 300 mm yes
VESA 400 x 200 mm yes
VESA 400 x 300 mm yes
VESA 400 x 400 mm yes
VESA 600 x 400 mm yes
VESA 800 x 400 mm yes
Material group metal
Weight 11675.6 g
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 920 mm
Depth of packaging (single piece) 300 mm
Package weight (single piece) 12.85 kg

Downloads

Product data sheet - English (55.5 KB)

Download

Manufacturer data sheet - English (345.9 KB)

Download

User manual - English (12.4 MB)

Download

Technical drawing - English (679.9 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
