VALUE T-Adapter Cat.5e (Class D), UTP, white

Item no. 21.99.3045-50 Brand / Manufacturer VALUE Manuf. no. 21.99.3045 EAN 7611990943913 Package weight 0.05 kg
VALUE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

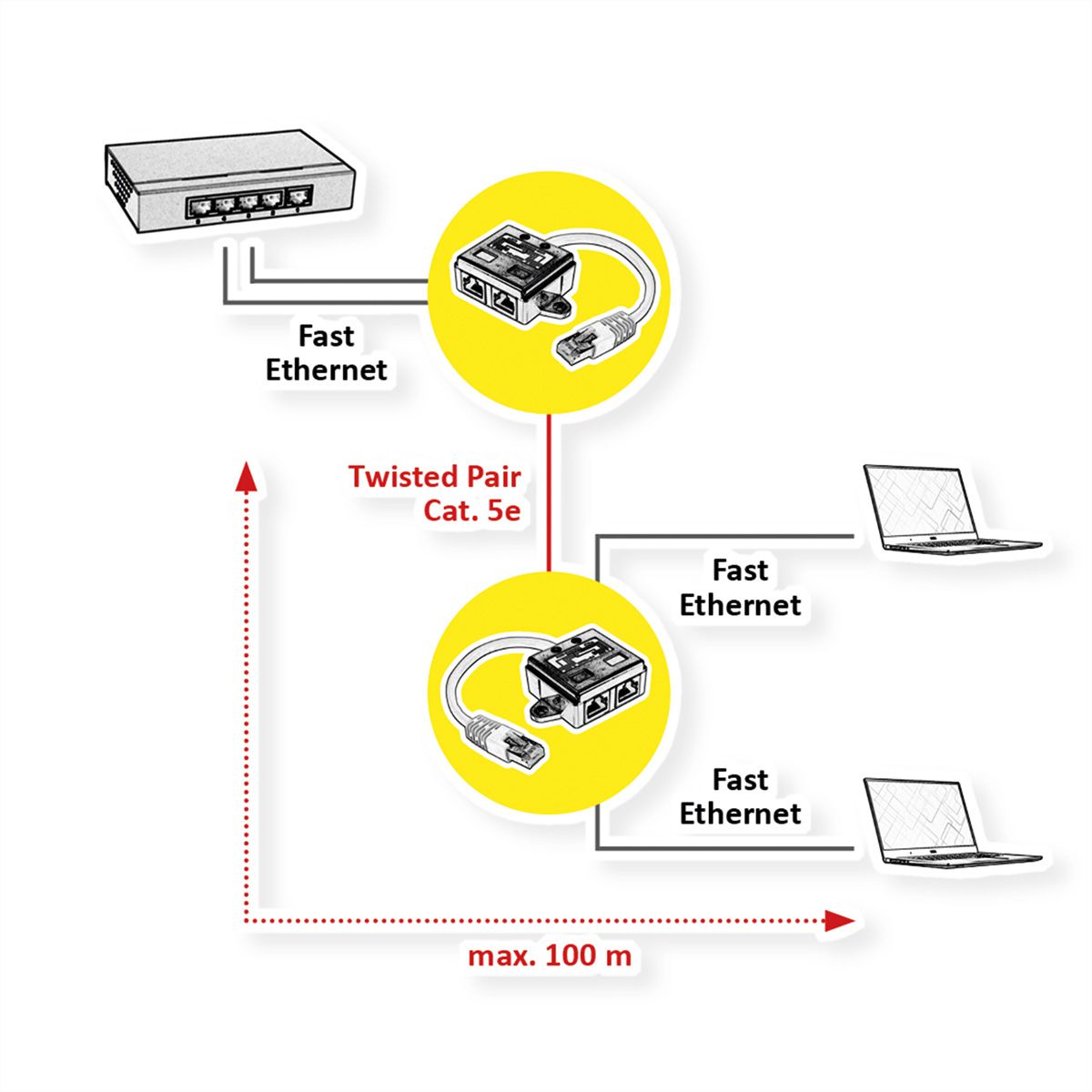

  • For the use with two 10/100 LAN connections over one (full wired) 8-wire cable

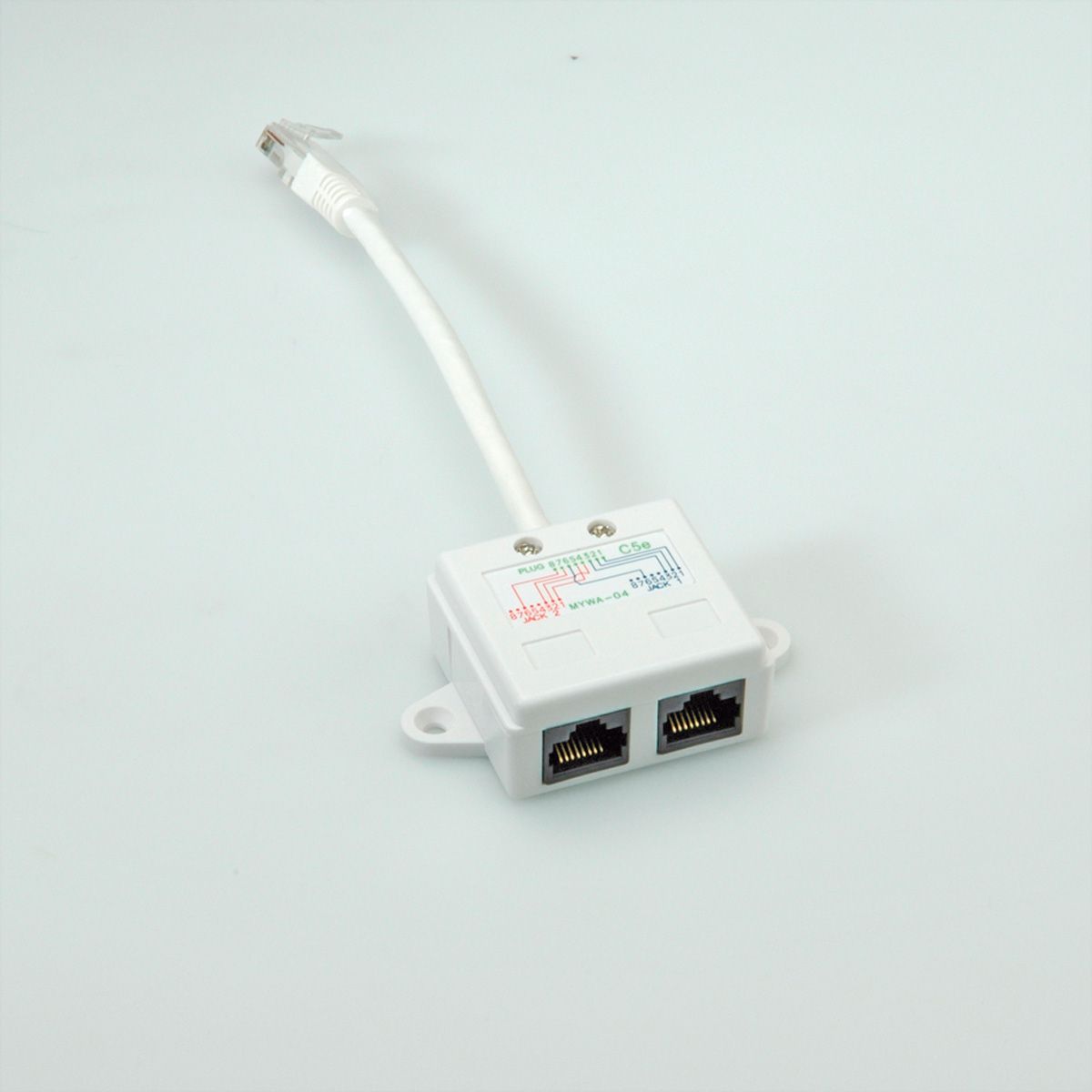

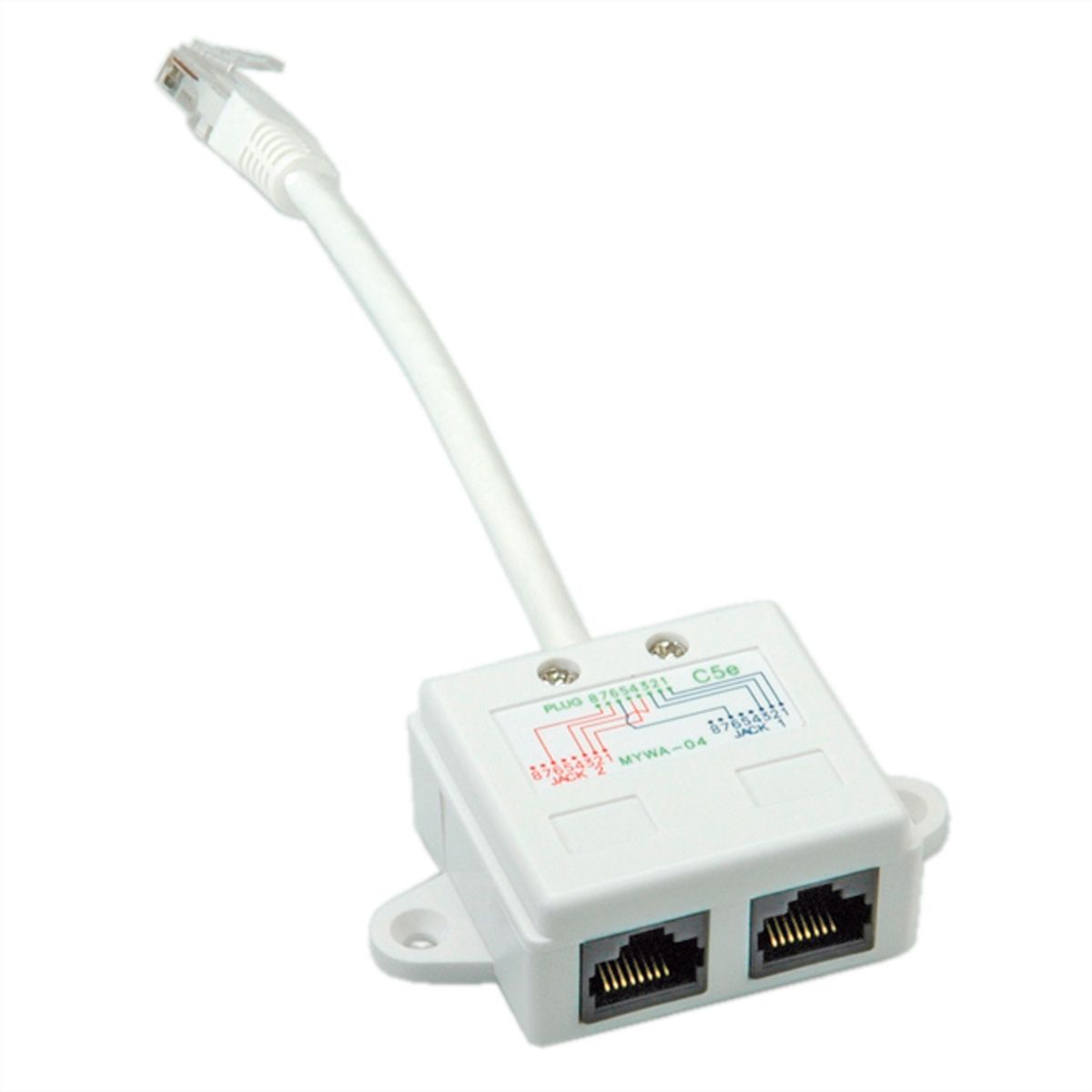

  • Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks
  • Pin assignment of connectors: pairs 1, 2 and 3, 6

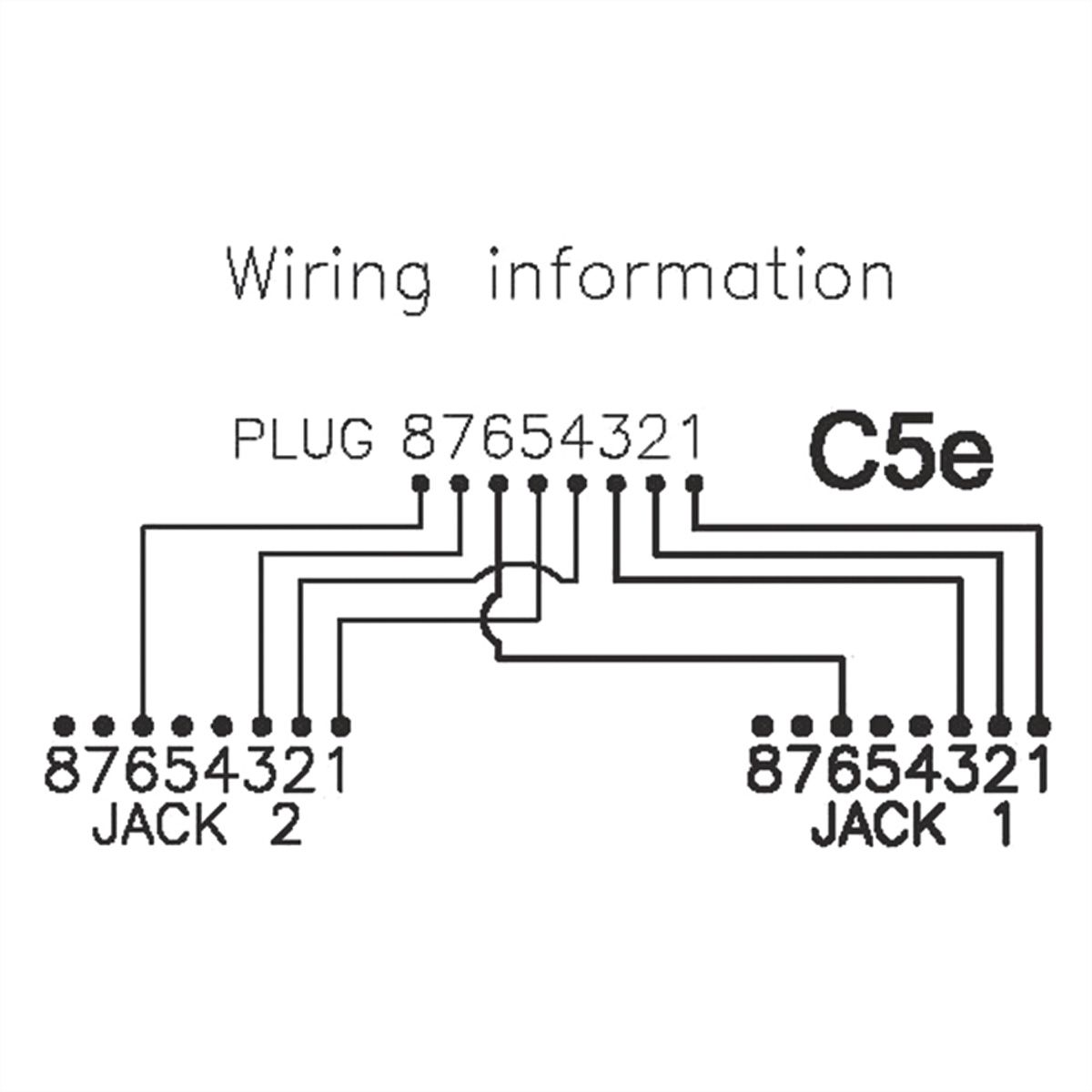

  • Wiring scheme on the adapter
  • For Cat. 5e installations
  • Note: The adapters can be used only pairwise

Specifications

Manufacturer
VALUE
Product group
Connection technology TP
Product type
Network adapters
Colour
white
Length
0.15 m
Shield type
Not screened
Transfer quality
Cat5e / Class D
Quantity of ports
2
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
  • RJ-45
  • RJ-45
Side 2 Connector Gender
Female
Material (casing)
Plastic
Shield contacts
No
separate strain relief
no
Connection direction
Straight
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
22.5 mm
Width
58 mm
Depth
42 mm
Weight
38.6 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
30 mm
Depth of packaging (single piece)
220 mm
Package weight (single piece)
0.05 kg
