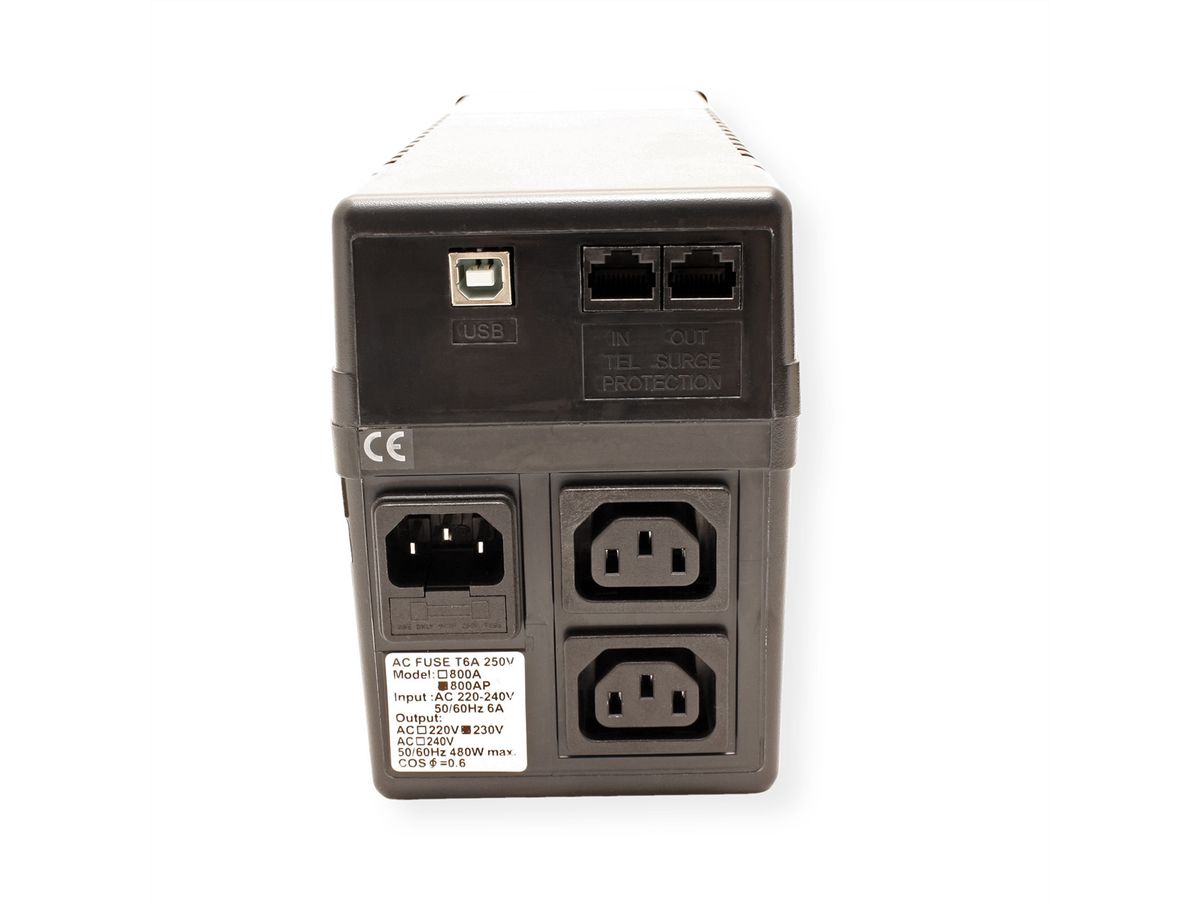

VALUE UPS, Line-Interactive, 800VA, USB Port
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 19.99.3428 |
|---|---|
| Brand / Manufacturer | VALUE |
| Manuf. no. | 19.99.3428 |
| EAN | 7611990130672 |
| Package weight | 6.683 kg |
| Output (VA/W) | |
| Interface |
:strip_icc():strip_exif()/logos/value.png "VALUE")
Description
Quality Protection for Small Servers, Workstation & PC- Line interactive design
- Boost and buck AVR (Auto voltage regulation)
- Fully digitized microprocessor controlled
- Energy saving function (UPS green mode)
- 50/60Hz frequency auto sensing and selection
- Cold start function (DC power on)
- Lightning and surge protection
- Short circuit and overload protection
- Advanced battery management (ABM technology)
- Tel/Modem internet surge suppression
- Smart USB communication port
- Automatically charging when UPS off
- History record of power failure events
- Back up, on-line, battery status, power status display by software
- Schedule shutdown & reboot
- Windows 98/Me/NT/2000/XP/2003/7/8
Specifications
| Manufacturer | VALUE |
|---|---|
| Product group | UPS |
| Product type | UPS Line Interactive |
| Colour | black |
| Scope of delivery | UPS, Software, Cable Set |
| Classification (IEC 62040-3) | VI-SS-333 |
| UPS technology | Line Interactive |
| Power class | 600 ... 900 VA |
| Output (VA/W) | 800 / 480 |
| Efficiency | 95 % |
| Backup time | 3 min |
| Backup time full/half-load | 3 / 6 min |
| Dimensions (HxWxD) | 135 x 97 x 320 mm |
| Mounting form | Tower |
| Voltage (input) | 230 V |
| Voltage (output) | 230 V |
| Output voltage regulation | ± 15 % |
| Frequency | 50 Hz |
| Connector type (input) | cold connector IEC320 C 14 |
| Outputs | 2 |
| Connector type (output) | 2x cold connector IEC320 C 13 |
| Phase in/output | 230V/230V / 50Hz |
| Over current protection | EMI,- RFI-Filter |
| Max. quantity of delay expansion units | 0 |
| Delay expansion unit | -- |
| Slots for adapter card | 0 |
| Slot for adapter card | -- |
| Interface | USB |
| USB 2.0 Interface | yes |
| Hot swap batteries | no |
| Bypass | no |
| Additional over current protector | Telephone/Fax |
| Activity | LED |
| Activity LED | 1 LED |
| Activity Display | -- |
| incl.Management Software | Windows |
| Internal cooling | Passive |
| Ambient temperature | 0-40°C |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Height | 135 mm |
| Width | 97 mm |
| Depth | 320 mm |
| Weight | 6.5 kg |
| Height of packaging (single piece) | 230 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 400 mm |
| Package weight (single piece) | 6.683 kg |
Back up time
| Capacity (VA / W) | Minutes (manufacturer's specifications) |
|---|---|
| 800 / 480 | 2 |
| 720 / 432 | 3 |
| 640 / 384 | 4 |
| 560 / 336 | 5 |
| 480 / 288 | 7 |
| 400 / 240 | 8 |
| 320 / 192 | 11 |
| 240 / 144 | 17 |
| 160 / 96 | 30 |
| 80 / 48 | 65 |
