Description

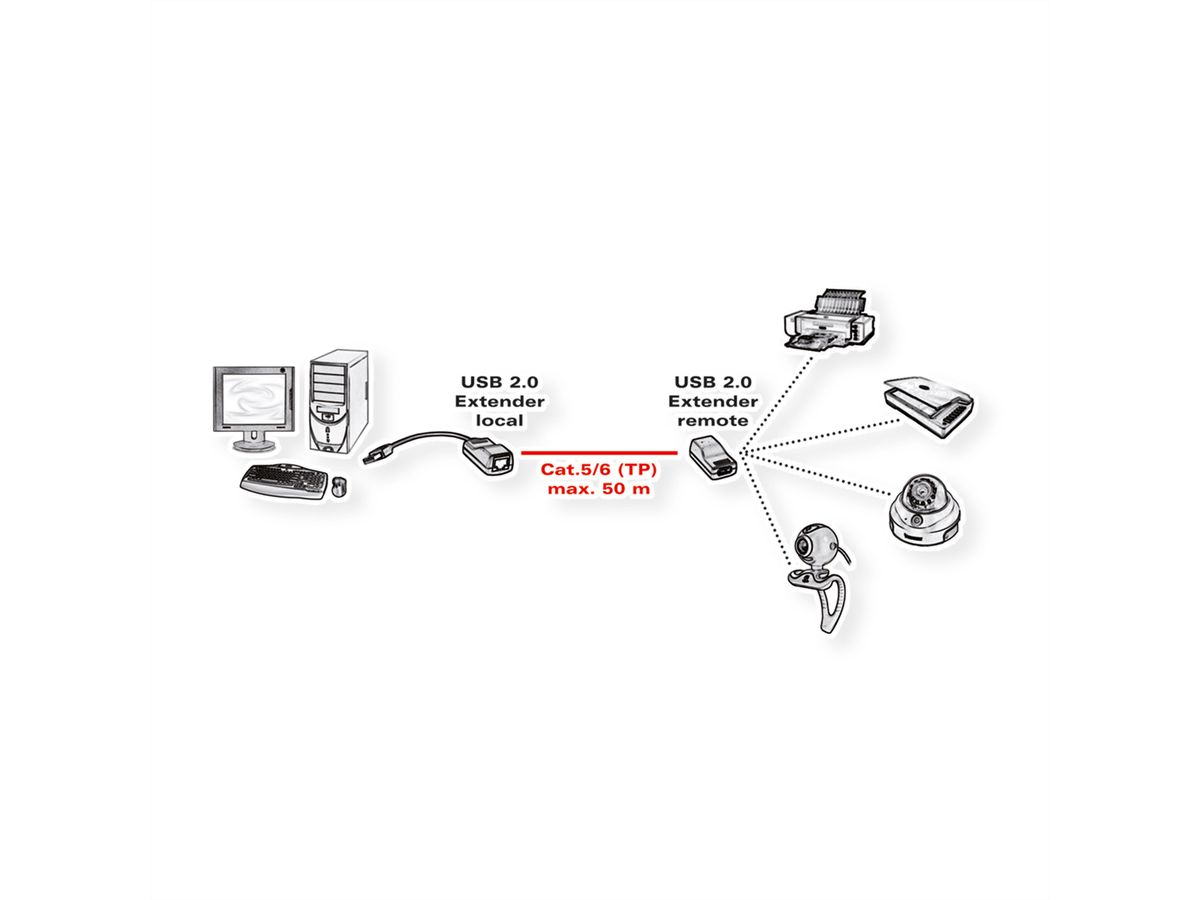

Use this USB 2.0 extender in combination with a RJ45 cable to extend your USB connection up to 50m!

• Extend your USB port over RJ-45 (up to 50 meters)
• For example to connect an USB printer in another room with your PC
• Supports USB 2.0, downwards compatible with USB 1.1/1.0
• Hot plug
• No additional software for extender required
• Connection via Cat.5e/Cat. 6 Twisted Pair cable

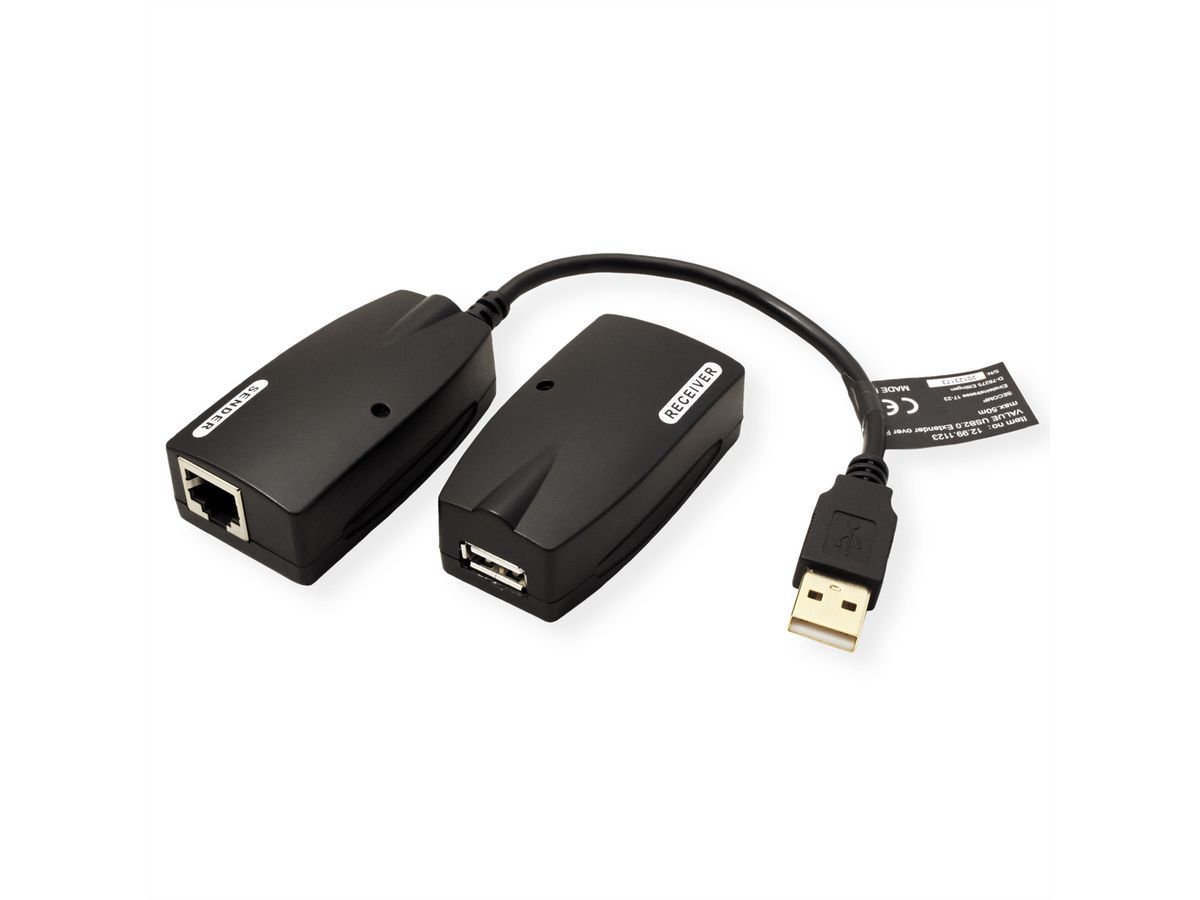

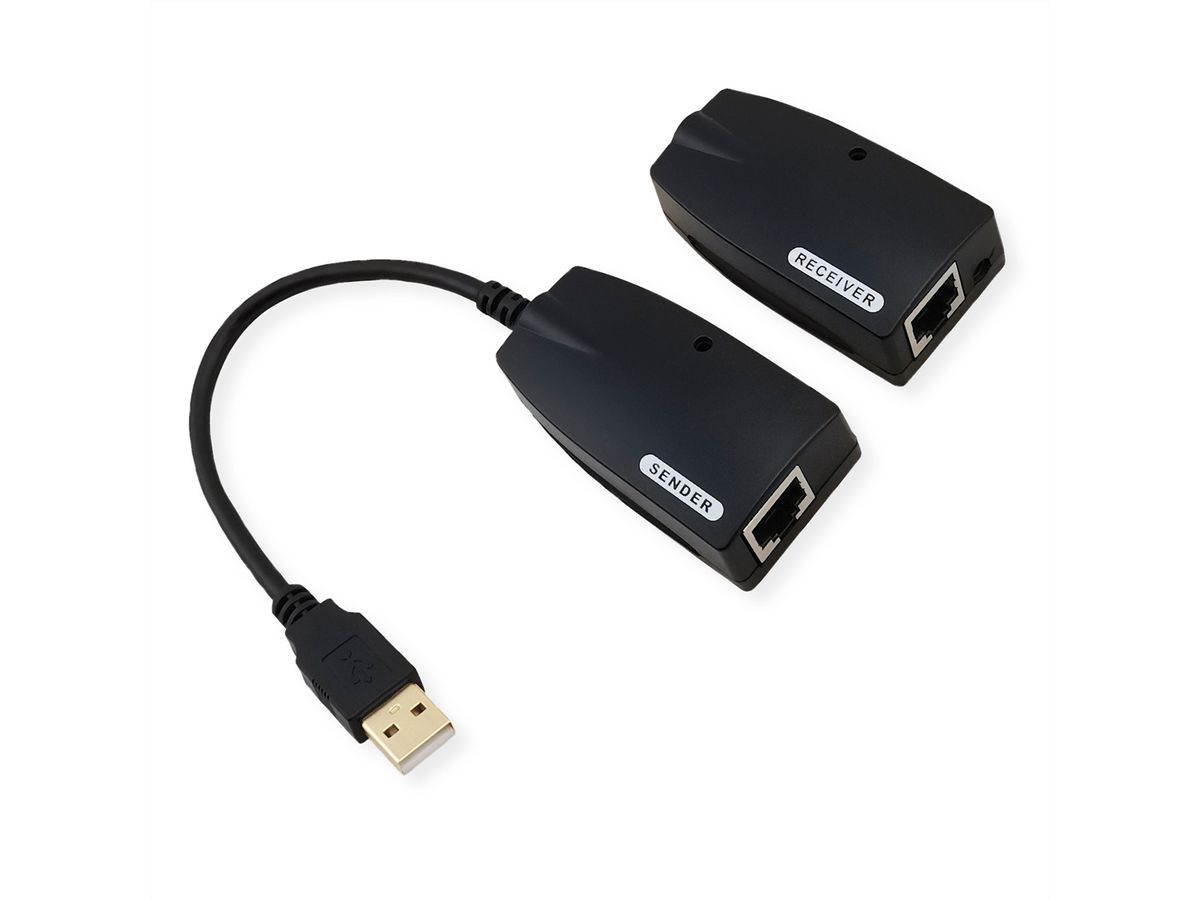

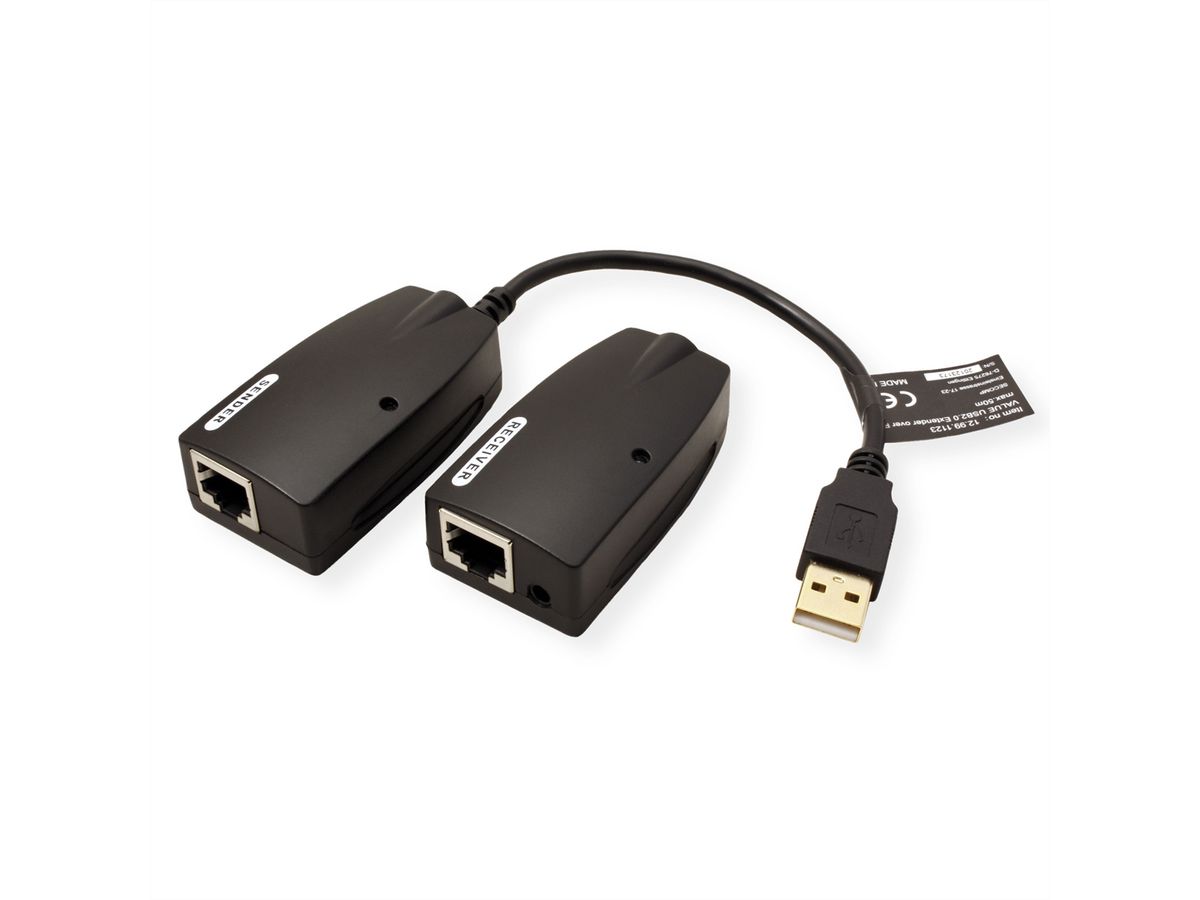

• Transmitter: USB A Male connector/RJ-45, Receiver: USB A Female connector/RJ-45
• Supports data rates up to 480Mbit/s

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	USB extension
Colour	black
Scope of delivery	Master unit (RJ45F, USB Type A M with 15cm cable), Remote unit (RJ45F, USB Type A F)
Transfer quality	USB 2.0 Hi-Speed 480 Mbit/s
Side 1 connection (PC)	USB A Male
Side 2 connection (Peripherals)	USB A Female
Side 1 Connector Type	USB 2.0 Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	USB 2.0 Type A
Side 2 Connector Gender	Female
Conversion direction	USB - TP - USB
Area of application	External
Technical particularity	Connection over Twisted Pair Cable
Weight	58.7 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.05 kg
