Description

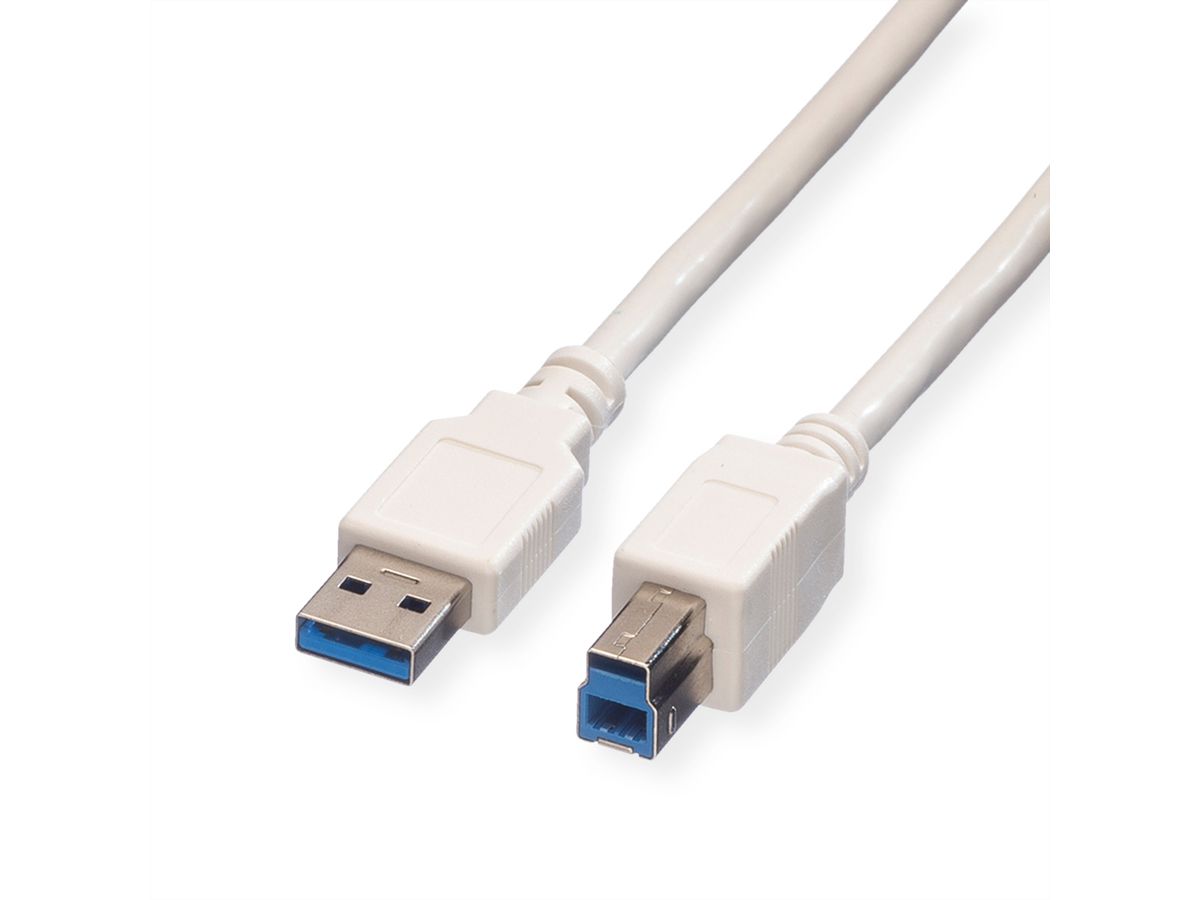

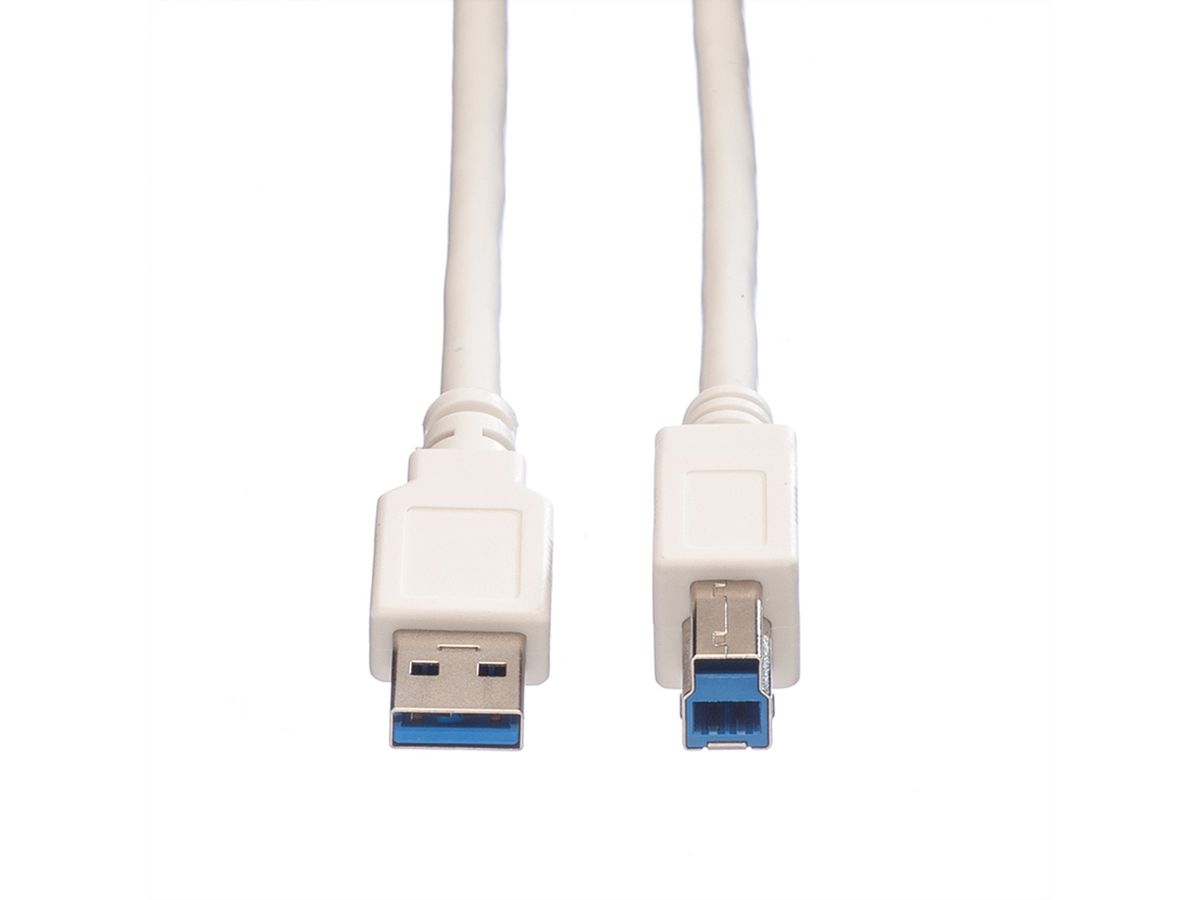

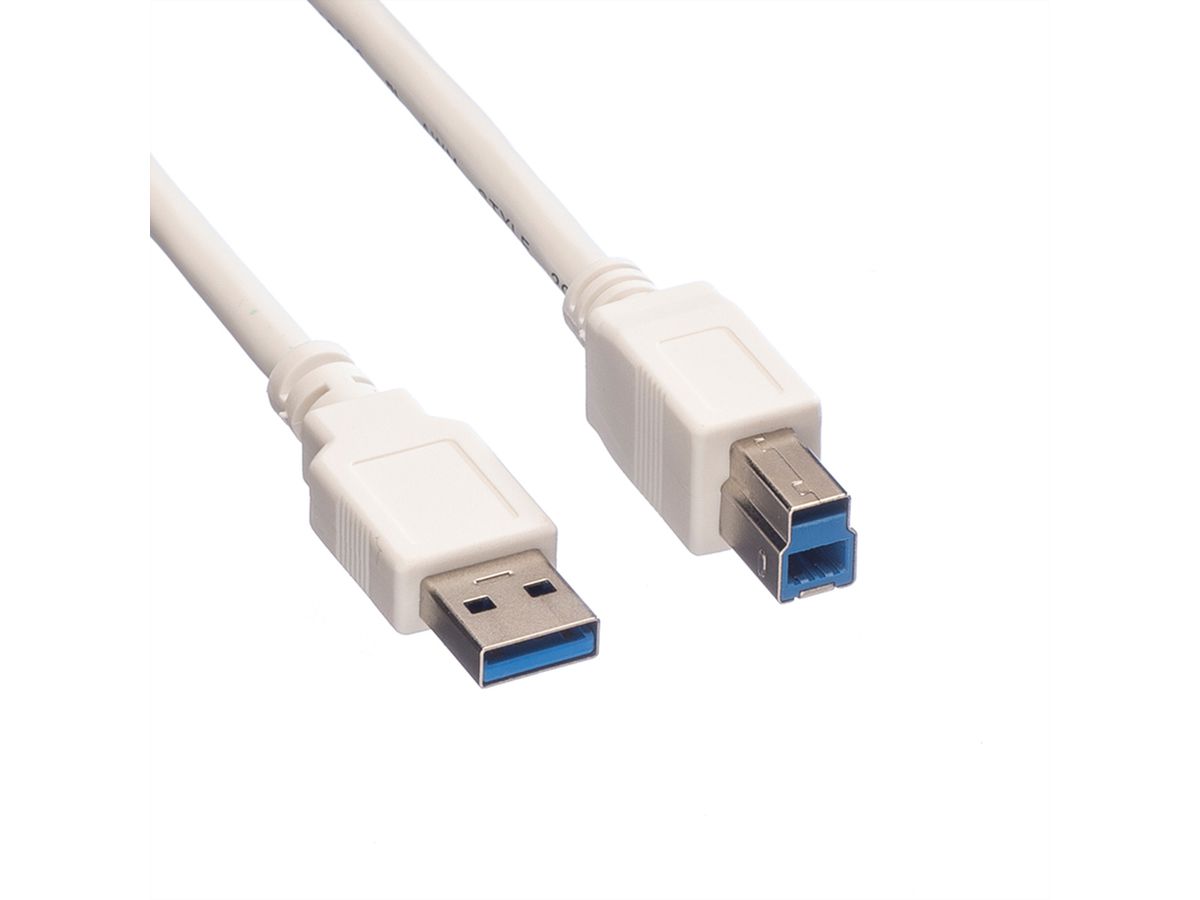

USB 3.0 / USB 3.2 Gen 1 Cables

A new major feature of USB 3.0 / USB 3.2 Gen 1 is SuperSpeed bus, which increases the maximum transfer rate to 5.0 Gbit/s. USB 3.0 / USB 3.2 Gen 1 receptacles are compatible with USB 2.0 device plugs for the respective physical form factors. The cables can be used with PCs with the actual Type A F.

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Cable
Product type	USB 3.2 Cable
Colour	white
Length	3 m
Transfer quality	USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Connection ports	USB 3 Type A Male / USB 3 Type B Male
side 1 connector	Type A M
side 2 connector	Type B M
Side 1 Connector Type	USB 3 Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	USB 3 Type B
Side 2 Connector Gender	Male
Max. resolution	no video
Maximum data transfer rate	5 Gbit/s
Area of application	External
Cable shielding	Screened
Hand locking screws	no
Weight	128.6 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	140 mm
Package weight (single piece)	0.138 kg

Downloads

Product data sheet - English (42.7 KB)

Download

Manufacturer data sheet - English (4.9 MB)

Download
