Description

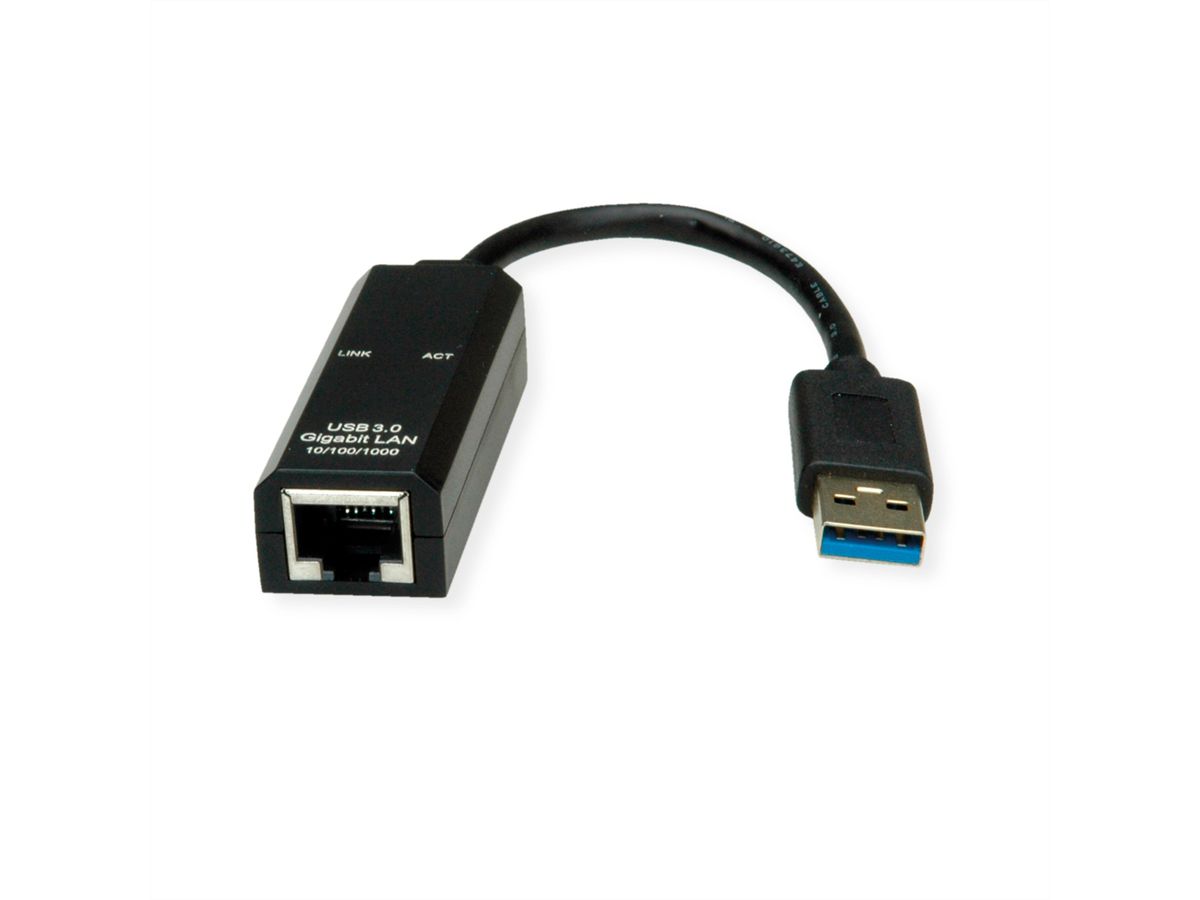

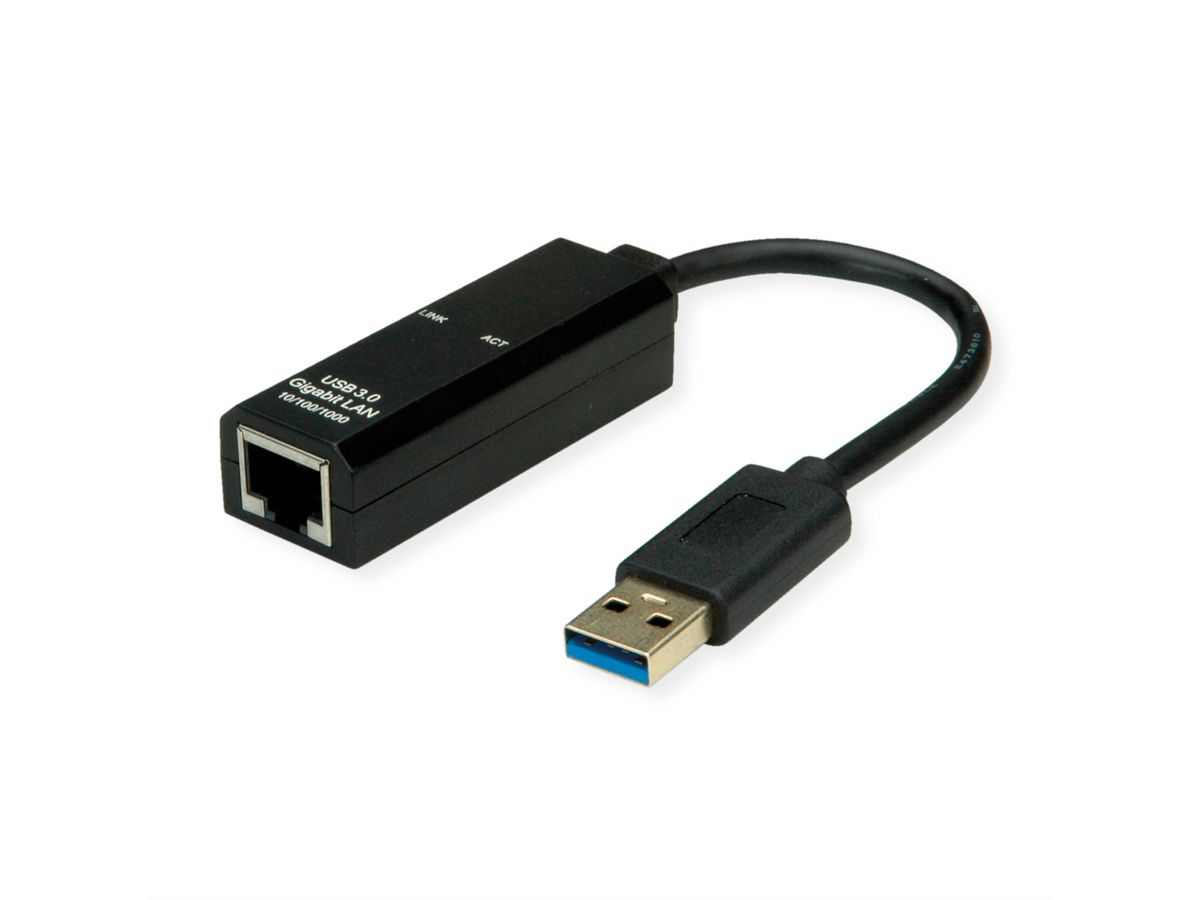

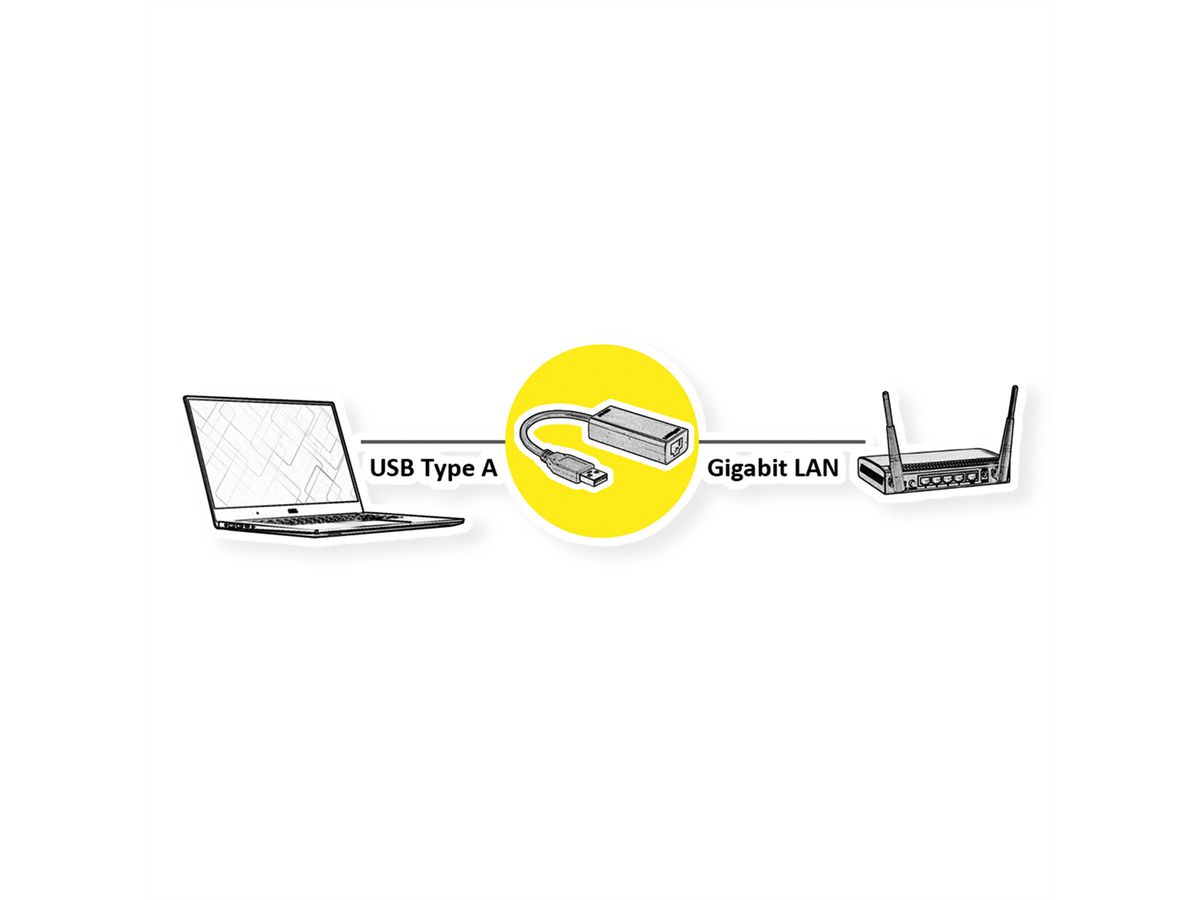

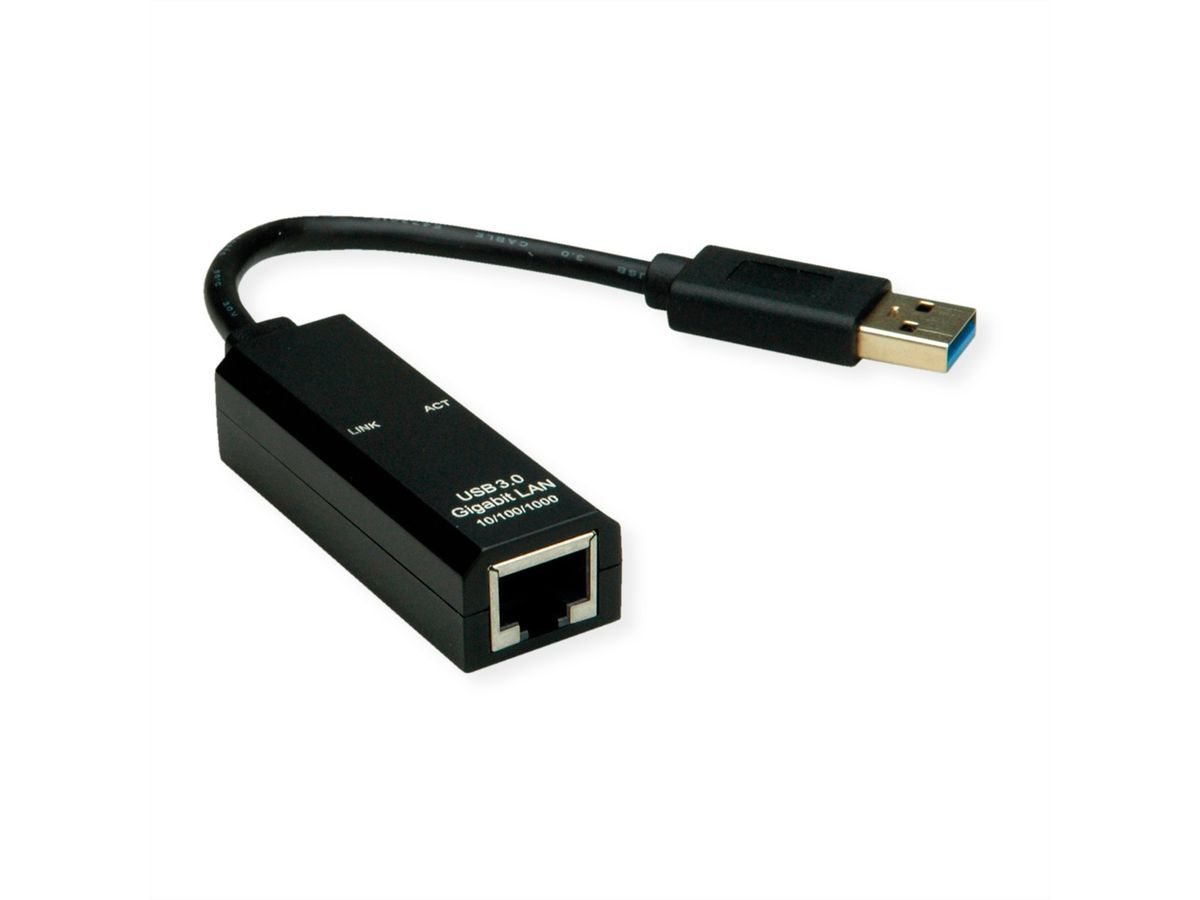

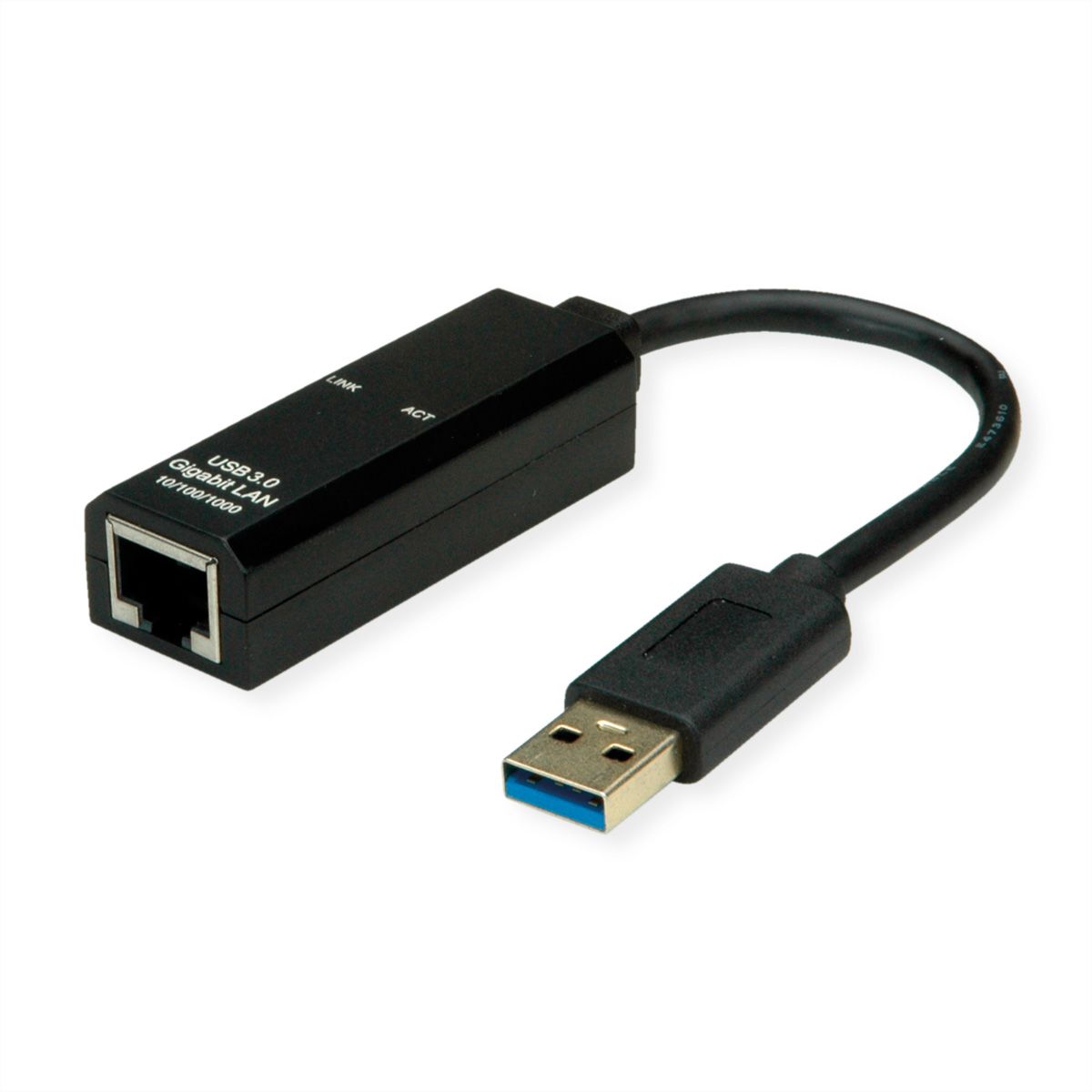

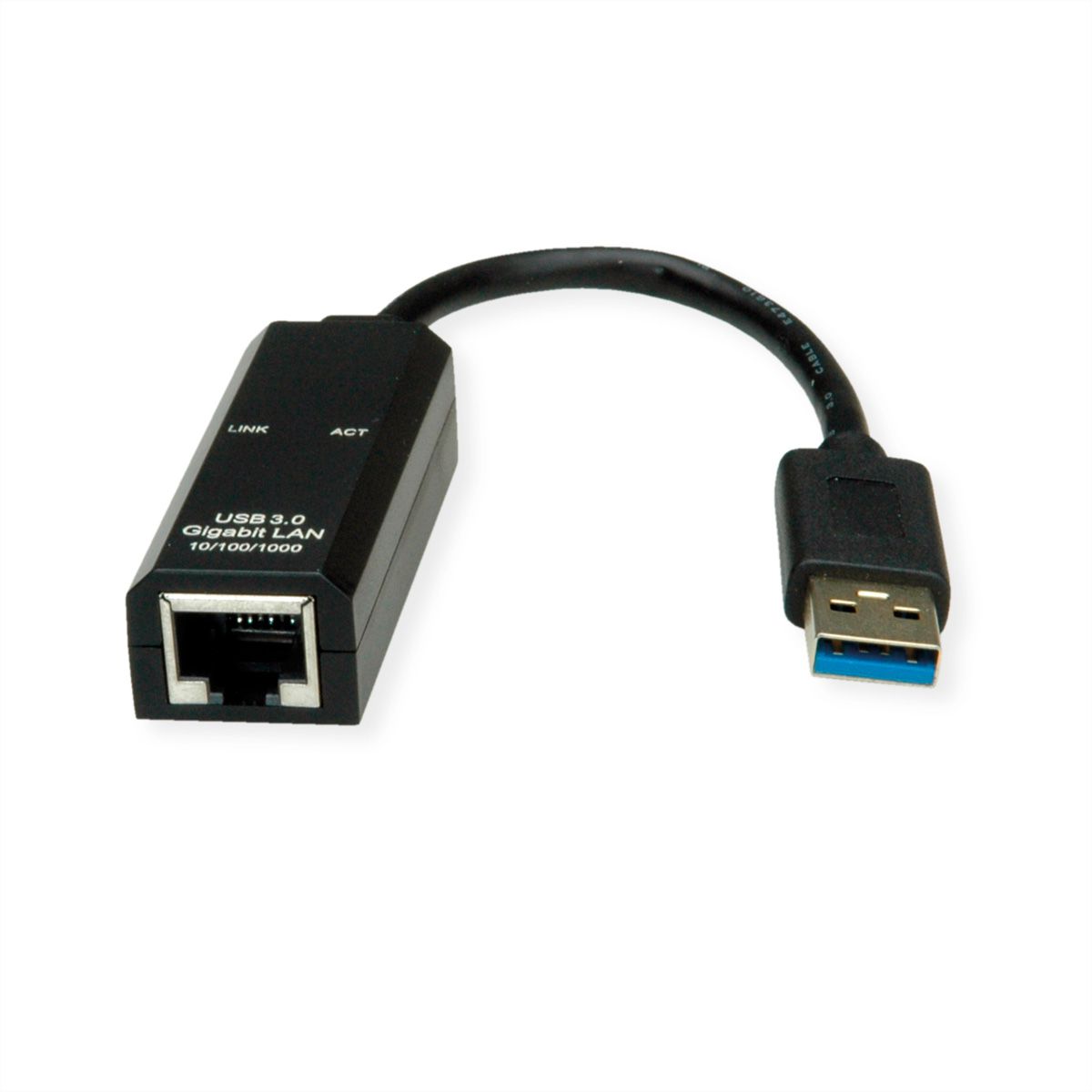

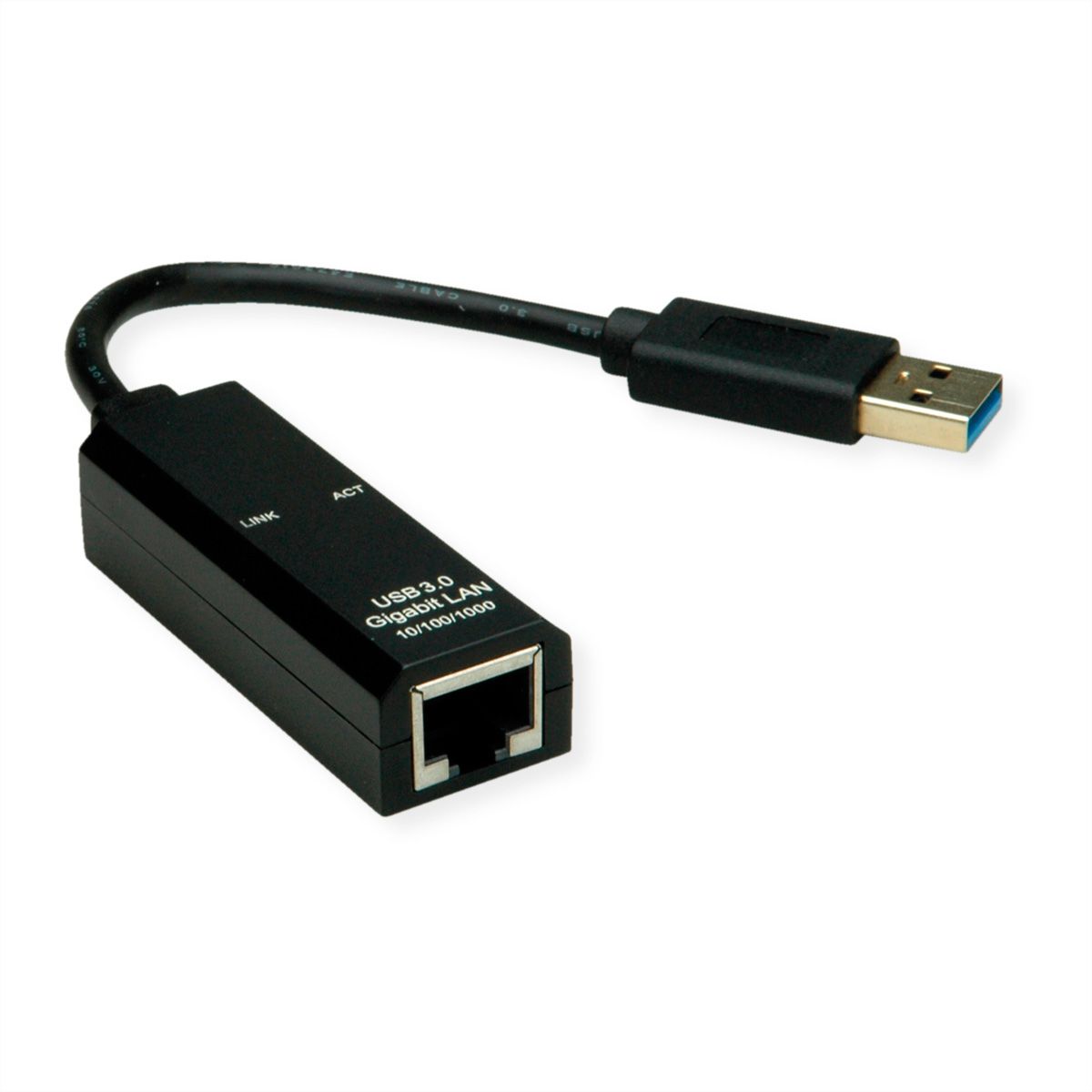

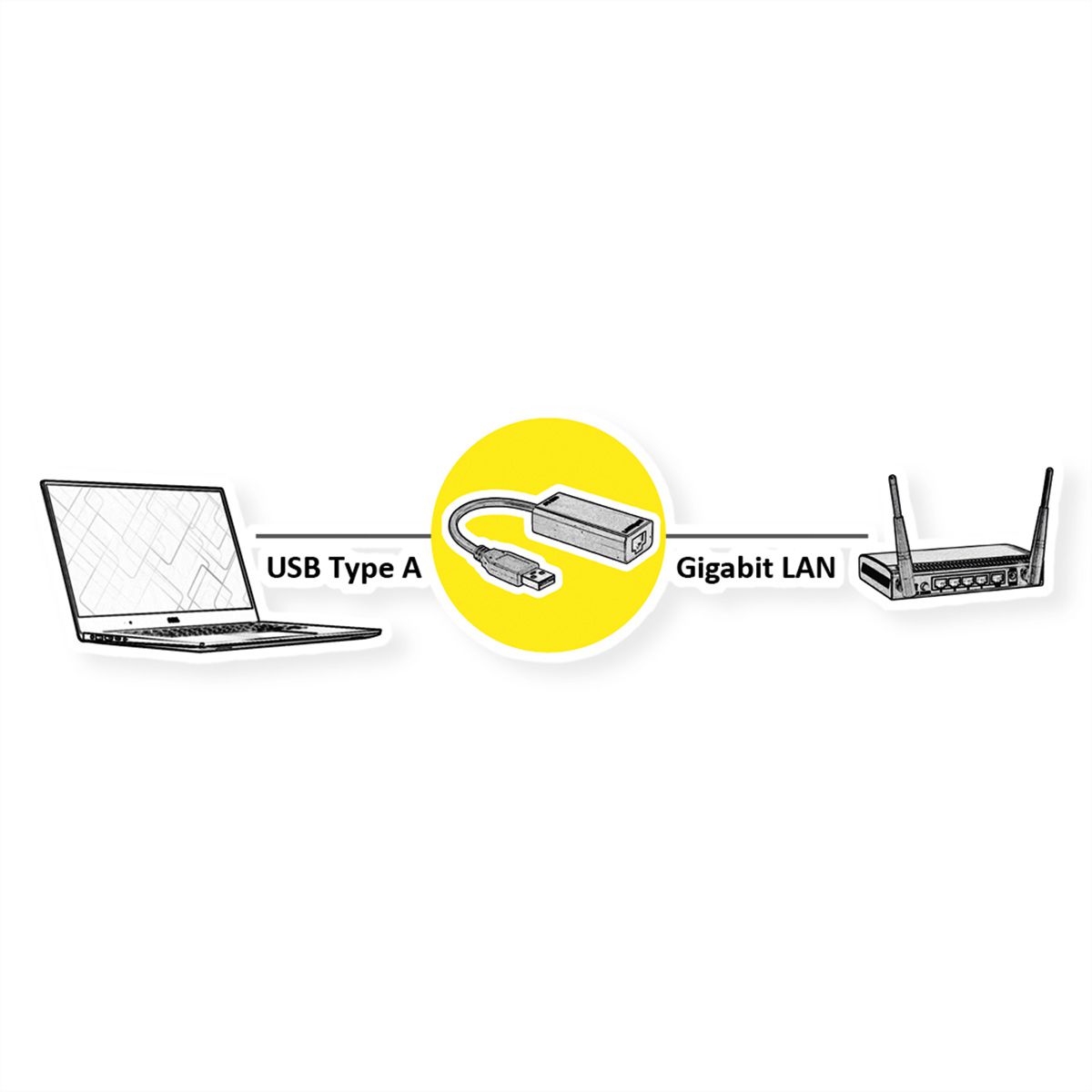

USB 3.0 / USB 3.2 Gen 1 Converter with USB Type A to Gigabit Ethernet - to connect your device to a network

• Supports 10/100/1000 Mbit/s, with auto-sensing capability
• Supports USB 3.0 / USB 3.2 Gen 1
• Bus powered, no additional power supply needed
• Supports both full-duplex and half-duplex operation in Gigabit Ethernet

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Network adapters
Product type	Gigabit Ethernet Converter
Colour	black
Scope of delivery	Converter with moulded USB cable
BUS system	USB
LAN (Mbps)	10/100/1000
Quantity of ports	1
Connection ports	1x RJ-45 F, 1x USB 3.0 / 3.2 Gen 1 Type A M
Side 1 Connector Type	USB 3 Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Full duplex	yes
Wake on LAN	no
Operating System	Windows XP / 7, 10, Mac OS 10
Technical particularity	LED for Link and Gigabit Mode
Dimensions (HxWxD)	16 x 22 x 59 mm
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Height	16 mm
Width	22 mm
Depth	59 mm
Weight	22 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	60 mm
Package weight (single piece)	0.04 kg

Downloads

Product data sheet - English (45.5 KB)

Download
