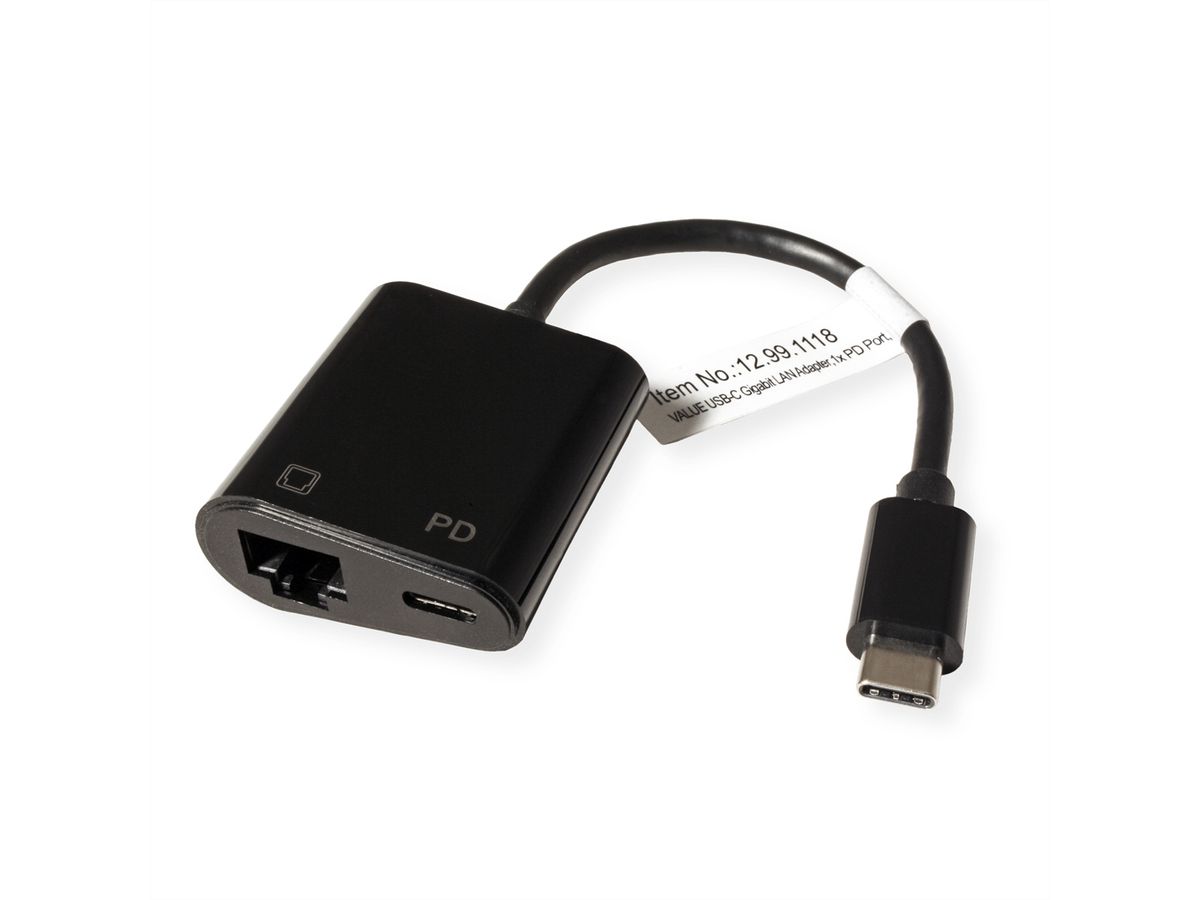

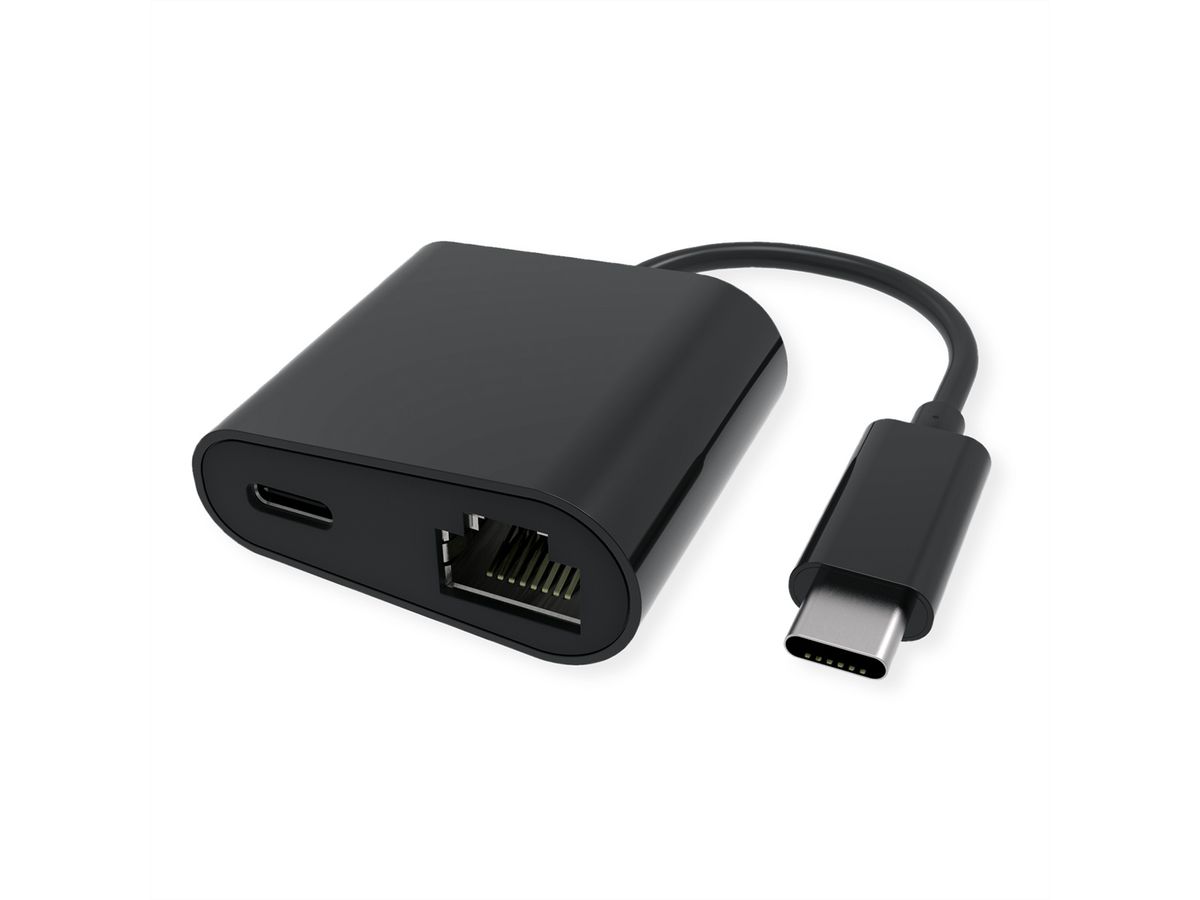

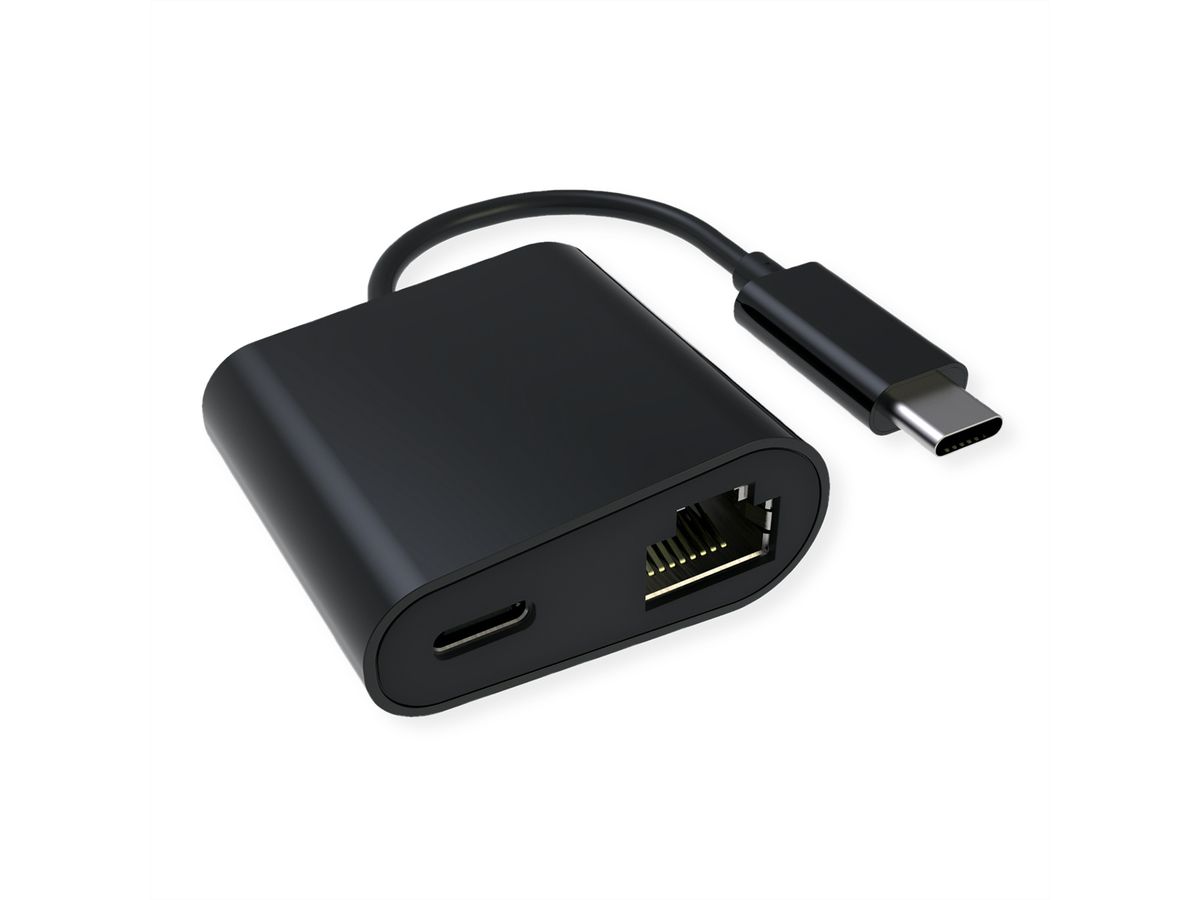

VALUE USB 3.2 Gen 2 to Gigabit Ethernet Converter, 1x PD Port

VALUE USB 3.2 Gen 2 to Gigabit Ethernet Converter, 1x PD Port

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.99.1118-5
Brand / Manufacturer VALUE
Manuf. no. 12.99.1118
EAN 7630049683617
Package weight 0.02 kg

Description

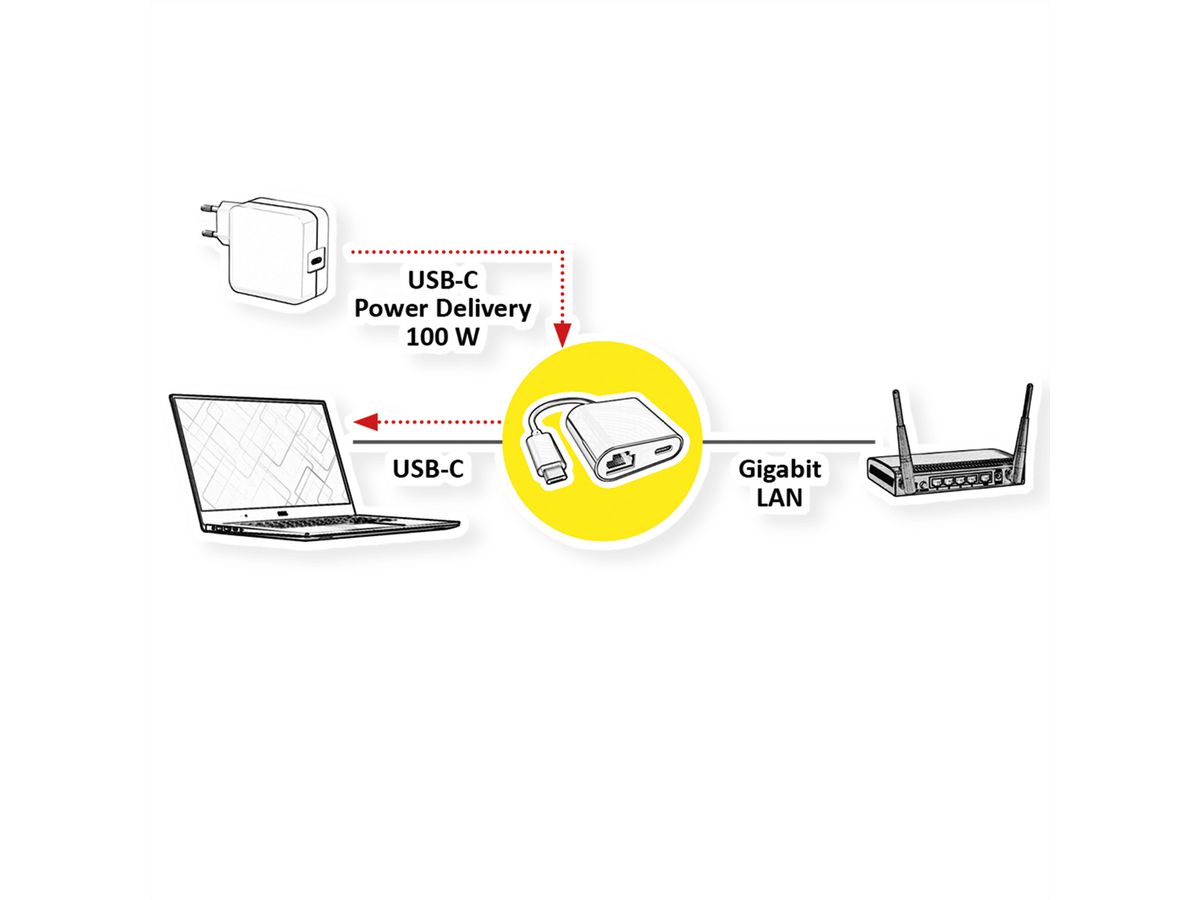

With this converter you connect your PC or notebook with USB 3.1 / USB 3.2 Gen 2 Type C interface to a Gigabit Ethernet network.

This converter is a cost effective solution to convert a USB 3.1 / USB 3.2 Gen 2 port into a 10/100/1000Base-T Ethernet port
  • Supports 10/100/1000 Mbit/s auto-sensing capability
  • Supports USB 3.1 / USB 3.2 Gen 2
  • Type C Connector
  • Bus powered
  • 1x Port PD (power delivery), max. 100W
  • Supports both full-duplex and half-duplex operation in Gigabit Ethernet
  • Supports Windows XP/Vista/7/8/10, Mac OS X

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer VALUE
Product group Network adapters
Product type Gigabit Ethernet Converter
Colour black
Scope of delivery Converter, manual
BUS system USB
LAN (Mbps) 10/100/1000
Quantity of ports 1
Connection ports 1x RJ-45 F, 1x USB 3.0 Type C M
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type RJ-45
Side 2 Connector Gender Female
Full duplex yes
Wake on LAN no
Network topology Ethernet
Operating System Windows XP / 7 / 8, Mac OS 10
Dimensions (HxWxD) 17 x 39 x 130 mm
Height 17 mm
Width 39 mm
Depth 130 mm
Weight 19.3 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 40 mm
Depth of packaging (single piece) 40 mm
Package weight (single piece) 0.02 kg

Downloads

Product data sheet - English (48.3 KB)

Download

Manufacturer data sheet - English (249.4 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
