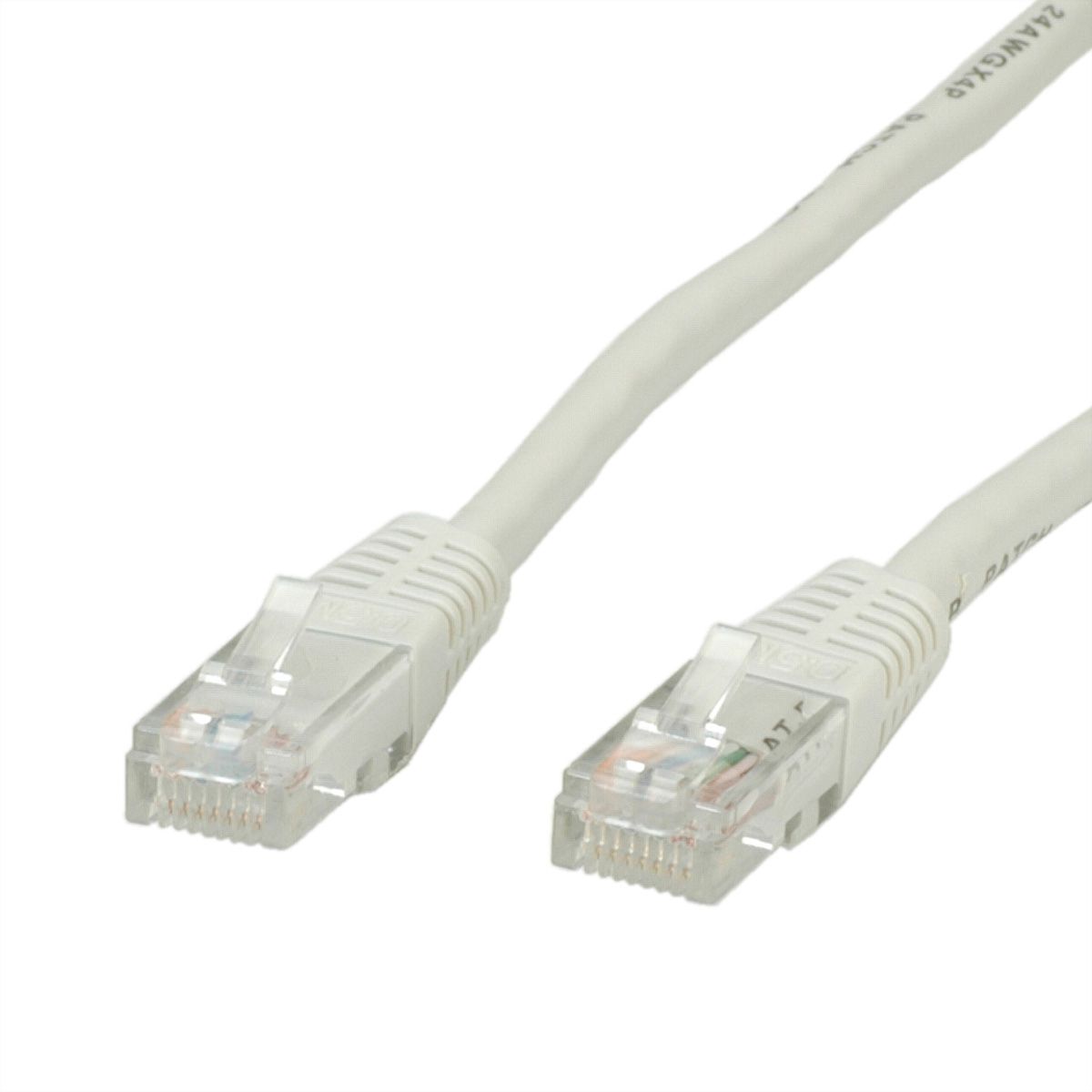

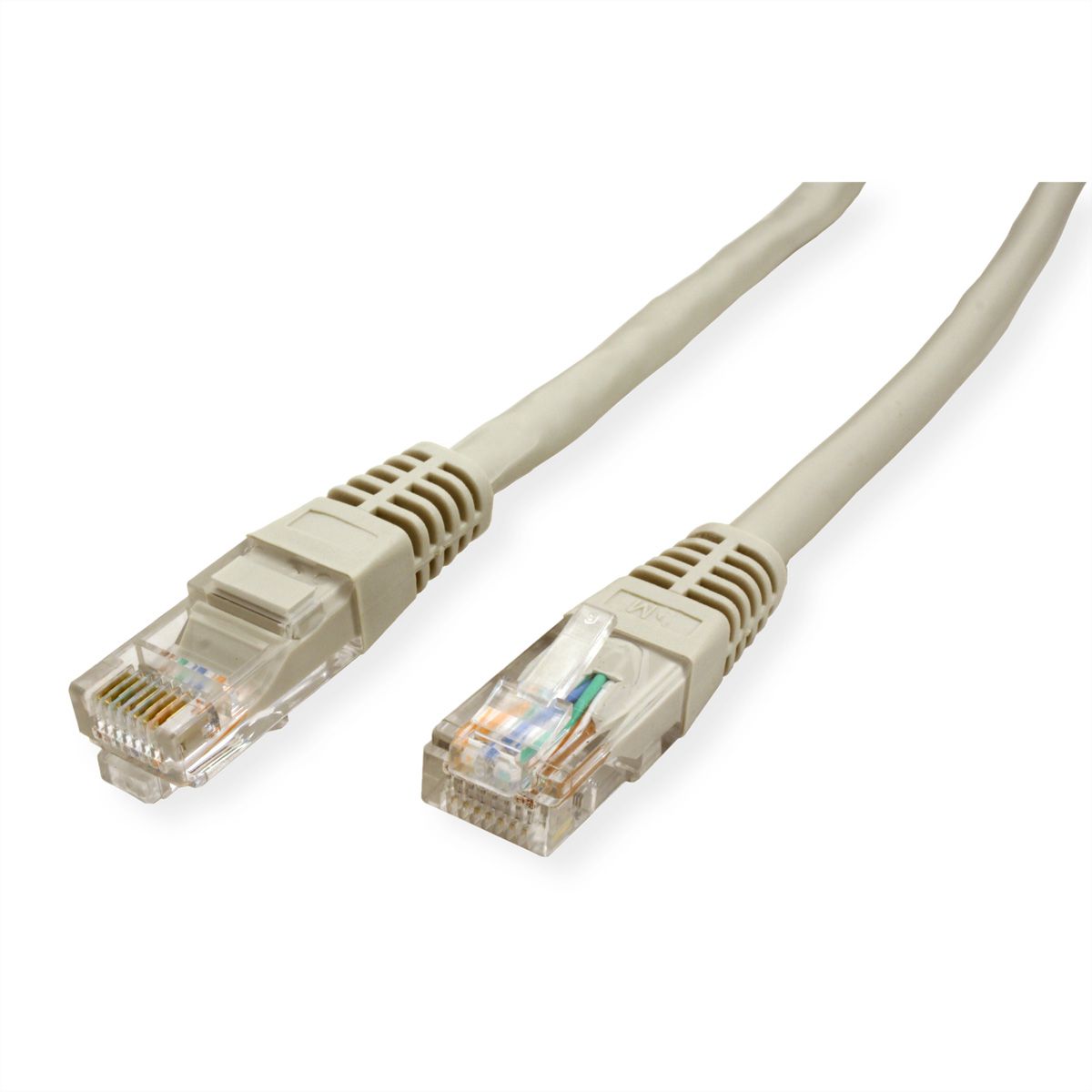

VALUE UTP Patch Cord Cat.5e (Class D), grey, 5 m

Item no. 21.99.0505-70 Brand / Manufacturer VALUE Manuf. no. 21.99.0505 EAN 7611990933211 Package weight 0.18 kg
VALUE
Colour:
Length:

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

Prepared cable with unshielded RJ-45 plug on both ends (without coding) incl. kink protection. Connection cable for structured building cabling. Impedance: 100 Ohm. Contact settings 1:1 in accordance with EIA / TIA 568, 8 lines. Construction: internal line 8 wires

Specifications

Manufacturer
VALUE
Product group
Twisted Pair Cable
Product type
U/UTP patch cord
Colour
grey
Length
5 m
Shield type
U/UTP
Transfer quality
Cat5e / Class D
Impedance
100 Ohm
Quantity of wires
8
Conductor cross section (AWG)
AWG 24
Power over Ethernet (PoE)
no
Inner conductor material
CCA (Copper Clad Aluminum)
Conductor type
Stranded
Crossed
no
Locking lever
no
Anti-kink sleeve
Moulded-on
Colour (Spout)
grey
Cable LSOH
no
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Male
Connector Type RJ45
Standard
Weight
121.6 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.18 kg

Downloads

Product data sheet - English (91.5 KB) Manufacturer data sheet - English (93.6 KB)
