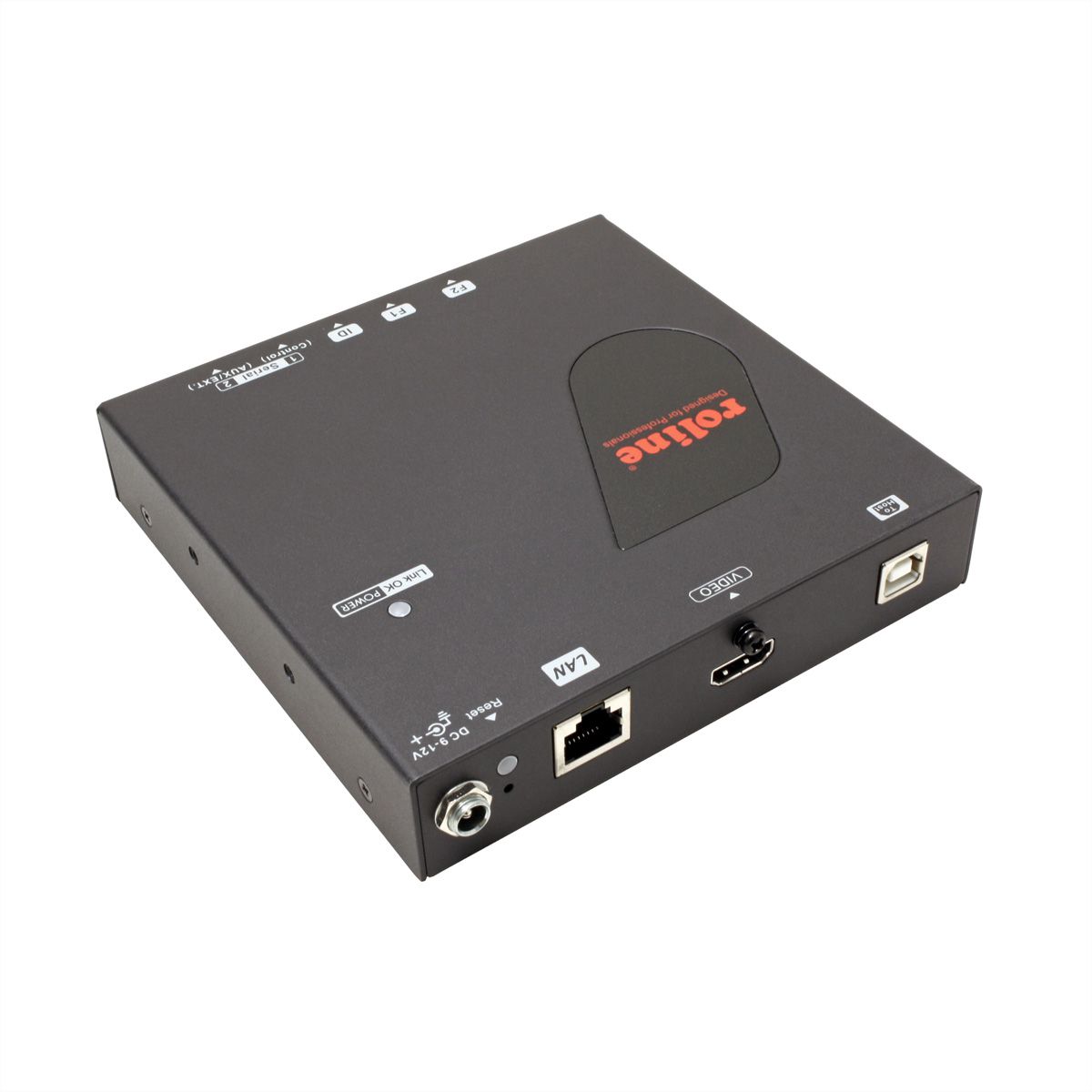

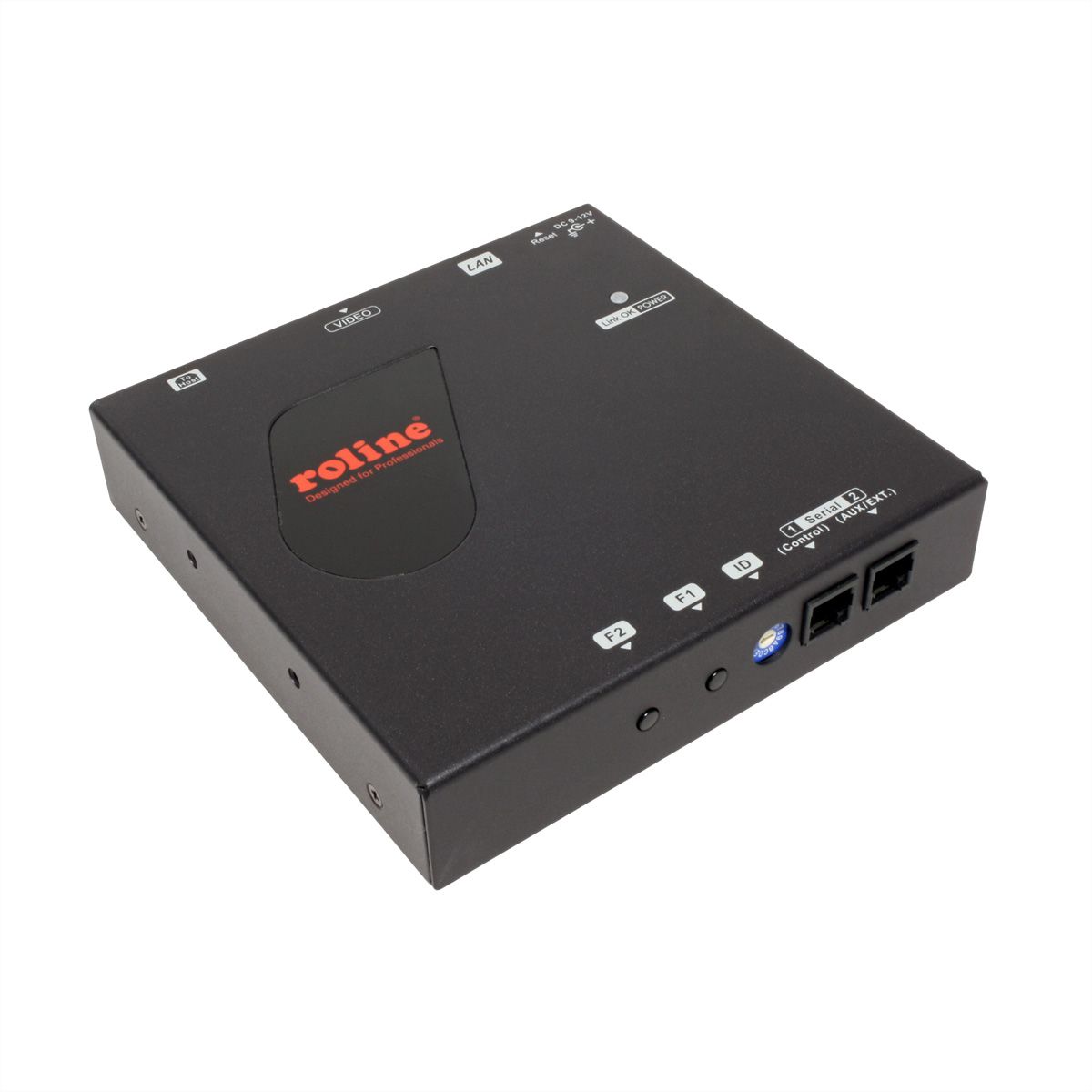

ROLINE KVM Extender over Gigabit Ethernet, HDMI, USB, Transmitter (TX)
| Product No. | 14.01.3042-4 |
|
| Manufacturer | ROLINE | |
| Manufacturer No. | 14.01.3042 | |
| EAN | 7611990918720 | |
| Pieces per Packing Unit | 4 |
Login now to see the prices and your shopping basket or get in contact with us.
Ordered until 3pm - usually dispatched on the same day

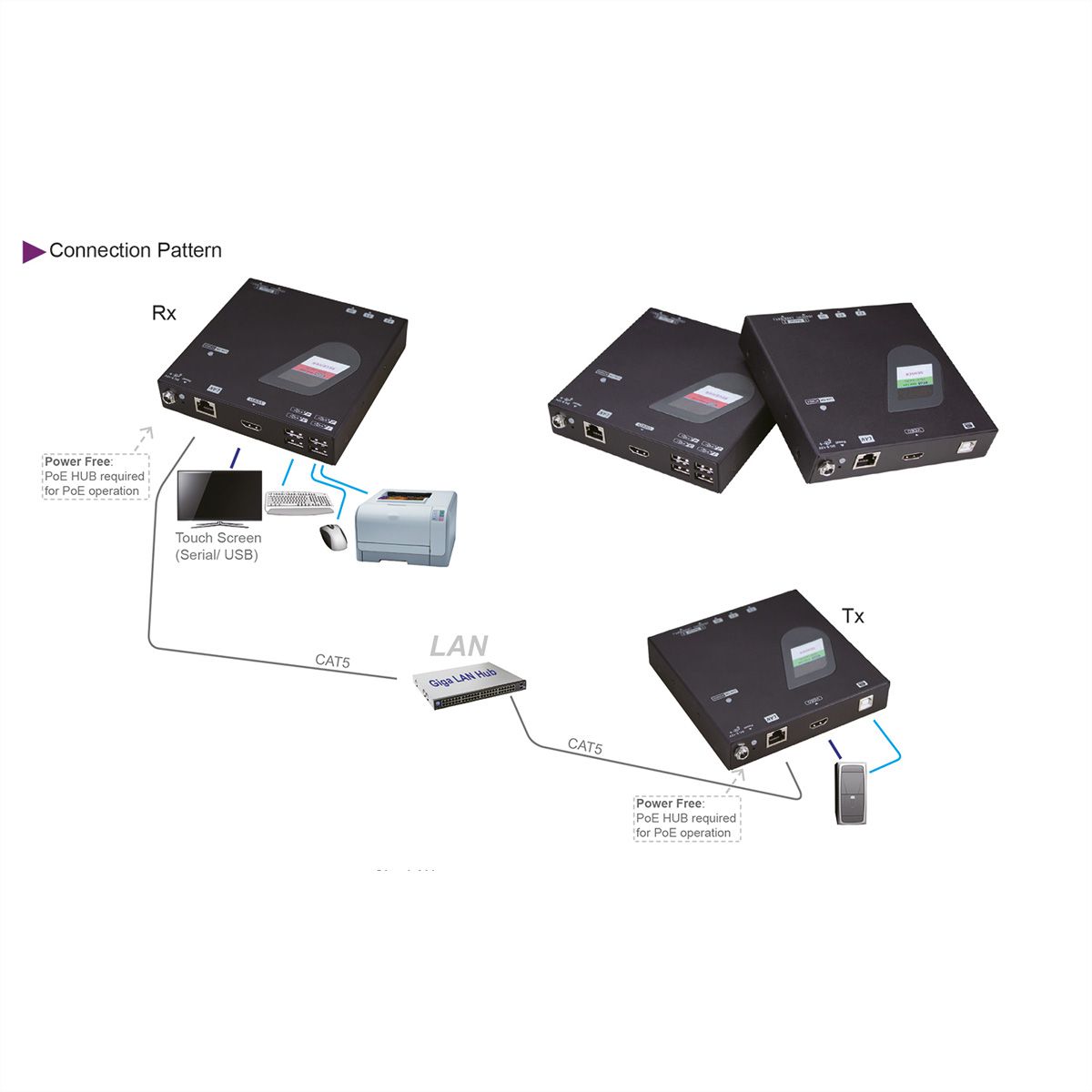

KVM extension over Gigabit Ethernet through Cat.5 connection
- Supports HDMI with high resolution video up to 1920 x 1080 (Full HD)
- Supports USB PC or KVM switch
- Ideal for professional video applications

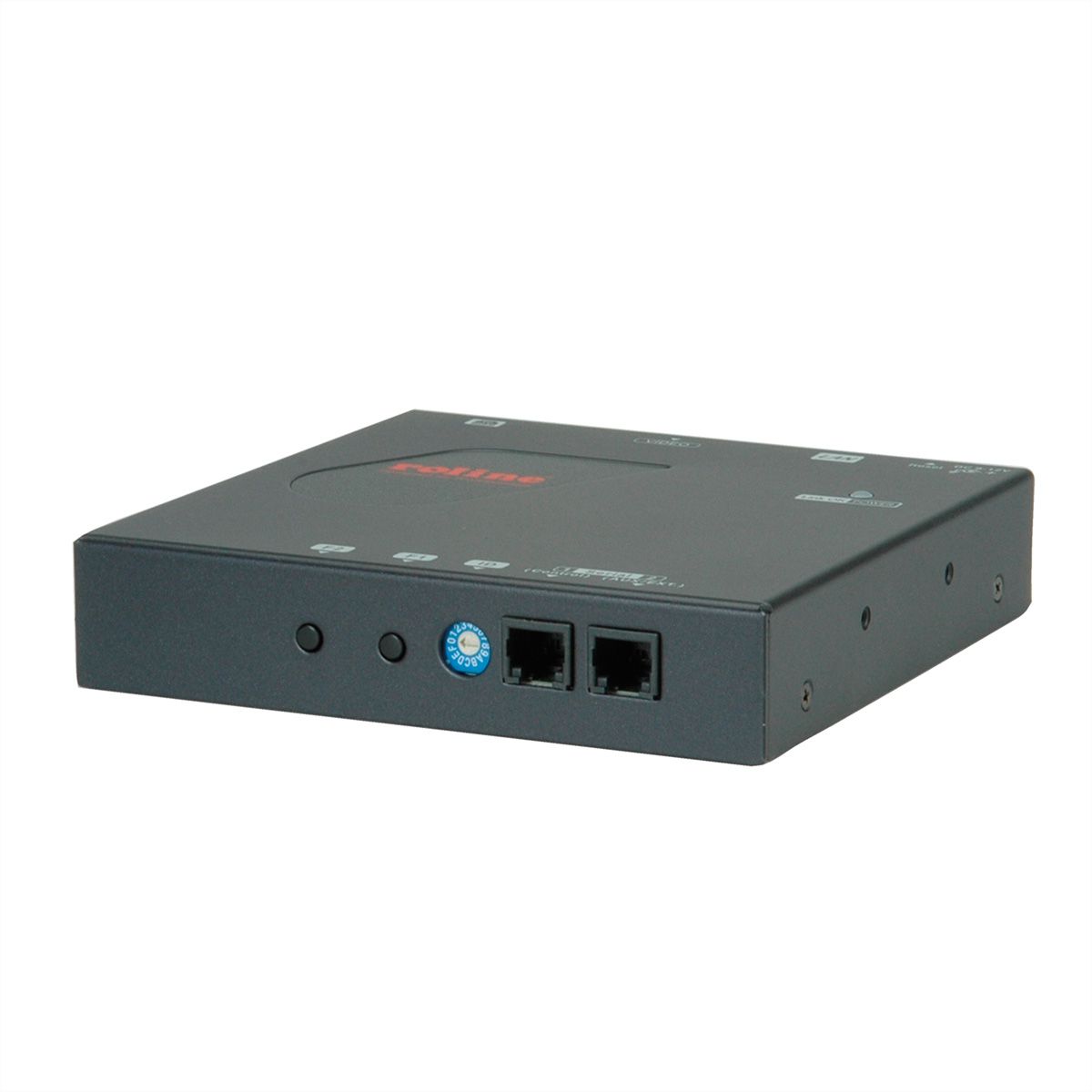

- 8 selections on the DIP rotary switch available for pairing

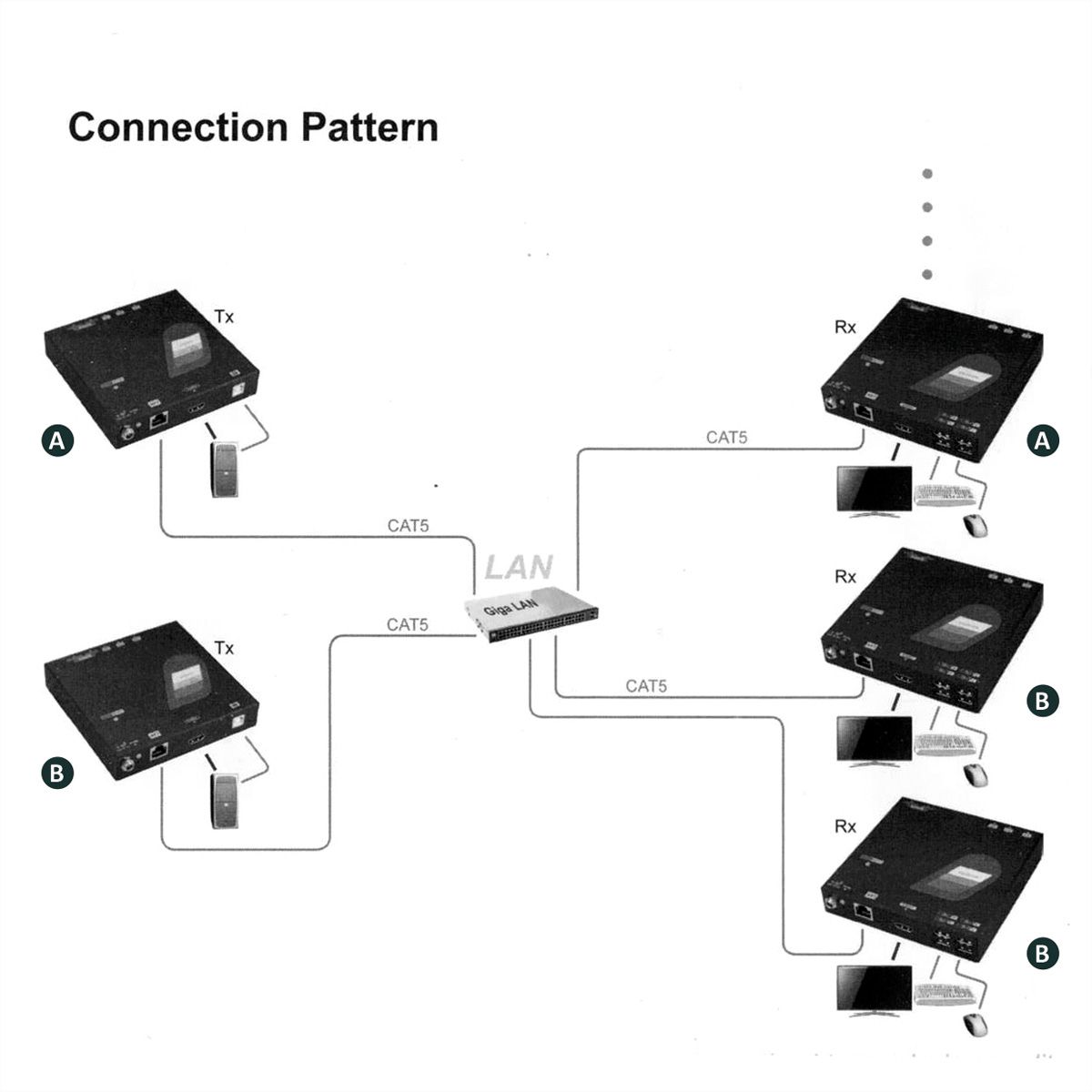

- Up to 4 pairings can be transmitted simultaneously over the Gigabit Ethernet switch (max. 3 stages)
- HDCP-compliant
- No drivers needed or software required
- Stable, metal housing
- Correspondent receiver unit: 14.01.3043
Technical specifications:
- Max resolution (nominal): 1920 x 1080 (Full HD)
- Dimensions: 31 x 131 x 150 mm
- Power supply: 12V DC; 1.5A

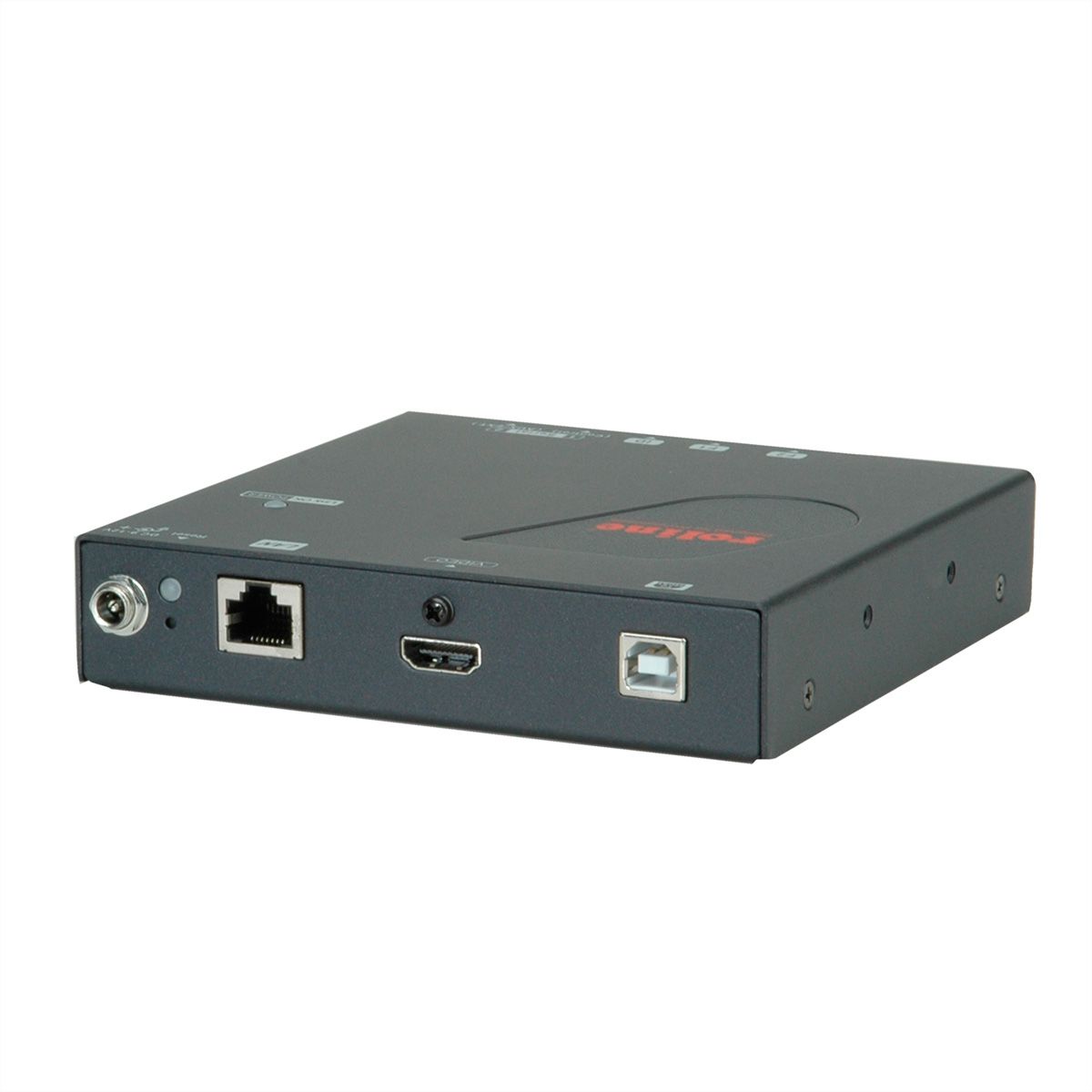

- Connectors: HDMI jack, USB B connector, RJ-45 socket (LAN)
- Transmitter (TX) unit connectors: Monitor: 1x HDMI; 1x USB type B F; 1x RJ45
| Manufacturer | ROLINE |
| Product group | Switch boxes KVM |
| Product type | KVM-Extender, HDMI |
| Colour | black |
| Scope of delivery | Transmitter unit, power adapter, patch cable, CD with manual, Quick Start Guide |
| Dimensions (HxWxD) | 31 x 131 x 150 mm |
| Weight | 600 g |
| Power supply output | DC 12V; 1,5A |
| Accessories: rechargeable battery optional | not applicable |
| Accessories: Rechargeable battery/battery required | not applicable |
