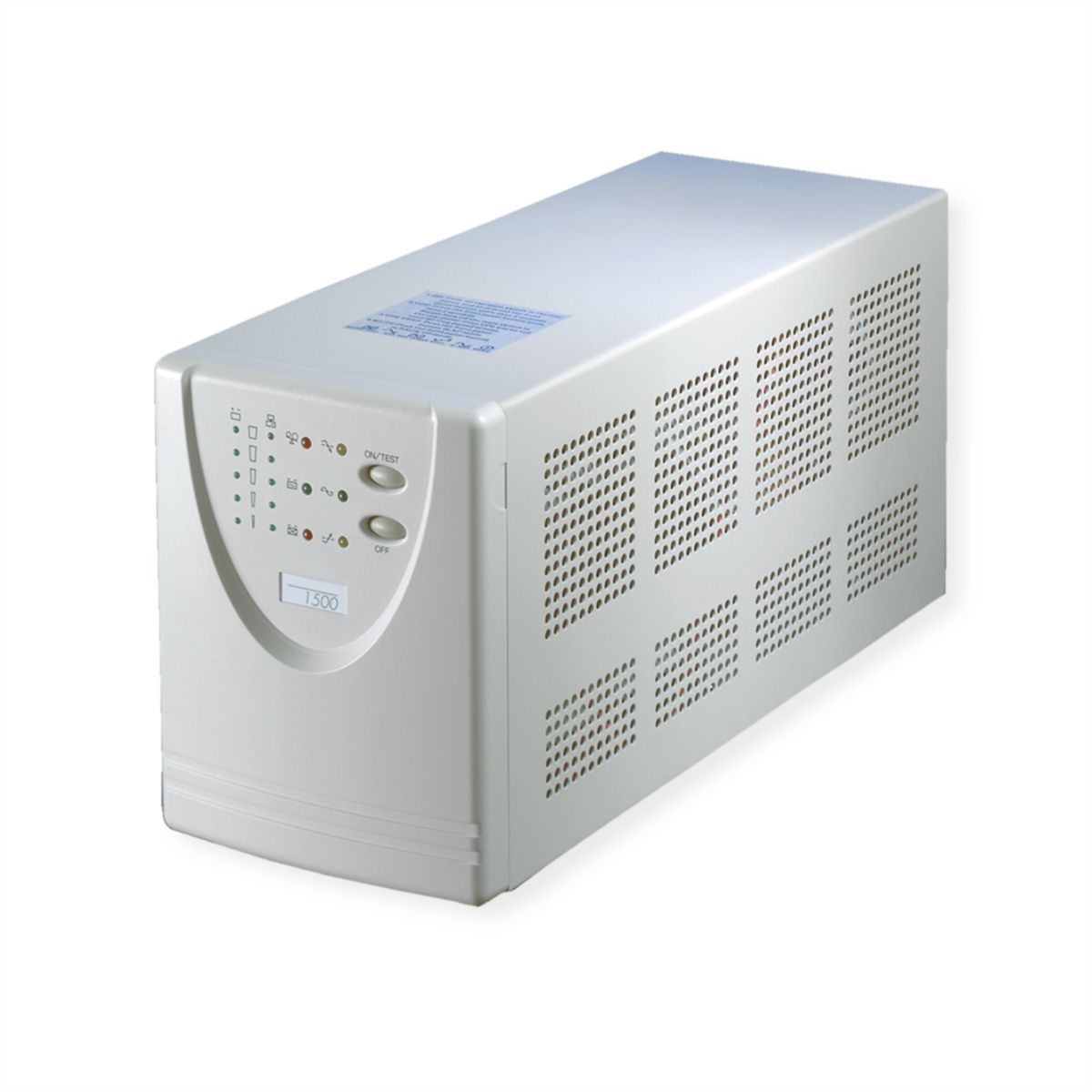

ROLINE LineSecure1500 - SECOMP International AG
ROLINE LineSecure1500 ROLINE LineSecure1500

ROLINE LineSecure1500

Product No. 19.40.1115
Brand / Manufacturer ROLINE
Manufacturer No. 19.40.1115
EAN 7611990154951
Package weight 22.877 kg
Output (VA/W)
Ordered until 3pm - usually dispatched on the same day

LineSecure UPS's work with the "buck & boost" line interactive technology; used when reliable protection against strong voltage fluctuations is essential. Protect against: power failure, power sag, power surge, under voltage, over voltage.

Product features:

  • Compact, quiet, user-friendly
  • Desktop and 19" RM models
  • Short circuit and overload protection
  • AVR (Automatic Voltage Regulation)
  • ABM (Automatic Battery Management) increases battery life up to 50%
  • Telephone/Modem connections
  • Shutdown software including License for 1 server
  • Serial Port for advanced Power Management Software (incl, in content of delivery)
  • UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,
MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX

  • Content: UPS, Cable set, Software CD

Manufacturer ROLINE
Product group UPS
Product type UPS Line Interactive
Colour grey
Scope of delivery UPS, Software, Cable Set
Classification (IEC 62040-3) VI-SS-333
UPS technology Line Interactive
Power class 1000 ... 1900 VA
Output (VA/W) 1500 /960
Efficiency 95 %
Backup time 3 min
Backup time full/half-load 3 / 6 min
Dimensions (HxWxD) 226 x 170 x 450 mm
Mounting form Tower
Voltage (input) 230V +- 15%
Voltage (output) 230V
Frequency 50Hz
Connector type (input) cold connector IEC320 C14
Outputs 6
Connector type (output) 4x cold connector IEC320 C13
Phase in/output 230V/230V / 50Hz
Over current protection EMI,- RFI-Filter
Max. quantity of delay expansion units 0
Delay expansion unit --
Slots for adapter card 0
Slot for adapter card --
Acoustic level 40dBA
Interface RS232
RS-232 Interface Yes
Hot swap batteries No
Bypass No
Additional over current protector Telephone/Fax
Activity LED
Activity LED 8 LED
Activity Display --
incl.Management Software Windows
Internal cooling Active, fan
Ambient temperature 0-40°C
Operating temperature min. 0 °C
Operating temperature max. 40 °C
Height 226 mm
Width 170 mm
Depth 450 mm
Weight 6.9 kg
Height of packaging (single piece) 350 mm
Width of packaging (single piece) 300 mm
Depth of packaging (single piece) 550 mm
Package weight (single piece) 22.877 kg
Product data sheet - English (PDF)
User manual - ROLINE LineSecure - Deutsch / English / Français / Italiano (PDF)

The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year guarantee we stand for our performance promise.
ROLINE quality makes the difference.
