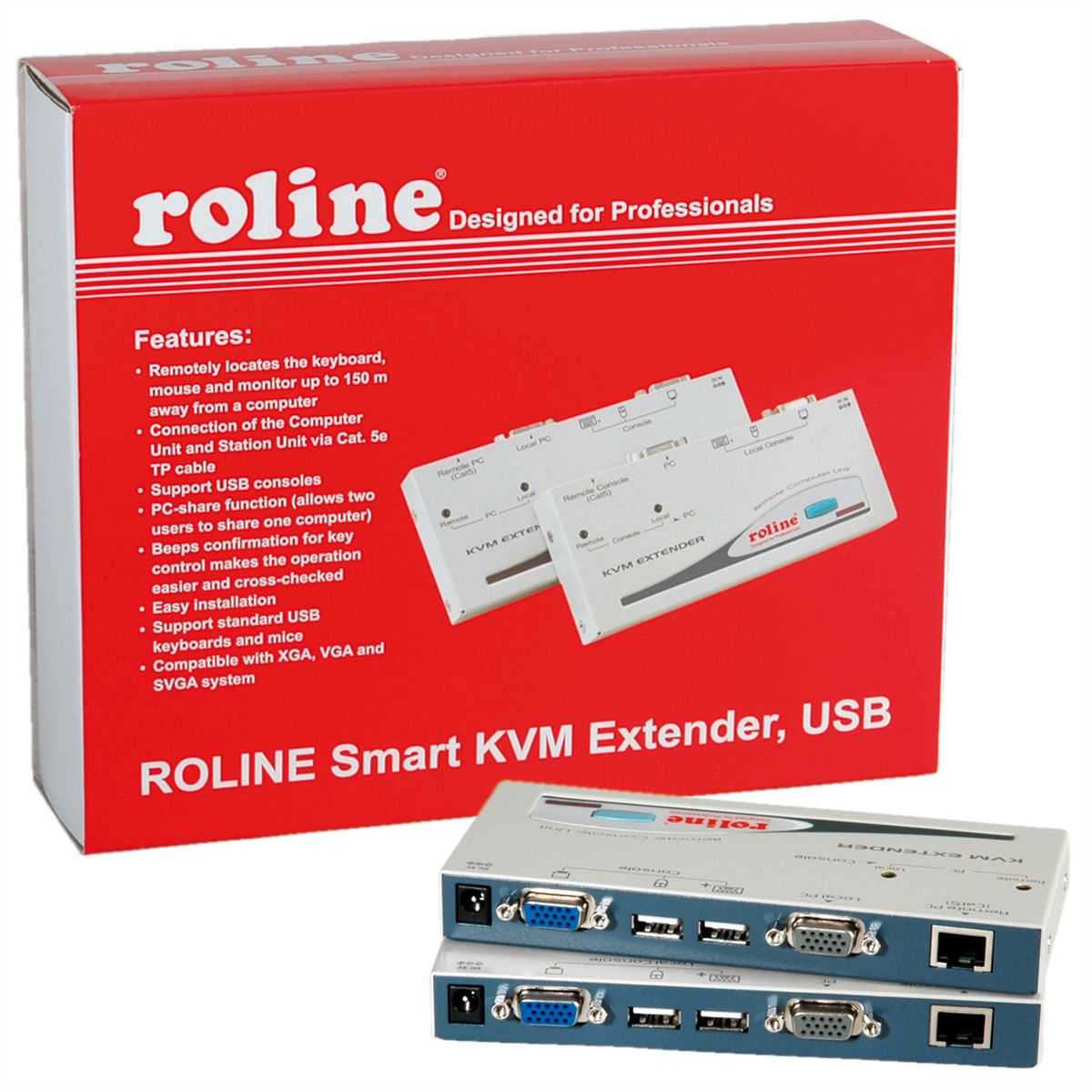

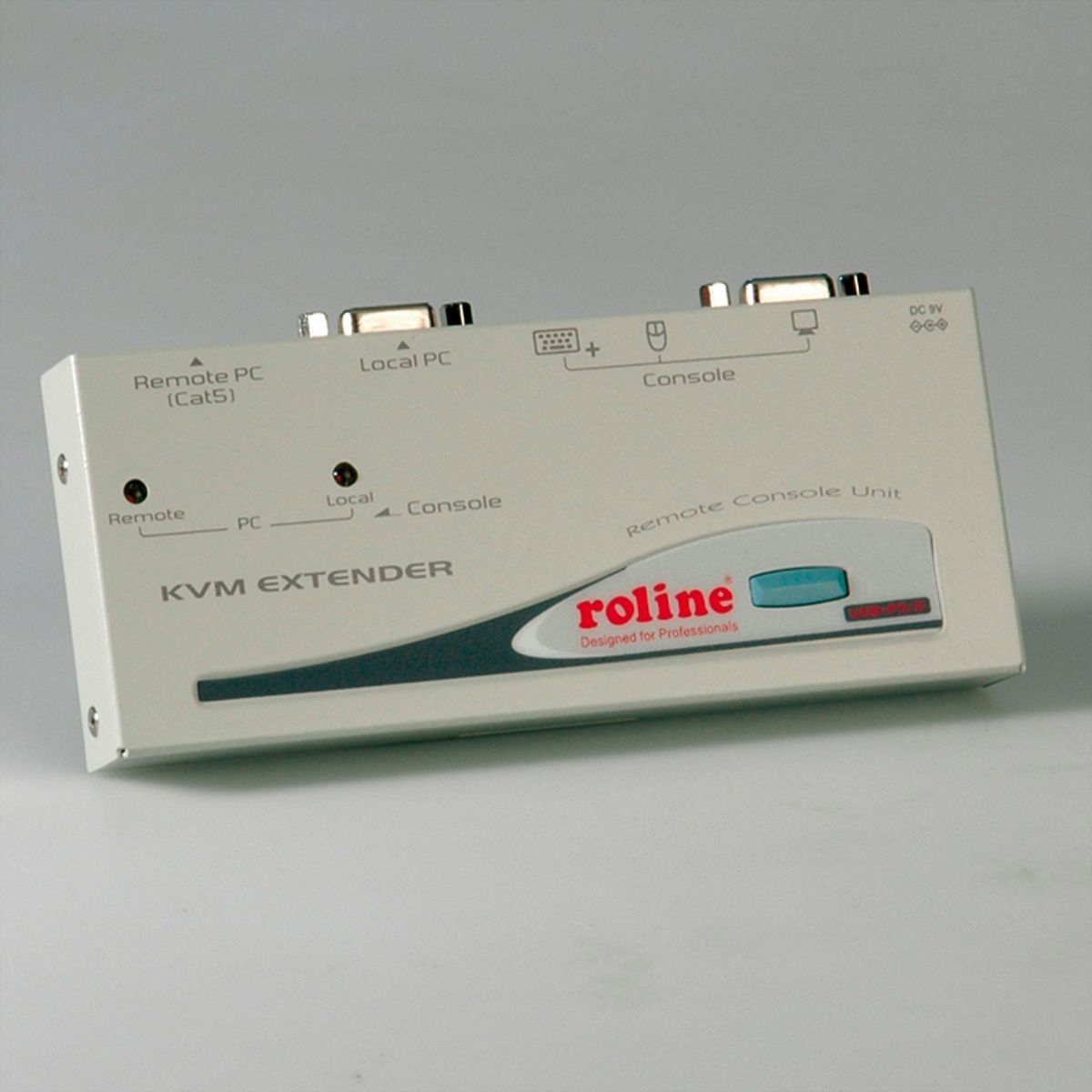

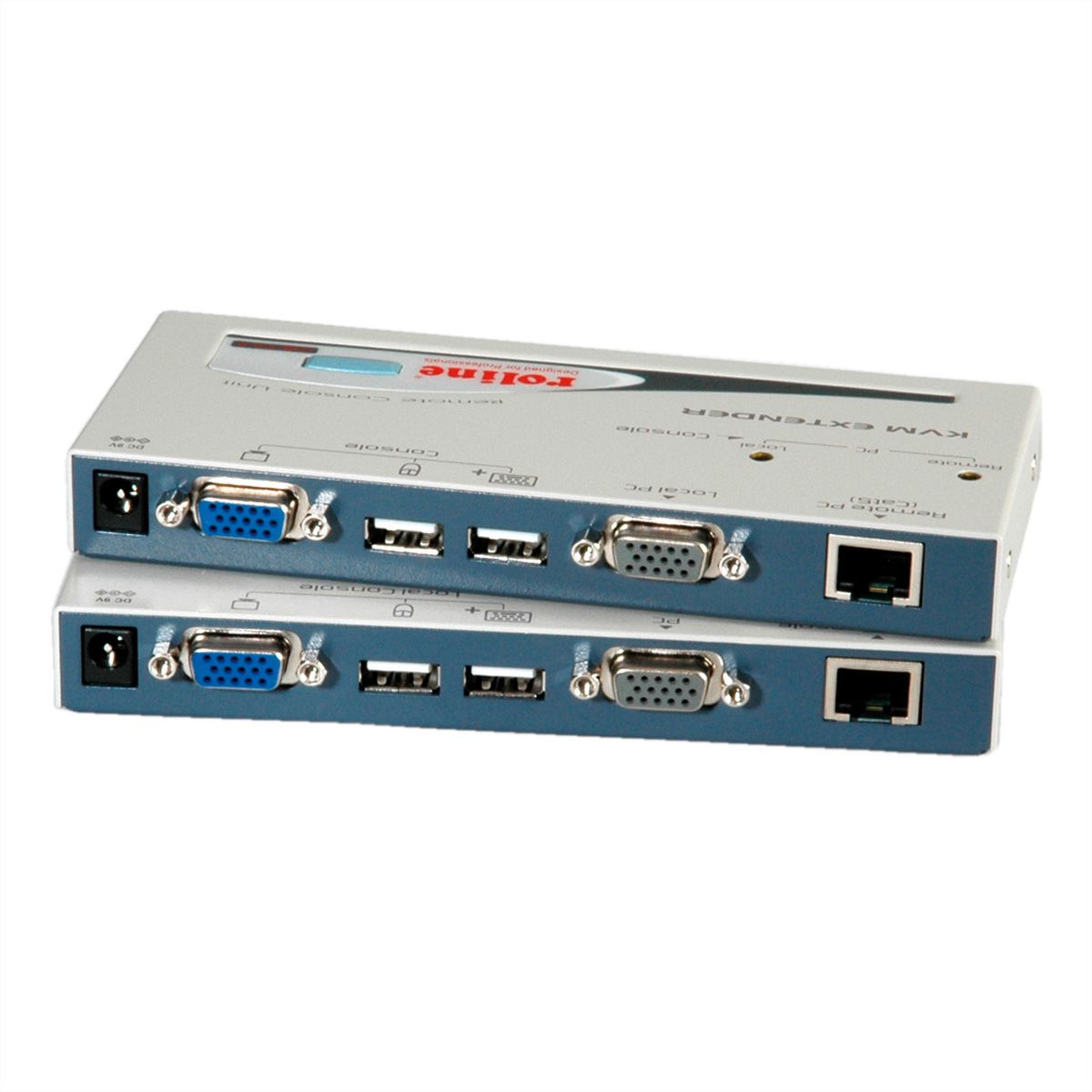

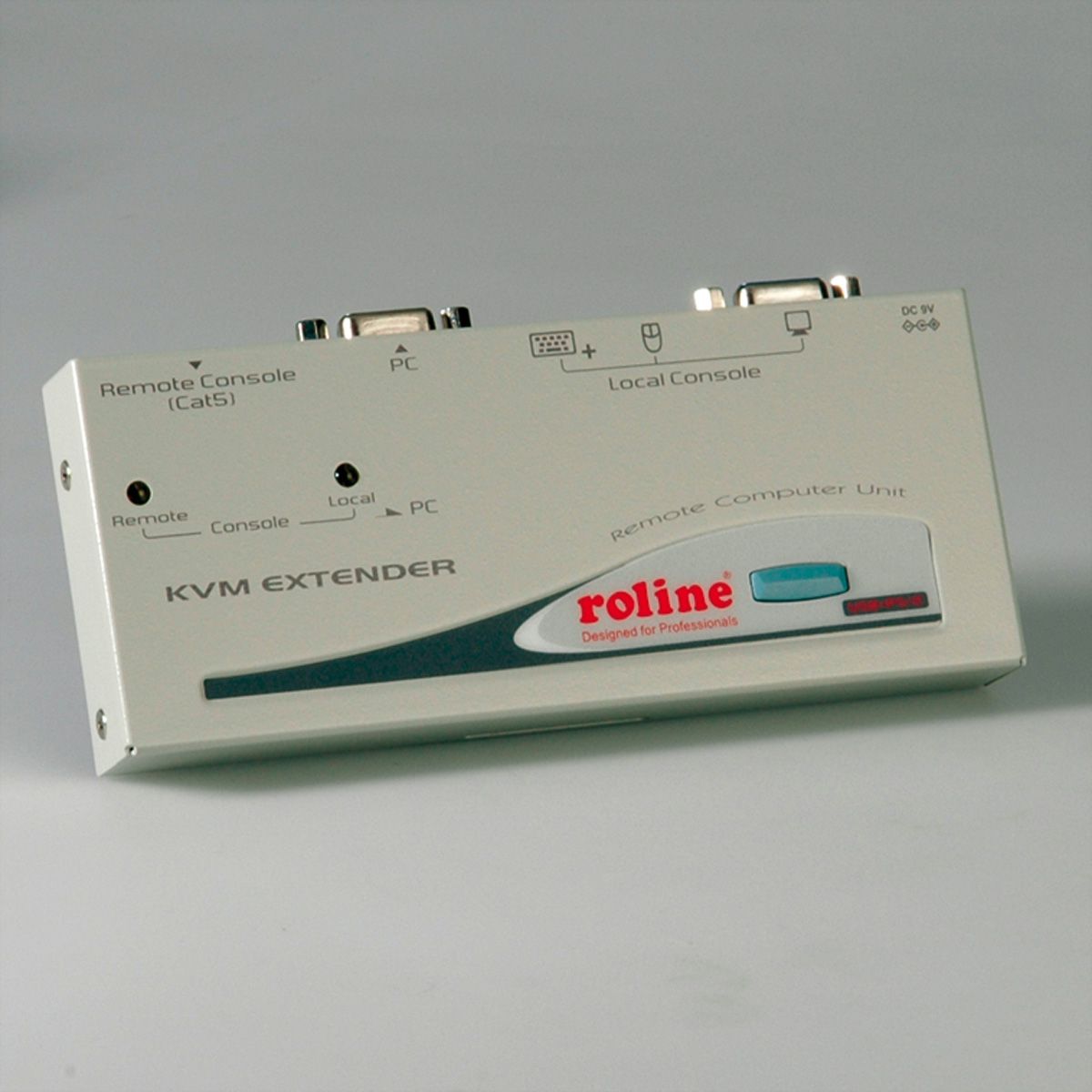

ROLINE Smart KVM Extender, USB
| Product No. | 14.01.3249-6 |
|
| Manufacturer | ROLINE | |
| Manufacturer No. | 14.01.3249 | |
| EAN | 7611990980024 | |
| Pieces per Packing Unit | 6 |
Login now to see the prices and your shopping basket or get in contact with us.
Ordered until 3pm - usually dispatched on the same day
Smart combination of KVM Extender (up to 150 m), KVM Switch and PC Share
- Remotely locates the keyboard, mouse and monitor up to 150 m away from a computer
- Connection of the Computer Unit and Station Unit via Cat. 5e TP cable
- Supports USB consoles
- Video compensation can be adjusted by hot key to ensure the optimum signal quality for any length of cable within the limit
- Locates the computer away from your desk and work area, saving you valuable space
- Allows two users to share one computer both in local and remote areas
- Beeps confirmation for key control makes the operation easier and cross-checked
- Easy installation
- Supports standard USB keyboards and mice
- Compatible with XGA, VGA and SVGA system

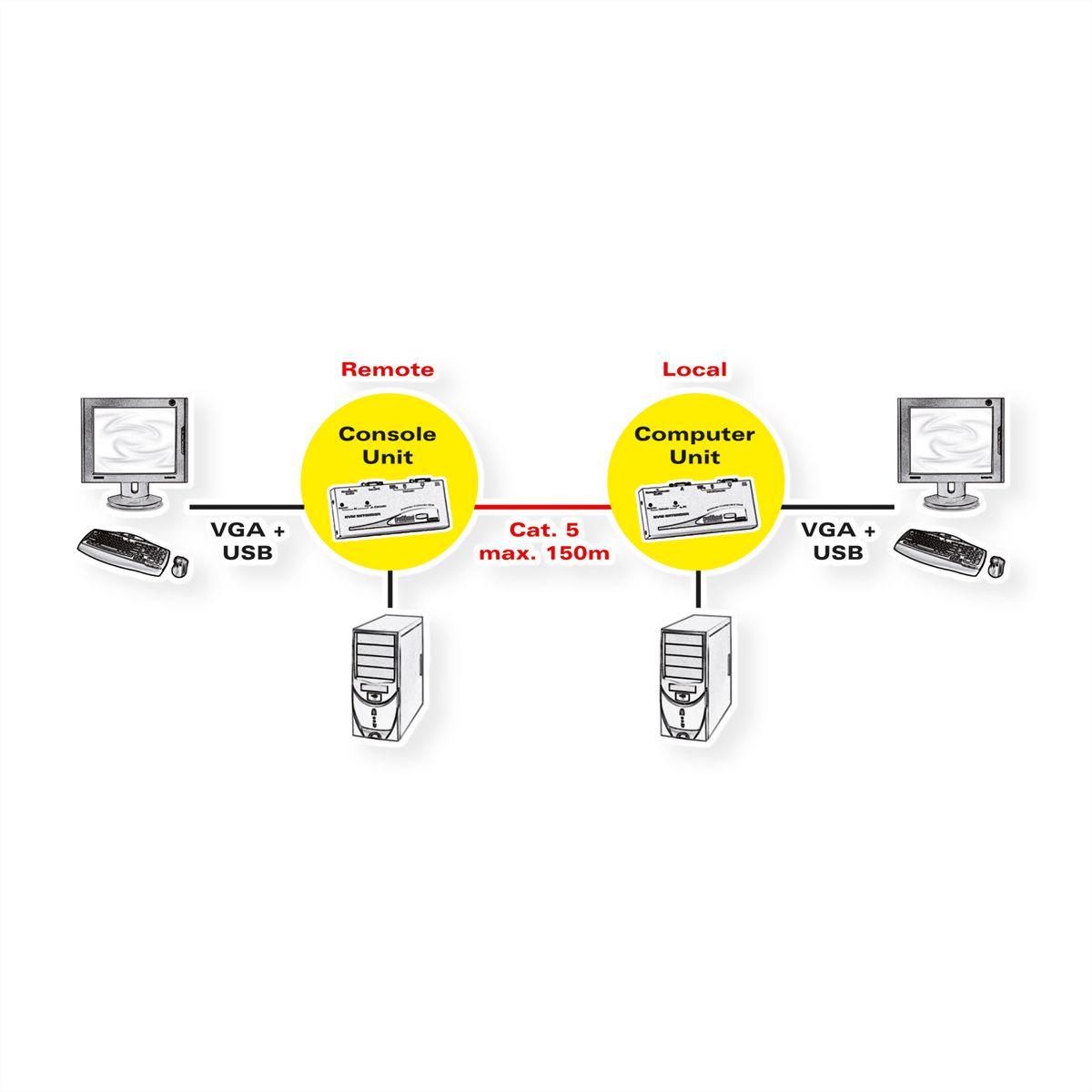

Example of use:
ROLINE KVM extension for remote operation of a workplace
The system provides a local, and a remote unit to connect another console. This can be operated via a Cat5 cable with remote VGA and USB control unit.
Up to 150 m away from the PC, the console can be placed in convenient access while the PC is installed themselves in a safe environment.
| Manufacturer | ROLINE |
| Product group | KVM (IP) extensions |
| Product type | KVM-Extender, VGA |
| Colour | grey |
| Scope of delivery | Local unit with power supply unit, remote unit, manual |
| Supported PC-Systems | USB |
| PC/Switch: monitor connection | 1x HD15 F |
| PC/Switch: mouse/keyboard connection | 2x USB |
| PC/Switch: connection on moulded cables | No |
| Local Console connection | Yes |
| Remote Console: Monitor connection | 1x HD15 F |
| Remote Console: Mouse/Keyboard connection | 2x USB |
| Remote console: Cable connector type | No |
| Network connection | RJ45 |
| Max. distance local-remote unit | up to 150 m |
| Max. resolution (nominal) | 1024 x 768 |
| Colour (Design profile) | beige |
| Material (casing) | metal |
| Dimensions (HxWxD) | each 20 x 156 x 65 mm |
| Power supply unit required | Partially |
| Power supply output | 9V DC, 600mA |
| Technical particularity | Smart combination of KVM Extender (up to 150m), KVM Switch and PC Share |
| Accessories: rechargeable battery optional | not applicable |
| Accessories: Rechargeable battery/battery required | not applicable |
