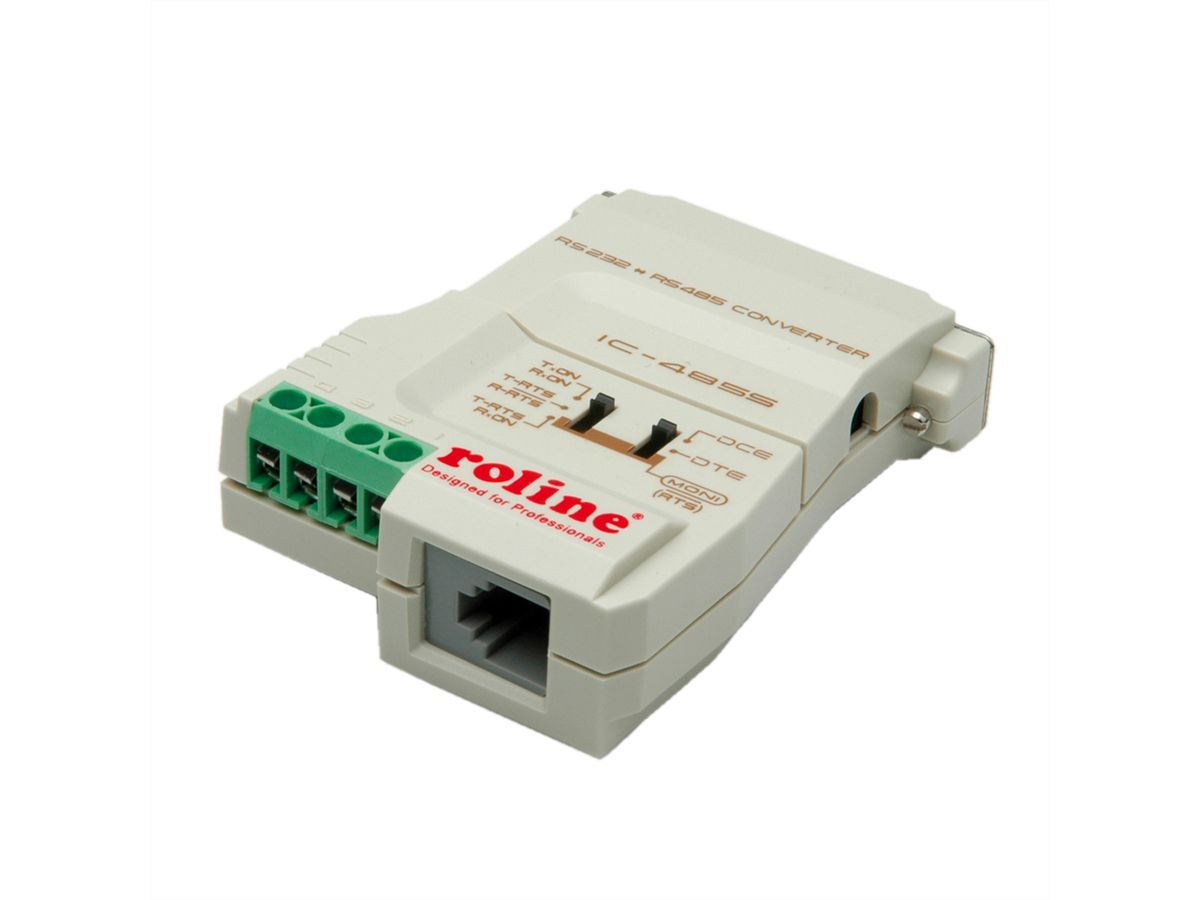

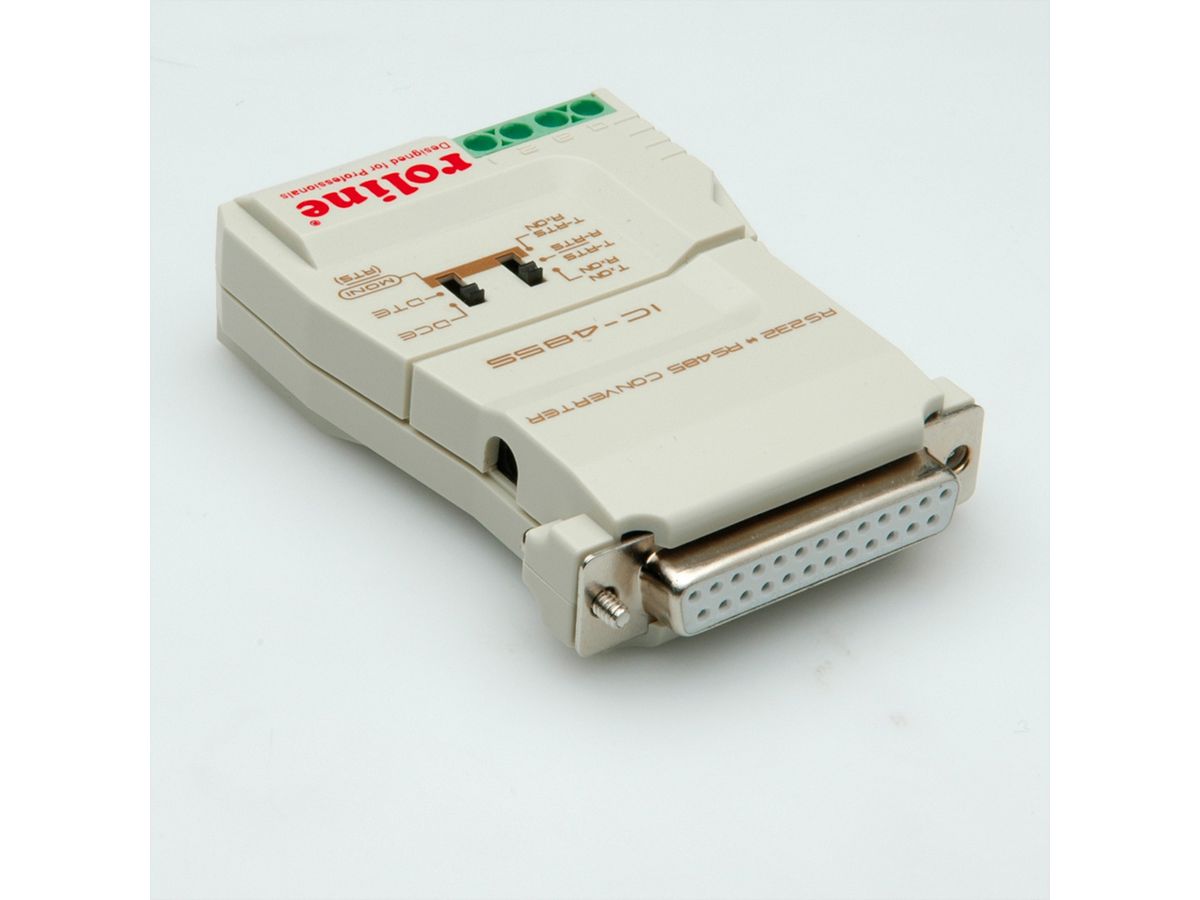

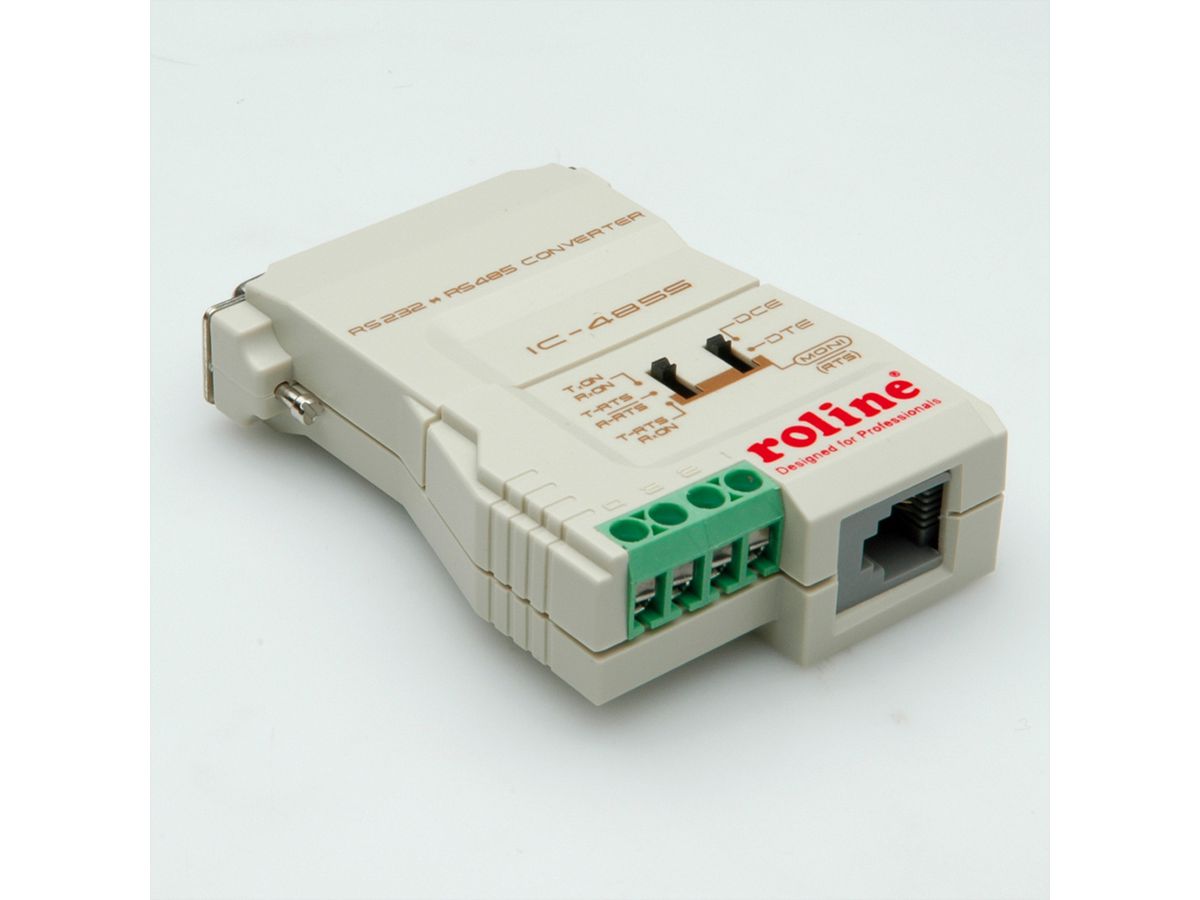

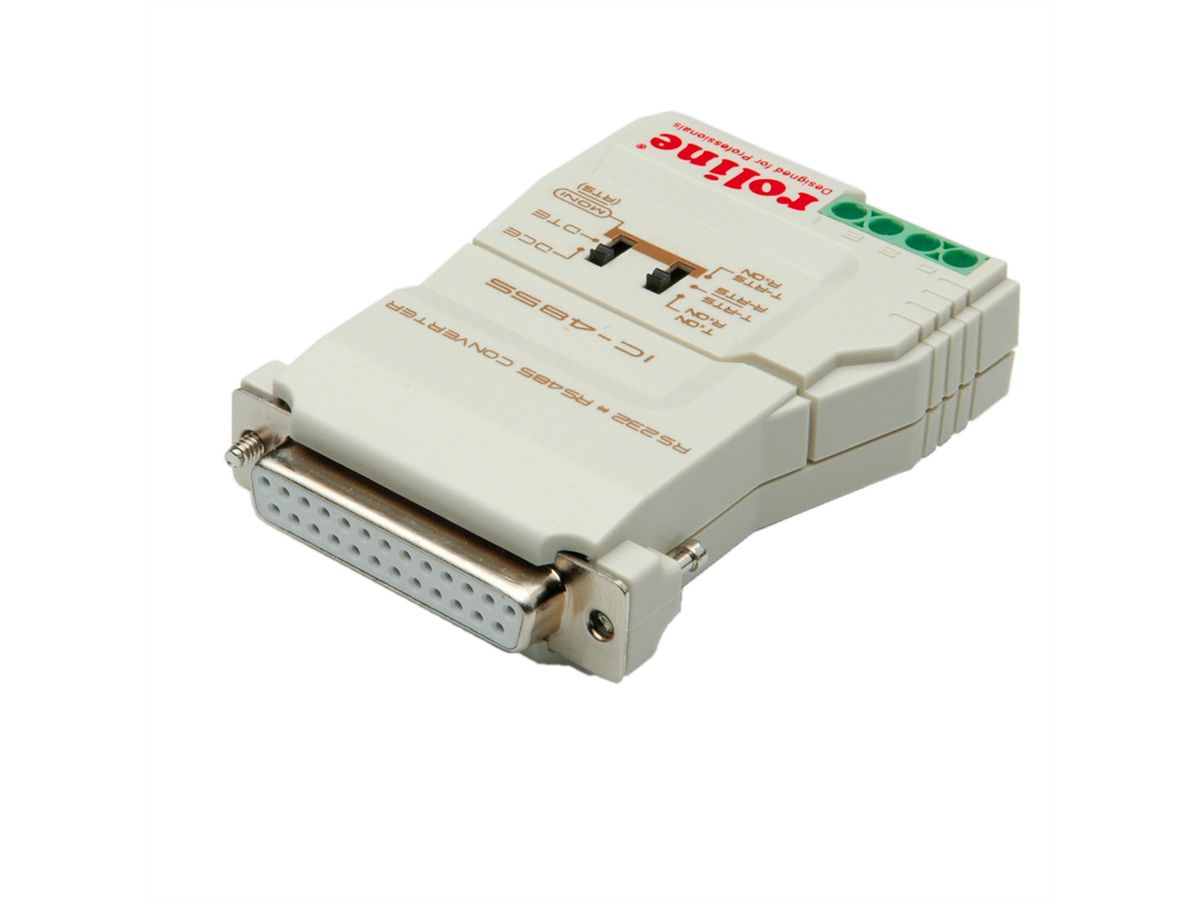

Converter RS232-RS485, without Galvanic Isolation

Converter RS232-RS485, without Galvanic Isolation

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1028-20
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1028
EAN 7611990917167
Package weight 0.37 kg

Description

  • DCE/DTE adjustable
  • Full duplex transfer over 4 lines
  • Only the data lines are converted
  • 25 pin socket on the RS232 side
  • Power supply via mains adapter
  • Robust plastic casing

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Serial interface converter
Colour grey
Scope of delivery converter, power cupply unit (9V DC, 300mA), manual
Side 1 connection (PC) Terminal Block 4 pin
Side 2 connection (Peripherals) DB25 Female
Side 1 Connector Type Terminal block
Side 1 Connector Gender Female
Side 2 Connector Type D-Sub 25-pin (DB-25)
Side 2 Connector Gender Female

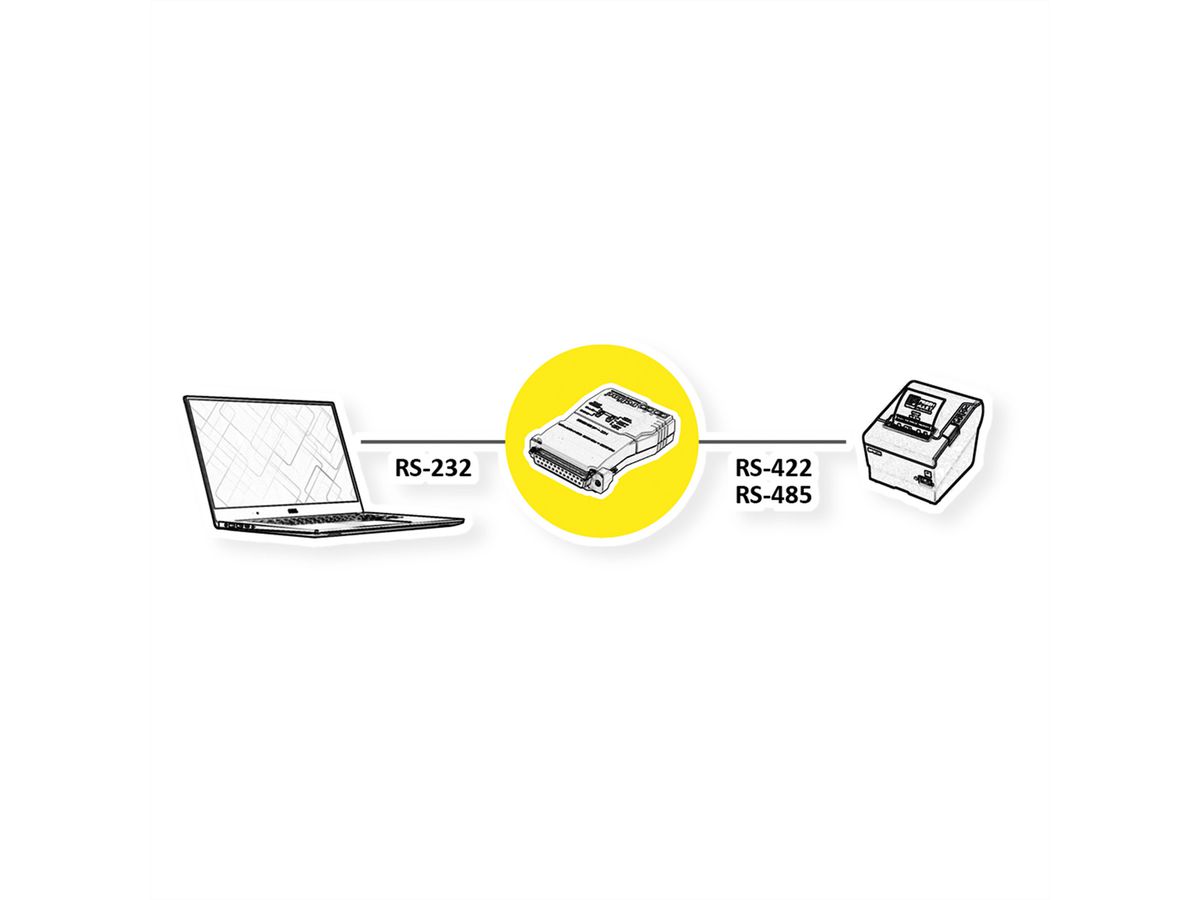

Conversion direction RS232, RS485
Area of application External
Dimensions (HxWxD) 19 x 75 x 54 mm
Technical particularity without galvanic isolation
Height 19 mm
Width 75 mm
Depth 54 mm
Weight 47.2 g
Height of packaging (single piece) 240 mm
Width of packaging (single piece) 60 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.37 kg

Downloads

Product data sheet - English (42.6 KB)

Download

Manufacturer data sheet - English (323.0 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
