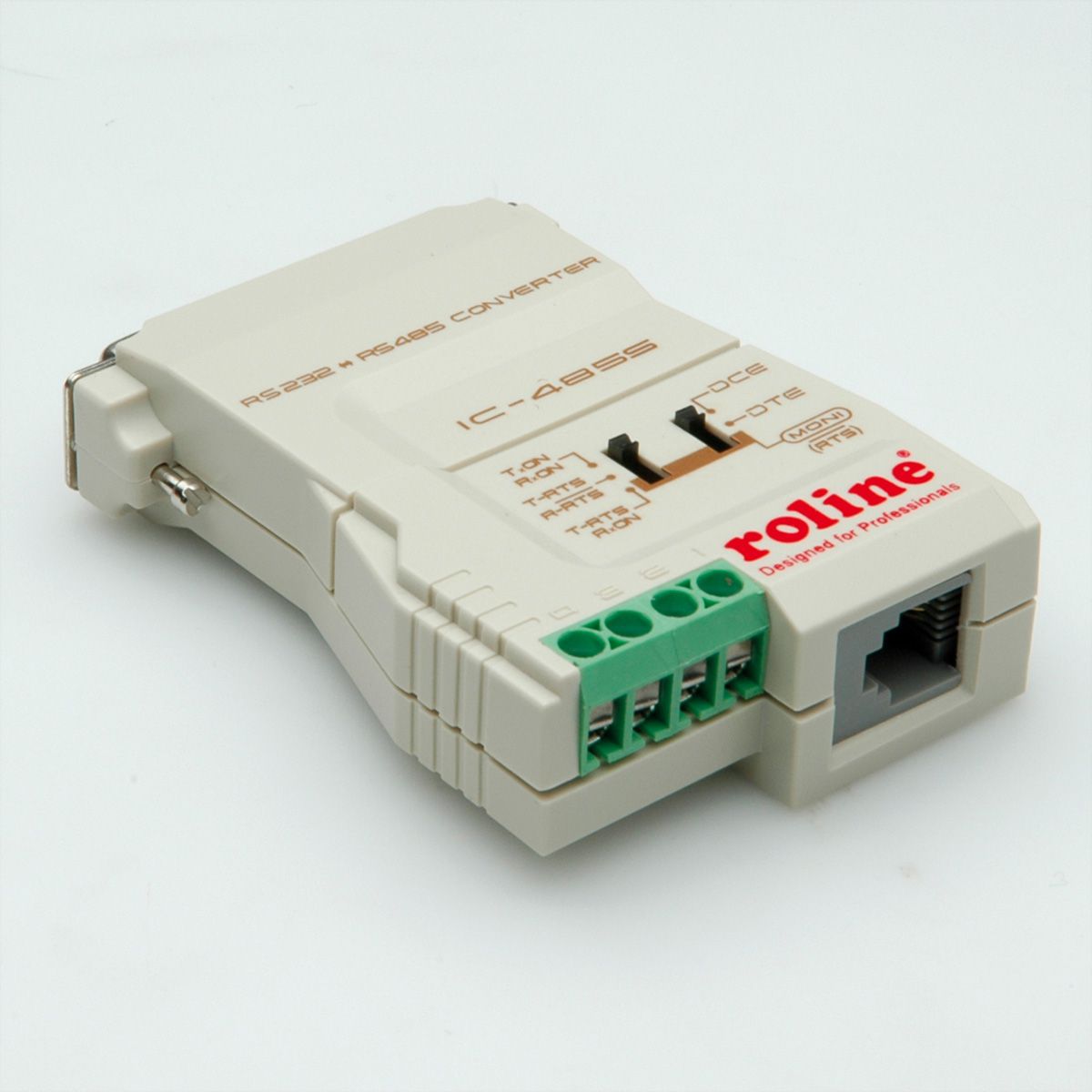

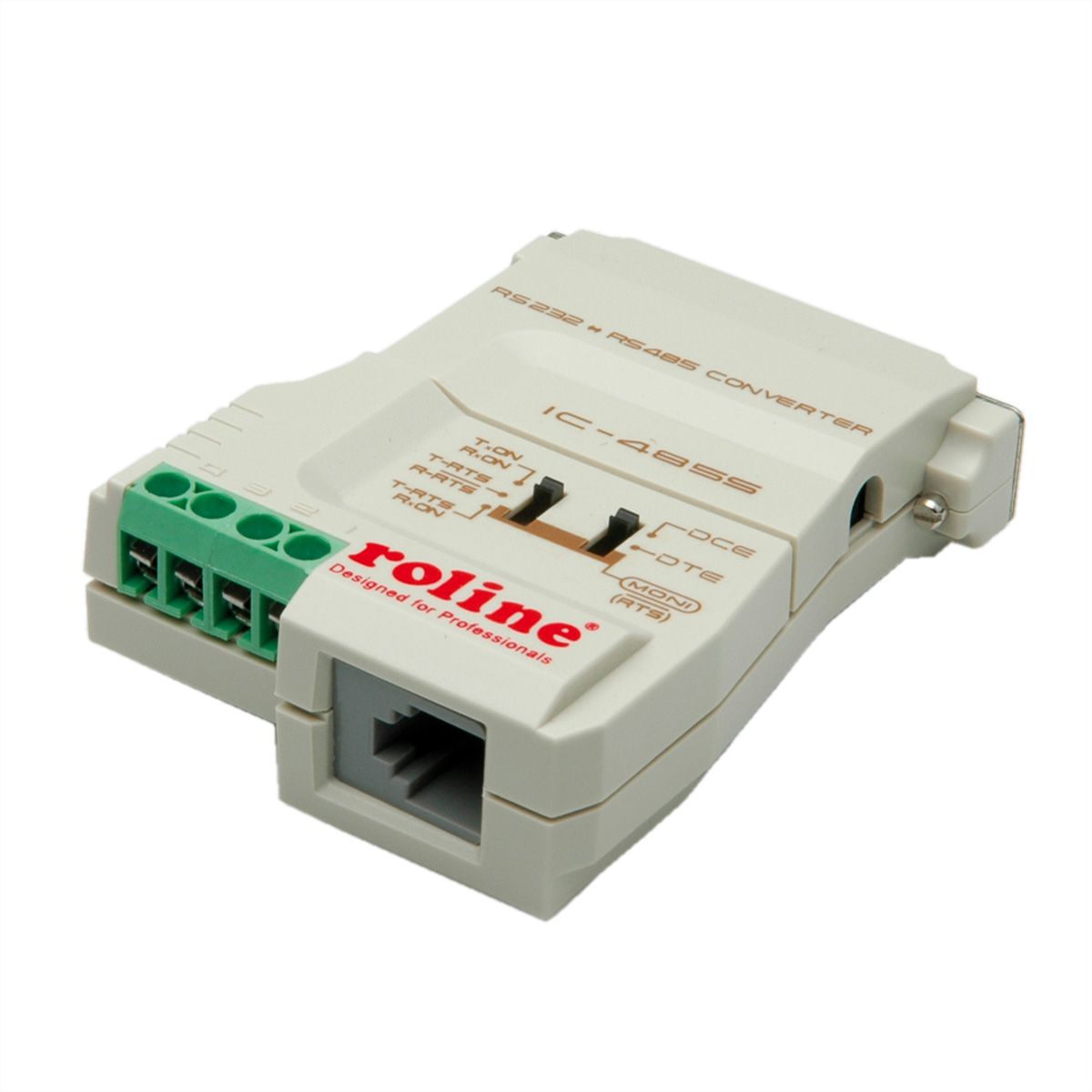

Converter RS232-RS485, without Galvanic Isolation

Item no. 12.02.1028-20 Brand / Manufacturer ROLINE Manuf. no. 12.02.1028 EAN 7611990917167 Package weight 0.37 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 01/08/2027
Download PDF

Description

  • DCE/DTE adjustable
  • Full duplex transfer over 4 lines
  • Only the data lines are converted

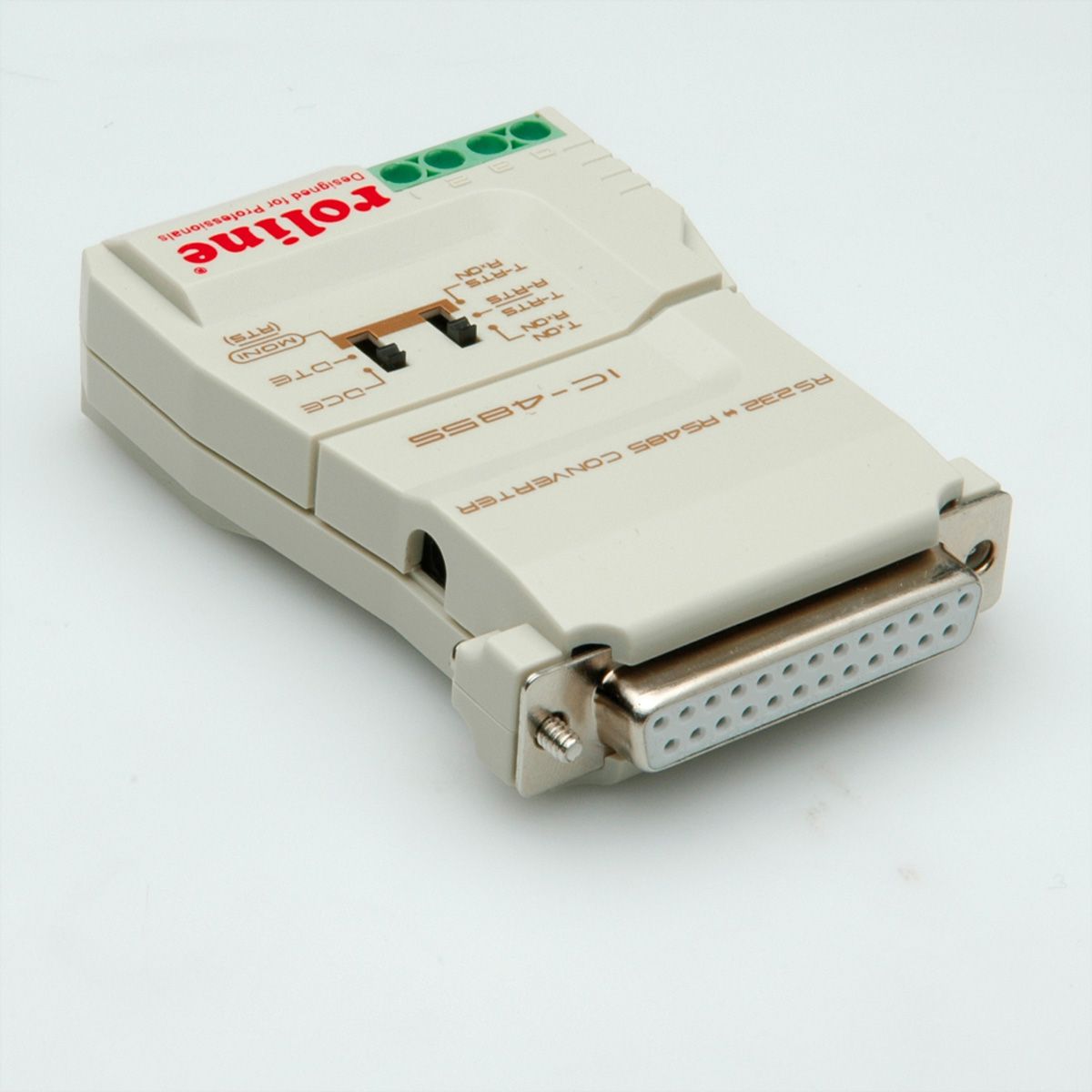

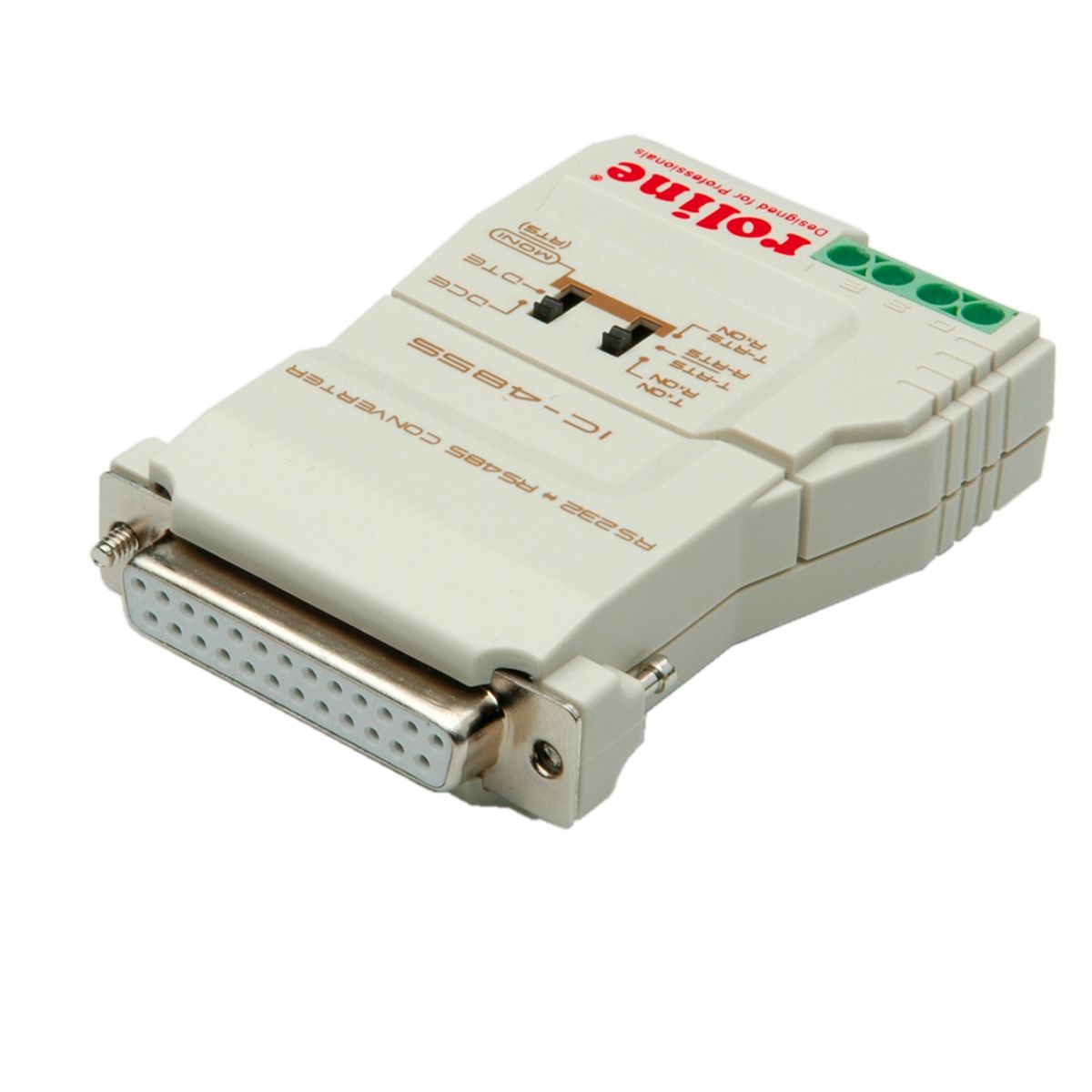

  • 25 pin socket on the RS232 side
  • Power supply via mains adapter
  • Robust plastic casing

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
Serial interface converter
Colour
grey
Scope of delivery
converter, power cupply unit (9V DC, 300mA), manual
Side 1 connection (PC)
Terminal Block 4 pin
Side 2 connection (Peripherals)
DB25 Female
Side 1 Connector Type
Terminal block
Side 1 Connector Gender
Female
Side 2 Connector Type
D-Sub 25-pin (DB-25)
Side 2 Connector Gender
Female

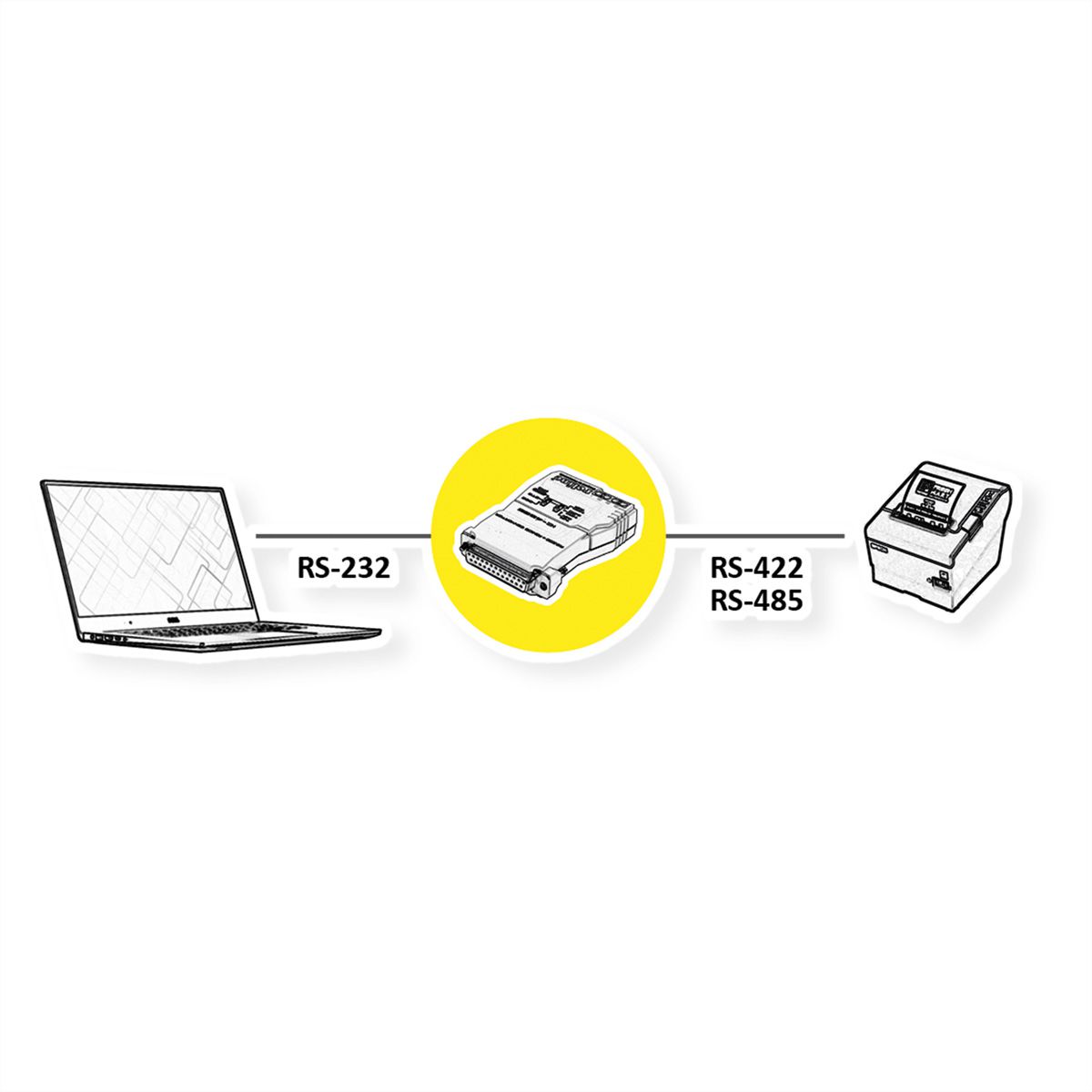

Conversion direction
RS232, RS485
Area of application
External
Dimensions (HxWxD)
19 x 75 x 54 mm
Technical particularity
without galvanic isolation
Height
19 mm
Width
75 mm
Depth
54 mm
Weight
47.2 g
Height of packaging (single piece)
240 mm
Width of packaging (single piece)
60 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.37 kg
