Description

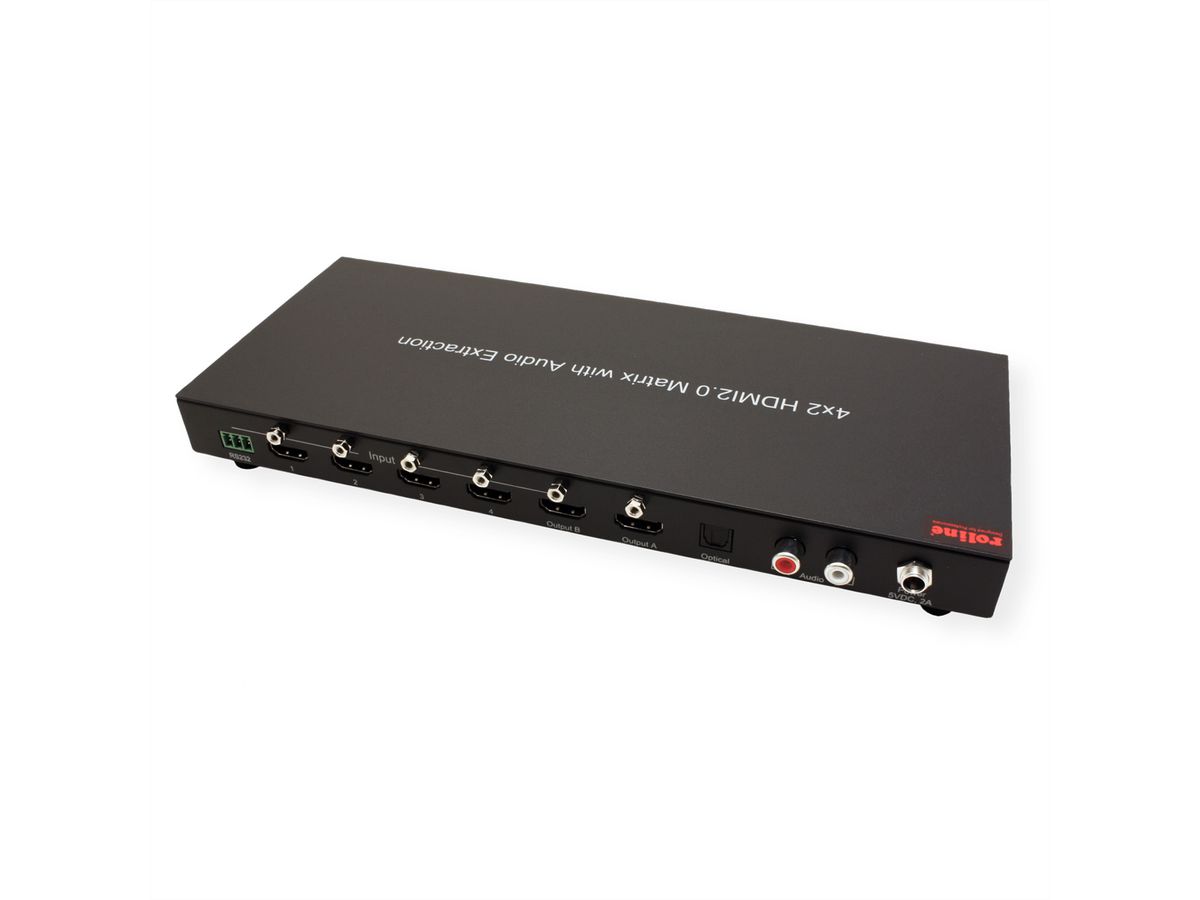

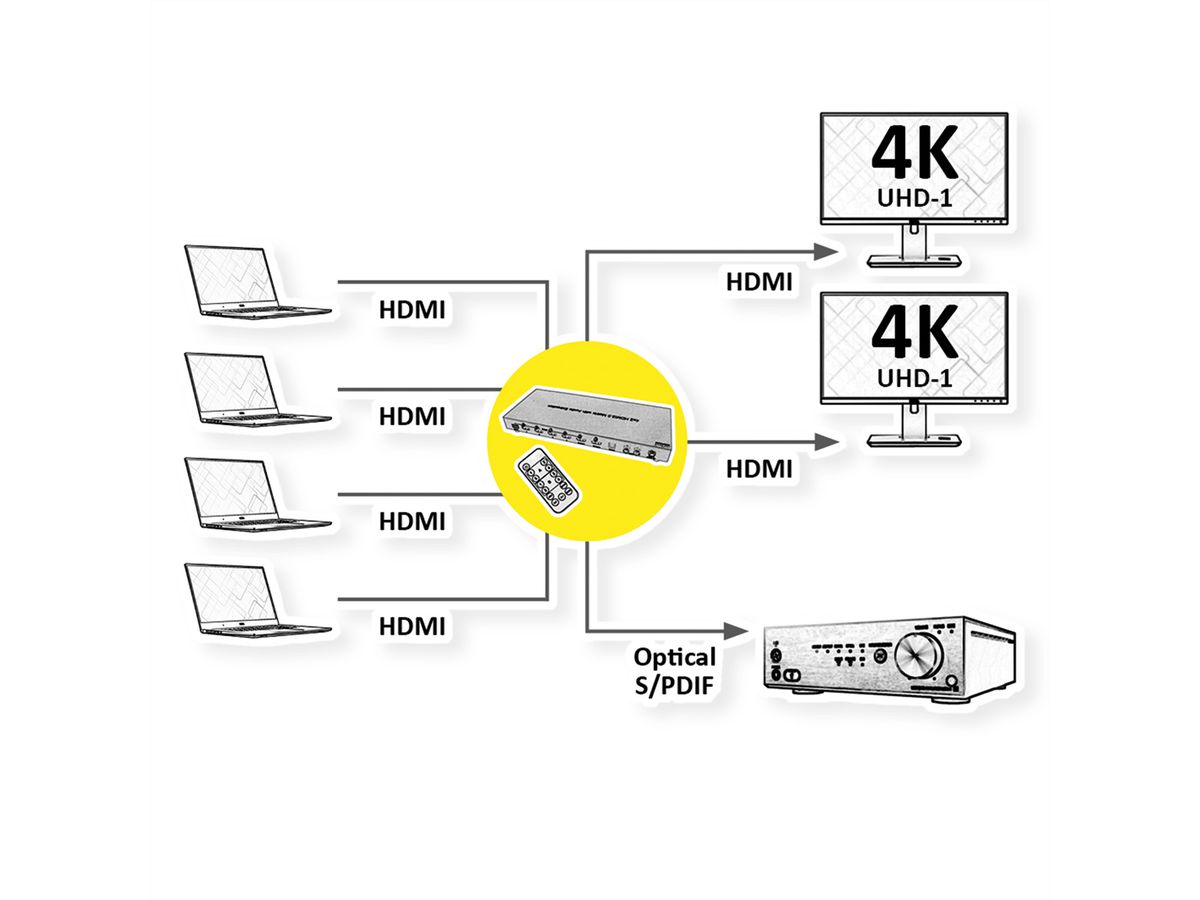

• Four HDMI High Speed input signals can be switched to two HDMI High Speed output devices
• Outputs: 1x Toslink/SPDIF, 1x Stereo RCA
• Supports Ultra HD 4K@60Hz
• Max. resolution (nominal): 3840 x 2160 @60Hz
• Supports 480i, 480p, 720i, 720p,1080i and 1080p
• HDCP compatible
• Supports Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc.
• Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Digital

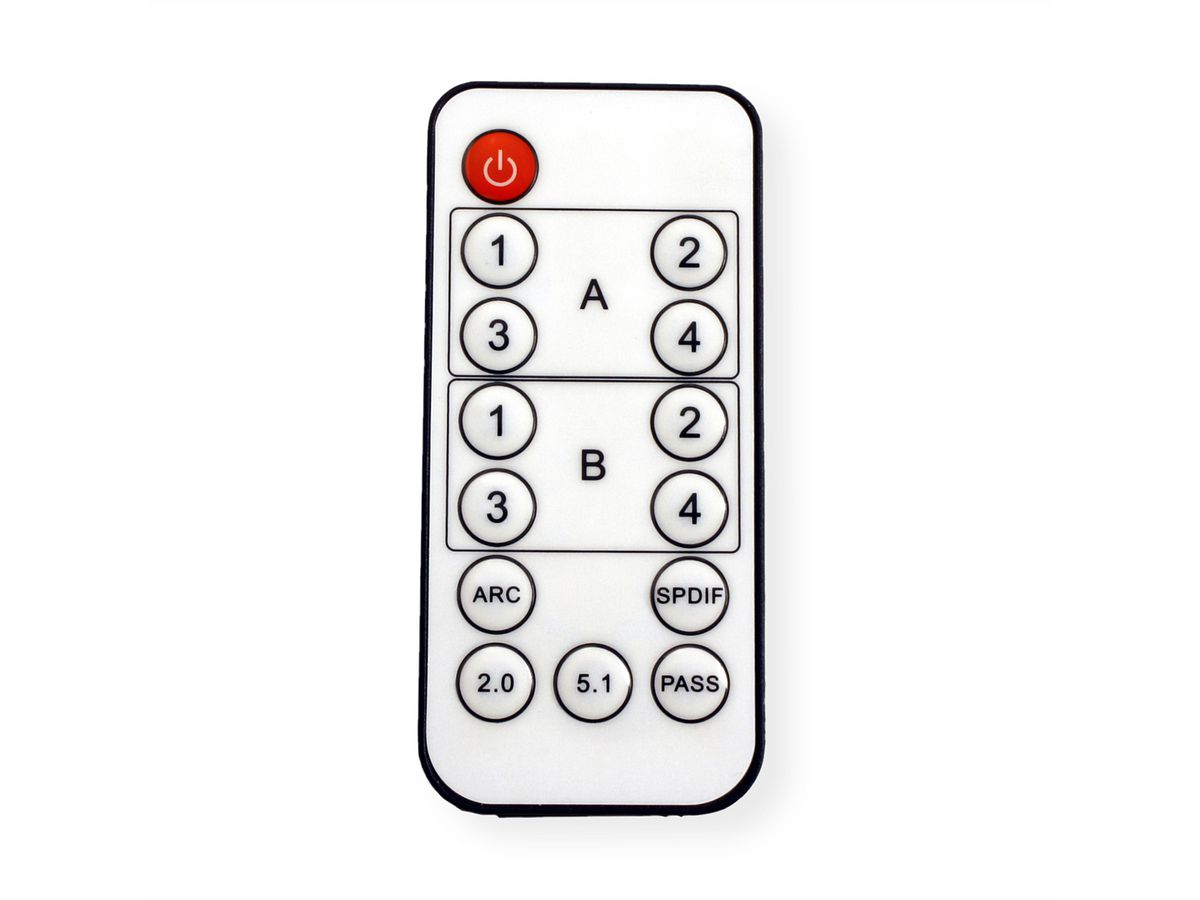

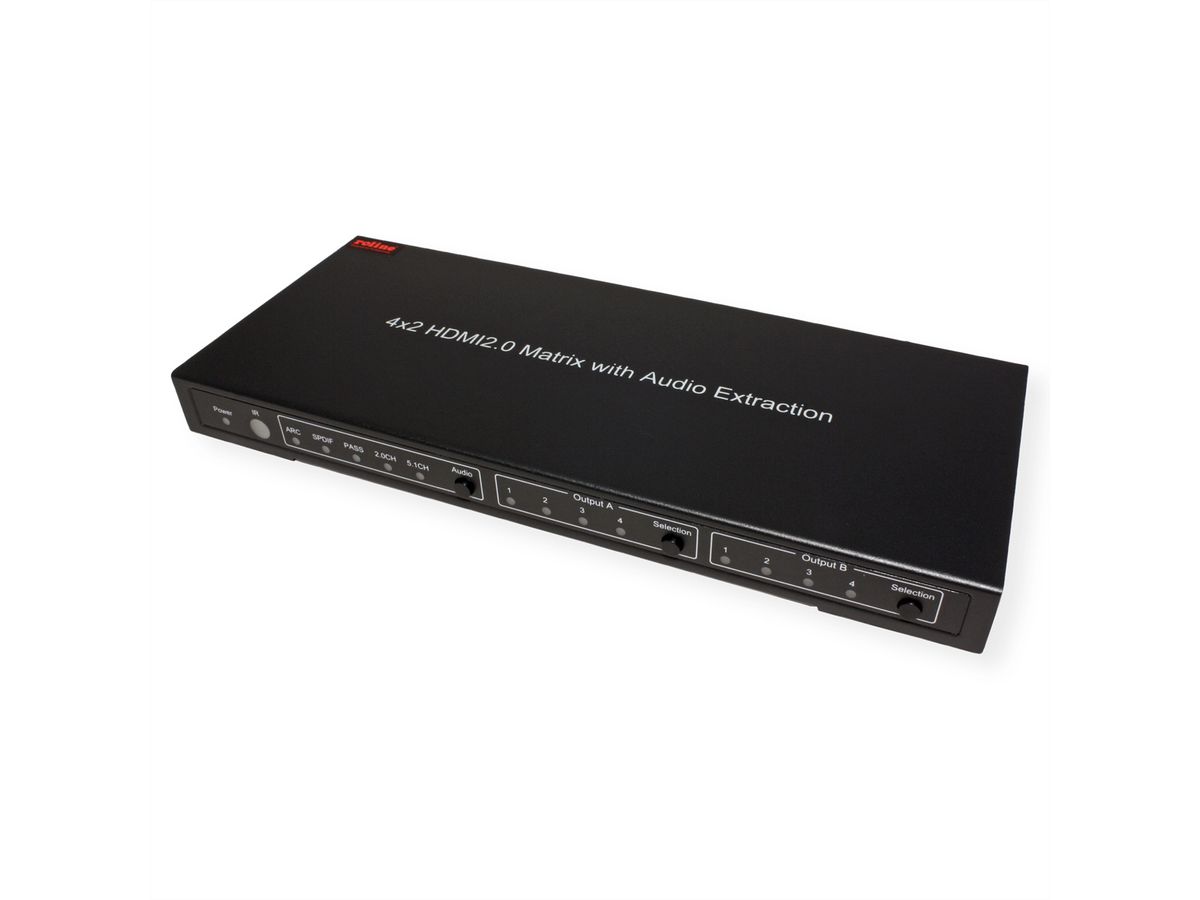

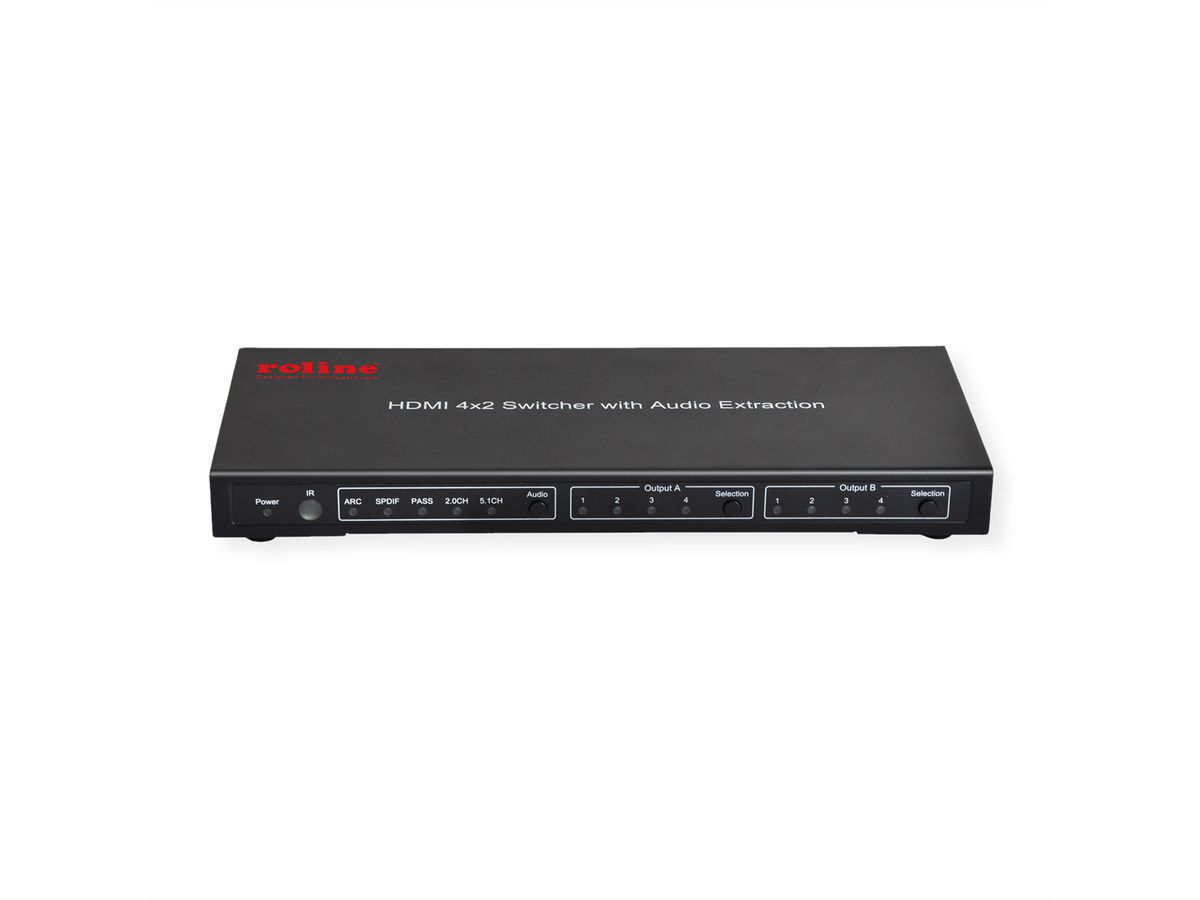

• Input devices can be switched by IR remote control or by push buttons on the switch

• Contents: Switch, power supply, remote control, manual

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Matrix-Switch 4K
Colour	black
Scope of delivery	HDMI Matrix Switch, power supply, remote control, QIG
Interface	HDMI
Inputs	4
Outputs	2
Video input	4x HDMI Female
Video output	2x HDMI Female
Video band width	340 MHz
Max. resolution (nom.)	3840x2160@30Hz (4K2K)
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Dimensions (HxWxD)	32x270x111 mm
Power supply output	5V DC, 2A
Technical particularity	Switching automatically, by push button or by IR remote control
Mains connection	Appliance Europlug, Type-C
Height	32 mm
Width	270 mm
Depth	111 mm
Weight	760.6 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	220 mm
Depth of packaging (single piece)	310 mm
Package weight (single piece)	1.011 kg

Downloads

Product data sheet - English (56.2 KB)

Download

User manual - Deutsch (165.9 KB)

Download

User manual - English (170.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
