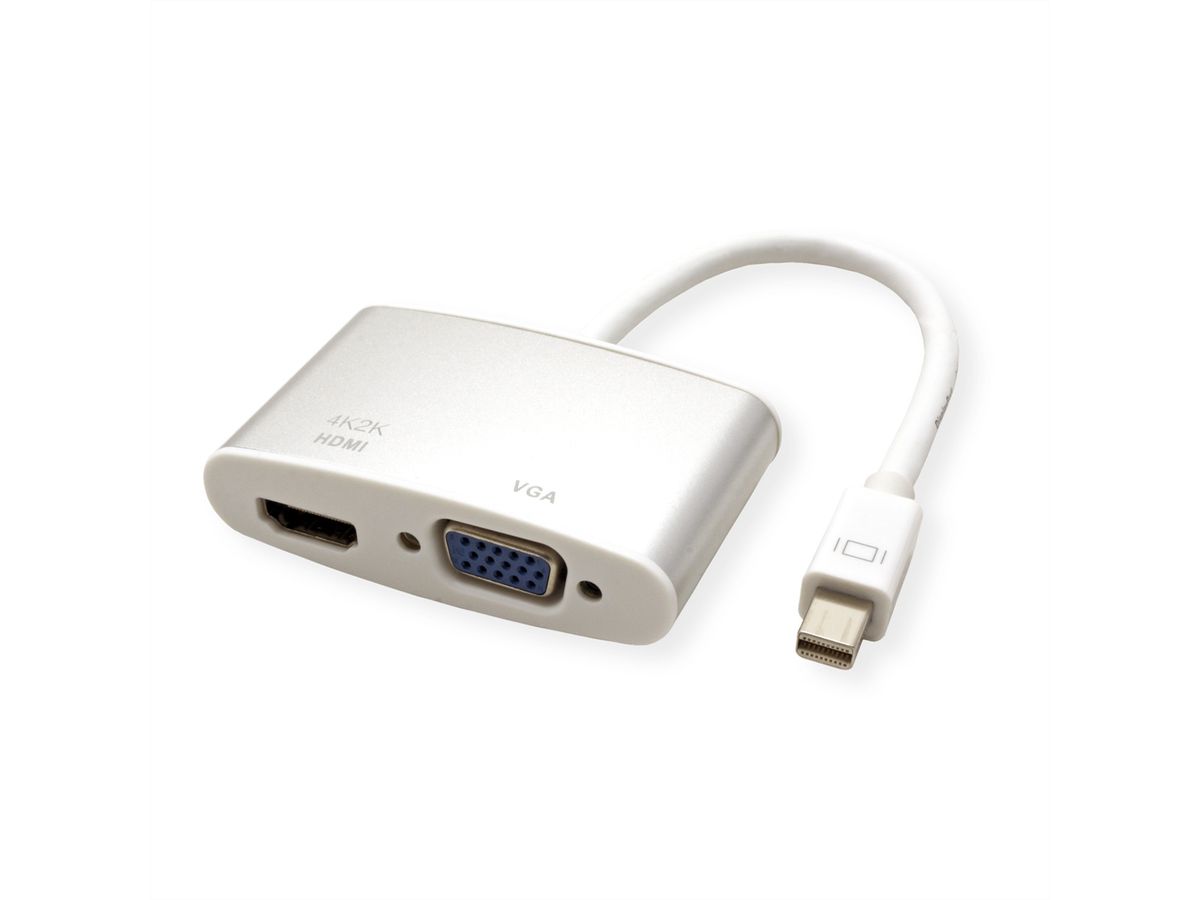

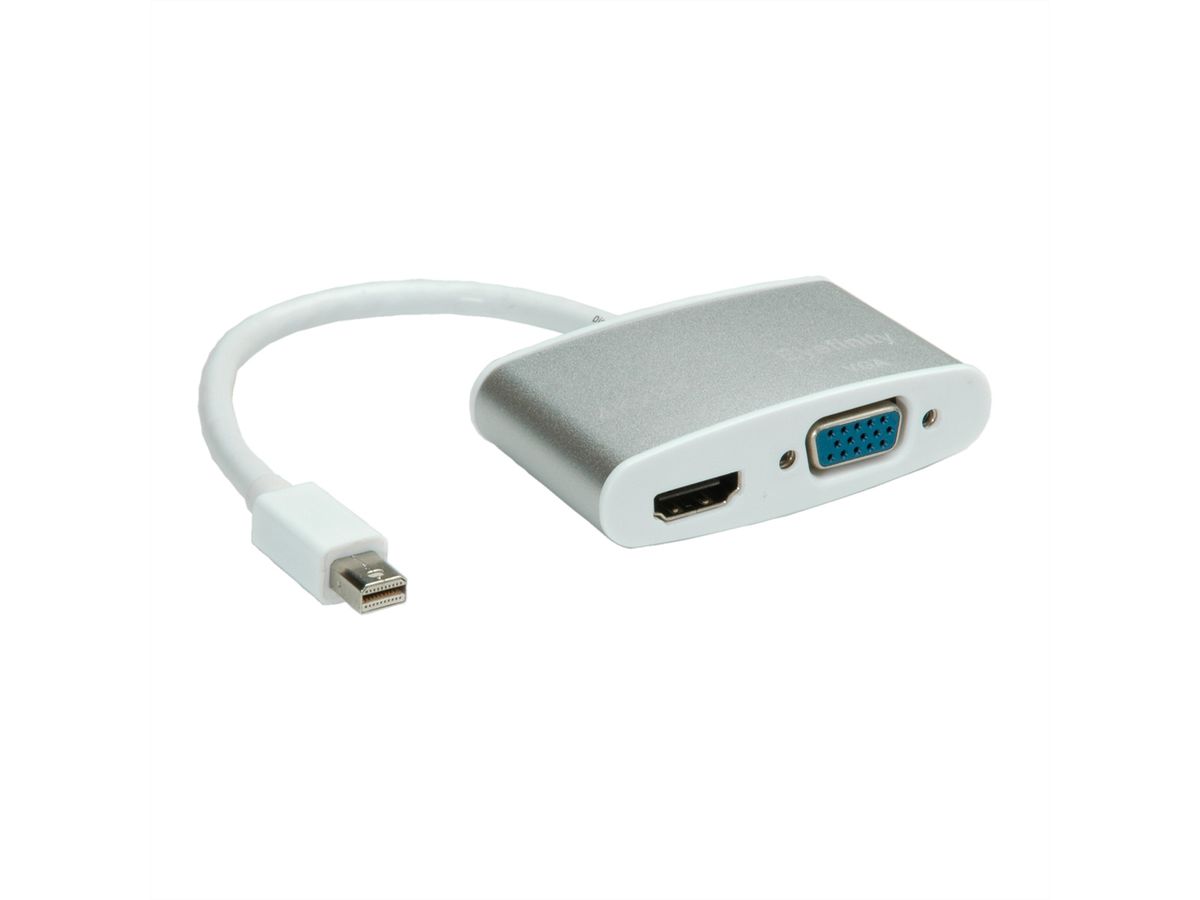

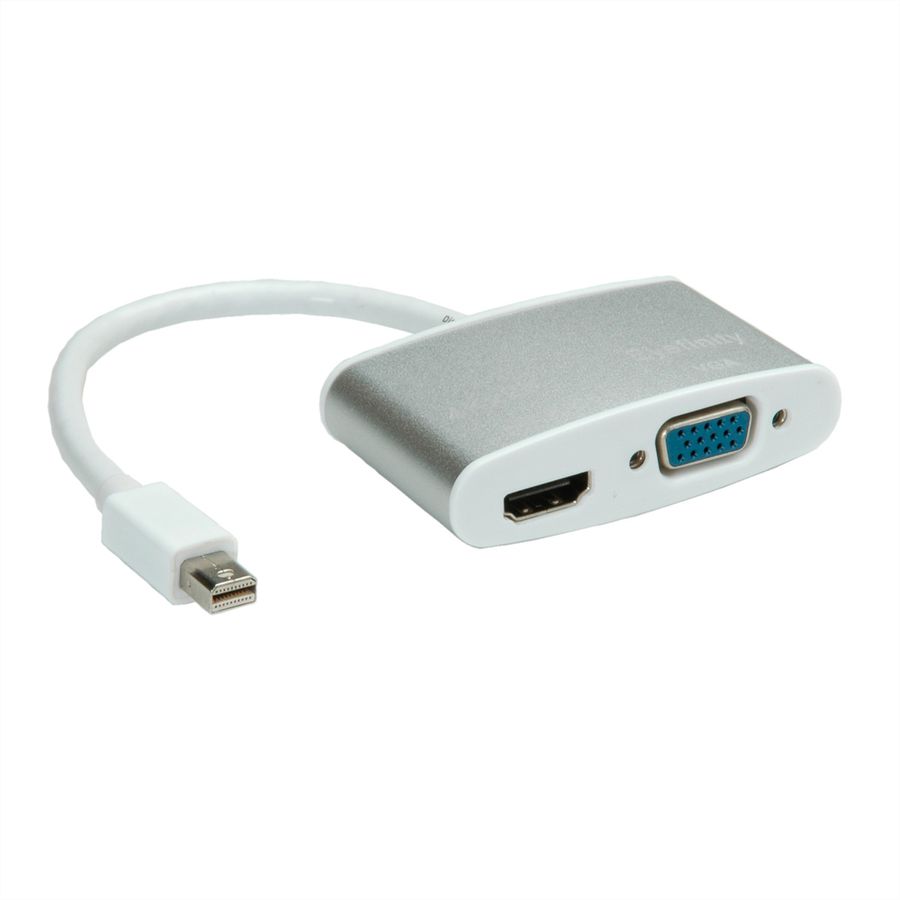

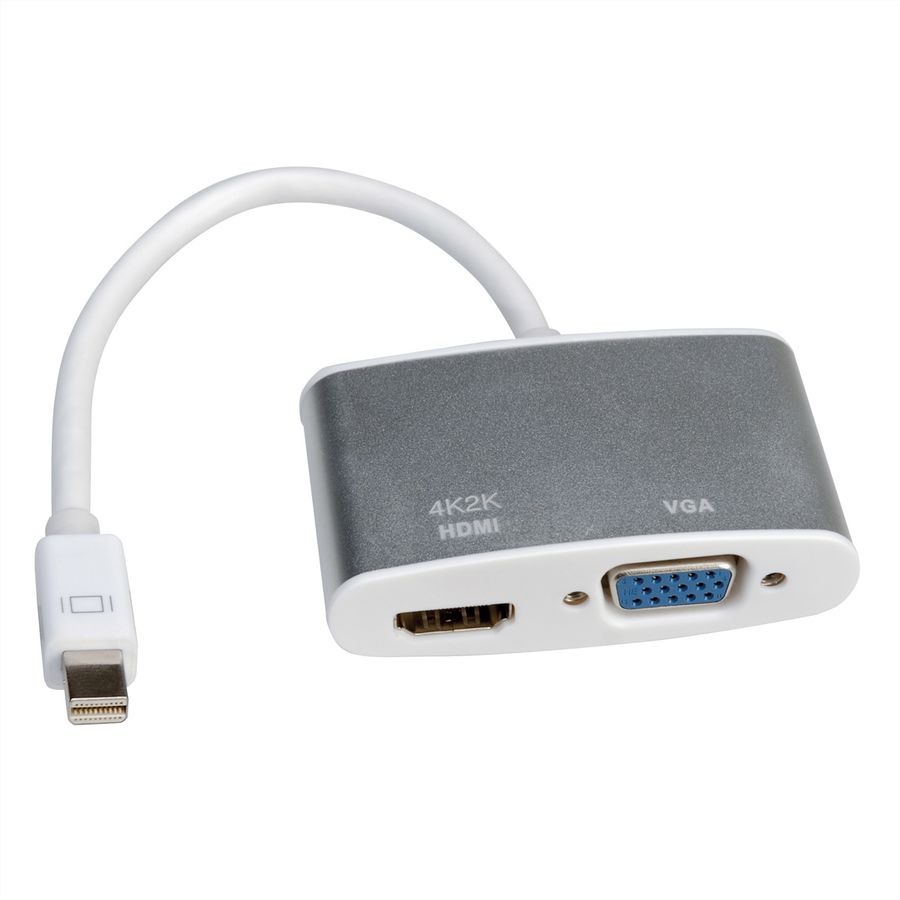

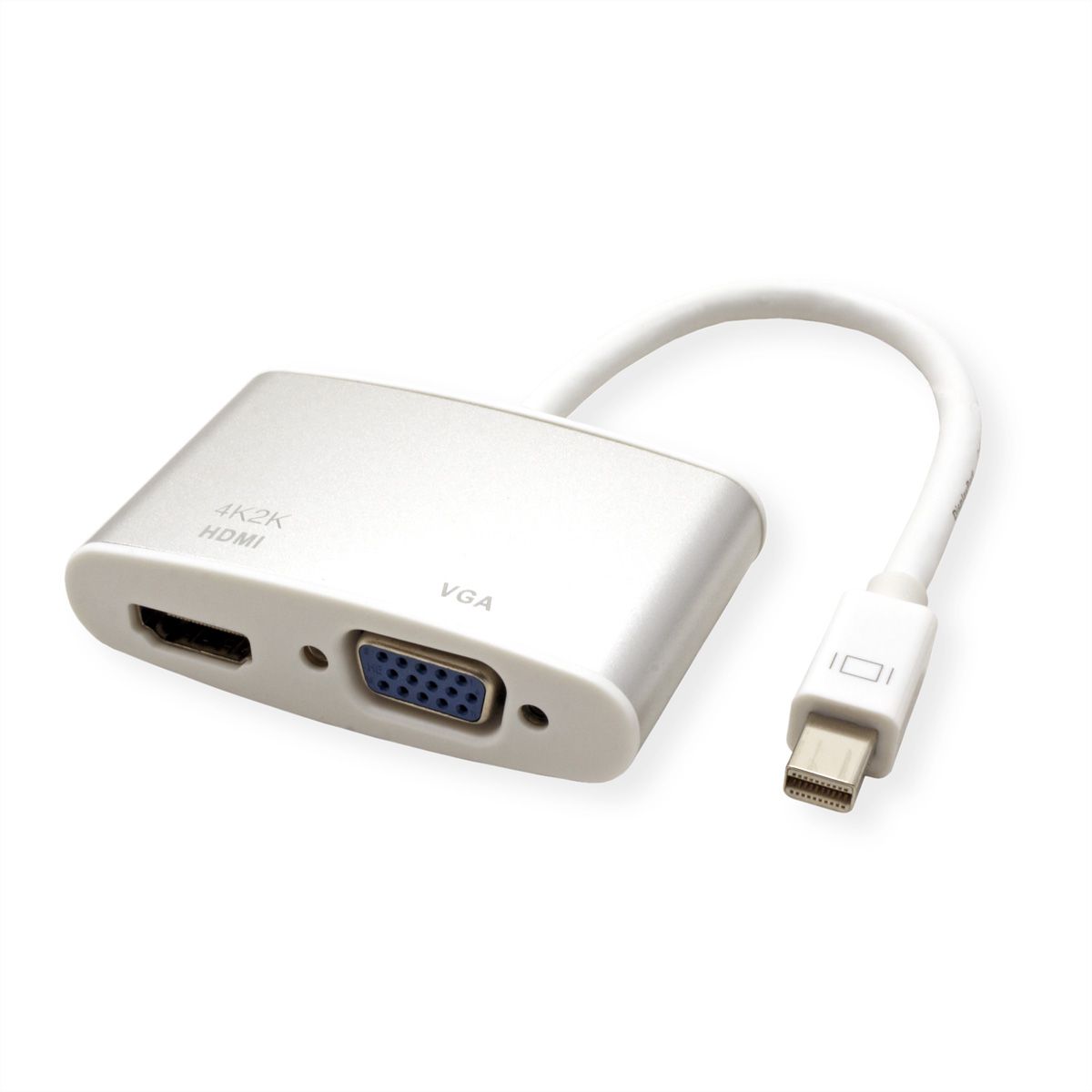

ROLINE Adapter, Mini DisplayPort - HDMI/VGA, Mini DP M - HDMI/VGA F

ROLINE Adapter, Mini DisplayPort - HDMI/VGA, Mini DP M - HDMI/VGA F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3161-5
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3161
EAN 7611990932269
Package weight 0.05 kg

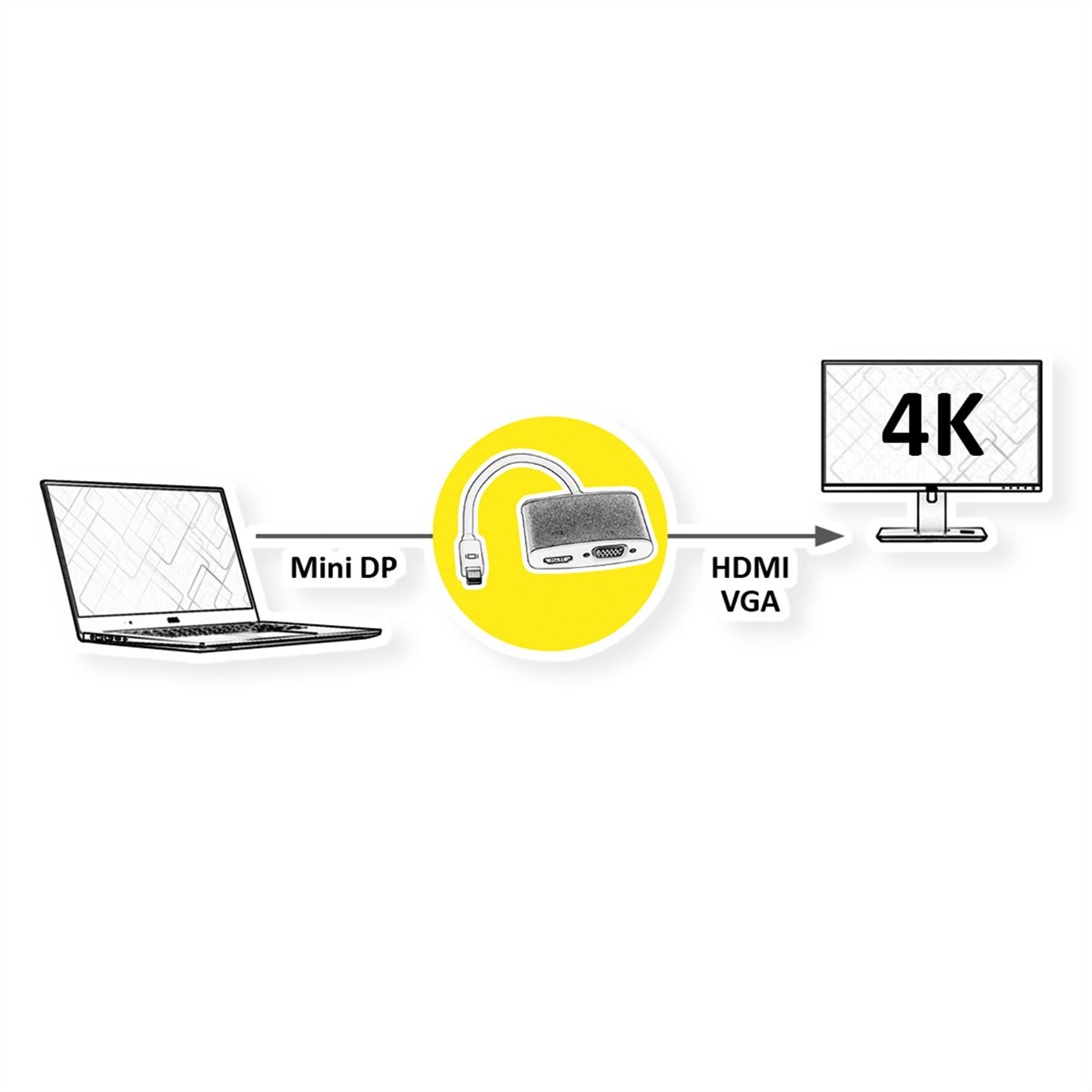

  • You want to connect your graphics card with Mini DisplayPort connector to a VGA or HDMI monitor?
  • Cable length: ca. 10 cm
  • Adapter with Mini DisplayPort connector and VGA and HDMI socket.

  • Note: The Mini DisplayPort adapter only works in one direction: the Mini DisplayPort connector is only on the data source side can be used (eg graphics card) and only ONE single output is available (VGA or HDMI)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.


Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Mini DisplayPort-HDMI/VGA Adapter
Colour silver
Length 0.1 m
Max. resolution 3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC) Mini DisplayPort Male
Side 2 connection (Peripherals) VGA Female, HDMI Female
Side 1 Connector Type Mini DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type
  • HDMI Type A
  • HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender Female
Active / Passive Active
Area of application External
Weight 45.3 g
Height of packaging (single piece) 25 mm
Width of packaging (single piece) 110 mm
Depth of packaging (single piece) 120 mm
Package weight (single piece) 0.05 kg


Product data sheet - English (47.1 KB)


Manufacturer data sheet - English (677.6 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
