Description

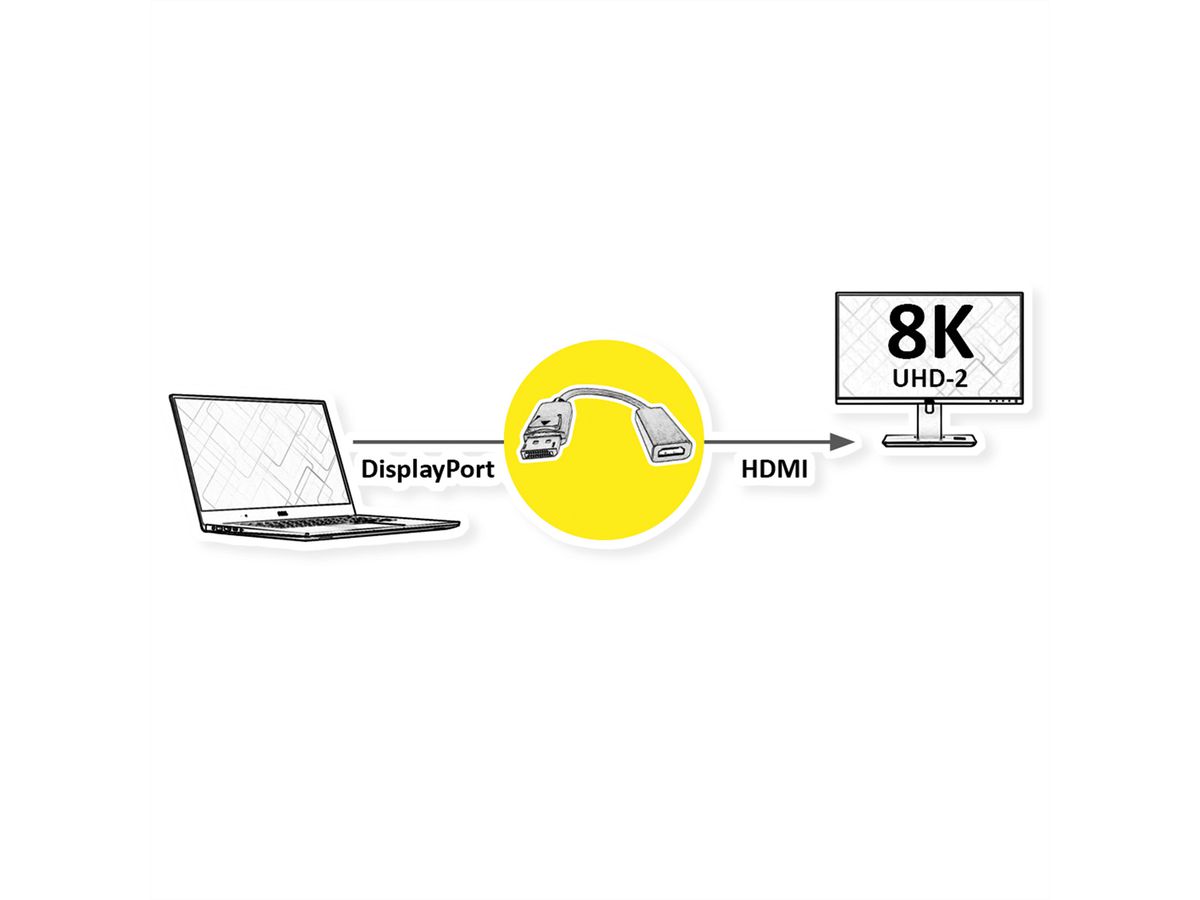

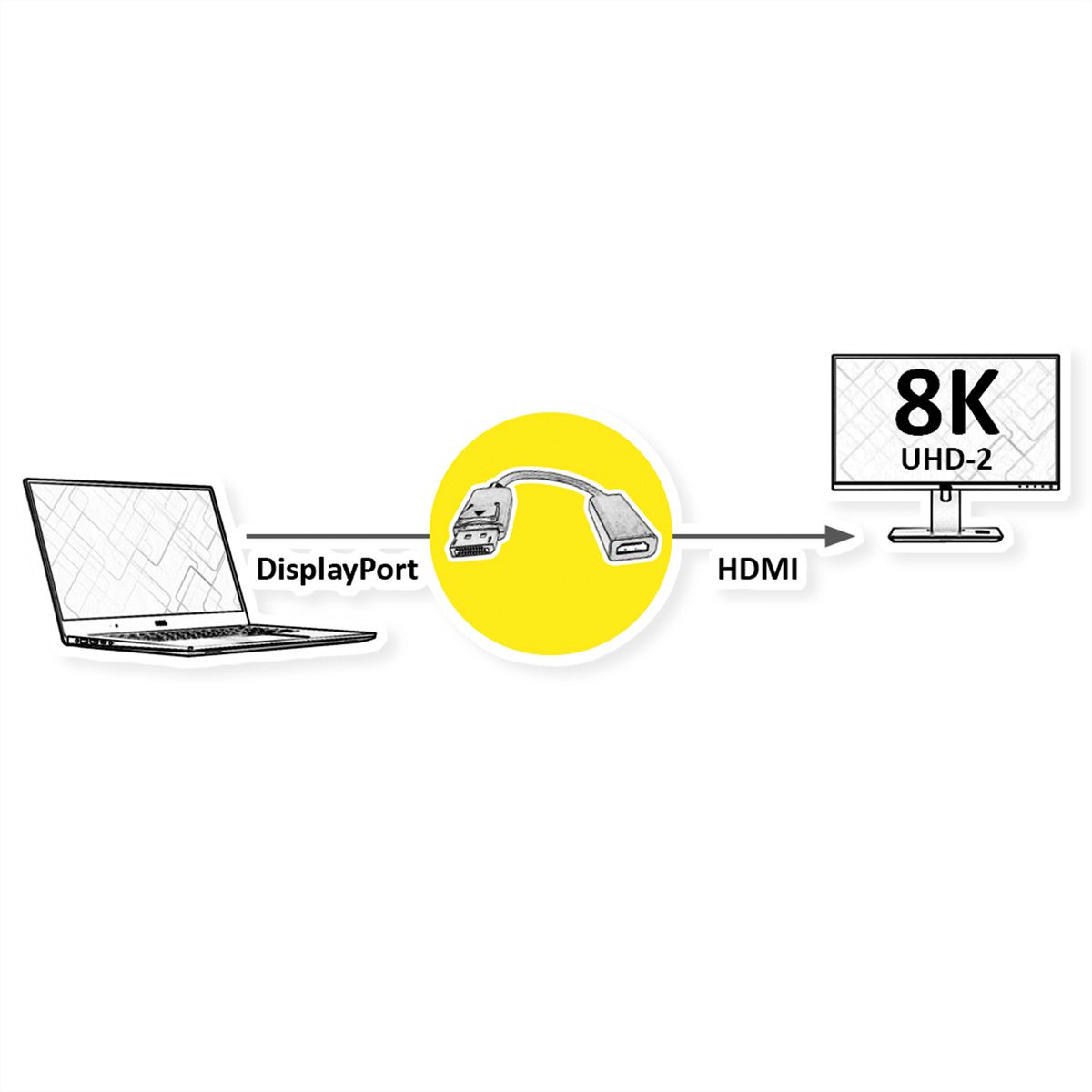

DisplayPort to HDMI adapter for connecting a graphics card with DP to a monitor with HDMI connection - with a resolution of up to 8K@60Hz (7680x4320 @60Hz)!

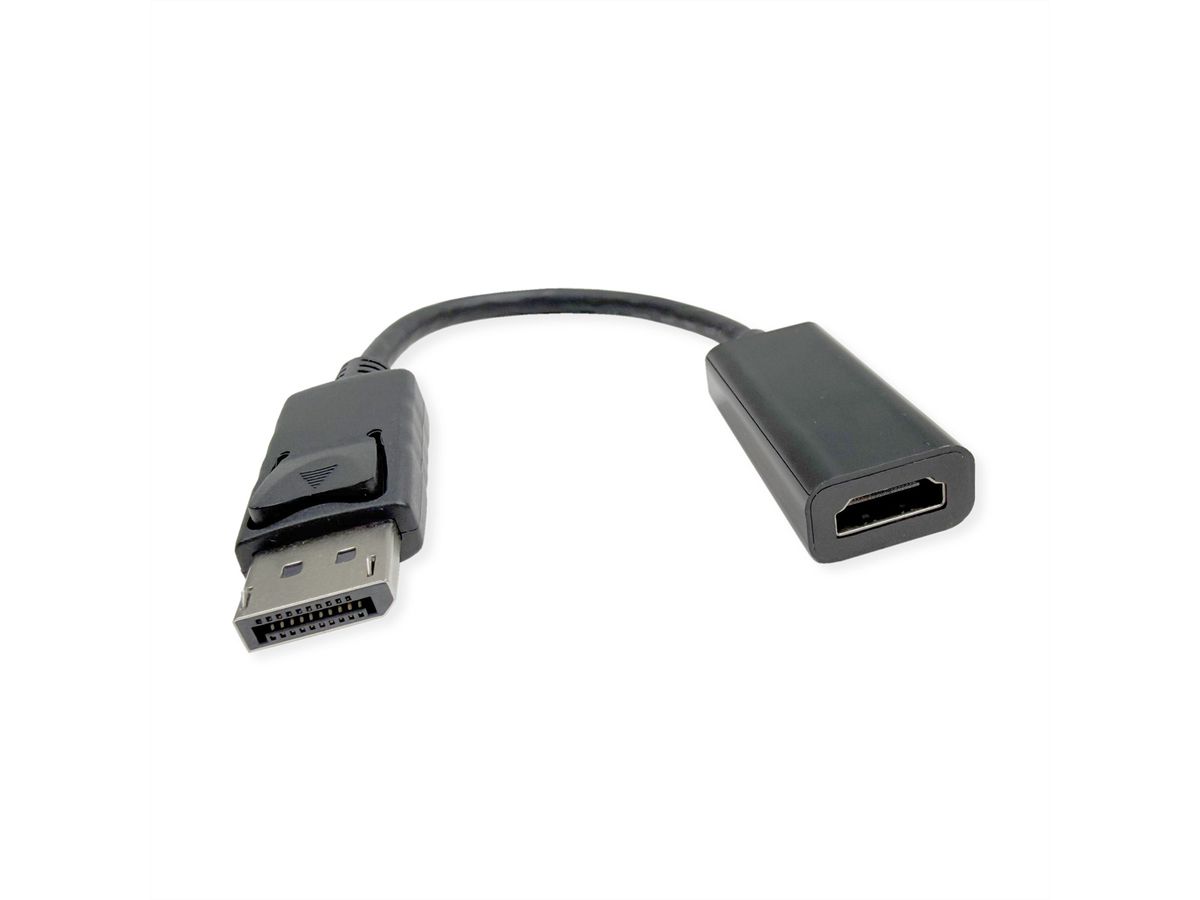

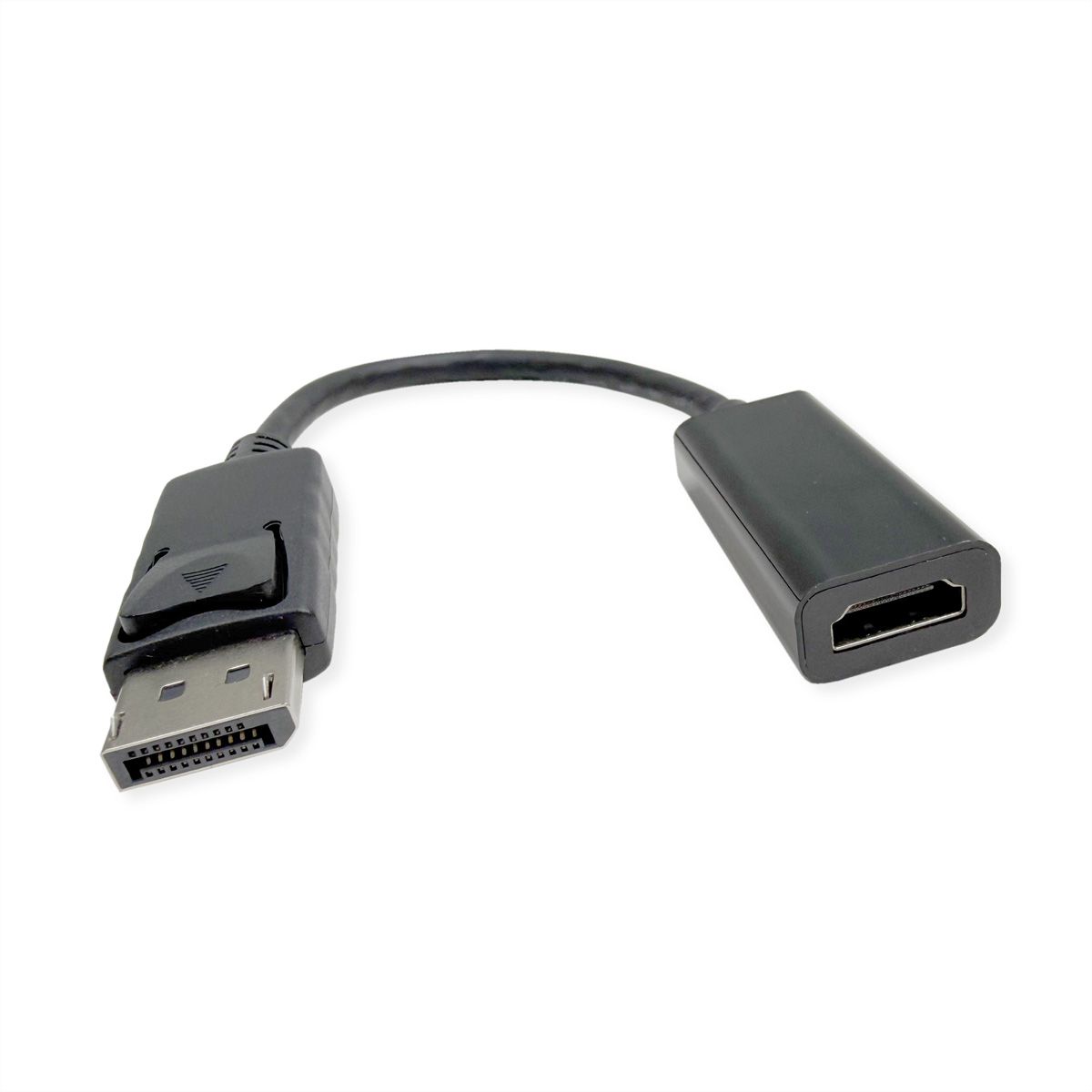

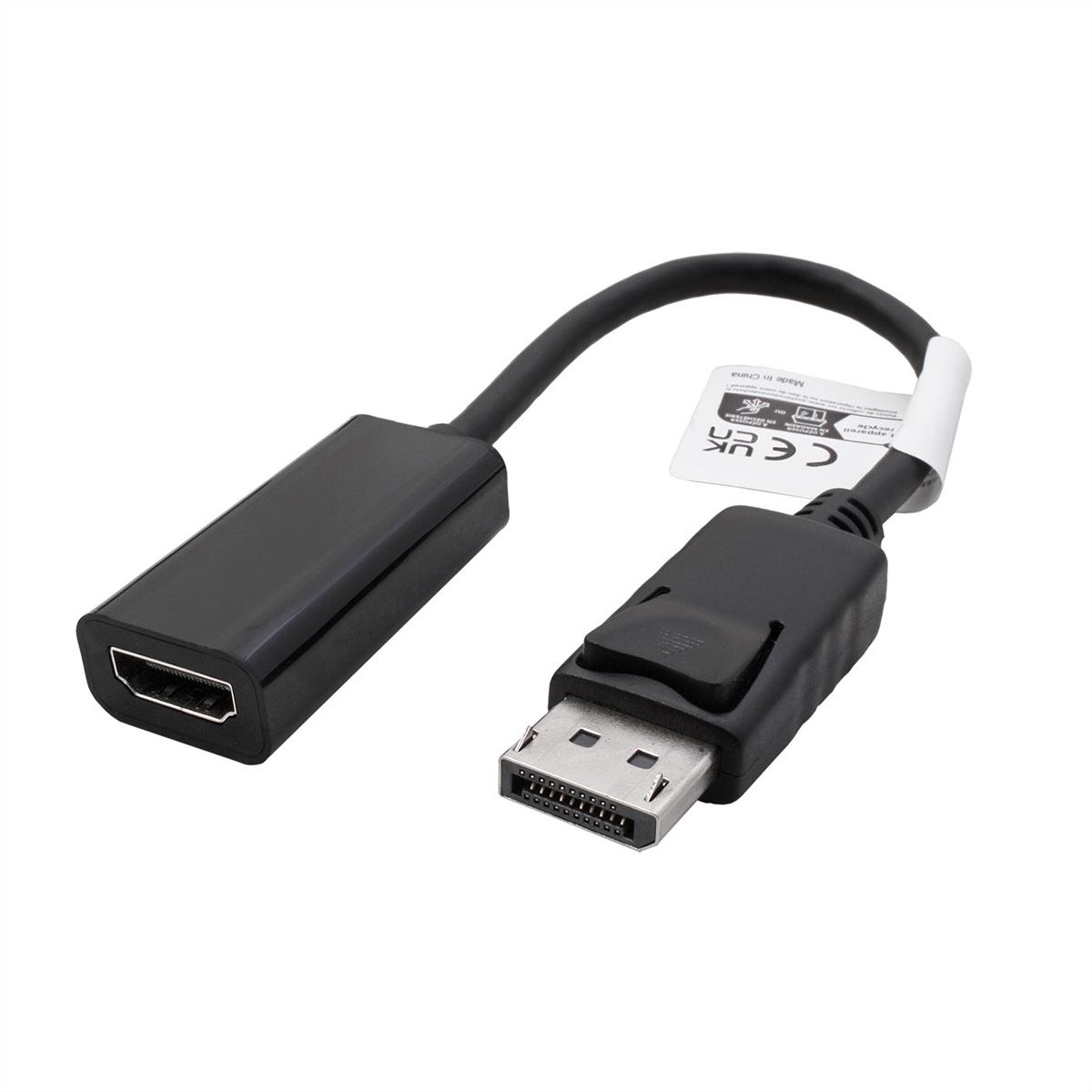

• DisplayPort to HDMI Adapter to connect a HDMI cable to a DisplayPort socket of the graphics card
• Active adapter with DisplayPort connector and HDMI socket
• DisplayPort v1.4 with resolutions up to 7680x4320 @60Hz
• Black ABS housing
• Connectors: HDMI Female and DP Male
• Length: approx. 23 cm
• Note: The DisplayPort to HDMI adapter only works in one direction: the DisplayPort connector can only be used on the data source side (e.g. graphics card)

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-HDMI Adapter
Colour	black
Length	0.23 m
Scope of delivery	Cableadapter
Transfer quality	DisplayPort v1.4
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Side 1 connection (PC)	DisplayPort Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Active / Passive	Active
Area of application	External
Material	ABS and PVC
Technical particularity	DisplayPort Version 1.4, active
Weight	25 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.02 kg

Downloads

Product data sheet - English (44.0 KB)

Download

Manufacturer data sheet - English (114.1 KB)

Download
