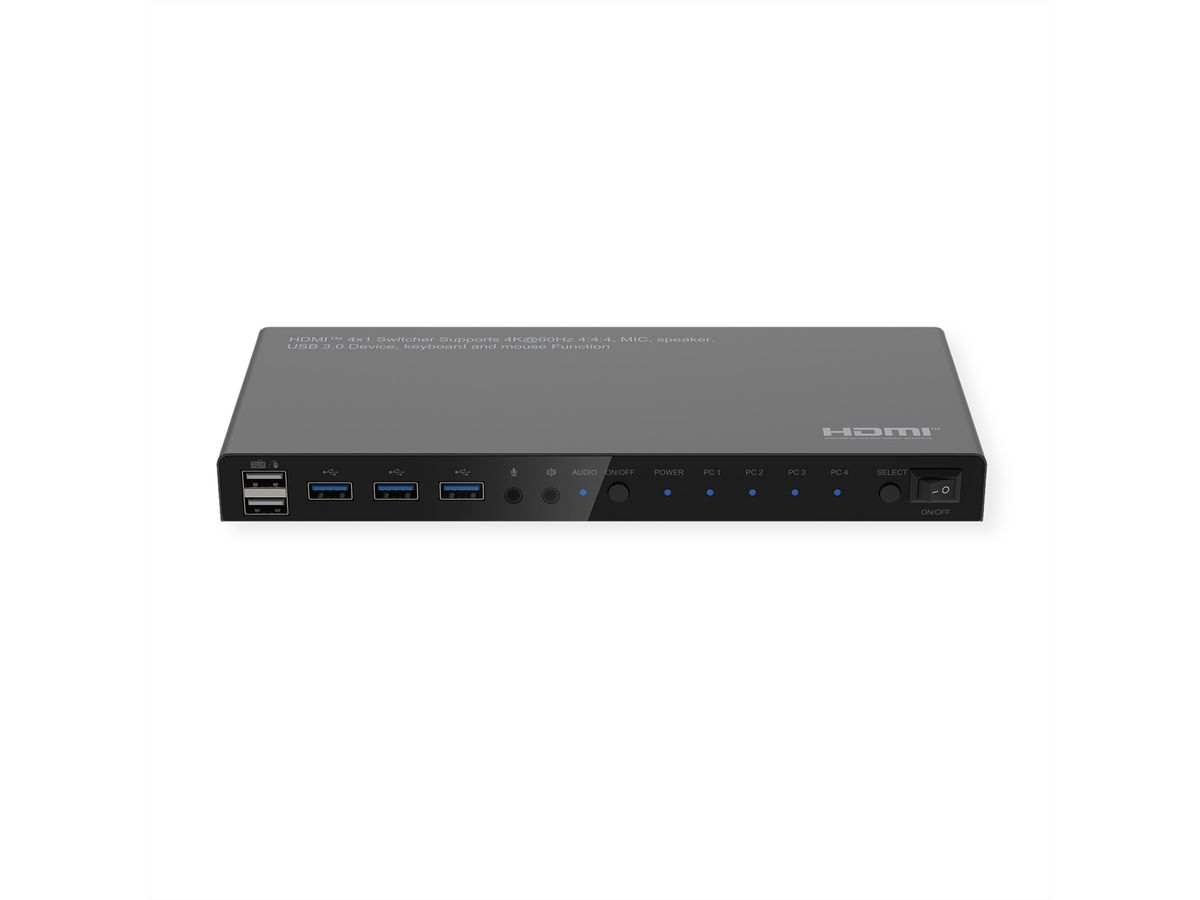

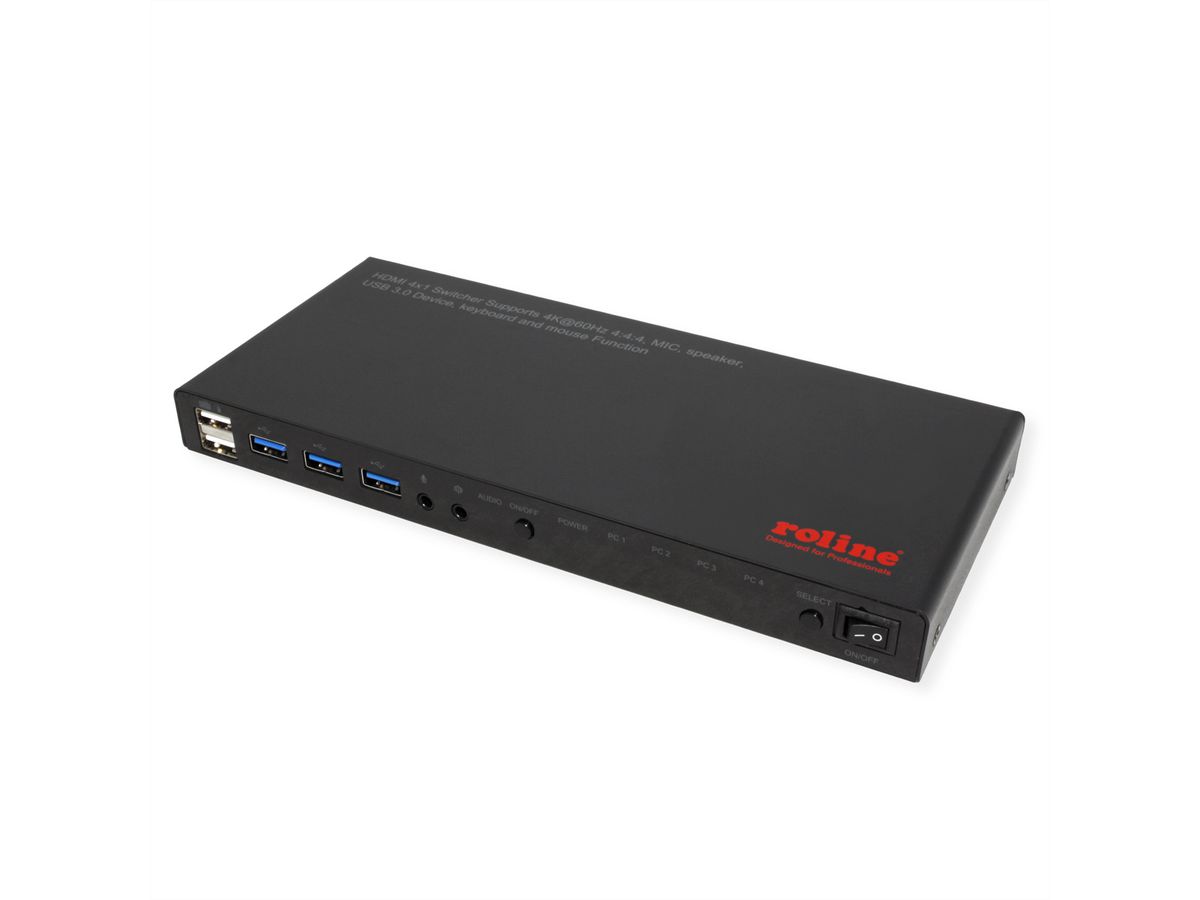

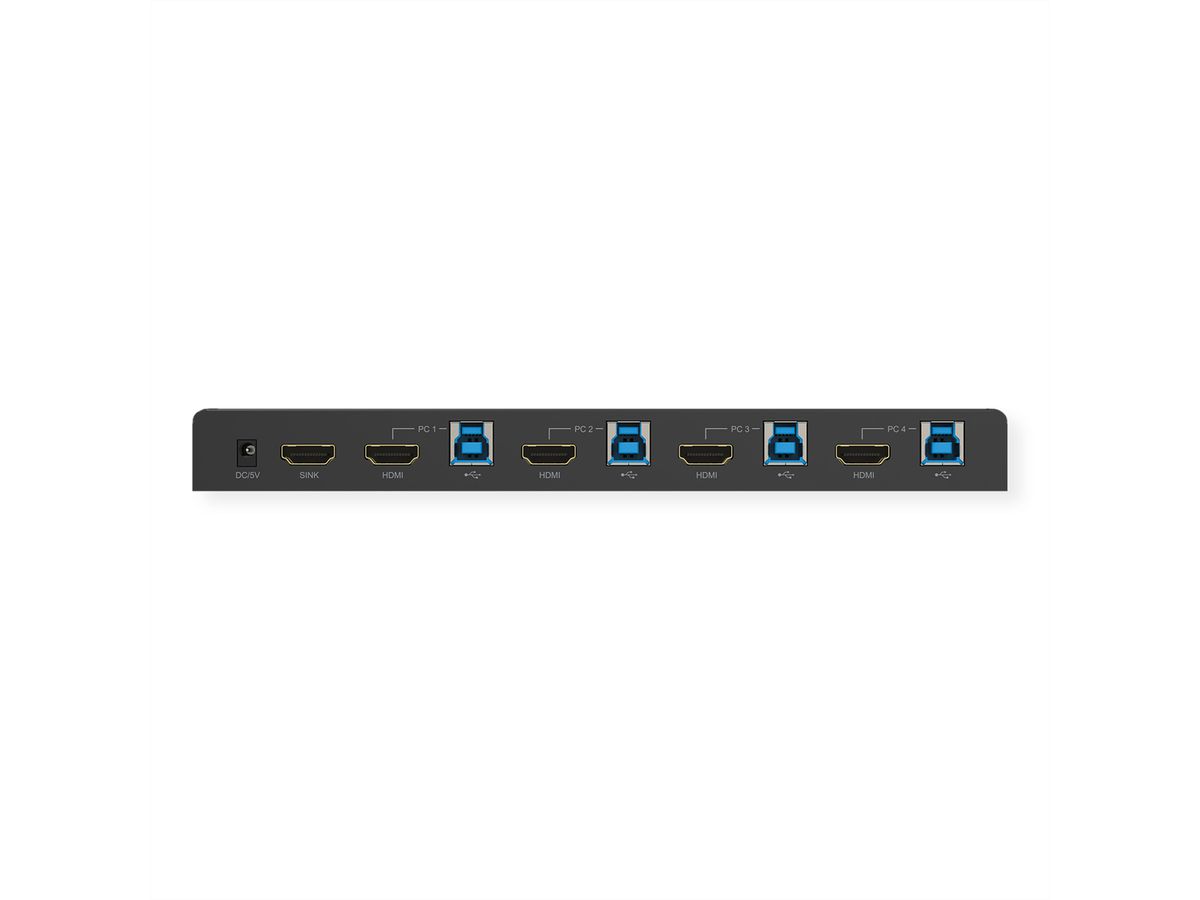

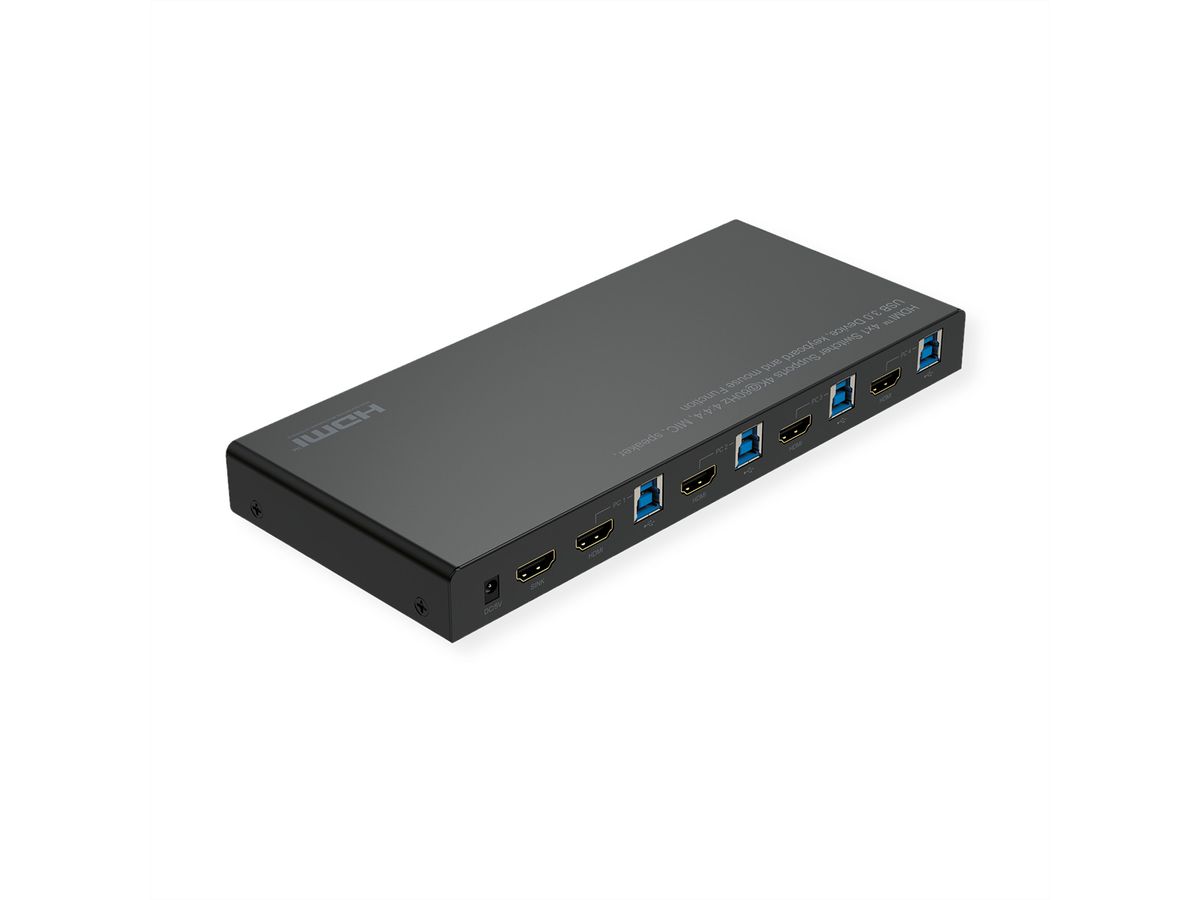

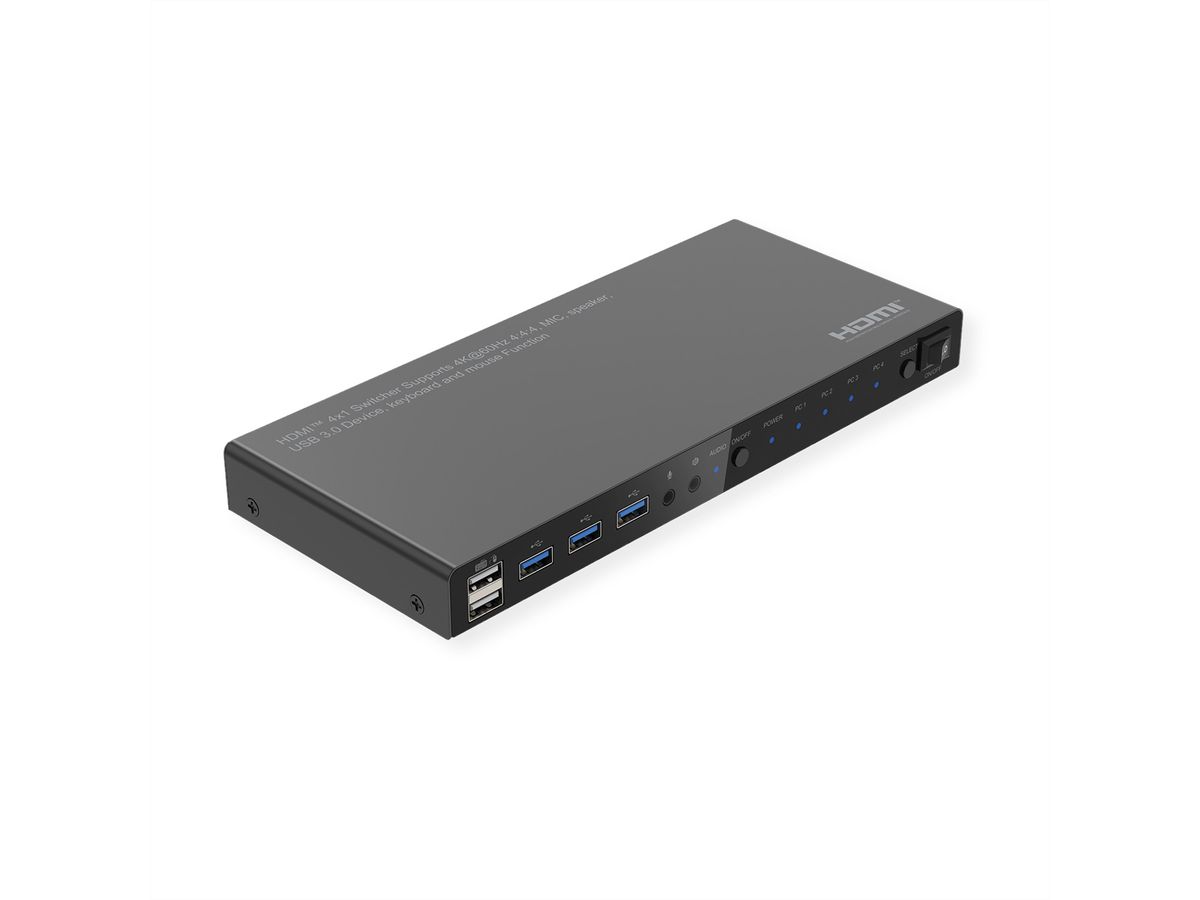

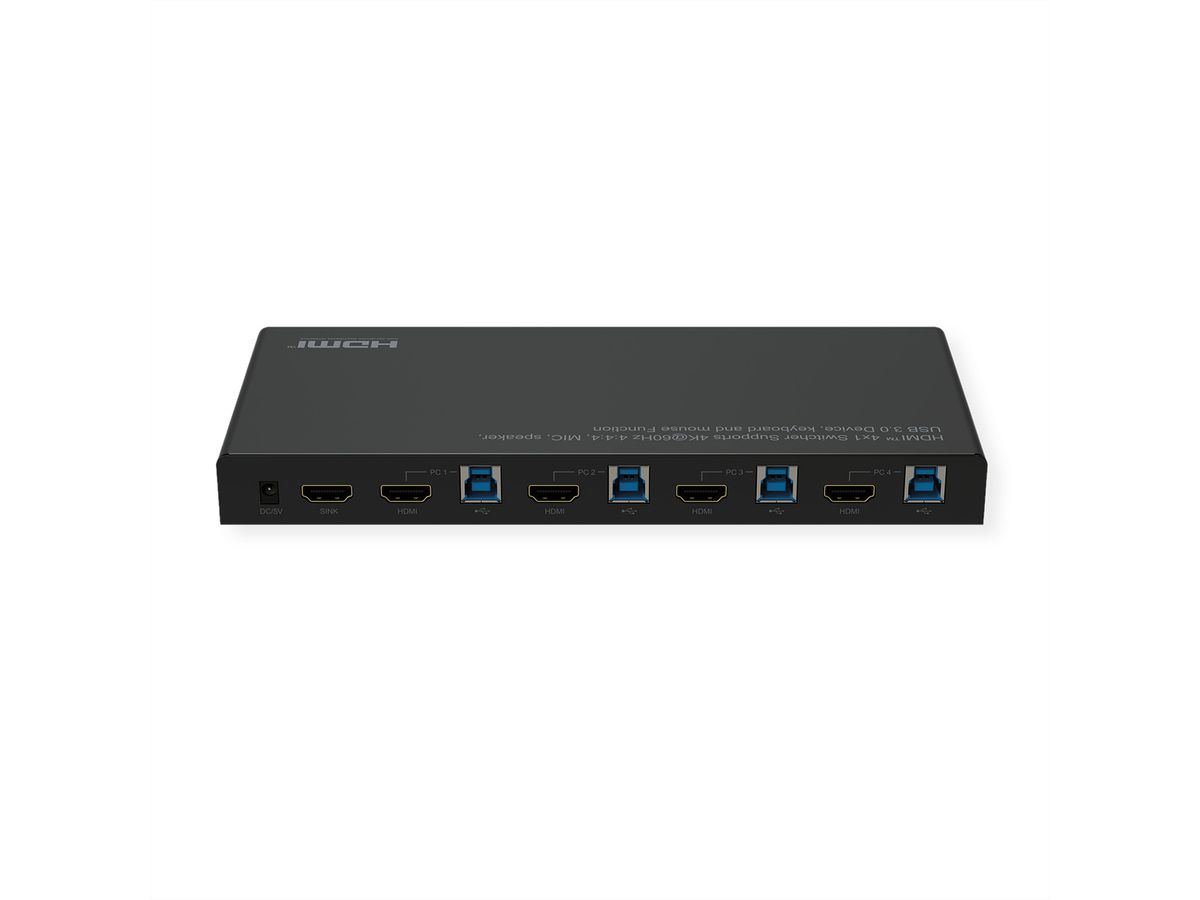

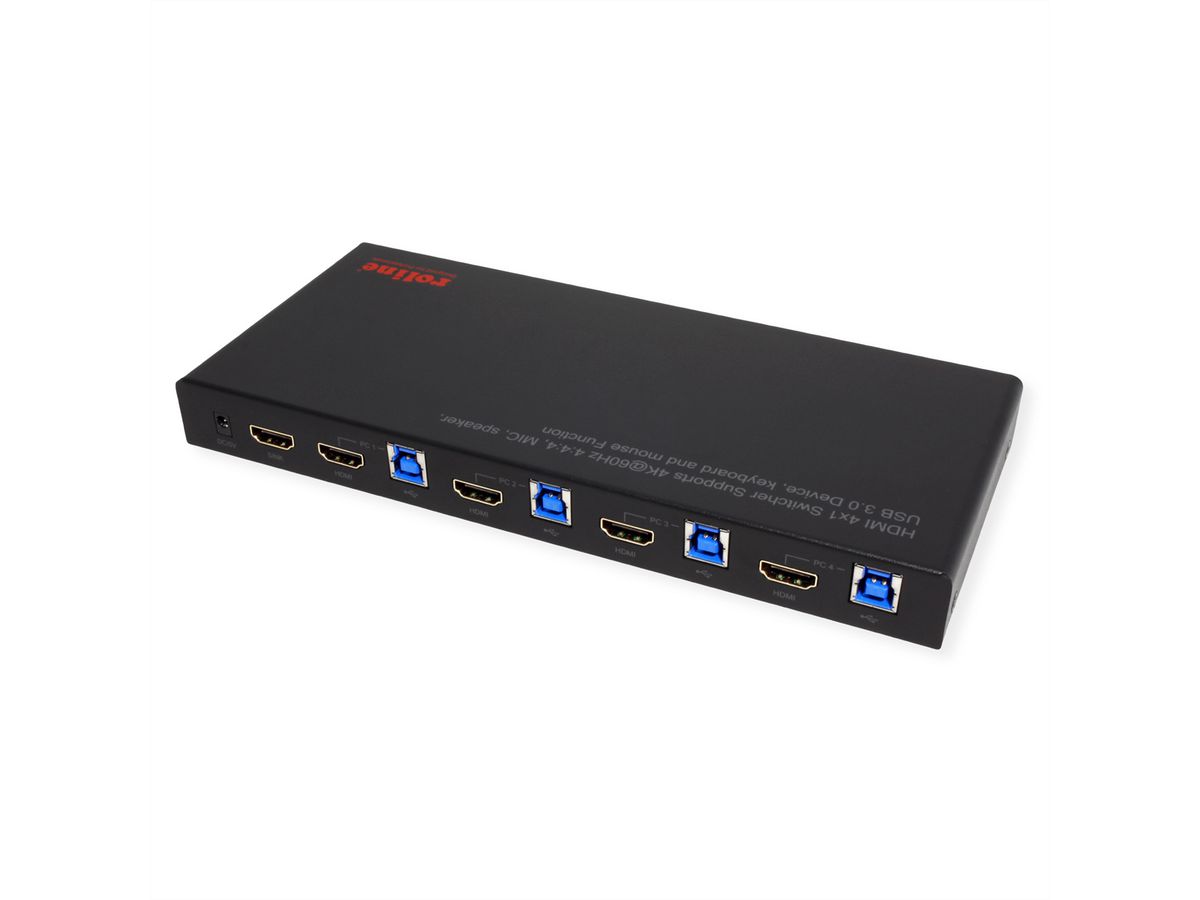

ROLINE KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3428-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3428 |
| EAN | 7630049675735 |
| Package weight | 0.84 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

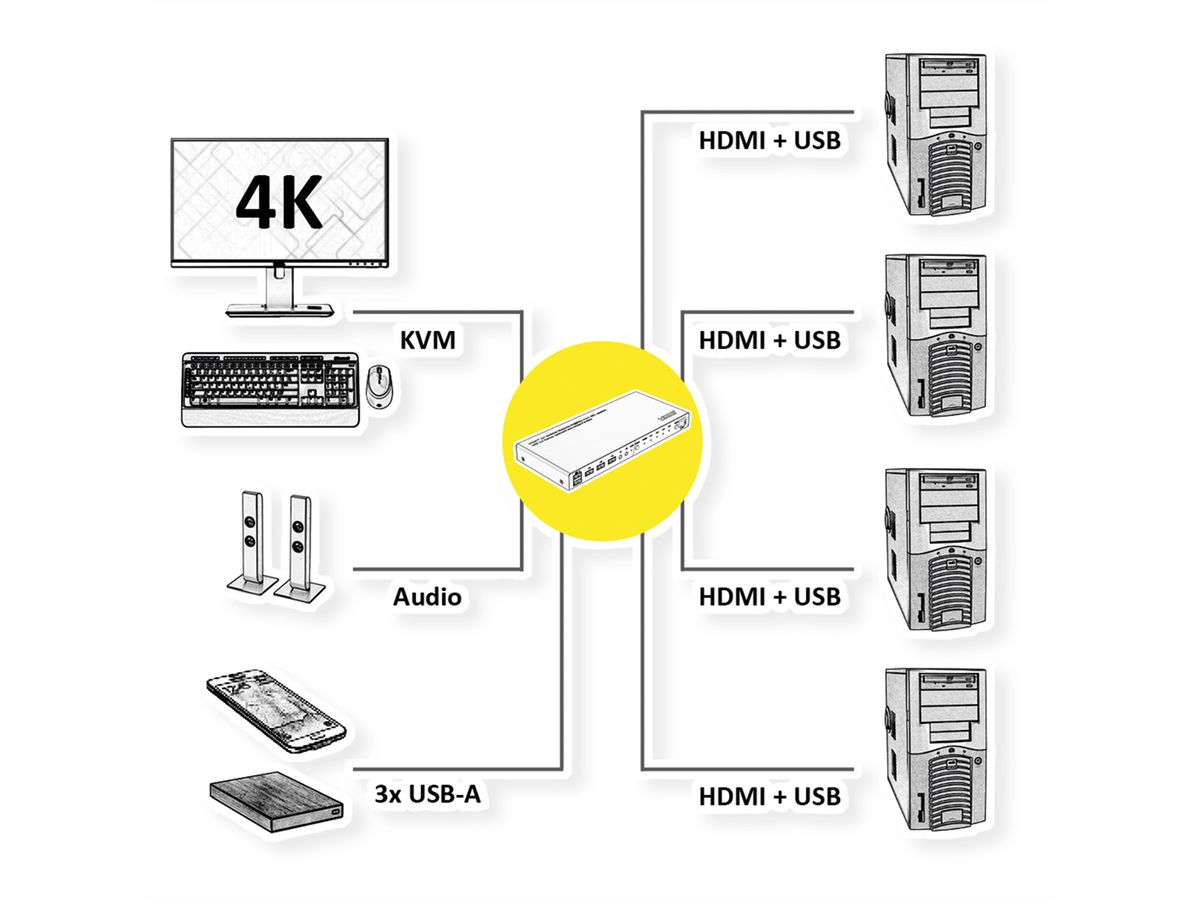

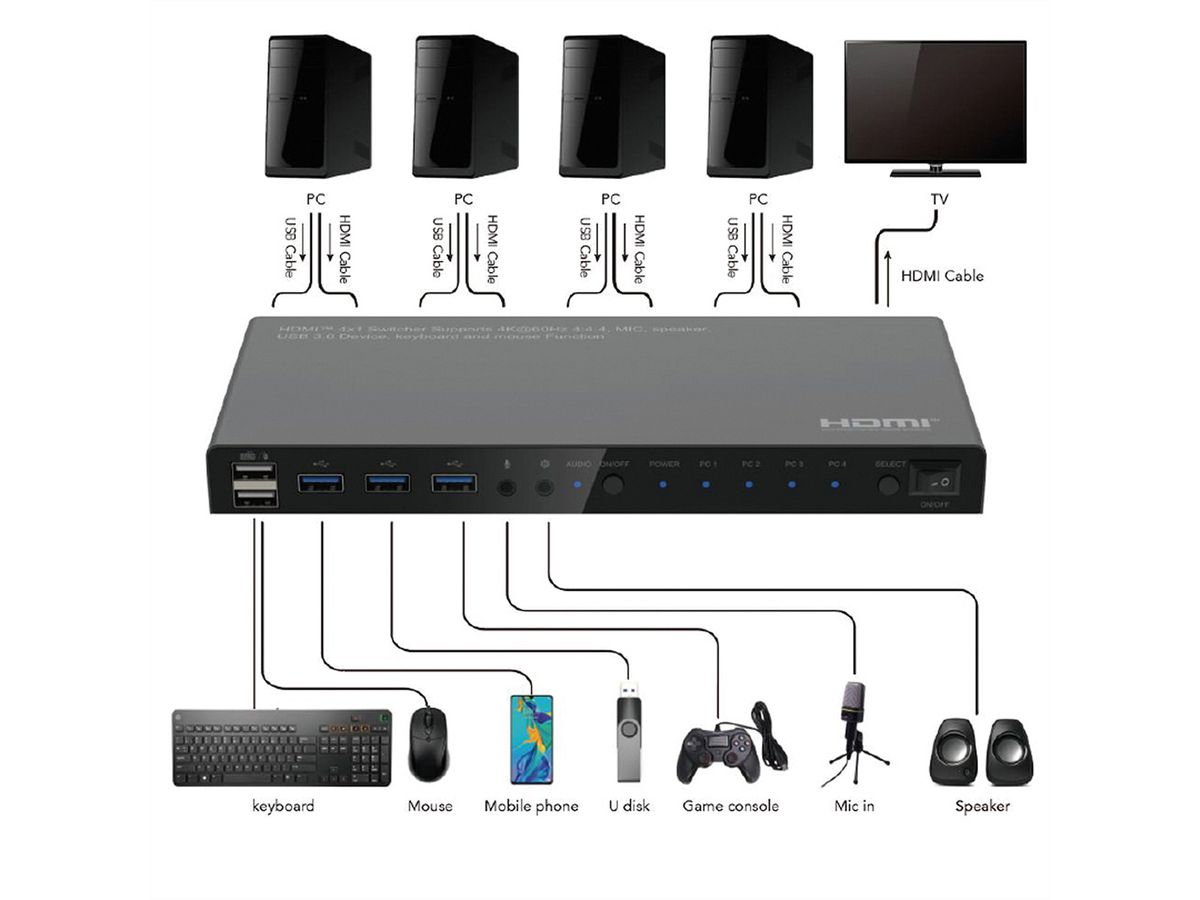

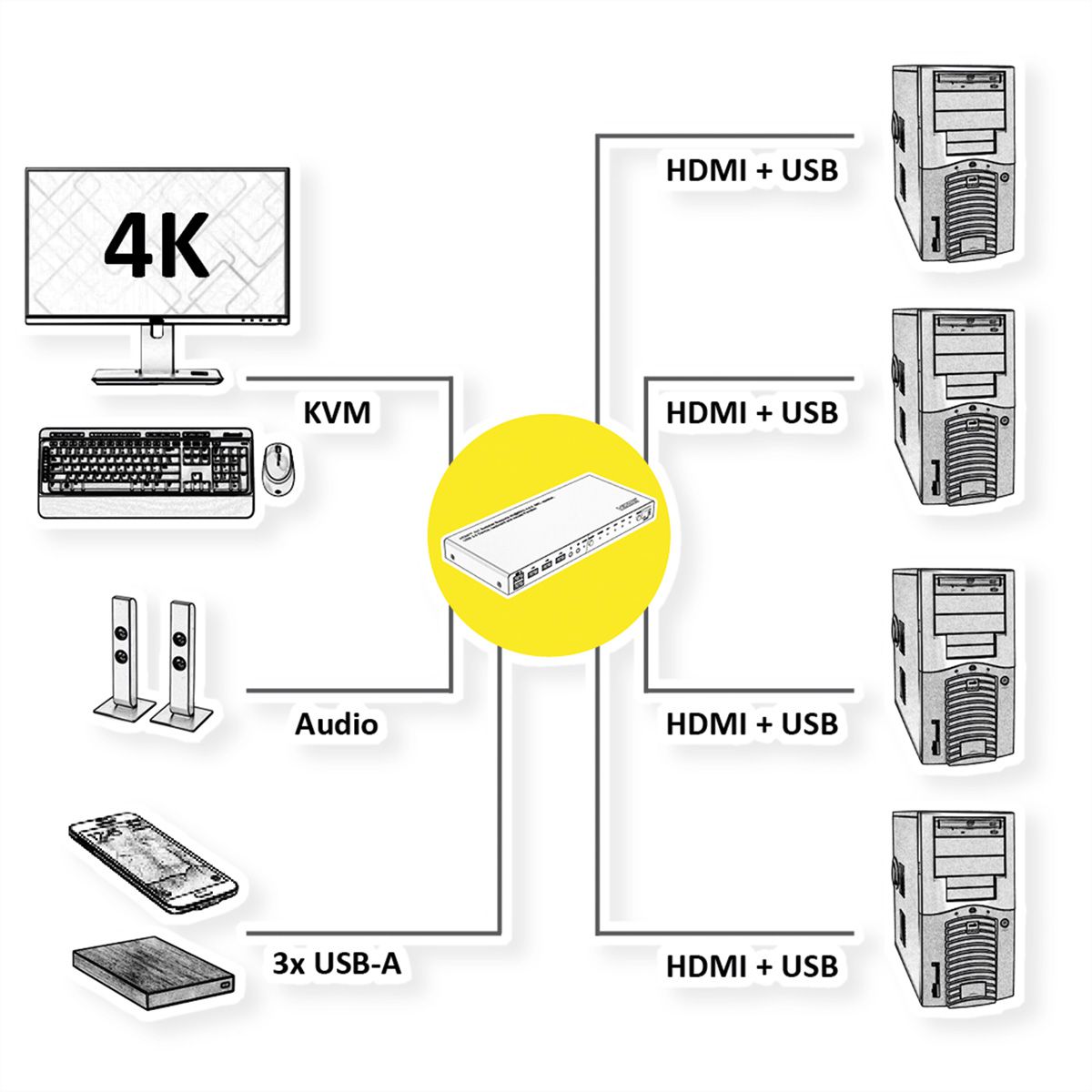

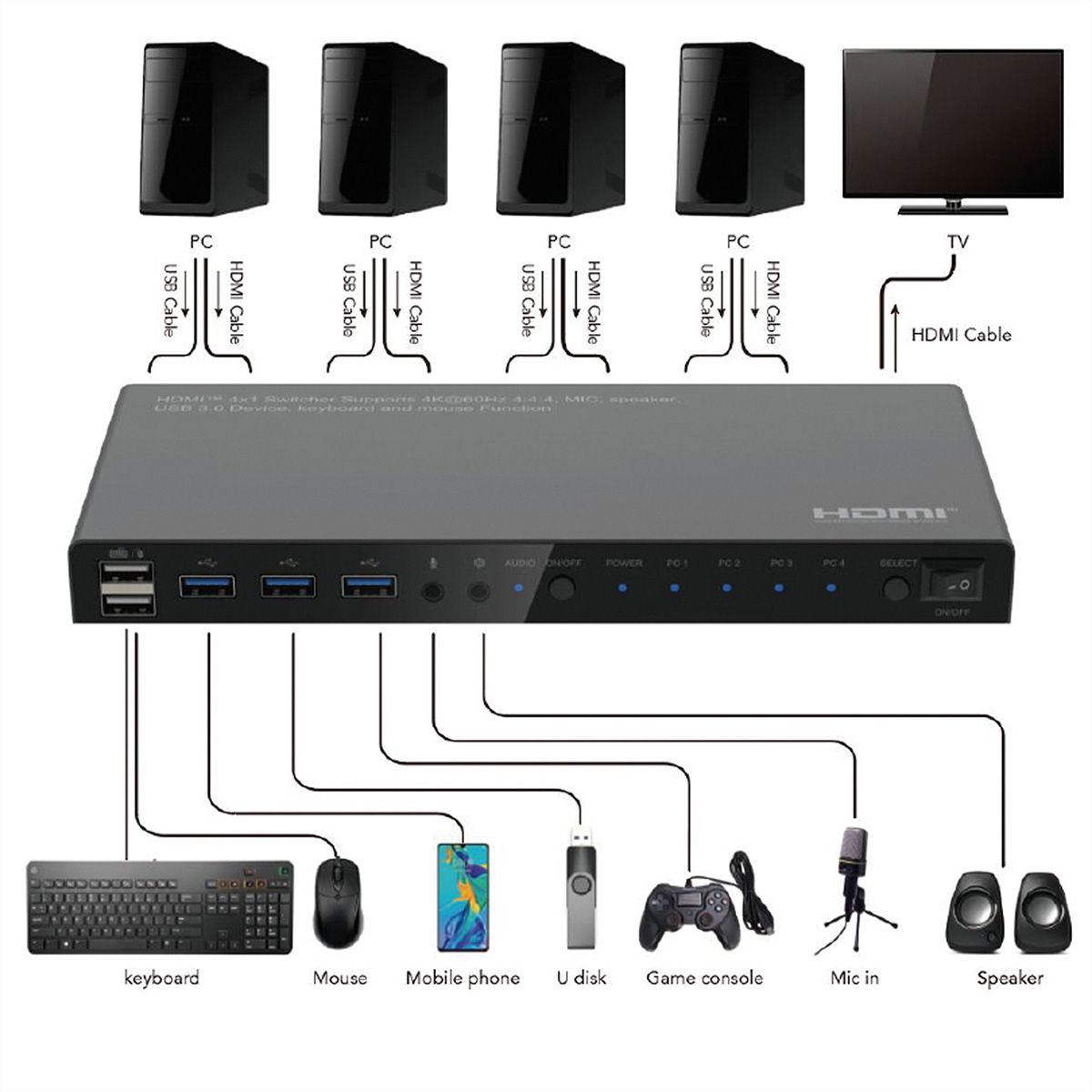

With this ROLINE 4-Port HDMI KVM Switch you can control four computers with only one mouse, one keyboard and one monitor - with a resolution of up to 3840x2160@60Hz! Moreover, it features a 3-Port USB 3.0 / USB 3.2 Gen 1 Hub to connect additional USB devices.
- Switching between the PCs is done via hotkey on the keyboard or via push button on the KVM.
- Max. Resolution: 3840x2160@60Hz
- Four computers can be controlled
- Integrated 3-Port USB 3.2 Gen1 / USB 3.0 Hub
- Supports Mic In and Stereo Audio Out
- Offers full 3D video format
- Features Consumer Electronics Control and High Dynamic Range (HDR)
- Solid metal housing
- Supports Windows 7 / 8 / 10 / 11
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | KVM switches / PC shares |
| Product type | KVM-Switch, HDMI |
| Colour | black |
| Scope of delivery | KVM Switch, Power Adapter, Operating Instructions |
| Interface | HDMI |
| Audio | Stereo Audio |
| Inputs | 4 |
| Outputs | 1 |
| Quantity of PCs | 4 |
| Supported PC-Systems | USB |
| PC: monitor connection | 4x HDMI 4K@60Hz |
| PC: mouse/keyboard connection | 4x USB 3.2 Gen 1 / USB 3.0 Type B |
| Analogue Console: Monitor connection | 1x HDMI |
| Analogue Console: Mouse/Keyboard connection | 2x USB 2.0 Type A |
| Print button on device | yes |
| Switching over Hot Keys | Keyboard |
| Integrated Hub | yes |
| Quantity of USB-Hub ports | 3 |
| Hot plug compatible | yes |
| Max. resolution (nominal) | 3840 x 2160 @60Hz |
| Colour (Design profile) | black |
| Material (casing) | Metal |
| Dimensions (HxWxD) | 23 x 231 x 108 mm |
| Power supply unit required | yes |
| Power supply output | DC 5V 3A |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Height | 23 mm |
| Width | 231 mm |
| Depth | 108 mm |
| Weight | 495 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 220 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.84 kg |
