ROLINE LCD/TV Wall Mount, 5 Joints

ROLINE LCD/TV Wall Mount, 5 Joints

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 17.03.1169-6
Brand / Manufacturer ROLINE
Manuf. no. 17.03.1169
EAN 7611990949687
Package weight 3.7 kg

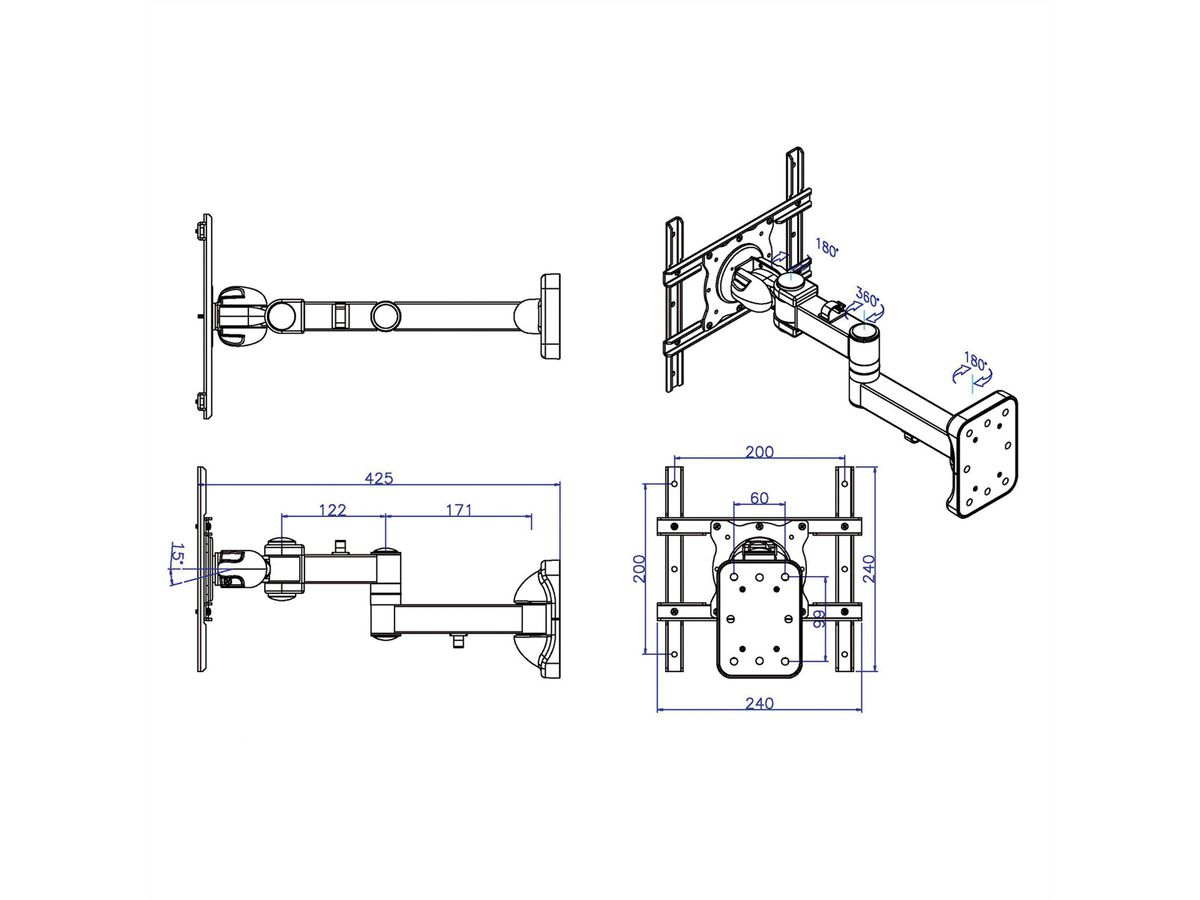

  • Arm length: up to 425 mm
  • Max. load: 25 kg
  • Mounts your screen to the wall and monitor can be tilted ,swiveded and rotated
  • Meets VESA 75 x 75 mm, VESA 100 x 100 mm, VESA 100 x 200 mm, VESA 200 x 200 mm
  • Colour: black


Manufacturer ROLINE
Product group LCD-Monitor arms
Product type Monitor Arms, wall mount
Colour black
Scope of delivery supporting arm, mounting screws, 6 mm hex wrench, manual, cable clips
Maximum weight capacity 25 kg
Quantity of pivots 5
Fixing Wandbefestigung
Maximal arm length 425mm
Adjustments Adjustable spring gauge
Number of monitors 1
VESA 75 x 75 mm yes
VESA 100 x 100 mm yes
VESA 200 x 100 mm yes
VESA 200 x 200 mm yes
Material group metal
Weight 3295 g
Height of packaging (single piece) 125 mm
Width of packaging (single piece) 145 mm
Depth of packaging (single piece) 460 mm
Package weight (single piece) 3.7 kg


Product data sheet - English (45.4 KB)


Manufacturer data sheet - English (6.4 MB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
