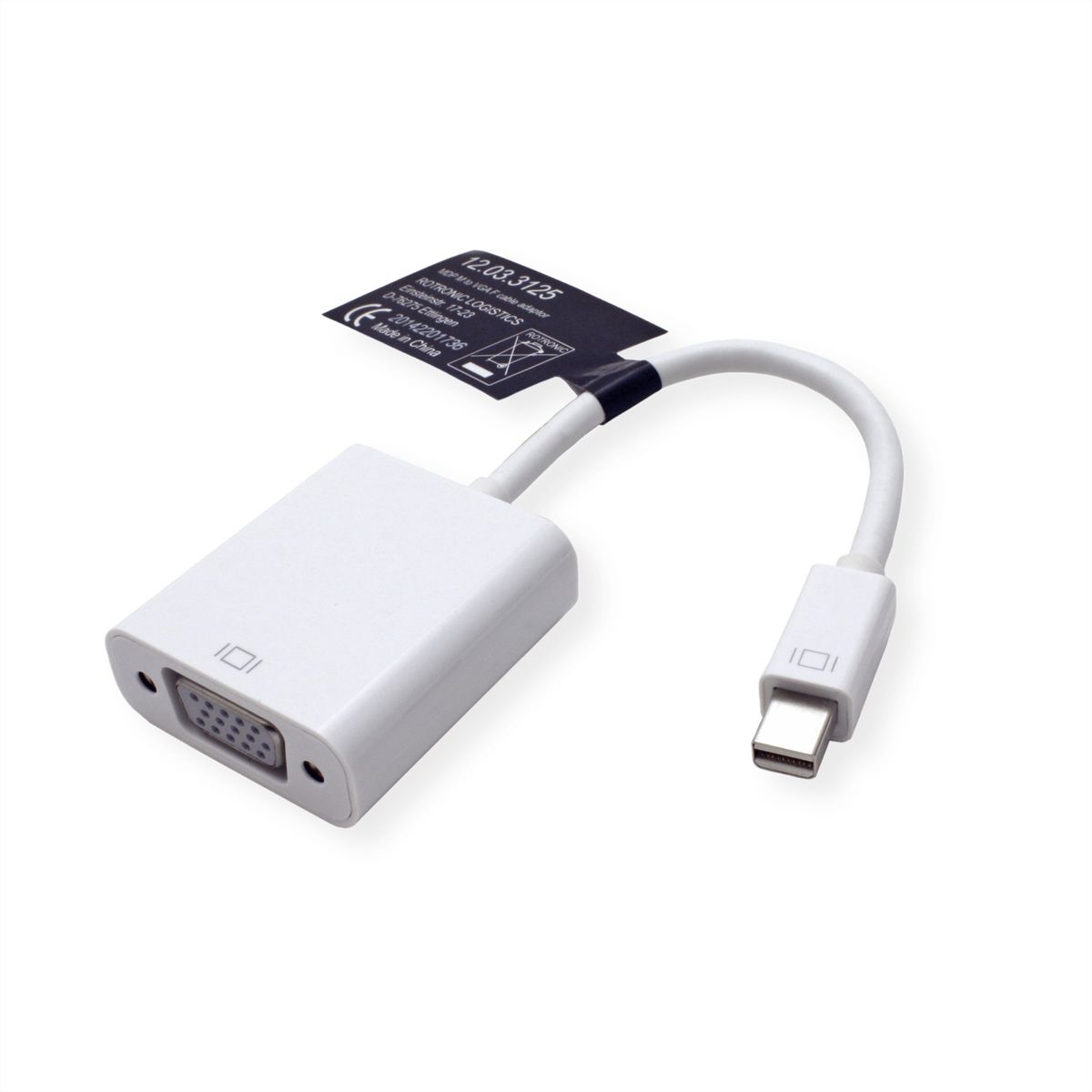

ROLINE Mini DisplayPort-VGA Adapter, Mini DP M - VGA F, white

Item no. 12.03.3125-10 Brand / Manufacturer ROLINE Manuf. no. 12.03.3125 EAN 7611990995011 Package weight 0.04 kg
ROLINE
Product recommendations

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

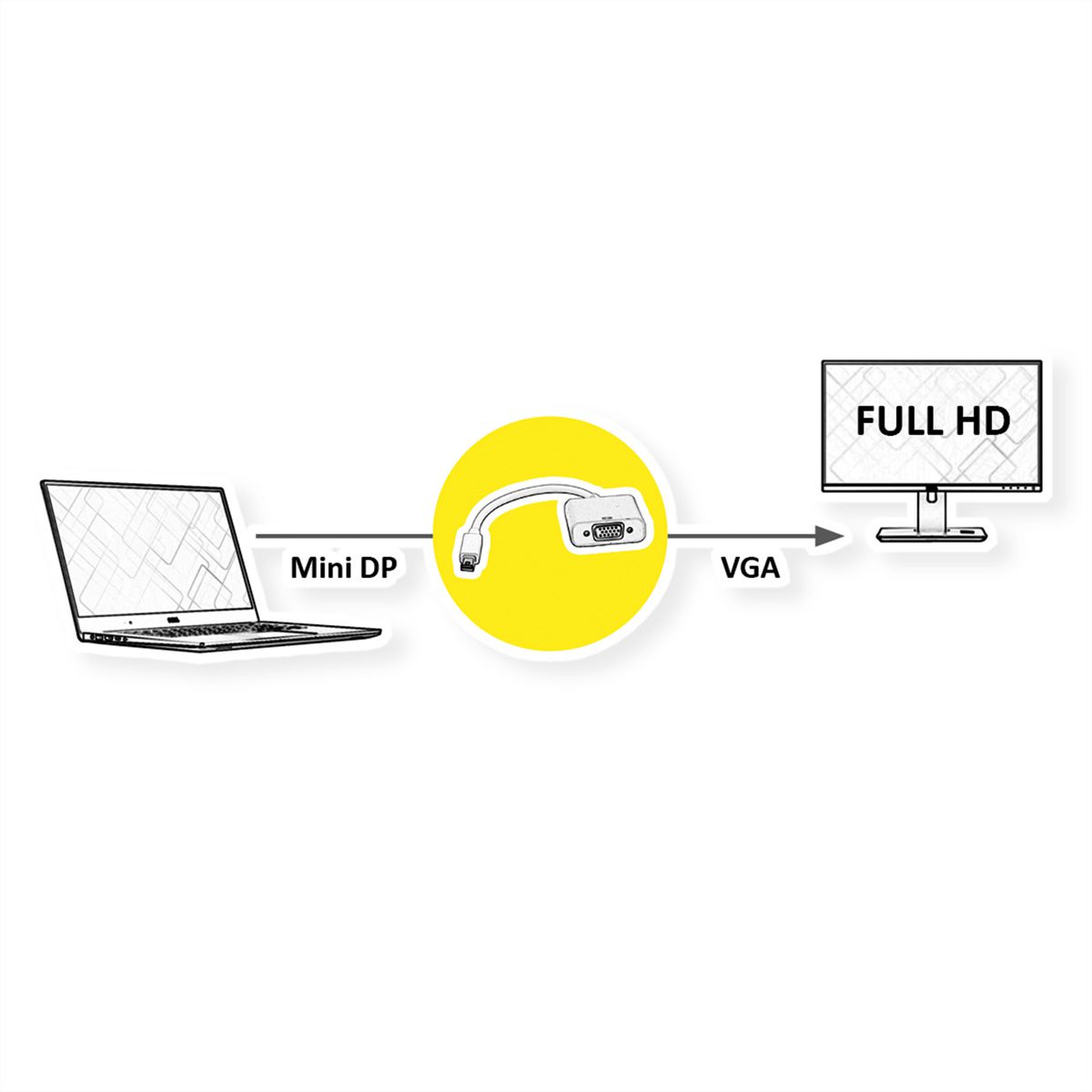

Mini DisplayPort to VGA cable adapter for connecting a graphics card with Mini DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

  • For connecting a graphic card with Mini DisplayPort connector to a VGA monitor by using a VGA M-M cable
  • Connectors: Mini DisplayPort Male and VGA Female
  • Cable length: ca. 10 cm
  • Remark: The Mini DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
Mini DisplayPort-VGA Adapter
Colour
white
Length
0.1 m
Max. resolution
1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)
Mini DisplayPort Male
Side 2 connection (Peripherals)
VGA Female
Side 1 Connector Type
Mini DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender
Female
Active / Passive
Active
Area of application
External
Weight
26.2 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.04 kg

Downloads

Product data sheet - English (46.7 KB) Manufacturer data sheet - English (346.5 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
