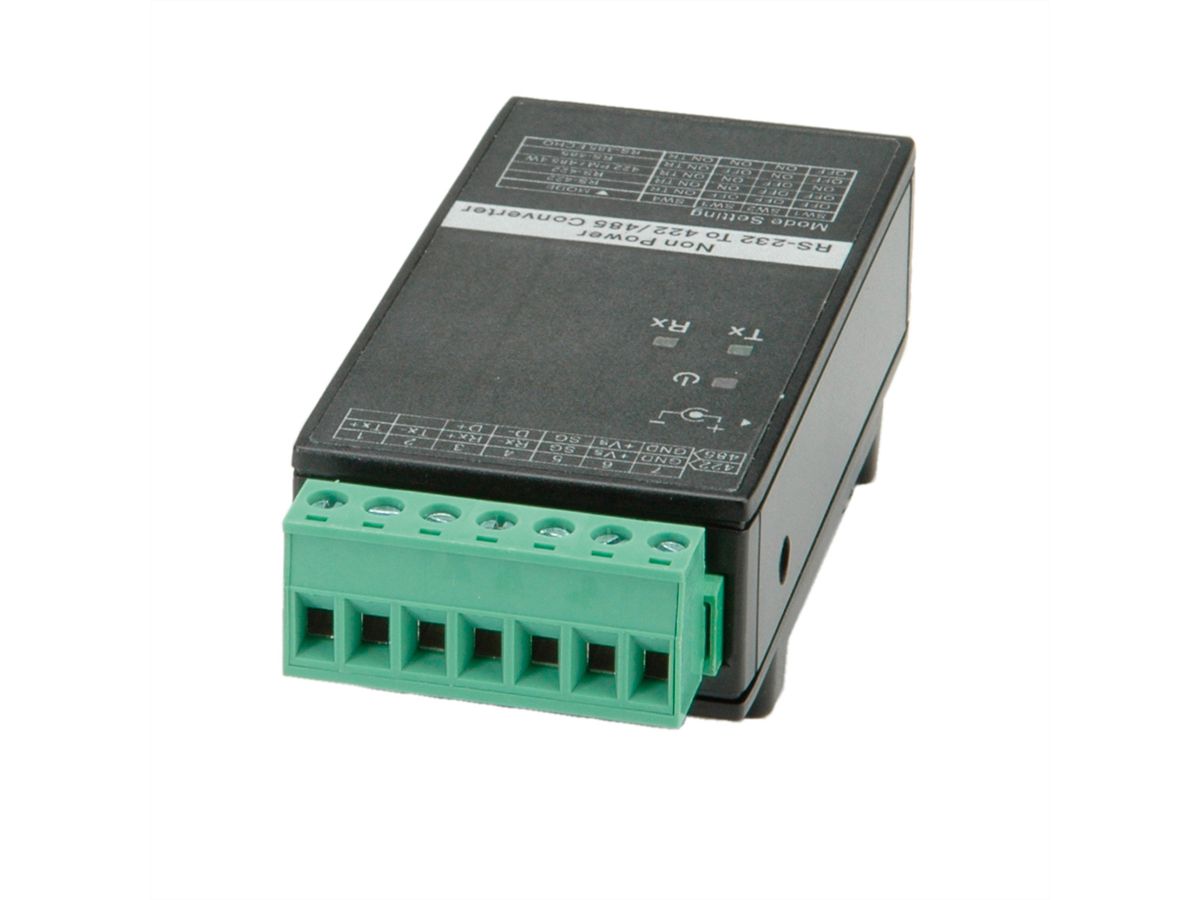

ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered

ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1008-4
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1008
EAN 7611990998661
Package weight 0.14 kg

Description

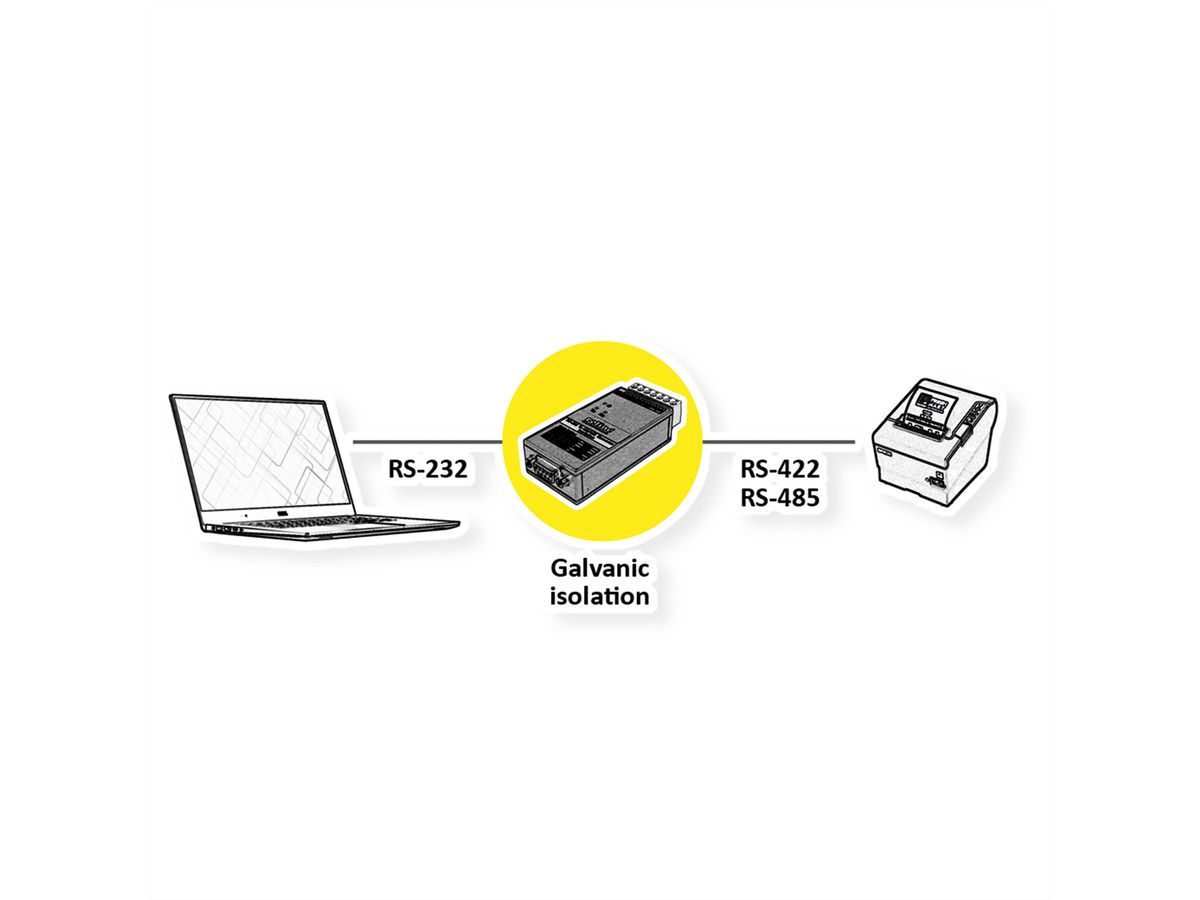

Converts RS-422 or RS-485 devices to a RS-232 port

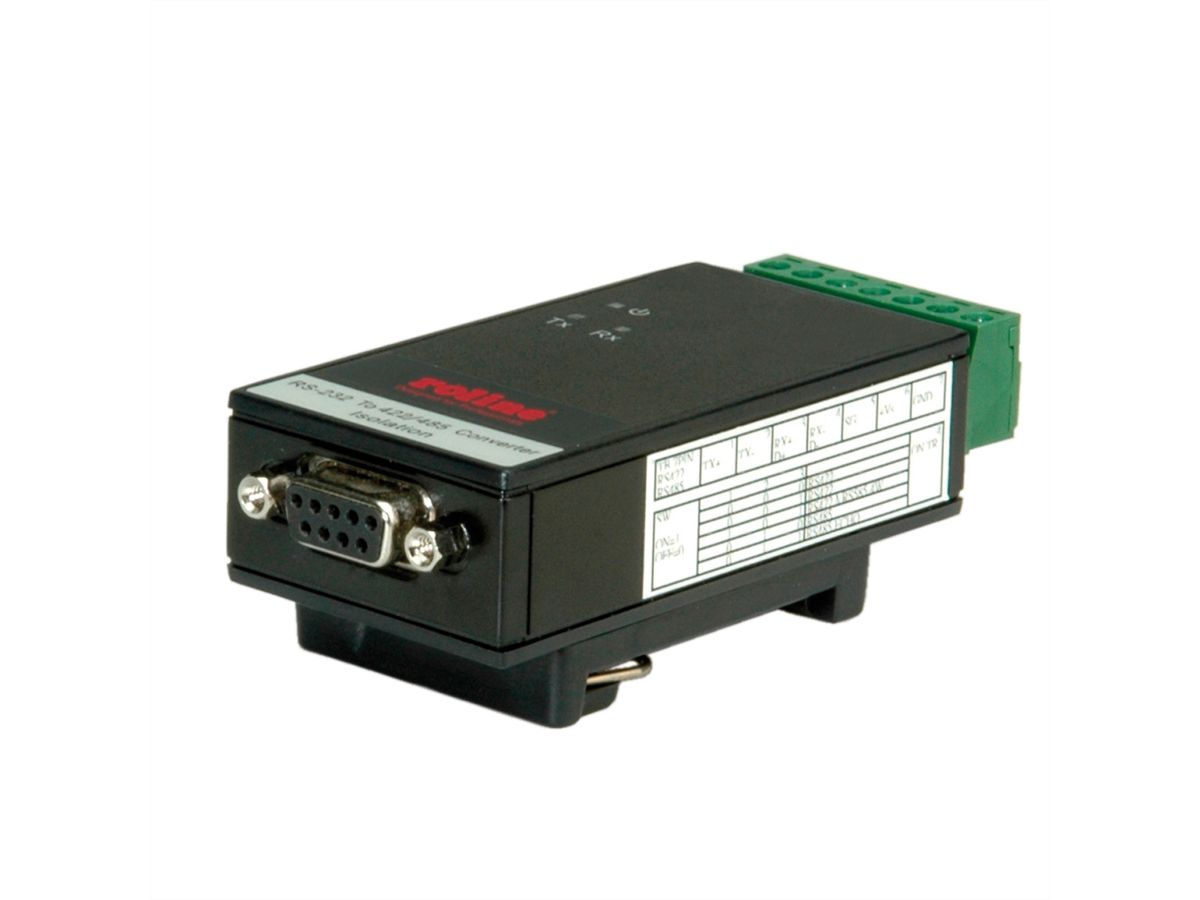

  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • High speed baud rate up to 921.6 Kbit/s
  • Data transfer rate of up to 115.2 Kbit/s at 1.2 km
  • Built-in Terminator 120 Ohm by DIP switch settings
  • Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Signals for RS-422/4-wire: Tx+, Tx-, Rx+, Rx-, GND
  • Signals for RS-485/2-wire: D+, D-, GND
  • Protection: 15 KV ESD protection for all signals, 600 W surge protection for RS-422/485 signals

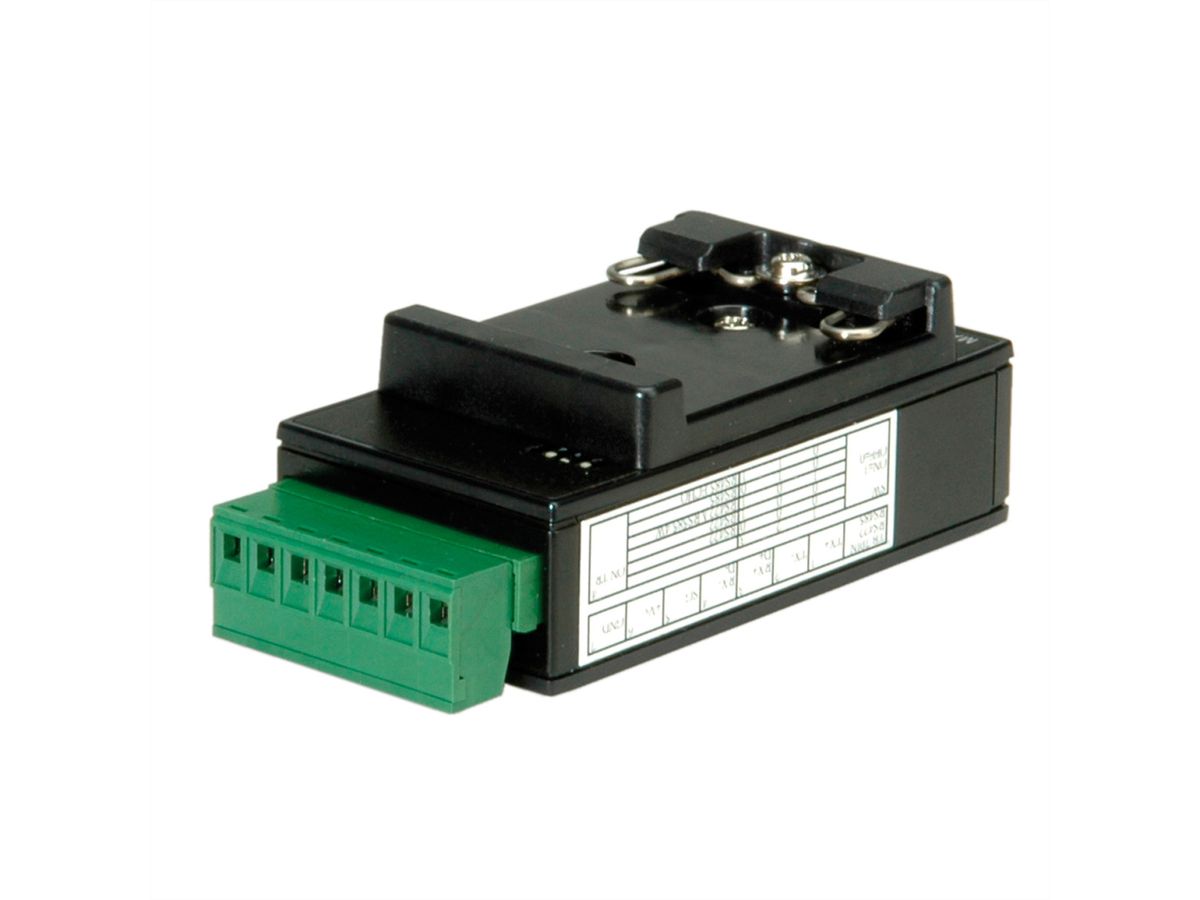

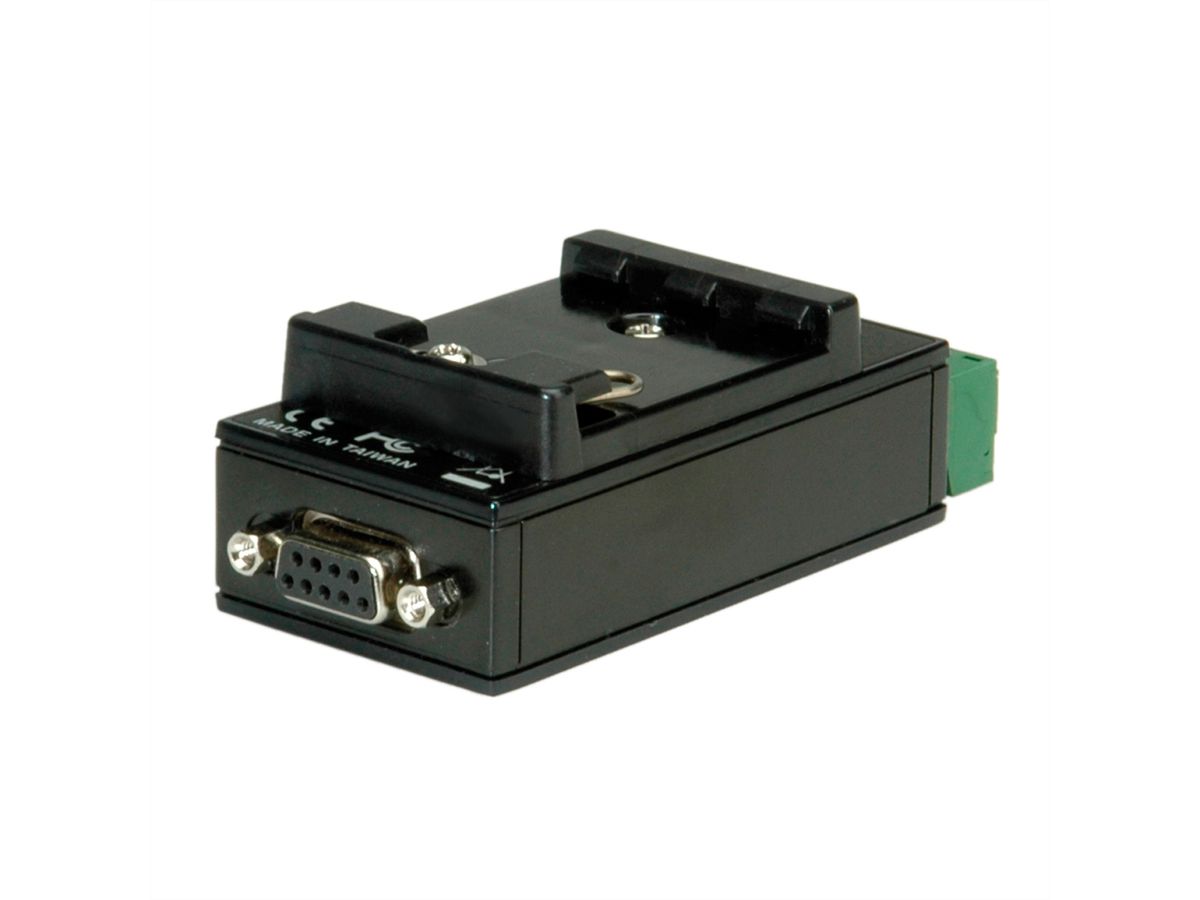

  • For DIN rail mounting (DIN rail kit included) or desktop use
  • Hardware solution, no software required
  • RS-232 port powered technology, optional: Power input 10~30 VDC

  • Contents: Converter, manual

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Serial interface converter
Colour black
Scope of delivery Converter, manual
Weight 62.9 g
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 200 mm
Package weight (single piece) 0.14 kg

Downloads

Product data sheet - English (45.4 KB)

Download

Manufacturer data sheet - English (1.5 MB)

Download

User manual - Deutsch (298.8 KB)

Download

User manual - English (296.9 KB)

Download

User manual - Français (32.5 KB)

Download
