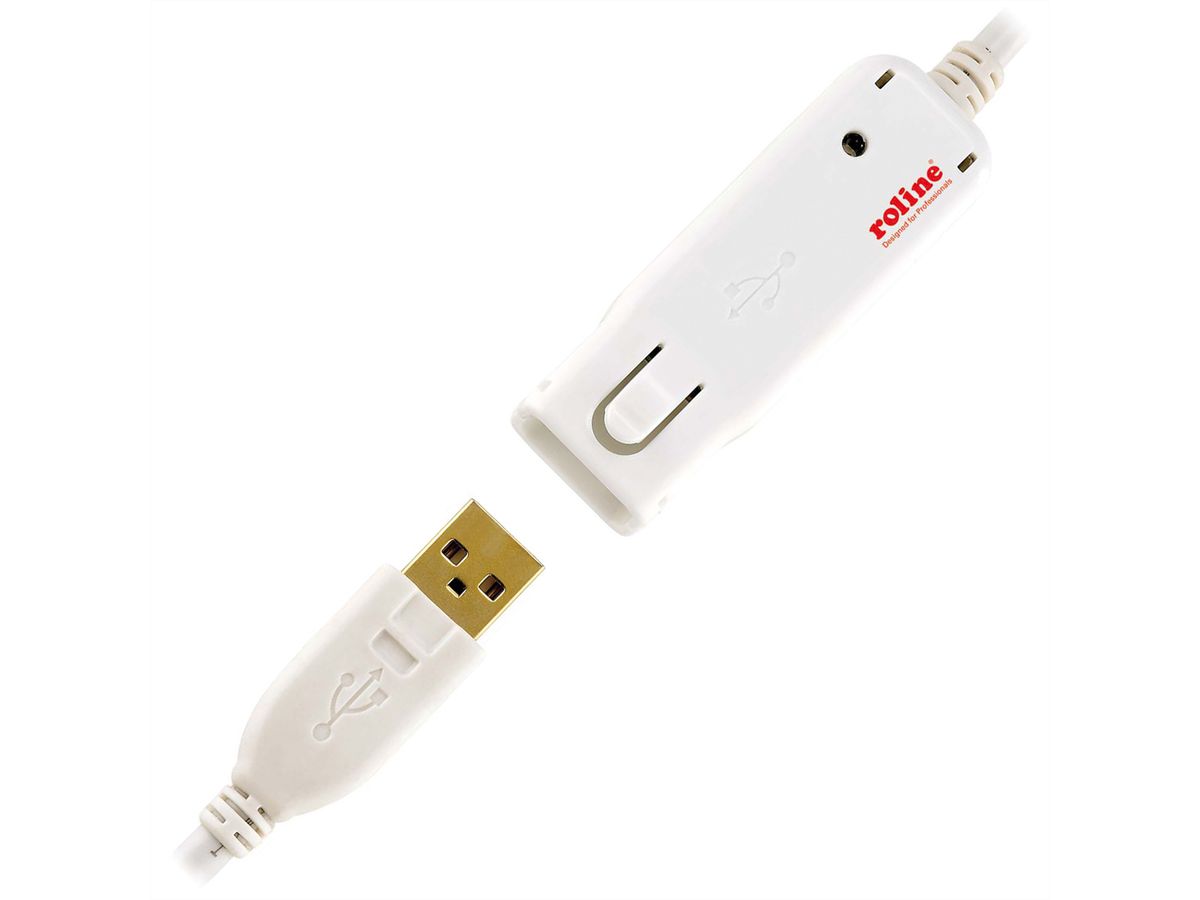

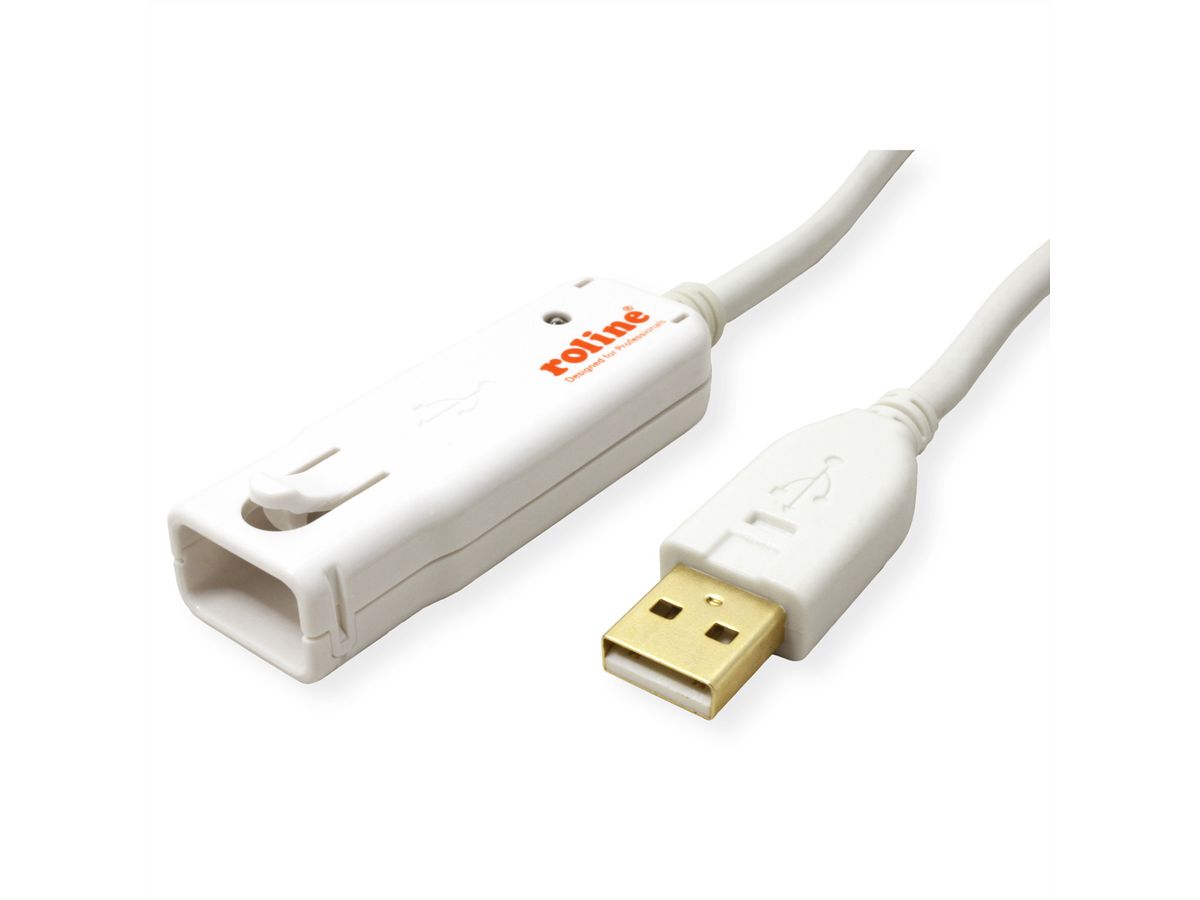

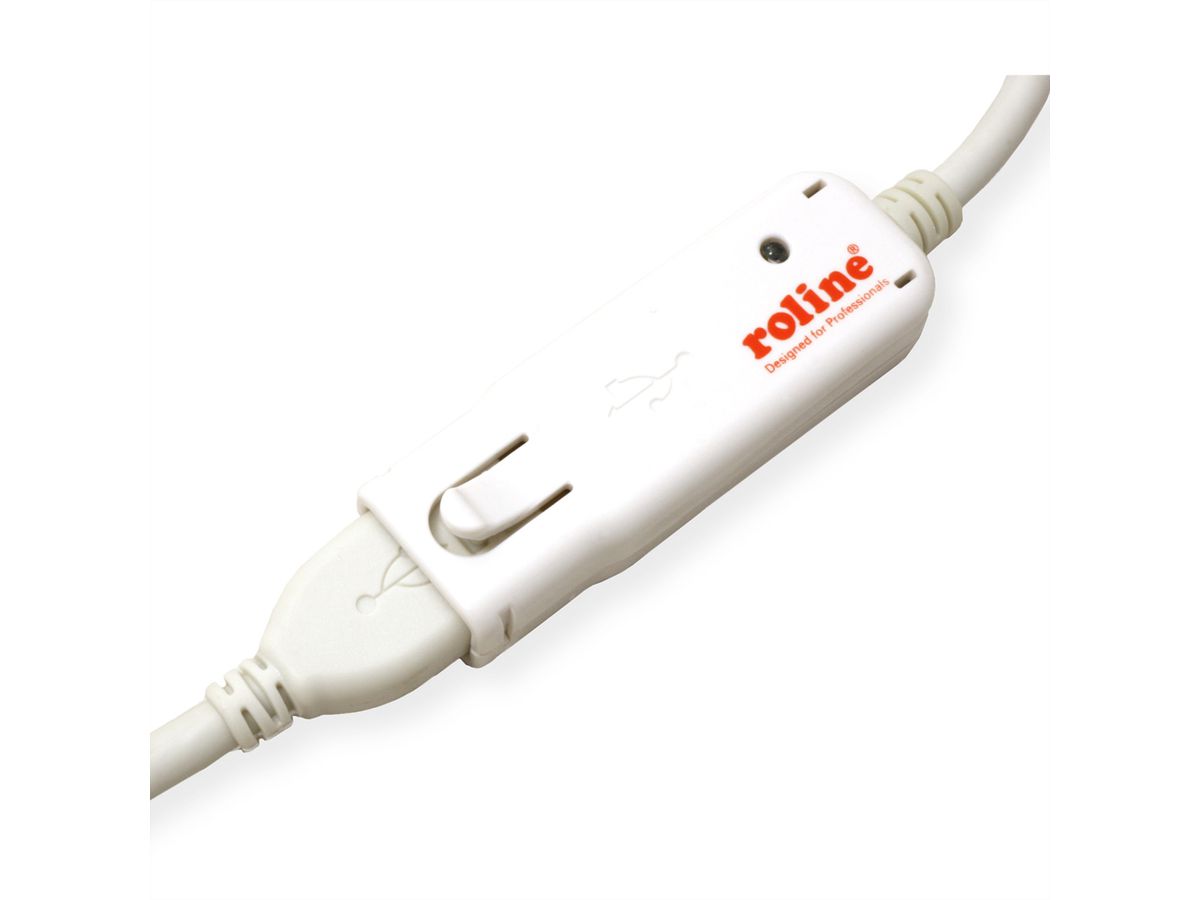

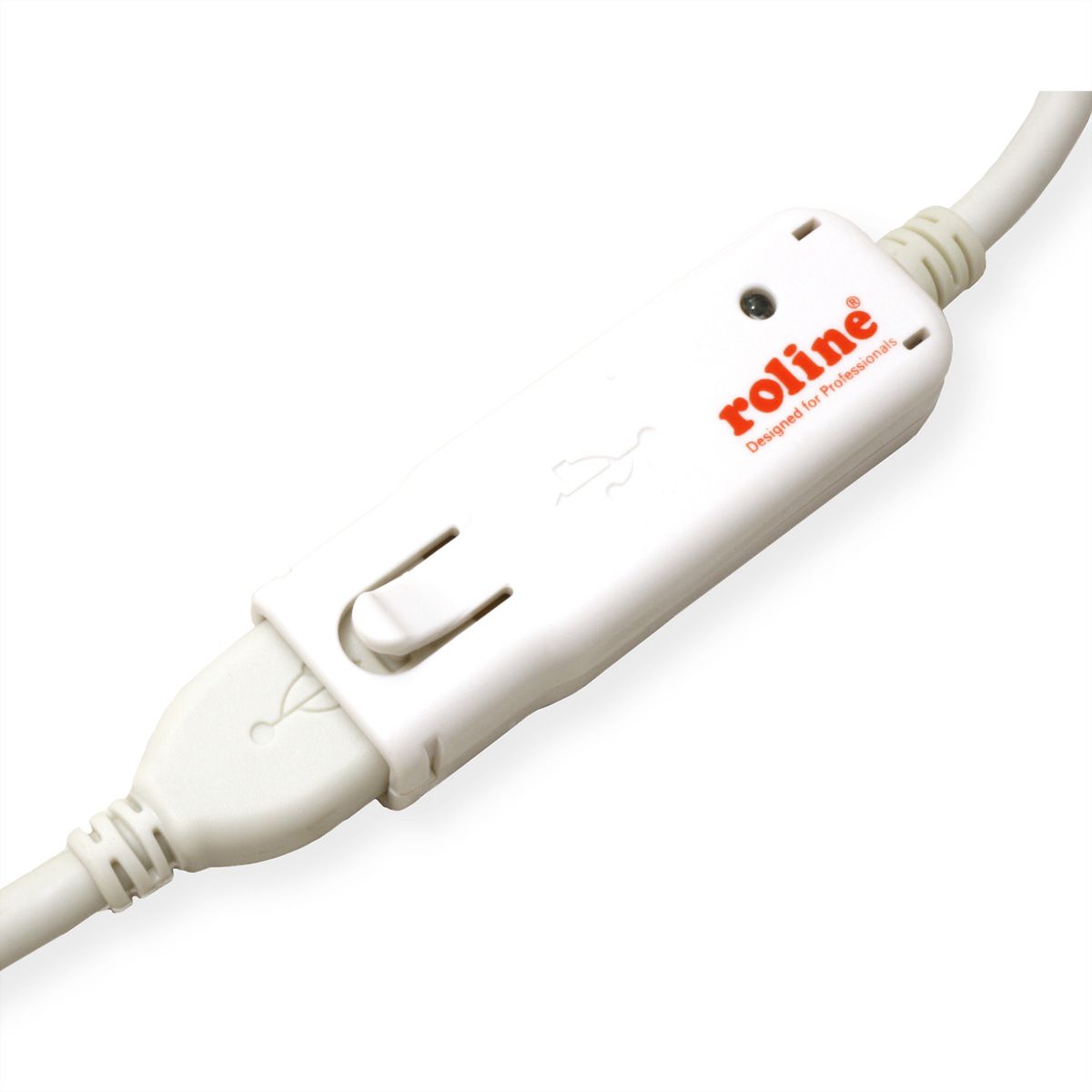

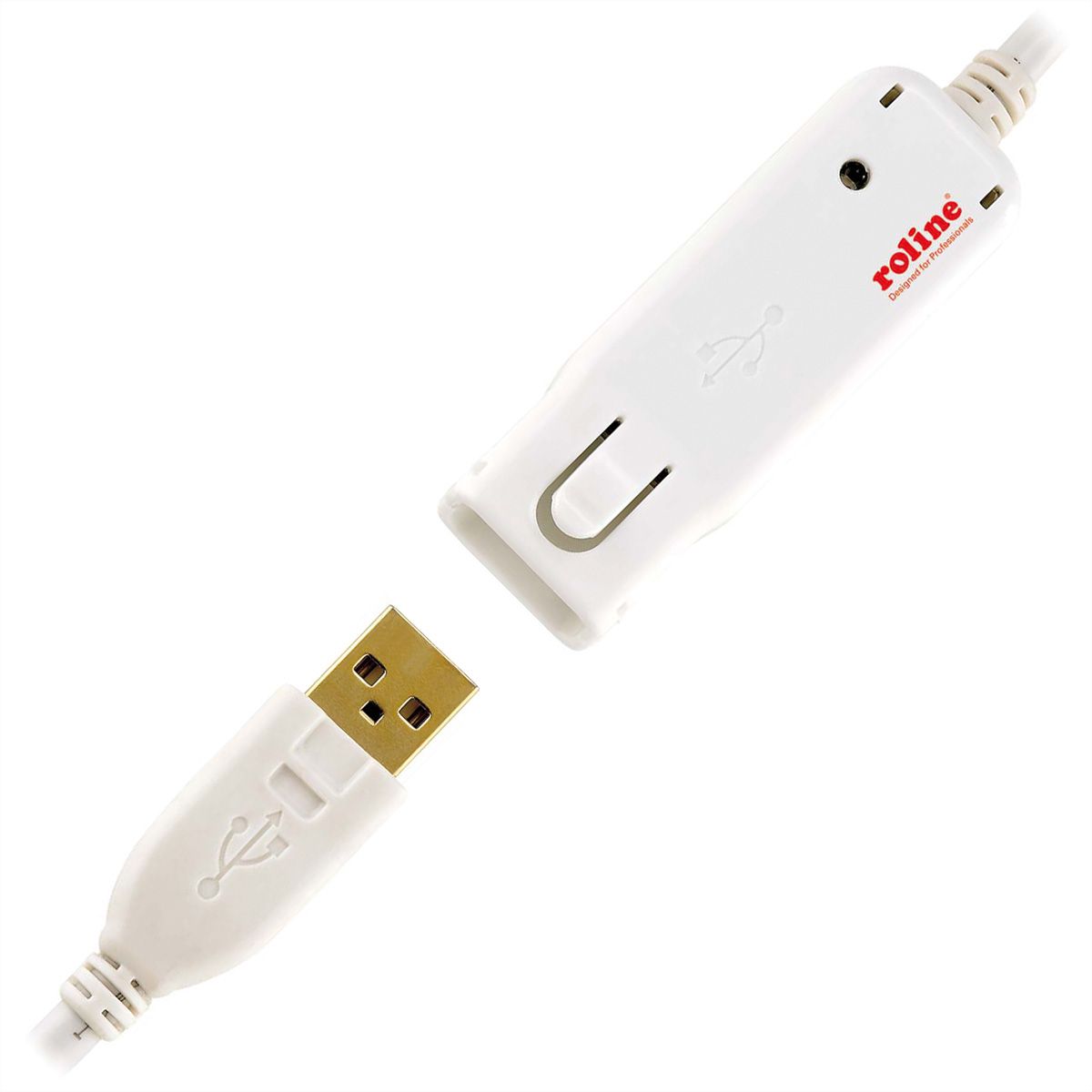

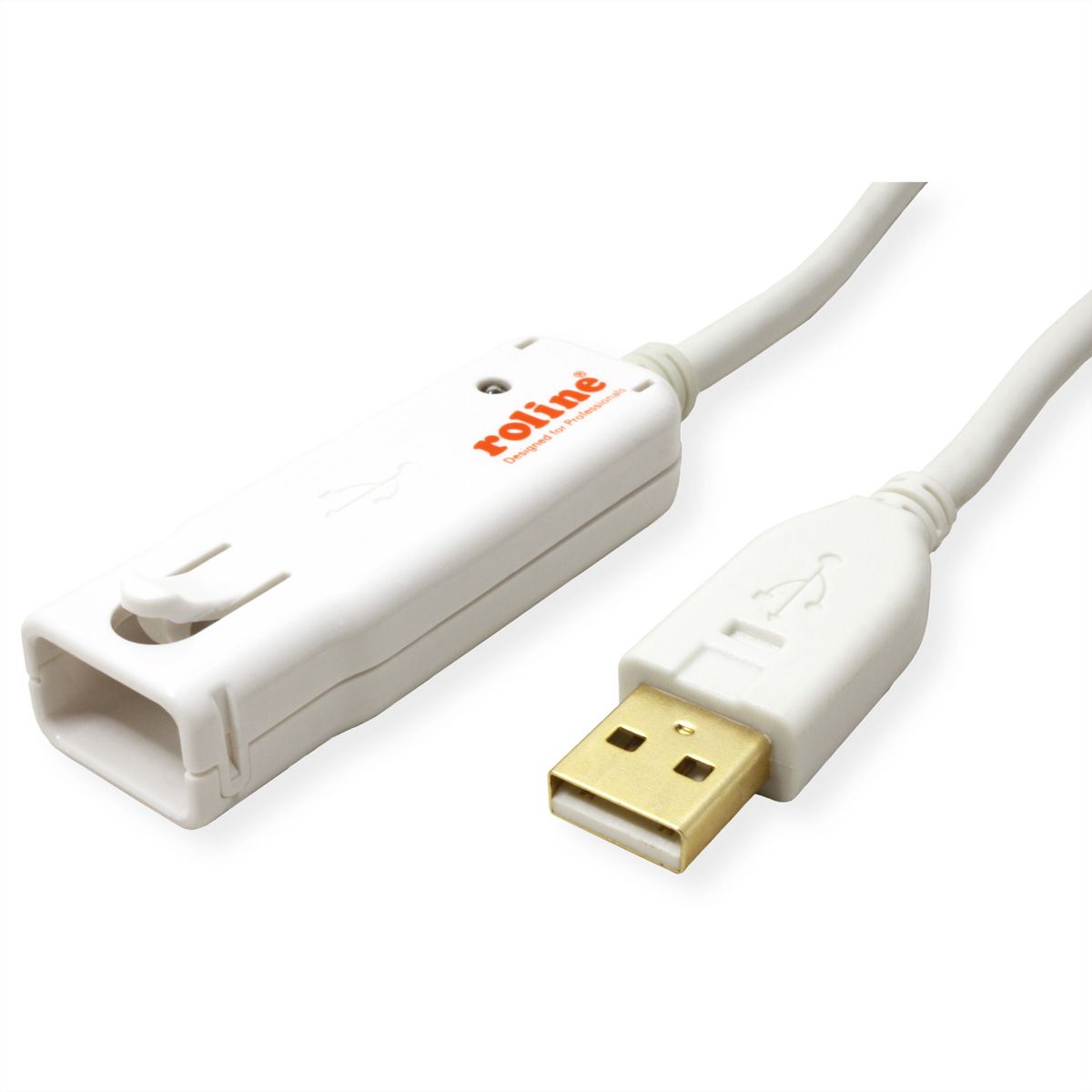

ROLINE USB 2.0 Active Repeater Cable for 12.04.1085, 12 m

Item no. 12.04.1086-10 Brand / Manufacturer ROLINE Manuf. no. 12.04.1086 EAN 7611990988198 Package weight 0.531 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

This repeater cable is an active extension cable that extends the distance between the ROLINE USB 2.0 4-Port Hub with Repeater (12.04.1085) and the computer for another 12 Meters. Unlike ordinary USB extension cable, this USB repeater cable assures signal quality and maintains electrical and timing specifications are in full compliance with USB 2.0/1.1 standard.

  • Full compliance with USB 2.0 / 1.1 specification
  • Bus power (direct power from USB port) support
  • Plug & play. no additional drivers required
  • Cable length: 12 m
  • Housing dimensions: 64.0 x 22.2 x 13.3 mm
  • Connectors: USB Type A Male and USB Type A Female
  • Supports Windows

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
USB 2.0 Repeater Cable
Colour
white
Length
12 m
Scope of delivery
Cable
Transfer quality
USB 2.0 Hi-Speed 480 Mbit/s
Side 1 connection (PC)
Type A Male
Side 2 connection (Peripherals)
Type A Female
Side 1 Connector Type
USB 2.0 Type A
Side 1 Connector Gender
Male
Side 2 Connector Type
USB 2.0 Type A
Side 2 Connector Gender
Female
Maximum data transfer rate
480 Mbit/s
Area of application
External
Dimensions (HxWxD)
Cable length: 12 m
Technical particularity
5 times cascadable
Height
13.3 mm
Width
22.2 mm
Depth
64 mm
Weight
447.1 g
Height of packaging (single piece)
40 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.531 kg

Downloads

Product data sheet - English (46.3 KB) Manufacturer data sheet - English (494.0 KB)
