ROLINE USB 3.2 Gen 2 Typ C Multiport Docking Station, 4K HDMI, 1x USB 3.0 Type A, 1x USB 2.0 Type A, 1x USB 2.0 Type C, 1x SD/Micro SD, 1x USB Type C PD (Power Delivery)

Item no. 12.02.1122-5 Brand / Manufacturer ROLINE Manuf. no. 12.02.1122 EAN 7630049688445 Package weight 0.08 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

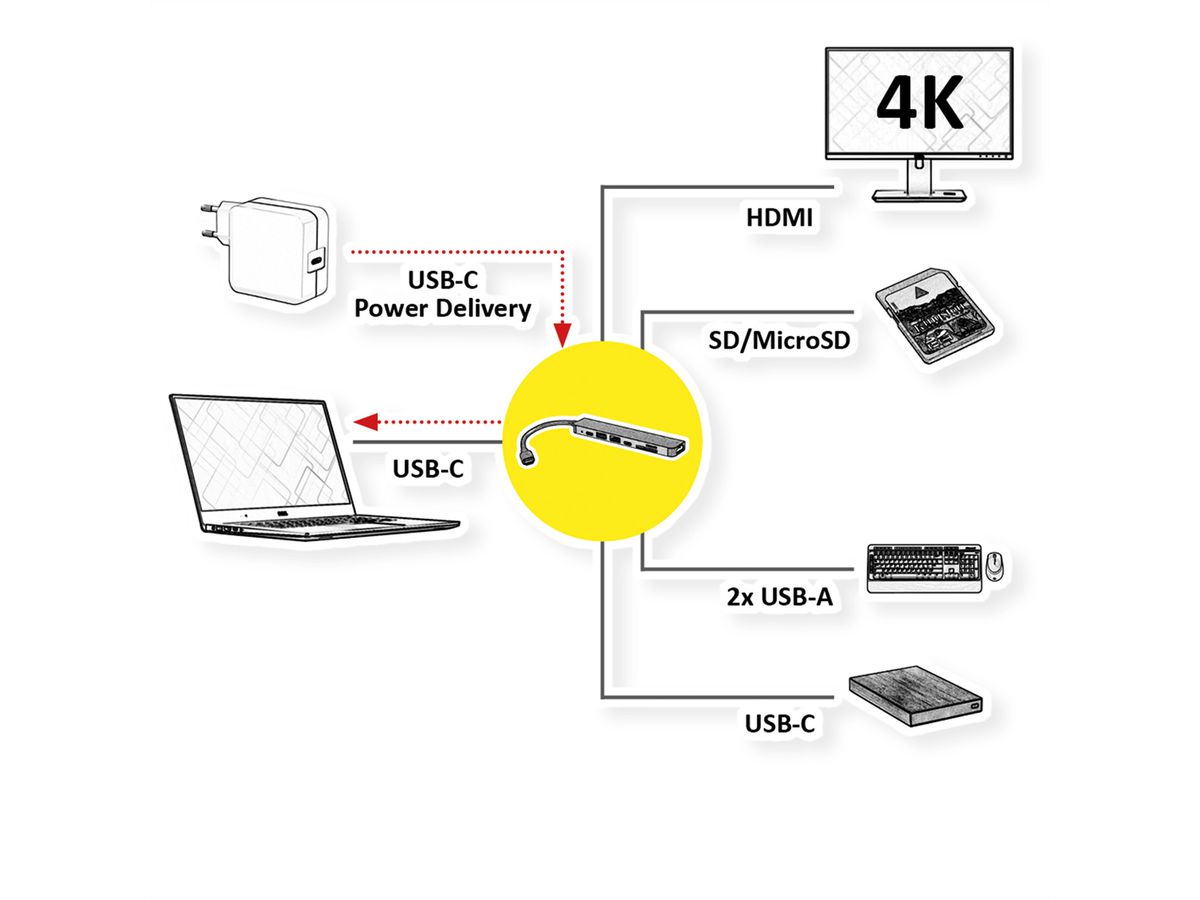

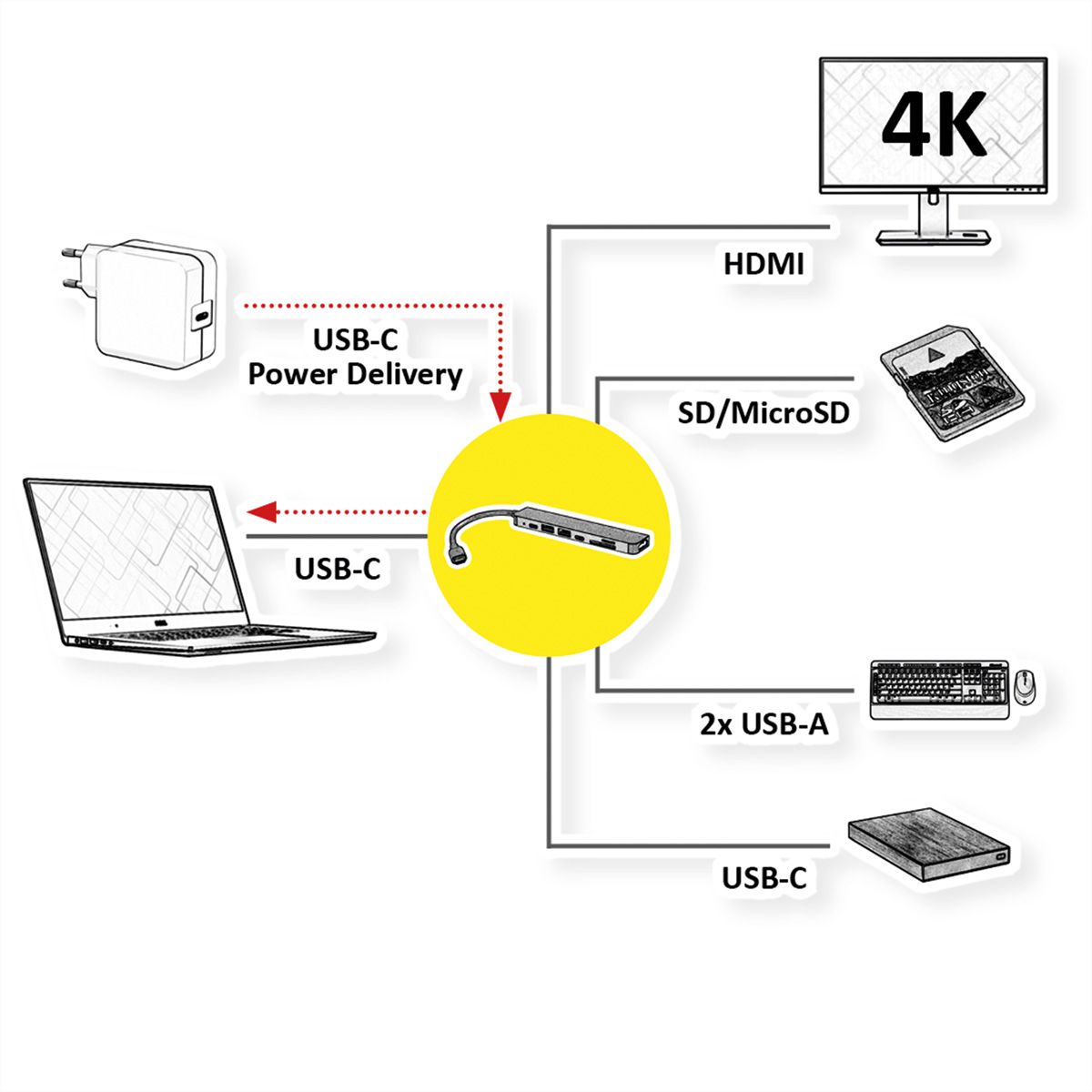

The USB Type C Docking Station provides your MacBook, Ultrabook, Notebook or Laptop with 1x 4K HDMI, 1x USB 3.0 Type A, 1x USB 2.0 Type A, 1x USB 2.0 Type C, 1x SD/Micro SD, 1x USB Type C PD (Power Delivery).

  • Plug & Play
  • Aluminium housing in space grey
  • Multiport Docking Station with HDMI connection, allows the expansion of a display or mirroring to another monitor, television or beamer.
  • Max. Resolution: 3840x2160 at 60Hz
  • Compact and flat design.
  • System requirements: Windows 7/8/10 or MacOS X10.2 and higher

Connection to the mobile device:
  • 1x USB Type C connector

Connections for peripheral devices:
  • 1x HDMI 4K/@60Hz video output: Mirror or expand your screen to a TV, monitor or projector.
  • 1x USB 3.0 / 3.2 Gen 1 type A port (data transfer rate up to 5Gbit/s), for connecting a keyboard, mouse, HDD, SSD, etc.
  • 1x USB 2.0 type A
  • 1x USB 2.0 type C
  • 1x SD/MicroSD card reader
  • 1x USB Type C PD (Power Delivery, max. 60W)

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
Notebook-Docking-Station
Colour
grey
Length
0.15 m
Scope of delivery
Docking Station
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)
USB Type C
Side 2 connection (Peripherals)
2x USB 3.2 Gen 1 socket, 1x HDMI socket, 1x Gigabit Ethernet socket, 1x Card Reader, 1x PD
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
  • USB 3 Type A
  • USB 2.0 Type A
  • USB Type C (USB-C)
  • USB Type C PD (Power Delivery)
  • HDMI Type A
  • SD-Card-Slot
  • MicroSD-Card-Slot
Side 2 Connector Gender
Female
Material
Aluminum
Height
10 mm
Width
28 mm
Depth
128 mm
Weight
45 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
30 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.08 kg

Downloads

Product data sheet - English (42.2 KB) Manufacturer data sheet - English (474.9 KB)
