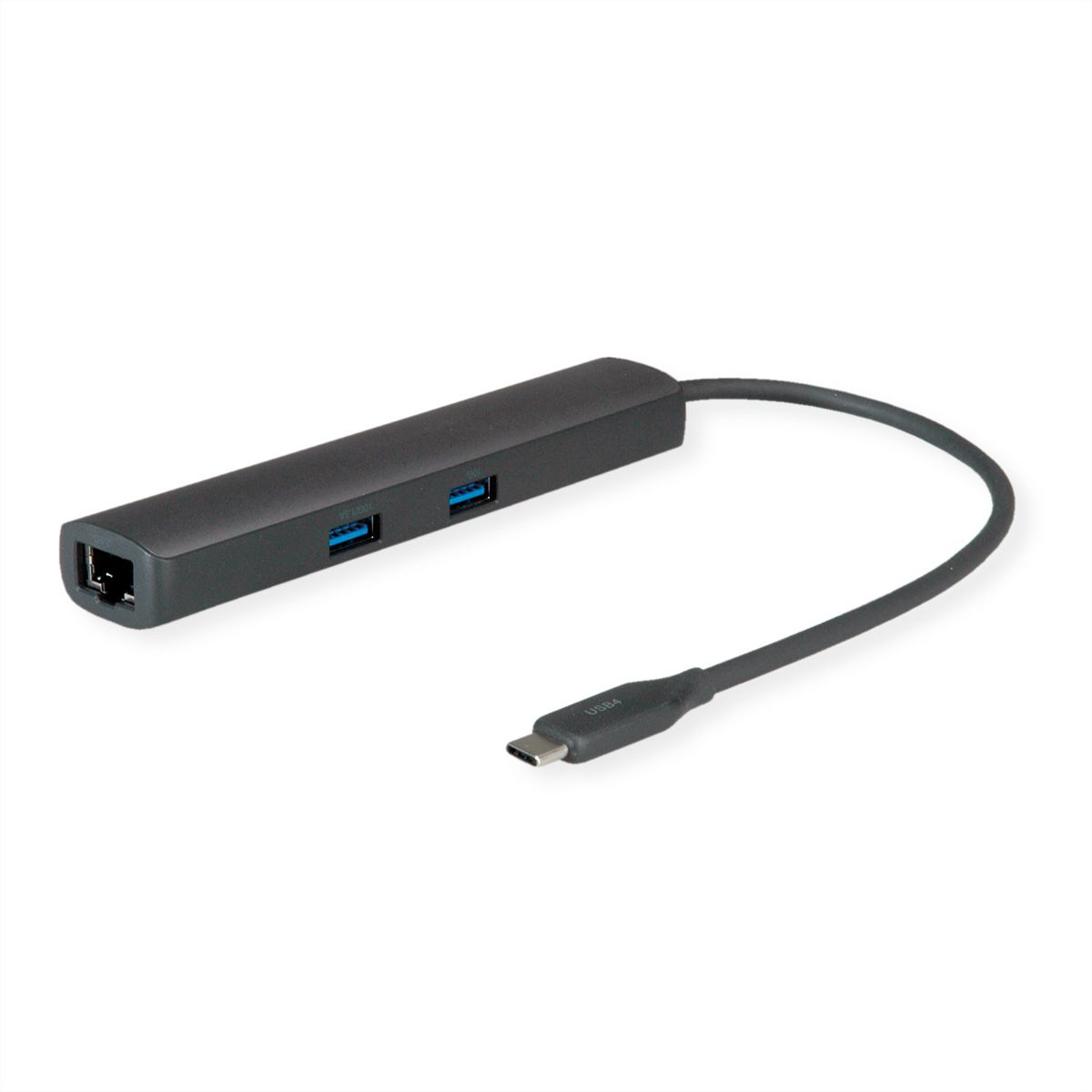

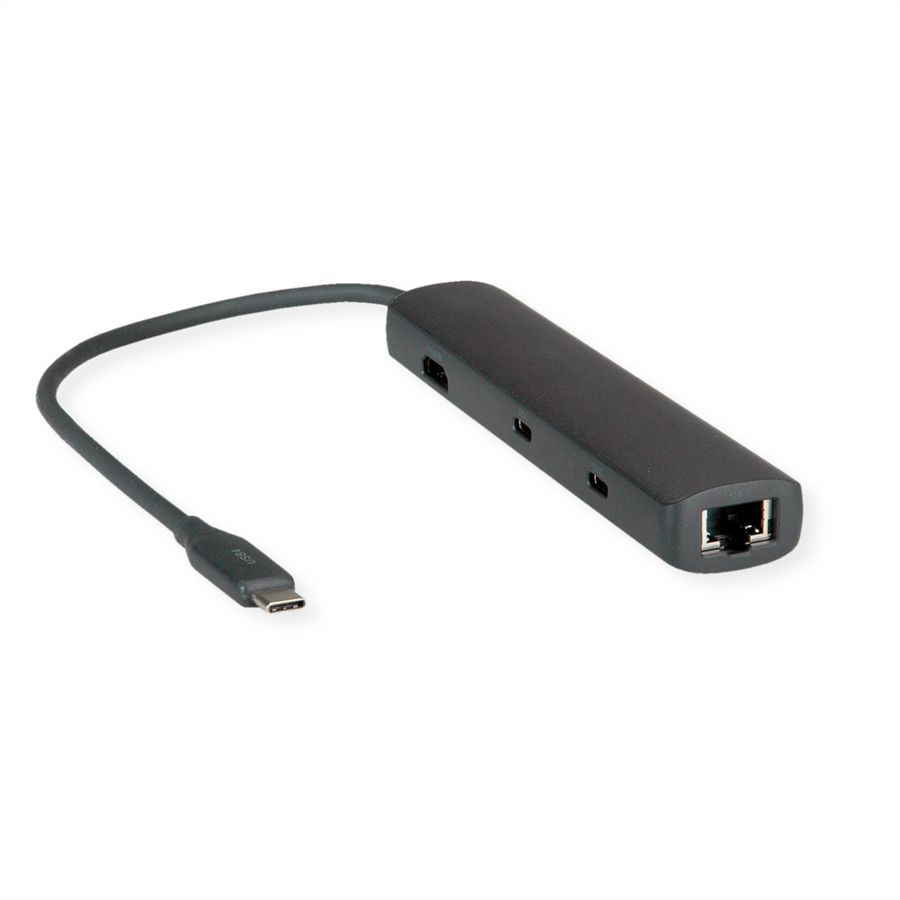

ROLINE USB 3.2 Gen 2 Type C Multiport Docking Station, 8K30 HDMI, 3x USB 3.2 Gen 2(2x A + 1x C), 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet (2.5 GbE)

ROLINE USB 3.2 Gen 2 Type C Multiport Docking Station, 8K30 HDMI, 3x USB 3.2 Gen 2(2x A + 1x C), 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet (2.5 GbE)

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1124-10
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1124
EAN 7630049688469
Package weight 0.05 kg

Description

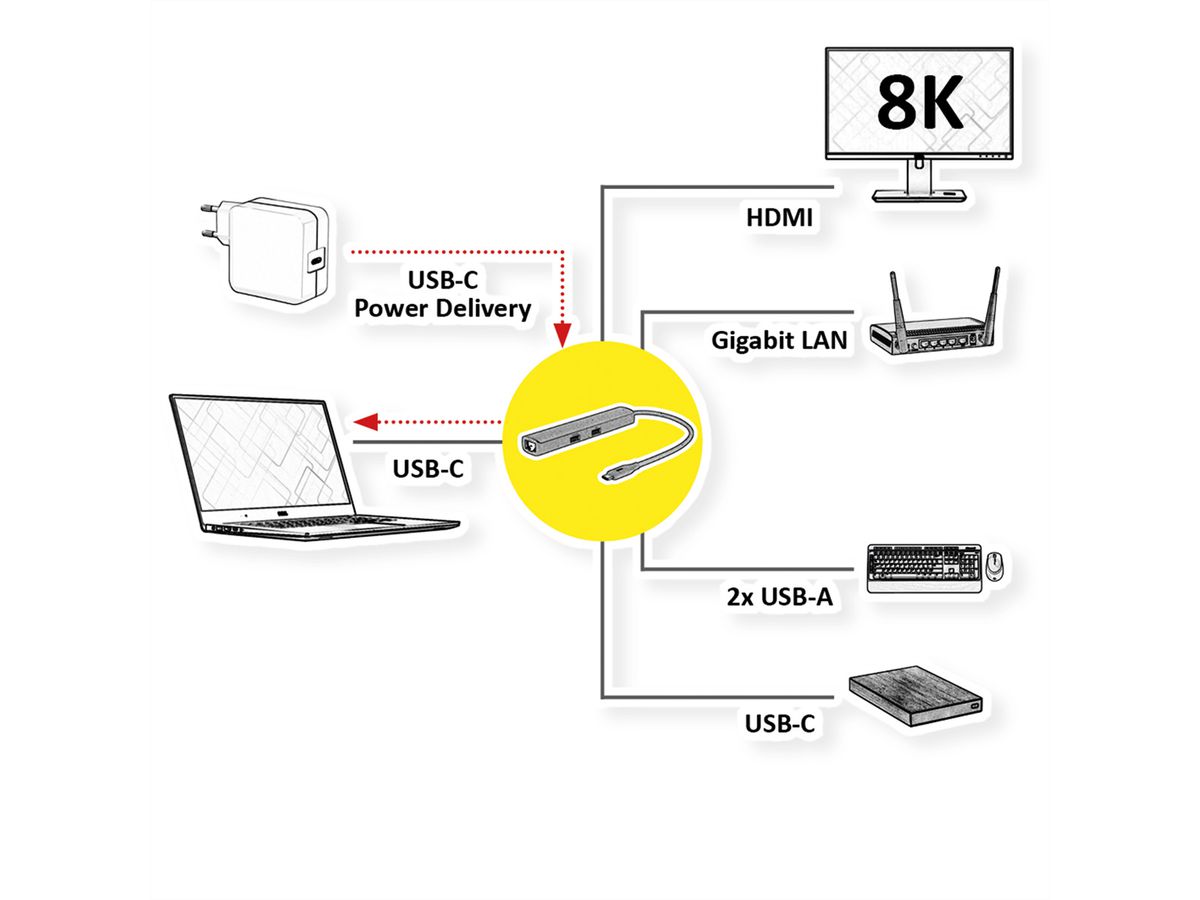

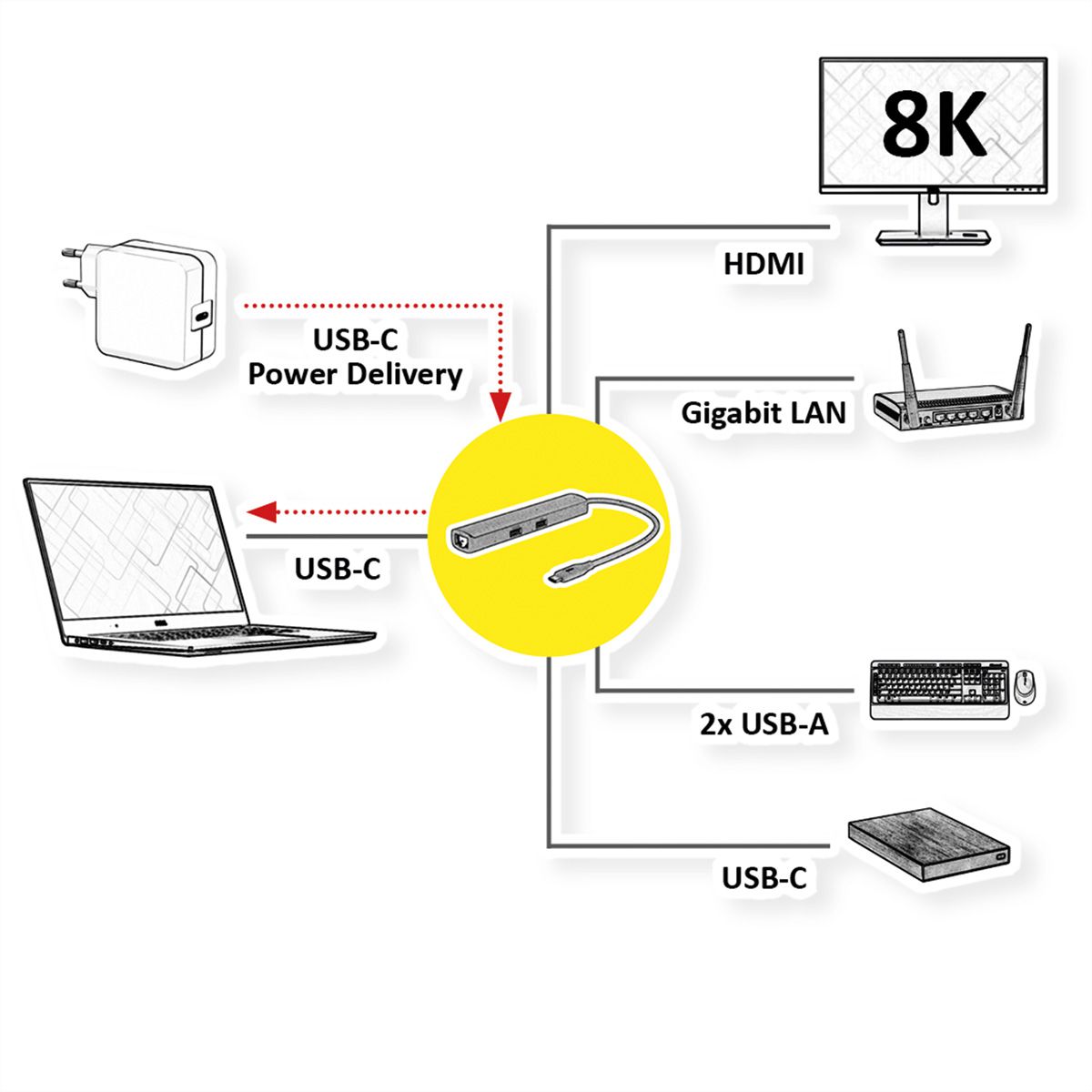

The USB Type C Docking Station provides your MacBook, Ultrabook, Notebook or Laptop with a 8K30 capable HDMI port, 3x USB 3.2 Gen 2 (2x A + 1x C), 1x USB Type C PD (Power Delivery) and 1x 2.5 Gigabit Ethernet!

  • Plug & Play
  • Aluminium housing in space grey
  • Multiport Docking Station with HDMI connection, allows the expansion of a display or mirroring to another monitor, television or beamer.
  • Max. Resolution: 7680x4320@30Hz
  • Compact and flat design.

  • System requirements: Windows 7/8/10 or MacOS X10.2 and higher

Connection to the mobile device:
  • 1x USB Type C connector

Connections for peripheral devices:
  • 1x HDMI 8K video output: Mirror or expand your screen to a TV, monitor or projector.
  • 3x USB 3.2 Gen 2 Type (2x A +1x C) ports (data transfer rate up to 10Gbit/s), for connecting e.g. keyboard/mouse, USB HDD/SSD, etc.
  • 1x USB Type C PD (Power Delivery, max. 60W)
  • 1x RJ45 for 2.5 Gigabit Ethernet

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Notebook-Docking-Station
Colour grey
Length 0.15 m
Scope of delivery Docking Station
Side 1 connection (PC) USB Type C
Side 2 connection (Peripherals) 3x USB 3.2 Gen 2 F (2x A + 1x C), 1x HDMI socket, 1x 2.5 Gigabit Ethernet socket, 1x PD
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type
  • HDMI Type A
  • RJ-45
  • USB Type C (USB-C)
  • USB 3 Type A
  • USB Type C PD (Power Delivery)
Side 2 Connector Gender Female
Material Aluminum
Height 18 mm
Width 30 mm
Depth 141 mm
Weight 96 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.05 kg

Downloads

Product data sheet - English (47.2 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
