ROLINE USB Type C docking station, 4K HDMI, 1x VGA, 2x USB 3.2 Gen 1 ports, 1x SD/MicroSD card reader, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription

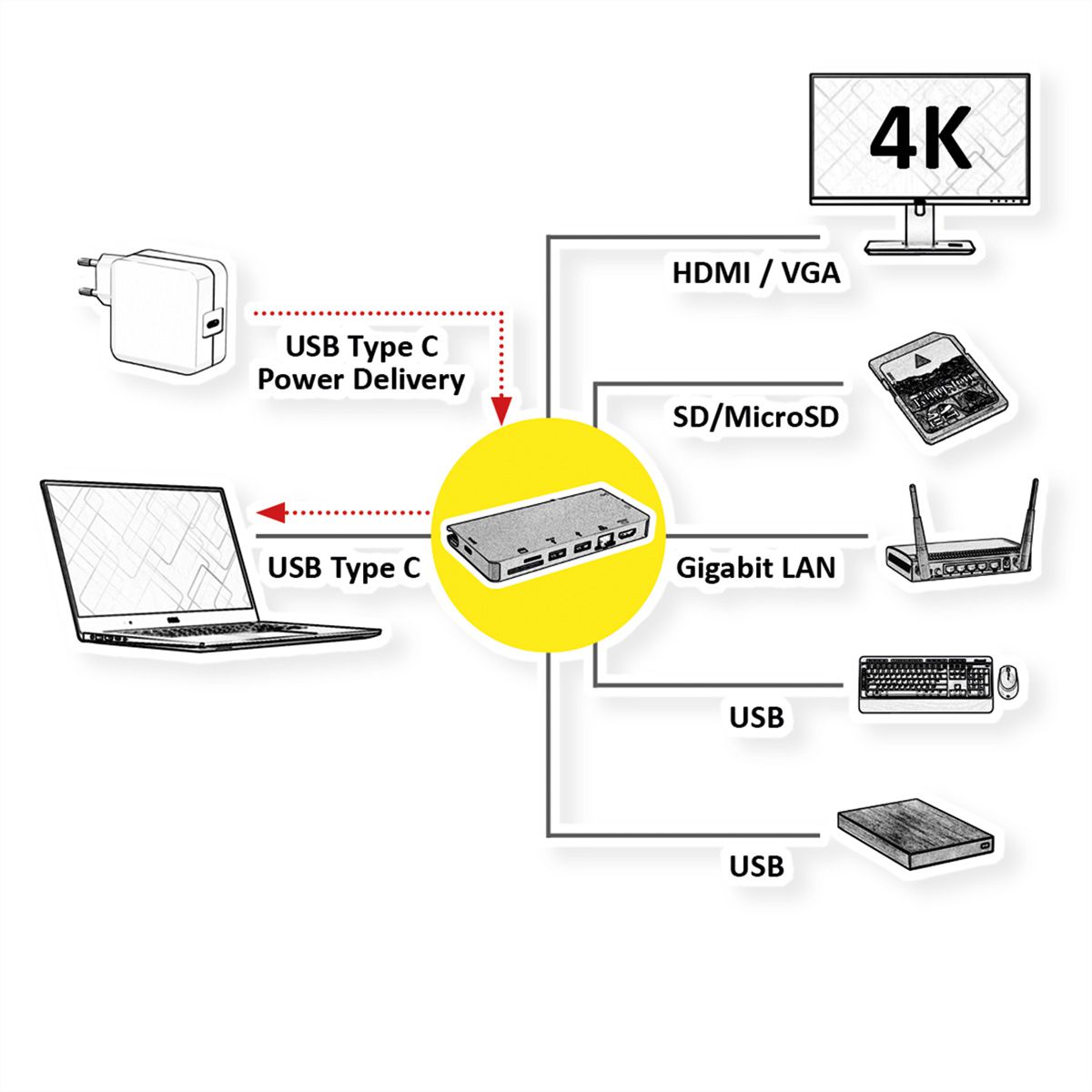

Docking Station for Macbooks, Ultrabooks or Notebooks/Laptops - offers HDMI in 4K, 1x VGA, two USB 3.0 / 3.2 Gen 1 ports, SD/MicroSD card reader, USB type C PD (Power Delivery) and one port for Gigabit Ethernet. You get a fast and easy connection to the peripherals you use every day, including VGA and HDMI ports with a maximum resolution of up to 3840x2160 @30Hz!
- Plug & Play
- aluminium casing

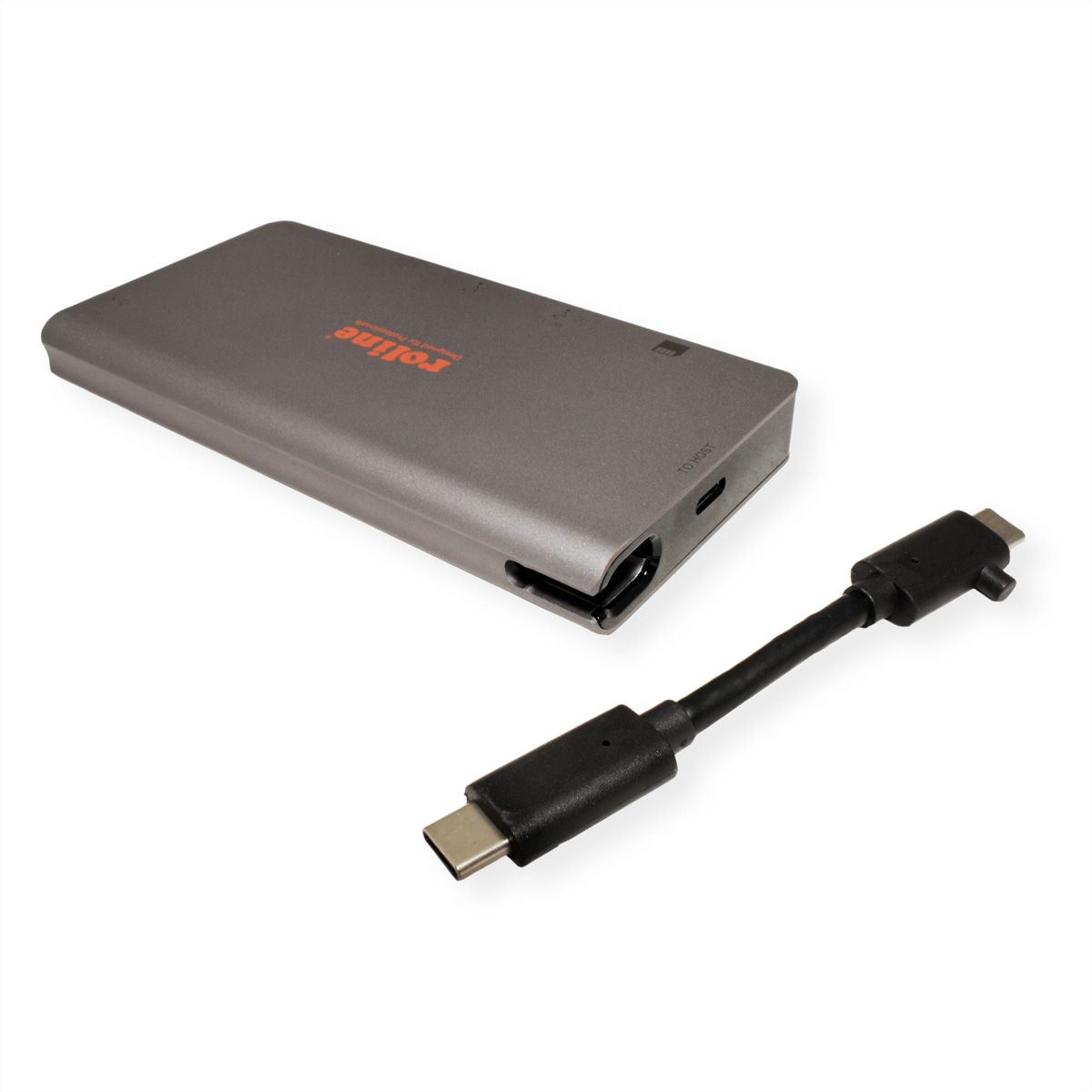

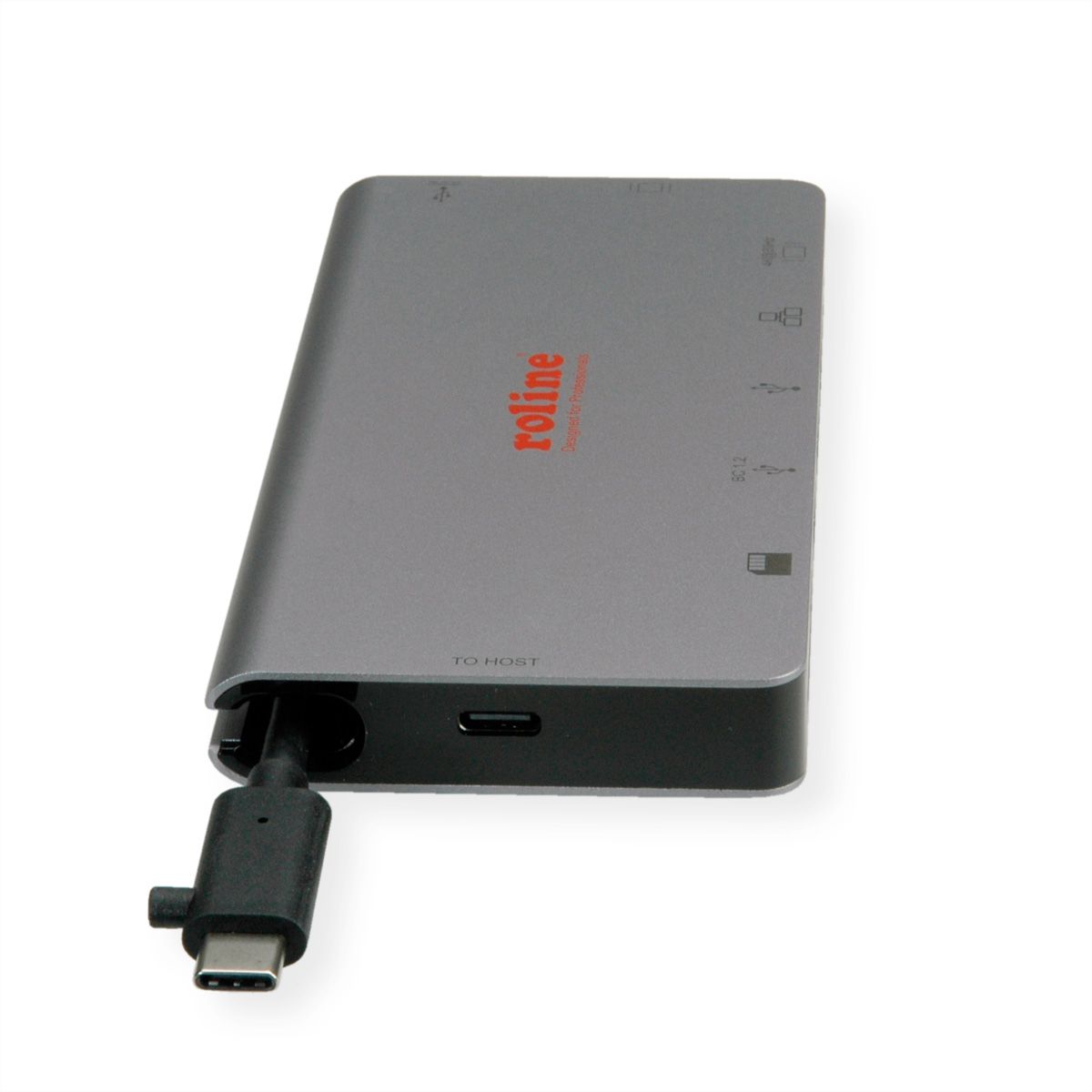

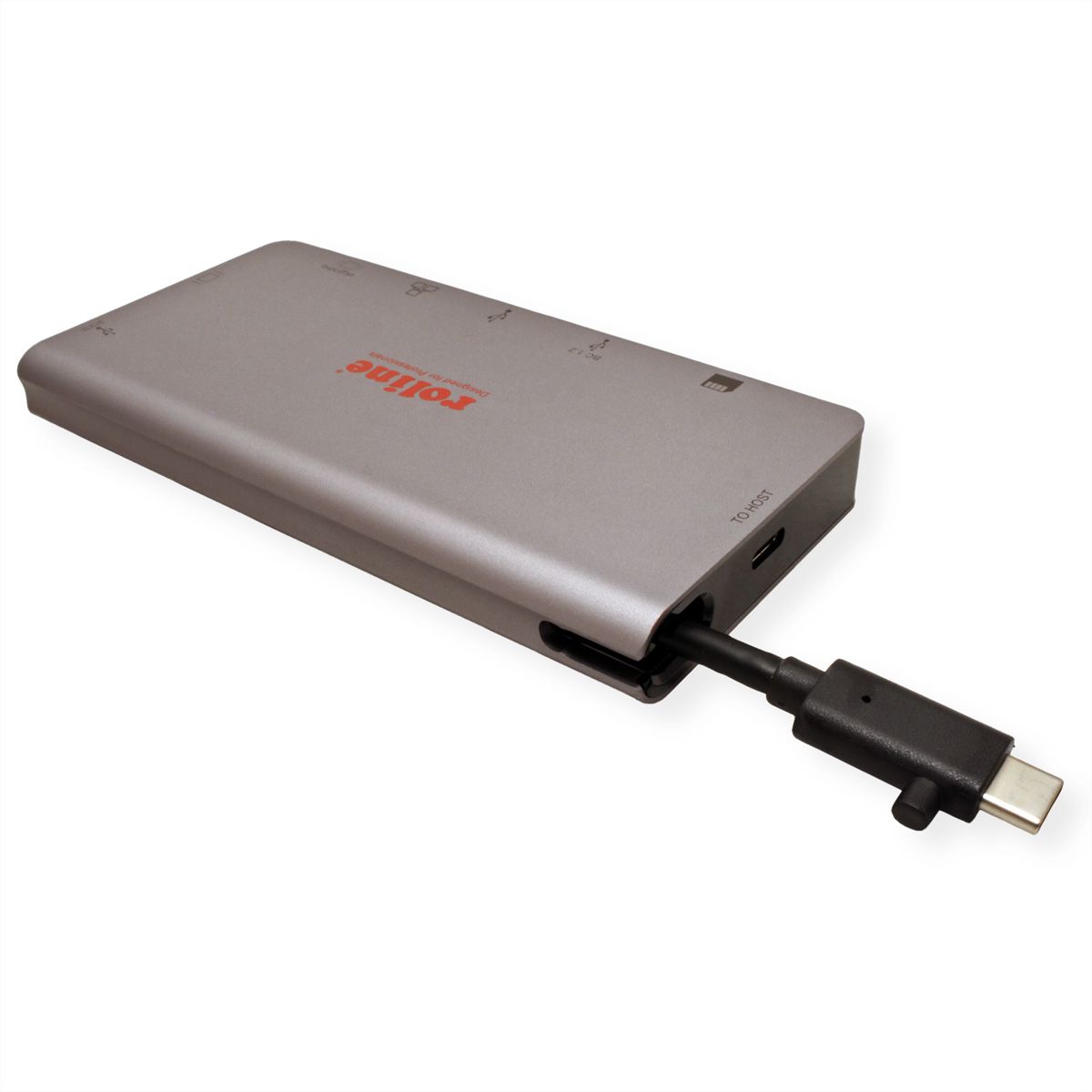

- Small, compact design with a small special feature: the included USB Type C connection cable can be easily stowed in the docking station - it is therefore neither lost nor damaged during transport.
- One of the two USB 3.0 / USB 3.2 Gen 1 Type A ports supports Battery Charge v1.2 (5V 1.5A) to easily power even larger hard drives
Connection to the device:
- 1x USB 3.1 / USB 3.2 Gen 2 Type C BU
Connection for peripheral devices:
- 1x HDMI and 1x VGA port video output: Mirror or expand your screen to a TV, monitor or projector with up to 3840x2160 @30Hz resolution.
- 2x USB 3.0 / USB 3.2 Gen 1 type A ports (data transfer rate up to 5Gbit/s), e.g. for connecting a wired keyboard or mouse, USB HDD/SSD, etc.
- 1x SD/TF card reader
- 1x USB Type C BU, PD (Power Delivery)
- 1x RJ45 for Gigabit Ethernet
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Adapters, Terminators, Converters |
Product type | Notebook-Docking-Station |
Colour | Aluminium |
Scope of delivery | Docking Station |
Side 1 connection (PC) | USB Type C |
Side 2 connection (Peripherals) | 1x HDMI, 1x VGA, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x SD/TF card reader, 1x USB Type C PD, 1x RJ45 |
Side 1 Connector Type | USB Type C (USB-C) |
Side 1 Connector Gender | Male |
Side 2 Connector Type |
|
Side 2 Connector Gender | Female |
Area of application | External |
Weight | 138.1 g |
Height of packaging (single piece) | 170 mm |
Width of packaging (single piece) | 40 mm |
Depth of packaging (single piece) | 170 mm |
Package weight (single piece) | 0.15 kg |
