ROLINE USB Type C docking station, 4K HDMI, 2x USB 3.0 / USB 3.2 Gen 1 ports, 1x SD/MicroSD card reader, 1x USB Type C PD (Power Delivery) + Data, 1x Gigabit Ethernet
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
The docking station is supplied for Macbooks, Ultrabooks or Notebooks/Laptops and provides a quick and easy connection to the workplace peripherals that you use every day, including one HDMI connector, that allows you a maximum resolution of up to 3840x2160 @60Hz!
- Plug & Play
- Aluminium casing
- Small, compact design
- System requirement: Windows 7/8/10 or MacOS X10.2 and higher
Connection to device:
- 1x USB 3.1 / USB 3.2 Gen 2 Type C M

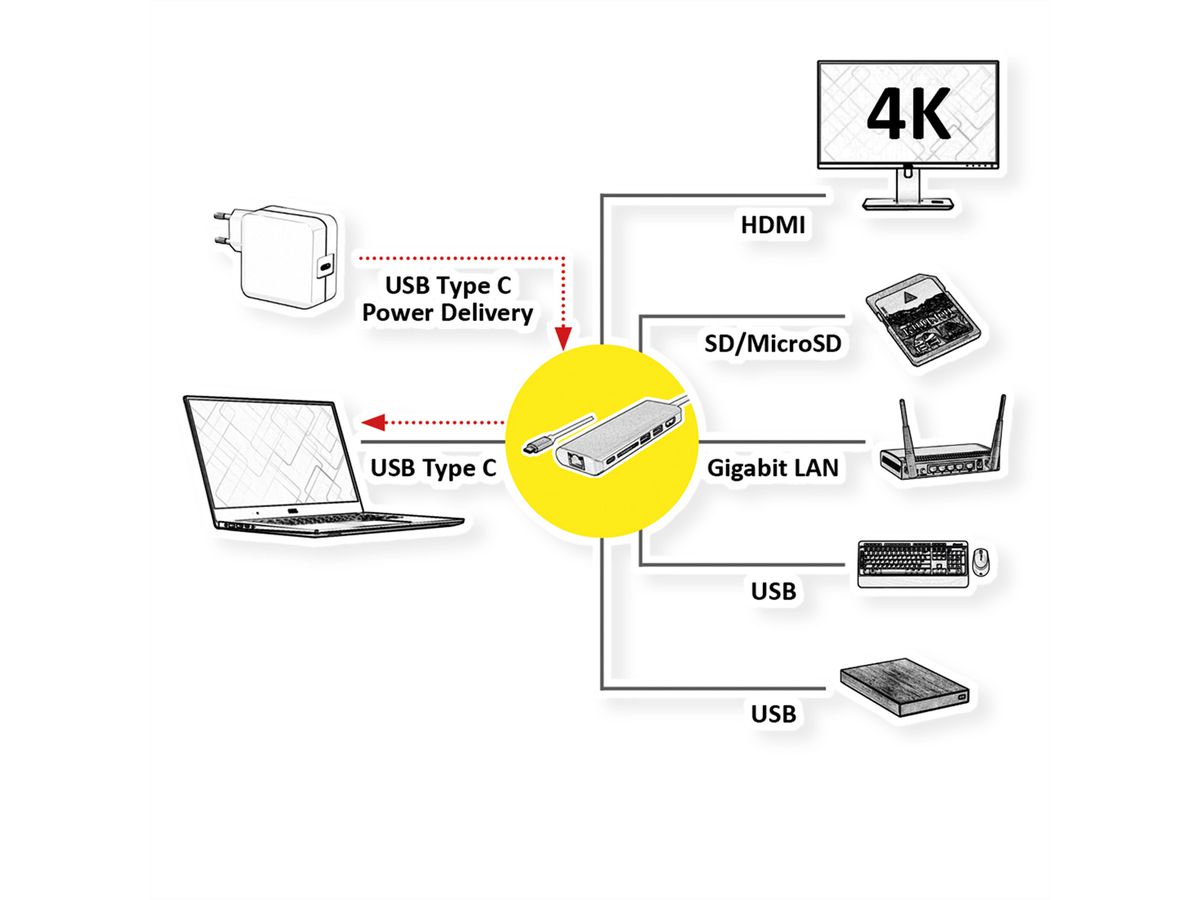

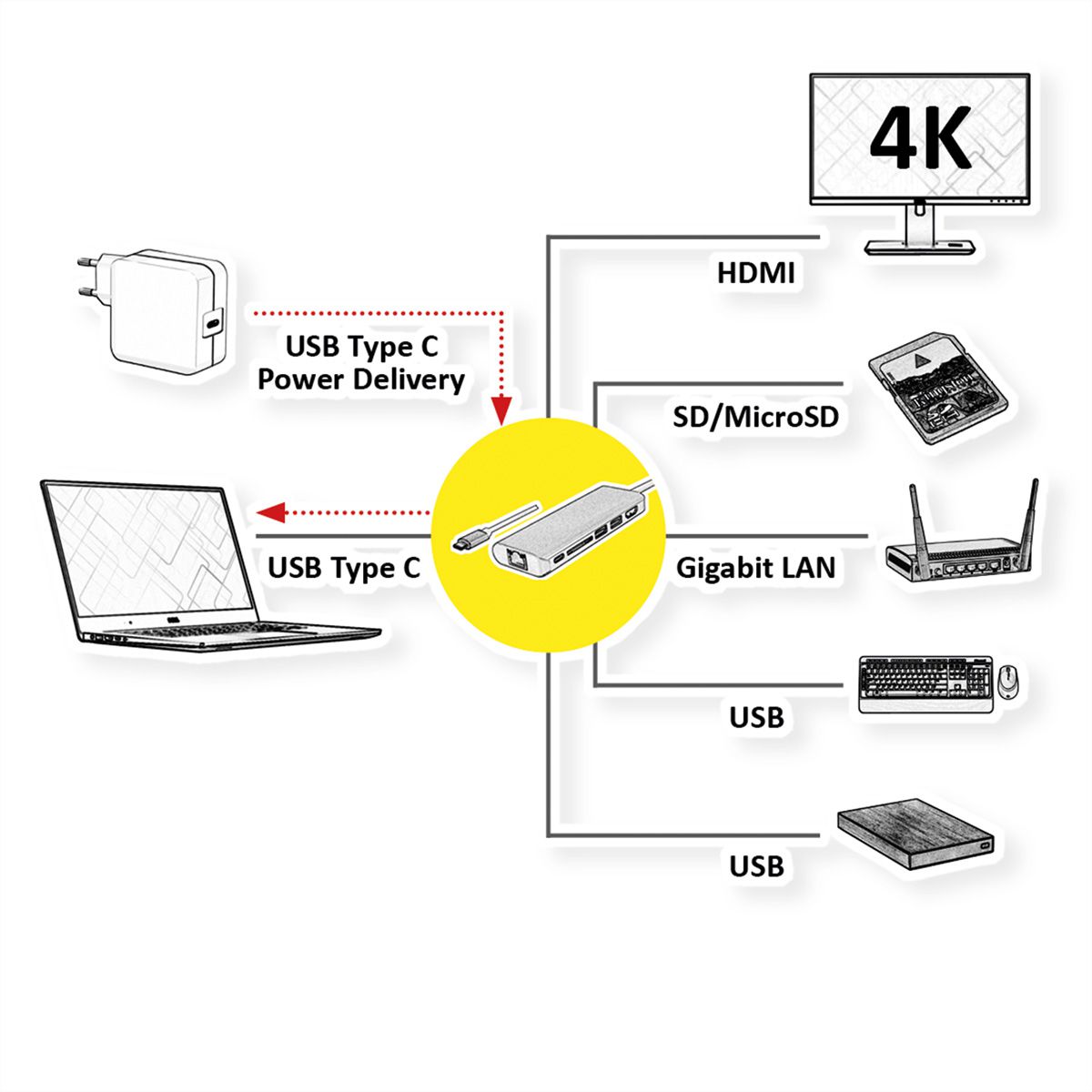

Connection for peripheral devices
- 1x HDMI Video Output: Mirror or extend your screen to a TV, monitor or projector.
- 2x USB 3.0 / USB 3.2 Gen 1 ports (data transfer rate up to 5Gbit/s), for connection of wired keyboard/mouse, USB HDD/SSD, etc.
- 1x SD/TF Card Reader
- 1x USB Type C PD (Power Delivery) + Data
- 1x RJ45 for Gigabit Ethernet
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Adapters, Terminators, Converters |
Product type | Notebook-Docking-Station |
Colour | silver |
Length | 0.1 m |
Scope of delivery | Docking Station, manual |
Side 1 connection (PC) | USB Type C |
Side 2 connection (Peripherals) | 1x HDMI, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x SD/TF, 1x USB Type C PD, 1x RJ45 |
Side 1 Connector Type | USB Type C (USB-C) |
Side 1 Connector Gender | Male |
Side 2 Connector Type |
|
Side 2 Connector Gender | Female |
Area of application | External |
Weight | 83.7 g |
Height of packaging (single piece) | 30 mm |
Width of packaging (single piece) | 170 mm |
Depth of packaging (single piece) | 140 mm |
Package weight (single piece) | 0.093 kg |
