ROLINE UTP Cable Cat.5e (Class D), Stranded Wire, 100 m
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
- Structured building wiring
- Impedance: 100 Ohm
- 3P verified
- Colour: Grey
- Construction 21.15.0518: 8 lines, copper, stranded wire AWG24

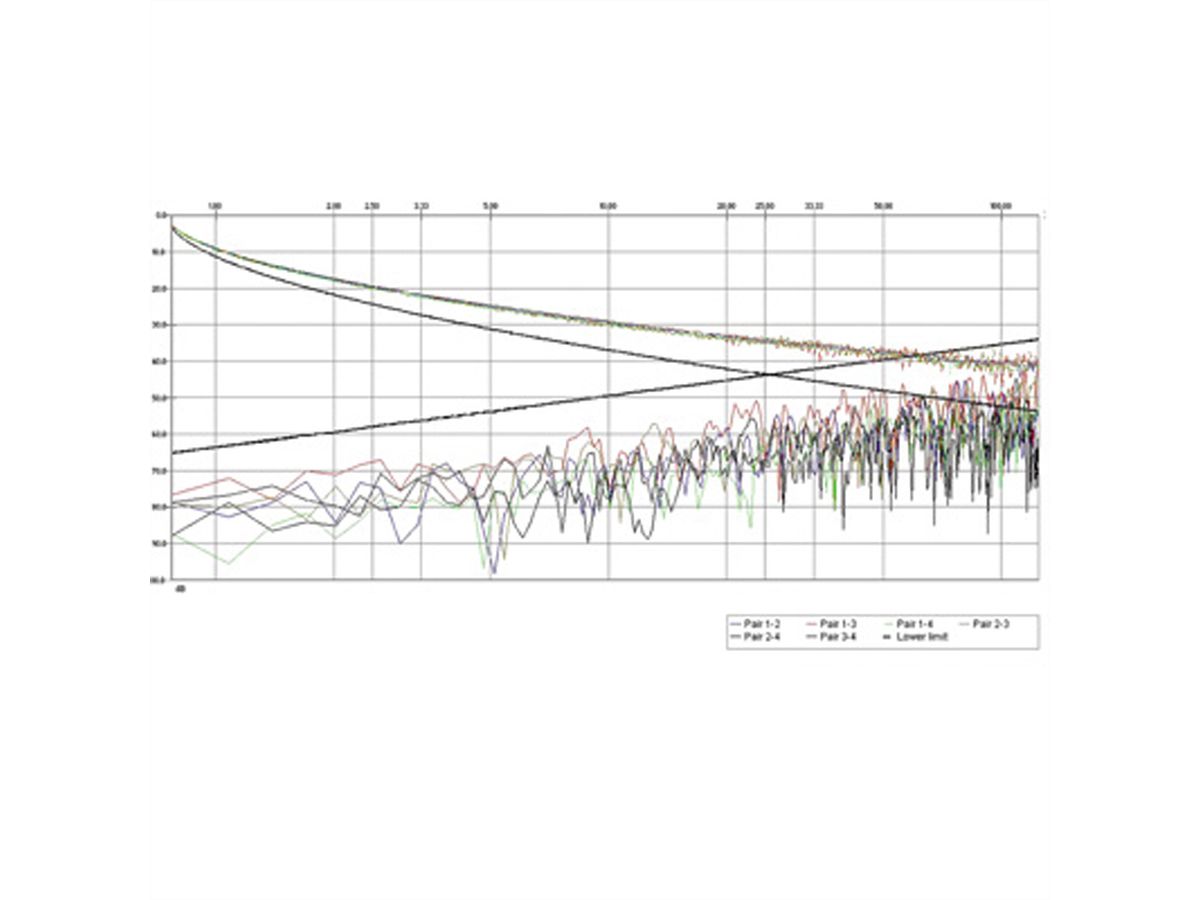

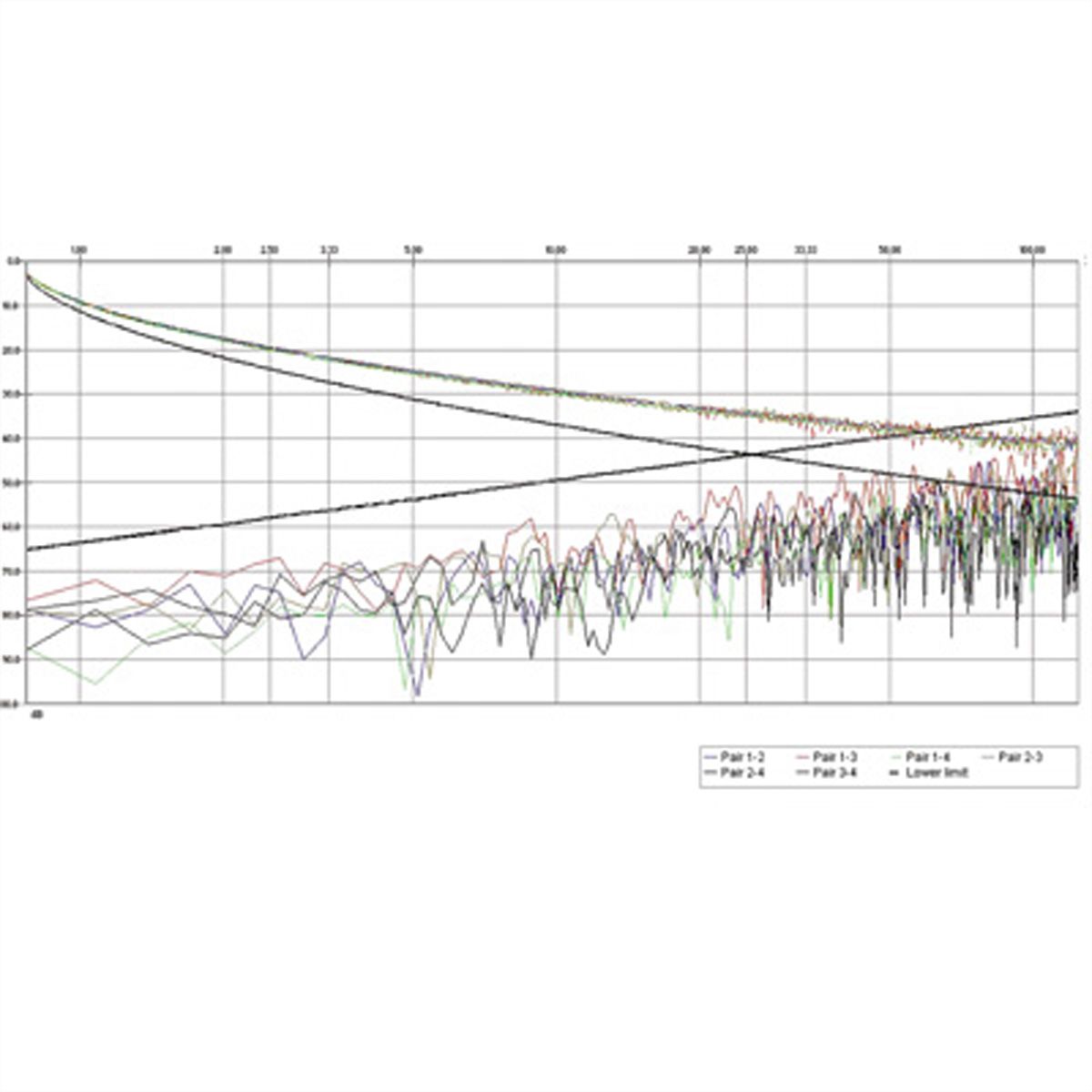

- Diagram: attenuation/near end crosstalk
For a structured cabling system we recommend to use the following components:
ROLINE Cat.5e UTP Cable, Solid Wire, AWG24: 21.15.0512 (100 m), 21.15.0511 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, unshielded: 25.16.8506 (white), 25.16.8501 (ivory)/25.16.8406 (white), 25.16.8401 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, unshielded: 26.11.0349 (black), 26.11.0347 (light grey)
ROLINE Cat.5e UTP Patch Cord, grey, 5 m: 21.15.0505
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Twisted Pair Cable |
Product type | Raw cable Cat.5e |
Colour | grey |
Length | 100 m |
Contents | 100 m |
Shield type | UTP |
Transfer quality | Cat5e / Class D |
Impedance | 100 Ohm |
Quantity of wires | 8 |
Conductor cross section (AWG) | AWG 24 |
Conductor type | Stranded |
Cable LSOH | no |
Material (external cable mantle) | PVC |
Weight | 3657.6 g |
Height of packaging (single piece) | 290 mm |
Width of packaging (single piece) | 180 mm |
Depth of packaging (single piece) | 290 mm |
Package weight (single piece) | 3.424 kg |
